Swegon WISE Parasol EX 690 User manual

WISE Parasol EX a
Instructions for Use 23 /11/ 2017
Art. 942428036
The document was originally written in Swedish.
Content
Symbol key ................................................................. 1
Application area.................................................. 2
General .................................................................... 2
Contents................................................................... 2
Protective equipment................................................ 2
Electrical safety ......................................................... 2
Handling................................................................... 2
Installation ................................................................ 2
Dimensions and weights.................................... 3
Dimensions ............................................................... 3
Weight ..................................................................... 3
Installation, base module................................... 4
Suspension ............................................................... 4
A: Suspended installation.......................................... 4
B: Surface mounted installation................................. 4
Water ....................................................................... 6
Air ............................................................................ 7
Commissioning.................................................... 8
Nozzle setting........................................................... 8
ADC ......................................................................... 8
Connections......................................................... 9
WISE Parasol EX with factory-fitted components....... 9
Factory fitted components as an option .................... 9
LED - Explanation...................................................... 9
Installation, design module ............................. 10
Use......................................................................... 13
Trouble shooting..................................................... 13
Cleaning ................................................................. 13
Service/maintenance............................................... 13
Materials and surface treatment.............................. 13
Disposal.................................................................. 13
Product warranty .................................................... 13
Technical data......................................................... 14
Electrical data ......................................................... 14
Symbol key
Symbols on the machine.
This product complies with applicable EU
directives
Symbols in this user manual
Warning/Caution!
Declaration of Conformity ............................... 14
References .............................................................. 14
Maintenance...................................................... 15

WISE Parasol EX
2
Swegon reserves the right to alter specications. 23/11/2017
Application area
The product is a suspended comfort module with inte-
grated radio transmitter designed for demand-controlled
climate indoors within Swegon’s ventilation system WISE.
The product is used to ventilate, cool and heat premises
exactly as needed.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use
before you install/use the product and save the
instructions for future reference. It is not permis-
sible to make changes or modify this product
other than those specified in this document.
Contents
1 x WISE Parasol EX (base module)
1 x WISE Parasol EX (design module)
1 x Instructions for use
Protective equipment
Always use appropriate personal protective
equipment for the work in question, in the
form of gloves, respirators, protective glasses
and helmets during handling, installation,
cleaning and service/maintenance.
Electrical safety
Permitted voltage, see Electrical data.
It is not permissible to insert foreign objects
into the product’s contactor connections or
ventilation openings; risk for short circuiting.
24 V isolation transformer to be connected should comply
with the provisions of IEC 61558-1.
Cable sizing must be carried out for cabling between the
product and the power supply source.
Disconnect the power supply when working on products
that are not required to run.
Always follow the local/national rules for who shall be
permitted to carry out this type of electrical installation.
Handling
Always use appropriate transport and lifting devices when
the product is to be handled to reduce ergonomic loads.
The product must be handled with care.
Installation
• Moist, cold and aggressive environments must be
avoided.
• Assemble the product according to this instruction and
applicable industry regulations.
• Install the product for easy access during service/main-
tenance.
• Avoid installing the product near a heat source.
• Check to make sure that the product does not have
any visible defects.
• Check that the product is properly secured after it has
been installed.
• Secure cables with cable ties.
• Check that all cables are properly secured in place after
installation.

3
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX

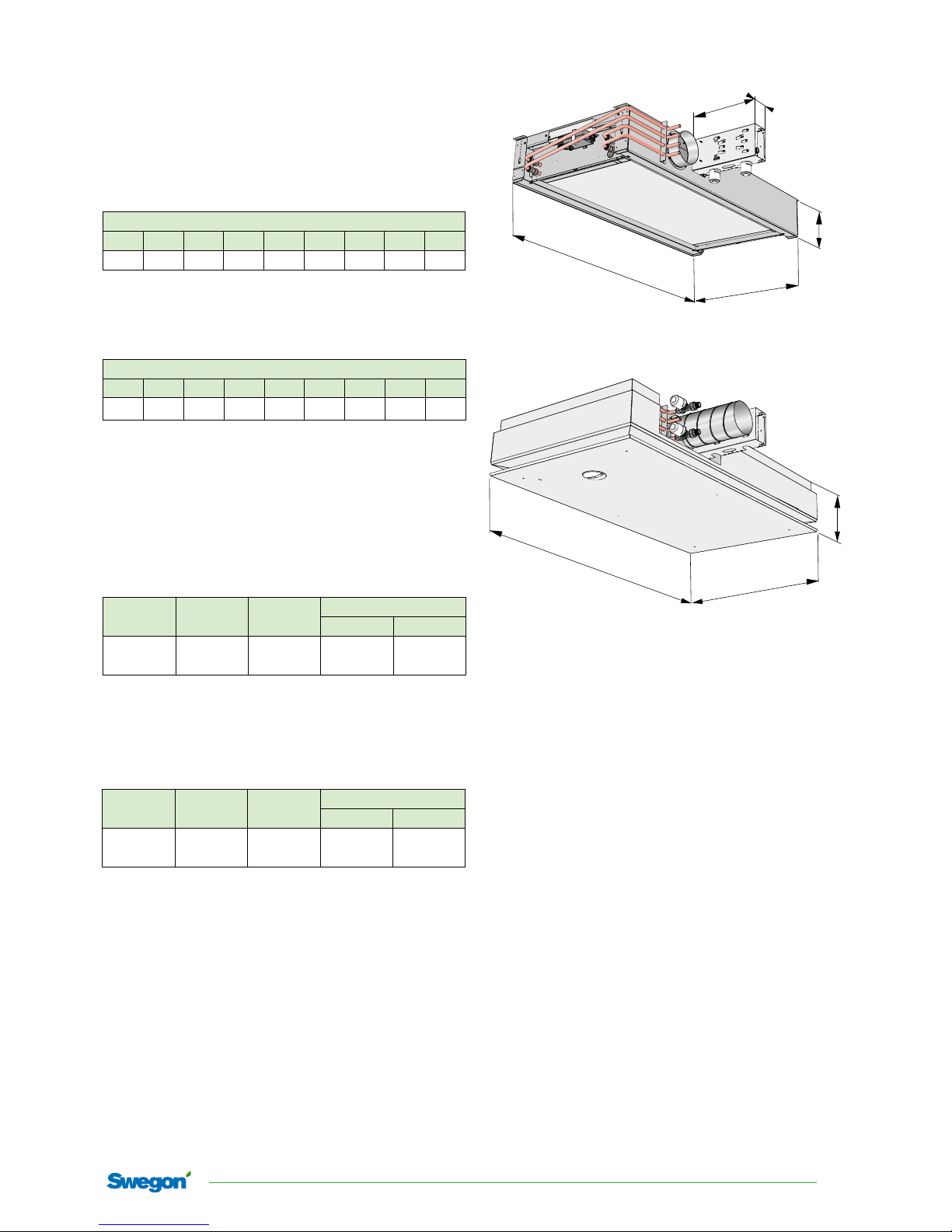

Dimensions and weights
Weight, WISE Parasol EX 1290
Size Type Dry weight
(kg)
Water volume (l)
cooling heating
1290 1290 -A 34.7 1.4
1290 1290 -B 39.7 1.4 0.9
Weight incl. design module but excl. sensor module WISE SMB (0.1) kg.
Dimensions, WISE Parasol EX 690
Dimensions (mm)
A B C D E F G H * Ø
570 567 178 70 280 690 690 230 125
* When the sensor module WISE SMB is installed in the face plate the height meas-
urement (H) increases by 12 mm
Dimensions, WISE Parasol EX 1290
Dimensions (mm)
A B C D E F G H * Ø
1170 567 198 70 280 1290 690 230 125
* When the sensor module WISE SMB is installed in the face plate the height meas-
urement (H) increases by 12 mm
Dimensions
Weight
D
B
E
C
A
G
F
H
Dimensions base module
Dimensions with installed design module
Weight, WISE Parasol EX 690
Size Type Dry weight
(kg)
Water volume (l)
cooling heating
690 690-A 21.9 1.1
690 690-B 23.2 1.1 0.2
Weight incl. design module but excl. sensor module WISE SMB (0.1 kg).

WISE Parasol EX
4
Swegon reserves the right to alter specications. 23/11/2017

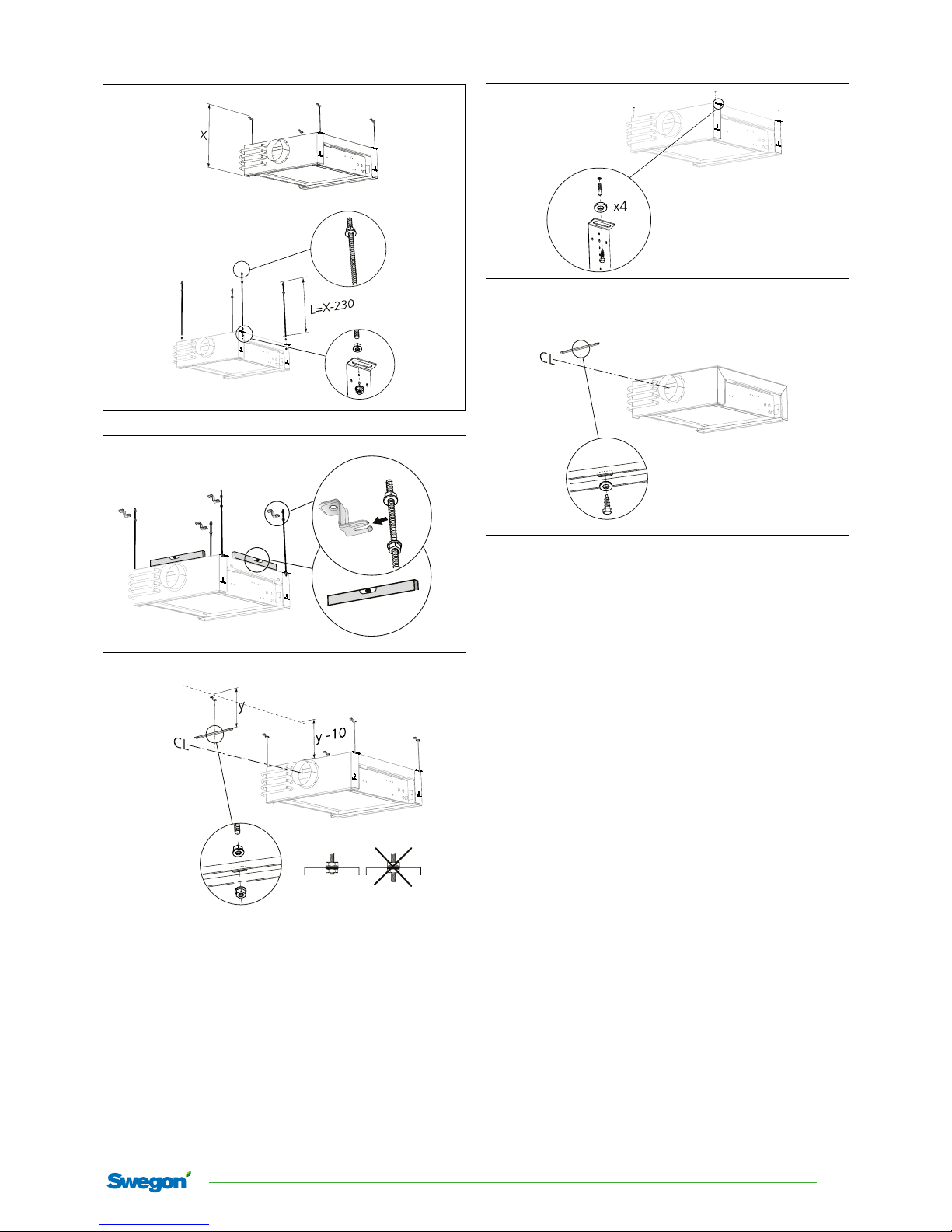

Installation, base module
Suspension
A1, B1
A1, B1
B2A2
B: Surface mounted installation
A: Suspended installation

5
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX
A3 B3
B4
M8
A4
A5

WISE Parasol EX
6
Swegon reserves the right to alter specications. 23/11/2017

Note that compression ring couplings
require support sleeves inside the pipes.

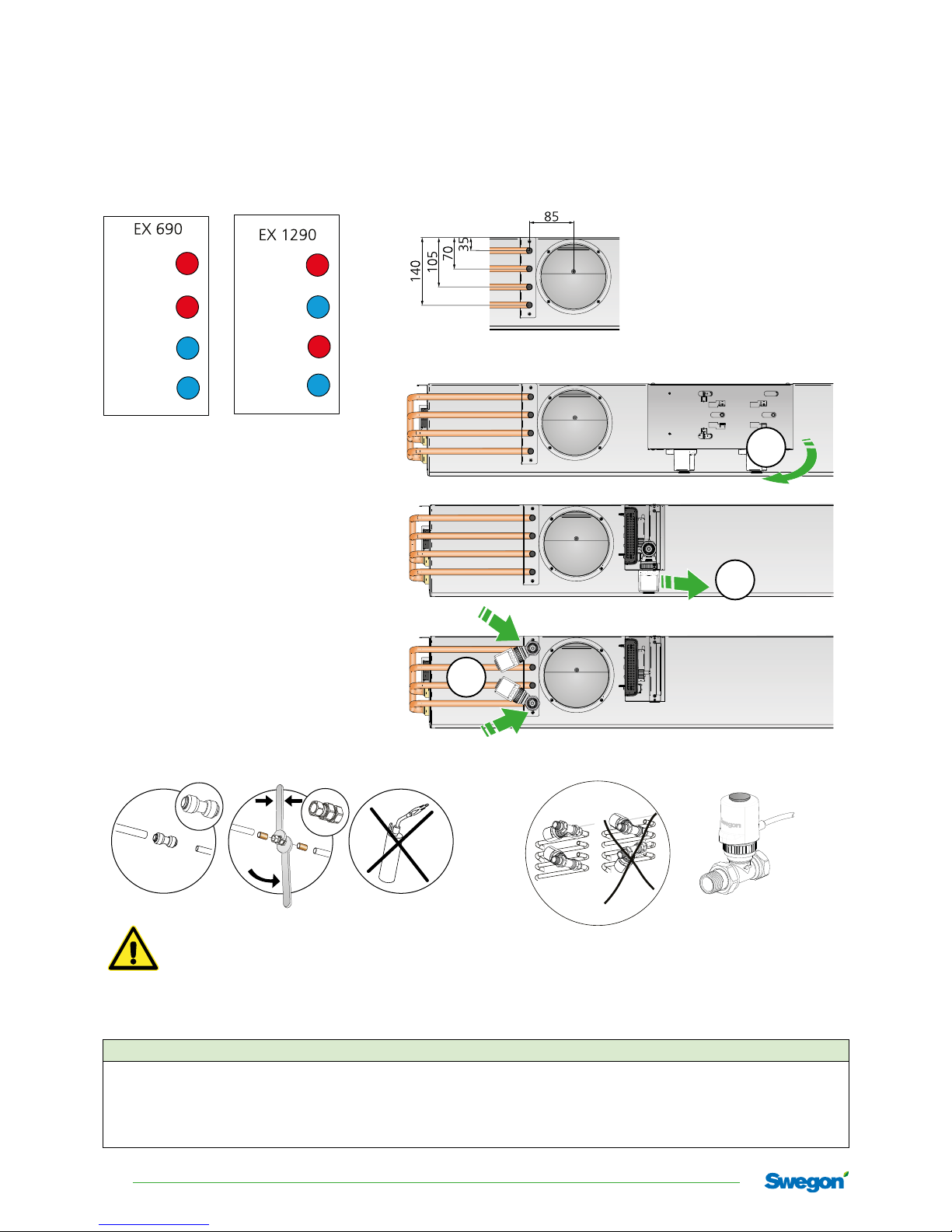

Water
Location water pipes
Connection sizes
WISE Parasol EX: Model Supplied / Connected Connection Coupling type Connection Coupling type
A only Cooling Actuators and valves Return DN15, male thread Supply pipe Plain pipe 12x1.0 mm
B Cooling/Heating Actuators and valves Return DN15, male thread Supply pipe Plain pipe 12x1.0 mm
A only Cooling - Return Plain pipe 12x1.0 mm Supply pipe Plain pipe 12x1.0 mm
B Cooling/Heating -Return Plain pipe 12x1.0 mm Supply pipe Plain pipe 12x1.0 mm
Värme retur/
Heating return
B2
Värme tillopp/
Heating supply
B1
Kyla tillopp/
Cooling supply
A1
Kyla retur/
Cooling return
A2
Värme retur/
Heating return
Kyla retur/
Cooling return
B2
Värme tillopp/
Heating supply
B1
A2
Kyla tillopp/
Cooling supply
A1
B
A
C
utvändig gänga DN (1/2”)
A. Open out the guide plate 90°
B. Remove the connected valve kits from
the guide plate
C. Fit the valve kits on the water pipes for
cooling return and heating return.
Valve kit installation

7
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX

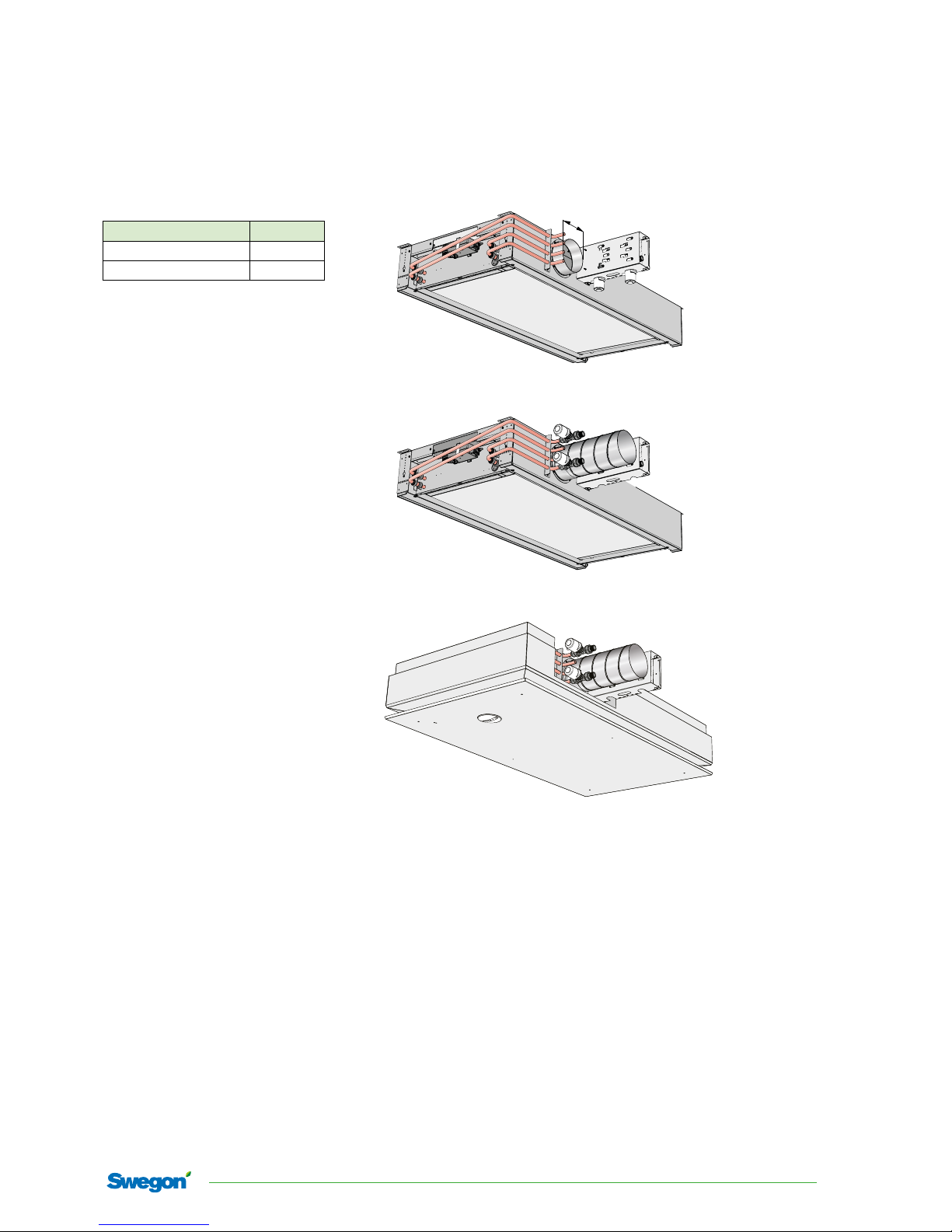

Connection dimensions
Unit Ø=
WISE Parasol EX 690 MF Ø 125
WISE Parasol EX 1290 HF Ø 125

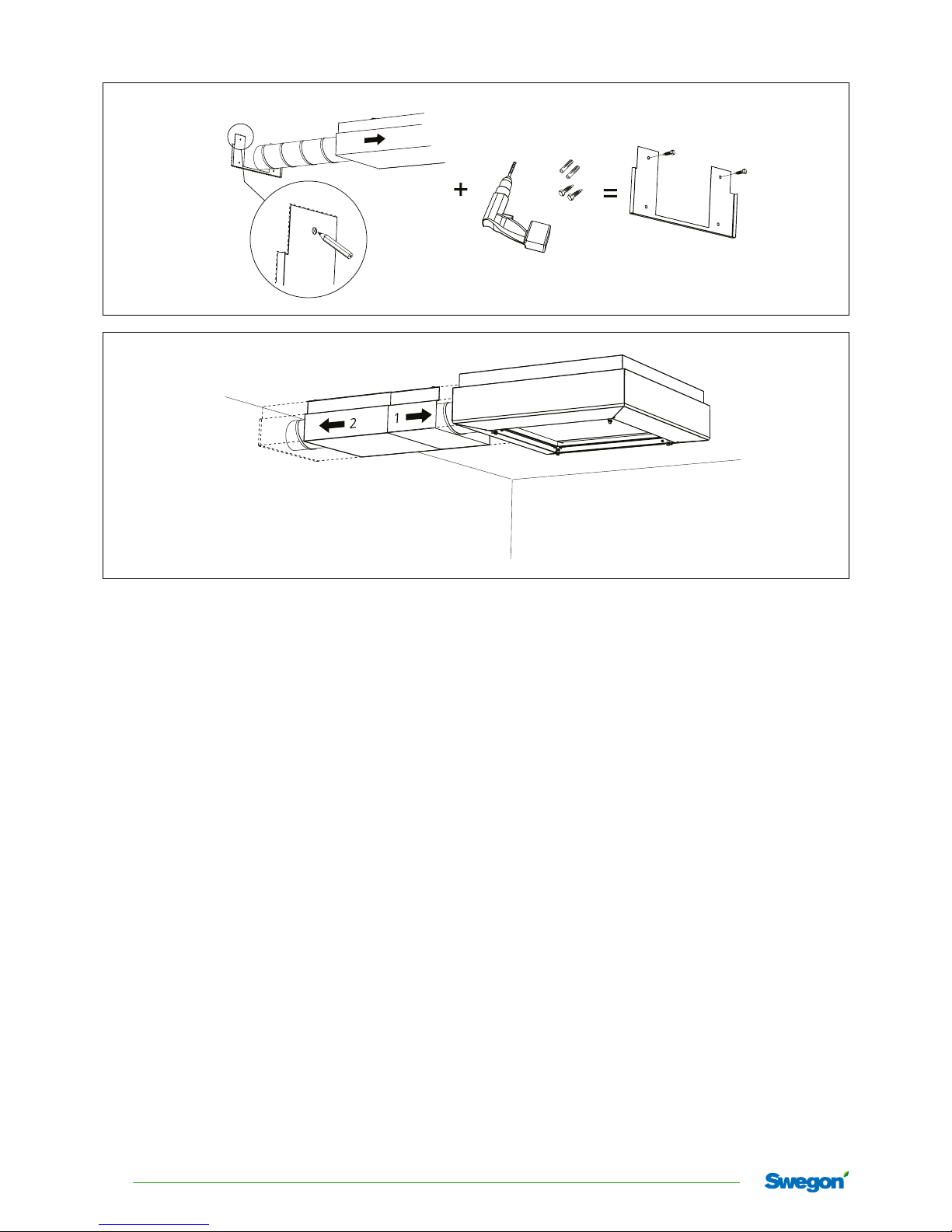

Air
Ø

WISE Parasol EX
8
Swegon reserves the right to alter specications. 23/11/2017
q = k · √p [l/s]
i
[pi Pa]
q [l/s]
k= k-factor
p = [Pa]
i()
k
q2
Water
Air
1
2
4
3

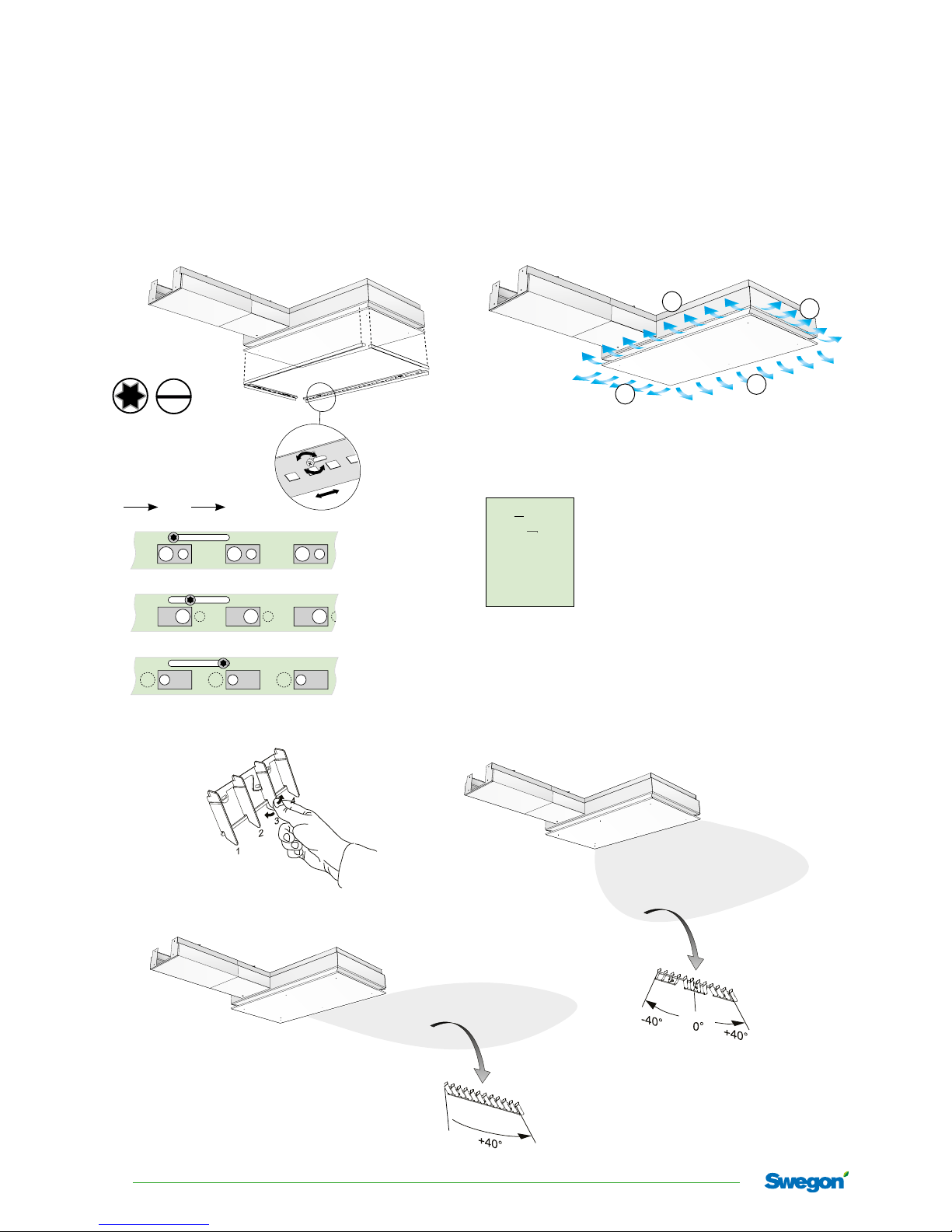

Nozzle configuration
H M L
H =
M=
L=
1 x 8
T-25
Commissioning
Fan-shape
X-shape
WISE Parasol EX is a part of the WISE system that demand-controls both air and water on a room level and guarantees
the highest level of indoor climate with minimum energy consumption. This means that when the installation and inter-
connection of the system is completed, no further trimming is required except for the nozzle setting and any adjust-
ment of ADC.
Nozzle setting
ADC
Page 1-4

9
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX
b. Connection of actuator
with 0-10 V control signal
NOTE! 24 V DC supply
a. Connection of thermal
actuator
There are different types of actuator.
For connection of the thermal actuator
such as Swegon’s actuator ACTUATORb,
see figure a.
For connection of actuators with 0-10 V
control signal, see figure b.
Actuator with
0-10 V con-
trol signal
0-10 V DC
Ground
24 V DC
24 V DC
Ground
Thermal
actuator
WISE Parasol EX with factory-fitted components
• WISE CU (Controller Unit)
• Temp. sensor (WISE DPS Modbus)
• Motor, air damper
Factory fitted components as an option
• Sensor Module Advanced (WISE SMA), (Optional)
• Sensor Module Basic (WISE SMB), (Optional) **
• Valves and actuators for cooling *
• Valves and actuators for heating *
• Temp. sensor
• Condensation sensor
*Supplied connected but require installing on the pipes
** Supplied but requires easy installation on the face plate.
Cable for connection of WISE SMB is prefitted on the base
module and connected on WISE CU, but requires the cable to be
connected on WISE SMB on the face plate
LED - Explanation
Not paired
Colour Type
Energized White Permanent
Selected in TuneWISE White Flashing, fast
Prepared to be added
to the system White Flashing, slowly
To be added to the
system White Flashing, fast for 5 s
Paired
Colour Type
Normal operation Green Permanent
Restart Blue Permanent for 10 s
Initiation Blue Flashing
Boosted max. flow Orange Permanent
Boosted min. flow Orange Permanent
Boosted water flow Violet Permanent
Boosted water flow/
air flow Violet/Orange Alternating
Connections
POWER
6 7 8 9 10 +11-
1 2 3 4 5
STATUS
COM
WISE Parasol EX, connection.
24 V AC Valve
actuator
1 & 2
(Optional)
Temp. sensor
(Optional)
Condensation sensor
(Optional)
Pressure tube
Ground
0-10 V DC
WISE SMB
(Optional)
WISE SMA
(Optional)
WISE DPS Modbus
24 V DC
Cooling
Heating
LED
POWER
6 7 8 9 10 +11- STATUS
COM Motor
WISE CU

WISE Parasol EX
10
Swegon reserves the right to alter specications. 23/11/2017
A11, B10
A12 , B11
TORX T-25 / 1 x 8
A13, B12
A14 , B13

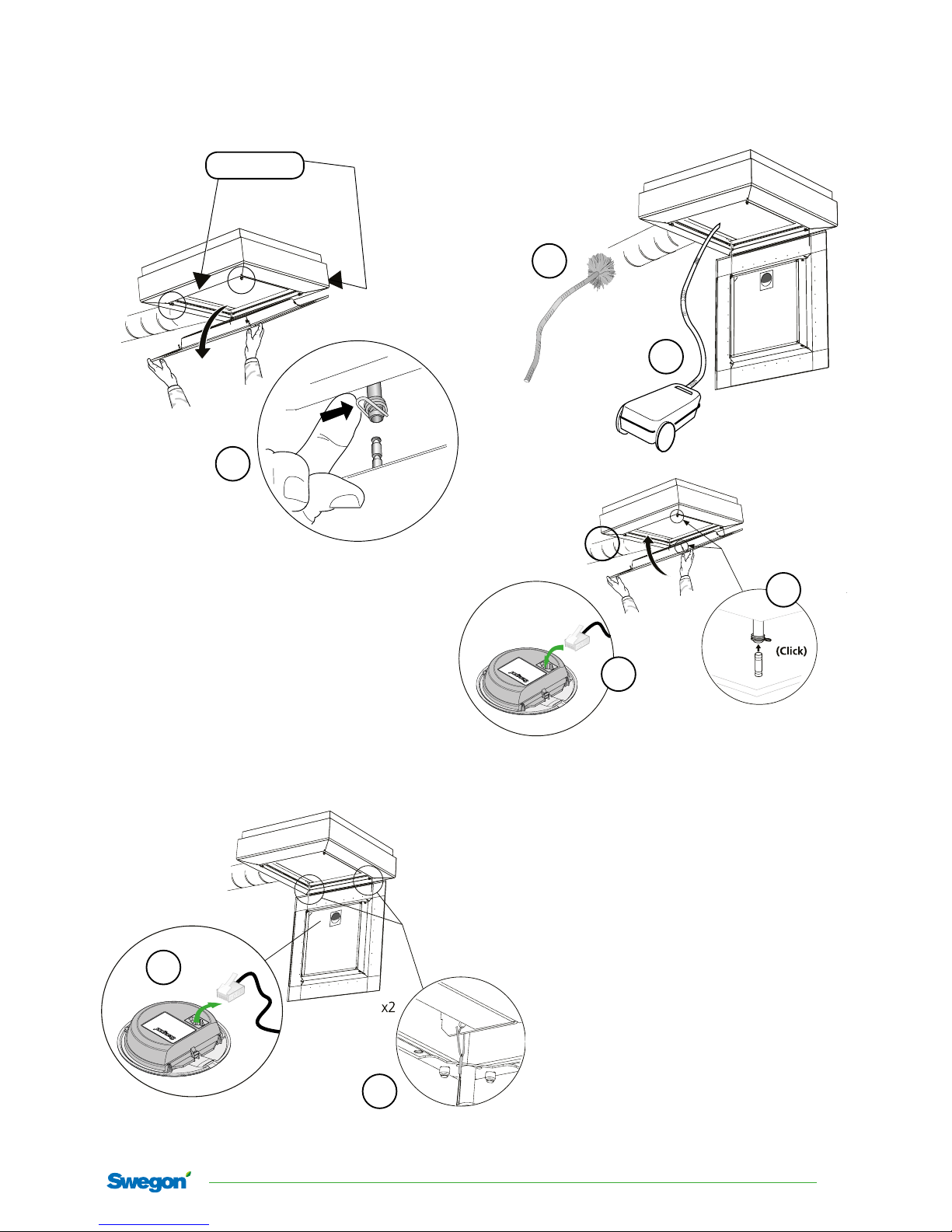

Installation, design module
Click!

11
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX
A15, B14
A16 B15
A17, B16
Click!

WISE Parasol EX
12
Swegon reserves the right to alter specications. 23/11/2017
A18, B17
A19, B18

13
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX
Use
Use TuneWISE for commissioning. Commissioning must
be performed by qualified and trained WISE service
engineers.
Use SuperWISE for settings, reading alarms, etc. refer to
the documentation for SuperWISE II / SuperWISE II SC.
Trouble shooting
The product is not shown in the system:
• Make sure that the product is energized. (e.g. diode)
• Make sure that the product is paired.
• Make sure the product is in the right network.
The product shows incorrect/no air flow/pressure
• Make sure that the product is installed according to the
recommended distance.
• Check that there is air flow/pressure.
• Check that the measuring tube is mounted correctly.
• Check that the measuring tube is undamaged.
The product does not regulate the air flow/pressure
• Check that the motor has not become detached from
the damper spindle.
• Check that the motor works by turning the motor’s
release button, turn the damper spindle, release the
knob and then see whether the motor starts to move.
The product shows incorrect/no temperature
• Make sure the temperature sensor is not missing.
• Make sure that the temperature sensor does not hang
outside the product.
• Check that the temperature sensor is connected to the
right input.
The product shows incorrect/no VOC/CO2
• Make sure the VOC/CO2 sensor (WISE SMA) is not
missing.
• Check that the VOC/CO2 sensor is connected to the
right input.
Cleaning
Ideally the product should be cleaned twice a year by
vacuuming the coil to remove loose dust. In fibre dense
environments a more frequent interval is recommended.
A simple visual inspection of connections is recommended
when cleaning.
Avoid aggressive cleaning agents which may harm
painted surfaces. Normally a mild soap or alcohol solution
is fully adequate for cleaning. See also the maintenance
section in this instructions for use.
Cleaning of electrical components
• If needed, use a dry cloth to clean the components.
• Never use water, detergent and cleaning solvent or a
vacuum cleaner.
Service/maintenance
• The product does not require any maintenance.
• In connection with a service, mandatory ventilation
inspection or cleaning of the ventilation system, check
that the general condition of the products looks ok.
Pay particular attention to the suspension, cables and
that they sit firmly in place.
• It is not permissible to open or repair electrical compo-
nents.
• If you suspect that the product or a component is
defective, please contact Swegon.
• A defective product or component must be replaced by
an original spare part from Swegon.
Materials and surface treatment
Sheet parts are made of galvanised sheet steel (Z275) and
pre-painted sheet SS-EN 10143+10346 - DX52D + ZA95,
NCS S 0500-N gloss 30+/-6%.
Disposal
Waste must be handled according to local regulations.
Product warranty
The product warranty or service agreement will not be in
effect/will not be extended if: (1) The product is repaired,
modified or changed, unless such repair, modification
or change has been approved by Swegon AB; or (2) the
serial number on the product has been made illegible or
is missing.

WISE Parasol EX
14
Swegon reserves the right to alter specications. 23/11/2017
WISE Parasol EX in standard version: VA /
unit
Standard
VA total
WISE CU 2.3
WISE DPS Modbus 0.8 5.1
Damper motor (315C) 2
Option: VA /
unit
Actuator, ACTUATORb 7
WISE SMA 0.8
WISE SMB 0.6
Example:
WISE Parasol EX in standard version with the following options:
Actuator for cooling and heating as well as WISE SMA, gives a
total power consumption of 5.1 + 7 + 0.8 = 12.9 VA
Declaration of Conformity
Swegon AB hereby affirms that
WISE Parasol EX with integrated radio, complies with the
essential characteristic demands and relevant regulations
specified in the following directives: 2006/42/EC (MD),
2014/53/EU (RED) and 2011/65/EU (RoHS2):
The following standards have been observed:
EN ISO 12100:2010 Safety of machinery - General principles for
design - Risk assessment and risk mitigation
EN 60204-1:2006 Safety of machinery - Electrical equipment
of machines - Part 1: Generic standards
EN 60730-1:2011 Automatic electrical control and control
unit for household use - Part 1: Generic
standards
EN 60730-2-14:2009 Automatic electrical controls for household
and similar use - Part 2: Particular require-
ments for electric actuators
IEC 60529:1992+A2:2013 Degrees of protection provided by enclo-
sures (IP code)
EN 61000-6-2:2007 Electromagnetic compatibility (EMC).
Generic standards. Immunity for industrial
environments
EN 61000-6-3:2007 Electromagnetic compatibility (EMC).
Generic standards. Emission standard for
residential, commercial and light-industrial
environments
EN 300 328 V1.9.2, V1.9.1,
V1.8.1
Electromagnetic compatibility and Radio
spectrum Matters (ERM) - Wideband
Transmission systems - Data transmission
equipment operating in the 2.4 GHz ISM
band and using spread spectrum modula-
tion techniques
EN 60335-1:2012+A11:2014
EN 60335-2-30:2009+A11
EN 62233:2008
Electric household appliances and similar
appliances - Safety - Part 1: Generic stand-
ards
Person responsible for this declaration:
Name: Robert Andersson, Factory Manager Arvika
Address: Fallebergsvägen 17, 671 34 Arvika, Sweden
Date: Arvika 2017-01-13
This declaration is applicable only if the product has been
installed according to the instructions in this document and
if no modifications or changes have been made on this
product.
Technical data
Max. radio frequency output: 50 mW
Frequency band: 2.45 GHz, IMS band
(2400-2483 MHz)
Temperature sensor: 0 - 50°C ± -0.5°C
Dynamic pressure sensor: 0 - 300 Pa
With WISE SMA
VOC sensor 450 - 2000 ppm
RH sensor: 0 - 100 RH%
IP class: IP20
Running time open/close (90°): 120 s
Ambient temperature
Operation: 0 – 50°C
Storage: -20 – +50°C
RH: 10 - 95%
(non condensing)
CE marking: 2016/42/ EC (MD)
2014 /53/EU (RED)
2011/65/EU (RoHS2)
Electrical data
Power supply: 24V AC ±15% 50 - 60Hz
Connections pipe dim.
Power: Screw terminal max. 2.5mm2
Valve actuator: Push-in spring force connections,
max. 1.5 mm2
Max. power consumption: See table below
References
www.swegon.com
Building Materials Declaration
WISE Parasol EX product data sheet
WISE System Guide
SuperWISE II / SuperWISE II SC User Manual
WISE Project Planning Guide VS & Cooling, Electric & Control
and Ventilation

15
23/11/2017 Swegon reserves the right to alter specications.
WISE Parasol EX
Maintenance
1
2
4
5
7
7
3
6
Click!
Opens side A or B
A
B

WISE Parasol EX
16
Swegon reserves the right to alter specications. 23/11/2017
942428036
