Swiss Military SMT-480 User manual

1411
Instruction Manual / Quality Guarantee
TABLE OF CONTENTS
Guidelines and Instructions Before Use / 2
Safety Precautions/ 3 ~ 4
Product Specifications / 5
Instructional Manual/ 6 ~ 10
Product parts and components/ 11 ~ 12
Warranty / 13
Thank you for purchasing the Swiss Military Electric
Tool. Please read the handbook completely before using.
After reading, please keep this at an accessible area
along with the product.

※Instruction Manual
■PLEASE READ CAREFULLY BEFORE USING
1. Turn the ON/OFF switch only when using the product.
2. Keep the switch in middle (lock-off) when swapping bits, batteries or moving to
another work area.
3. Be careful not to slip off the target when using long bits.
4. Keep the batteries separated from the product when not in use.
■SAFETY INSTRUCTION
※ Using a different adaptor other than the specified may damage the product.
※ After reading, please keep the product where you can see it at all time.
Please follow the manual carefully to avoid damages and injuries.
1. Please install the battery correctly and securely before using.
2. When the product overheats, immediately discontinue use and wait for the
product to cool down before using again.
3. Do not attempt to swap bits while the machine is switched on.
4. Avoid using any components that does not come with the product.
5. Do not disassemble or damage batteries.
Keep batteries in room temperature and use the charger only when charging batteries.
6. Do not expose batteries in direct sun ight or leave in high temperature environment.
This may cause for the battery to explode. If it feels hot, leave it to cool down before using again.
7. It is advisable for the battery to drain completely before charging. This will help prolong its life.
8. Use only the charger included in this package.
Caution: Follow the instructions to avoid serious injuries or damages
to the product.
Warning: Follow the instructions to avoid serious injuries and accidents.
Must prohibit doing this action Must unplug the power
Must follow the instruction
Must follow this instruction
Do not disassemble

■WARNING!
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Remember
Prohibition
Do not touch the power cable
when your hands are wet.
※It may cause electric shock.
Do not unplug by pulling the cable.
※It may damage the cable and cause
fire or electric shock.
Do not plug too many powers
into same extensions.
※ It may cause short circuit and start a fire .
Do not place the product on
uneven surface.
※The product might fall and gets
damaged.
Do not touch the rotating part of
the product when the power is on.
※It may cause serious injuries
Always keep out of children’s reach.
※It may cause serious injuries.
When the product is not in use,
please switch it off, unplug the power
cable and remove the battery

Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Keep the product away from high
temperature
※It may cause discoloration and damage
the product.
Do not disassemble, modify or
repair the product.
※Mishandling may cause damage,
fire and / or injuries.
Avoid any damages to the
power cable.
※It may cause fire or electrical shock.
Avoid getting in contact from
anything wet or flammable.
※It may cause fire or explosions.
Wipe off water or any dust particles
completely on the power plug pins.
※It may cause fire and electric shock.
When cleaning the product, please turn the
power off, unplug it and remove the battery
and then wipe the product with a cloth.
※Do not use benzene, alcohol, any
flammable liquid or compound.
This product is made to be used in
220V. Please check the operational
voltage before any usage.
※It may cause fire, electrical short or
failure of the product.
■CAUTION!

※ Using a different charger may damage the product.
■Product Specification
1. Keep the battery away from water and humid environment when the battery is
being charged.
2. Operational voltage is only for charging the battery.
3. Always check the battery charger and condition before use.
4. It is recommended to drain the battery completely before charging. This will help
prolong its life.
- It takes approximately 5 hours to fully charge a dead battery.
- It is completely normal for the battery to be warm when charging.
(When the battery reaches a certain temperature, a sensor will turn on
It’s advisable to unplug the charger to be safe.
- Use only the charger and adaptor intended for the product.

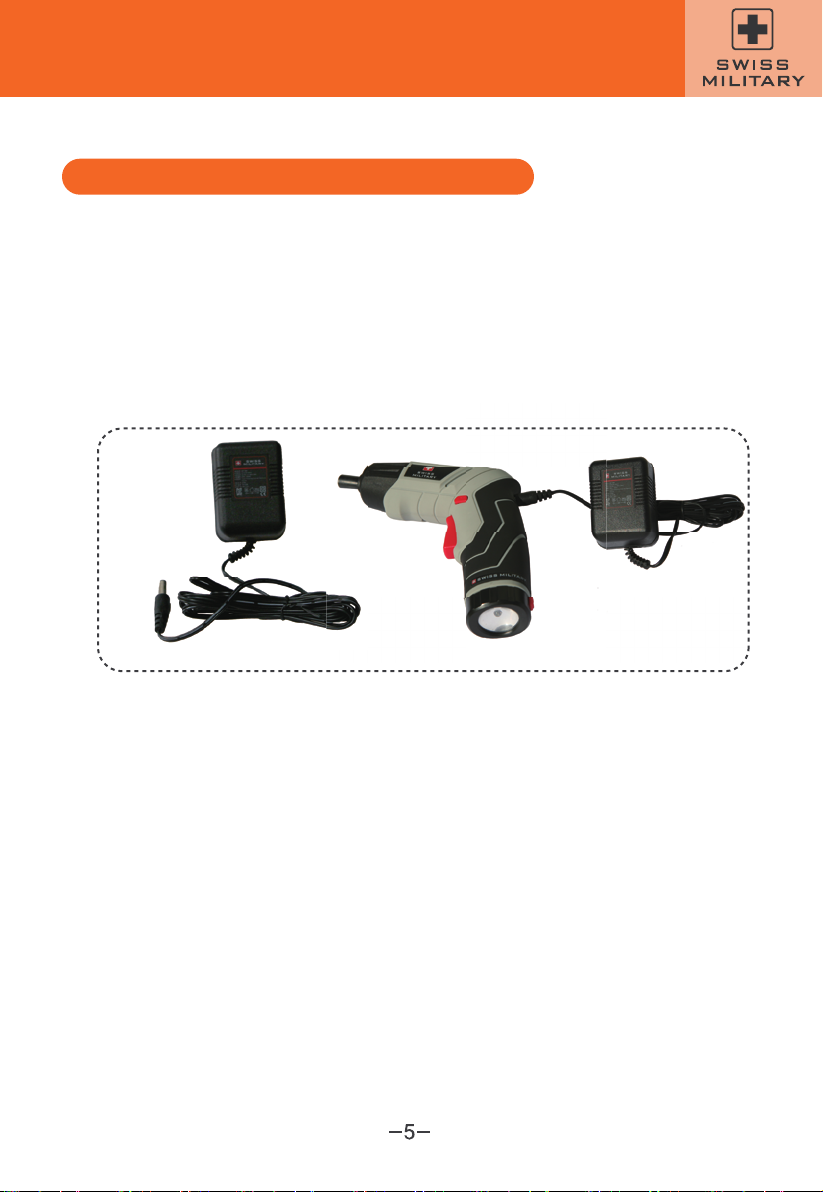

▲ Charger
●Battery Charge
▲ Drill and charger installed
1. When the product is not in use, secure the item by turning the safety lock switch
in the center. (safety lock)
2. Choose the rotation direction by pressing the button beside the trigger.
3. Pull the trigger gently to control the speed of the drill.
4. Switching the rotation direction should only be done when the product is not in use.
●Instruction
Product specification

※Use the battery until fully drained keeps it in best form and makes battery life last longer.
●How to use the charger
●Flash light is useful when
working in the dark.
Drill and charger
installed
■How to use Swiss Military Electric Tool
A red light will turn on when the charger is plugged.
※The red light will still be on even when the
charging is done.
Flash Light
On/Off Switch
Instructional Manual

●Main Functions of The Product
Rotate 180
degrees
■How to use Swiss Military Electric Tool
You can slide/twist the handle when
pressing the red button at the top from
Gun-Type to Straight-Type.
44 varieties of drill bits for
various purposes.
Mounted Ni-Cd Battery
Instructional Manual

※ General power tool safety precautions
■Battery management
Warning 1. Upon purchase, battery has an initial charge of approximately 20% to 30%.
You may charge the battery before using the product.
2. The battery charging time is approximately 4 ~ 5 hours.
3. The battery operation time is 25 minutes ~ 30 minutes after the battery
is fully charged.
4. Avoid placing the battery near metallic objects, when it not inside the hard
case or charger.
5. Do not expose the battery in extreme temperature or near open flame.
It may explode.
6 .Do not place this tool in wet or damp area.
7. Fluids may leak when exposed in extreme temperature.
■Battery usage
Warning 1. Never attempt to remove the battery from its terminal or try to disassemble
any parts.
2. Cover the exposed terminal electrical tape to prevent short circuit.
■Cleaning
Problem solution Problem : The tool doesn’t work.
Warning 1. Certain: cleaning detergents or solvents may damage the plastic part.
(i.e.Household detergents containing gasoline, ammonia,
chlorinated cleaning solvents)
2 .To prevent accidents, always remove connection link from the power supply
before cleaning the tool or charger. Tool can be effectively cleaned
by compression dry air.
(Always wear safety goggles when cleaning tool with compression air)
3. Never attempt to clean by inserting the sharp object through the tool vent.
Q1 The battery pack hasn’t been charged.
A Check status light indicating the battery charge status and charge the battery in case of need.
Q2 The battery unit temperature may be too hot or too cold.
A Set the battery aside for a few minutes until it’s back to normal operating temperature.
Q3 It still doesn’t work even after charging.
A Request for a replacement from the service center.
Safety Precautions

※ How to use a motor tool
※ If the flashlight is not working properly,
check the battery and make sure that it
is completely charged.
■Product warranty coverage
• Main unit: 1 year from date of purchase
• charger and battery: 6 month from date of purchase
• Hand tool and gift: not covered in the warranty.
• Bearing etc. consumable part: not covered in the warranty.

■Product Features and Names
■Certificates
●Component
SWISS MILITARY(4.8V)
SMT–480
※ 25mm bits = 28EA Cross Slotted = 4EA (PH0, 1, 2, 3)
Slotted = 5EA (3, 4, 5, 6, 7)
Pozi Drive = 4EA (PZ0, 1, 2, 3)
Hexagon = 7EA (H2, 2.5, 3, 3.5, 4, 5, 6)
Torx = 8EA (T10, 15, 20, 25, 27, 30, 40, 45)
※ 50mm bits = 6EA Cross Slotted = 2EA (PH1, 2)
Slotted = 2EA (5, 6)
Pozi Drive = 2EA (PZ1, 2)
※ Hex Sockets = 8EA
※ Metal Bracket = 1EA
※ Socket Bracket = 1EA
■ Caution: When using the Swiss Military electric drill:
◎ Use after it is fully charged. The battery may have
approximately 20% ~ 30% charge upon purchase.
▶ 4.8V electric drill takes about 4 ~ 5 hours to charge.
▶ If used continuously, the drill works for about
25 ~ 30 minutes.
Hard Case
44 varieties
of drill bits
Adapter
Electric Tool
(Hand Drill)
■44 varieties of drill bits component
Magnetic chuck
Battery residual value
with LED light
Gun-Type Mode/
Straight-Type Mode
Switch
LED Flash Light
※Tongs that can be easily pulled
out a small bit class is included
On/Off Switch
Rotating Direction
Switch
Mounted Ni-Cd Battery
Flash Light
On/Off Switch
Flash Light Mounted

•Keep this handbook to assure your warranty is needed.
•Please keep this warranty page safely.
•The term of guarantee is up to 12 months from the date of purchase.
Except for the battery which is covered up to 6 months.
■Product Warranty
Quality Guarantee
Product Name: Swiss Military 4.8V Cordless Drill
Model Number: SMT-480
Rated Voltage: 100-240V~50/60HZ
Warranty Number:
Date of Purchase: Date Month Year
1 Year Warranty
Merchandizer: Innoview Co., Ltd.
Store Name:

◎ Please keep this handbook where you can access it easily.
◎ Product warranty details are included in this handbook.
◎ CAUTION: Please read this handbook first to know how to use the product properly.
