OPERATOR’S MANUAL
INDUSTRIAL SPRAYERS TO BE USED
MAINLY IN THE CONSTRUCTION MARKET
MODELS WITH CAPACITY OF
1.3, 1.7, 2.4 AND 4 US GAL /
5, 6, 9,15 LITERS
MODELS
319310, 320305, 322315
189335, 319315, 320310,
319305, 322310, 189310
Series ndustrial sprayers to be used
mainly in the construction market with
capacity of 1.3, 1.7, 2.4 and 4 US gal,
specially designed for the application of
SOLVENTS, ACIDS AND ACETONE.
PREMIUM
G
A
R
A
N
T
Í
A
P
R
E
M
I
U
M
1 AÑO

1
INDEX
INTRODUCTION
1.
SAFETY INFORMATION
2.
PROTECTION EQUIPMENT
2.1
- Industrial gloves
- Safety glasses
- Closed toe footwear
- Coverall
- Safety mask
This manual contains important safety warnings, please read it carefully to avoid any possible accident. Keep all warning
stickers and if necessary replace them.
Each Industrial Series model has been designed to apply a specific kind of chemical whether it be solvents, acids or acetone. Using the correct chemical
for each model will make sure the success of the application and the maintenance in good condition of the equipment.
Introduction........................................... 1
Safety Information ................................ 1, 2
2.1 Protection equipment
2.2 Safety measures
General information ............................. 2, 3, 4
3.1 Main components
3.2 Technical data
3.3 Assembly
3.3.1 Parts you are receiving
3.3.2 How to assemble the sprayer
Operation ................................................................................ 4, 5
Service........................................... 5, 6
5.1 Service guide
Common problems, possible causes and solutions .......... 6
Accessories............................................................................. 7
Spare parts............................................................................... 8, 9, 10, 11, 12
Storage..................................................................................... 13
Warranty ................................................................................. 13
1.
2.
3.
4.
6.
5.
7.
8.
9.
10.
PROTECTION EQUIPMENT
2.2
Read this manual carefully before operating the equipment.
Incorrect handling by not qualified persons may cause serious accidents.
Do not make modifications or adaptations because they can compromise your equipment and put your safety and that of a third party at risk. They also
invalidate the warranty.
Do not allow the presence of children, the elderly, people with disabilities or animals when using the equipment.
Keep your equipment in good condition and in a safe place. Always wash and store your equipment without pressure.
Read and follow the instructions of the chemical product you are going to apply.
Wear the personal protective equipment mentioned above when using, filling or washing your sprayer
Keep connections tight to prevent leaks.
Never fill your sprayer with hot liquids, maximum: 30 ° C = 85 ° F.

2
MAIN COMPONENTS
3.1
GENERAL DATA
3.
1. Tank
2. Filling port, tank lid & strainer
3. Pump system
4. Strap hook
5. Ergonomic grip
6. Pump handle
7. Shut-off valve
8. Adjustable nozzle (mod. 189305 Solvents)
9. Hose
10. Adjustable carrying straps
11. Connecting rod
12. Spray lance
13. Nut and tip (mod. 189310 Acetone)
189305 Solvents / 189310 Acetone sprayer:
Compression sprayers:
TECHNICAL DATA
3.2
1. Tank
2. Filling port
3. Complete pump handle (Acids & Acetone Mod. 319315, 320310, 319305, 322310)
4. Hose
5. Shut-off valve (Solvents Mod. 319310, 320305, 322315)
6. Spray lance with nozzle (Solvents Mod. 319310, 320305, 322315)
7. Pressure relief valve
8. Spring
9. Shut-off valve with filter holder
(Acids & Acetone mod. 319315, 320310, 319305, 322310)
10. Steel rod handle (Solvents Mod. 319310, 320305, 322315)
11. Spray lance with nut and tip
(Acid & Acetone Mod. 319315, 320310, 319305, 322310)
4
4
2
77
11
310
6
9
5
1
8
8
ESPECIFICATIONS SOLVENTS
Model number: 319310 320305 322315 189335
Useful capacity
1.3 GAL /
5 L 1.5 GAL / 6 L 1.3 GAL / 5 L 1.5 GAL / 6 L
2.9 GAL /
9 L 1.3 GAL / 5 L 2.9 GAL / 9 L
3.9 GAL /
15 L
Carrying straps Non-absorbent polyester,
38 mm wide
Non-absorbent polyester,
38 mm wide
Non-absorbent polyester,
38 mm wide
Pump system Piston Piston Piston
Piston sleeve Elastomer, 38 mm diameter Elastomer, 38 mm diameter Elastomer, 38 mm diameter
On/off valve, locks for continuous
spraying
On/off valve with filter, lock for
continuous spraying
On/off valve with filter, locks for
continuous spraying
Elastomer,
45 mm diameter
Working pressure 1.5 to 2.5 bar - 22 to 36 psi 1.5 to 2.5 bar - 22 to 36 psi 1.5 a 2.5 bar - 22 a 36 psi 1-6 bar-87 psi
Approx.weight 2.1 kg 2.4 kg 3.1 kg 4.6 kg 4.6 kg
Hose Polyethyiene, 1.5 m = 59” long
Shut-off
Spray lance Brass 52 cm = 20.5” Brass 52 cm=20.5”
Nozzle Brass adjustable, fan plastic & fan ceramic
ACETONE
319305 322310
2.1 kg 3.1 kg
EPDM, 1.5 m = 59” long EPDM, 1.5 m = 59” long
Fan plastic & hollow cone ceramic
319315 320310
2.1 kg 2.4 kg
4.6 lb 5.3 lb 6.8 lb 10.1 lb
189310
3.9 GAL /
15 L
Elastomer,
45 mm diameter
1-6 bar-87 psi
10.1 lb
4.6 lb 6.8 lb 4.6 lb 5.3 lb
PVC 63 cm = 24.8”
Fan plastic
ACIDS
5
6
4
2
1
11
7
8
12
9
10
313

189305 Solvents / 189310 Acetone sprayer:
3
ASSEMBLY
3.3
3.3.1
- 1 Pump handle
- 1 Spray lance
- 1 Tank lid
- 1 Connecting rod
- Brochures
Inside the tank you will find:
- 1 Strainer
- 1 Dosing cup
- 1 Agitator
In a plastic bag you will find:
- 1 Adjustable nozzle with nut
- 3 Lock pin “C”
- 3 washers
- 1 Lock washer
- 1 Cotter pin or lock pin “R”
Parts you are receiving
Backpack sprayer:
1.- Take the loose parts out of the tank.
2.- Place the strainer on the filling port and then the tank lid.
3.- Insert the connecting rod in the pump tube placing one flat washer on each side, fix them with the lock pins “C”.
- Complete tank with pump handle, pressure relief valve, hose and shut off
- 1 Spray lance
- 1 Adjustable nozzle (Solvents Mod. 319310, 320305, 322315)
- 1 Hollow cone spray tip with nut (Mod. Acetone 319305, 322310)
- 1 Flat fan spray tip with nut (Acids Mod. Acids 319315, 320310)
- Operator’s manual
Compression sprayers:
Compression sprayers:
1. Remove all the parts from the box and tank.
2. After removing the nozzle from the bag fix it in the spray lance.
3. Place the applicator upright on a table, assemble the spray tube with the gun and tighten firmly.
4. Your sprayer is ready to use.
3.3.2 How to assemble the sprayer:
Mod. 189335
Mod.
189310
Mod.
189335 Mod.
189310
12
3

4

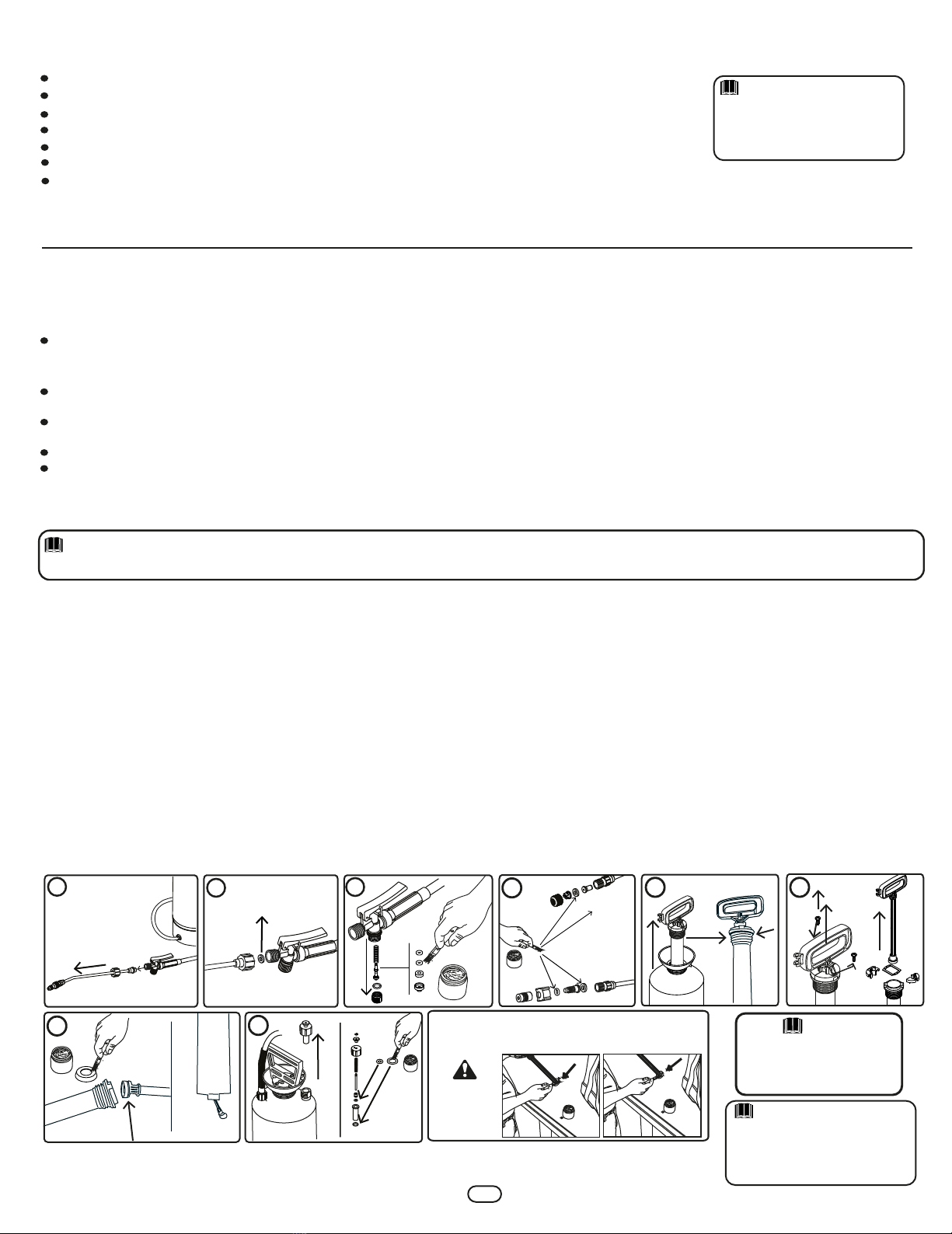

OPERATION
4.
Mix the solution in a separate container following the instructions of the product manufacturer.
Unscrew the pumping tube and remove it from the tank.
Pour the pre-mixed solution up to the indicated level marked in the tank.
Replace the pump tube and screw it tightly, then pressurize the unit.
Hold the sprayer by the handle or place it on the shoulder with the carrying strap and start applying.
Turn the nozzle to change the spray pattern (Solvent models 319310, 320305 & 322315).
Compression sprayer:
The pump tube must be tight
firmly otherwise the applicator
will leak and will not hold
pressure.
NOTE:
To ensure the best performance
use only "SWISSMEX-RAPID"
original spare parts.
NOTE:
5
6
4
2
3
1
4.- Pass the pump handle through the base of the tank fixing it to the connecting rod with a flat washer and a lock pin
“C” and on the other end with a lock washer and a cotter pin.
5.- Assemble the nozzle to the spray lance. Lightly tighten without tools.
6.- Assemble the spray lance to the shut-off and tighten manually. Make sure the gasket is in place.
189335 189310
