switel DF1101 User manual

Cordless DECT/GAP telephone
Operating Instructions
DF1101

Safety Information
2
1 Safety Information
Please read this operating instruction manual thoroughly.
Intended use
The telephone is suitable for telephoning within a public telephone network system. Any other use is
considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no
circumstances open the device or complete any repair work yourself.
Installation location
Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.
Do not use the handset in potentially explosive areas.
Power adapter plug
Attention: Only use the power adapter plug supplied because other power supplies could damage
the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.
Rechargeable batteries
Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to
correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging.
Power failure
The telephone cannot be used to make calls in the event of a power failure. Always keep a wired telephone
which operates without an external power supply available in case of emergency situations.
Medical equipment
Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment
cannot be fully ruled out.
DECT1telephones can cause an unpleasant humming sound in hearing aids.
Disposal
In order to dispose of your device, take it to a collection point provided by your local public waste
authorities (e.g. recycling centre). The adjacent symbol indicates that the device must not be
disposed of in normal domestic waste! According to laws on the disposal of electronic and electrical
devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste
container.
Batteries must be disposed of at the point of sale or at the appropriate
collection points provided by the public waste authorities.
Packaging materials must be disposed of according to local regulations.
2 Preparing the Telephone
Safety information
Attention: It is essential to read the Safety Information in Chapter 1 before starting up.
1DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

1
Preparing the Telephone
3
Checking the package contents
The package contains:
Content Model DF110x
1101 110221103211042
Base station with power adapter plug 1111
Charging station with power adapter plug − 1 2 3
Handset 1 2 3 4
Telephone connection line 1111
Batteries 2 4 6 8
Operating instructions 1111

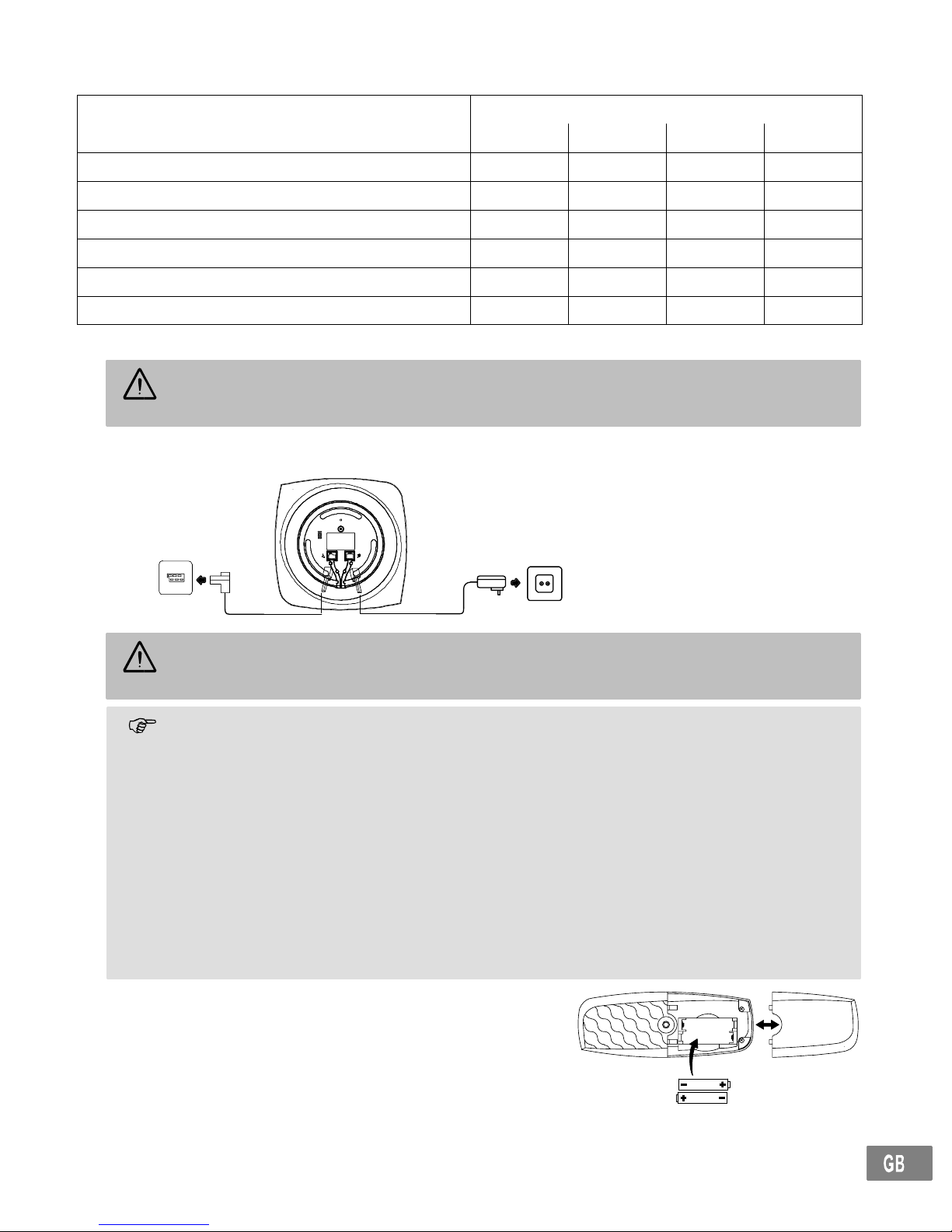

Connecting the base station
Attention: Position the base station at least 1 m away from other electronic devices, otherwise there
is a risk of mutual disturbance.
Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug
and telephone connection line supplied.
Mains power outlet
Telephone line socket
For the base station, use the power adapter plug labelled with No. SW−075030EU and output data 7.5
V DC, 300mA.
Your phone’s base station is supplied with an energy−efficient switching power supply SW−075030EU
(Input 100~240 VAC, Output 7.5 VDC, 300 mA). The adaptor input power without load is approx. 0.2
W. The average efficiency is approx. 67 %.
The electrical consumption of the base is:
− in operation mode (idle/call): approx. 1.8 W
− during charging of the handset: approx. 2.7 W
The charger(s) delivered with a telephone set is/are supplied with an energy−efficient switching power
supply SW−075020EU (Input 100~240 VAC, Output 7.5 VDC, 150 mA). The adaptor input power
without load is approx. 0.2 W.
The average efficiency is approx. 66 %.
The electrical consumption of the charger is:
− without handset charging: approx. 0.2 W
− during charging of the handset: approx. 1.2 W
Inserting the batteries
Insert the batteries in the open battery compartment. Only use
batteries of the type AAA NiMH 1.2 V. Pay attention to correct
polarity. Close the battery compartment.
2Visit www.switel.com to find out whether the telephone/telephone set is already available.

2
Preparing the Telephone
4
Charging the batteries
Before the handset is used for the first time, insert it in the base/charging station for at least 24 hours.
When the handset is inserted in the base/charging station properly, you will hear an acoustic confirmation
signal and the charge control lamp lights up. The handset warms up during the charging process. This is
normal and does not represent a risk. Do not charge the handset with charging units from other
manufacturers.
The current battery charge status is indicated in the display:
Full Half empty Low Empty
Setting the display language
Select a language (cf. "Menu Structure"):
Menü > Einstellungen > Mobilteil−Einst. > Sprache >... ( Menu > Settings > Set Handset > Language >...)
Setting the time and date on the handset
The time and date are set via the menu. Refer to Page 13 for the sequence of menu option selections.
Automatic answering
If this function is activated, an incoming call is taken when the handset is removed from the base station. This
function can be activated or deactivated via the menu. Refer to Page 14 for the sequence of menu option
selections.
Private branch exchanges
The information on Page 15 explains how to install your telephone in a private branch exchange.
Low−radiation (ECO mode) (single pack only)
When the handset is in the base station, the level of radiation is considerably lower than that
of standard DECT cordless telephones when in Standby mode. In talk mode, radiation is reduced
(depending on the distance between the handset and base station).
Default setting = ECO Mode →Off
The telephone can be set up so that the radiation frequency is reduced; Page 14.
If necessary, you can increase the range of the telephone system by switching ECO mode off;
Page 14 (ECO Mode →Off).

Operating Elements
5
3 Operating Elements
The buttons in this operating manual are subsequently depicted with a uniform contour. Therefore, slight
deviations in the appearance of the symbols on the telephone buttons compared to those depicted here are
possible.

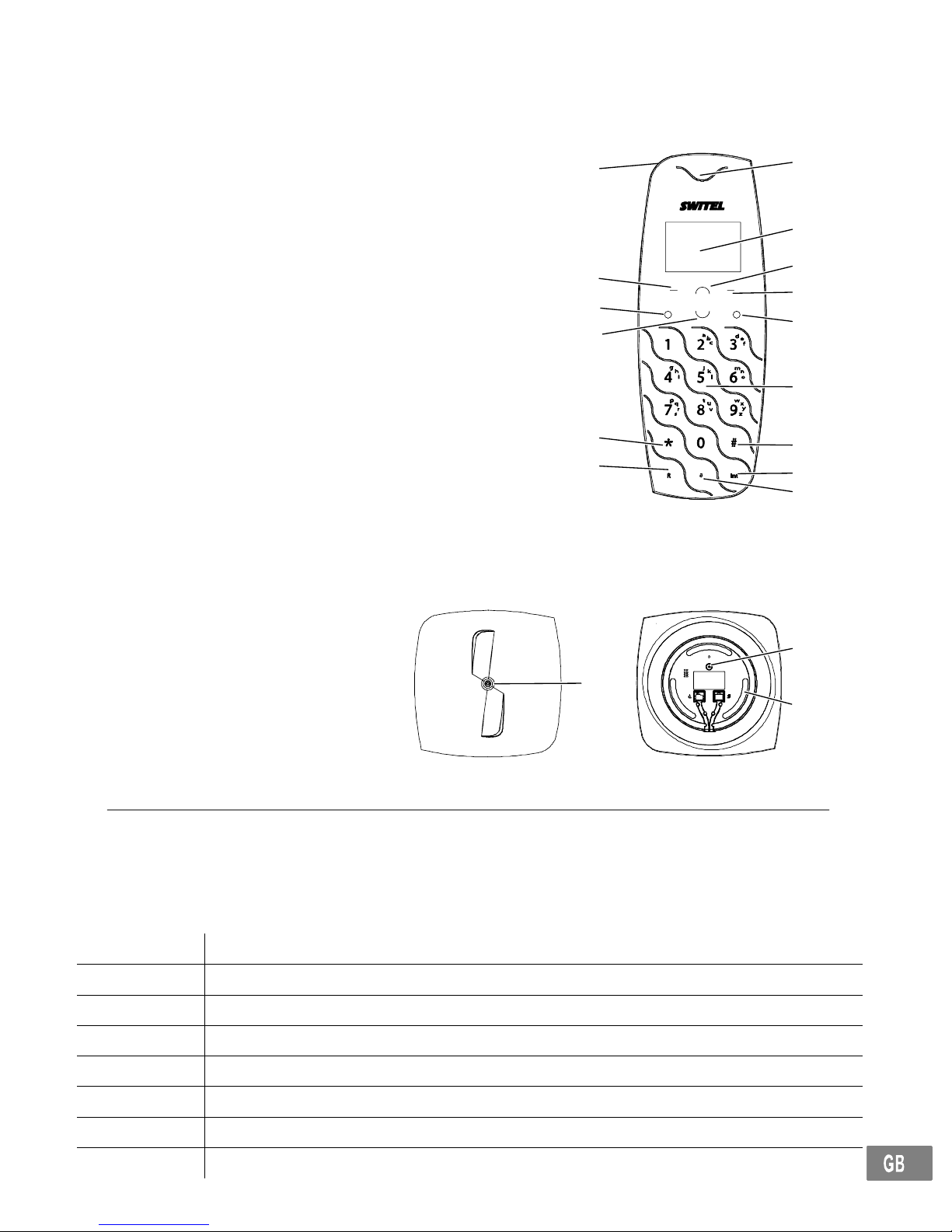

Handset
1 Loudspeaker
2 LC display
3 Up / Redial / Pause button
4 Softkey, right
5 On−hook button / Standby mode
6 Digit keys
7 # button
Key lock
Upper / lower case
8 Internal call
9 Microphone
10 R−button
11 * button
12 Down / Phone book button
13 Call button / handsfree
14 Softkey, left
15 Handset On / Off
Base station
16 Charging contact
17 Paging button
18 Mood light
To turn the mood light on / off
5 sec. PMood light on / off
4 Preliminary Information
This chapter provides basic information on using the operating instruction manual and the telephone.
Description of operating sequences in the manual
Display Description
1Displays the contour of buttons
*Press the button depicted briefly
3 sec. #Press the button depicted for 3 seconds
Enter digits or letters
{}Handset rings
Remove the handset from the base station
Place the handset in the base station
2
1
3
4
5
7
8
9
10
11
12
13
6
15
14
17
18
16

3
4
5
6
Preliminary Information
6
Texts which appear in the display
Names Press the softkey
Icons and texts in the handset display
Icon Description
On: Indicates the battery charge status.
Flashing: The batteries must be charged.
Run−through segments: The batteries are being charged Page 4.
Menu Displays the main menu Page 11.
Names Displays the phone book Page 7.
New calls have been registered in the call log. Page 8.
New SMS messages have been recorded Page 14.
The key lock function is activated; Page 11.
The ringing tone has been switched off Page 14.
The handsfree facility is activated; Page 11.
On: The alarm function is on Page 13.
Flashing: The alarm clock is ringing Page 13.
Secrecy On The microphone is deactivated (muted); Page 11.
On: The connection to the base station is good.
Flashing: The connection to the base station is interrupted. Move nearer to the base station.
Standby mode
All descriptions in this operating manual assume that the handset is in Standby mode which is the case when
you are not talking on the phone and if a menu is not open. Press the +button (red), as necessary, to enable
the Standby mode.
Energy−save mode
When the handset has been in Standby mode for some time, it automatically switches to energy−save mode.
The buttons and display no longer light up.
Navigating in the menu
All the functions can be accessed via the various menus. Refer to the Menu Structure Page 11 for
information on how to access each respective function.
-(left) Displays the main menu
(/ )Selects a submenu
-(left) Displays the submenu
(/ )Selects a function
-(left) Runs the function
(/ )Selects a setting
Use the keypad to enter figures or letters as necessary
-(left) Confirms your input
-(right) One level back / deletes one character
+(red) Aborts all programming and saving and returns the handset to
Standby mode

7
8
9
Phone Book
7
Every process is automatically cancelled if there is no input within 15 seconds.
Creating phone book entries − example
The way in which to navigate through the menus and select settings is explained by means of the example
Creating phone book entries. Proceed as in this example for all the settings.
Names Open the phone book
(/ )Add Entry , Select Select menu and confirm
, OK Enter the name (max. 12 characters) and confirm it
, Save Enter the number (max. 24digits) and confirm it
(/ ), Select Select the melody and confirm it
+(red) Quit saving and return to Standby mode
5 Phone Book
You can use the phone book to store up to 100 phone numbers together with the associated names.
Always enter the area access code with the phone numbers so that incoming local calls can also be
assigned to a phone book entry.
When the memory capacity is used up, the message PhonebookMemory Full ! appears when an
attempt is made to store another number. To create space, an existing entry must first be deleted.
The phone book entries are arranged alphabetically. To access the required phone book entry
directly, press the first letters of the corresponding name.
Entering names
Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the
relevant key the respective number of times.
0Enter a space
Clear Delete
(/ )Move the cursor
To enter the same letter twice, press the button to enter the letter. Wait until the cursor skips one
position forward. Enter the letter again.
Creating phone book entries
Refer to the example; Page 6.
Editing phone book entries
)Open the phone book
(/ )Select an entry
Options Open the menu
(/ )Edit Entry , Select Select the submenu and confirm it
, OK Change the name and confirm it
, Save Change the number and confirm it
(/ ), Select Change the group and confirm it
Deleting phone book entries
Deleting an entry
)Open the phone book
(/ )Select an entry

10
Calls List
8
Options Open the menu
(/ )Delete Entry , Select Select the submenu and confirm it
Delete? , Yes or No Confirm or cancel deleting
Deleting all entries
Names Open the phone book
(/ )Delete Phonebook , Select
Select menu and confirm
DeleteAll Entries ? ,Yes or No Confirm or cancel deleting
Exchanging the phone book
In order to exchange the phone book, several DF110x handsets or handsets from the same series
(HS1, HS2, ...) need to be registered to the base station.
HS1: Names Open the phone book
(/ )Copy Phonebook , Select
Select menu and confirm
(/ )Select handset (destination)
Select Initiate the copy process
HS2: CopyPhonebook? , Yes or No
Start or reject copying
HS1 and HS2: EntriesCopied Transfer complete
6 Calls List
A total of 30 phone numbers are stored in a calls list.
The caller number display (CLIP1) is a supplementary service offered by your telephone network
provider. The caller’s number appears in the display if the service is offered by your telephone network
provider. Contact your network provider for further information.
Displaying numbers in the calls list
Menu Open the main menu
(/ )Calls Lists , Select Displays the calls lists
(/ )Missed Calls , Received Calls or Dialled Calls , Select
Open the calls list required
(/ )Browse the calls list
Saving a phone number from the calls list to the phone book
A phone number in the calls list can be stored in the phone book directly.
Display the calls list you want and select an entry, see above.
Options Open the menu
(/ )Save Number , Select Select menu and confirm
, OK Enter the name (max. 12 characters) and confirm it
, Save Change the phone number as necessary (max. 24 digits) and confirm
it
1CLIP: Calling Line Identification Presentation = Displays the caller’s phone number.

Telephoning
9
(/ ), Select Select the melody and confirm it
As soon as the phone number in the phone book has been saved together with a name, the name
entered appears in the calls list.
Deleting individual phone numbers
Display the calls list you want and select an entry, see above.
Options Open the menu
(/ )Delete Call , Select Choose to delete and confirm
Deleting all phone numbers
Menu Open the main menu
(/ )Calls Lists , Select Displays the calls lists
(/ )Delete Calls , Select Select menu and confirm
(/ ), Select Select calls list and confirm
DeleteAll Calls ? , Yes or No Confirm or cancel deleting
7 Telephoning
Taking a call
+(green) or Take the call
Ending a call
+(red) or End the call
Making a call
Enter the phone number (max. 32 digits)
Clear Delete the last digit if incorrect
+(green) Dial the phone number
Redialling
The telephone stores the last 20 numbers dialled in a redialling list.
(, (/ )Display the redialling list and select an entry
+(green) Connect
Editing phone numbers in the redialling list is identical to editing phone numbers in the calls list; (Chapter
6).
Calling back calls received
The telephone stores the numbers of the last 30 calls received in a call log.
Menu Open the main menu
(/ )Calls Lists , Select Displays the calls lists
(/ )Missed Calls or Received Calls , Select
Open the calls list required
(/ )Select an entry
+(green) Connect
Dialling numbers from the phone book
Phone numbers must have been stored in the phone book for this function;Page 7.

11
Telephoning
10
), (/ )Open the phone book and select an entry
+(green) Connect
Internal calls1
Making internal calls
There must be two or more handsets (HS1, HS2, ...) registered on your base station in order to make internal
calls free of charge.
HS1: I, e.g. 2, OK Dial the internal call number of the handset required
HS2: +(green) Take the internal call on the other handset
HS1 / HS2: +(red) End the internal call
Forwarding external calls internally
HS1: I, e.g. 2, OK Dial the internal call number during the conversation with the external
caller
HS2: +(green) Take the internal call on the other handset
HS1: +(red) Forward the call
If the handset called does not answer, take the external call back by pressing softkey End.
Holding a call / brokering
While a call is in progress, it is possible to dial another handset in order to consult with someone. The external
caller is put on hold while you converse with the second, internal person called. You can repeat this procedure
as often as required.
HS1: I, e.g. 2, OK Dial the internal call number during the conversation with the external
caller
HS2: +(green) Take the internal call on the other handset
HS1: ISwitch between the callers
Making conference calls
An external call can be transferred to another internal handset for a conference call.
HS1: I, e.g. 2, OK Dial the internal call number during the conversation with the external
caller
HS2: +(green) Take the internal call on the other handset
HS1: Join Start the conference
HS1 / HS2: +(red) End the conference
Setting the receiver volume
The volume can be adjusted to one of 8 settings during a call.
(/ )Set a volume
Displaying the duration of a call
The duration of the call you are making is shown on the display.
1Internal calls are only possible when at least two handsets are registered in the system Checking the
contents of the package" on Page 3.
