Sylvac D300S V2 User manual

User guide
Manuel d’utilisation
Bedienungsanleitung
E
F
D
Software version V2.00
OS V2.00
Universal display unit
Unité d’affichage universelle
Universelle Anzeigeeinheit

3
Summary
General Description 4
Front panel 4
Back panel 4
Connections description 5
Input / Output explanations 6
USB Host 6
USB Device 6
Power Switch 6
Sustain pedal input 6
Network connection (RJ45) 6
Speakers (Jack) 6
VGA Output 6
RS485 7
RS232 7
Probe input 7
Digital outputs 8
Example to connect a LED on the no1 digital output 8
Example to connect a relay on the no1 digital output 8
Example to connect an external contact on a Switch 1 input 9
RS485/D30X and RS485/MB-X connections 9
User interface 10
The setting menu 10
The setting menu tree 11
General setting 12
Channel setting 12
Channel allocation 12
Exclude from automatic detection 13
Tolerance mode 13
Number of classes 13
Display mode 13
Measurement mode 13
Channel calibration at 2 points 14
System setting 14
Digital outputs 14
External contact 15
Printing 16
&RQ¿JXUDWLRQRIVHTXHQFHV 
List of instruments 18
General tolerance 19
Calibration 19
Hot Keys 20
Statistics 21
The histogram 21
The chart of the average (Xbar) 21
The chart over the range (R) 22
The statistics table 22
Communication with a PC 23
Communication example with Winwedge 32 software 23
Retro-command codes list 24
Network connection 26
&RQ¿JXUDWLRQH[DPSOHZLWKWZRPHDVXUHPHQWSRLQWV 
([DPSOHRIFRQ¿JXUDWLRQZLWKWKUHH%OXHWRRWKLQVWUXPHQWV 
E

4
The D300S is a display unit enabling the visualisation of the entire Sylvac hand
instrument range and P2, P5, P10, P25, P50 probes. The intuitive interface
HQDEOHVWKHXVHUWRHDVLO\FRQ¿JXUHWKHGHYLFHDQGVROYHPRVWPHDVXUHPHQW
problems met in production or in laboratory.
12
7
1 3 4
6
5
17 1618
9
2
13
10
11
8
1415
19
General description
Front panel
Back panel

5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
8.5’’ touch screen
&RQ¿JXUDEOHXVHULQWHUIDFH
IP65 front panel
Navigation buttons
Numeric keypad
Standby button
Master switch for the unit
Connector for 24V power supply
USB ports for SYLVAC instruments, keyboard or mouse
USB port D300S -> PC
LAN port
SYLVAC probe inputs (4-input module available)
Digital inputs/outputs
External contacts (pedals, limit switch etc.)
Jack socket for speakers
VGA output
RS485 connector for connecting D302/D304 units
RS232 input for SYLVAC instrument
RS485 connector for connecting MB-8i / MB-2C /
MB-4C / MB-2S units (only available on certain versions)
E
Connections description

6
Input/output explanations
86%+RVW
Enables measurements sending to a PC. Depending on the operating system,
DGULYHUPD\EHUHTXLUHG,WFDQEHGRZQORDGHGGLUHFWO\IURPWKHZZZIWGLFKLS
com website.
The default communication parameters are as follows:
Baud Rate 4800
Parity Even
Data Bits 7
Stop Bits 2
Flow Control None
The list of retro-commands recognised by the D300S are found in the « Retro-
command codes list » chapter, P. 24.
86%'HYLFH
Enables the connection of measurement instruments through a usb cable
(Proximity-USB, Opto-USB, Power-USB, …). It is possible to extend the num-
ber of USB ports using a usb hub.
30 USB instruments at the most can be connected at the same time.
Power Switch
Allows the complete switching off of the unit
Sustain pedal input
Two pedals can be connected. Two extra external contacts are also available on
the screw terminal (Switch 1 and 2).
Network connection (RJ45)
The connection to a local network enables amongst other things the retrieval of
UHFRUGHGGDWDH[UHFRUGHGPHDVXUHPHQWVFRQ¿JXUDWLRQ¿OHV
Speakers (Jack)
Input enabling the connection to a speaker.
VGA output
Enables the connection of the D300S to an external screen or projector.
Note : The resolution stays identical to the unit's one, i.e. 800x400. It cannot be
PRGL¿HG

7
E
RS485
Enables the connection of the D302 and D304 probe modules.
RS232
Enables the connection of a RS232 instrument with a Duplex cable.
Probe input
Enables the connection of the Sylvac probes (P2, P5, P10, P25, P50).
Digital outputs
N° Function
1 Output isolated by optocoupler
2 Output isolated by optocoupler
3 Output isolated by optocoupler
4 Output isolated by optocoupler
5 Output isolated by optocoupler
6 Output isolated by optocoupler
7 Output isolated by optocoupler
8 Output isolated by optocoupler
9 Common for the 8 optocoupler outputs
10 Switch 1
11 Switch 2
12 External power supply +24V (input)
13 GND
14 Internal power supply +24V (output)

8
R
Schematic representation
The maximum voltage is 30V
and the maximum current is
60mA per output.
The supply voltage of the
optocoupler outputs are nor-
mally brought from the out-
side, the negative pole on
the common transmitters
(pin 9)
The protective diode is indis-
pensable in case of inductive
load (solenoid valve, relay,
...)
Example to connect a LED on the n°1 digital output
Example to connect a relay on the n°1 digital output
(external power supply)
External power supply (max. +30V)
GND's external power supply
COM
NO NC
Note: a protective diode must be added in parallel of the relay if it isn't integrated.

9
E
Example to connect a relay on the n°1 digital output
(internal power supply)
COM
NO NC
Note: a protective diode must be added in parallel of the relay if it isn't integrated.
Example to connect an external contact on the Switch 1 input
RS485/D30X and RS485/MB-X connections
These two inputs allow an increase in the number of probes connected to the
D300S.
Remark :WKHFRQ¿JXUDWLRQMXPSHUVPXVWEHSODFHGRQ-3DQG-3VRWKDWWKH
module is correctly detected by the D300S.
7KH560%;LQSXW(only available on certain versions)
This input is used to connect the MB-8i, MB-2C, MB-4C or even MB-2S type
modules. Inductive capacitive and incremental probes can be connected to
these modules.
7KH56';LQSXW
This input is exclusively used for the
D302 and D304 modules.
The capacitive probes (P5, P10,
P25, P50) can be connected to these
modules.

10
1
3 4 5 6
10
11
12
8
2
7 9 13
Window showing details of channel X
Active page indicator
Select page X/X
&RQ¿JXUDWLRQRIQXPEHURISDJHVPD[
*HQHUDOFRQ¿JXUDWLRQ
Display type (shift to static mode)
Channel individual preset
Channel reset
&KDQQHOFRQ¿JXUDWLRQ
Measurement recording (of the active page)
Clear all displayed channels
Preset all displayed channels
Activate the Min/Max extent
1
2
3
4
5
6
7
8
9
10
11
12
13
User interface
While the unit switches off, all parameters are automatically saved. It is also
SRVVLEOHWRVDYH\RXUFRQ¿JXUDWLRQVLQRUGHUWRXVH\RXU'6IRUVHYHUDOGLI-
ferent workstations.
When an instrument is connected, it is automatically assigned a channel. The
FDEOH¶VLGHQWL¿FDWLRQDGGUHVVLVUHJLVWHUHGE\WKHXQLW
It is therefore vital not to switch it with other instruments. If you disconnect the
cable from the unit and use a different USB port when you next connect it, the
same channel will be reassigned to it.
The Setting menu
This menu enables the modification of all system parameters.
:KHQ\RX¿UVWVZLWFKRQ\RXU'6XQLWWKHGHIDXOWLQWHUIDFHZLOOEHDFWLYHDV
shown below.

11
Main Menu
General Setting
Mesurement
setting
Sequence
conguration
System setting
instrument list
Global Tolerance
Calibration
Hot Keys
Language
Screen brightness
Lock keyboard
Touch screen
calibration
Date and time
Network
connection
RS232
conguration
Page 1
Page 2
Page 3
Page conguration
Stored values
I/O Foot switch
Conguration les
Print
Sequence
conguration
Instrument list
Page 1
Page 2
E
The setting menu tree

12
General setting
7KLVPHQXDOORZV\RXWRFRQ¿JXUHWKHJHQHUDOSDUDPHWHUVRI\RXUXQLW
&RQ¿JXUDWLRQRIDFKDQQHOVPHD-
surement parameters, such as
tolerances or preset values.
It is, amongst other things, possible to:
tSelect the language
tModify display brightness
tLock the keyboard and tactile
screen
tModify the date and time
t...
Channel setting
Instrument allocation and measu-
rement type selection thanks to
the mathematical functions.
Channel allocation
To allocate an instrument to a channel automatically (by movement of the mea-
surement probe) or manually (by selecting it in a list). If the "manual" option is
chosen it is then possible to select either an instrument in the list, or a channel
RQZKLFKDFDOFXODWLRQKDVDOUHDG\EHHQFRQ¿JXUHGIRUH[DPSOH

13
E
Tolerance mode
7KLVRSWLRQHQDEOHVWKHPRGL¿FDWLRQRIFRORXUVXVHGWRLQGLFDWHVWDWXVHV
<=> red – green – yellow
GO NOGO red – green – red
<=> (int) yellow – green – red (interior measure)
Number of classes
6HOHFWLRQRIWKHQXPEHURIFODVVHVZDQWHGIRUWKHFODVVL¿FDWLRQRIPHDVXUHG
values. It is possible to choose up to 8 classes. The classes are spread out
proportionally between higher tolerance and lower tolerance.
Display mode
Digital : displays the digital value
Bargraph : displays the measurement as a bargraph
Exclusion from automatic detection
It is possible to exclude a channel from automatic instrument detection
when this is moving. This is useful, when for example, the same ins-
trument is allocated to different channels. In this case, when the ins-
trument moves, it is no longer possible to know what channel must be
selected. To avoid this problem it is possible to deactivate automatic
detection on certain channels.

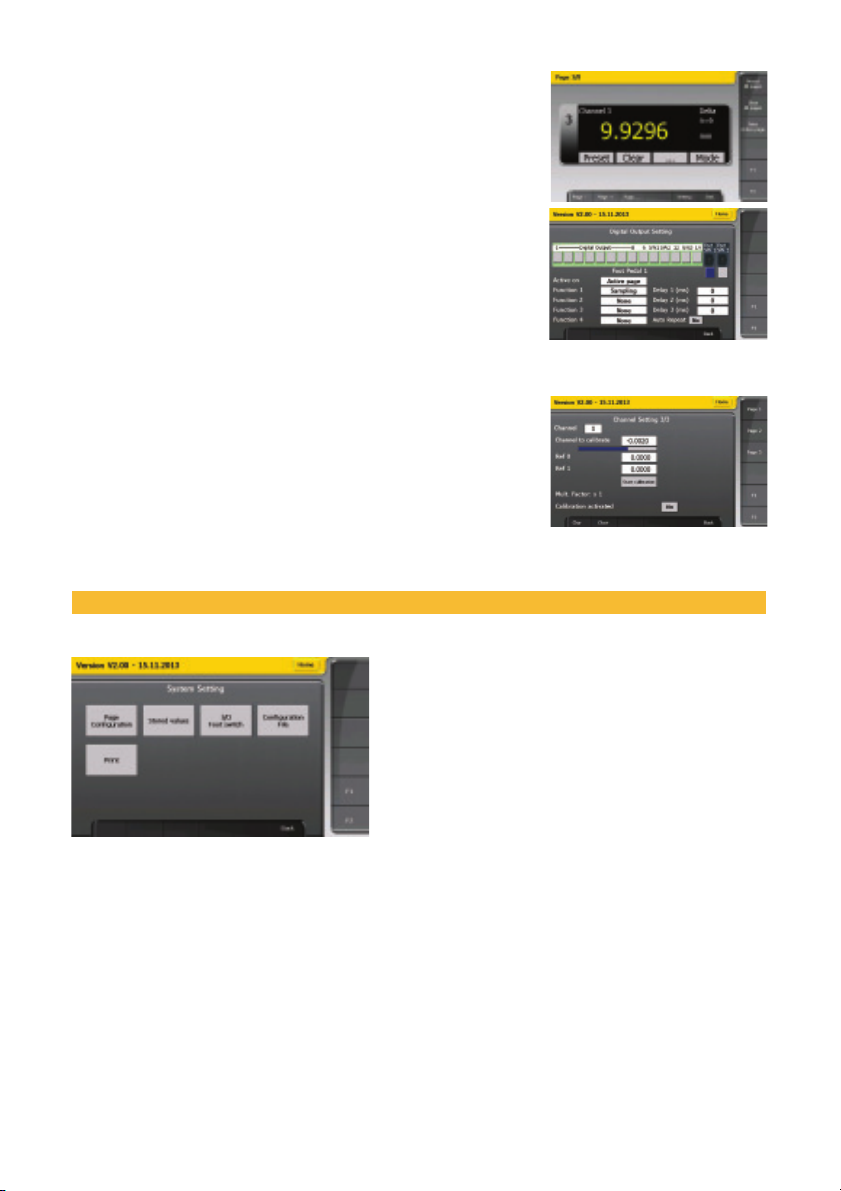

Measurement mode
Direct : displays the value live
Max : displays the maximum value
Min : displays the minimum value
Delta : displays the difference (maximum - minimum)
Mean : displays the average (maximum + minimum)/2
Delta (sampling) : Displays the difference over a given number of samples
Mean (sampling) : Displays the mean over a given number of samples

14
System setting
This menu enables access to the unit's
JOREDOFRQ¿JXUDWLRQ
t'LVSOD\FRQ¿JXUDWLRQ
t'LJLWDORXWSXWFRQ¿JXUDWLRQ
t&RQ¿JXUDWLRQUHFRUGLQJ
tRecorded measures visualisation
tModify printing options
To use Delta (sampling) or Mean (sampling) mode,
WKHFKDQQHOPHDVXUHPHQWPRGHPXVWEHFRQ¿JX-
red, then the sampling function selected for the
desired external contact, for example pedal 1.
,Q WKLV FRQ¿JXUDWLRQ HYHU\ WLPH SHGDO  LV SUHV-
sed the channel value is temporarily recorded (n
indicates the number of values recorded) and the
delta or mean is calculated as a function of the
recorded values. This allows a delta to be pro-
duced at several points using a single instrument.
Channel calibration at 2 points
It is possible to calibrate the channel at two reference
points. A multiplication factor is then calculated so
allowing the measurement of diameters on V or the
calibration of a channel depending on the reference
block. This multiplication factor can then be activated
or deactivated. This calibration only affects the chan-
nel and not the instrument allocated to the channel.
'LJLWDORXWSXWV
,WLVSRVVLEOHWRFRQ¿JXUHWKHGLJLWDORXWSXWVDVDIXQFWLRQRIWKHWROHUDQFHRID
VSHFL¿FFKDQQHORUJHQHUDOO\
)XQFWLRQDOORZVFRQ¿JXUDWLRQRIZKLFKFRQGLWLRQDFWLYDWHVWKHRXWSXW
tNO GO channel: when the channel value is outside tolerances
tGO channel: when the channel value is within tolerances
t*OREDO7ROZKHQWKHJHQHUDOPHDVXUHPHQWLVOHVVWKDQWKHGH¿QHGWROHUDQFHV

15
E
t*OREDO7RO ZKHQWKHJHQHUDOPHDVXUHPHQWLVZLWKLQWKHGH¿QHGWROHUDQFHV
t*OREDO7RO!ZKHQWKHJHQHUDOPHDVXUHPHQWLVPRUHWKDQWKHGH¿QHGWROHUDQFHV
tD110 lifting : allows control of the D110 unit (lifting)
tD110 lowering : allows control of the D110 unit (lowering)
Channel: allows channel selection when the Channel GO or Channel NO GO
mode is selected.
External contact
The external contacts can combine up to 4 different functions.
$FWLYHRQDOORZVFRQ¿JXUDWLRQRIWKHFKDQQHOVRQZKLFKWKHH[WHUQDOFRQWDFW
action will act.
)XQFWLRQ3HGDOIXQFWLRQFRQ¿JXUDWLRQ8SWRGLIIHUHQWIXQFWLRQVFDQEHFRPELQHG
$GHOD\EHWZHHQHDFKRIWKHIXQFWLRQVFDQEHGH¿QHGLQPLOOLVHFRQGV
'HOD\&RQ¿JXUDWLRQRIZDLWLQJWLPHEHWZHHQIXQFWLRQVLQPLOOLVHFRQGV
Auto Repetition. : Activates or deactivates automatic repetition of functions
FRQ¿JXUHGRQWKHH[WHUQDOFRQWDFW7KLVW\SLFDOO\SHUPLWVUHFRUGLQJRIDPHDVX-
rement every x seconds.
t$OOSDJHVDFWVRQDOOWKHGH¿QHGFKDQ-
nels.
tActive page: acts only on the active
page channels.
tActive channel: acts only on the active
channel.
t6HTXHQFHVDFWVRQWKHFKDQQHOVFRQ¿-
JXUHGDFFRUGLQJWRWKH6HTXHQFH
menu.

16
3DJH
7KHXVHUFDQGH¿QHDKHDGHUWKDWZLOOEHSULQWHGZLWKWKHYDOXHV$QRSWLRQ
DOORZVGH¿QLWLRQRIZKHWKHUWKHKHDGHULVSULQWHGRQHDFKSULQWLQJRURQO\RQ
WKH¿UVWSULQWLQJ
Printing
7KHLQIRUPDWLRQWKDWZLOOEHSULQWHGFDQEHFRQ¿JXUHG8SWRGLIIHUHQW¿HOGV
DQG¿HOGVHSDUDWRUVFDQEHFRQ¿JXUHGE\WKHXVHU
The printable information is as follows:
tValue (##.###) : the value with a ". " as decimal separator.
tValue (##,###): the value with a "," as decimal separator.
tDate and time: the date and time that the measurement was taken.
tCounter: the part counter. Can be reset to zero using the "reinitialise part
counter" button.
t&KDQQHOQDPHWKHFKDQQHOQDPHFDQEHPRGL¿HGE\WKHXVHULQWKH
"measurement parameter" menu on page 2.
tChannel number
tMin/max value: the min, max, delta and mean values will be printed.
tTolerance: the measurement tolerance status (<, =, >).
tNone: no information to be printed.
7KH¿HOGVHSDUDWRUVDUHDVIROORZV
t{TAB}: a tab.
t{SPACE}: a space.
t{CR}: a carriage return.
t{CR}+{LF}: a carriage return followed by a line feed.
t{ :} : two points.
t{ :}+{TAB}: two points followed by a tab.
3DJH

17
E
The different header information is as follows:
tCompany name
tDrawing number
tWork station
t3DUWLGHQWL¿FDWLRQ
3DJH
It is possible to choose the destination for the printed values.
The different options are as follows:
tPrinter: The values are sent to the printer. For this a USB printer must be
connected to the D300S.
tPC: The values are sent to the PC via the USB-PC port. A virtual COM
port is created at PC level.
t)LOH7KHYDOXHVDUHVHQWWRD¿OHZKRVHQDPHFDQEHHQWHUHGE\WKHXVHU
7KH¿OHFDQWKHQEHGLVSOD\HGLQWKHPHQX
System parameter Recorded values
Configuration of sequences
This menu allows the allocation of a certain number of channels to a
VHTXHQFHZLWKWKHDLPRIH[HFXWLQJDIXQFWLRQHJSULQWSUHVHWVWRUHRQ
DGH¿QHGFKDQQHORUFKDQQHOV7KHVHIXQFWLRQVDUHFRQ¿JXUHGRQRQHRIWKH
H[WHUQDOFRQWDFWVDQGLWLVSRVVLEOHWRFRQ¿JXUHXSWRVHTXHQFHV

18
$FWLRQFRQ¿JXUHVZKHWKHUWKHH[WHUQDOFRQWDFWDFWVRQDOOWKHGH¿QHGFKDQQHOV
or on one channel.
tManual: pressing the external contact acts on one channel at a time and
selects the next channel.
tAuto: pressing the external contact acts on all the channels at the same-
WLPH$OOWKHFKDQQHOVGH¿QHGDUHVHOHFWHG
List of instruments
7ULJJHUVHOHFWVWKHH[WHUQDOFRQWDFWWKDWDFWLYDWHVWKHVHTXHQFH
Remark:7KHVHTXHQFHRSWLRQPXVWEHFRQ¿JXUHGDWWKHH[WHUQDOFRQWDFW
in the System parameters --> Pedal I/O menu.
This menu allows display of all the instruments connected to the unit. The dif-
ferent instrument types are:
tUSB: the instruments connected using the USB cable (proximity-usb,
optoRS-usb, …).
t'6WKH'6HTXLSPHQWFRQQHFWWKURXJKWKH86%SRUW
tS_SCALE: the USB measurement axes
tRS232: the instruments connected using an RS232 cable
tProbe: the probes.
Remark: the "E" symbol appears if point by point correction is active.
tBLE: Bluetooth instruments
,WLVDOVRSRVVLEOHWRFRQ¿JXUHWKHPRGXOHVFRQQHFWHGE\56
tRS485 Detection: activates the detection of a new RS485 module connec-
WHGWRWKHXQLW$SUREHPRYHPHQWLVVXI¿FLHQWWRPDNHWKHFRQ¿JXUDWLRQ
tRS485 Refresh: searches for all the RS485 modules connected to the D300S
and makes them appear in the list of instruments.
tRS485 Reset: deletes the RS485 modules present in the list of instruments.

19
E
General tolerance
Detection of Bluetooth instruments is also done from this menu. (See chapter
([DPSOHRIFRQ¿JXUDWLRQZLWKWKUHH%OXHWRRWKVPDUWLQVWUXPHQWV
Calibration
The unit is calibrated in the factory. If recalibration is necessary, the calibration
menu allows it to be done.
3DJH: allows calibration at 2 reference
points.
Remark: The calibration menu can be ac-
cessed by holding the digital keypad "Enter"
and by selecting at the same time the button
calibration on the digital display.
,WLVSRVVLEOHWRDGGDJHQHUDOWROHUDQFHIRUWKHPHDVXUHGSDUW,WFDQEHGH¿-
QHGRQWKHDFWLYHSDJHRQO\RIIRUDOOWKHGH¿QHGFKDQQHOV

20
The different functions:
tDirect
tMin
tMax
tDelta
tMean
tDelta (sampling)
tMean (sampling)
tLight mode: switches between the min/max/delta/mean/direct modes
tFull mode: switches between the min/max/delta/mean/delta(sampling)//
mean(sampling)/direct modes
Remark: if the "light mode " or "full mode" function is selected the other func-
tions are ignored.
3DJH: allows a linearity correction using
2 to 25 points. The number of points and
the measurement step can be entered. The
value of the calibration blocks can be mo-
GL¿HGGXULQJWKHFDOLEUDWLRQSURFHGXUHLILW
does not correspond to the measurement
step.
Hot Keys
The functions of the 3 buttons on the right of the screen (see user interface chap-
WHUSRLQWFDQEHFRQ¿JXUHGE\WKHXVHU,WLVDOVRSRVVLEOHWRGH¿QH
whether the functions act on the active page, all the pages or the active channel.
7KHPRGHEXWWRQFDQDOVREHFRQ¿JXUHGIXQFWLRQVFDQEHGH¿QHGE\HDFK
press on the mode button, the different functions are selected successively.
