Sylvania SRPD442 A User manual

PLASMA DISPLAY
Owner’s Manual
SRPD442
Before you can view a picture on the plasma display, you
must first connect the unit to an external video source. See
page 21 of the owner’s manual.
IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP
OR OPERATING AFTER READING OWNER’S MANUAL,
PLEASE CALL TOLL FREE
1-800-968-3429.

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRE-
SENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE
APPLIANCE.
The important note is located on the rear of the cabinet.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI-
ANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the appa-
ratus. When a cart is used, use cau-
tion when moving the cart/apparatus
combination to avoid injury from tip-
over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fall-
en into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
been dropped.
15. Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
S3125A

3
IMPORTANT SAFETY INSTRUCTIONS
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC WARNING-
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the instruction manu-
al. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
Date of Purchase
Dealer
Dealer Address
Dealer Phone No.
Model No.
Serial No.
The serial number of this product may be found on the back of this unit. No others have the same serial
number as yours. You should record the number and other vital information here and retain this book as
a permanent record of your purchase to aid identification in case of theft.

When moving the plasma display
Due to the weight of this plasma display, two peo-
ple should be used when moving it. Both people
should make sure to grasp the top of the display
with one hand, and the base of the display with
the other hand, as in the following illustration.
4
Thank you for purchasing this plasma display.
Please make sure to read this manual before using the plasma display, and pay particular
attention to the Safety Instructions enclosed within.
When you have finished reading this manual, store it in a safe place for easy access in the
future.
Regarding This Manual
•Product and company names appearing within
this manual are trademarks or registered trade-
marks of their respective owners.
•Although special care has been taken to ensure
that all information contained within this manual
is correct at time of writing, the information is
subject to change without notice.
•Make sure to read the manual carefully and fol-
low all instructions contained within. We will not
be held responsible for any damages caused by
improper use or handling of this product.
•Reproducing this manual by any means, in
whole or in part, is prohibited.
Figure 1
IMPORTANT SAFETY INSTRUCTIONS
#CAUTION
•This PDP SRPD442 is for use only with the
Sanus Systems Model VMPL. Wall Mount.
Use with other wall mounts is capable of
resulting in instability, causing possible injury.
•When mounting the plasma display with the
Sanus Systems wall mount, make sure to
mount it on the wood studs inside the wall, as
failure to do so may result in instability, caus-
ing possible injury.
•Refer to the instruction manual included with
the wall mount for details when securing the
plasma display to the wall.
Optional Accessories
To mount the plasma display on a wall, the follow-
ing accessory is available:
VISIONMOUNT™Flat Panel TV Wall Mount from
SANUS SYSTEMS, for large flat panel televisions
(32”to 60”). Refer to page 25 for mounting the
plasma display.
NOTE
The wall mounts are not supplied with the plasma dis-
play.

5
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INSERTING THE REMOTE CONTROL BATTERIES . . . . . . . . . . . . . . . . . . . . . .7
REMOTE CONTROL RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
COMPONENT NAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
OPERATING THE PLASMA DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
BASIC OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

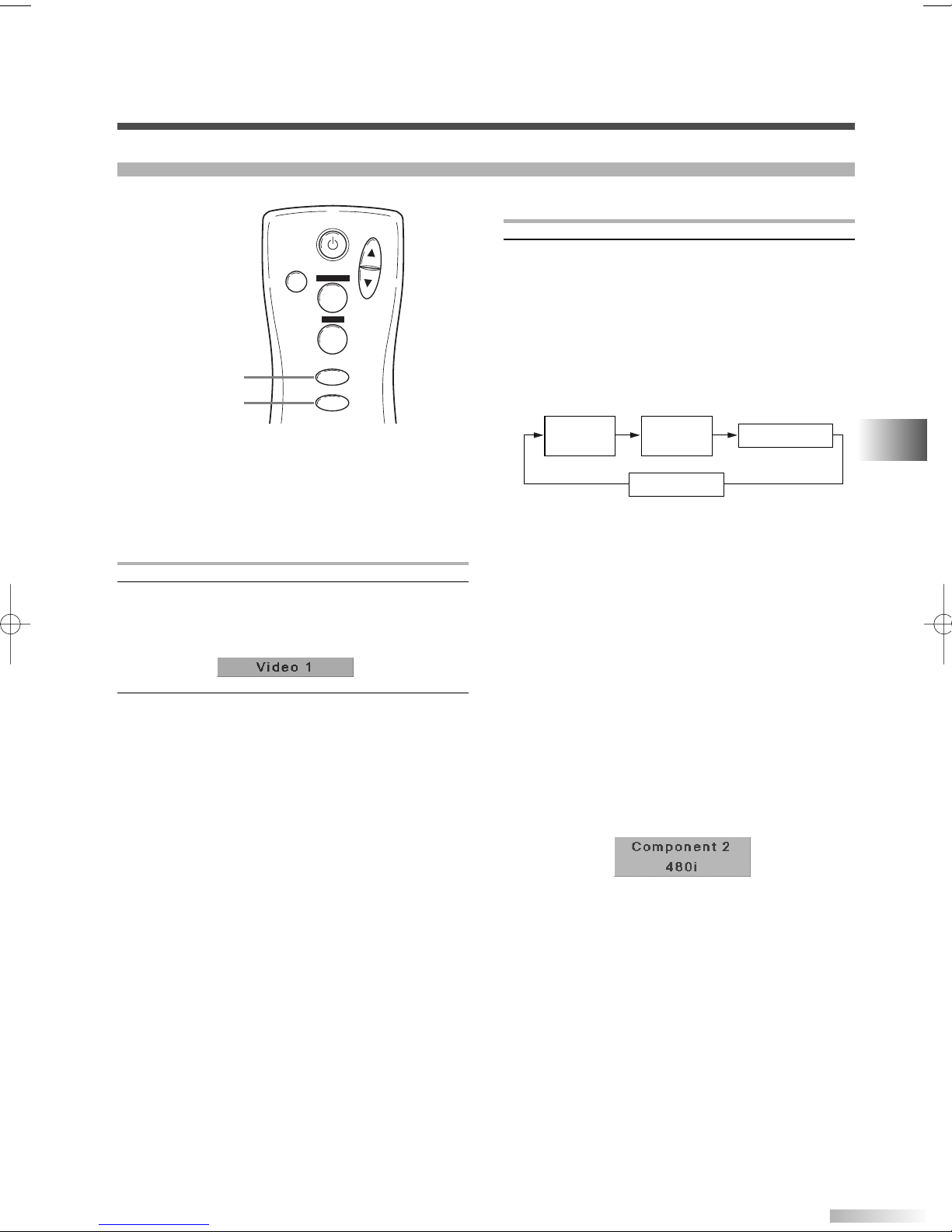

SELECTING THE INPUT SIGNAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CHANGING THE ASPECT RATIO (SCREEN MODE) . . . . . . . . . . . . . . . . . . . . . . . . .12

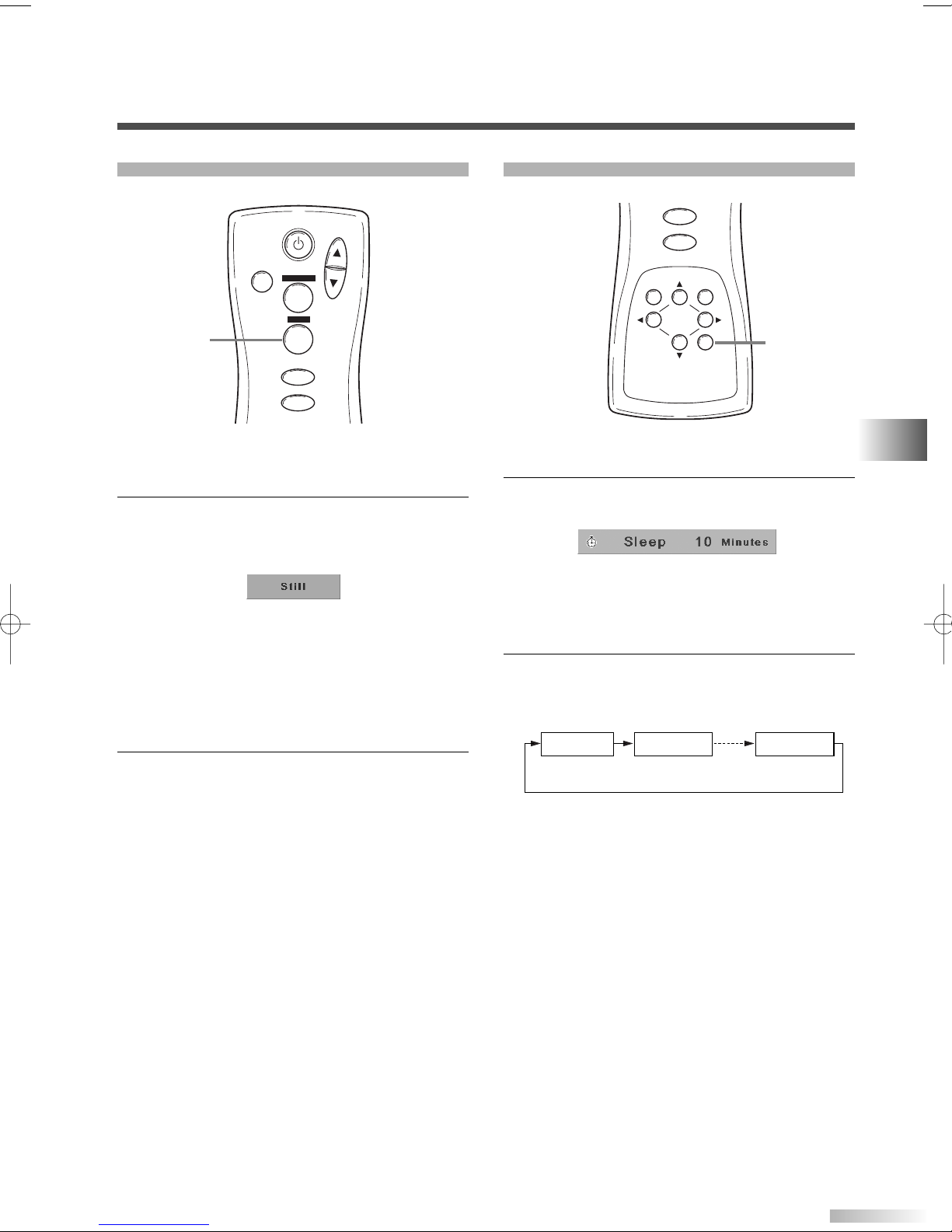

STILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SLEEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

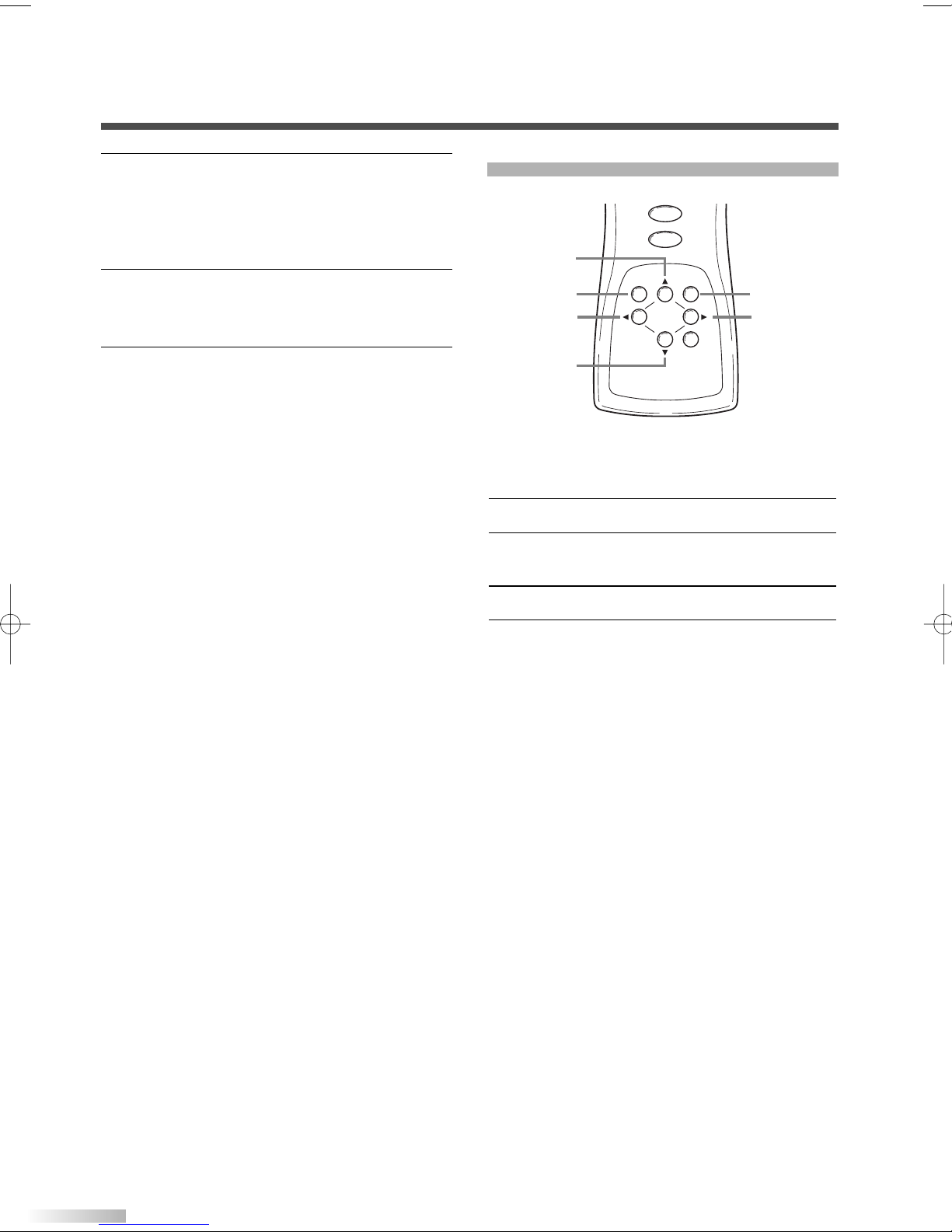

NAVIGATING THE SET UP MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Layout of the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ENTERING THE MAIN MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
PICTURE SELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Automatically Adjusting the Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Manually Adjusting the Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Initializing the Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
WINDOW SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
SWITCHING THE DISPLAY LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SETTING THE SCREEN SAVER AND THE BACKGROUND COLOR . . . . . . . . . . . . .19
Setting the Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Setting the Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXTERNAL INPUT TERMINALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONNECTING DEVICES TO THE AV INPUT TERMINALS . . . . . . . . . . . . . . . . . . . .21
VIDEO Signal Connection (Basic Signal Transfer) . . . . . . . . . . . . . . . . . . . . . . . . .21
S-VIDEO Signal Connection (Better Signal Transfer) . . . . . . . . . . . . . . . . . . . . . . .21
CONNECTING DEVICES TOTHE COMPONENT INPUT TERMINALS . . . . . . . . . . .22
Component 1 Signal (Y, Cb, Cr) Connection (Best Signal Transfer) . . . . . . . . . . . .22
Component 2 Signal (Y, Pb, Pr) Connection (Best Signal Transfer) . . . . . . . . . . . .22
CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . . . .23
AUDIO Signal Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
CONNECTING THE POWER CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ATTACHING A WALL MOUNT BRACKET (SOLD SEPARATELY) . . . . . . . . . .25
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CLEANING THE PLASMA DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
REFERENCIA RÁPIDA EN ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
INSTALACIÓN DE LAS PILAS EN EL CONTROL REMOTO . . . . . . . . . . . . . .30
NOMBRES DE LOS COMPONENTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
UNIDAD PRINCIPAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CONTROL REMOTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CONTENTS

6
SUPPLIED ACCESSORIES
This product comes with the following accessories:
Please confirm that they are included.
NOTE
If any of these accessories are missing, please contact your dealer.
POwner's Manual
(0EMN02415)
PRemote Control
(NE801UD)
PAA batteries x 2
PPower cable
(WBC0202H0001)
POWER
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
VOL
MUTE
SCREEN MODE
STILL
PSet Up Guide
(1EMN20006)

7
INSERTING THE REMOTE CONTROL BATTERIES
1Remove the back cover of the remote control
while pressing the tab on the back cover down
with your finger.
2Insert two AA size batteries, making sure that
the polarities of the batteries match the sym-
bols inside the remote control.
3Replace the back cover of the remote control.
NOTE
• Do not insert a mix of old and new batteries.
• Do not insert a mix of different brands of batteries,
or different types of batteries.
• Always use new, fresh batteries as replacement.
• Never attempt to charge, heat, burn, or take apart
batteries.
REMOTE CONTROL RANGE
Operate the remote control within a 30 degree angle on both sides of the infrared sensor on the main
unit. You can operate the remote control from a distance of several yards away from the main unit.
NOTE
Other devices which use infrared beams, sunlight, fluorescent lights, etc., may affect the range and effectiveness
of the remote control. Make sure the plasma display is positioned in a place which minimizes interference from
them.
POWER
INPUTSELECT
DISPLAY
MENU PREVIOUS
SLEEP
VOL
MUTE
SCREENMODE
STILL
With in 30 degreesWith in 30 degrees
Approximately
7.6 yds (7 m)
Approximately 5.5 yds (5 m)Approximately 5.5 yds (5 m)
VOLUME INPUTSELECT
STANDBY ON POWER
SUPPLIED ACCESSORIES / INSERTING THE REMOTE CONTROL BATTERIES / REMOTE CONTROL RANGE

8
COMPONENT NAMES
1POWER button: Turns the power ON or
STANDBY.
2ON indicator: Lights up when the power is
ON.
3STANDBY indicator: Lights up when the
power is in the standby mode. Disappears
when the power is ON.
4INPUT SELECT button: Selects input termi-
nals.
5VOLUME K(up) / L(down) button:
Increases or decreases the volume.
6AC IN terminal: Connect the supplied power
cable for a standard AC outlet.
7AUDIO OUT: Output terminals for audio.
8AUDIO/VIDEO/S-VIDEO: Input terminals for
an audio and video signal. You can select
either VIDEO or S-VIDEO.
9COMPONENT: Input terminals for a compo-
nent signal. You can make a Y-Cb-Cr inter-
laced connection to component 1 or Y-Pb-Pr
progressive or interlaced connection to com-
ponent 2.
MAIN UNIT
VOLUME INPUT SELECT
STANDBY ON POWER
VOLUME INPUT SELECT
STANDBY ON POWER
1
2
3
4
Infrared Sensor
5
Input Terminals
Input Terminals
R L Y Cb Cr
RLYPbPr
AUDIO
COMPONENT 1
COMPONENT 2
VIDEO1AUDIO S-VIDEO1
LR
R
L
AUDIO OUT
AC IN
AUDIO
VIDEO2
S-VIDEO2
R
L
6 7 8 9
8
Front Rear
Figure 2 Figure 3

9
COMPONENT NAMES
REMOTE CONTROL
1POWER button: Turns the main power ON
or STANDBY.
2VOL K(up) / L(down) button: Increases or
decreases the volume.
3MUTE button: Turns the audio off.
4SCREEN MODE button: Selects aspect
ratios available for the screen.
5STILL button: Pauses the image shown on
the screen.
6INPUT SELECT button: Selects input termi-
nals.
7DISPLAY button: Displays the name of the
selected input terminal on the screen.
8SLEEP button: Sets the sleep timer.
9MENU button: Accesses the setup menu,
allowing you to access various settings.
10 PREVIOUS button: Moves up one level in
the setup menu.
11
K(up) / L(down) button: Selects the various
modes in the setup menu.
{(left) / B(right) button: Selects and
adjusts levels for the various settings.
B(enter) button: Also used as the enter
button.
POWER
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
VOL
MUTE
SCREEN MODE
STILL
1
2
3
4
5
6
7
8
9
10
11
Figure 4

10
OPERATING THE PLASMA DISPLAY
BASIC OPERATIONS
The following is a simple explanation of the pro-
cedure for turning the power of the display ON or
STANDBY, and the procedure for selecting the
input signal.
The procedure described here is for the remote
control, however the POWER, INPUT SELECT,
and VOLUME buttons on the plasma display can
also be used in the same way.
1Press the POWER button.
Confirm that the STANDBY indicator is lit
before pressing the POWER button.
The power turns ON, and the ON indicator on
the main unit lights up. The STANDBY indica-
tor on the main unit disappears.
NOTE:
• It takes approximately 8 seconds for the screen to
display after turning the power ON, but this is not
a malfunction.
2Select the input signal by pressing the INPUT
SELECT button.
Each time you switch the input, the name of
the selected input terminal is displayed on the
screen for approximately 4 seconds.
NOTE:
• "No signal" is displayed on the screen if there is
no input from the selected terminal and there is
no message currently displayed on the screen for
volume adjustment or the setup menu, etc.
• If there is no video signal, and there has been no
operation from the remote control or the buttons
on the main unit for more than 15 minutes, the
auto shut-off function activates, switching the
plasma display to standby mode.
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
POWER
INPUT SELECT
3Adjust the volume and screen size according
to your requirements.
Perform adjustments to the volume (VOL K/ L
button), screen aspect ratio (SCREEN MODE
button), and picture settings (MENU button)
NOTE:
• When you adjust the volume with the VOL K/L
button, a message such as the following is dis-
played on the screen. This message disappears
approximately 4 seconds after performing adjust-
ments.
• If you turn the audio mute on, a message slowly
flashes on the screen. At this time, if you press
another button, this flashing stops.
• To turn the audio mute off, either press the MUTE
button again, or press the VOL K/Lbutton.
• If you press either the PREVIOUS, K, L, B, or {
button in a mode apart from the image adjustment
mode. A message such as the following is dis-
played.
4Press the POWER button to turn the power
STANDBY.
The ON indicator on the main unit disappears,
and the STANDBY indicator lights up.
NOTE:
• You cannot turn the power ON for approximately 3
seconds after the power enters the standby mode.
Do not turn the power STANDBY and then ON
again in a short time interval.
• Even if the power is turned STANDBY, the main
unit is in the standby mode. In order to shut the
main power of the display OFF, it is necessary to
remove the AC cord from the power outlet.

11
OPERATING THE PLASMA DISPLAY
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
INPUT SELECT
DISPLAY
SELECTING THE INPUT SIGNAL
The procedure for selecting the input signal
described here is for use with the remote control.
However, the INPUT SELECT button on the plas-
ma display can also be used in the same way.
Displaying the Current Input Signal
1Press the DISPLAY button.
The name of the current input terminal is dis-
played on the screen.
2To clear the name of the current input terminal,
press the DISPLAY button again, or wait for
approximately 4 seconds.
NOTE:
• To redisplay the name of the input terminal, press
the DISPLAY button again.
Selecting the Input Signal
1Press the INPUT SELECT button to select the
input signal.
Each time you switch the input signal, the
name of the selected input terminal is dis-
played on the display for approximately 4 sec-
onds.
The INPUT SELECT button cycles through the
input terminals in the following pattern:
NOTE:
• When switching the input signal, audio mute turns
ON temporarily.
• S-VIDEO1 takes preference over the VIDEO 1
jack, as does S-VIDEO 2 over the VIDEO 2 jack.
Therefore, if there is input to the VIDEO and S-
VIDEO terminals at the same time, the S-VIDEO
signal is displayed on the screen. If the S-VIDEO
cable is not connected to the plasma display, the
VIDEO signal will be displayed on the screen.
• 480i (interlaced) signals can be connected to the
COMPONENT 1 and 2 terminals. Any of the fol-
lowing display formats: 480i, 480p (progressive),
1080i, and 720p (progressive) signals can be con-
nected to the COMPONENT 2 terminal. If one of
these video signals is detected, the format of the
input signal is displayed after the name of the cur-
rent input terminal, as in the following manner.
• A "No signal" message appears if there is no video
signal, and there is no message currently dis-
played on the screen for volume adjustment or the
setup menu, etc. If there continues to be no video
signal for more than 10 seconds, "No signal" slow-
ly moves around the screen.
• If there is no video signal, and there has been no
operation from the remote control or the buttons
on the main unit for more than 15 minutes, the
auto shut-off function activates, and the display
switches to standby mode.
Video 1
(S-Video 1)
Video 2
(S-Video 2) Component 1
Component 2

12
OPERATING THE PLASMA DISPLAY
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
SCREEN MODE
CHANGING THE ASPECT RATIO (SCREEN MODE)
By changing the aspect ratio of the screen you
can select the manner in which you wish to view
the picture.
1Press the SCREEN MODE button to display
the current screen mode.
2Press the SCREEN MODE button a second
time to change the screen mode.
Mode
Normal
Explanation
Normal will display a 4:3 picture at its standard 4:3 size.
For 1080i and 720p video signals, a picture will be displayed
at 16:9 size.
Normal
Wide
Full
Zoom
Wide
Wide will display a 4:3 picture at a 16:9 size, with less
horizontal elongation necessary to fill the screen because a
little bit of the top and bottom will be cut off.
Full Full will display a 4:3 picture at a 16:9 size, with horizontal
elongation necessary to fill the screen.
Zoom
Zoom will magnify the entire 4:3 picture to fill the screen, with
no horizontal elongation to fill the screen, as more of the top
and bottom are cut off. Use this mode to view letterboxed 4:3
picture content to get a widescreen picture. A 16:9 picture will
be magnified similarly, but to a lesser extent.
Each time you change the screen mode, the
name of the selected mode is displayed on the
screen for approximately 4 seconds.
The SCREEN MODE button switches between
the screen modes in the following pattern.
NOTE:
• When switching the input signal, the audio mute
turns ON temporarily.
• You can only select the "Normal" and "Zoom"
screen modes for 1080i and 720p video signals
connected to the COMPONENT 2 terminal.
ZoomNormal Full Wide

13
OPERATING THE PLASMA DISPLAY
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
STILL
STILL
You can freeze the image displayed on the
screen.
1Press the STILL button.
The still mode turns on, and the image dis-
played on the screen is frozen.
NOTE:
• When the still mode is on, the message "Still"
slowly flashes on the screen.
• When the still mode is on, the audio is muted.
• You cannot turn the still mode on when there is no
video signal or when switching between video sig-
nals.
2Press the STILL button again to turn the Still
mode off.
NOTE:
• You can also press the INPUT SELECT,
DISPLAY, SLEEP, VOL K(up) / L(down), MUTE,
SCREEN MODE, or MENU buttons to turn the still
mode off.
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
SLEEP
SLEEP
You can select the sleep timer.
1Press the SLEEP button.
The sleep timer is displayed on the screen.
NOTE:
• If the sleep timer is activated, the remaining time
is displayed on the screen.
If not activated, “0 minutes” is displayed.
2Press the SLEEP button to set the time.
The SLEEP button switches between the
times.
The timer starts counting down after the mes-
sage displaying the set time disappears (after
approximately 4 seconds).
NOTE:
• The remaining time displayed for the sleep timer
changes in steps of 1 minute.
• To change the set time, repeat the above proce-
dure.
0 minutes 10 minutes 90 minutes

14
OPERATING THE PLASMA DISPLAY
NAVIGATING THE SET UP MENU
In the setup menu, you can specify settings for picture adjustment, picture position, language, screen
saver, and background.
NOTE:
If you do not press any buttons for approximately 20 seconds, the display automatically exits the menu mode.
Layout of the Setup Menu
The various functions in the setup menu are outlined below:
MAIN MENU
Picture select
Picture mode
Window setting H-Position
English
Français
Español
V-Position
Language
Manual
Brightness
Contrast
Color
Tint
Sharpness
Color temp. Normal
Reset
News
Sport
Cool
Warm
Movie
Detail Screen saver Back ground
Opaque Translucent
Off
Slow Fast

15
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
MENU
ENTERING THE MAIN MENU
1Press the MENU button.
The display enters the main menu, and the
MAIN MENU is displayed on the screen.
NOTE:
• If you press the PREVIOUS button or the MENU
button on the MAIN MENU, the menu is cancelled.
• For procedures which use the ENTER button, use
the Bbutton as the ENTER button.
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
MENU
B
PREVIOUS
K
L
PICTURE SELECT
1Enter the main menu with the MENU button.
“Picture select”is selected on the MAIN
MENU.
2Press the B(ENTER) button.
The PICTURE SELECT menu is displayed on
the screen.
NOTE:
• Press the PREVIOUS button to return to the MAIN
MENU. Pressing the MENU button cancels the
menu.
• Picture select display will disappear from the TV
screen automatically after about 20 seconds if you
do not press any buttons.

16
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
MENU
B{
PREVIOUS
K
L
Automatically Adjusting the Picture
Settings
1Select "Picture mode" on the PICTURE
SELECT screen with the K/Lbuttons.
2Select the automatic adjustment mode accord-
ing to the type of picture displayed on the
screen with the {/Bbuttons.
NOTE:
• There are 3 modes for automatically adjusting the
picture settings; "News", "Movie", and "Sport".
• MANUAL refers to manual picture settings adjust-
ment.
3Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.
Manually Adjusting the Picture Settings
1Select "Picture mode" on the PICTURE
SELECT screen with the K/Lbuttons.
2Select "Manual" with the {/Bbuttons.
The display enters the manual mode, and you
can specify individual adjustments.
3Select the mode to adjust with the K/Lbut-
tons.
The modes rotate in the following order:
"Picture mode" - "Brightness" - "Contrast" - ..
...- "Reset" - "Picture mode"
4Adjust the selected mode using the {/Bbut-
tons.
NOTE:
• If you have selected Brightness, Contrast, Color,
Tint, or Sharpness, the menu display disappears,
and a bar for adjusting the selected mode
appears in the center of the bottom of the screen.
• You can select "Color temp." from among three
modes: "Normal", "Warm", and "Cool".
• If you select "Reset", and press the B(ENTER)
button, the adjusted values return to their initial
settings.
5To adjust a different mode, repeat steps 3 and
4.
6Press the PREVIOUS button to return to the
Picture mode.
NOTE:
• Pressing the MENU button cancels the menu.

17
OPERATING THE PLASMA DISPLAY
DISPLAY
MENU PREVIOUS
SLEEP
B{
K
L
MENU
WINDOW SETTING
You can move the picture displayed on the screen
up, down, left or right.
1Enter the main menu with the MENU button.
2Select "Window setting" on the MAIN MENU
screen with the K/Lbuttons.
If there is no input from a video signal, "Window
setting" is grayed out, and you cannot select it.
3Press the B(ENTER) button.
The "WINDOW SETTING" menu is displayed
on the screen.
Initializing the Adjustments
1Select "Reset" on the PICTURE SELECT
screen with the K/Lbuttons.
2Press the B(ENTER) button.
The settings you specified individually are ini-
tialized (return to their default factory settings)
NOTE:
• The default factory settings are as follows:
PICTURE MODE: MANUAL
BRIGHTNESS: 50/100
CONTRAST: 70/100
COLOR: 50/100
TINT: 50/100
SHARPNESS: 1/2
COLOR TEMP.: NORMAL

18
OPERATING THE PLASMA DISPLAY
DISPLAY
MENU PREVIOUS
SLEEP
B{
PREVIOUSMENU
K
L
SWITCHING THE DISPLAY LANGUAGE
You can select the language displayed on the
screen from English, French, and Spanish.
1Enter the main menu with the MENU button.
2Select "Language" on the MAIN MENU screen
with the K/Lbuttons.
3Select the language with the {/Bbuttons.
4Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.
4Select the mode to adjust with the K/Lbut-
ton.
Select "H-Position" to move the picture hori-
zontally (left or right), and select "V-Position" to
move the screen vertically (up or down).
5Adjust with the {/Bbuttons.
The {/Bbuttons are also used for moving
the picture vertically.
6Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.

19
OPERATING THE PLASMA DISPLAY
DISPLAY
MENU PREVIOUS
SLEEP
B{
PREVIOUSMENU
K
L
SETTING THE SCREEN SAVER AND THE BACKGROUND COLOR
You can specify settings for the screen saver and
the background color.
1Enter the main menu with the MENU button.
2Select "Detail" on the MAIN MENU screen
with the K/Lbuttons.
3Press the B(ENTER) button.
The "DETAIL" menu is displayed on the
screen.
NOTE:
• Press the PREVIOUS button to return to the
MAIN MENU. Pressing the MENU button cancels
the menu.
Setting the Screen Saver
1Select "Screen saver" on the DETAIL screen
with the K/Lbuttons.
2Select the mode with the {/Bbuttons.
NOTE:
• There are 3 modes for the screen saver; "Off",
"Slow", and "Fast".
"Slow" moves 1 pixel every 30 minutes, and "Fast"
moves 1 pixel every 10 minutes. This prevents
images burning into the screen.
• When a 480i or 1080i input signal connected to
the COMPONENT 2 terminal is displayed, the ver-
tical movement is different.
"Slow" moves 2 pixels every 60 minutes, and
"Fast" moves 2 pixels every 20 minutes.
3Press the PREVIOUS button to return to the
MAIN MENU screen.
NOTE:
• Pressing the MENU button cancels the menu.
Setting the Background Color
1Select "Background" on the DETAIL screen
with the K/Lbuttons.
2Select the mode with the {/Bbuttons.
Select "Opaque" or "Translucent" for the back-
ground color.
3Press the PREVIOUS button to return to the
MAIN MENU screen.
NOTE:
• Pressing the MENU button cancels the menu.

20
EXTERNAL INPUT TERMINALS
The following input terminals are available.
In order to view television, it is necessary to connect a tuner device (example: cable box, satellite box,
DTV, etc.) to the plasma display.
RLYCbCr
RLYPbPr
AUDIO
COMPONENT 1
COMPONENT 2
VIDEO1AUDIO S-VIDEO1
LR
R
L
AUDIO OUT
AUDIO
VIDEO2
S-VIDEO2
R
L
AV Input Terminals
VIDEO 2
S-VIDEO 2
See page 21.
AV Input Terminals
VIDEO 1
S-VIDEO 1
See page 21.
Audio Output Terminals
AUDIO OUT
See page 23.
Component Input Terminals
COMPONENT 1
COMPONENT 2
See page 22.
