Sylvania SP672 User manual

Wireless Speaker
SP672

r

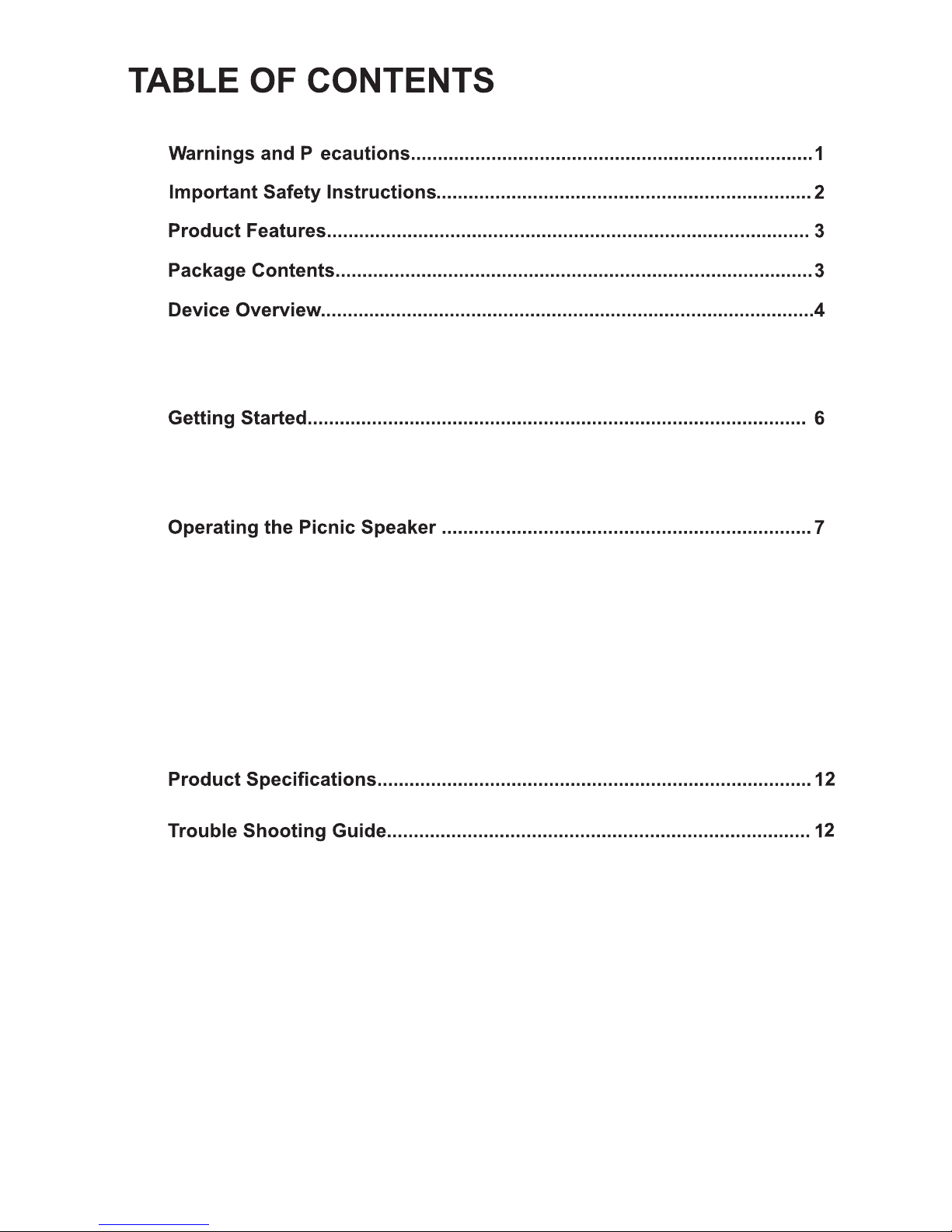

Top and Front View ....................................................................................4
Control Buttons (Rear) ...............................................................................5
Installing the USB Power Cable..................................................................6
Charging the Built-in Battery ......................................................................6
Power On/Off the Picnic Speaker ..............................................................7
Bluetooth Audio Streaming.........................................................................8
Using the USB Port ....................................................................................9
Using the TF Card Slots.............................................................................9
Listening to the Radio.................................................................................10
Using the AUX Input ...................................................................................11

Use of any controls or adjustments or performance of procedures other
than those herein specified may result in hazardous radiation exposure.
CAUTION:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
WARNING:
Do not place the unit on top of any soft, porous,or sensitive surfaces to
avoid damaging the surface. Use a protective barrier between the unit and surface to
protect the surface.
WARNING:
WARNINGS AND PRECAUTIONS
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
-1-
Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type.
CAUTION:
The battery, batteries, and battery pack shall not be exposed to excessive
heat such as sunshine, fire, or the like.
WARNING:
Lithium batteries, like all rechargeable batteries are recyclable and should
be recycled or disposed of in normal household waste. Contact your local government
for disposal or recycling practices in your area.They should never be incinerated since
WARNING:
Shock hazard - Do Not Open.
WARNING:
they might explode.

.

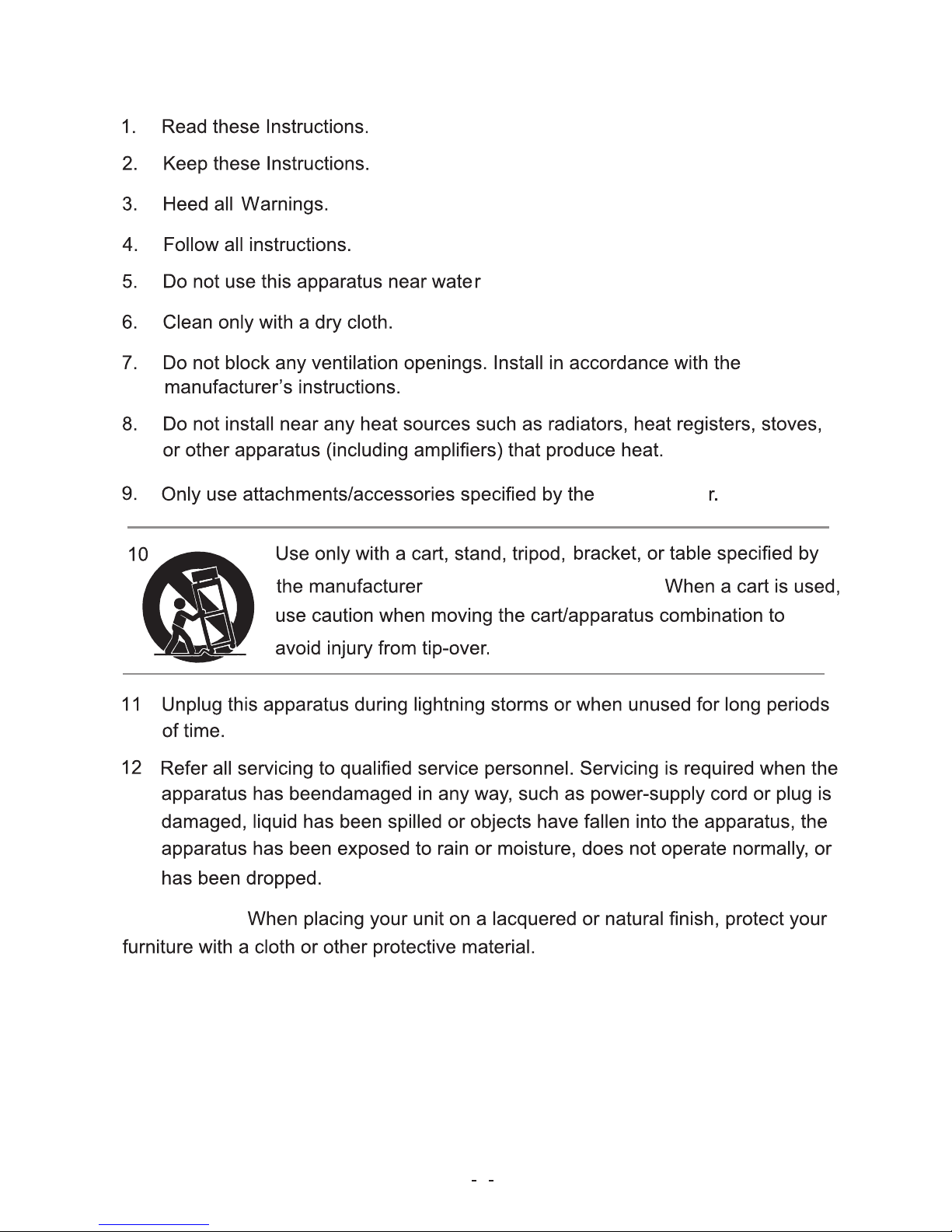

IMPORTANT SAFETY INSTRUCTIONS
manufacture
., or sold with the apparatus.
.
.
Special note:
2

PRODUCT FEATURES
-3-
Bluetooth technology: V3.0
Stereo sound output: 3W x 2 (max.)
Power rating: DC 5V / 1.0A (via Micro-USB port)
PACKAGE CONTENTS
Please make sure that the items shown below are included in the package.
Instruction manual: 1 pcs
USB charging cable: 1 pcs
3.5mm stereo audio cable: 1 pcs
Warranty card: 1 pcs
Should an item be missing, please contact the local retailer from which you
purchased this product.
Bluetooth speaker: 1 pcs
3.5mm auxiliary input (stereo mini jack)
Built-in Lithium-ion rechargeable battery
Bluetooth transmission range: 10M
Aluminum carry handle
FM radio
USB & TF card support direct music play

DEVICE OVERVIEW
-4-
Top & Front View
Left Speaker Right Speaker
Carry Handle

-5-
Control Buttons (Rear)
Notes:
The USB port will only fit in one direction, do not force in as this would
damage it.
Changes modes
between Bluetooth
and AUX-in.
Skips to previous
tracks.
Skips to next
tracks.
Decreases volume.
Increases volume.
1 2 3 4 5 6
Starts / pauses
playback.
4
5
6
7
8
7
8

GETTING STARTED
Notes:
Before moving or installing this product, make sure the Power switch
of the unit is in OFF position.
Disconnect the USB cable from the speaker when unused for long
periods of time.
1.
2.
3.
Notes:
When the speaker is working with the built-in battery and it prompts that
the battery is low, please connect the USB cable to charge it immediately,
or stop using it and power it off to avoid malfunction.
1.0A

-7-
Power On/ Off the Speaker
Set the Power switch in ON position to power on the speaker, and the LED
working mode indicator turns blue in Bluetooth mode, or green in other modes.
Set the Power switch in OFF position to power off the speaker. The LED
power indicator turns off.
OPERATING THE SPEAKER

-8-
Bluetooth Audio Streaming
This Bluetooth Speaker features wireless Bluetooth audio streaming function.
Follow the instructions:
Pairing the speaker with a Bluetooth device
Pairing is the process required to create a link between Bluetooth devices
to allow wireless connection. You must pair a device with the speaker before
you start using it.
Press M button on the speaker to select Bluetooth mode, the blue LED
indicator flashes when waiting for connection.
1.
Turn on the Bluetooth function on the Bluetooth device, search for
devices and select “SP672 ” to connect.
2.
If a Passkey is requested, enter “0000.”
When the Bluetooth connection has been established, the blue LED
indicator stops flashing.
3.
Listening to Music of the Registered Device
Press M button on the speaker to select Bluetooth mode.
1.
On the Bluetooth device, select “SP672”.
2.
After Bluetooth connection is established, start playback on the
Bluetooth device.
3.
Depending on the Bluetooth device, the playback may also be
controlled with certain control buttons on the top of the speaker.
4.
Once Bluetooth devices are paired, there is no need to pair them again.
Notes:
The ultimate sound volume can be adjusted by using the volume controls
of both your connected Bluetooth device and the speaker.
Notes:

-9-
The speaker has a USB port for you to insert a compatible USB drive and
directly play stored WMA / MP3 audio contents.
1. Make sure the speaker is power on.
2. Insert your USB drive into the USB port on the back panel of the speaker.
3. Press Mode button to select USB mode.
4. If playback doesn’t start automatically, press the Play/Pause button
to start playback.
5. Use the control buttons on the top of the speaker to adjust the volume
and control the playback.
Notes:
The USB drive will only fit in one direction, do not force it as this would
damage it and the built-in reader of the speaker.
Not all music formats are supported.
Music playback may start automatically after a USB drive is inserted.
The speaker has a TF (Micro SD) card slot for you to insert your compatible
memory cards and directly play stored WMA / Mp3 audio contents.
1. Make sure the speaker is power on.
2. Insert your TF card to the TF card slot on the back of the speaker.
3. Press Mode button to select the mode of Card player.
4. If playback doesn’t start automatically, press the Play/Pause button
to start playback.
5. Use the control buttons on the top of the speaker to adjust the volume
and control the playback.
Notes:
The TF cards will only fit in one direction, do not force it as this
would damage it and the built-in card reader.
Not all music formats are supported.
Music playback may start automatically after a TF card is inserted.
Using the TF Card Slots
Using the USB Port

-10-
The speaker features FM radio function.
1. Make sure the speaker is power on.
2. Inserted the 3.5mm audio cable (supplied)to work as FM antenna.
3. Press the Mode button on the top of the speaker repeatedly to select FM
Radiomode.
4. Press Play/Pause button to start auto-scan of available FM channels,
and store them in built-in memory. Once the scan is finished, the first
stored radio channel will be playing.
5. Press Next or Prev button to select your desired channel.
6. Adjust the inserted audio cable to get the best reception.
7. Use - / + buttonsto decrease/increase volume of the speaker.
Notes:
This function is subject to FM radio signal strength and availability in
your area.
Listening to the Radio

-11-
Using the AUX input
Switch the speaker on.
2.
3. Press the M button on the unit to select Line In mode.
4. The speaker will play the sound input through the connected cable.
The Bluetooth Speaker has an AUX input (Line In) at its back, for you to use
a 3.5mm stereo audio cable to connect it to other audio player.
Notes:
In AUX (Line-In) mode, the control buttons on the unit don’t work,
except the volume control buttons.
Connect one end of the 3.5mm stereo audio cable (supplied) to the
AUX jack at the back of the speaker, and the other end to your audio
player, smart phone etc.
1.
The ultimate sound volume can be adjusted by using the volume controls
of both your connected device and the speaker.

PRODUCT SPECIFICATIONS
Output Power
Sensitivity >60db
Frequency Range 40Hz-20KHz
Distortion
<0.1% (@1W)
SNR >60db
2 x 3"
3W x 2 Max.
Speaker Units
Dimensions W255 × D85 × H140 mm
Power Input
DC 5V/1.0A, via Micro-USB port
Built-in Battery:
Rechargeable Lithium-ion battery
Power Consumption < 6W
TROUBLE SHOOTING GUIDE
Symptoms
No sound
No power
No sound after initial
Bluetooth connection
Solutions
Make sure the USB cable is connected to
Charge the built-in battery.
the unit and the power output.
Check whether the volume is set at
minimum level.
Check if your Bluetooth enabled device
via Bluetooth.
and the speaker is successfully paired
-12-
Make sure the power switch is set in the
“ON” position.
Capacity: 3.6V/1800aAH
Charging time: 4 hours
Play time: 5 hours max.

Warning Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Caution: Any changes or modifications to this device not
explicitly approved by manufacturer could void your authority to
operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.
-13-
