SYMA X300 User manual

GEBRAUCHSANWEISUNG
ZUSAMMENKLAPPBARER DROHN
14+
X300
MAIN FEATURES
●Utilizes the 4-axis structure, enabling the drone to be even more
flexible and speedy. It suitable for both spacious indoor & outdoor
areas.
●Built-in 6-axis gyro stabilizer, barometer and optical flow sensor to
ensure the accuracy of inflight position.
●Be capable of 360°stunt flip function,optical flow positioning, auto
hover function.
●Headless function makes it easy for directional control.
●Auto take-off and landing function make it easier and safer to
control.
●HD camera with real-time transmission function for getting the fun
of aerial photography.
●With flight plan function, when the drone is controlled by mobile
phone.

Safety Guide
1.Please store the smaller-sized drone accessories in places that are out of
reach of children.
2.This drone is very powerful. For all first-time flights, the left joystick must be
slowly pushed up in order to prevent the drone from ascending too fast to
avoid unnecessary collision and possible damage and injury.
3.Firstly turn off the power of the remote control when the flight ended.
4.Avoid placing the batteries in places with high temperatures and exposure
to heat.
5.Take extra precaution to ensure that the drone is at a minimum distance of
15 feet from the pilot, other people, and animals in order to prevent bodily
injury during flight operation. A minimum separation distance of 20 cm must
be maintained between the user’s body and the device under normal use
condition.
6.This drone is for people ages 12+. It must be flown always within the line of
sight of the pilot(or instructor) and flown safely.
7.Non-rechargeable batteries are not to be recharged; Batteries are to be
inserted with the correct polarity; Different types of batteries or new and
used batteries are not be mixed.
8.When the drone is not in use, please remove the batteries in the remote
control.
9.The supply terminals are not be short-circuited.
10.Discharge the battery to 40%-50% (On a full charge, fly for half of the total
flight time) if it will not be used for 10 days or more, this can greatly extend
the battery life.
11.Please keep a safe distance from the spinning propellers to avoid injury.
12.To ensure the electromagnetic environment requirement of the aviation
radio (station), using remote controls in the zone, which is in a radius of
about 5000m zone from the circle center of the airport runway, is forbidden.
All users should also abide by the regulation of the radio set forth by
government and regulatory agencies including the duration and area.
13.Only uses the recommended transformer for the model, and the transformer
is not a model. Disconnect the transformer from the model which is available
cleaning with liquids before cleaning. Check the cord, plug, enclosure and
other parts of the transformer regularly. If any damages have been
discovered, please immediately stop using it, until it was completely repaired.
14.Never look steadily at the laser beam since the laser radiation.
15.Please attention that the drone assembly under adult supervision.
16.The pilot is responsible for the safe operation and safe distance from
uninvolved persons and property on the ground and from other airspace
users and shall never fly the drone above crowds (> 12 persons).
17.Open the battery cover of the toy with screwdriver.
18.The packing has to be kept since it contains important information.
19.Do not touch the rotating rotor, avoid loose clothing or hair that could be
caught in the rotor, do not fly near the face.
20.Advice to keep the instructions for use.
English
-1- -1-

① Power switch
② Left joystick Keep pushing in until
trimming control finished.
To clear all the trimming setting,
keep pushing and press the
power button at the same time.
③ Phone mount
④ Right joystick Press and hold to enter/
exit headless mode.
Press to change high/low speed.
⑤ 360°Stunt flip
⑥ Auto take-off and landing
Repair and maintenance
1.Use dry and soft cloth to clean this product.
2.Avoid exposing this product to heat.
3.Do not immerse this product in water, otherwise, the electronic parts will be
damaged.
4.Transformers used with the toy are to be regularly examined for damage to the
cord,plug, enclosure and other parts,and that,in the event of such damage,the toys
must be used with this transformer until the damage has been repaired.
Aircraft components
Understanding your remote control
①
②
③
④
⑤
⑥
English
①① Propeller protector
② Motor
③ Power switch
④ Propeller blades
⑤ Battery
⑥ camera
②
③
④
⑥
⑤
-2-

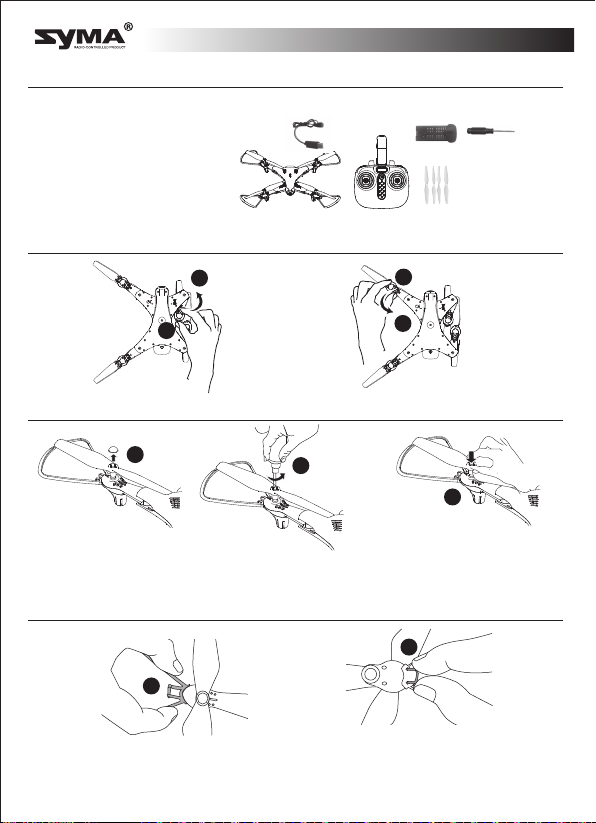

Protective Gear’s Installation Methods
Fold operation
Package description
●Drone
●Remote Control
●User Manual
●4 Blades
●Charging Cable
●4 Protective Gears
●Mobile Phone Retaining Clip
Insert the fixed rods on the protective
gear into the two sockets in the arm
Insert the protective
Extended Folded

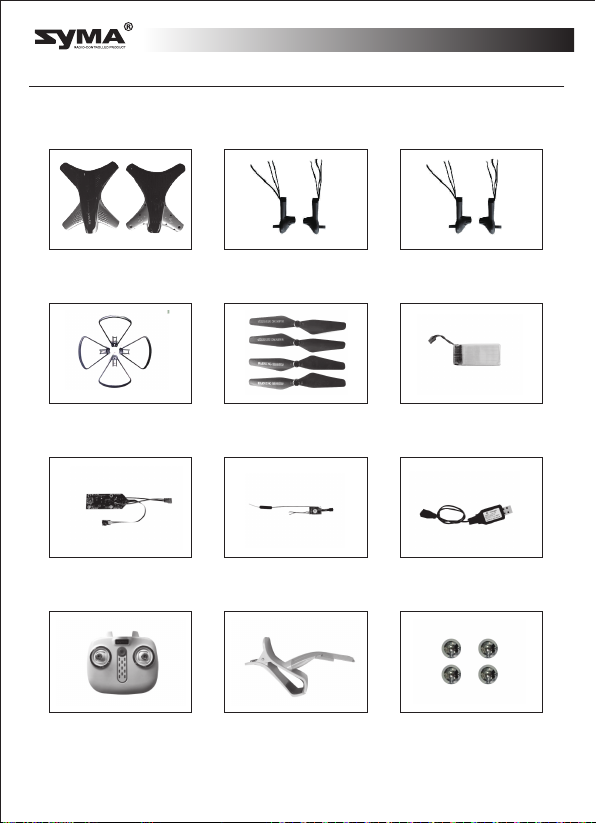

The following items can be found in this product package:
Pull out
Remove the
screws
Re-installing
the blades
* A labeled blades fit on the A labele motors. Blabeled blades fit on the B labeled motors.
Use the screws to tighten the blades. Refer to the image.
●Battery
●Screwdriver
Re-installing the blades
2
2
2
2
3
1
1
1
1
English
-3-

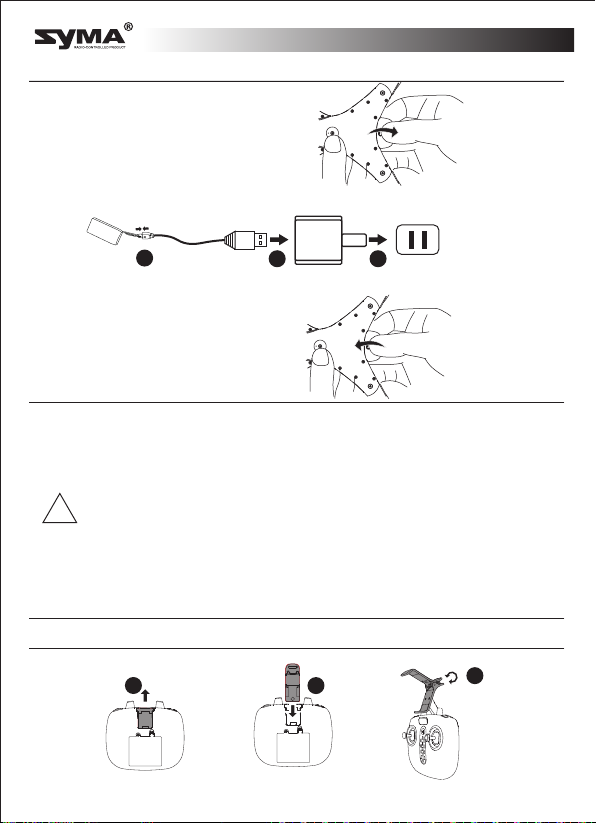

Press the battery cover and open it down,
then remove the battery.
Charge the battery
4.After charging completed, replace
the battery into the drone.
Precautions as follows during charging of battery:
The charging time is about 120 minutes; Hover flight time is approximately 20 minutes.
Battery Changing and Charging Methods for Drone
USB
123
5V2A
Attaching the phone holder
!
123
English
- Avoid placing the active batteries in places with direct exposure, sunlight and
high temperatures. For example, naked light or electrical equipment installations;
otherwise it may cause damages or explosions.
- Avoid immersing the batteries in the water. The batteries shall be stored in a
cool and dry place.
- Avoid disassembling the battery.
- During the charging of battery, avoid leaving the charging place.
- Rechargeable batteries are to be removed from the toy before being charged.
- Rechargeable batteries are only to be charged under adult supervision.
- Exhausted batteries are to be removed from the toy.
- Caution：Risk of explosion if battery replaced by an incorrect type,dispose of
used batteries according to the instructions.
-4-

Turning the aircraft on
One-touch take-
off/landing
Method one Method two Method three
Push the left and right
joysticks downwards in
a V shape for 1 second.
Move the left stick (throttle)
fullyup, after let it come
back to the middle and the
motors will start spinning.
Battery Cover 4 x AA Batteries
Inserting the remote control batteries
* When installing the batteries, ensure that you match the + and – ends
of the battery with the + and – signs on the controller.
* During the battery installation, it must be ensured that the polarities
of the batteries are matched with that of the battery box. No battery
shall be installed with the opposite polarity.
* Please do not use new and old batteries together.
* Please do not use different types of batteries together.
* Do not use rechargeable batteries.
!
12
3
3
4
Press the power button of
the remote control.
12
English
Press the power button on the top of the drone
to 1-2S make sure the drone is turned “ON”.
Flight preparation and turning the aircraft on/off
Pairing the remote control with
the aircraft
Indicator stays constant when
pairing is complete.
-5-

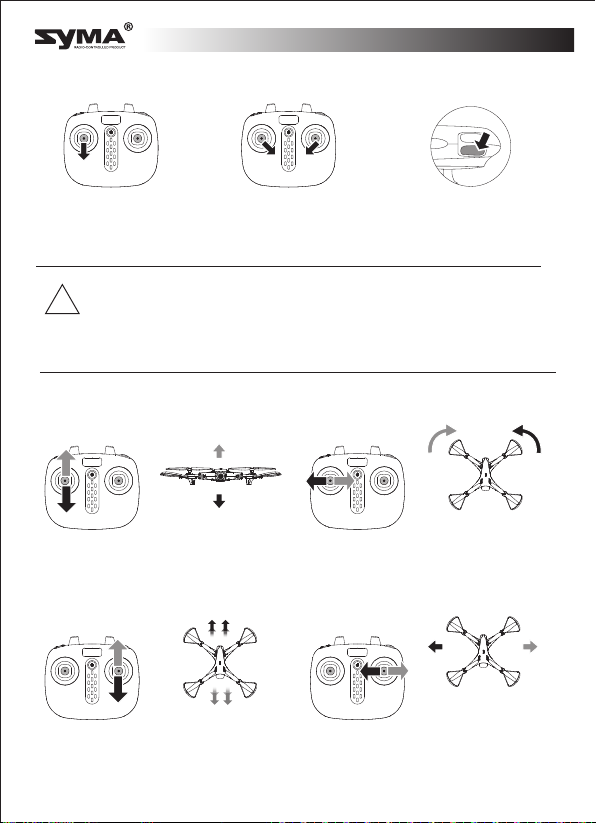

Ascend
Descend
Move forwards
Move backwards
Rotate left
Tilt left Tilt right
Rotate right
Front
Rear
Front
Turning the aircraft off
Method one Method two Method three
Push the left joystick
downwards for 2-3
seconds.
Push the left and right
joysticks downwards in
a V shape for 2
seconds.
Press the take-off/land-
ing button to make the
aircraft land automatical-
ly and switch off.
!
Using the remote control
1. If the drone flies out of control range, the drone indicator lights will
start flashing slowly and after the drone will slowly descend.
2. If the transmitter turns off or the transmitter battery runs low, the
drone will slowly descend. Turn on the transmitter again, re-pair the
unit and continue to fly.
English
-6-

Forward and backward trim control
If the drone automatically flies
forward/backward while hovering, press
in the left joystick and at the same time
push the right joystick backward/forward
slightly to fine tune the direction. Don’t
release the left joystick until the drone is
flying in a stable state.
If the drone automatically flies towards
the left/right side while hovering, press in
the left joystick and at the same time
push the right joystick right/left slightly to
fine tune the direction. Don’t release the
left joystick until the drone is flying in a
stable state.
Left/right side flight trim control
Trimming operation
Product Features
Low battery
1. Low-Voltage Protection:
When the four indicator lights at the bottom of drone
start flashing, it means that the drone's battery power is
low. At this time, please control the drone return.
2.Over-Current Protection:
When the drone encounters direct impact from a
foreign object, or is obstructed, or the blades are not
rotating, the drone will go into the over-current
protection mode.
1
2
2
1
English

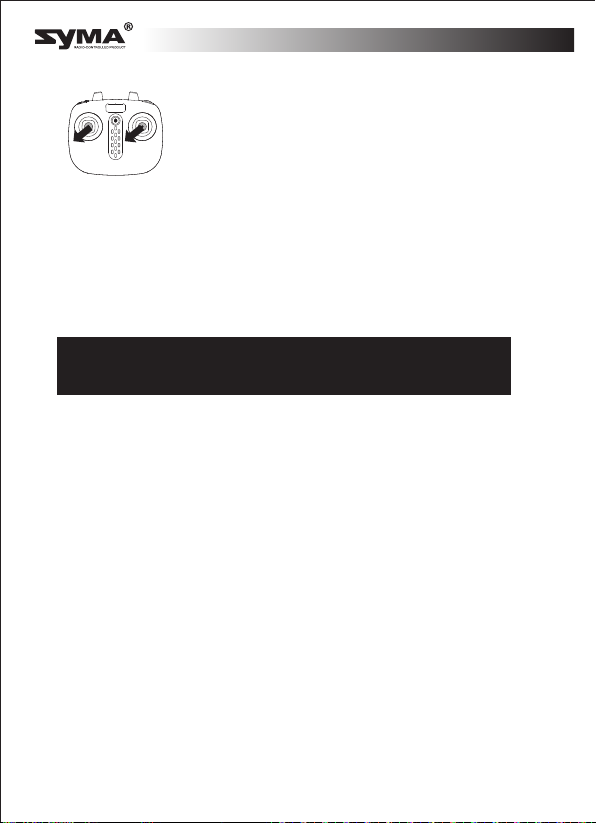

Level calibration
Place the aircraft on a level surface
and move the left and right joysticks to
the lower right corner for
approximately 3 seconds. The
indicator will flash rapidly and then
stay constant to indicate that the
calibration process is complete.
3.Level Calibration Function:
-7-

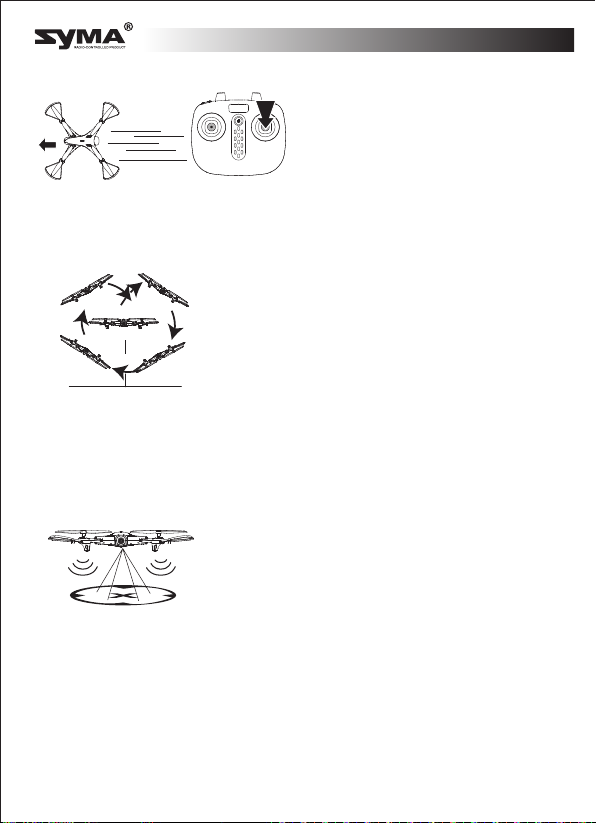

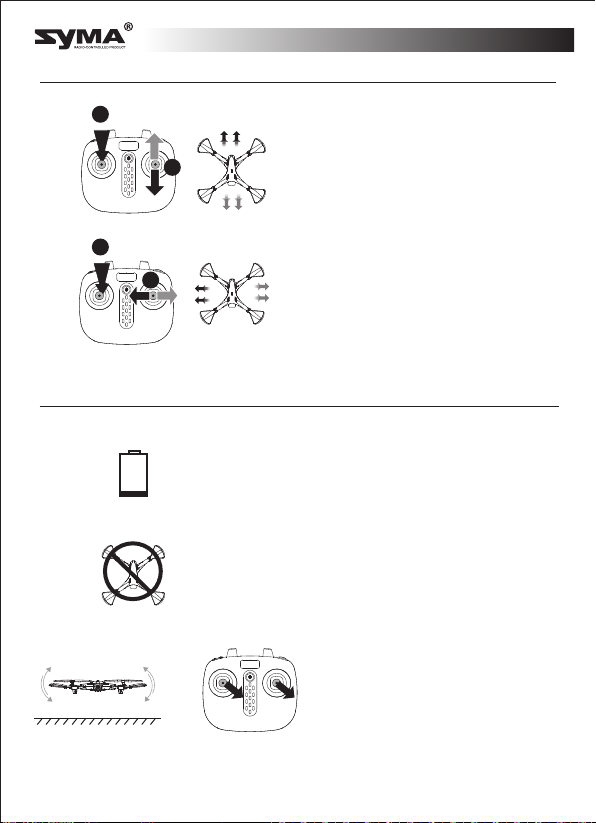

High/low speed mode
Briefly press the right joystick to switch
between high and low speed mode.
1. Low speed mode is enabled by
default when the aircraft is switched
on.
2. The remote control beeps twice when
high speed mode is enabled and
once when low speed mode is
enabled.
4.High/Low Speed Function:
5.360°Stunt Flip Function:
When you are familiar with the basic actions, you can
proceed to explore even more exciting stunt actions. Fly
the drone to a height of above 3 m above the ground,
press the upper right corner button (Stunt Flip Button)
on the remote control and simultaneously push the right
joystick to the farthest position of Front/Back/Left/Right,
the drone will now execute the Front/Back/ Left/ Right
stunt flip function.
Note: The drone will have the best stunt flip action when the batteries are fully charged.
3m
After using the left joystick (throttle) to control the ascending/descending flight
of the drone, release the left joystick (throttle) and the drone will hover at that
height when the joystick is released.
6.Optical flow Hover & Auto Hover Function:
When the drone is turned on, the drone will automatically
start the optical flow positioning function when hovering in
the air, and the drone will remain stationary at a certain
point.
②Auto Hover Function:
①Optical flow hover function
1.Achieve fixed-point accuracy of about 0.5 meters.
2.If the light is dark, the ground reflects, the height is
greater than 12 meters, or the wind is above level 2,the
optical flow positioning will influenced under these
conditions, at this time the indicator light of the drone will be
flashing three times.
Note：
English
-8-

7. Headless Function:
Front
Back
Left Right
①.Defining forward direction:
●Press on the power button of the remote control.
●Press the power button of the drone, and adjust the
specified direction of the drone’s head under the
headless mode as the new forward direction.
●Push the left joystick (throttle) on the remote control
up to the farthest position and then pull down to the
farthest position. When the remote control issues a
long “beep” sound, it means the frequency and
defining forward direction functions are completed.
Front
Back
Left Right
Front
Back
Left Right
②.Toggling between headless function and normal function:
● After the drone is matched with the corresponding
frequency, the drone would be in normal pattern by
default. At this time the indicator light on the drone would
be in a state of on for a long time. After pressing in on
the right joystick of the remote control for 2 seconds, the
remote control would make a sound of “beep, beep,
beep” to show that it has entered into a state of headless
mode. Press in the right joystick for 2 seconds then a
long sound of “beep” would be heard to show an exit
status. (When under the state of headless mode, four
indicator lights on the drone flash slowly once every four
seconds).
● Under the headless mode, the operator does
not need to differentiate the head position of the
drone, and only needs to control the drone’s
direction front / back / left / right by using the
right joystick direction on the remote control.
English
-9-

8.Wireless Real-Time Transmission Function
①Downloading the installation software
Tips: QR codes are provided on the packaging box and at the bottom of
the user manual. Please visit website www.symatoys.com or the
App Store/Google Play to obtain the newest SYMA FLY App.
②For more information on the connection, refer to the APP
operating instructions.
For Android phones, download and install the SYMA FLY APP by visiting the
www.symatoys.com or by scanning the QR code.
For IOS Apple phones, download and install the SYMA FLY APP by visiting
the App Store or by scanning the QR code.
③. Calibration for the definition of the front:
When the drone encounters a direct impact with foreign
objects in the headless mode, if there is an occurrence of
deviation of the defined direction, it is only required to push
both the left and right joysticks to the bottom left corners
simultaneously after placing the flying direction of the drone
in the correction position. When the led light indicator of the
drone is in a long “ON” mode after slowly flashing for 3
seconds, it indicates the calibration is complete.
English
-10-

Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's permissions to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
“This device complies with FCC radiation exposure limits set forth for
general population (uncontrolled exposure).
This device must not be collocated or operating in conjunction with any
other antenna or transmitter.”
Declaration of Conformity inserts
“Hereby, GuangDong Syma model aircraft lndustrial co.,ltd, declares
that this drone is in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU.”
A copy of the full DoC is attached.
English
-11-

Accessories /Parts List (Optional)
You can choose your favourite optional accessories as below. In order to make it easier
for the customers to choose and purchase, we have specially offered each and every
accessory. The accessories can be purchased through the local distributors. Please
Body Front arm A,B Behind arm A,B
Protective Gear Blade Battery
Receiver Board WIFI Board Charging Cable
Remote Control Mobile Phone
Retaining Clip
Plating Object
English
-12-

Product Descriptions
9
9
06
07
07
08
08
01
02
14
03
03 04
04
05
05
9
10 11
12
13
9
05 05
01
02
03
No. No. No.
Product Name Product Name Product Name Qty QtyQty
Top main body
Bottom main body
Motor(counter
clockwise
direction)
Motor(Counter
clockwlse
drrection)
Machine arm A
Machine arm B
Baffle
Receiver Board
Protective Gear
1
1
2
04
05
2
4
07
06
11
12
13
14
2
1
1
4
2
08
09
10
Battery
1
1
1
1
WiFi Box
Front cover
WiFi Board
Battery Box
English
-13-

Problem Reason Solution

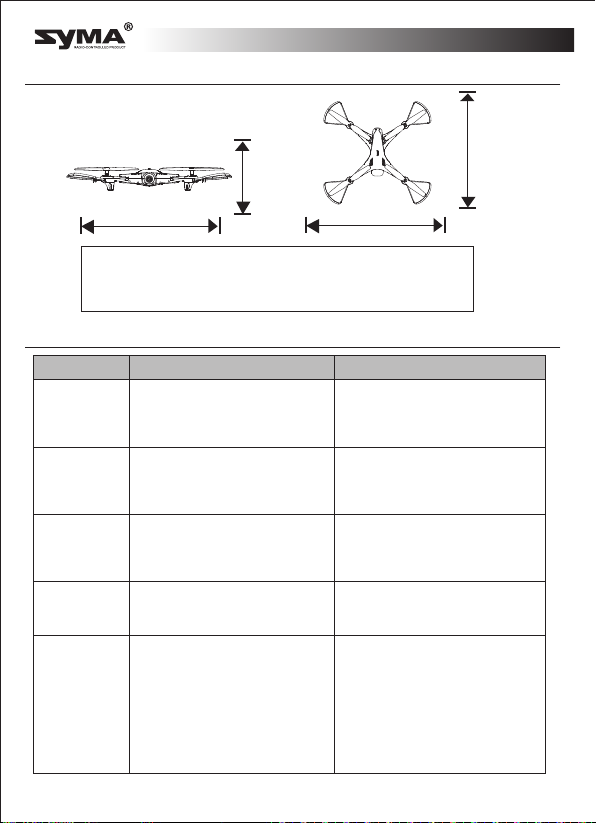

Main Specifications
Drone’s Length: 320mm Drone’s Width : 320mm
Drone’s Height: 50mm Motor’s Model : Ø8x16
Battery : 3.7V 1500mAh lithium battery
Rectification Procedures
The drone
has no
response
1. The drone has entered into
low-voltage protection.
2. When the power of the remote
control is weak,the power light
indicator will blink.
1. Charge up the drone.
2. Change the batteries of
the remote control.
The flight
response of
the drone is
not sensitive
1. The power of the remote control
is weak.
2. There is an interference with
the same frequency as that of
the remote control.
1. Change the batteries.
2. Change to a place where there
is no interference with the same
frequency.
The drone is
flying towards
its side in one
direction during
hovering
1. The drone is not calibrated
level to the ground.
1. Re-adjust the calibration until
the drone is level to the ground.
For further details,
In the headless
state, it is biased
towards the front
direction
1. Many collisions may cause
head drift.
Fixed high
instability / up
and down
movement
1. Re-define the front direction.
For further details,
1.The drone is not calibrated
level to the ground.
2.Unstable air pressure under
the severe weather condition.
3. Violent collision resulting in
data disorder of gyroscope.
1.Re-adjust the calibration until
the drone is level to the ground.
For further details,
2. Avoid to fly under the severe
weather condition.
3. Make level adjustment again,
320mm 320mm
320mm
50mm
English
-14-

English
QR code for android
system
QR code for apple
iOS system
The company has the right of final interpretation
of this instruction manual statement.
Manufacturer
Guangdong Syma Model Aircraft Industrial Co., Ltd.
The Crossing of No.2 West Xingye Road and North Xingye Road,Laimei.
Industrial Park Chenghai District Shantou City Guangdong China.
Contact person：SYMA Telephone：[phone]
-15-

GEBRAUCHSANWEISUNG
14+
ZUSAMMENKLAPPBARER DROHN
X300
HAUPTEIGENSCHAFTEN
● Mit der 4-Achsen-Struktur, wodurch der Drohn noch flexibler und
schneller wird. Es eignet sich sowohl für geräumige Innen- als auch
für Außenbereiche.
● Eingebauter 6-Achsen-Kreiselstabilisator, Barometer und
optischer Flusssensor für die Genauigkeit der Flugposition.
● Sie können 360 ° Stunt-Flip-Funktion, optische Flussposition-
ierung und Auto-Hover-Funktion ausführen.
● Die Kopflose-Funktion erleichtert die Richtungssteuerung.
● Die automatische Abflug- und Landefunktion macht die Steuer-
ung einfacher und sicherer.
● HD-Kamera mit Echtzeit-Übertragungsfunktion für den Spaß an
Photographie in der Luft.
● Mit Flugplanungsfunktion, wenn der Drohn per Mobiltelefon
gesteuert wird.

Sicherheitsanleitung
German
1.Bitte bewahren Sie das kleine Drohnenzubehör an Orten, die für Kinder unerreichbar
sind.
2.Dieser Drohn ist sehr leistungsfähig. Bei allen Erstflügen muss der linke Joystick
langsam nach oben gedrückt werden, damit der Drohn nicht zu schnell aufsteigt, um
unnötige Kollisionen und mögliche Schäden und Verletzungen zu vermeiden.
3.Wenn der Flug fertig ist, schalten Sie zuerst die Fernbedienung aus. Schalten Sie dann
den Drohn aus.
4. Legen Sie die Batterien nicht unter hohen Temperaturen und Hitze.
5. Treffen Sie zusätzliche Vorsichtsmaßnahmen, um sicherzustellen, dass sich der Drohn
in einem Mindestabstand von 15 Fuß vom Piloten, anderen Personen und Tieren befindet,
um Körperverletzungen während des Flugbetriebs zu vermeiden. Gemäß normalen
Betriebsbedingungen muss ein Mindestabstand von 20 cm zwischen dem Körper des
Benutzers und dem Gerät eingehalten werden.
6.Dieser Drohn ist für Personen ab 12 Jahren. Es muss immer in Sichtweite des Piloten
(oder Ausbilders) geflogen und sicher geflogen werden.
7. Nicht wiederaufladbare Batterien dürfen nicht aufgeladen werden. Batterien sind mit
der richtigen Polarität einzulegen; Verschiedene Batterietypen oder neue und gebrauchte
Batterien werden nicht gemischt.
8.Wenn der Drohn nicht verwendet wird, entfernen Sie bitte die Batterien aus der
Fernbedienung.
9.Die Versorgungsklemmen dürfen nicht kurzgeschlossen werden.
10. Entladen Sie den Akku zu 40% -50% (fliegen Sie den Drohn die Hälfte der gesamten
Flugzeit, wenn der Akku voll ist). Wenn der Drohn 10 Tage oder länger nicht verwendet
wird, kann dies die Lebensdauer des Akkus erheblich verlängern.
11.Bitte halten Sie einen Sicherheitsabstand zu den sich drehenden Propellern ein, um
Verletzungen zu vermeiden.
12.Um die Anforderungen an die elektromagnetische Verträglichkeit von
Luftfahrt-Funknavigationsstationen zu befolgen, dürfen ferngesteuerte Modelle nicht
innerhalb einem Radius von 5000 m um Landebahnen (gemessen von der Mitte der
Landebahn) oder während Zeiträumen / in Gebieten mit Funkkontrollbefehle von
Regierungsbehörden verwendet werden .
13. Verwendet nur die empfohlene Fernbedienung mit dem Modell, und die
Fernbedienung ist kein Modell. Trennen Sie die Fernbedienung von dem Modell, bevor
Sie sie mit Flüssigkeit reinigen. Überprüfen Sie regelmäßig das Kabel, den Stecker, das
Gehäuse und andere Teile der Fernbedienung . Wenn es Schäden gibt, hören Sie mit der
Verwendung bitte sofort auf, bis sie vollständig repariert wurden.
14. Schauen Sie wegen der Laserstrahlung niemals stetig auf den Laserstrahl.
15.Achtung: Drohnenmontage unter Aufsicht von Erwachsenen.
16. Der Pilot ist für den sicheren Betrieb und die sichere Entfernung von unbeteiligten
Personen und Gegenständen am Boden sowie von anderen Luftraumnutzern
verantwortlich und darf der Drohn niemals über Menschenmengen (> 12 Personen)
fliegen.
17.Öffnen Sie die Batterieabdeckung des Spielzeugs mit einem Schraubendreher.
18.Die Verpackung muss aufbewahrt werden, da sie wichtige Informationen enthält.
19. Berühren Sie den rotierenden Rotor nicht, achten Sie auf lose Kleidung oder Haare,
die sich im Rotor verfangen könnten, und fliegen Sie nicht in der Nähe vom Gesicht.
20.Bewahren Sie die Gebrauchsanweisung zur weiteren Verwendung auf.
-17-

Reparatur und Wartung
1. Verwenden Sie ein trockenes und weiches Tuch, um dieses Produkt zu reinigen.
2. Legen Sie dieses Produkt nicht unter Hitze.
3. Tauchen Sie dieses Produkt nicht ins Wasser, da sonst die elektronischen Teile
beschädigt werden.
4. Mit dem Spielzeug verwendete Fernbedienung soll regelmäßig auf Beschädigungen
des Kabels, des Steckers, des Gehäuses und anderer Teile geprüft werden. Im Fälle einer
solchen Beschädigung muss das Spielzeug mit dieser Fernbedienung wieder verwendet
werden, wenn die Beschädigung schon fixiert wird.
Flugzeugkomponenten
Funktionenerklärung von Tasten auf der Fernbedienung
①
① Netzschalter ON/OFF
② Linker Joystick Drücken Sie weiter,
bis die Trimmsteuerung abgeschlossen
ist. Um alle Trimmeinstellungen zu
löschen, drücken Sie weiter den
Joystick und gleichzeitig den
Netzschalter.
③ Mobiltelefon Halteklammer
④ Rechter Joystick Drücken Sie diese
Taste, um in / aus dem Kopflos-Modus
zu wechseln. Drücken Sie, um hohe /
niedrige Geschwindigkeit zu ändern.
⑤ 360°Stunt-flip
⑥ Automatischer Abhebung und Landung
②
③
④
⑤
⑥
German
①① Propellerschutz
② Motor
③ Netzschalter
④ Propellerblätter
⑤ Batterie
⑥ Kamera
②
③
④
⑥
⑤
-18-

Installation von Schutzausrüstungen
Falten
Verpackungsbeschreibung
●Drohn
●Fernbedienung
●Benutzerhandbuch
●4 Propellerblätter
●Ladekabel
●4 Schutzausrüstungen
●Handy Halteklammer
Stecken Sie die festen Stangen der
Schutzausrüstung wie gezeigt in die
beiden Löcher im Arm des Drohnes ein
und befestigen Sie sie fest.
Setzen Sie den Schutz ein
Manuell
verlängern
Manuell gefaltet
Die folgende Artikeln sind in der Produktverpackung zu finden:
Herausziehen
Entfernen
Sie die
Schrauben
Klingen wieder
einbauen
●Batterie
●Schraubenzieher
Installation von Propellerblättern
2
2
2
2
3
1
1
1
1
German
A Blatt ist geeignet für Motor A. Blatt mit B Zeichen ist für Motor B. Schrauben Sie mit
den Schrauben die Blätter an. Sehen Sie bitte auf das Bild.
-19-
