SYMA Q12 User manual

8
User manual
Remote Control boat
Q12

DE
Contents
1-18
EN ENGLISHINTRODUCE
19-37
DEUTSCH EINFÜHRUNG

Contents
1.0 Important safety information
2.0 About this product
2.1 Specifications
2.2 Remote control boat components
2.3 Function of remote control components
2.4 Battery charge of the remote control boat
2.5 Spindle tube oiling
3.1 Remote control and boat model pairing
3.2 Function operation
3.0 Remote control guide
4.0 Accessories list
5.0 Contact Us
2
3
10
12
3
4
4
5
10
10
8
1
1. The boat will automatically be powered on when launched in water, and can be connected
directly to the remote control.
2. The effective remote distance is up to 50 meters, otherwise the boat will be out of control.
3. The boat can be driven for about 20 minutes.
4. The boat does not have an automatic capsize function, so be careful not to capsize the boat or
hit an obstacle when controlling it.
5. When the boat is operating, make sure there are no weeds and other debris to avoid tying up the
propeller.
6. The navigation rudder needs to be adjusted manually.
7. Low-voltage alarm warning: When the battery runs low, the remote control lights will flash and
sound a “Di di di” alarm. (When the alarm sounds, please sail the boat back immediately to
prevent the boat from running out of power on the way back)
8. As the boat is equipped with an automatic on/off switch, you must lift the boat out of the water
and remove the battery each time after use; and clean it with a dry soft cloth. (Notice: Do not place
the boat in the water with electricity after use)
Main features
13
EN

1.0 Important safety information
Safety Precautions
Maintenance and repair
Welcome to purchase Syma's RC products. In order to make it easier and more convenient for you to use
this RC boat, please read this manual in detail before your operation, and please keep this manual as a
reference for future operation and maintenance instructions.
1. If the RC boat stops running, you must remove the battery.
2. Avoid exposing the surface of the model to long exposes of sunsight, to prevent paint stripping. Please
clean the model with a dry soft cloth each time after use.
3. If the model is not in use for a long time, please remove the battery to avoid possible damage to the
boat from battery leakage.
1. This product must be used under adult supervision and guidance. Not for children under 8 years. This
is not a toy.
2. Please keep all small parts of the remote control boat out of the reach of children to avoid accidents.
3. Do not charge the battery immediately after use. Please wait until the battery cools down.
4. When sailing, make sure that there is no one in the water to avoid injury, and that there is no grass or
debris on the water surface to avoid the propeller being entangled in the water or the model being
damaged.
5. Never place any small part of the boat in your mouth as it could cause suffocation.
6. Please keep a safe distance from the high-speed rotating propeller to avoid the risk of strangulation or
cuts.
7. Do not touch the motor as it is a heat-generating part to avoid the risk of burns.
8. Do not touch the battery as it is a hot part to avoid the risk of burns.
9. In order to ensure the electromagnetic environment of aviation radio stations, it is prohibited to use
all kinds of model remote controls within an area with a radius of 5,000 meters, the airport runway as the
center and the point as the center of the circle. Model remote controls shall not be used in the period and
area where the relevant state departments issue radio control orders as required.
10. The packaging or the manual contains important information, which shall be stored properly.
2
EN
Notice
!After each use of the model, a dry soft cloth should be used to absorb the moisture in the
hatch to ensure that the hull is dry and clean.

Remote control boat
R/C boat weight
R/C boat size
motor
battery capacity
Battery charge time
speed
Play time
About 450g
40*12*10cm
280
7.4V 800mAh
About 180 minutes
15km/h
About 20 minutes
remote controller
Operating frequency
Remote Control Distance
batteries
2.4 GHz
50m
Two 1.5V*AA (to be purchased separately)
Packing list
Remote control boat
Remote controller
USB charging cable
Wrench
Lubricant
Support holder
Forward and reverse propeller
Forward dental screw
Reverse dental screw
Instruction
1
1
1
1
1
1
1
1
1
1
3
EN
2.0 About this product
2.1 Specifications

turn left/right
Aerial
power switch
to go backward
to go forward
2.2 Remote control boat components
2.3 Functions of remote control components
cabin cover
cabin cover
switch
Propeller
navigation
rudder
hull
Battery installation: open the battery compartment on the back of the remote control. Install 2 "AA"
alkaline batteries (sold separately) into the battery compartment. Make sure the “+”and “-”ends
of the batteries match the illustrations inside the battery compartment.
2 sections
of "AA"1.5V
battery
4
EN

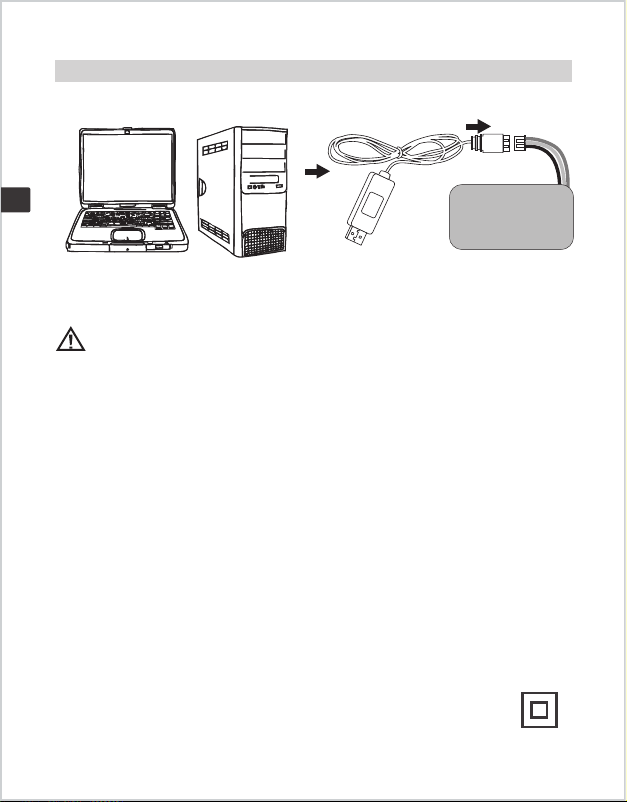

2.4 Battery charge of the remote control boat
The battery will take about 180 minutes to fully charge. The light on the charger plug will show red
while charging and will go off when finished charging.
BATTERY WARNING：
5
EN
1.Failure to follow all the instructions may result in serious injury, irreparable damage to the battery,
and may cause a fire，smoke or explosion.
2.Always check the battery’s condition before charging or using it.
3.Replace the battery if it has been dropped, or in case of odor， overheating , discolouration，
deformation or leakage.
4.Use only the supplied charging cable.
5.The battery temperature must never exceed 60℃(140°F) otherwise the battery could be damaged
or ignite.
6. Never charge on a flammable surface , near flammable products or inside a vehicle ( preferably
place the battery in a non-flammable and nonconductive container ).
7. Never leave the battery unattended during the charging process . Never disassemble or modify the
housing's wiring，or puncture the cells. Always ensure that the charger output voltage corresponds
to the voltage of the battery . Avoid short circuit between the charge leads.
8. Never expose the battery to moisture or direct sunlight, or store it in a place where temperatures
could exceed60℃(drone in the sun，for example)
9. Always keep it out of reach of children .
10. Improper battery use may result in a fire, explosion or other hazards.
11. Non-rechargeable batteries are not to be recharged . Rechargeable batteries are only to be
charged under adult supervision .
12. Different types of batteries or new and used batteries are not to be mixed.
13. Batteries are to be inserted with the correct polarity.
14. The supply terminals are not to be short-circuited. Regular examination of transformer or battery
charger for any damage to their cord, plug,enclosure and other parts and they must not be used until
the damage has been repaired.
15. The packaging has to be kept since it contains important information.
16.This toy is only to be connected to equipment bearing either of the following symbols:
17.The toy is to be operated in water only when fully assembled in accordance with the instructions.

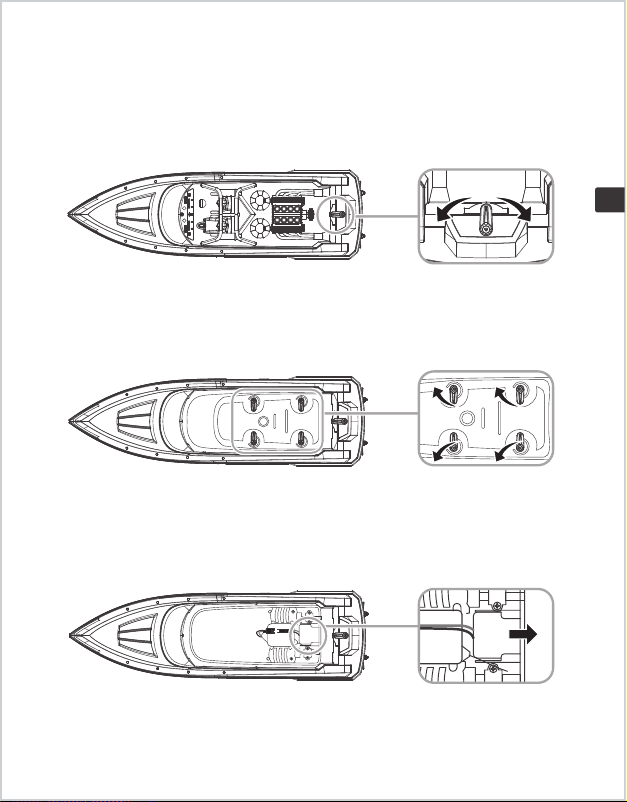

Remote control boat battery installation
1. Twist the cabin knob to the left and right and open the cover upwards.
2. Turn the inner cabin knob as directed and open the hatch upwards
3. Place the battery in the battery holder of the hull
6
EN

7
4. Connect the battery to the power plug
5. Insert the cover diagonally into the hull
EN
Notice
!Plug the battery into the RC boat and then into the battery holder. Be careful not to
reverse the battery plug.
Notice
!Insert the inner hatch into the cabin at a 45 degree angle and then push forward, button
up the inner hatch buckle, lastly insert the outer hatch into the cabin at a 45 degree angle
and fasten the buckle.

8
2.5 Spindle tube oiling
1. Press down on the spindle rubber part and use
a wrench to unscrew the set screw and then
unscrew the propeller.
2.Remove the motor by unscrewing the four screws on both sides of the motor.
6. Twist the cabin knob to the left/right until it snaps tight
EN
For waterproof reasons, the hatch cover is designed to fit tightly and must be removed or
closed with force correctly.

9
3. Pull the spindle a short distance towards the bow.
5. Lock the four screws of the motor base
EN
4. Squeeze an appropriate amount of lubricant into the end of the spindle tube and slowly
pull it by rotating it back and forth so that the lubricant is evenly coated on the inner wall
of the spindle tube.

10
3.1 Remote control and boat model pairing
1. Turn on the power switch of the remote control, the power indicator will flash, then put the boat model
into the water. If the power indicator is always on, it means the remote control and the boat model are
successful in pairing.
2. If the remote control and the boat model are not successfully paired, the power light will flash.

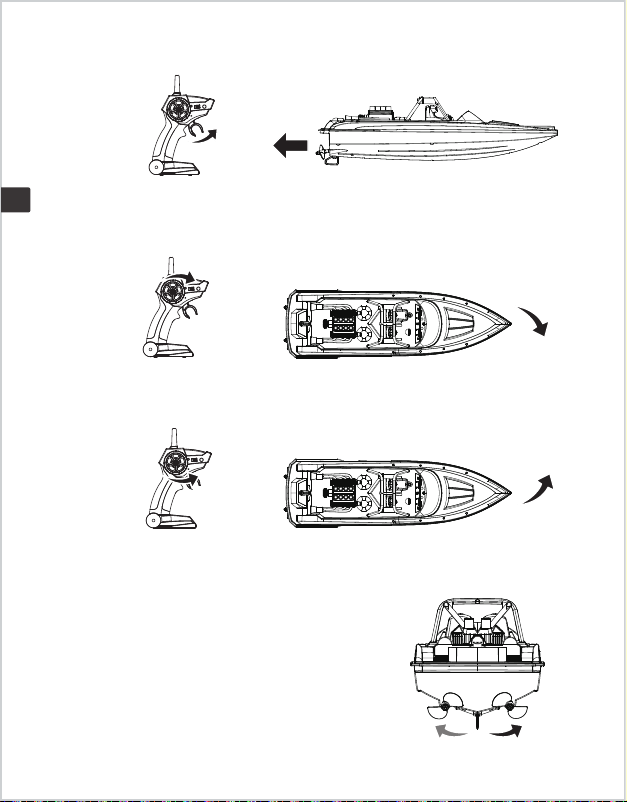

3.2 Function operation
to go forward
6. Press down on the spindle rubber part and fit the propeller, then fit the set screw with a
wrench.
3.0 Remote Control Guide
EN
Notice
!
1. The battery cables should be lined up to the side of the boat so that the inner hatch cover is tight.
2. All plugs should be plugged in tightly.
3. Make sure the hatch is tightly covered to prevent leaks.

11
to go backward
turn right
turn left
Navigation rudder: It can correct the navigation
direction. When going straight ahead, it can be
adjusted manually to the left when it is shifted to the
left, and to the left when it is shifted to the right adjust.
EN

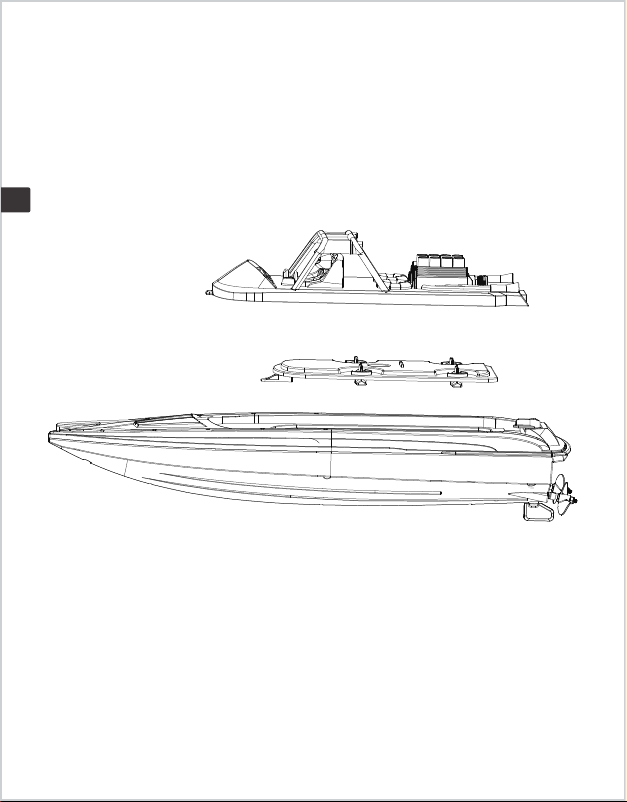

4.0 Accessories list
Receiving board
Servo linkage rod
Support holder Screw holder
Cabin cover set
Rudder rubber
bushings
Motor Battery USB
Hull set
Pipe unit
Propellers
12
EN

13
EN
Please do not hesitate to contact us if you need more
further support.
[email protected]
[phone](US)
[phone](UK)
[phone](DE)
5.0 Contact Us
For online support, please scan this
code with Facebook Messenger

EN
Warning：Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Notice：This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions , may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on， the user is encouraged to try to correct the
interference by one or more of the following measures：
●Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
“This device complies with FCC radiation exposure limits set forth for the general population
(uncontrolled exposure ).
This device must not be collocated or operating in conjunction with any other antenna or
transmitter."
RF frequency band :2405-2475 MHz
Transmitter power : 10dBm
Product name: [High speed boat]
Model number: [ Q12]
Brand name :SYMA
Declaration of Conformity Inserts:
Hereby ，GuangDong SYMA Model Aircraft Industrial Co.，Ltd. declares that the radio
equipment type High speed boat is in compliance with Directive 2014/53/EU. The full text of
the EU declaration of conformity is available at the following internet address：
http：//www.symatoys.com/down/declaration-of-conformity.html
14

EN
15

WARRANTY:
LIMITED 2-YEAR WARRANTY AND FREE LIMITED REPLACEMENT PARTS FOR 2-YEARS
Symatoys.com.cn warrants to the original buyer only that its products will be free from
defects in material and workmanship for 2 years from the date upon which the product is
shipped, either directly from symatoys.com.cn or from an Authorized Re-seller’s location, to
the buyer.
The following condition's must to be eligible for warranty coverage:
1. During the warranty period product is used as intended by the manufacturer.
2. The Product has not been disassembled or modified.
3. The labels and serial numbers show no signs of tampering or altering.
4. Buyer has a warranty code obtained by registering their product online prior to making a
claim.
EXCEPTIONS: THE LIMITED WARRANTY SHALL NOT APPLY TO:
• Damage caused by normal wear and tear
• Accident, negligence, abuse, misuse, misapplication or willful damage by buyer (or its
agents), or acts of nature
• Crash or burning caused by non-manufacturing factors
• Damage caused by authorized modification or disassembly not authorized by the instruction
manual
• Damage. caused by incorrect use or operation
• Damage caused by mismatch or misuse of battery or charger
• Failure of the operator to follow the operating instruction or use outside the products
operating parameters
• Damage caused by operating the product in or around electromagnetic interference (i.e.,
radio transmitting tower, high-voltage wire, substation, etc.)
• Damage caused by operating the product where there may be interference caused by other
wireless devices
• Operating the product with load capacity in excess of the sale weight listed in the manual
• Operating the product with aged, damaged or unauthenticated third-party components
• Operating the product with a defective battery
WARRANTY
PROCEDURE: Any claims for breach of the foregoing limited warranty shall only be valid if
buyer makes such claim in writing within 2 year of the date of shipment of the product to
which the claim. To make a warranty claim, please email [email protected] with
your full name. address. phone number, order number. vehicle type. part type and purchase
date and product issue.
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
2 YEAR
EN
16

LIMITED REMEDY:
Symatoys.com.cn's sole liability, and buyer's sole remedy for any breach of the foregoing
warranty shall be at Symatoys.com.cn's option to exchange the product with a new product or
a refurbished product that is functionally equivalent to the original product, or issue a credit
or refund to the purchase price the product.
Any replaced products shall be warranted as set forth herein, provided that the period within
which buyer may make further claims shall be limited to the remainder of the original period.
for the applicable product or 2 years, whichever is longer (although the warranty period shall
be suspended during any period of replacement)
DISCLAIMER:
Haftungsausschluss:
THE WARRANTY AND REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES.
AND Symatyos.com.cn DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, NON-INFRINGEMENT AND ANY WARRANTIES ARISING OUT OF COURSE
OF DEALING, COURSE OF PERFORMANCE AND TRADE USAGE.
Symatoys.com.cn IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY
OTHER LEGAL THEORY. INCLUDING BUT NOT UMITED TO COSS OF USE; LOSS OF REVENUE;
LOSS OF ACTUAL ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS);
LOSS OF THE USE OF MONEY, LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS COSS OF
OPPORTUNITY; LOSS OF GOODWILL, LOSS OF EPUTATION; LOSS OF DAMAGE TO COMPRO-
MISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE
HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY.
ANY COSTS OF RECOVERING OR REPRODUCING ANY DATA STORED IN OR USED WITH THE
PRODUCT OR ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF INFORMATION STORED
THE PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages.
so the above limitation or exclusion may not apply to you. In addition, some states do not
allow limitations on how long an implied warranty lasts. so the above limitation may not
apply to you.
FREE REPLACEMENT PARTS FOR 2 YEARS: Symatoys.com.cn .com shall also make available
any spare part needed for registered vehicles free of charge for 2 years from the date of
purchase, with the exception of batteries, motors. circuit boards and transmitters. Shipping
charges may apply Limit one part type request per registered vehicle (e.g., registrants are
entitled to one extra set of batteries per registered vehicle}. To request spare parts. please
email [email protected] with your warranty code, vehicle name/model, current
shipping address, purchase date and part type
GET YOUR WARRANTY CODE AT symatoys.com.cn/pages/warranty-signup
HAVE YOUR ORDER NUMBER AND/OR VEHICLE UPC READ
17
EN
