Symbol WSS 1000 User manual

WSS 1000 System

WSS 1000 System
1999-2002 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve
reliability, function, or design.
Symbol does not assume any product liability arising out of, or in
connection with, the application or use of any product, circuit, or
application described herein.
No license is granted, either expressly or by implication, estoppel, or
otherwise under any patent right or patent, covering or relating to any
combination, system, apparatus, machine, material, method, or process in
which Symbol products might be used. An implied license only exists for
equipment, circuits, and subsystems contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol
Technologies, Inc. Other product names mentioned in this manual may be
trademarks or registered trademarks of their respective companies and are
hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com

Quick Reference
1
Introduction
The WSS 1000 is a wearable data entry system consisting
of a laser bar code scanner, usually worn on the
operator’s fingers or back of hand, and a wrist computer
(WWC 1000) worn on the operator’s forearm.
The detachable components work equally well for right-
and left-handed individuals. Detachable personal mounts
allow multiple operators to share both scanner and wrist
computer without having to use the same mount.
About This Guide
This guide presents information on system components,
assembling the WWC 1000, battery installation and
charging, attaching the system, using the keyboard, and
disassembly for use by others. For wearable scanner
information, refer to the WSS 1000 Product Reference
Guide, or the Quick Reference Guide provided with your
scanner.

2
WSS 1000 System

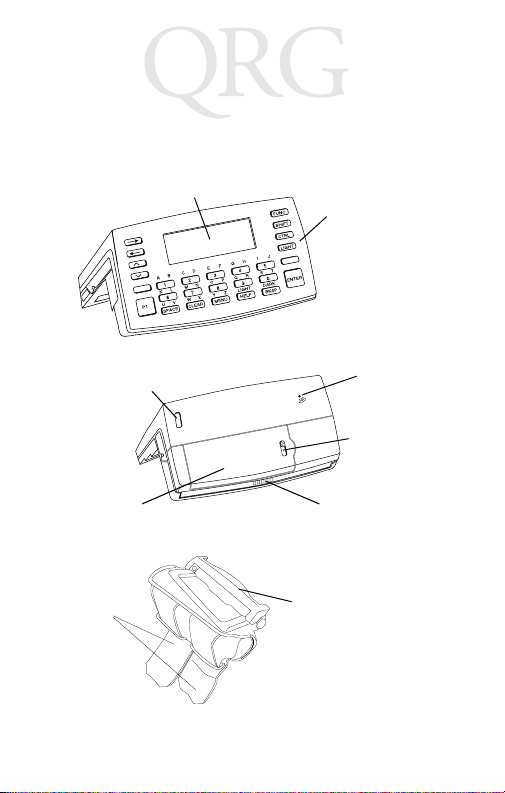

Parts of the WSS 1000 System
Keyboard
Display
Speaker

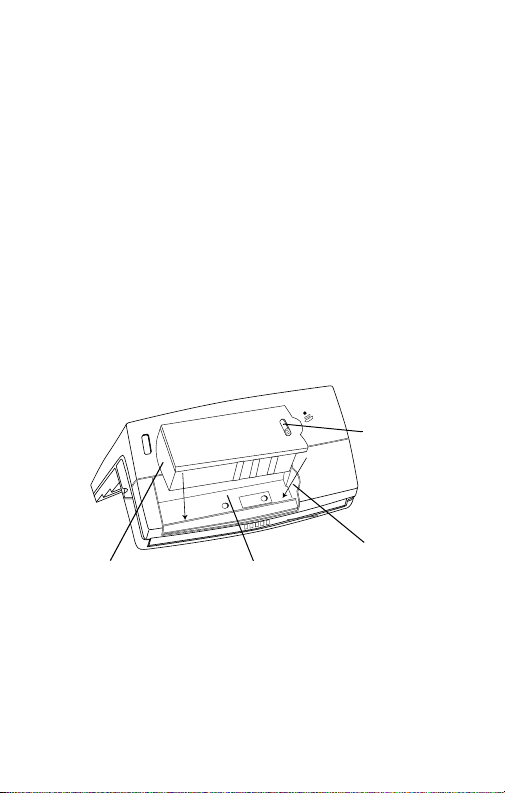

Battery
Latch
Power
Switch
Battery Charging
Contacts
Lithium-Ion
Battery
WWC 1000 Top
WWC 1000 (Wrist Computer) Front
Adjustable
Straps Snap-On
Bar
WWC 1000 Wrist Mount

Quick Reference
3
Installing and Charging the Battery
The wrist computer and scanner are powered by a
Lithium-Ion battery pack. The pack provides power for
a typical 8-hour shift.
Note: Before using the wrist computer, install and
fully charge the Lithium-Ion battery pack.

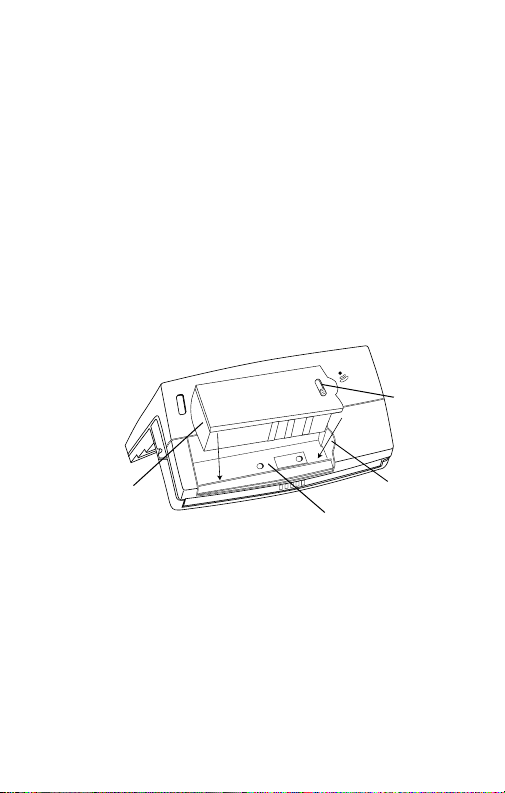

To install the battery pack in the WWC 1000:
1. Insert the battery pack, base first, in the battery
compartment.
2. Line up the pack’s locking mechanism with the
notch in the battery compartment wall by sliding
the battery latch, and press the pack into place.
3. Release the battery latch to lock in place.
Battery
Latch
Notch
Battery
Compartment
Battery Pack
Base

4
WSS 1000 System
Charging the Battery in WWC 1000
To charge the Lithium-Ion battery in the WWC 1000:
1. Place the WWC 1000 in the cradle as shown be-
low:
2. The cradle’s CHARGING light illuminates (RED)
if the WWC 1000 is properly seated and the bat-
tery is charging.
3. The battery requires approximately 2 hours to
charge fully. The CHARGING light changes to
GREEN when the battery is fully charged.
4. To remove the WWC 1000 from the cradle, tilt the
WWC 1000 upward and pull out.
For more information on the CS 1000 Cradle, re-
fer to the CS 1000 Single-Slot Cradle QRG, p/n
70-16237-xx, or the CS 1000 4-Slot Cradle QRG,
p/n 70-17661-xx.

Quick Reference
5
Charging the Spare Battery
Spare battery packs can be charged separate from the
WWC 1000. To charge a spare battery pack in the cradle:
1. Insert the pack in the cradle’s spare charging slot.
2. The CHARGING light illuminates red.
3. The spare pack is charged in approximately two
hours, even if the WWC 1000 is charging at the
same time. The CHARGING light changes to
green when the battery is fully charged.

6
WSS 1000 System
Assembling the WSS 1000 System
To assemble the WWC 1000 (wrist computer):
1. Place the WWC 1000 wrist computer onto the
wrist mount, facing you. Be sure the mount is ori-
ented so that the longer strap will be further up the
forearm.
2. Snap the bar over the WWC 1000 using the snaps
on either side of the mount. The straight part of the
bar should lay across the front of the WWC 1000;
the curved part in back.

Quick Reference
7
Note: The snaps on the wrist mount act as a tear-
away device allowing the wrist computer to
detach from the mount if it catches on an
object.

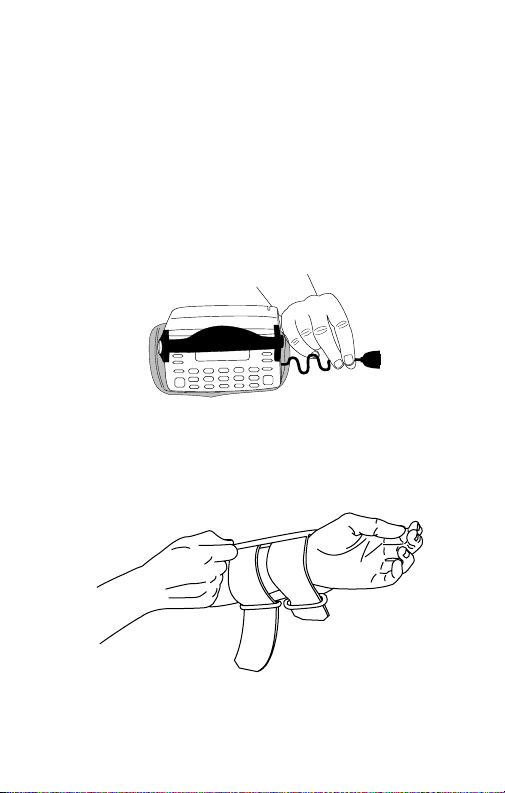

3. Plug the cable connector from the WWC 1000 in
the interface port on the back of the scanner.

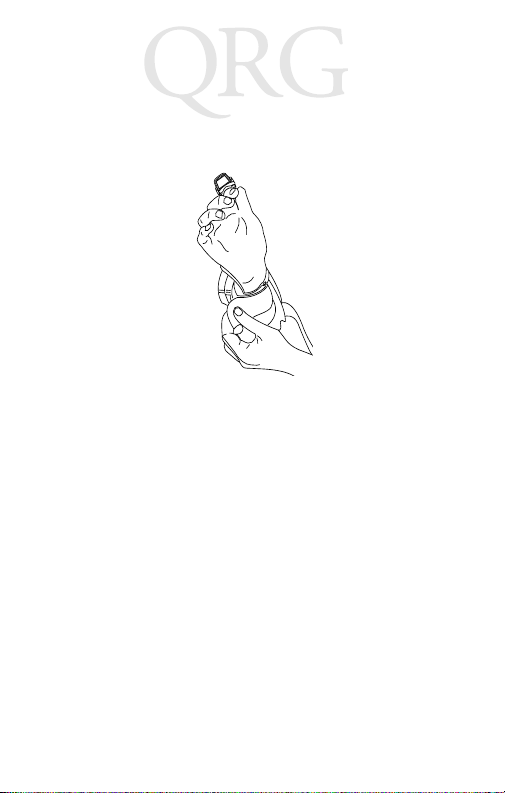

4. Place the WWC 1000 on your arm:
a. Slide the wrist mount on your arm, so that the
WWC 1000 wrist computer faces you.

8
WSS 1000 System
b. Pull the straps through the buckles so the wrist
mount is secure but not tight.
c. Use the Velcro to secure the straps.
5. Assemble and mount your scanner. See your scan-
ner’s Quick Reference Guide, or the WSS 1000
Product Reference Guide.

Quick Reference
9
Power
Once the battery pack is fully charged, you are ready to
use the wrist computer.
To power the wrist computer on, press the power switch
on top of the WWC 1000.
Display Light and Contrast
To turn the display light and keypad backlight on, press
LAMP (Left Alpha and Help). To adjust the contrast:
• press FUNC and SPACE to darken the contrast,
• press FUNC and BKSP to lighten the contrast.

10
WSS 1000 System
Communicating with the Host
Using the Cradle
The CS 1000 cradle is used to perform communications
with a host PC. To set up the cradle for operation:
1. Plug one end of a null modem cable (p/n 59846-
03-00) into the communications port located on
the left end of the cradle.
2. Connect the other end of the cable to the host com-
puter’s serial (COMM) port.
3. Provide power to the cradle by plugging the power
supply’s round connector into the power port on
the cradle and the other end of the power cable in
an electrical outlet.
4. Insert the WWC 1000 in the cradle (the ring scan-
ner can be attached).
5. Start the communications program as detailed in
the WSS 1000 Product Reference Guide.
Radio Communications
Wireless communication with the host is available
through the Spectrum Oneor Spectrum24 radio
network. For information on performing radio
communications, refer to the WSS 1000 Product
Reference Guide.

Quick Reference
11
Data Entry
Using the Keyboard
The keyboard consists of two types of keys:
alphanumeric character keys and modifier keys. Most
keys are self-explanatory. Some guidelines for using the
keyboard include:
• Press keys one at a time. Pressing two keys simul-
taneously produces an error.
• The default keyboard produces numbers; to pro-
duce letters, press the left Alpha Shift and the ap-
propriate key to produce the letters in purple,
and the right Alpha Shift to produce the letters
in green, as shown below.
• Use the modifier keys, FUNC, SHIFT, and CTRL,
in combination with the character keys to produce
other characters or to issue commands. Refer to
Right Alpha Shift
Left Alpha Shift

12
WSS 1000 System
documentation for your application for more in-
formation.
• Cursor position is controlled by the Up Arrow,
Down Arrow, Left Arrow, and Right Arrow keys.
Removing the WWC 1000 from the
Mount
The WWC 1000 can be removed from the wrist mount
for use by other operators.
To remove the WWC 1000:
1. Detach the cable connection to the scanner.
2. Unsnap the bar securing the wrist computer.
3. Lift the WWC 1000 out of the mount.
Cleaning
Wrist Computer
To clean the wrist computer, use a clean, soft cloth
dampened with a mild cleaner such as soap and water.
Do not use abrasive paper, cloth, or abrasive/corrosive
cleaners. Clean the keypad and scanner triggers, and
wipe the display window with lens tissue.
Wrist Mount
Remove the bar from the wrist mount. Hand wash the
fabric mount with warm water using a mild detergent
and air dry (see tag on mount for washing instructions).

Guide utilisateur
13
Introduction
Le WSS 1000 est un système de saisie de données prêt-à-
porter qui se compose d'un lecteur laser de codes à
barres, généralement fixé sur le doigt de l'opérateur ou
sur le dos de sa main, et d'un terminal de poignet (WWC
1000) fixé sur son avant-bras.
Les composants amovibles sont conçus pour s’adapter
aux droitiers comme aux gauchers. Les dispositifs de
fixation individuels amovibles permettent à différents
opérateurs de partager le même matériel (lecteur en
forme de bague et terminal) tout en disposant chacun de
son propre support individuel.
Objet de ce guide
Ce guide présente des informations sur les composants
du système, montage du WWC 1000, la mise en place et
la charge de la batterie, la fixation du système,
l’utilisation du clavier et du lecteur et le démontage des
composants amovibles lorsque le système doit être utilisé
par un autre opérateur. Pour obtenir des informations
sur le lecteur prêt-à-porter WSS 1000, reportez-vous au
Guide utilisateur du WSS 1000 ou au Guide utilisateur
fourni avec le lecteur.

14
WSS 1000 System
Composants du système WSS 1000
Clavier
Ecran
Loquet de
verrouillage
des batteries
Interrupteur
Marche/Arrêt
Plots de charge
des batteries
Batterie
lithium-ion
Partie supérieure du WWC 1000
Vue avant du WWC 1000 (terminal)
Sangles
réglables Barre
amovible
Dispositif de fixation de
poignet du WWC 1000
Haut-parleu
r

Guide utilisateur
15
Mise en place et charge de la batterie
Le terminal et le lecteur sont alimentés par un pack de
batteries lithium-ion qui assure une autonomie de 8
heures.
Remarque : Avant d’utiliser l’ordinateur de
poignet, insérez et chargez
complètement le pack de batteries
lithium-ion.
Mise en place du pack de batteries dans le WWC 1000 :
1. Insérez le pack de batteries par la base dans son
compartiment.
2. Alignez le mécanisme de verrouillage du pack avec
l’encoche dans la paroi du compartiment en ap-
puyant sur le pack jusqu’à ce qu’il s’enclenche.
3. Pour verrouiller la batterie, relâchez le loquet.
Loquet de
verrouillage
des batterie
s
Encoche
Compartiment
des batteries
Base du pack de
batteries

16
WSS 1000 System
Charge de la batterie dans le WWC 1000
Pour charger la batterie lithium-ion dans le WWC 1000,
procédez comme suit :
1. Placez le WWC 1000 dans le puits de chargement
et de communication comme indiqué ci-dessous :
2. Le témoin CHARGE du puits s’allume (ROUGE)
lorsque le WWC 1000 est correctement enclenché
et que la batterie est en cours de charge.
3. La charge complète de la batterie prend environ 2
heures. Le témoin CHARGE vire au VERT une
fois la charge terminée.
4. Pour extraire le WWC 1000 du puits, inclinez le
WWC 1000 vers le haut et extrayez-le.
Pour plus d'informations sur le puits de charge-
ment et de communications CS 1000, reportez-
vous au Guide utilisateur CS 1000 à une position,
réf. 70-16237-xx ou au Guide utilisateur CS 1000
à quatre positions, réf 70-17661-xx.

Guide utilisateur
17
Charge de la batterie de rechange
Vous pouvez charger des packs de batteries hors du
WWC 1000. Pour charger un pack de batteries de
rechange dans le puits, procédez comme suit :
1. Insérez le pack dans le compartiment prévu à cet
effet.
2. Le témoin CHARGE rouge s’allume.
3. Il faut environ deux heures pour charger le pack de
rechange, même si le WWC 1000 est chargé en
même temps. Le témoin CHARGE vire au vert une
fois la charge terminée.

18
WSS 1000 System
Montage du système WSS 1000

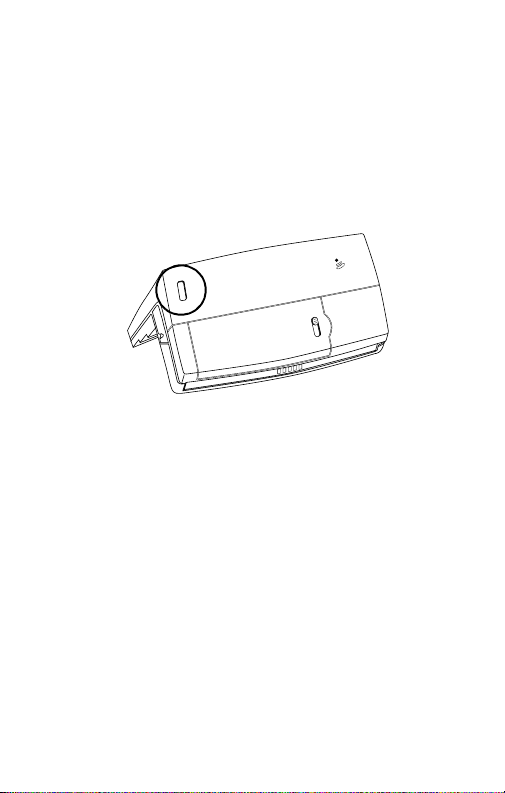

Pour monter le WWC 1000 (terminal) :
1. Placez le terminal WWC 1000 sur le dispositif de
fixation, face à vous. Lorsque le dispositif est cor-
rectement positionné, la sangle la plus longue se
trouve sur la partie supérieure de l’avant-bras.
