Synergy Global Technology LCD1U17-39 User manual





User Manual 1U 17″FHD LCD Console Drawer
Ultra short depth
400mm / 15.7″
LCD1U17-30
LCD1U17-39

Legal Information
First English printing, March 2023
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment offand on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
www.RackmountMart.com

Contents
< Part. 1 >
1.1 Package
Content P.1
1.2 Structure Diagram & Dimension P.1
1.3 Installation P.4
1.4 Connection P.7
< Part. 2 > Specifications / OSD
2.1 Product
Specifications P.9
2.2 Keyboard / Mouse Specifications P.11
2.3 On-screen Display Operation ( OSD ) P.13
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input P.16
3.2 Display port, HDMI, BNC, ADH P.17
3.3 17″Touchscreen : Projected Capacitive ( 10-point touch )
Resistive 1-point touch P.18
3.4 DC Power : 12V / 24V / 48V / 125V / 250V P.20
< Part. 4 > KVM Integration
www.RackmountMart.com
LCD1U17-30 / LCD1U17-39
4.1 LCD1U17-30 P.22
4.2 LCD1U17-39 P.23
2-post rack mounting brackets ( LCD1U17-30 only ) P.213.5

■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip offthe finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3
4
www.RackmountMart.com

P.1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8 - 2.5A Power adapter & Power cord X 1
- M6 screw, cage nut & cup washer X 8
< Part 1 > LCD1U17-30 / LCD1U17-39
< 1.1 > Package Content

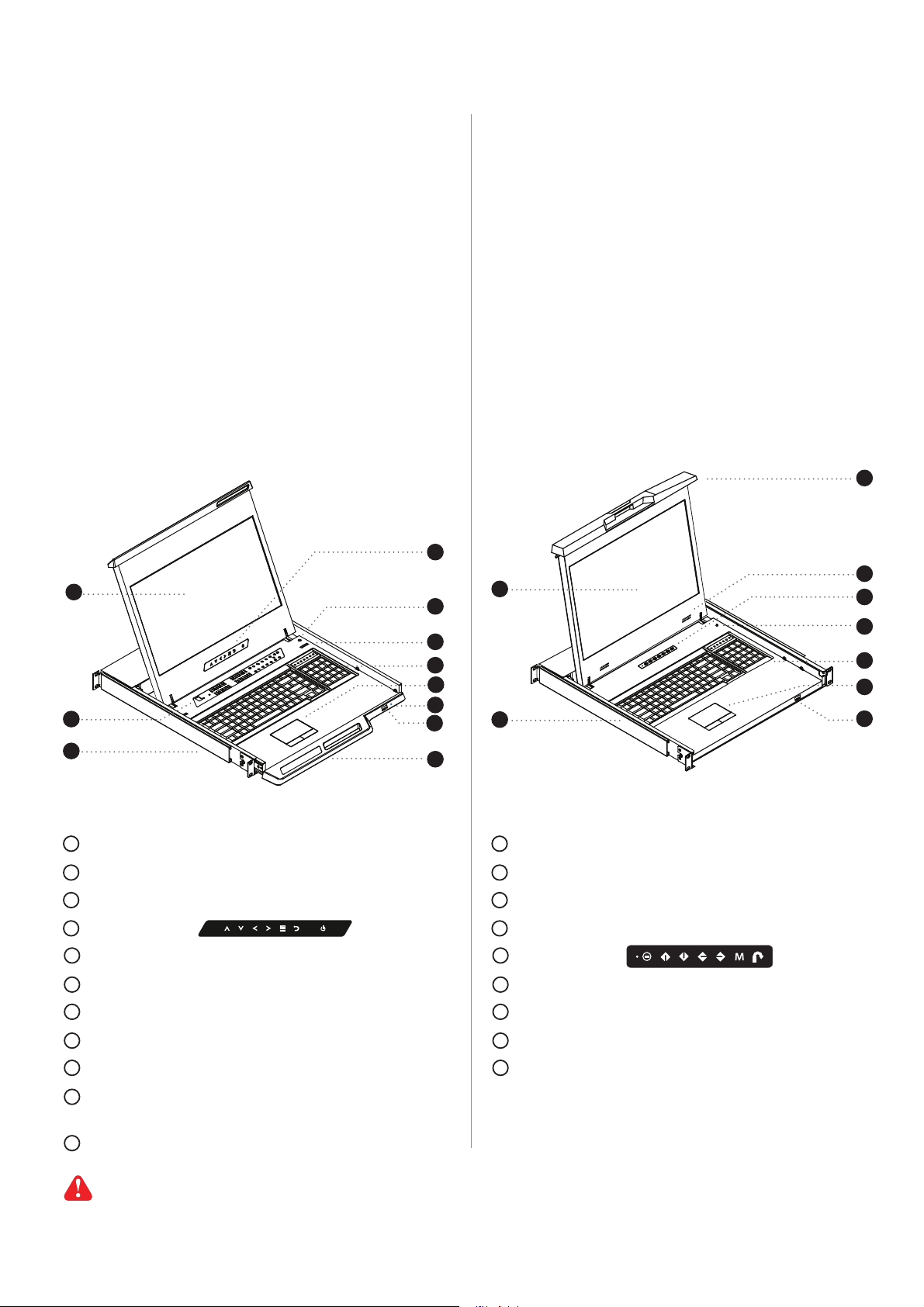

< 1.2 > Structure Diagram
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, Touchscreen & DC power.
4
1
2
5
6
7
311
9
10
8
11
10
9 9
8
7
6
5
4
3
1LCD interchangeable module kit
Membrane switch (KVM option)
Installation Slides
LCD membrane
Micro switch for screen auto power off
Audio speaker ( for SDI or HDMI option )
Keyboard interchangeable module kit
Mouse interchangeable module kit
Blue Power LED
Front USB port for device access
( USB Hub KVM only )
Molded front handle
2
8
7
6
5
4
3
1LCD interchangeable module kit
Installation Slides
Molded front handle
Audio speaker ( for SDI or HDMI option )
LCD membrane
Micro switch for screen auto power off
Keyboard interchangeable module kit
Mouse interchangeable module kit
Front USB port for device access
( USB Hub KVM only )
2
9
6
4
5
8
2
1
3
7
www.RackmountMart.com
LCD1U17-39LCD1U17-30
- LCD-A3004A : 6ft DVI-D console cable X 1
( Alternative : LCD-A1014A 6ft VGA console cable ) - LCD-A3004A : 6ft DVI-D console cable X 1 ( Alternative : LCD-A1014A 6ft VGA console cable )

P.2

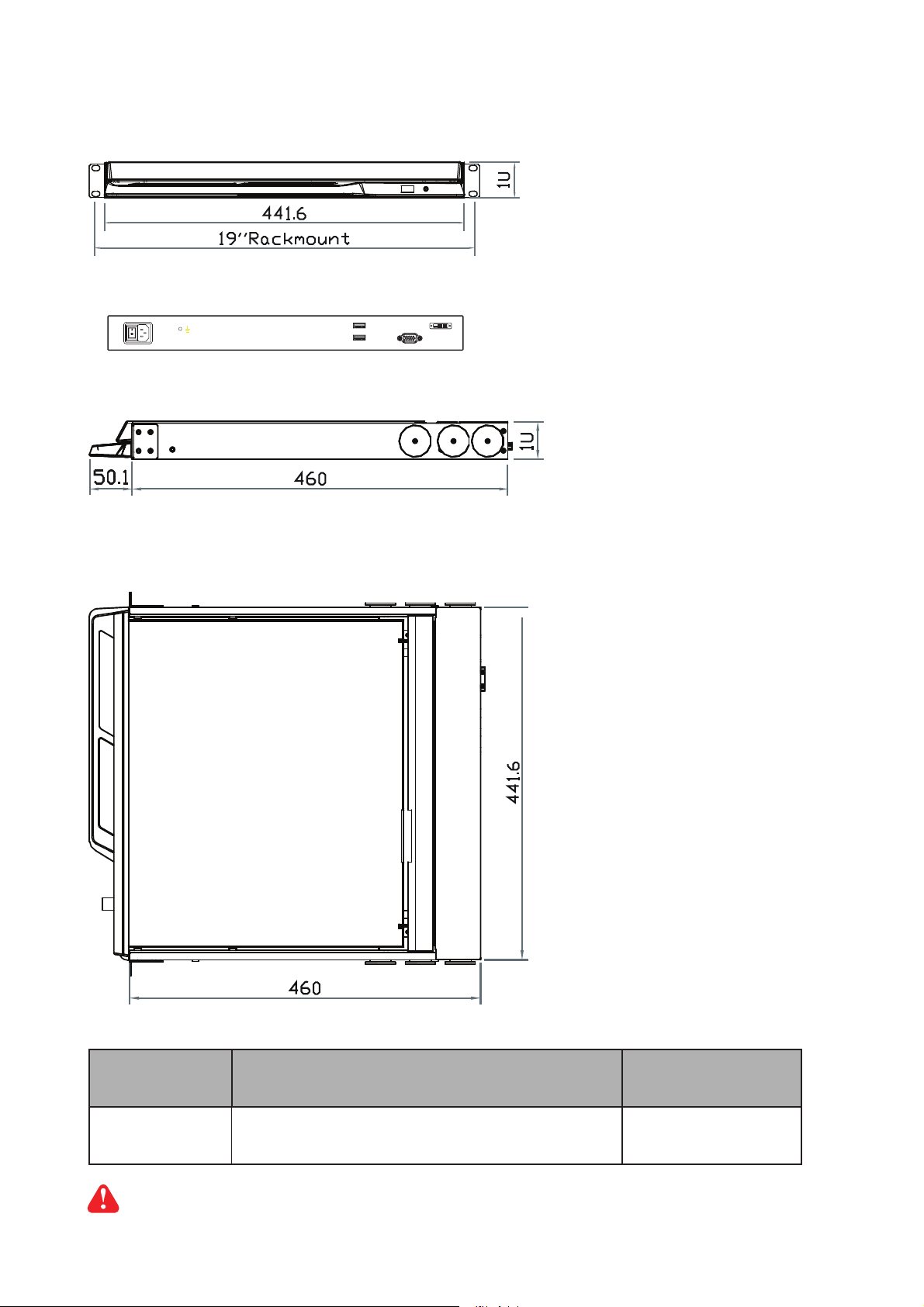

Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI, Audio & DC power.
UNIT : mm
1mm = 0.03937 inch
Model Product Dimension
(W x D x H) Net Weight
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch 10.8 kg 23.8 lb
Power VGA
DVI-DUSB
Rear View
AC Input
100~240V
www.RackmountMart.com
< 1.2 > Dimension - LCD1U17-30
LCD1U17-30

P.3
Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI & DC power.
UNIT : mm
1mm = 0.03937 inch
Model Product Dimension
(W x D x H) Net Weight
441.6 x 400 x 44 mm
17.4 x 15.7 x 1.73 inch 8.6 kg 18.9 lb
Rear View
Power VGA
DVI-DUSB
+12 VDC
www.RackmountMart.com
LCD1U17-39

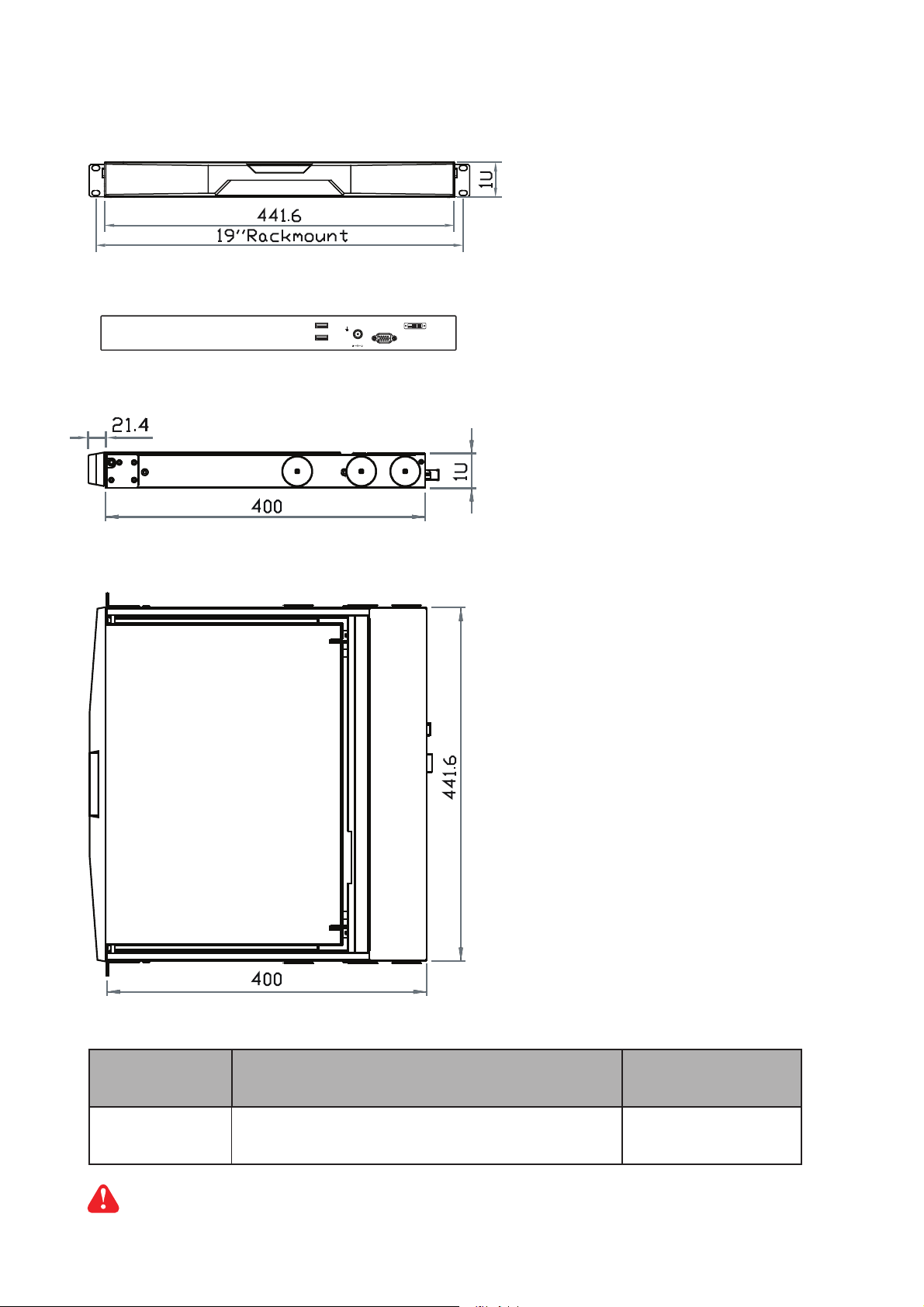

< 1.2 > Dimension - LCD1U17-39

P.4

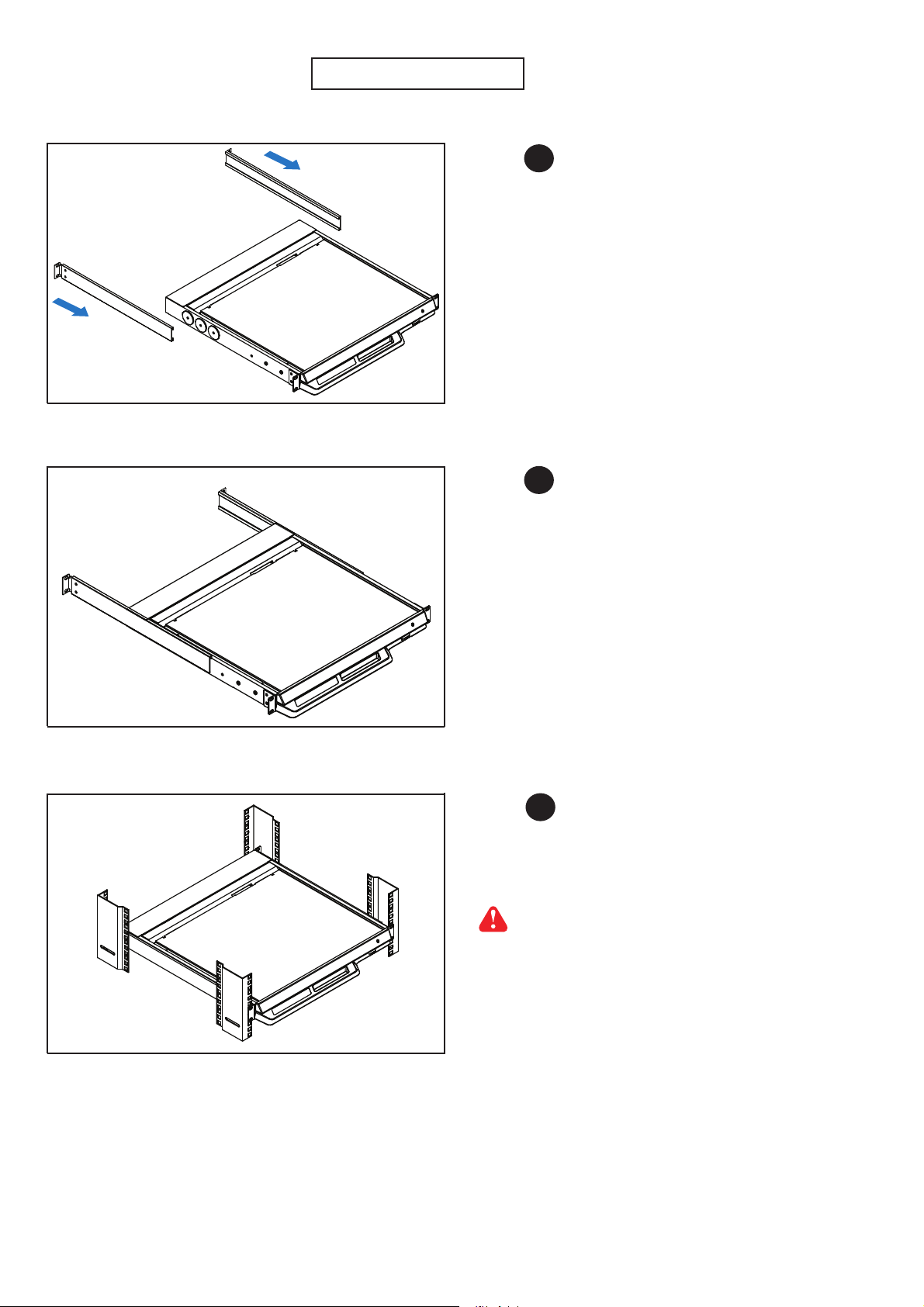

< 1.3 > Installation - Installation Slides
■Fix the LCD console drawer into the rack.
Complete the installation
Step 3
■Insert the left and right rear mounting brackets into
the LCD console drawer.
Step 1
Step 2
■Measure the depth of the front and rear mounting rails.
■Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
www.RackmountMart.com

P.5
■Operate the LCD console drawer.
■Hold the handle and slide out the
drawer.
■Flip up the LCD to a suitable angle.
After use the drawer
Basically, user can push in the drawer back to park position by releasing the
left & right slide lock arrow (as long as the drawer starts moving, he/she can
release their finger right away, holding the arrow is not necessary).
Keep Your Fingers
Away From The Slide Stop
www.RackmountMart.com
< 1.3 > Installation - How to use the LCD1U17-30 drawer

P.6
■Operate the LCD console drawer.
■Flip up the LCD to a suitable angle.
■Press the handle button and gently slide out
the drawer.
After use the drawer
Basically, user can push in the drawer back to park position by releasing the
left & right slide lock arrow (as long as the drawer starts moving, he/she can
release their finger right away, holding the arrow is not necessary).
Keep Your Fingers
Away From The Slide Stop
www.RackmountMart.com
< 1.3 > Installation - How to use the LCD1U17-39 drawer

P.7
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
USB server
POWER
LCD Console Drawer
console cable
DVI-D
DVI-D
USB
USB
AC Input
100~240V
LCD Console Drawer
console cable
DVI-D
USB
POWER
DVI-D
USB
DVI console KVM
AC Input
100~240V
www.RackmountMart.com

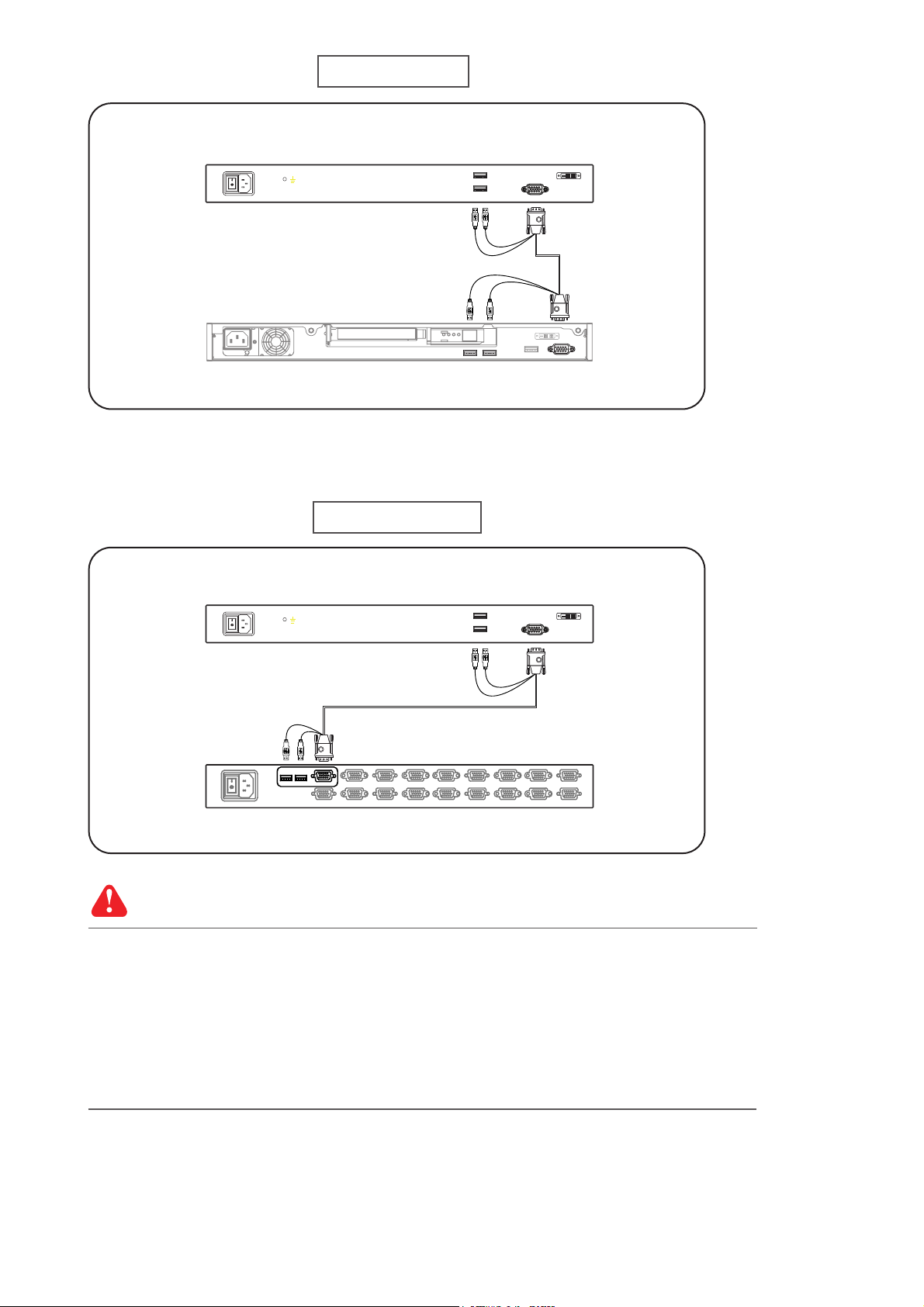

< 1.4 > Connection to USB Server via LCD-A3004A cable
< 1.4 > Connection to external KVM via LCD-A3004A cable
LCD-A3004A
LCD-A3004A
* LCD1U17-39 in external power
* LCD1U17-39 in external power

P.8
AC Input
100~240V
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
VGA console KVM
LCD Console Drawer
console cable
USB
POWER VGA USB
VGA
AC Input
100~240V
POWER
USB server
LCD Console Drawer
console cable
VGA
VGA
USB
USB
www.RackmountMart.com
< 1.4 > Connection to USB Server via LCD-A1014A cable
< 1.4 > Connection to external KVM via LCD-A1014A cable
LCD-A1014A
LCD-A1014A
* LCD1U17-39 in external power
* LCD1U17-39 in external power

P.9
Compliance
EMC FCC, CE & CCC FCC & CE
Safety c UL us, CE / LVD, UKCA & CCC CE / LVD & UKCA
Environment RoHS3 & REACH / WEEE RoHS3 & REACH / WEEE
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption for
Single Console Screen ON Max. 14W
Power saving mode Max. 2W
Power button OFF Max. 1W
Power Consumption
with KVM integration Screen ON Max. 45W
Power saving mode Max. 34W
* For details, please refer to our KVM rear kit user manuals
< Part 2 > Specifications / OSD
< 2.1 > Product Specifications
LCD
Panel Native Resolution 1920 x 1080
Panel Size ( diagonal ) 17.3"
Brightness ( cd/m² ) 300
Contrast Ratio ( typ. ) 1000:1
Colors 16.7 M, 8-bit
ViewingAngle ( L/R/U/D ) 85/85/85/85
Response Time ( ms ) 5.5
Dot pitch ( mm ) 0.1989
Display Area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 15,000
Video
Connectivity Digital HDMI HDMI 1.4, HDCP 1.4
DVI DVI-D, TMDS single link
Display Port DP 1.0 / HDCP 1.3
Analog VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Environmental
Conditions Operating Temperature 0 to 55°C degree
Humidity 10~90%, non-condensing
Altitude 16,000 ft
Storage /
Non-operating Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random
www.RackmountMart.com
LCD1U17-30 / LCD1U17-39
LCD1U17-30 LCD1U17-39

P.10
Physical
Specification Product ( W x D x H ) 441.6 x 460 x 44 mm 441.6 x 400 x 44 mm
17.4 x 18.1 x 1.73 inch 17.4 x 15.7 x 1.73 inch
23.2 x 31.8 x 5.5 inch 23.2 x 24.3 x 4.7 inch
Net Weight 10.8 kg / 23.8 lb 8.6 kg / 18.9 lb
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Applicable
Format DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz
1680 x 1050 x 60Hz
1440 x 900 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60Hz
1280 x 768 x 60Hz
1280 x 720 x 60Hz
1152 x 864 x 60Hz
1024 x 768 x 60Hz
800 x 600 x 60Hz
640 x 480 x 60Hz
Audio Signal 2ch Linear PCM
HDMI Input PC Signal Same as VGA
HDMI 1.4 1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio Signal 2ch Linear PCM
Display port Input PC Signal 1920 x 1080 x 60Hz
1680 x 1050 x 60Hz
1440 x 900 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60Hz
1280 x 768 x 60Hz
1280 x 720 x 60Hz
1152 x 864 x 60Hz
1024 x 768 x 60Hz
800 x 600 x 60Hz
640 x 480 x 60Hz
Audio Signal 2ch Linear PCM
www.RackmountMart.com
LCD1U17-30 LCD1U17-39

P.11
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
OS support Windows / Linux / Unix / Mac OS
< 2.2 > Standard Keyboard / Mouse Specifications
Supporting layouts
America United States
EMEA United Kingdom Germany France Russia Spain Italy
Asia Japan Korea
www.RackmountMart.com

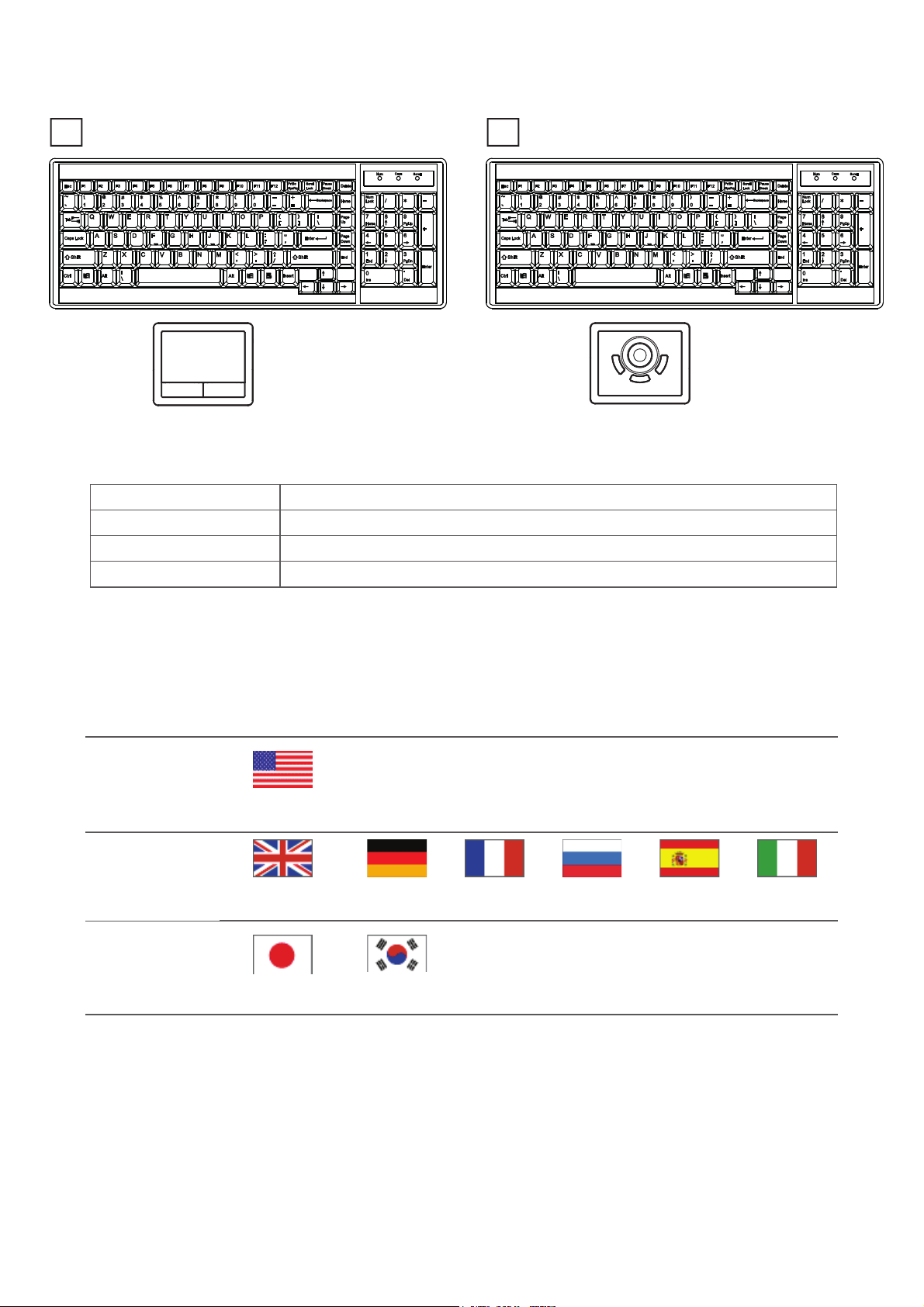

keyboard integrated with trackball
B
keyboard integrated with touchpad
N

P.12

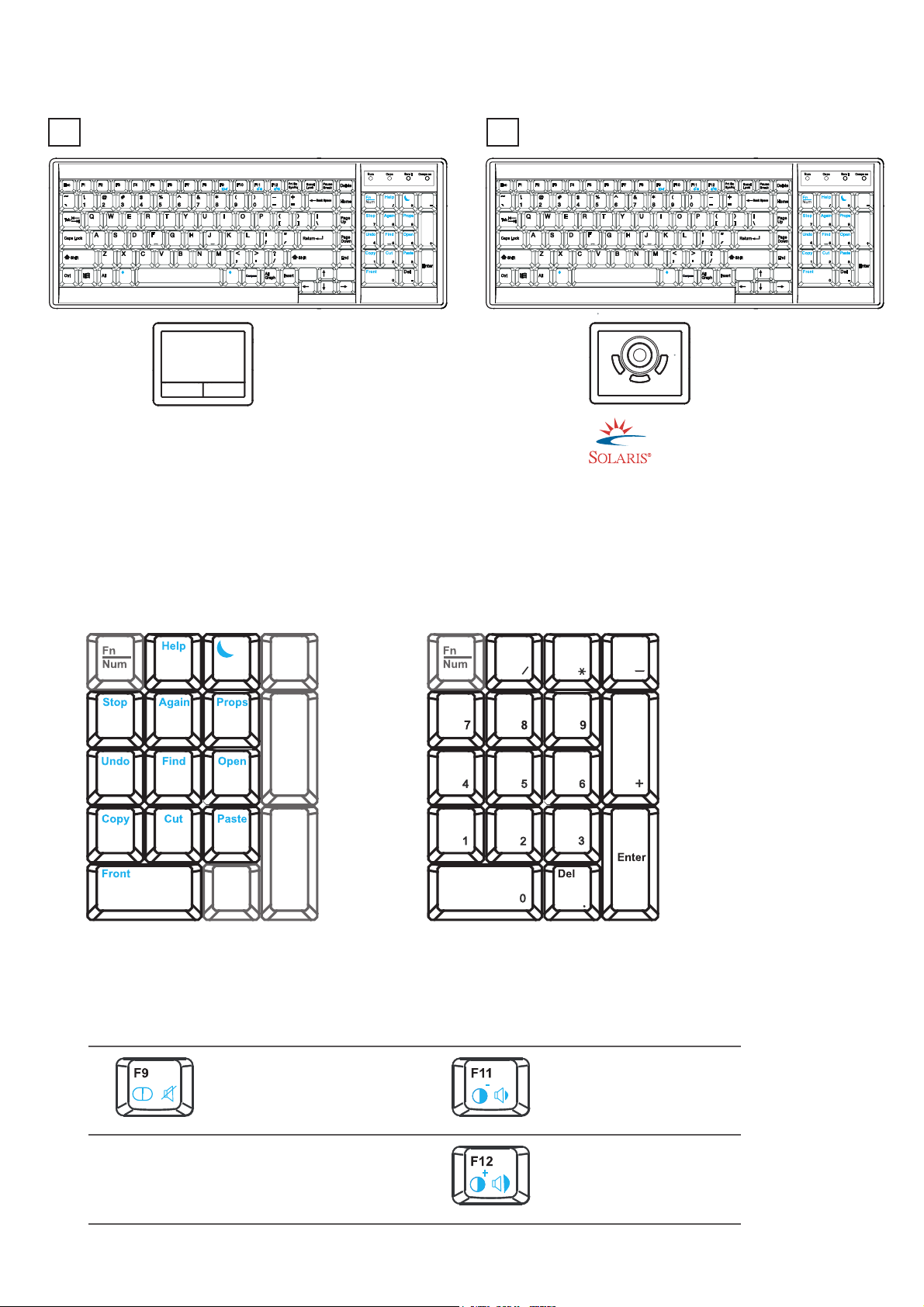

Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
< 2.2 > SUN Keyboard / Mouse Options
Num LED in Green mode
Key pad behaves as a normal key
pad mode
■Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■104 key notepad keyboard with full numerical pad and SUN function
■USB interface
■US layout only
Num LED in Offmode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "S" Keyboard
Num Cap s Scro ll Comp ose Num Cap s Scro ll Comp ose
www.RackmountMart.com
SUN keyboard integrated with trackball
Sb
SUN keyboard integrated with touchpad
Sn
SUN keyboard integrated with touchpad / trackball

P.13
< 2.3 > On-screen Display Operation ( OSD )
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off

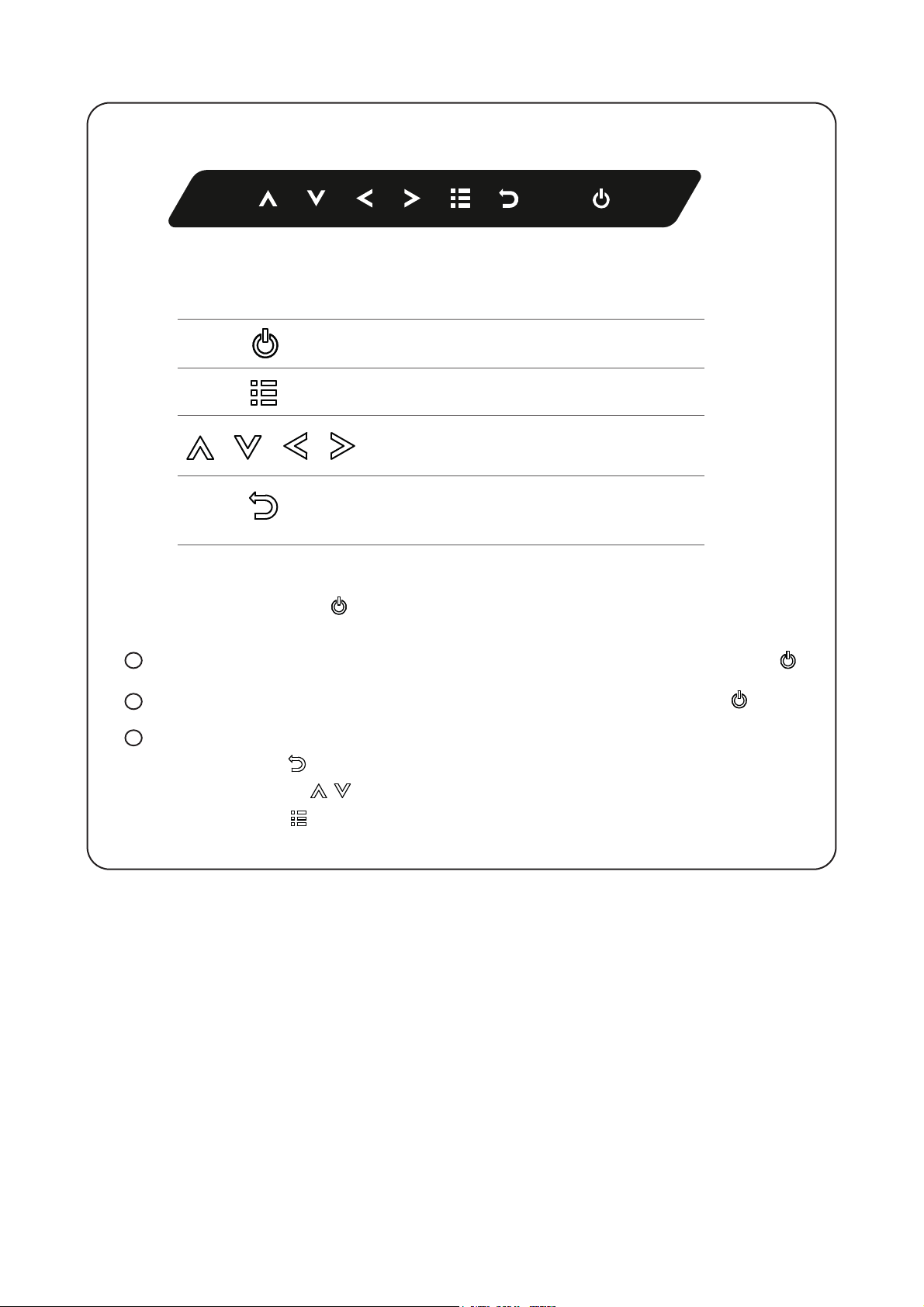

Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn offafter 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
Select another video input (only available for models with multiple video input) :
( a ) Press the button to call up the on-screen video mode on top right corner.
( b ) Use up/down arrow to the select the video input
( c ) Press the button to confirm the selection
1
2
3
www.RackmountMart.com
LCD1U17-30

P.14
Select another video input (only available for models with multiple video input) :
( a ) Press the button to call up the on-screen video mode on top right corner.
( b ) Use up/down arrow to the select the video input
( c ) Press the button to confirm the selection
< 2.3 > On-screen Display Operation ( OSD )
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / offLCD
Power light
Green = On
Orange = Power saving

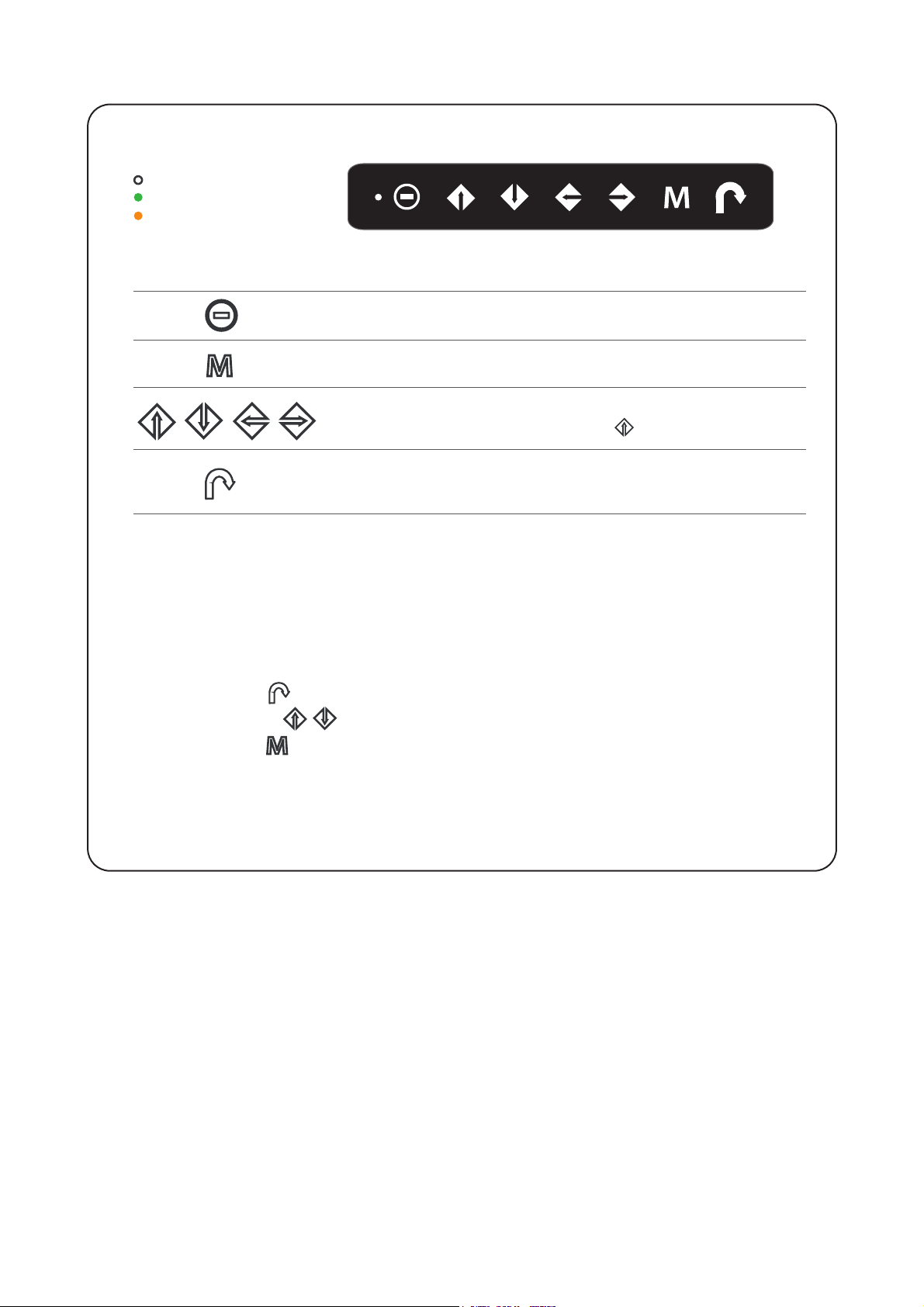

Membrane Switch Function
www.RackmountMart.com
LCD1U17-39

P.15

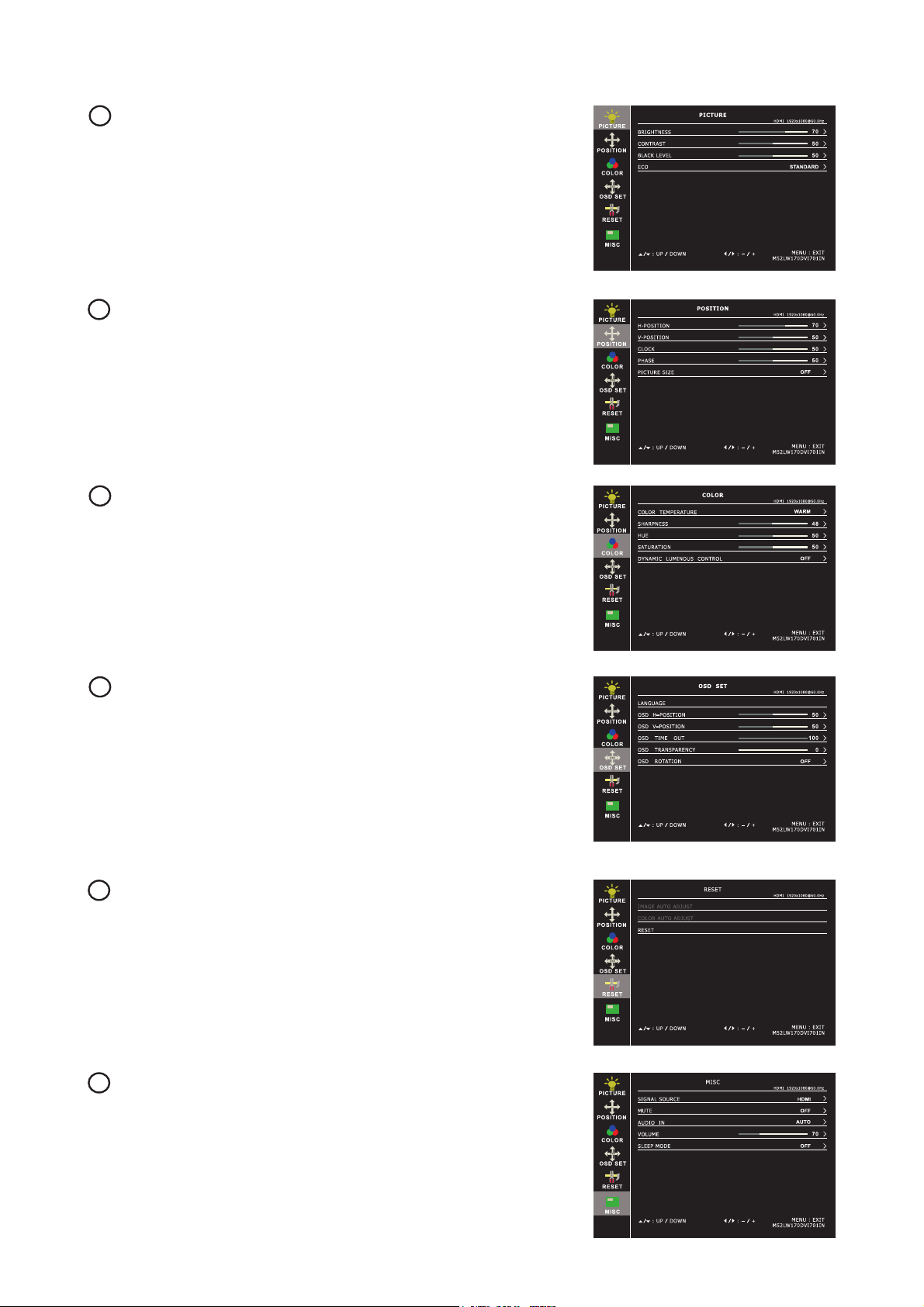

< 2.3 > On-screen Display Operation ( OSD )
Brightness : Adjust the screen brightness
Contrast : Adjust the difference between the image background
( black level ) and the foreground ( white level )
Black level : Adjust background black level of the screen
Eco : Screen in power saving mode
1
Position
H-Position : To adjust the horizontal position of the video
V-Position : To adjust the vertical position of the video
Clock : To auto adjust H. Size of the screen
Phase : To fine tune the screen.
Picture size : FULL SCREEEN / 4:3 / 5:4 / 16:10
2
Reset
Reset : Return the adjustment back to factory setting
5
6
MISC
Signal source : Select the signal source - DP / HDMI1 / HDMI2
Mute : Turn offthe surrounding sound
Audio in : Auto / Line in / DP
Volume : Adjust the volume of sound
Sleep mode :Set the offtime - 10 min / 20 min / 30 min /
50 min / 60 min / 120 min / 240 min
OSD Set
Language : Select the language in which the OSD menu is
displayed - English
OSD H-Position : Align the screen image left or right
OSD V-Position : Align the screen image up or down
OSD time out : Adjust the screen timeout
OSD transparency : Adjust the screen transparency
OSD rotation : Rotate the screen - 90° / 180° / 270°
4
Color
Color temperature: User / Warm / Cool / 5400k mode and
Red / Green / Blue color balance
Sharpness : Adjust the image from weak to sharp
Hue : Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Dynamic
luminous control : Control the dynamic brightness
3
www.RackmountMart.com
