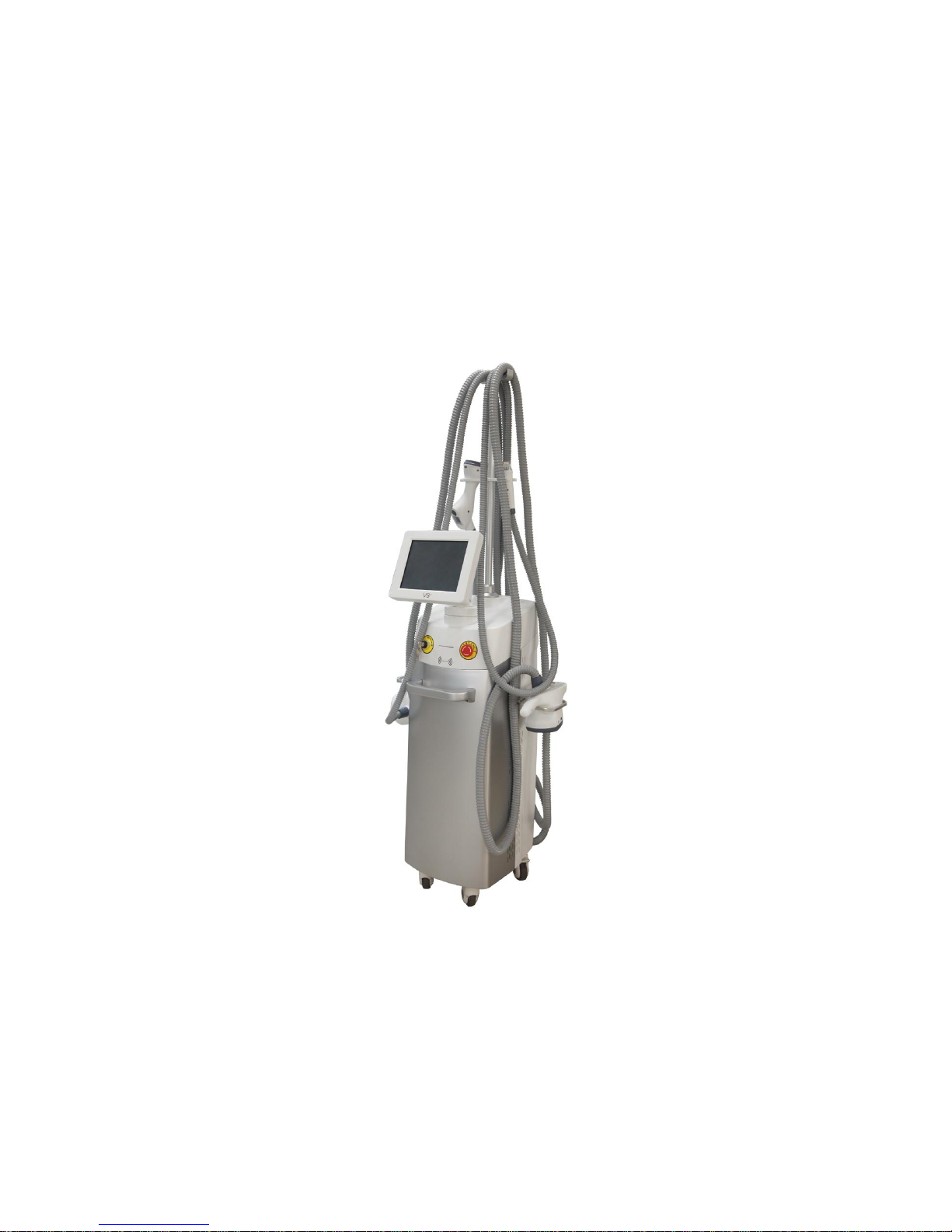

Syneron VelaShape Plus User manual

-----------------------------------------------------------------------------------------------------------------------------------------
1/ 26
Body contouring multi functional system
Model# VS+
USER MANUAL

-----------------------------------------------------------------------------------------------------------------------------------------
2/ 26
Chapter One—Introduction...................................................................................................................... 3
I. Theory.................................................................................................................................................................... 3
II. Application:........................................................................................................................................................... 3
III Product Specifications .......................................................................................................................................... 4
IV Features ................................................................................................................................................................ 5
V. Taboos................................................................................................................................................................... 5
Chapter Two—Security Instruction ...................................................................................................... 6
I. Safety Matters........................................................................................................................................................ 6
II. Electrical and mechanical safety........................................................................................................................... 7
Chapter Three---Installation ..................................................................................................................... 9
I. how to open the packing Box ................................................................................................................................ 9
II. Accessories.......................................................................................................................................................... 10
III. Installation HP holder, step 1............................................................................................................................. 11
IV. Installation of holder, step 2 .............................................................................................................................. 11
V. Installation of HP................................................................................................................................................. 12
VI. Installation of spare parts.................................................................................................................................. 12
VII. Install the display of the machine (screen)....................................................................................................... 13
Chapter Four--Operation Instructions............................................................................................... 14
I. menu instruction ................................................................................................................................................. 14
II. Handpieces introduction .................................................................................................................................... 16
Chapter Five--Clinic Operation.............................................................................................................. 18

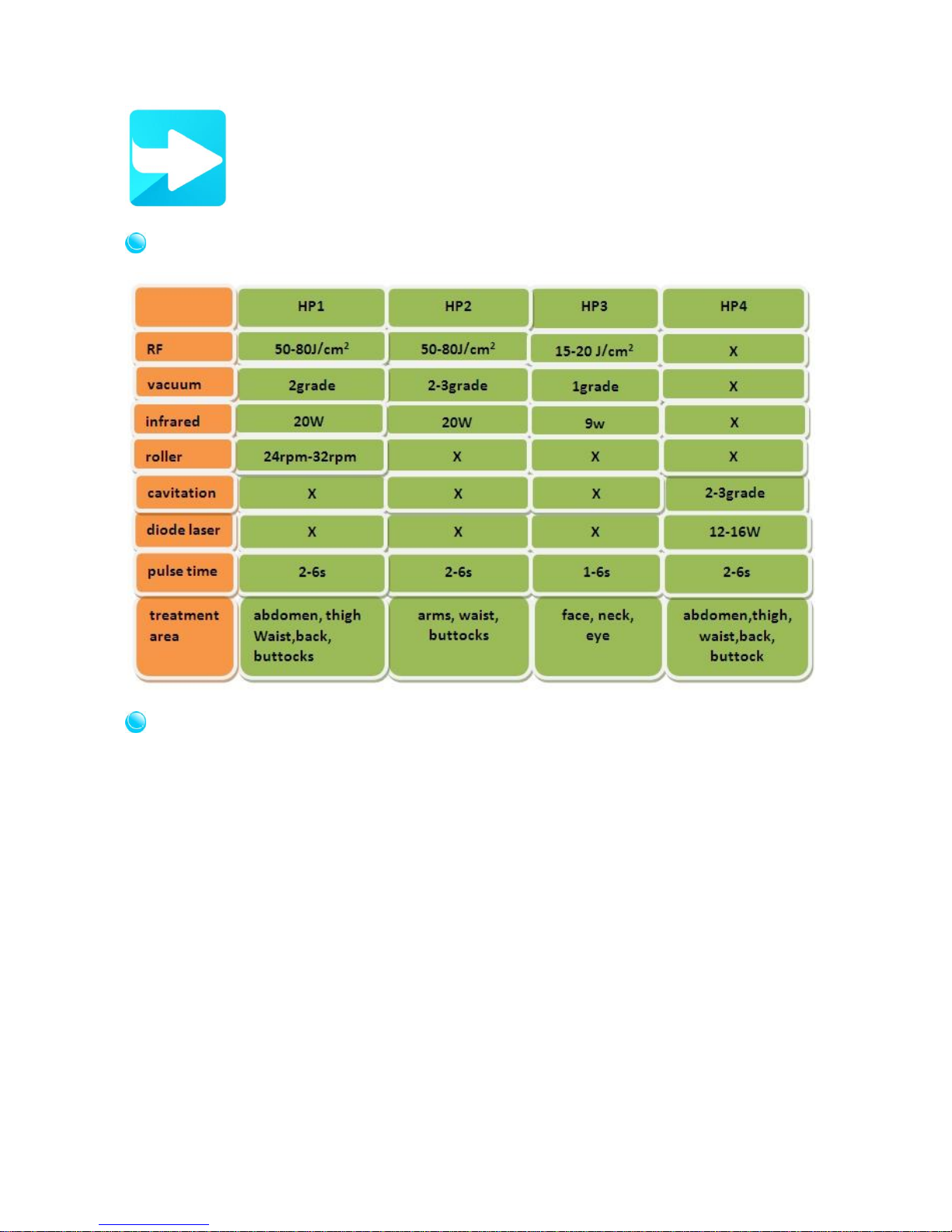

I. Parameter recommended.................................................................................................................................... 18
II. Body Shaping ...................................................................................................................................................... 18
III. Face treatment................................................................................................................................................... 21
IV. Suggest session and course................................................................................................................................ 21
V. Requirements of operation................................................................................................................................. 22
VI. Prepare for operation ........................................................................................................................................ 22
VII. Skin reaction after treatment........................................................................................................................... 23
Chapter six---Maintenance and care.................................................................................................. 24
I. Common problems .............................................................................................................................................. 24
II. Daily maintenance and care ............................................................................................................................... 24
III. circuit diagram................................................................................................................................................... 25
IV. Air circuit diagram.............................................................................................................................................. 26
CONTENTS

-----------------------------------------------------------------------------------------------------------------------------------------
3/ 26
Chapter One—Introduction
I. Theory
VS+ is the most advanced noninvasive beauty device, which is used for eliminating cellulite,
reducing surrounded degree and improving sagging and wrinkles. It combines with 6 technology
that vacuum, radio frequency, Infrared light, 635nm diode laser, dual frequency(40.5KHz+28KHz)
cavitation and mechanical roller. And it is suitable for full body treatment. What’s more, the short
treatment time and instant treatment effect make you feel comfortable and relax, like doing a
massage during the whole treatment.
The unique streamlined fashion design, makes machine movement convenient and helps saving
salon space. So it is the ideal multifunction device for salons.
II. Application:
Circumferential reduction
Cellulite improvement
Temporary improvement
In local blood circulation
Relief of minor muscle aches and spasms
Wrinkle removal
Skin lifting and tightening
Skin surface smooth
Massage
Eye area treatment

-----------------------------------------------------------------------------------------------------------------------------------------
4/ 26
III Product Specifications
Packing
Aluminum alloy case
Voltage
220V/110V
Cooling system
Water+ air
Dimension of machine
35*42*111cm
Diode laser power
0-200mw
Cavitation
40.5KHz+28KHz
RF
0-100J/cm2
Rev
0-39rpm
Laser power
20W(Max)
LCD screen on machine
10.4inch color touch screen
Out power
2000W
Screen on handpiece
a) 2.4inch
b) 1.9inch
RF frequency
20MHz CRF
Diode laser
635nm Japan imported laser
Vacuum pressure
a) Absolute pressure:10kPa—80kPa（7.6cmHg--60.8cmHg）
b) Relative pressure: 20kPa—90kPa（15.2cmHg--68.4cmHg）
Infrared
0-20W
Pulse
0-10s
Interval
0-5s
Infrared
940nm
N.W.
40kg
Voltage
220V/110V
Packing
Aluminum alloy case

-----------------------------------------------------------------------------------------------------------------------------------------
5/ 26
IV Features
1. Handle 1 : vacuum with mechanical roller and radio frequency with infrared
2. Handle 2: vacuum with roller, radio frequency with infrared
3. Handle 3: vacuum with radio frequency and infrared
4. Handle 4: 635nm diode laser and double frequency cavitation
5. 10.4” color touch LCD display, seems classic, and very easy operation
6. Plug and play connection parts, rapid, safe and reliable
7. Comfortable: Completely non-invasive treatment, avoid surgery, no need special care after
treatment, no down time.
8. High Security: Intelligent software controls the output power and and rate of release. High
security and easy to treat.
9. perdurability: after 1-3 treatment can see the result, it will keep 1-2 years.
V. Taboos
People who have Pacemaker or shock eliminator in body
1. Who have metal on the surface of the treatment area or other prosthesis or fillers.
2. People who have skin disease, such as vitiligo, psoriasis, herpes and skin cancer.
3. Other serious diseases, such as heart disease and diabetes
4. Women pregnant or who are feeding babies
5. wound open or unusual close up
6. people who are photosensitive or using photosensitive drugs.
7. People who used tanning cream within 2 weeks.
8. Women in menstrual period (abdomen), except those who have little menstrual volume.

-----------------------------------------------------------------------------------------------------------------------------------------
6/ 26
Chapter Two—Security Instruction
I. Safety Matters
VS+ is a high-tech medical device, which focus on circumferential reduction ，cellulite
improvement and facial rejuvenation.
These who have been trained on the machine, can use the machine softly. No matter the
operator , the assistor, or the maintainer, he need to understand this chapter well. And the
operator, the clients personal safety is most important, these has been reflected in the machine
design already .
Below is some detail safety issues:
1. When switch on the machine,the machine self-checking system is also switched on and during
the whole treatment, this system will keep monitoring circuit.
2. Safe and environmental protection material, which meets the requirements of medical, used
to connect patients’ skin and provide a comfortable treatment.
3. Independent safety circuit design, can cut off the power supplier while electric leakage
happens.
4. Red “emergency” button, can cut the power supply immediately in emergency situation.
5. Button switch can protect random switch on of the machine.
All devices if Improper use can cause body damage. The RF device, when on
operation can cause high voltage, these who operate the RF device need to pay attention on this
and have some necessary safeguard
procedures. Patients: The skilled operator and the decoration of operation room will affect
patients safety. For patients themselves, they also need to know more about the treatment
principle. During the treatment the patients have the responsibility to feedback their feeling of
treatment, this can protect their skin been burn due to high energy.
[Main Warning]

-----------------------------------------------------------------------------------------------------------------------------------------
7/ 26
To guarantee a safe operation, the following safety warning need to be read before operation.
1. Except our company’s technicians, no one is allowed to open the machine, or do any Internal
overhaul, power/ head internal adjust is also not allowed.
2. Please check and confirm the voltage is the same as your local one. ( 220V/AC or 110V/AC)
3. Only the power is shut down, machine can be maintain. Maintaining while machine is on
power can damage the operators/ patients and machine itself.
4. Keep the treatment area, which will be connected with the treatment head, clean and dry.
II. Electrical and mechanical safety
Keeping all panels and covers are closed, or may be dangerous.
This system can create the dangerous high voltage, even after disconnecting the power cord,
some parts may still stored there power. So in addition to our designated personnel, other
personnel forbidden open the instrument.
maintenance of equipment, people should not turn on the power, open the cover or put the
device on unattended state.
If move the machine incorrectly may cause personal injury. The machine is well balanced and
is movable, but only move slowly and carefully.
the machine via three-wire power cord grounding the earth, good ground is essential for safe
operation.
[Fire prevention]
1. Preoperative skin treatment implementation must not use alcohol or acetone flammable to
clean skin. if necessary, use soap and water.
2. If you use alcohol to clean the treatment probe or any part of it, must keep dry before
starting.
[System Safety devices]
1. The system is equipped with several safety devices; all operating room personnel must be
familiar with all of their location and usage.
2. The button switch: it is used to turn on and turn off the power.
3. Power indicator light: blue, boot light, indicating that the system is on.
4. The emergency switch: This red mushroom-shaped button can shut down the whole machine
urgently. When it is pressed, regardless of what state the system is in, the power supply will
be cut off immediately. loosen Emergency switch clockwise, otherwise device remains in the
off state.
[Device Self-checking]
After booting, the circuit go into self-checking instantly. In this case, the operator should allow the

-----------------------------------------------------------------------------------------------------------------------------------------
8/ 26
device to run by itself for 1-3 minutes before the next step.
[Device Level]
1. Electric shock protection: 1, BF grade
2. Anti-corrosive liquids: General
3. Must not use the machine in the presence of flammable anesthetic mixture with air, nitric
oxide environment.
4. The operation mode: Continuous.

-----------------------------------------------------------------------------------------------------------------------------------------
9/ 26
Chapter Three---Installation

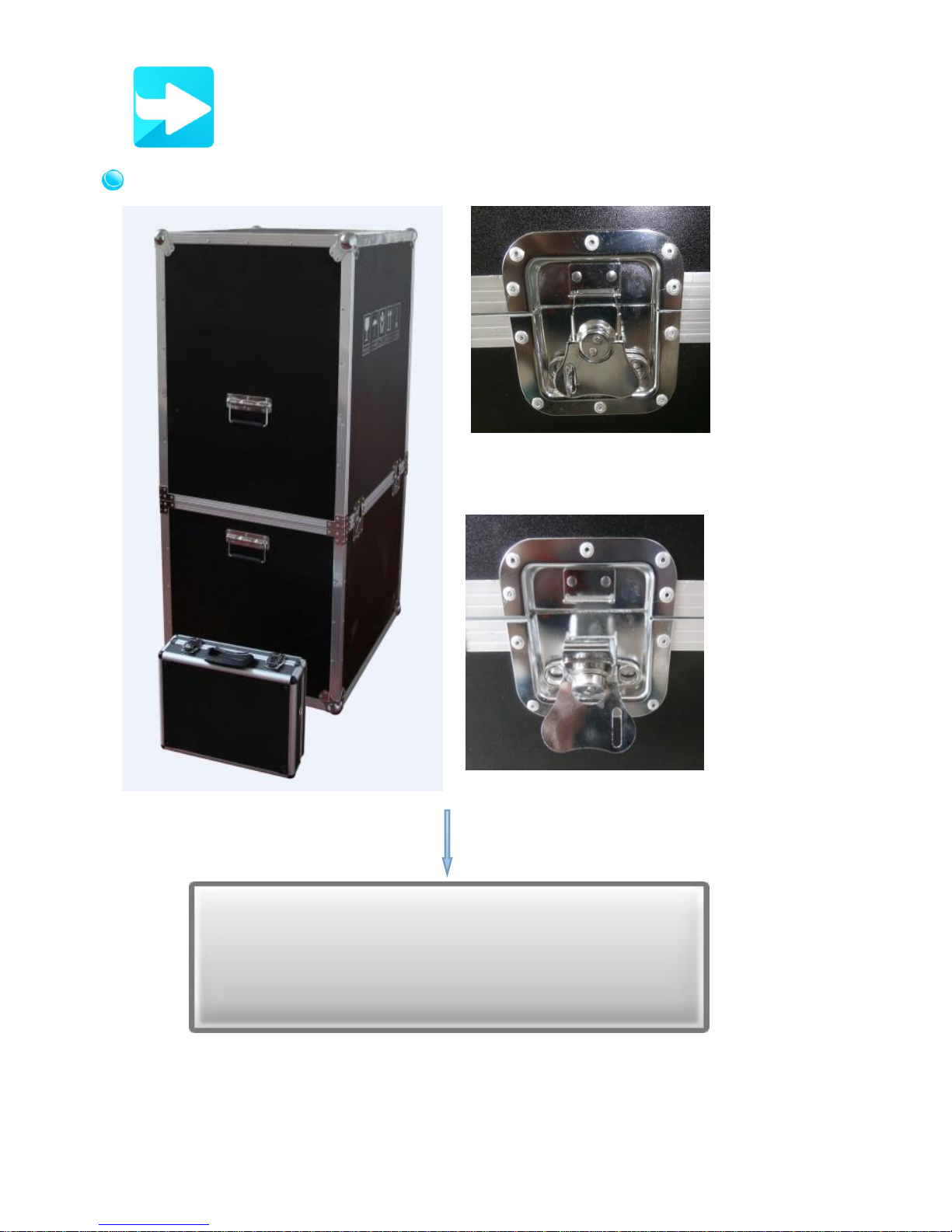

I. how to open the packing Box
Picture 2
The way to open the exterior packing box:
a. Turn the lever in picture 1 to the position show as picture 2
b. Switch the lever, then we can open the packing box
Picture 1
Picture 2

-----------------------------------------------------------------------------------------------------------------------------------------
10 / 26
II. Accessories

-----------------------------------------------------------------------------------------------------------------------------------------
11 / 26

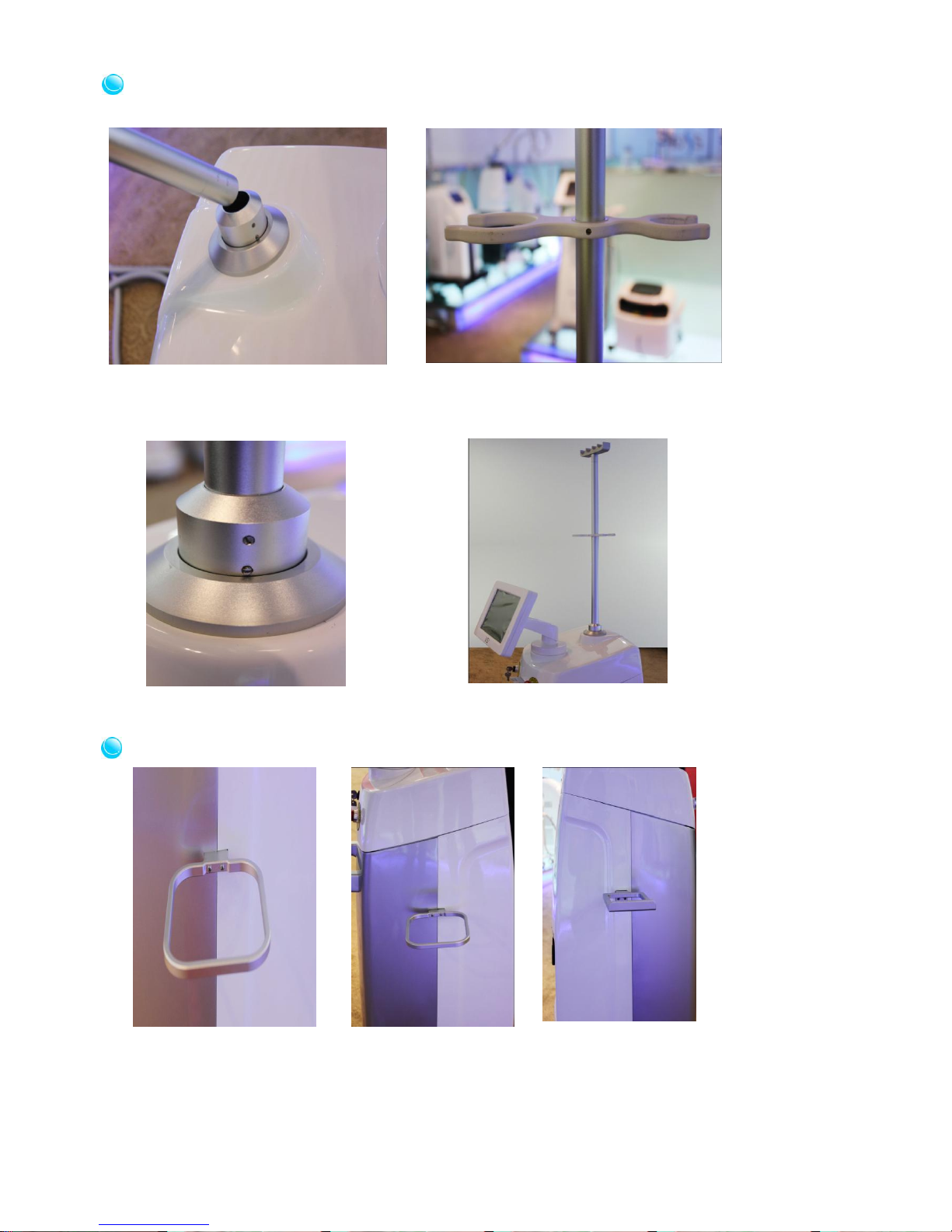

III. Installation HP holder, step 1
1.Insert metal pole into socket 3. Fix the plastic object on metal pole
2.Tighten 2 pcs of screws 4. Step one finished
IV. Installation of holder, step 2
1. Tighten 2 pcs of screws 2. fix holder on left 3. fix holder on right
Contents

-----------------------------------------------------------------------------------------------------------------------------------------
12 / 26

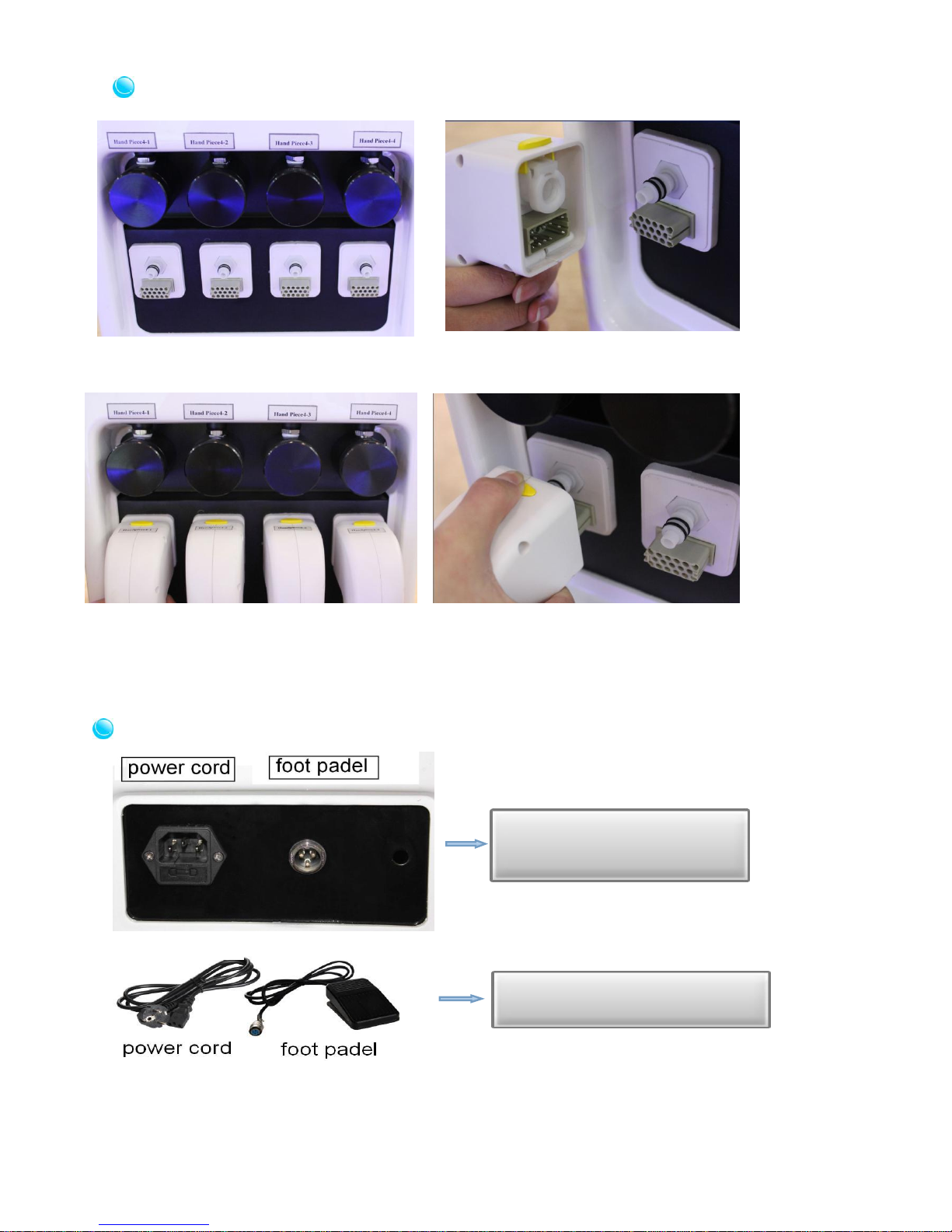

V. Installation of HP
1. Connection parts from left to right for : 2. Put HP into connection part directly,
HP1,HP2, HP3, HP4 no need to press “yellow button”.
3 . All HP comes with label “HPX” 4. press“ yellow button ” and then
match with each number take off
VI. Installation of spare parts
Located in lower part of the machine
with labels
Insert spare parts to connection
part as below

-----------------------------------------------------------------------------------------------------------------------------------------
13 / 26
VII. Install the display of the machine (screen)
1. Picture 1: the cable on the machine connecting
the screen
2. Picture 2: The connector between the machine
and the screen
3. Picture 3: the cable are connected well with the
connector
4. Picture 4: the screen is installed in the machine,
(please tighten the screws inside the red circle)
5. Picture 5-6: put the magnetic cap

-----------------------------------------------------------------------------------------------------------------------------------------
14 / 26
Chapter Four--Operation Instructions
I. menu instruction
First page: Opening screen Second page: treatment menu
Treatment menu for HP1:
Treatment menu for HP2 :
Vacuum range:1‐5
Infrared range:0‐20
RF range: 0‐100
Kpa: 1- 100KPA
Pulse range: 1‐10
Kpa: 1- 100KPA.
Pulse range: 1‐10
Vacuum range:0‐5
Rev range:0‐39
Infrared range:0‐20
RF range: 0‐100
Kpa: 1- 100KPA
Pulse range: 1‐10

-----------------------------------------------------------------------------------------------------------------------------------------
15 / 26

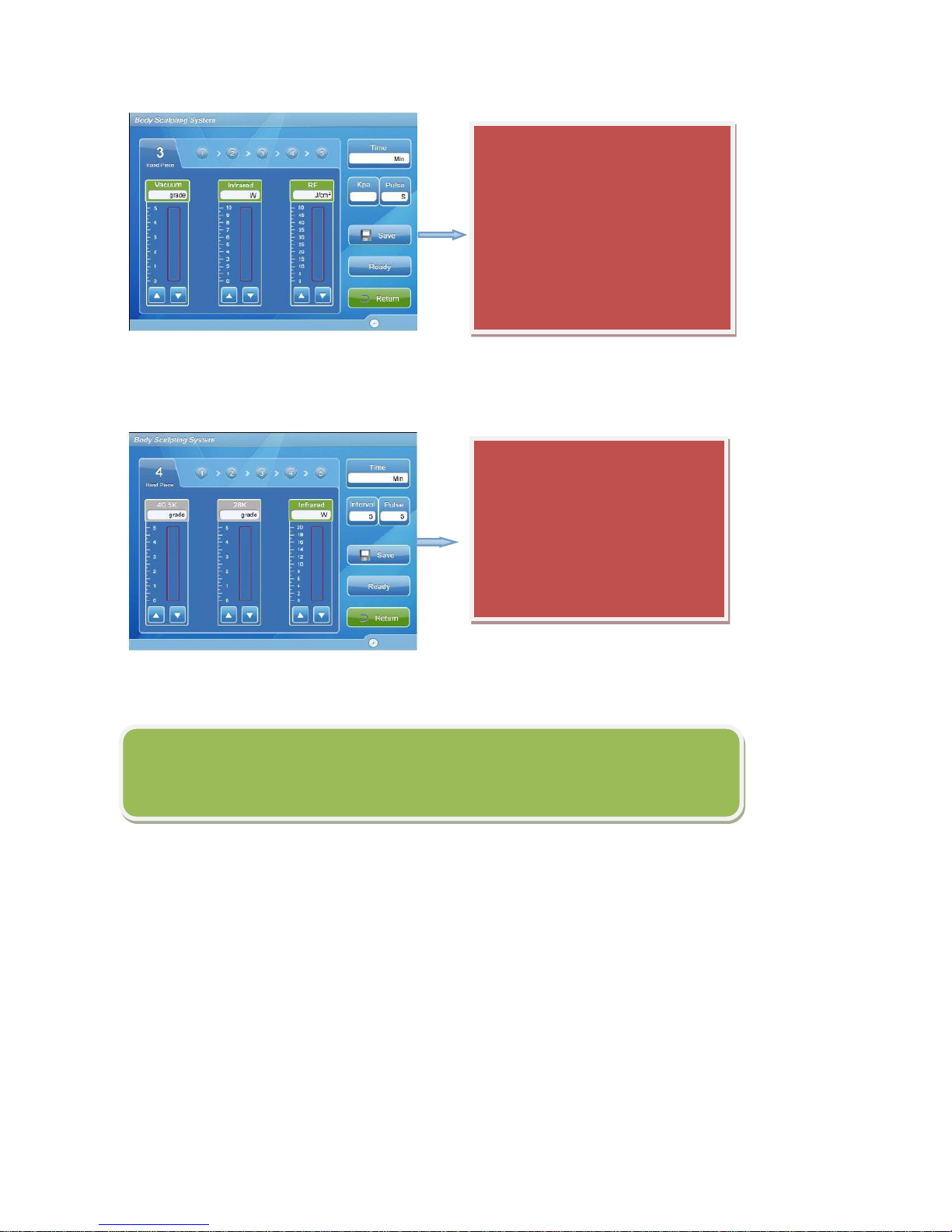

Treatment menu for HP3:
Treatment menu of HP4:
Infrared range:0‐20
Cavitation :28KHZ/1-5 level
Cavitation : 40.5khz/1-5 level
Kpa: 1- 100KPA
Pulse range: 1‐10
Vacuum range:1‐5
Infrared range:0‐20
RF range: 0‐100
Kpa: 1- 100KPA
Pulse range: 1‐10
Kpa: 1- 100KPA
Pulse range: 1‐10
The small screen on HP is synchronous with main screen
(There is a small screen on HP1/HP2/HP4)

-----------------------------------------------------------------------------------------------------------------------------------------
16 / 26
II. Handpieces introduction
HP1:
The button , changes to system among infrared, RF, vacuum, Rev, time and pulse.
The button ④, adjust energy level
The button ⑤, firstly press “ready” on main software and then press ⑤to start to treat. Press
again to stop working. So do the HP 2, which is shown below.
HP2:

-----------------------------------------------------------------------------------------------------------------------------------------
17 / 26
HP3:
The HP3 comes with 3 probe: big one, middle one and small one.
There is one button switch, used to start or stop working.
HP4: the buttons have same function as HP1

-----------------------------------------------------------------------------------------------------------------------------------------
18 / 26
Chapter Five--Clinic Operation
I. Parameter recommended
II. Body Shaping
(Choose NO.1, NO.2 or No.4);
1. Abdomen and waist
1. The navel as midpoint, measure 5 points that is 3cm, 6cm distance from navel and record. You
also can adjust the measurement point according to different personal height (see P1)

-----------------------------------------------------------------------------------------------------------------------------------------
19 / 26

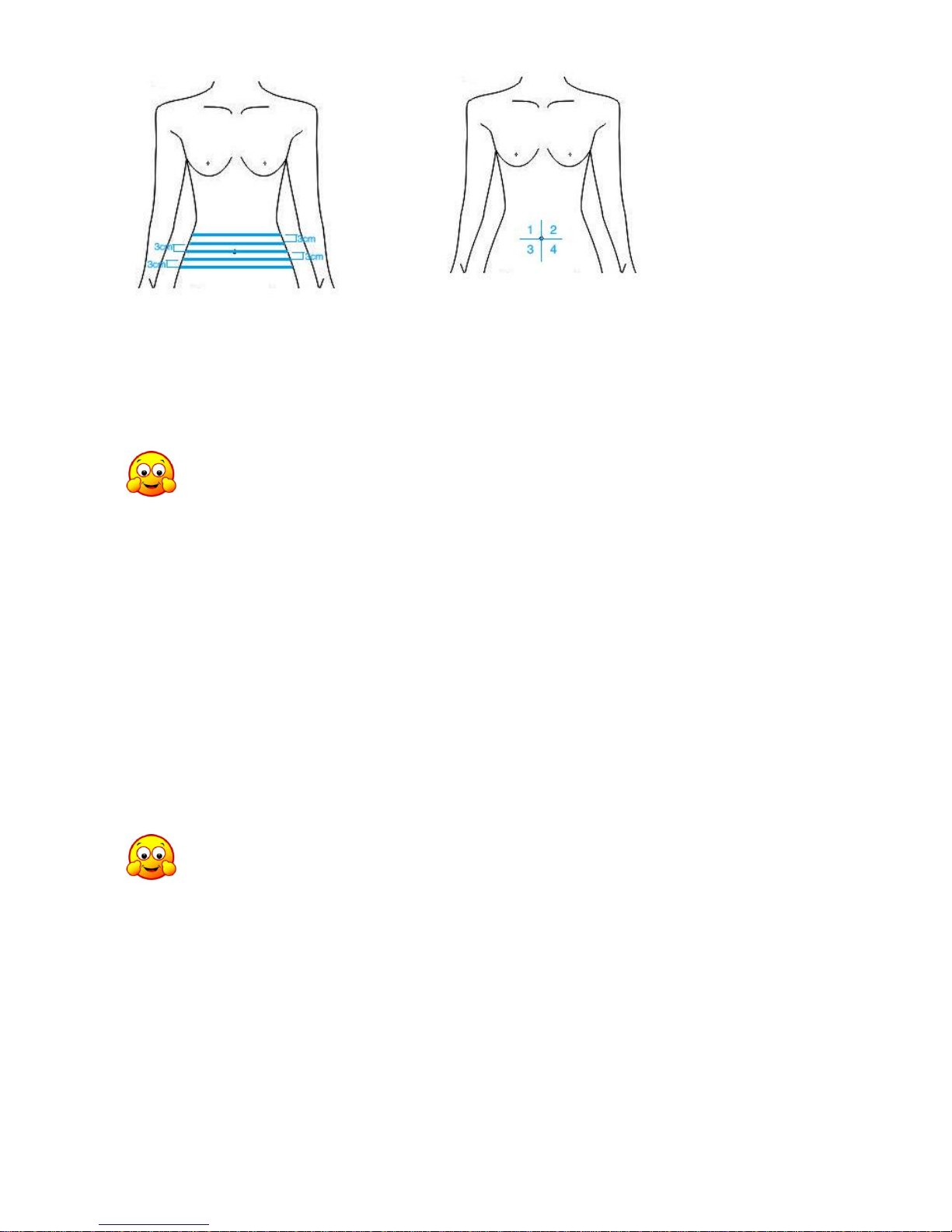

Picture 1 picture 2
To take navel as the midpoint, draw two vertical lines to make abdomens by four parts. After
completing operation on one part, go to the next one. Repeat treatment within 4 parts till the
whole abdomen get a comfortable warm and achieve a better result. (see P2)
Note: there are two methods of operation.
The following operation “linear suction treatment” means to do it one by one. 8-shape operation
means the continuous movable treatment.
First: the linear suction operation.
Second: 8-shape suction operation.
. Ask the patient feeling and observe the reddish skin carefully and thermal situation to adjust
the area of repeat treatment.
.Makes sure the applicator touch whole skin, then step foot pedal or press "enter" to start or
stop working.
Note: fat layers around stomach and ribs is thin, so make sure the applicator contact
those area fully. Generally we need to reduce energy level by 1-2 grade. The patient should tell
their feelings to therapist promptly, this could help therapist to adjust the specification.
2. Back
There are two methods of operation on back.
the linear suction operation.
8-shape twist suction operation.

-----------------------------------------------------------------------------------------------------------------------------------------
20 / 26
Picture 3 picture 4
3. Thigh
①The methods of operation (show as picture on right)
Apply linear suction method starting from the outside of thigh
upper, moving from bottom to upper, and from left to right.
Inside of thigh is sensitive area, the temperature rises rapidly. If the
skin gets a little red, it is normal. please pay attention to patient
feelings.
4. Arm
The methods of operation. (show as right picture ), choose HP2.
Apply linear suction method starting from the outside to inside.
Inside of arm is sensitive area, the temperature
rises rapidly, please pay attention to patient comfort.
5. Buttock (select HP1 or HP2)
①Apply linear suction operation method.
②One hand pull skin up, the other hand hold the HP to do
treatment straightly, from bottom to upper, repeat this operation
several times.
③Operate from the inside of thigh upper, till to "Cheng fu point"
by continuous movable suction method, then reach to "highest
level”, using suitable strength. (Don’t stay on the highest part of
buttock)
④The outside of buttock, continuous movable suction treatment be applied from bottom to
