Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
Table of contents
1 Safety instructions 4
1.1 Symbols 4
1.2 General safety instructions 4
1.3 Safety instructions - Electricity 4
1.4 Safety instructions - Salt 4
1.5 Safety instructions - Temperature 4
2 Foreword 5
3 How the system works 6
4 Installation site requirements 7
5 Instructions of use 8
5.1 Menu level 1 8
5.2 Menu tree Menu level 1 9
5.3 Menu level 2 10
5.4 Menu tree Menu level 2 11
6 Service / Service interruption 12
6.1 Service 12
6.2 Service interruption 12
7 Maintenance / Inspection 13
7.1 Maintenance / Intervals 13
7.1.1 Check / Replacement Seal Kit 14
7.1.2 Check / Replacement Chlorinator Cell 15
7.1.3 Check / Replacement Solenoid Valve 16
7.1.4 Cleaning Salt Tank 17
7.1.5 Restart 18
8 Malfunctions 19
8.1 Troubleshooting – LEX Plus 10 Connect 19
8.2 General troubleshooting 21
9 Warranty 22
10 Technicalspecications 23
11 Spare parts 24
12 Dimensions 26
13 Overview 27
14 Maintenance report 28

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
4
1. Safety instructions
1.1 Symbols
Danger to life and limb! Caution!
Important instruction regarding the correct operation of the device
Observe strictly!
1.2 General safety instructions
Use only original spare parts and accessories that have been tested and approved by the manufacturer. The
manufacturer is not liable for damages caused by the use of non-original spare parts and accessories or improper
handling. Should these instructions not answer all your questions, please contact the manufacturer first.
1.3 Safety instructions - Electricity
An electric shock can be lethal or cause serious injuries; any non-authorized work on the electric system is
strictly forbidden!
Prior to cleaning works on the device or close to it, always unplug the apparatus as water
and current form a lethal mixture!
Only qualified installers are authorized to install the device.
Ensure that the socket is always readily accessible. If the cable of the device is damaged, replace it in order to
avoid any risk. Unplug the device prior to changing any setting in the electronic system. The apparatus is deliver-
ed with a mains adapter.
1.4 Safety instructions - Salt
The residual regeneration salt will be flushed out of the regeneration tank along with the waste water, which
should not be used for watering flowers or similar purposes. Observe the instructions in chapter „Installation site
requirements“ to ensure perfect safety when draining the waste water and the salt.
The indicated salt quantities refer to salt tablets. When using industrial salt (salt pellets
or blocks) quantities may vary.
1.5 Safety instructions - Temperature
Danger of scalding! Load resistances may become hot in operation and should not be
touched.
Vent the water softening system right after the connection to the water mains to ensure perfect safety.

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
2. Foreword
To the customers‘ attention!
you made a very good decision in selecting this water softening system, as it stands for the
latest developments in the water conditioning technology.
The SYR LEX Plus 10 Connect Water Softener is designed to protect pipes and water heaters
against lime deposits, which reduce the water flow through the pipes and lead to a high energy
consumption. By protecting appliances and valves, the device prevents expensive repair works.
There are no restrictions for the field of application according to DIN 1988.
The ion exchanger resin is located in a tank. The ion exchanger resin is regenerated in several
cycles. The regeneration time is preset to 02.00 am. The control unit automatically adapts to
the consumers‘ habits. The LEX Plus 10 Connect Water Softeners do not provide softened water
during regeneration.
Synthetic pipes or other corrosion resistant pipes shall be installed in all cases, where
water (process water) of 0 ° dH (German hardness degree) flows through the pipes to
prevent corrosion. Galvanized or copper tubes can also be used in case of partial softening
(approximately 8 °dH). This stabilizes the remaining carbonate hardness particles and forms
the prerequisite for building up a homogenous protective coating in the downstream piping
system. Some particular cases require an additional dosage of minerals/mineral solutions.
The functional parts are made of high-quality materials, which all meet the local regulations
and specifications.
Verify that the device shows no visible damages as soon as it is delivered. In case of damage
caused by transport, directly contact the forwarding agency.
The warranty does not cover damages caused by improper handling or operation.
Please refer to the terms of delivery and payment of your local dealer for any further or other
claims.
To ensure trouble-free functionality, the regeneration salt used must comply with the
requirements of the European Standard EN 973 (former DIN 19604 standard). We recommend
Broxo or Solvay salt tablets.
We recommend to conclude a service contract to make sure that the
perfect functionality of all water treatment devices is verified on a
regular basis.
The ion exchanger resin is made up of small synthetic resin beads, which replace the calcium
ions causing water hardness with sodium ions.

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
6
3. How the system works
The water becomes „soft“. However, the ion exchanger resin absorbs only a limited amount
of hardness particles. Depending on the water hardness, the absorbing capacity of the resin
becomes depleted sooner or later and has to be regenerated.
Regeneration with this system means removing the hardness particles from the ion exchanger
resin.
The diluted salt brine that flows through the resin bed removes the hardness particles, which
are then directed to the sewer.
The regeneration process requires only a small amount of salt and complies with EN 14743 and
DIN 19636-100.
The water softening system undergoes automatic disinfection on a regular basis in order to
prevent microbial growth. The small amount of chlorine required for that process is generated
electrolytically from the brine sucked in during regeneration.
The regeneration is carried out automatically.
A water meter integrated in the device records the quantity of produced soft water, which is
summed up in the electronic system. When the value set for the raw water hardness is reached,
the electronic system triggers the required regeneration process.

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
4. Installation site requirements
Follow these instructions in order to prevent any problem with the LEX Plus 10 Connect
Water Softener.
Install the water softener in a dry room, which is not liable to frost. The ambient temperature
should not exceed 30 °C.
The system requires a power supply (230 V, 50 Hz) under constant voltage.
It also requires a gravity flow connection to the sewer for the waste water hose and the salt
tank‘s safety overflow.
The water softening system is usually installed downstream of the protecting filter, the
pressure reducing valve (compulsory when the static pressure is equal to or exceeds 5.0 bar)
and upstream of a dosing pump (optional).
To prevent huge damage on the installation site due to a leaking device or supply line (for
instance in an office, medical practice etc.), it has to be ensured that during the personnel‘s
absence the water and power supply are interrupted upstream of the system.
We recommend our leakage detector Safe-T Connect with an integrated floor sensor
(serial number: 2421.00.010).
Do not disconnect during the regeneration process.
When restarting the device after a service interruption, repeat the same steps as for the initial
start-up (cf. the instructions for installation and start-up).
The water to be softened has to be clear, free of solid impurities as well as iron and manganese-
free.
An additional water analysis may be helpful: we will be glad to offer you support by analyzing
your water sample free of charge. Send us your sample with our accompanying letter that you
can download in the Internet under www.syr.de > Service > Formulare.
Contact us for further details.

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
8
5. Instructions of use
Touch the display again to go to the main menu.
Basic settings for refilling salt, triggering regenerations, setting
or changing the water hardness, information on the status of the
device or statistics, further settings and start-up.
Touch the display again to go to the next submenu.

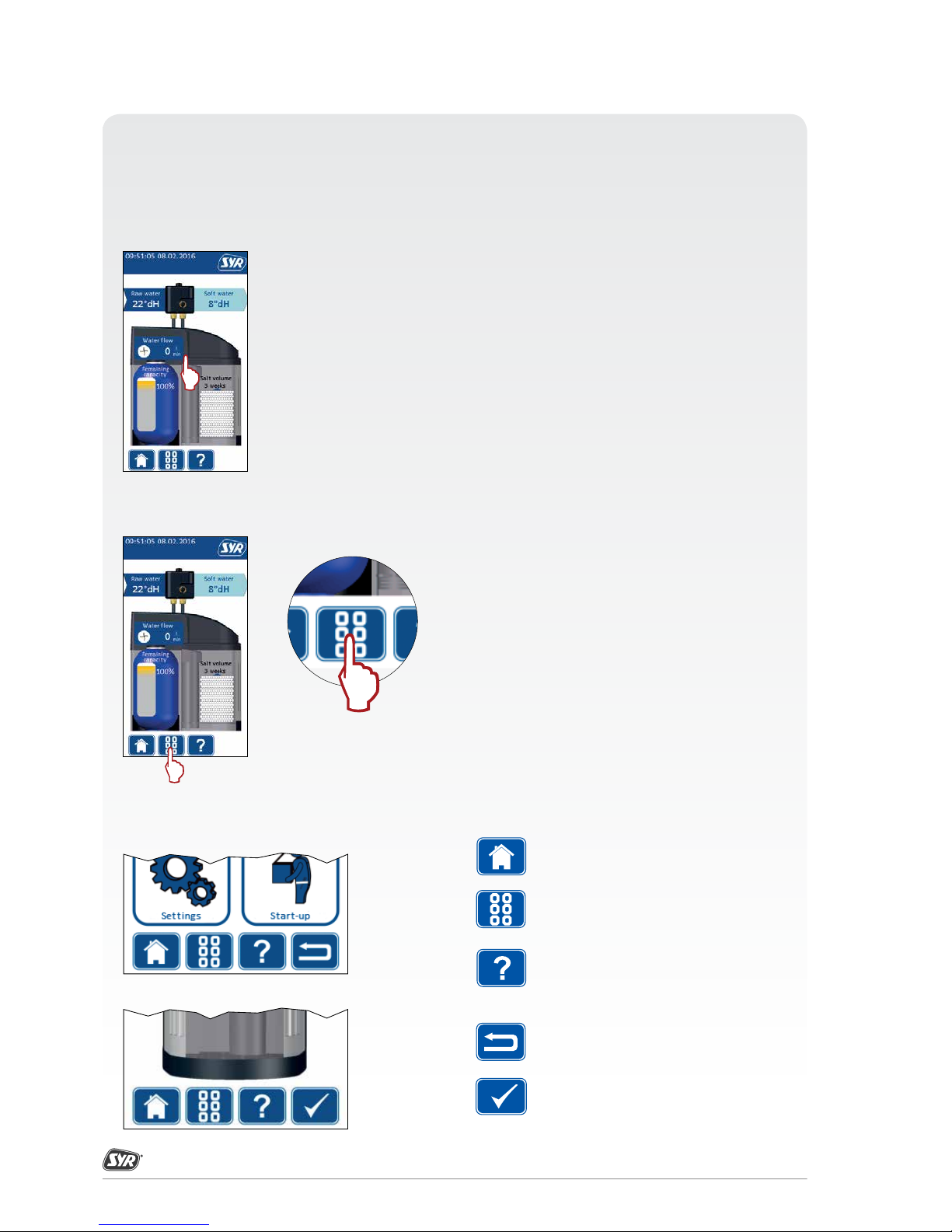

Use the following symbols in the lower section of the display
when navigating.
Home - directs you immediately to the
start screen
Menu - directs you to the main menu
Help - offers help and gives explanations
regarding the settings.
Back - goes back to the previous menu
Save - saves the setting
Start screen
LEX Plus Connect
Menu key
5.1 Menu level 1
The display is deactivated as a standard setting.
Simply touch the display to activate it. The start screen will be displayed.

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
5.2 Menu structure – Menu level 1 Touch the start screen to activate the main menu:
Start-up, cf. Instructions for instal-
lation and start-up 9.1500.27

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
10
To access menu level 2, touch the display for about two
seconds until the symbol of an hourglass appears.
You will be asked to enter the following password:
41352
This will give you access to the overview of menu level 2.
Make the required settings for an immediate or time-delayed
regeneration or for additional parameters.
Press any menu point to access the next submenu.
Press „Exit“ to confirm settings you possibly changed and
quit the menu
In case of submenus including several pages, press the
arrow keys to navigate through these menus.
5.3 Menu level 2

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
5.4 Menu structure – Menu level 2

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
12
6. Service / Service interruption
As the water softener works automatically, you will have to
refill salt from time to time only, but at the latest when the

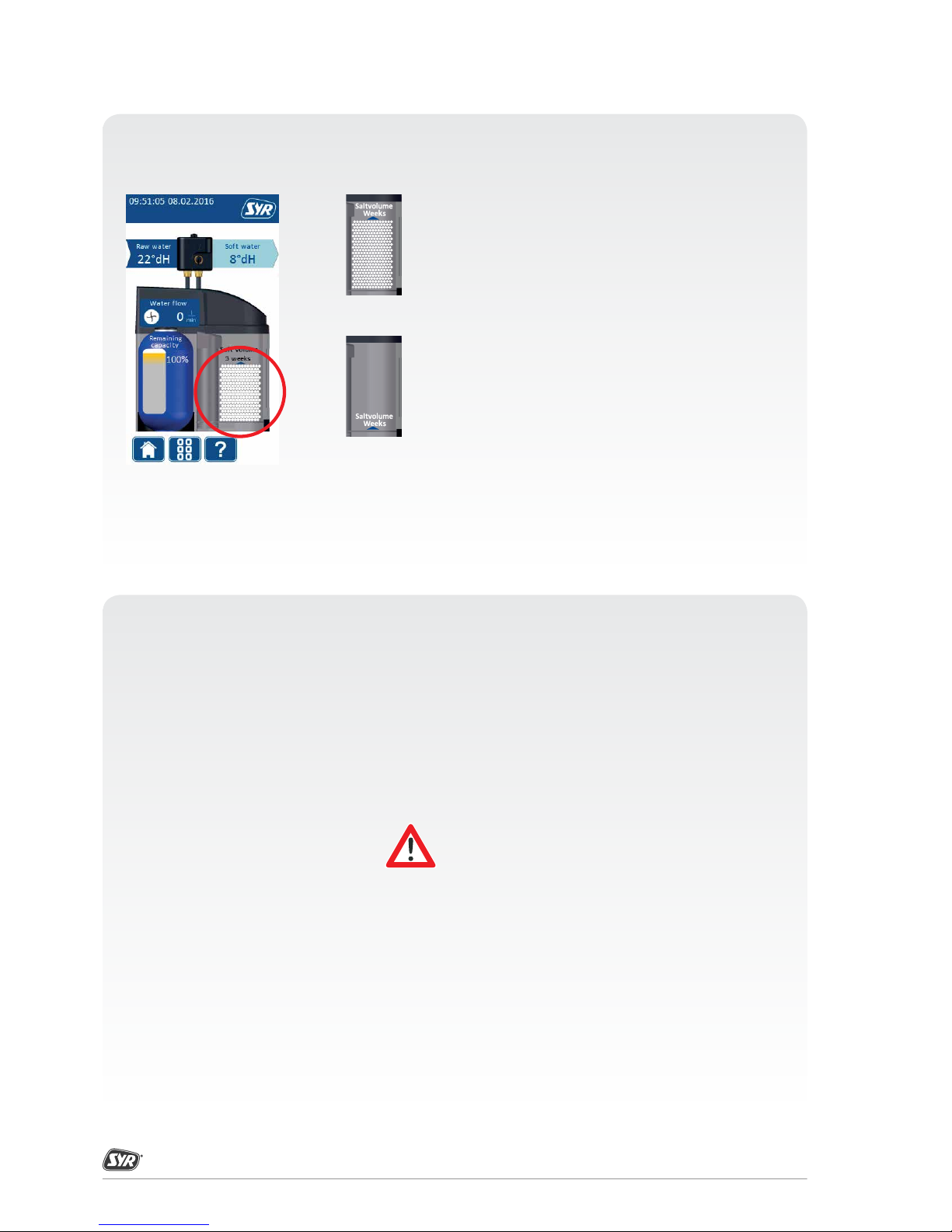

display signals that the salt level is low. The SYR Connect
control indicates the number of weeks left until the salt
stock has to be refilled.
The salt stock should not be reduced to the extent that the
liquid level is above the salt, as otherwise it will rise exces-
sively when refilling salt. The SYR Connect control will signal
a malfunction.
When using SYR Connect via Internet with SYR‘s App or the
web interface of a PC, the SYR Connect control will indicate
in due time that the salt level is too low.
When no softened water or just a little quantity of softe-
ned water is drawn off, the water softener will automatically
carry out a forced regeneration after 4 days at the latest to
ensure perfect hygiene (in compliance with EN 14743 and DIN
19636-100 (DVGW-test guideline).
When restarting the water softener after a service
interruption, the start-up process has to be carried out again
(cf. the relevant instructions for installation and start-up).
Should the main water supply of the water softener be
interrupted (main shut-off valve closed or on „bypass“), the
power supply of the device has to be interrupted as well.
6.1 Service
6.2 Service interruption

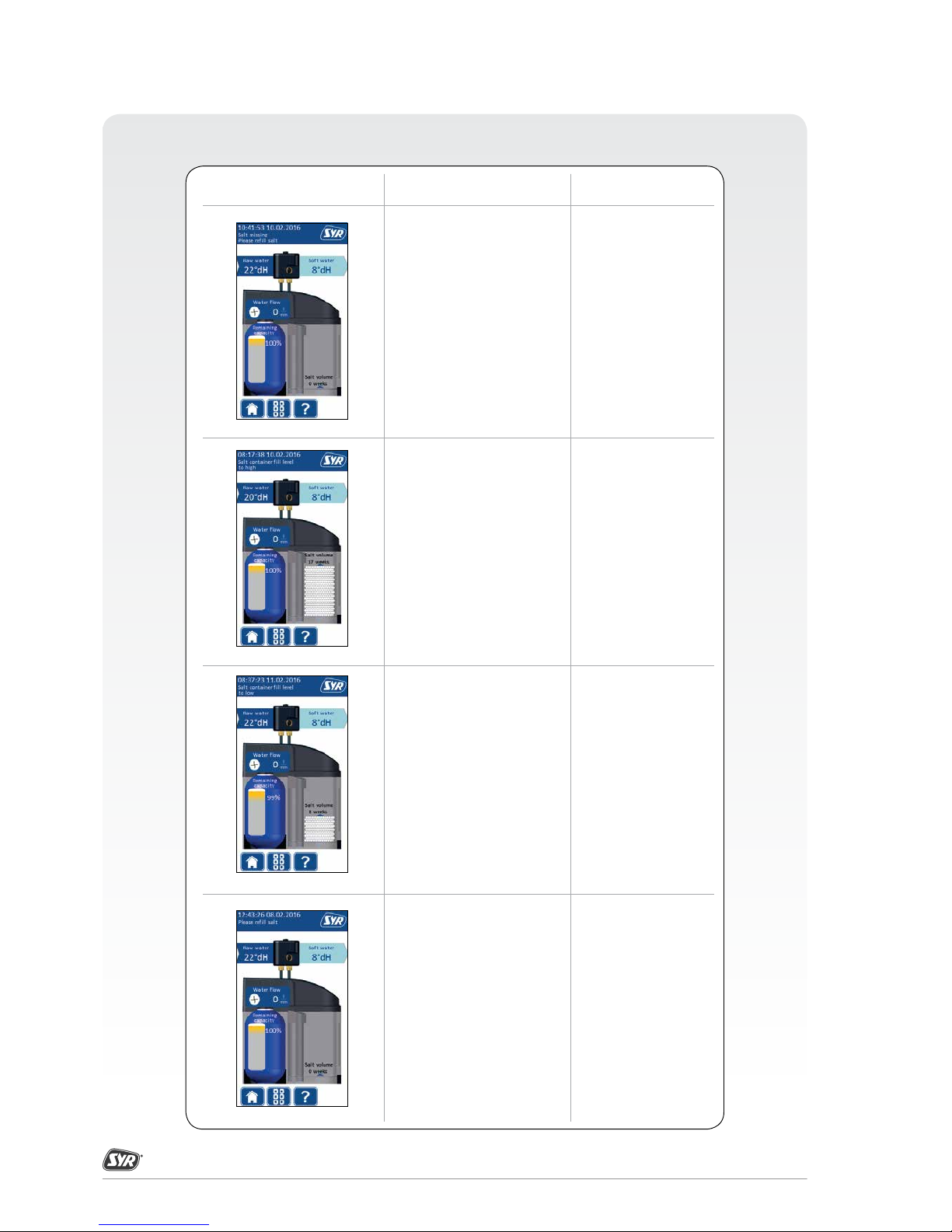

Display:
Salt tank is empty
Display:
Salt tank is full
0
0

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
13
For adurabletrouble-freeoperationofthesystem,
we recommend the maintenance kit 1500.01.900,
which includes:
• a seal kit
• a chlorinator cell
• a solenoid valve
Replace the spare parts included in the
maintenance kit every two years.
7.1 Maintenance / Intervals
Remove the cover of the device.
Unplug and depressurize the device prior to maintenance works.
Put the bypass and blending valve in the bypass position.
Maintenance Interval
Check Hardness setting Every 3 months Operator
Check Sealing kit once per year Installer
Exchange Sealing kit every 2 years Installer
Cleaning Salt tank once per year Installer
Cleaning Chlorinator cell once per year Installer
Exchange Chlorinator cell every 2 years Installer
Functional test once per year Installer

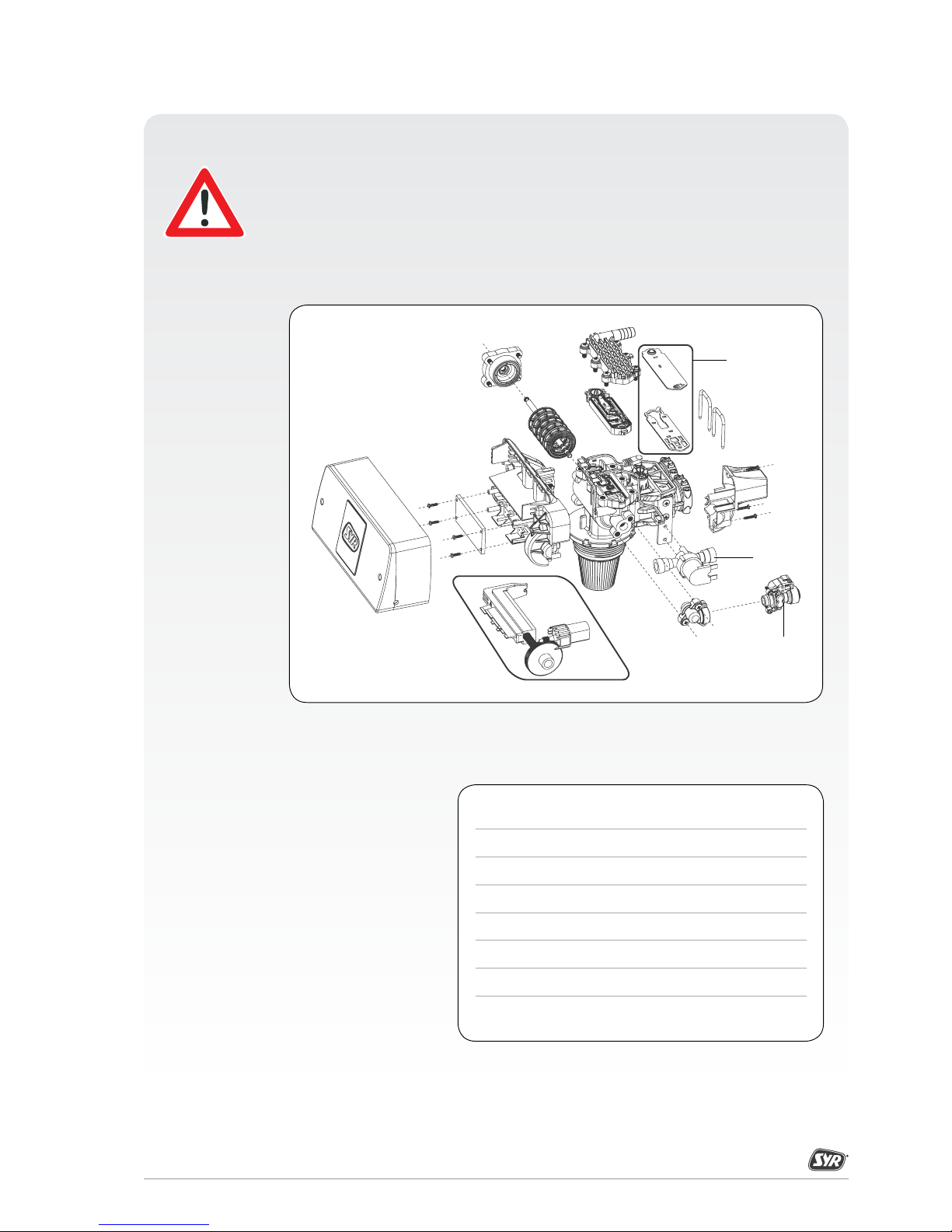

1 Seal kit
2 Chlorinator cell
3 Solenoid valve
7. Maintenance / Intervals
❶
❸
❷
* In the LEX Plus 10 Connect, the solenoid valve is mounted on the opposite side.
*

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
14

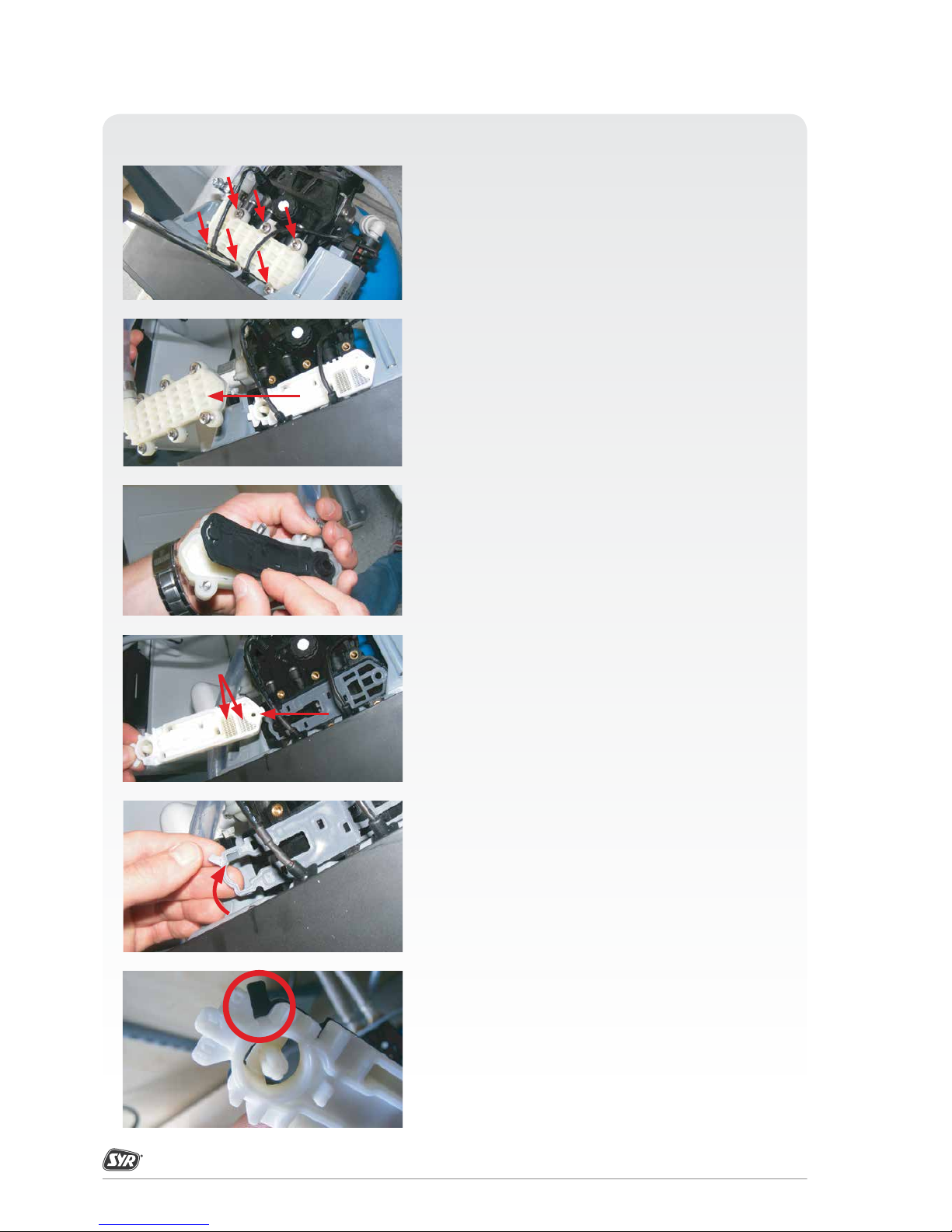

Remove the six screws with a screw driver.
7.1.1 Check / Exchange Seal Kit
Remove the mount of the seal kit.
Replace the seal, if necessary.
Remove the mount and clean especially the strainer surfaces with
clear and cold water.
Replace the second seal, if required.
Make sure that the second seal is in correct position - the small strap
must be visible on the right side at the top!
Re-assemble in reversed order.
Strainer surfaces

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
15
Remove both screws with a screw driver.
Remove the John Guest angle by pushing-in the angle‘s grey ring with
two fingers and using the other hand to remove the angle.
Remove the chlorinator cell.
Cleanthechlorinatorcellwithcoldandclearwaterorreplaceifnecessary.
Re-assemble in reversed order.
Remove the push-in connections.
7.1.2 Check / Replacement Chlorinator Cell

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
16

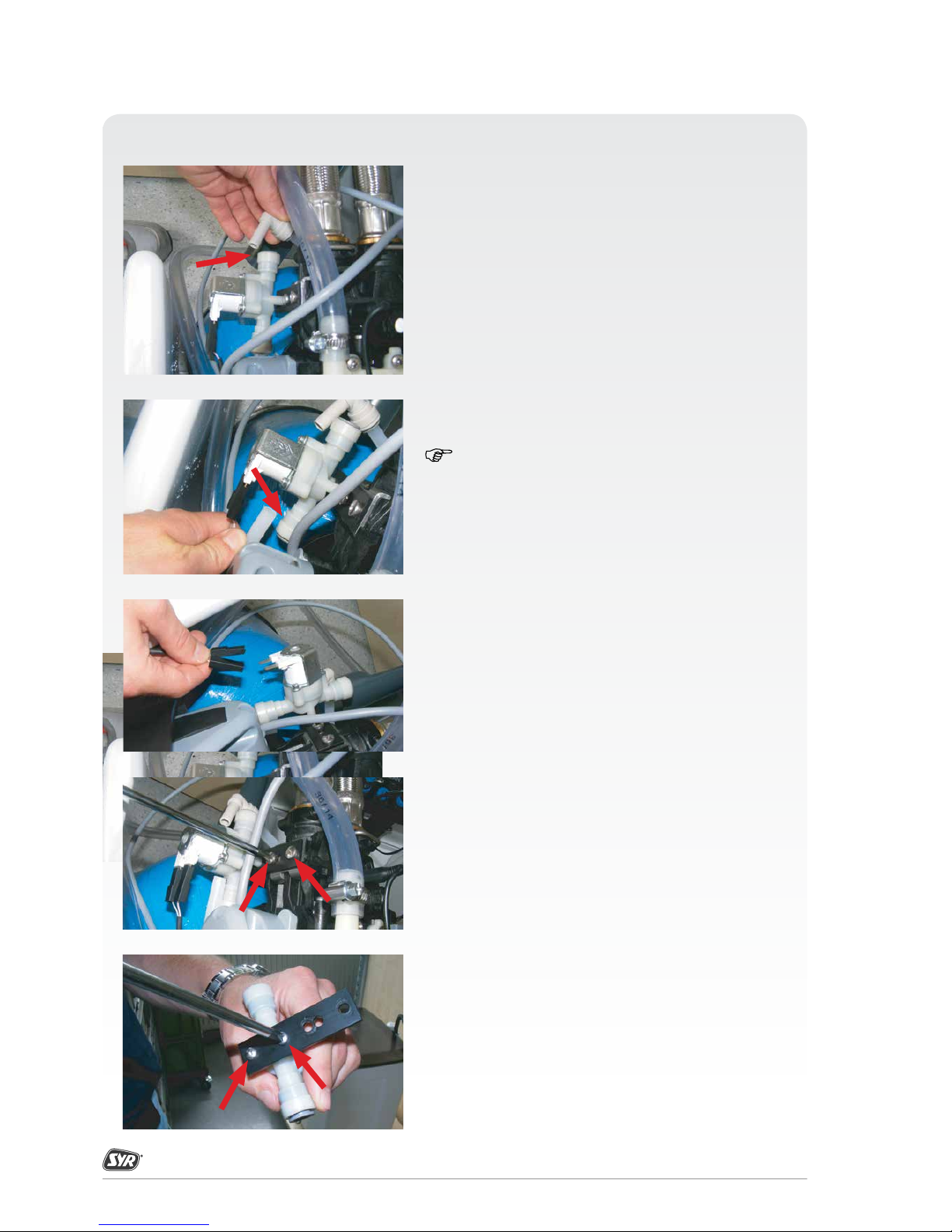

7.2.3 Check / Exchange Solenoid Valve
Remove the John-Guest angle by pushing-in the angle´s grey ring with
two fingers and using the other hand to remove the angle.
Remove the second John-Guest angle ,which leads into the salt con-
tainer, in the same way.
We recommend to pull the cabinet slightly forward.
Remove the connections.
Remove both screws of the solenoid valve´s fixing bracket.
Remove two further screws from the fixing bracket.
Once the solenoid valve is unscrewed from the fixing bracket, it can
be replaced.
Re-assemble in reversed order.

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
17
Carefully remove the cover of the brine line.
Attention: The cover is clipped-on!
Remove the connectors of the salt tank‘s LED.
7.2.4 Cleaning Salt Tank
Remove the brine line by pushing-in the John-Guest angle‘s grey ring
with two fingers and removing the angle with the other hand.
Remove both captive nuts.
Remove the four connectors of the electrodes.
The positions of the connectors are marked with colored dots and
correspond to the cable‘s colors.

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
18
When using the LEX Plus 10 Connect Single Water Softener, open
the bypass valve again, vent the pipe at a close draw-off point and
re-plug the device.
Restartthe deviceandobservethestepsoftheinstructions„Installation
and Start-Up“, chapter „Start-Up“.
Verify the inlet water and blended water hardness and adjust the
settings if required.
Record the maintenance works in the maintenance report
(chapter 14).
Montage und Inbetriebnahme
LEX Plus 10 Connect Einzelenthärtungsanlage
ANLEITUNG
7.2.5 Restart
Remove the filling level unit.
Verifythe float and the checkvalveofthe brine line–clean, if necessary.
Clean the salt tank and remove any incrustations or residues.
Remove the remaining salt from the salt tank and store it temporarily
as hygienically as possible.
We recommend for instance a clean plastic container, disposable
garbage bags, etc.
After cleaning, put the collected salt back in the tank.
Re-assemble in reversed order.

Instructions for Use and Maintenance LEX Plus 10 Connect Water Softener
8. Malfunctions
8.1 Troubleshooting – LEX Plus 10 Connect
Malfunction Description - Cause Solution
The system cannot access the Contact the manu-
basic mode. facturer.
The pressure sensor is Check whether the
deactivated. sensor is activated.
Faulty pressure sensor Check the pressure sensor,
clean or replace, if neces
sary contact the manu-
facturer.
Defective cable connection Check the cable
connection
The inlet pressure remains Increase the inlet pressure
below 2 bar. to at least 2 bar
The upstream pressure reducing Repair the pressure
valve is defective. reducing valve.
The inlet pressure exceeds Lower the inlet pressure
8 bar. to a maximum of 8 bar.
The upstream pressure reducing Repair the pressure
valve is defective. reducing valve.
No pressure reducing valve. Mount a pressure
reducing valve.

Instructions of Use and Maintenance LEX Plus 10 Connect Water Softener
20
Malfunction Description - Cause Solution
The chlorination flow remains Refill salt, wait for
below 150 mA and the salt 30 min. Regenerate
container contains less than
5 kg.
Leaky brine line. Eliminate the leak.
Dirty filling level unit Remove the dirt.
Dirty or defective solenoid Clean or replace the
valve. solenoid valve.
Faulty control head. Contact the manu-
facturer.
Dirty electrodes. Clean the electrodes.
Defective cable connection. Verify the cable
in Ordnung. connection.
Dirty or defective solenoid Clean or replace the
valve. solenoid valve.
Faulty control head. Contact the manu-
facturer.
Dirty electrodes. Clean the electrodes.
Defective cable connection. Verify the cable
connection.
The salt reserve is less than Refill salt, wait for
two weeks. 30 min. Regenerate.
