System air SUE 250EC User manual

Document in original language | 199495 · 001
Supply Air Unit
SUE
Installation and Operating Instructions GB

199495 | 001
© Copyright Systemair AB
All rights reserved
E&OE
Systemair AB reserves the rights to alter their products without notice.
This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

199495 | 001
Contents
1 General information.........................................1
1.1 Notice symbols......................................1
1.1.1 Instruction symbols.....................1
2 Important safety information .............................1
2.1 Personnel .............................................1
2.2 Personal protective equipment..................2
2.3 5 rules of electrical safety ........................2
3 Warranty.......................................................2
4 Delivery, transport, storage ...............................2
5 Description ....................................................4
5.1 Intended use .........................................4
5.2 Incorrect use ........................................4
5.3 Technical data .......................................4
6 Name plate and type key ..................................5
7 Accessories....................................................6
8 Installation.....................................................7
9 Electrical connection ........................................8
9.1 Wiring diagram ......................................8
9.2 Protecting the motor & heater...................8
9.3 Variable-speed fans................................9
10 Commissioning ...............................................9
11 Operation ......................................................9
12 Troubleshooting/maintenance/repair ................ 10
12.1 Troubleshooting................................... 10
12.2 Maintenance....................................... 12
13 Cleaning...................................................... 12
14 Deinstallation/dismantling............................... 13
15 Disposal ...................................................... 13
16 Product fiche SUE .......................................... 13
17 Commissioning Report.................................... 14
18 EU Declaration of conformity............................ 15

General information | 1
1 General information
1.1 Notice symbols
Danger
Direct hazard
Failure to comply with this warning will lead
directly to death or to serious injury.
Caution
Hazard with a low risk
Failure to comply with this warning may lead to
moderate injuries.
Warning
Potential hazard
Failure to comply with this warning may lead to
death or serious injury.
Important
Hazard with risk of damage to objects
Failure to comply with this warning will lead to
damage to objects.
Note:
Useful information and instructions
1.1.1 Instruction symbols
Instruction Instruction with xed sequence
♦Carry out this action 1. Carry out this action 3. (if applicable, further actions)
♦(if applicable, further actions) 2. Carry out this action
2 Important safety information
Planners, plant builders and operators are responsible for the proper assembly and intended use.
♦Read the operating instructions completely and carefully.
♦Keep the operating instructions and other valid documents, such as the circuit diagram or motor instructions, with
the fan. They must always be available at the place of use.
♦Observe and respect local conditions, regulations and laws.
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
♦Safety elements may not be dismantled, circumvented or deactivated.
♦Only use the fan in a awless condition.
♦Provide generally prescribed electrical and mechanical protective devices.
♦During installation, electrical connection, commissioning, troubleshooting, and maintenance, secure the location and
premises against unauthorised access.
♦Do not circumvent any safety components or put them out of action.
♦Before any work on the fan, test absence of voltage.
Even when the motor is stopped, dangerous voltages may be present on terminals.
♦Keep all the warning signs on the fan complete and in a legible condition.
♦The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction.
♦Do not allow children to play with the device.
2.1 Personnel
The fan may only be used by qualified, instructed and trained personnel. The persons must know the relevant safety di-
rectives in order to recognise and to avoid risks. The individual activities and qualifications can be found in Table 1 Qual-
ifications, page 2.
199495 | 001

2|Warranty
Table 1 Qualifications
Activities Qualifications
Storage, operation, transport, cleaning, disposal Trained personnel (see following note)
Electrical connection, commissioning, electrical
disconnection Electrical expert or matching qualification
Installation, disassembly Fitter or matching qualification
Maintenance Electrical expert or matching
qualification
Fitter or matching
qualification
Repair
Electrical expert or matching
qualification
Fitter or matching
qualification
Smoke extraction fans and EX fans only by agreement with
Systemair.
Note:
The operator is responsible for ensuring that personnel are instructed and have understood the contents of
the operating instructions. If something is unclear, please contact Systemair or its representative.
2.2 Personal protective equipment
♦Wear protective equipment during all work in the vicinity of the fan.
• protective working clothes
• protective working shoes
• protective working gloves
• helmet
• goggles
• hearing protection
2.3 5 rules of electrical safety
1. Disconnect (disconnection of
the electrical system from
live components at all
terminals)
2. Prevent reactivation
3. Test absence of voltage
4. Ground and short-circuit
5. Cover or restrict adjacent live parts
3 Warranty
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance
with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-
port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this
document. The maintenance plan must be created by the operator, see section 12.2 Maintenance, page 12.
4 Delivery, transport, storage
Safety information
Warning: Risk from rotating fan blades
♦Prevent access by unauthorised persons by safety personnel or access protection.
Warning: Suspended loads
♦Do not walk under suspended loads.
♦Make sure that there is nobody under a suspended load.
Delivery
Each fan leaves our plant in an electrically and mechanically proper condition. We recommend transporting the fan to
the installation site in the original packaging.
Checking delivery
♦Check the packaging and the fan for transport damage. Any findings should be noted on the cargo manifest.
♦Check completeness of the delivery.
199495 | 001

Delivery, transport, storage | 3
Unpacking
When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc.
♦Unpack the fan carefully.
♦Check the fan for obvious transport damage.
♦Only remove the packaging shortly before assembly.
Transport
Safety information
Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction.
♦Never transport the fan by the connecting wire, terminal box, impeller, protection grille, inlet cone or silencer.
♦In open transport, please make sure that no water can penetrate into the motor or other sensitive parts.
♦We recommend transporting the fan to the installation site in the original packaging.
Caution: If transported without care during loading and unloading, the fan may be damaged.
♦Load and unload the fan carefully.
♦Use hoisting equipment that is suitable for the weight to be hoisted.
♦Observe the transportation arrows on the packaging.
♦Use the fan packaging exclusively as transport protection and not as a lifting aid.
Storage
♦Store the fan in the original packaging in a dry, dust-free location protected against weather.
♦Avoid the effects of extreme heat or cold.
Hazard due to loss of function of the motor bearing
♦Avoid storing for too long (recommendation: max. 1 year).
♦Check that the motor bearing functions properly before installation.
199495 | 001

4|Description
5 Description
5.1 Intended use
• The SUE is intended to provide rooms with pre-heated air.
• The fans are intended for installation in ventilation systems. They can be installed both in duct systems and also with
free suction via a suction-side contact protection grille. Free discharge via a contact protection grille is also possible.
• The fan is suitable for conveying clean air.
5.2 Incorrect use
Incorrect use refers mainly to using the fan in another way to that described. The following examples are incorrect
and hazardous:
• Conveying of explosive and combustible media
• Conveying of aggressive media
• Operation in an explosive atmosphere
• Operation without filter.
• Operation without duct system or protection grille
• Operation with the air connections closed
• Installation outside without weather protection
5.3 Technical data
Max. ambient temperature [°C] 40
Min. ambient temperature [°C] -20
Max. temperature of transported air [°C] 50
Sound pressure [dB] see data sheet, available in our online catalogue
Voltage, current, frequency, enclosure class, weight see name plate of the fan
The motor data can be found on the name plate of the motor, or in the technical documents of the motor
manufacturer.
The data on the name plate of the fan apply to "standard air" according to ISO 5801.
The SUE consists from the following components:
Fan with EC motor, Duct heater, TCA, S-5EC, Filter, TFK Temperature sensor Temperature sensor

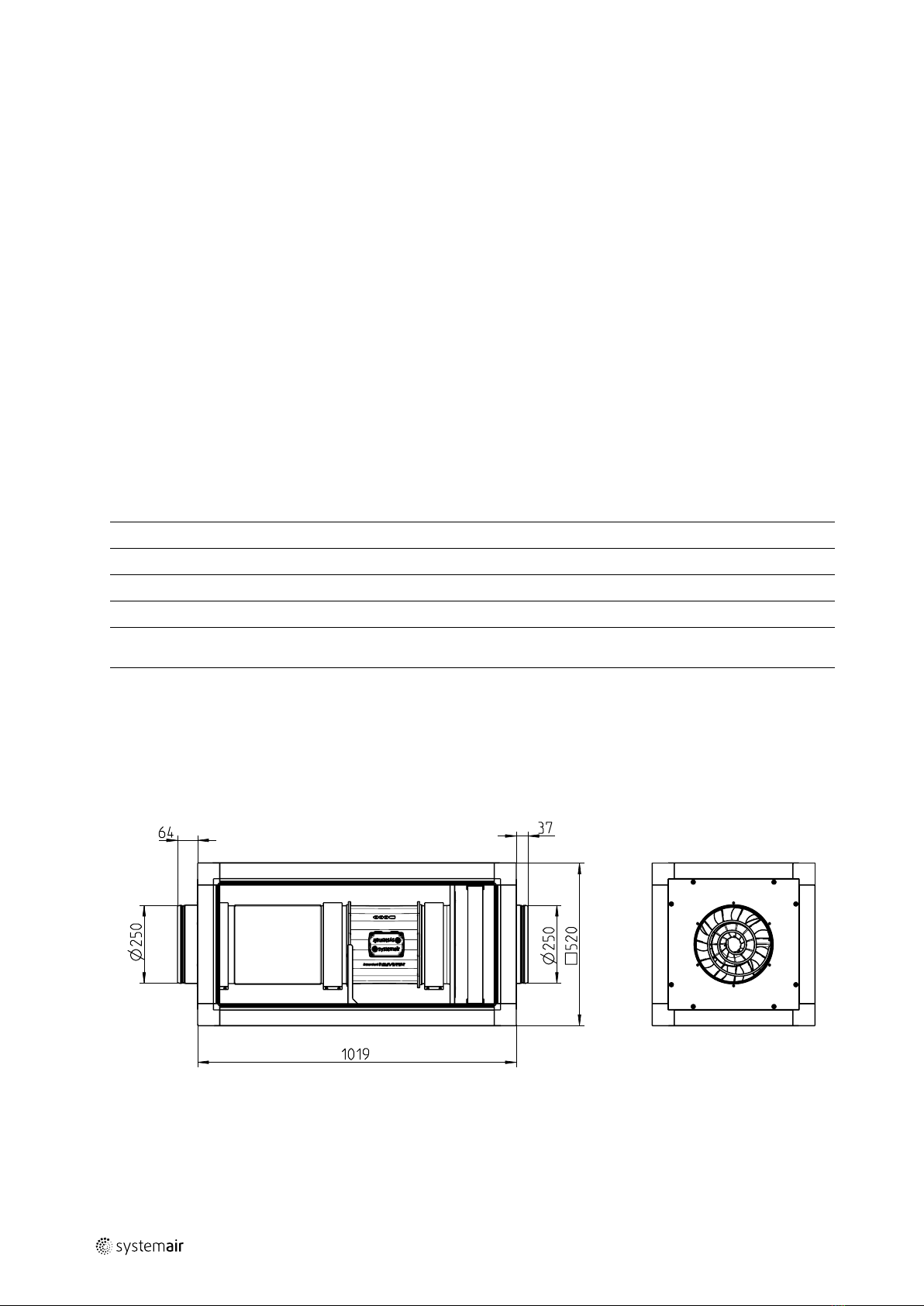

Table 2 Dimensions SUE
199495 | 001

Name plate and type key | 5
Possible adjustments
Temperature
TCA
Factory
setting: 20°C
The value can be
adjusted, see manual of
the controller TCA
(attached to the SUE).
Air volume
S-5EC
5 steps-
switch
The air volume can be
adjusted with the 5
steps switch.
6 Name plate and type key
1
2
3
4
5
6
7
1Type designation 5Insulation class
2Voltage/current/frequency 6Article number/production number/
manufacturing date
3 Input power 7 Certifications
4Enclosure class/fan impeller speed/weight
Table 3 Type key
SUE 250 EC 9kW
Heating Power
9 kW
Motor
Electronically commutated/1 phased or 3 phased
Duct Diameter
Supply Air Unit
199495 | 001

6|Accessories
7 Accessories
Note:
For details of the accessories, please check our online catalog or contact Systemair.
FK
FK
IGC
IGK FK
FK
FK
FK
FK
FFR/FGR
FFR
IGC
IGC
SUE
SUE
SUE
SUE
VK
RSK
LDC
SUE Supply Air Unit VK Louvre Shutter FK Fast clamp
IGC Round protection grille FFR Filter cassette RSK Back draft damper
IGK Wall grid FGR Filter cassette SG Protection guard
LDC Silencer
199495 | 001

Installation | 7
8 Installation
Safety information
♦Observe 2 Important safety information, page 1
♦Check the surface before installation for load bearing capacity.
♦Consider all static and dynamic loads when selecting hoisting equipment and fastening components.
♦Provide contact and intake protection and ensure safety distances according to DIN EN ISO13857 and DIN 24167-1.
Preconditions
♦Ensure that the fan and all its components are
undamaged.
♦Fit the fans in such a way that there is sufficient
access for installation, troubleshooting, maintenance
and repair.
♦Protect against dust and moisture when installing.
♦Ensure that the information on the name plates (fan
and motor) matches up with the operating conditions.
♦A warning sign must be attached close to the air
outlet, stating that the air outlet must not be covered.
Important
Damage to the bearings or other parts of the fan
can occur.
♦Do not place a duct bend directly before or
after the fan!
♦Ensure a smooth and constant air flow to the
device.
min.
2,5x ØDN
min.
2,5x ØDN
ØDN
• Round duct system: D= Nominal diameter
• Rectangular duct system: D= Hydraulic diameter
TFK Temperature sensor
The distance between the TFK Temperature sensor and the SUE must be at least 1 meter.
Installation positions
The inspection opening* of the SUE can be freely placed
upwards or sidewards.
Important
The overheating protection may not work
correctly!
♦Do not place the inspection opening*
downwards.
1°179°
*
If the SUE is equipped with a drain plug:
Important
Damage to the fan if condensation water cannot drain.
♦Ensure that the drain plug is always at the lowest point of the fan to ensure that the condensation water
can drain.
199495 | 001

8| Electrical connection
9 Electrical connection
Safety information
♦Observe 2 Important safety information, page 1
♦Prevent the ingress of water into the connection box.
Connection
♦Check if the data on the nameplate matches the
connection data.
♦Complete the electrical connection according to the
circuit diagram.
♦Fans with EC- motors must be switched on/off via the
control input.
♦Connect the cable end in a dry environment.
♦Install a circuit breaker in the permanent electrical
installation, with a contact opening of at least 3 mm
at each pole.
Protective grounding wire
The protective grounding must have a cross-section equal to or greater than that of the phase conductor.
Residual current circuit breaker
All-current-sensitive residual current circuit breakers are required for use in alternating-current systems with 50/60
Hz, in combination with electronic devices such as EC motors, frequency converters or uninterruptible power supplies
(UPS).

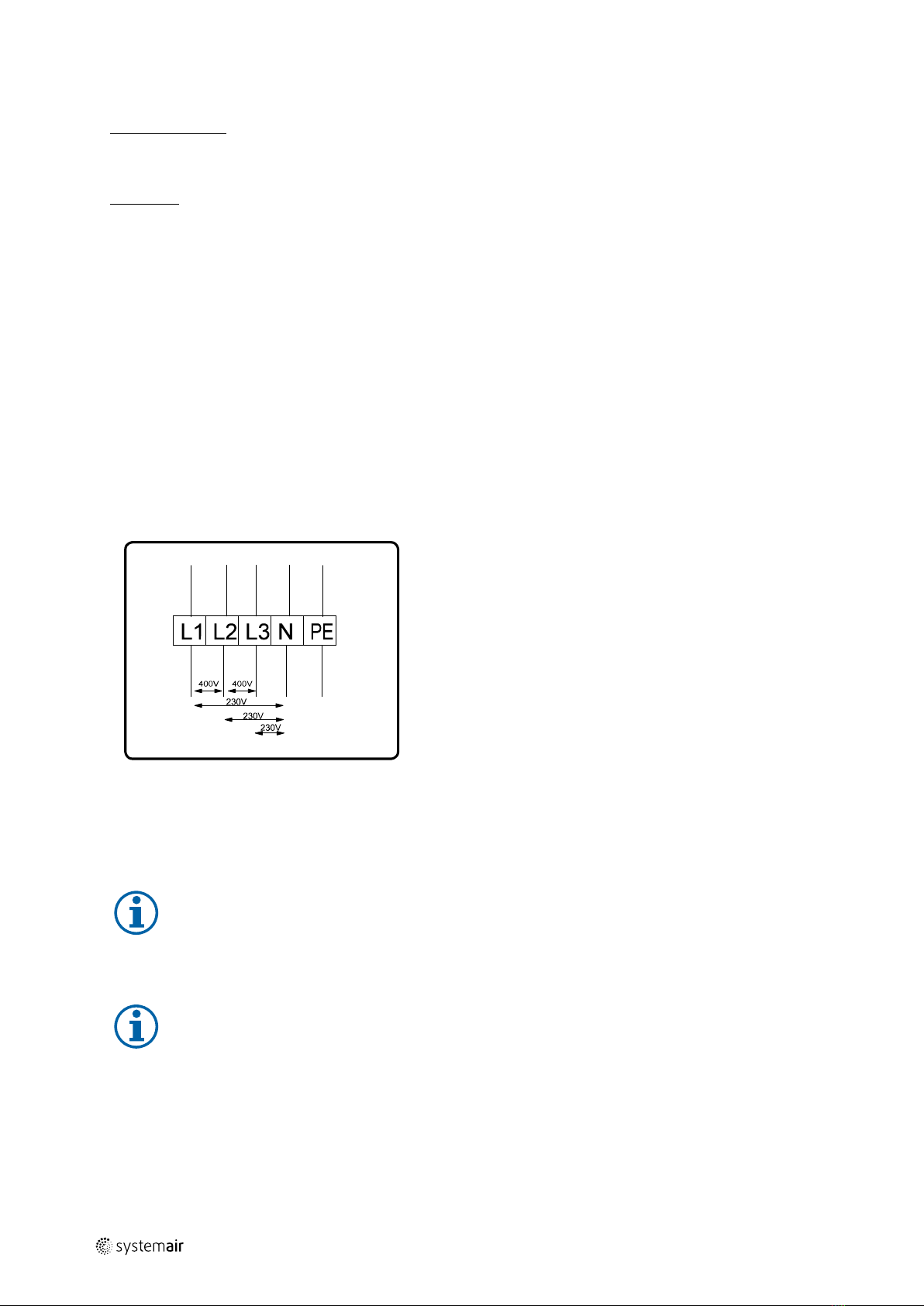

9.1 Wiring diagram
Wiring diragram
9.2 Protecting the motor & heater
Motor
Note:
In fans equipped with an EC motor, there is no additional motor protection needed. The motor protection is
integrated in the electronics of the motor.
Heater
Note:
• The SUE has a built-in airflow sensor that ensures that the heater will not actuate, unless there is an
appropriate airflow through the duct heater.
• The SUE is equipped with two overheating cut-outs, to prevent overheating when the airflow is too low
or in case of a fault in the system
1 x overheating cut- out with automatically reset
1 x overheating cut- out with manually reset (*Reset button)
199495 | 001

Commissioning |9

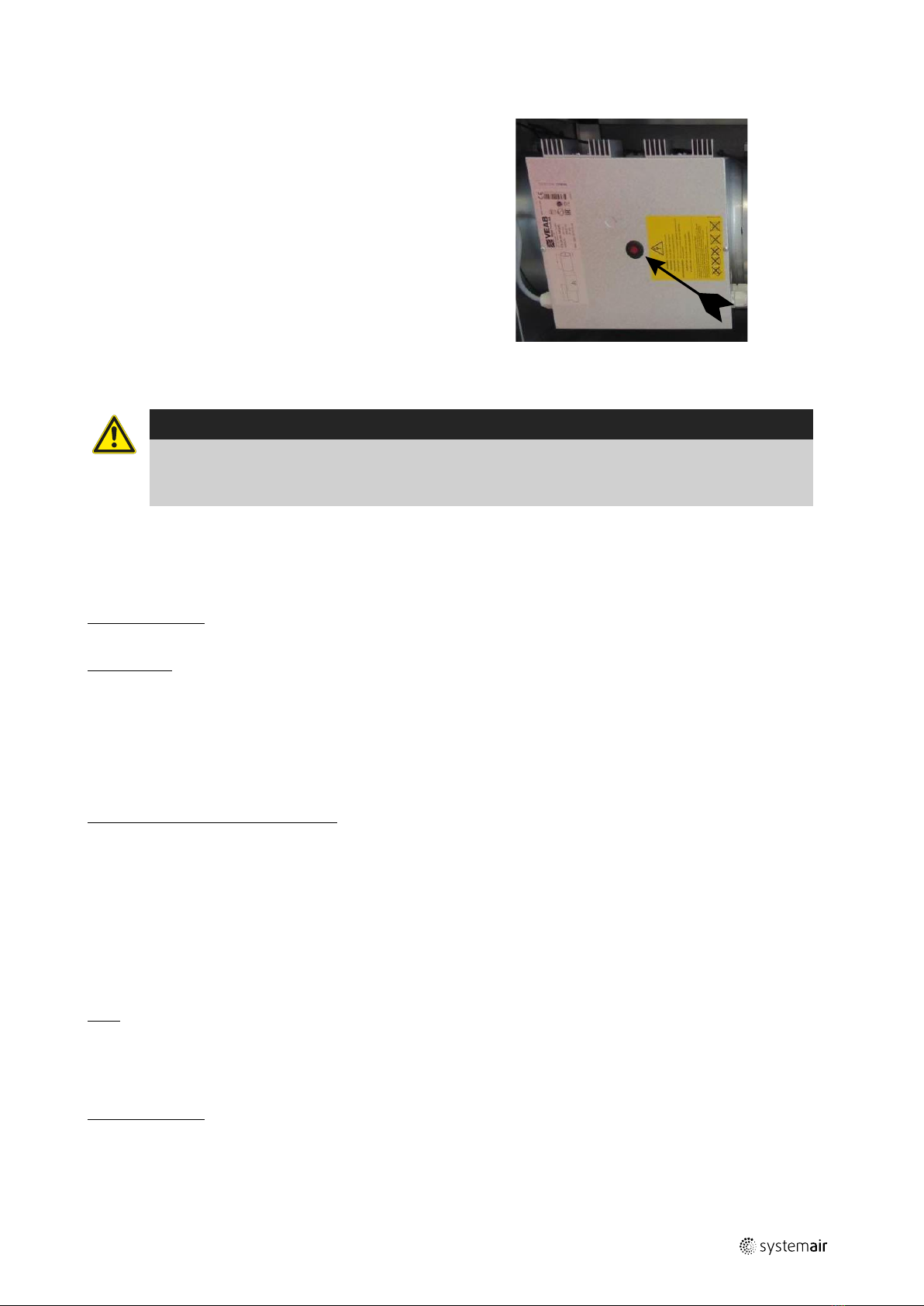

If the overheating cut-out has been activated, observe
the following steps
1. Observe the 5 rules of electrical safety, see 2.3 5 rules
of electrical safety, page 2.
2. Investigate carefully the reason for activation of the
cut-out.
3. When the fault has been eliminated, the Reset-
button* can be pressed.
*Reset- button
9.3 Variable-speed fans
Warning
Resonant frequencies may result increased vibration in certain speed ranges. These vibrations may destroy
components.
♦Only operate the fan outside these speed ranges.
10 Commissioning
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
Safety information
♦Observe 2 Important safety information, page 1
Preconditions
♦Installation and electrical connection have been
correctly performed.
♦Before switching the fan on, check for externally
visible damage and ensure that the protective
equipment functions properly.
♦Inlet and outlet are free.
♦Cable glands are tight.
♦Safety devices have been fitted.
Commissioning of speed-controlled fans
Check the fan for vibrations at all normal operation speeds during commissioning. Determine and evaluate vibrations
on the housing and bearing areas in accordance with DIN ISO 14694 depending on motor power and positioning.
Measurable vibration velocities depend e.g. on following factors:
• positioning • bottom section/foundation state • flow conditions
The working point of the fan, as well as used external devices and accessories, also influence the running
characteristics.
Tests
Do the tests requested in the commissioning report (17 Commissioning Report, page 14)
11 Operation
Safety information
♦Observe 2 Important safety information, page 1
199495 | 001

10 | Troubleshooting/maintenance/repair
Important
Risk of contamination of the airflow sensor and the heating elements.
♦Do not remove the built-in filter during operation.
♦Change the filter frequently to avoid pressure- losses.
12 Troubleshooting/maintenance/repair
Safety information
♦Observe 2 Important safety information, page 1
12.1 Troubleshooting
Table 4 Troubleshooting
Problem Possible causes Remedy
Fan does not run
smoothly
Soiling on the impeller Clean carefully
Material decomposition on the impeller due
to aggressive material conveyed. Contact Systemair
Impeller rotates in wrong direction. Contact Systemair
Deformation of impeller due to excessive
temperature.
Ensure that the temperature does not exceed
the certified value/Install new fan
Vibrations, oscillations Check the installation of the fan/check the
duct system, see 8 Installation, page 7
Fan operation in resonant frequency range Consider chapter 9.3 Variable-speed fans,
page 9
Air output of fan too
low
Impeller rotates in wrong direction. Contact Systemair
Wrong wiring configuration Check and possibly correct the wiring
configuration
Pressure losses too high Optimize the line routing.
Flow regulators not or only partly open Check opening position on site.
Intake or pressure ducts are blocked Remove the blockage.
Dirty air filters of the ventilation system. Change filters.
Grinding sounds
when starting or
operating the fan
Check if the duct connections of the fan are
strained Loosen the duct connections and realign it.
Thermal contacts/
resistors have
triggered
Impeller rotates in wrong direction. Contact Systemair
Motor overheated Contact Systemair
Motor blocked Contact Systemair
Fan does not reach
nominal speed
Defective motor winding Contact Systemair
Control units (S-5EC) is set incorrectly. Correct the settings of the control units.
Mechanical blockage Remove the blockage.
Motor does not
rotate
Faulty supply voltage Check the supply voltage, re-establish the
voltage supply.
Faulty connection Disconnect from the power supply, correct
the connection, see circuit diagram.
Temperature monitor has responded Allow the motor to cool down, find and
resolve the cause of the fault.
199495 | 001

Troubleshooting/maintenance/repair | 11
Troubleshooting cont'd
Electronics/motor
overheated
Insufficient cooling Improve cooling.
Overloaded motor Check if the correct fan is used for your
application.
Ambient temperature too high Check if the correct fan is used for your
application.
Full heating power
but no regulation
Wrong parameters in the TCA (Temperature
controller)
Correct the settings of the control units.
Contact Systemair
No or not enough
heating power
overheating cut-out activated Eliminate the fault and reset the overheating
cut-out.
overheating cut-out defect Check the overheating cut-out elements.
Contact Systemair
Heating element defect Check the heating elements.
Contact Systemair
Faulty supply voltage
Check the supply voltage, re-establish the
voltage supply.
Check the interlocking devices, fuses,
breakers etc.
Wrong parameters in the TCA (Temperature
controller)
Correct the settings of the control units.
Contact Systemair
“Air output of fan too low” or “Motor does
not rotate” –> airflow sensor disables the
heating
See “Air output of fan too low” or “Motor
does not rotate” of this chapter
Check if the filter
Note:
For all other damage/defects, please contact Systemair.
199495 | 001

12 | Cleaning
12.2 Maintenance
Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is
provided.
We recommend regular maintenance intervals to ensure continuous fan operation. These maintenance intervals are
specified in the “Activities” table below. In addition, the operator must carry out follow-up activities such as cleaning,
replacing defective components or other corrective measures. For traceability reasons, a maintenance plan must be
created which documents the work carried out. This must be created by the operator. If the operating conditions are
"extreme", the maintenance intervals must be reduced so that maintenance is carried out more frequently. Examples
of extreme operating conditions:
• Durable ambient temperature > 30 ºC or < 0 ºC, or temperature fluctuations > 20 K
Table 5 Activities
Normal operating
conditions
Extreme operating
conditions
Activity Every six
months
Annually Quarterly Every six
months
Check the fan and its components for visible damage,
corrosion and contamination. X X
Check the impeller for damage and imbalance. X X
Clean the fan/ventilation system (see 13 Cleaning, page
12). X X
Check the screwed connections for damages/defects and
check that they are firmly seated. XSee normal operating
conditions
Check the fan intake is free from contamination. X X
Check that the fan and its components are being used
correctly. XSee normal operating
conditions
Check the current consumption and compare this with the
rated data. X X
Check the electrical and mechanical protective equipment
is working correctly. XSee normal operating
conditions
Check the fan’s rating plate is legible. X X
Check the connection clamps and screwed cable
connections for damage/defects, and check that they are
firmly seated. XSee normal operating
conditions
Spare parts
♦Use original spare parts from Systemair only.
♦When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate.
13 Cleaning
Safety information
♦Observe 2 Important safety information, page 1
Procedure
Keeping the fan clean extends its service life.
• Install a filter monitor.
• Change the filters of the ventilation system.
• Do not use steel brushes or sharp-edged objects.
• Do not use a high-pressure cleaner (steam jet cleaner) under any circumstances.
• Do not bend the fan blades when cleaning.
• When cleaning the impeller, pay attention to balance weights that have been positioned
• Keep the airways of the fan clear and clean them if necessary with a brush.
199495 | 001

Deinstallation/dismantling | 13
14 Deinstallation/dismantling
Deinstall and dismantle the fan in reverse order of installation and electrical connection.
15 Disposal
♦Ensure material is recycled. Observe national regulations.
♦The device and the transport packaging are predominantly made from recyclable raw materials.
♦Disassemble the fan into its components.
♦Separate the parts according to:
• reusable material
• material groups to be disposed of (metal, plastics, electrical parts, etc.)
16 Product fiche SUE
For more information in local language www.systemair.de
Trade name Systemair
Product No. 94729
Product Name SUE 250EC 9kW
ErP compliance 2018
Unit category NRVU
Unit type UVU
Drive external MSD or VSD
Heat recovery type none
Temperature ratio N/A
qv nom m³/h 618
P nom W 67
Ps nom Pa 105
Fan η % 26.9
External Leakage
Sound power level
(LWA)
dB(A) 70.7
199495 | 001

14 |Commissioning Report
17 Commissioning Report
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
Fan
Description:
Article no.: Manufacturing order no.:
Installer
Company: Contact person:
Company address:
Tel. no.: Email:
Operator (Place of installation)
Company: Contact person:
Company address:
Tel. no.: Email:
Type of connection Yes No
Directly to mains □ □
0-10 V signal (EC motor) □ □
via contactor control □ □
Transformer □ □
Frequency converter □ □
Sinus filter □ □
Shielded cables □ □
Motor protection Yes No
Motor protection switch or motor protection relay □ □
PTC resistor □ □
Resistance value [Ω]:
Thermal contact □ □
Electrical motor protection □ □
Others:
Functional check Yes No
Impeller easily rotatable (by hand) □ □
Rotation direction acc. to directional arrow □ □
Smooth running without unusual noise/
vibrations
□ □
Nominal data - Fan (name plate on fan housing)
Voltage [V]: Current [A]:
Frequency [Hz]: Power [kW]:
Fan impeller speed [rpm]:
Measured data at commissioning
Voltage [V]: Temp. of transported air [°C]:
199495 | 001

EU Declaration of conformity | 15
Current L1 [A]*: Fan impeller speed [rpm]:
Current L2 [A]: Air volume [m3/s]:
Current L3 [A]: Differential pressure [Pa]*:
*For single-phase fans, fill in line “Current L1 [A]” *Δ- Pressure between suction-side and discharge of the fan
If an air flow measurement is not possible, this value can be calculated using the following formula:
X=
Duct cross-section [m²] Flow speed [m/s]
Grille measurement acc. to VDI 2044 Air volume [m³/s]:
Yes No
Commissioning of the fan successful? □ □
Date, installer's signature
Date, operator's signature
18 EU Declaration of conformity
The manufacturer: Systemair GmbH
Seehöfer Straße 45
97944 Boxberg
Germany
Product designation: Circular duct fans
Type designation: prioAir, prioAir Silent
Since year of manufacture: 2016
The manufacturer declares that the above mentioned products in their design and construction and the version
marketed by us complies with the harmonization legislation listed below:
EU directives: 2006/42/EC Machinery directive
2014/30/EU Directive electromagnetic compatibility (EMC)
2011/65/EU RoHS directive
2009/125/EC ErP guidelines
Regulations: 327/2011 only for fans above 125W, CE marked fans used as
components are CE marked by other manufacturer.
199495 | 001

Supply Air Unit · Installation and Operating Instructions · 199495 · en_GB · 2020-04-02 · 001
Systemair GmbH
Seehöfer Str. 45
97944 Boxberg
Germany
Tel.: [phone]
Fax: [phone]
[email protected]
www.systemair.de
