SystemRoMedic RiseAtlas625M User manual

RiseAtlas625M is a safe and easy-to-use stationary ceiling lift unit which can be used in all settings and in all types of
rooms, both on permanent rail systems and on portable, freestanding lift stands. When used with the appropriate lifting
accessories, RiseAtlas625M provides secure, comfortable and individually adapted lifting of users in connection with
seated or horizontal transfers to and from the bed, wheelchair or toilet. RiseAtlas625M offers a large lifting area and
the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for
gait training and standing training. RiseAtlas625M can also be used for convenient transfer of users from one room to
another. RiseAtlas625M is manually transferred along the rail (M for manual) and features Handicare’s unique
SystemRoMedic™ QuickTrolleySystem. This model is fitted with a quick release trolley which readily allows for
dismantling of the ceiling lift unit from the rail.
Visual inspection
Inspect lift functions regularly. Check to ensure that product is free from damage.
Before use
Ensure that the product is correctly mounted in the trolley.
Check rail end stops.
Check sling bar connection and safety latch function.
Check lifting movement.
Inspect the lift for signs of wear and damage.
Check the hand control cable for signs of wear.
Check to ensure that hand control markings coincide with lift functions.
Check battery charge level.
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
It is strongly prohibited to modify the original product.
Functional inspection
Always read the user manual
Manual nr: 705-En Ver. 6150504
User Manual - English
SWL: 285 kg/625 lbs
RiseAtlas625M,
with QuickTrolleySystem
SystemRoMedicTM 50100059

Table of contents
Installation...................................................................................3-10
- Unpacking and check............................................................................. 3
- Transport and storage ............................................................................ 3
- Installing the lift unit.............................................................................. 3
- Emergency stop strap ............................................................................ 4
- Charging the lift unit........................................................................... 5-8
- Using QuickTrolleySystem ...................................................................... 9

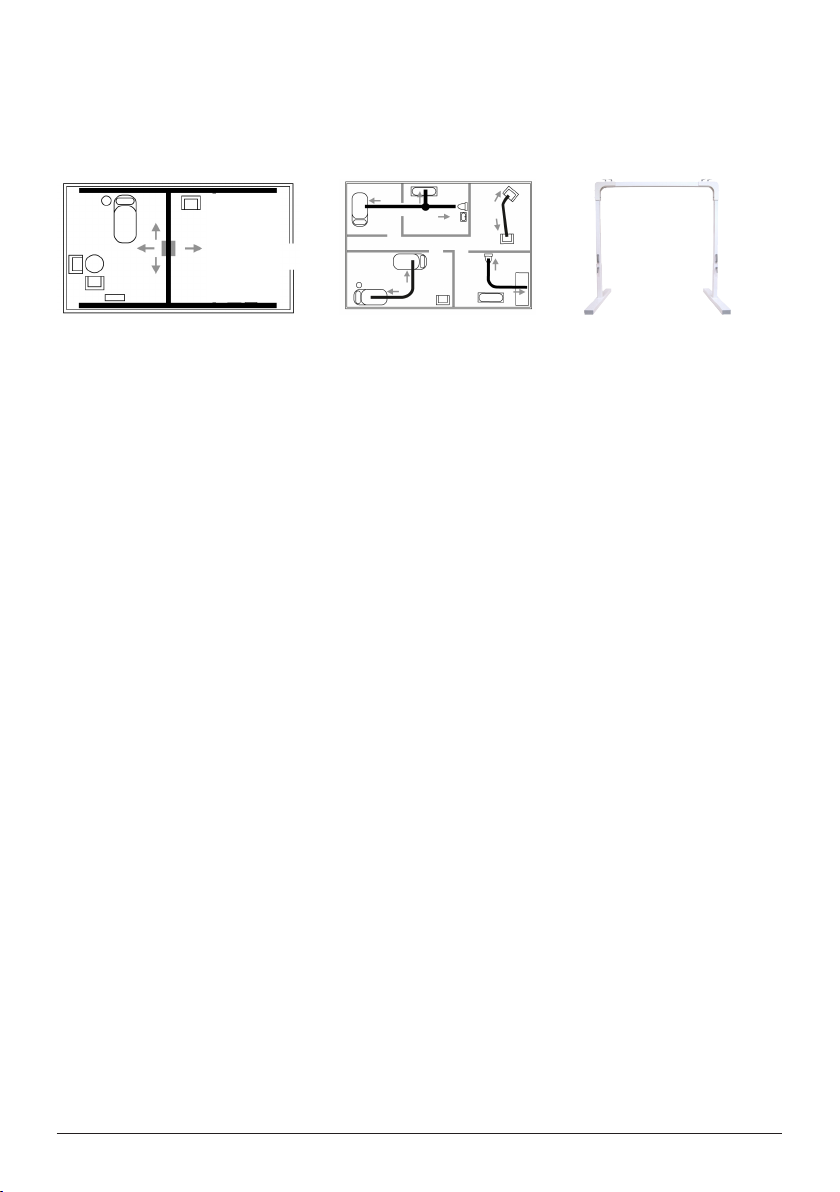

- Different rail systems............................................................................10
- Final inspection....................................................................................10
Using the product ...................................................................11-16
- Important information ..........................................................................11
- Before use ...........................................................................................11
- Safe working load ................................................................................12
- Description of functions and symbols .....................................................13
- Hand control ........................................................................................13
- Information panel .................................................................................14
- Preventive service maintenance.............................................................14
- Emergency stop ...................................................................................15
- Electrical emergency lowering ...............................................................15
- Manual emergency lowering/raising.......................................................15
- Trouble-shooting ..................................................................................16

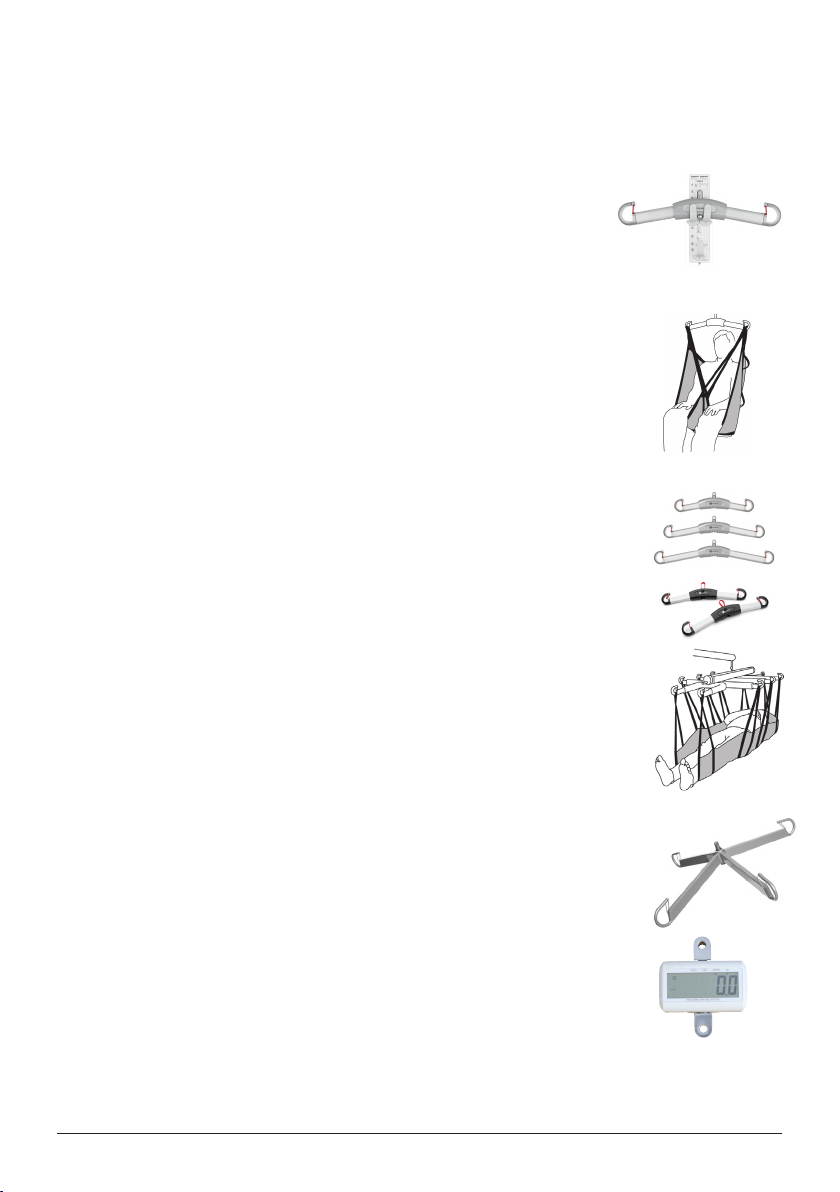

Accessories....................................................................................17
Maintenance ..................................................................................18
Technical information ...............................................................19
- Detailed description..............................................................................19
2MANUAL SystemRoMedicTM

Installation
Unpacking and check
With RiseAtlas, the following is included in the package:
1 RiseAtlas lift unit
1 Trolley
1 Hand control
2 Manuals - User manual, Assembly instructions for fuse
1 Charger station
1 Manual emergency lowering key
1 Label (QuickTrolleySystem)
1 Label (Parking for end point charging)
Check to ensure that no components are left in the packaging.
Inspect the lift unit for signs of damage.
Installing the lift unit
NOTE! The lift unit and carriage must be installed and inspected by authorized personnel according to instructions issued
by Handicare AB. Periodic inspection must be performed at least once a year. Use only original spare parts. Service and
maintenance must be performed according to instructions in the user manual.
The lift must be charged for at least 3 hours before it is used for the first time. The lift unit is shipped with the fuse
removed. Prior to installation the cover is removed and a 20A fuse is inserted. The fuse is packed in a bag. As standard,
the lift is factory pre-set for charging at a charger station. When installing the lift unit for in-rail charging on the rail system,
the system must be fitted with charger rails. Exercise caution when installing the lift unit, so that the charger wheels do
not come in contact with the rail, since this may cause short-circuiting. Incorrect installation may cause short-circuiting
and damage the charger.
Alteration of the charging method must be performed by authorized
personnel according to instructions issued by Handicare AB.
Transport and storage
Before shipping, the fuse is removed to prevent battery discharge during transport or long-term storage.
Install the fuse in the lift unit according to the accompanying instructions.
3
MANUAL
SystemRoMedicTM

180 cm

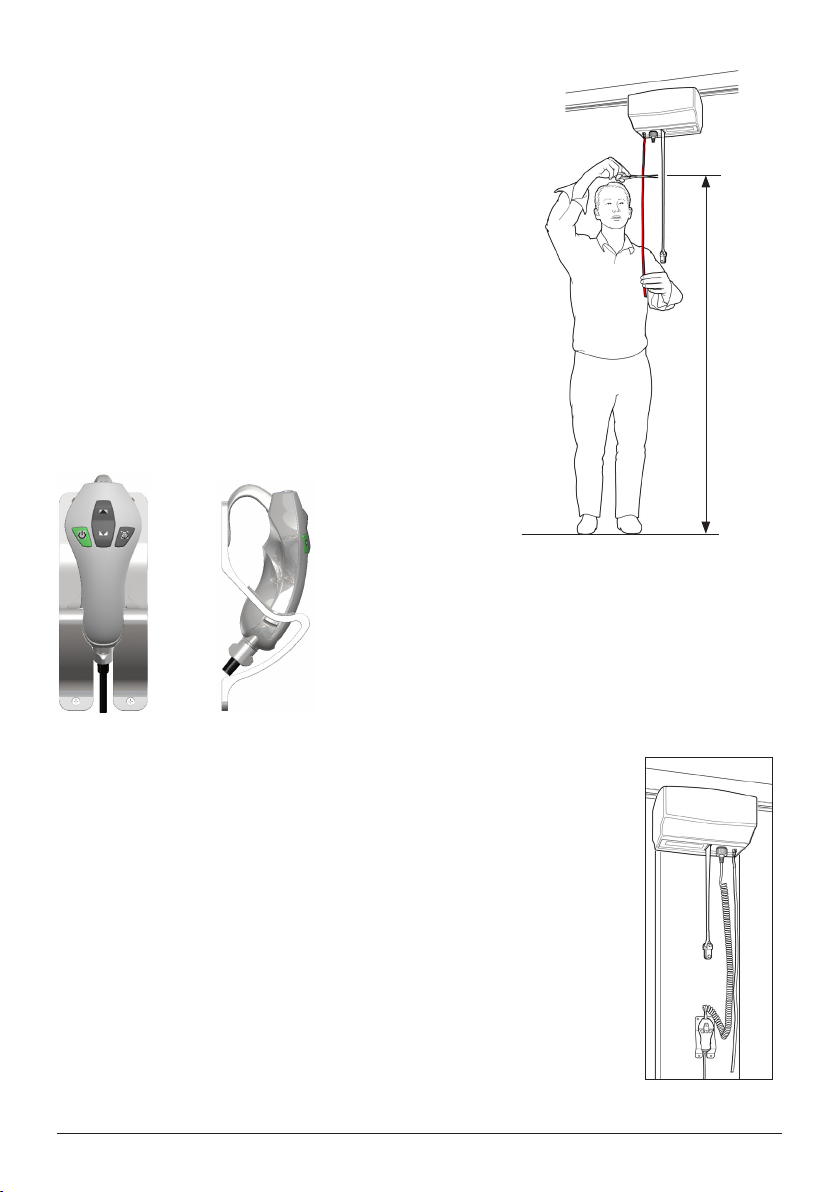

Emergency Stop Strap
When the lift is correctly installed in the trolley system, the emergency
stop strap needs to be adjusted. The emergency stop strap is cut at a
height where the strap doesn´t interfere with a normal lifting situation but
at the same time is easily reached by all users.
The strap is cut with scissors and singed at the end as to prevent unravel.
Handicare recommends a height of 180 cm/70 inches above the floor.
Assembly of charger unit
The following is included in the charger station package:
• Holder
• Charger cup
Charger cable (EU, UK, US connectors included)
(fixtures between charger station and wall/freestanding rail not included)
Charger station
a) Secure holder to charger station on wall/freestanding rail system. Recommended
height is 110-120 cm from floor.
b) Mount the charger cable. If necessary mount the cover for the charger.
c) Connect the accompanying hand control to the charger station and the hand
control cable to the lift unit. Check charger function.
4MANUAL SystemRoMedicTM

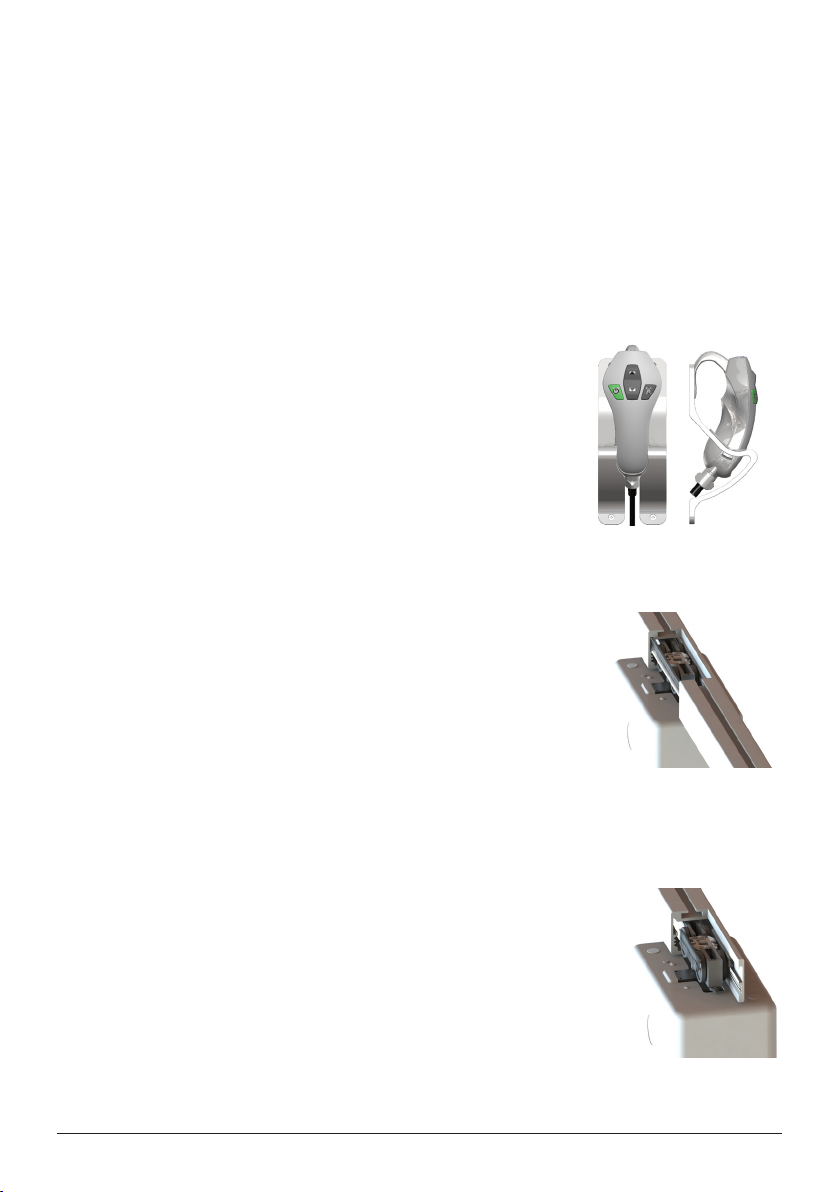

Charging the lift unit
RiseAtlas can be used with three different charging systems:
1. Charger station for charging via hand control (Standard)
2. In-rail charging (Accessory)
3. End-point charging (Accessory)
RiseAtlas is charged with a charger unit that is connected to the charger cables via a DC outlet. The charger should be
kept in an appropriate location. Note that the charger is a separate unit and can be easily mistaken for another charger.
Ensure that the correct charger is used, see Technical information. For assembly instructions, see Assembly of charger
unit.
1) The lift unit is charged via a wall-mounted charger station. Place the hand
control in the charger station. The charging lamp on the lift unit indicates charging
for 15 minutes after being activated. Charging continues until the battery is fully
charged.
2) For in-rail charging, the lift unit is always kept charged, which means that it can
be left anywhere on the rail and will charge automatically.
3) For end-point charging, the lift unit is placed at the charger station at the end
of the rail. If the rail system is of the traverse type, the secondary rail is placed at
the end of the primary rail at which the charger station is located. Check to ensure
that the battery symbol on the lift unit lights up.
5
MANUAL
SystemRoMedicTM

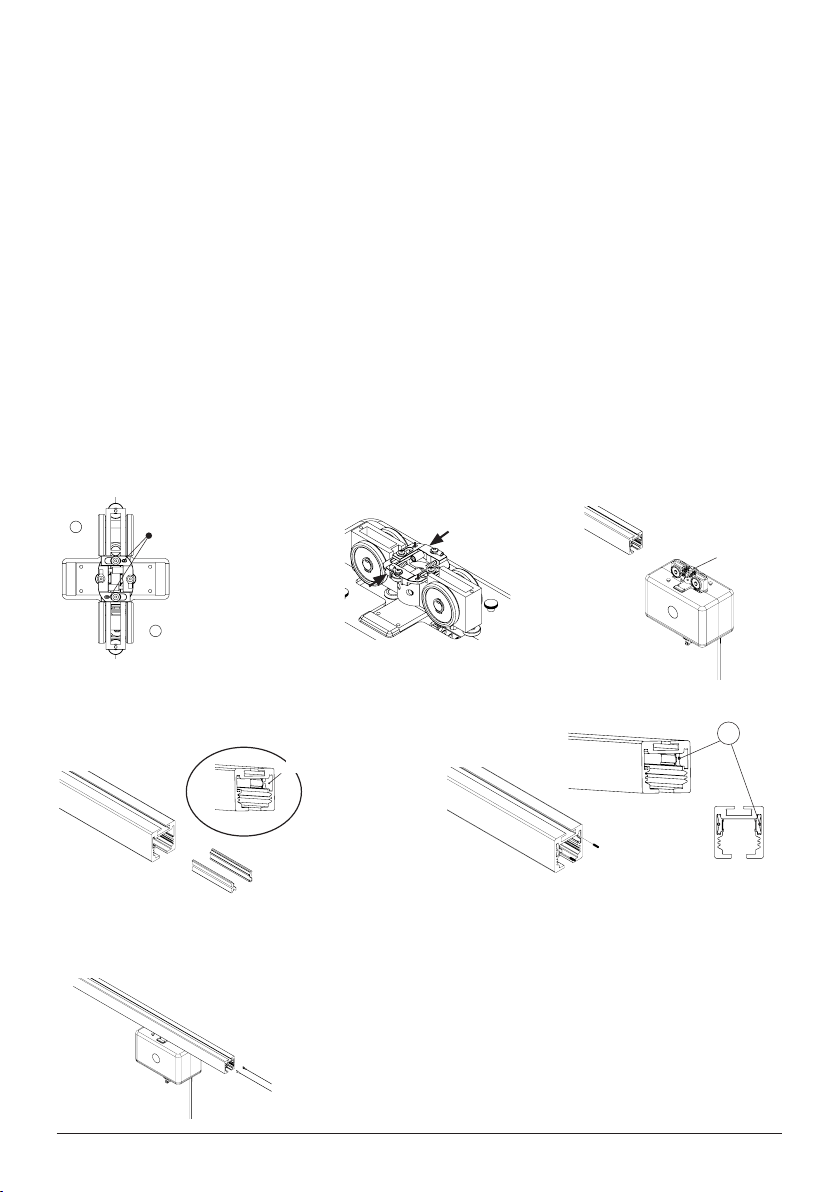

Alternative 2: In-rail charging (Accessory for article number 50100059)
If the in-rail charging option is chosen, the lift unit must be fitted with a charger contact (70200062) and charger rails
before installation. The charger that is included with the lift unit is used.
Alteration of the charging method must be performed by authorized
personnel according to instructions issued by Handicare AB.
1) Set the charging points for in-rail charging. To set the charging points for in-rail charging, remove the spring pins that
hold the charger plate in place. Then, the dip switch on the circuit board is set for the desired charging function.
2) Check to ensure that the charger plate springs in and out when pressure is applied to the charger plate, see
fig 2.
3) Check to ensure that charger rails have been installed (installation of charger rails is described in the installation
manual for MilkyWay).
4) Guide the lift unit onto the rail so that the plus on the charging point is on the right side, according to fig 3.
5) Connect the red cable to the charger rail on the right side, the charger plate’s plus side (positive), and the black cable
on the left side (negative), according to fig 4.
6) Install the end-stop on the rail.
1 2 3
+
4
+ Plus
NOTE! No spring pin
6MANUAL SystemRoMedicTM

Alternative 3: End-point charging (Accessory)
If the end-point charging option is chosen, the lift unit must be fitted with a charger contact (70200062). The charger that
is included with the lift unit is used.
1) Check to ensure that the charging points are set for the charger station; the charger plate is secured with the spring
pins, see fig 1.
2) Check to ensure that the charger plate springs in and out when pressure is applied to the charger plate, see fig 2.
3) Guide the lift unit onto the rail so that the plus on the charging point is on the right side, according to fig 3.
4) Mount charger contacts according to figure 4. NOTE! Push the charger contact (A) in about 50 mm if only a stop bolt
is used. When an adjustable end-stop is used, the charger contact is pushed in about 90 mm.
5) Affix the accompanying screws for charger contacts, see fig 5 (B).
6) Connect the red cable to the charger contact on the right side, the charger plate’s plus side (positive), and the black
cable on the left side (negative), according to fig 6.
7) Install the end-stop on the rail.
1 2
45
Spring pin
3
+
+
+ Plus
6
J
K
L
M
9 1 2 3 4 5 6 7 8 10 11 12
K
G
F
H
J
SCALE:1:5
DWG. NO. REV.
NAME DATE
DRAWN
APPROVED BY
SHEET 1 OF 1 WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-mabr
In work
End point charger
90001915 00A
Material <not specified>
3441.59 g
2012-01-12
A1
Unless otherwise stated, general
tolerances according to ISO 2768-m
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
A
J
K
L
M
9 1 2 3 4 5 6 7 8 10 11 12
K
G
F
H
J
SCALE:1:5
DWG. NO. REV.
NAME DATE
DRAWN
APPROVED BY
SHEET 1 OF 1 WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-mabr
In work
End point charger
90001915 00A
Material <not specified>
3441.59 g
2012-01-12
A1
Unless otherwise stated, general
tolerances according to ISO 2768-m
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
B
+
+
-
+
-
7
MANUAL
SystemRoMedicTM

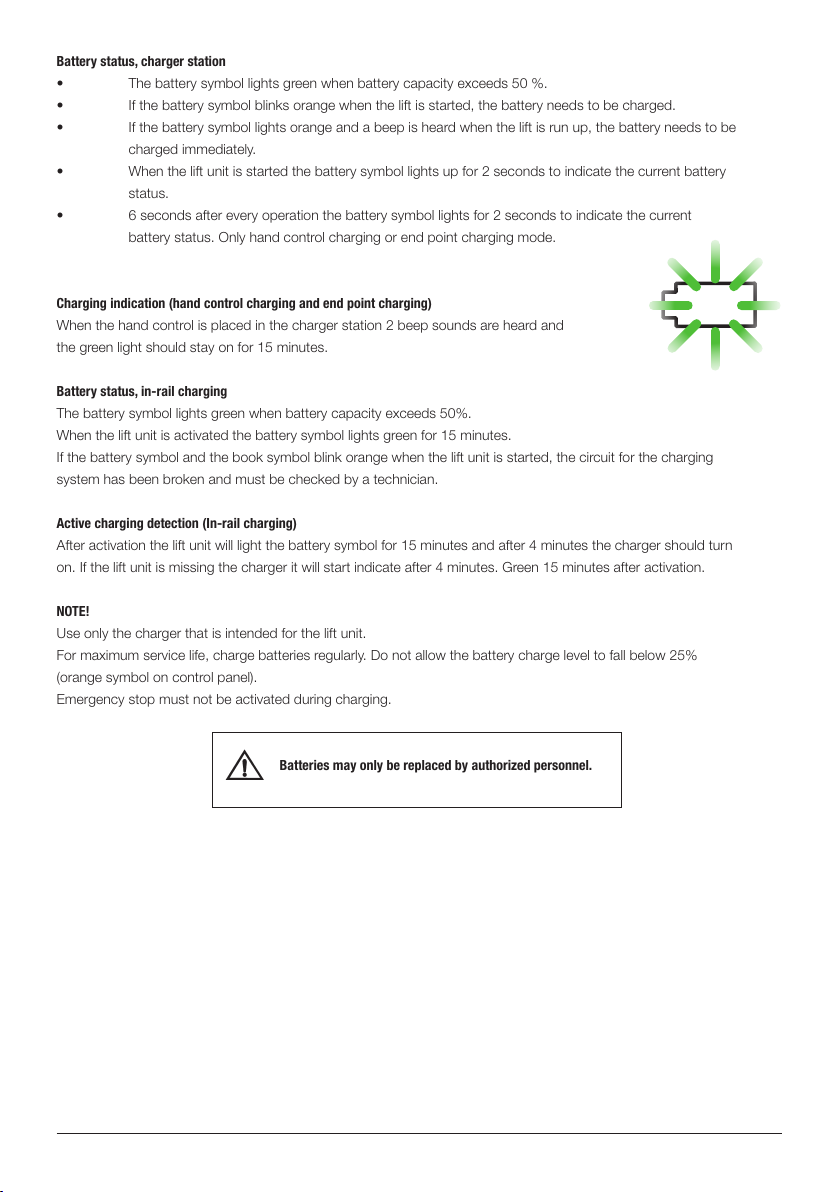

Battery status, charger station
• The battery symbol lights green when battery capacity exceeds 50 %.
• If the battery symbol blinks orange when the lift is started, the battery needs to be charged.
• If the battery symbol lights orange and a beep is heard when the lift is run up, the battery needs to be
charged immediately.
• When the lift unit is started the battery symbol lights up for 2 seconds to indicate the current battery
status.
• 6 seconds after every operation the battery symbol lights for 2 seconds to indicate the current
battery status. Only hand control charging or end point charging mode.
Charging indication (hand control charging and end point charging)
When the hand control is placed in the charger station 2 beep sounds are heard and
the green light should stay on for 15 minutes.
Battery status, in-rail charging
The battery symbol lights green when battery capacity exceeds 50%.
When the lift unit is activated the battery symbol lights green for 15 minutes.
If the battery symbol and the book symbol blink orange when the lift unit is started, the circuit for the charging
system has been broken and must be checked by a technician.
Active charging detection (In-rail charging)
After activation the lift unit will light the battery symbol for 15 minutes and after 4 minutes the charger should turn
on. If the lift unit is missing the charger it will start indicate after 4 minutes. Green 15 minutes after activation.
NOTE!
Use only the charger that is intended for the lift unit.
For maximum service life, charge batteries regularly. Do not allow the battery charge level to fall below 25%
(orange symbol on control panel).
Emergency stop must not be activated during charging.
Batteries may only be replaced by authorized personnel.
8MANUAL SystemRoMedicTM

Images 1-5: Locking the trolley to the lift unit.
1. Check to ensure that the lift unit’s emergency stop is activated by pulling the emergency stop strap.
2. Place the lift unit on the rail by inserting the T-fitting (upside down) from the trolley into the hole on the top of the lift unit.
3. Press up, and then rotate the lift unit 90 degrees to lock the T-fitting in the lift unit.
4. Click the locking clip into place.
5. Check to ensure that the lift unit is secured to the trolley and that it can be moved along the rail. The lift unit must be
able travel freely on the rail system without obstruction and there must be no risk of the lift unit colliding with any objects
in its path.
6. To remove the lift unit from the rail, perform the above procedure in reverse.
Using the QuickTrolleySystem
9
MANUAL
SystemRoMedicTM

Final inspection
• The RiseAtlas lifting unit must be installed and first-time inspected by authorized personnel (inspector) in accordance
with the installation instructions provided by Handicare AB. Periodic inspection of the equipment should be undertaken
at least once a year. Original spare parts should be used and service/maintenance of the equipment should be in
accordance with the user manual.
• Check to ensure that no parts have been left in the packaging.
• Check to ensure that the lift has no signs of damage from transportation.
• Check to ensure that the emergency stop is functioning by pulling the emergency stop strap, and then pressing the UP
or DOWN button. If nothing happens, the emergency stop is working properly.
• Check the entire length of the strap for signs of damage and inspect seams for wear. Press the up button and run the
strap all the way up. Then, press the down button and run the strap all the way down.
• Test lift function by lifting a person (not a user) using an approved lifting sling. At the same time, check both the user
manual and electrical emergency lowering function with someone in the lift. See section on Emergency lowering.
• Check to ensure that the rail system is equipped with end stops.
• Check the hand control cable for signs of wear.
• Check to ensure that hand control markings coincide with lift functions.
• The user/attendant shall always pay attention to and report any unusual noises or vibration of the equipment.
NOTE!
Before the lift is used for the first time it must be charged for at least 3 hours. See section on charging the lift.
RiseAtlas is shipped with the emergency stop activated to prevent battery discharge during transport or long-term
storage.
Always keep the key for the emergency lowering close to the lift.
All personnel who use the lift must be informed of where the key is kept.
Different rail systems
The choice of rail system is determined by the lifting needs at hand.
Basic rail systems,
with curves and turn table
Rail system with full room coverage,
above bathroom wall
Freestanding lift stand
10 MANUAL SystemRoMedicTM
