T-up MK1 User manual

Manual
Please read the instructions carefully before use to avoid
damage and improper handling on the T-up® Mk1.

Introduction:
We are pleased that you have chosen a high quality T-up® golf Produkt.
The simple operation and the variety of applications will certainly inspire
you. In order for you to enjoy this device for a long time, we aks you to
read and observe the following informations carefully. We wish you a lot of
successful training sessions with the T-up® Mk1.
„Swing it, don’t think it!“
Intended use:
The T-up®Mk1 is used to store balles in a manual and a sequence mode in a
training standard. (Driving Range, exercise mats, putting greens and meadows as
well as plain surfaces). The T-up®Mk1 should not be used in rain or humidity.
Other uses or modifications oft the device shall be considered as not intended to
be as intended. The manufactor does not assume any liability for damage resulting
from the use as not be intended.
Technical Data:
The device to load only to a properly installed protection contact socket. The
mains voltage shall correspond to the voltage indicated on the nameplate. Only
connect to AC.
Voltage charger: 100-240V~47-63Hz
Rated power batteries: 3,7V 900 mAh
Dimensions: 224x224x570 mm
Weight: 5kg
Height adjusment: 0-25mm
Packaging material:
It is not easy to waste packaging material but to recycle it. Paper, cardboard and
corrugated packaging with paper shal be returned to a waste paper collection
point. Plastic sheeting and foils in the required container.
Deposit note:
This product must be disposed of via normal household waste,
according to electrical and electricalequipment at the end pleaseprovide
free of charge at a muncipal assembly centre for recycling of electrical
and electronic equipment.Your community or city council informs you
about disposals.

Inhaltsverzeichnis
1. Product overview
1.1. General information page 5
1.2. What you need to know page 5
1.3. Warning page 5
2. Produktbeschreibung
2.1. Components of the T-up® Mk1 page 6
2.2. Description of the T-up® Mk1 page 7
2.3. Delivery of the T-up® Mk1 page 7
3. Application basics
3.1. Standing oft he T-up® Mk1 page 8
3.2. On/Off switch page 8
3.3. Adjusting of the functions page 8
3.4. Menu single ball function „Shot by Shot“ page 9
3.5. Menu sequence function „sequence mode“ page 10
3.6. Menu AC „Battery status“ page 11
4. Battery informations and specifications
4.1. Warning. URGENT ATTENTION! page 11
4.2. Specifications page 11
5. Charging the T-up
5.1. The charger page 12
5.2. Charging of the T-up® Mk1 page 12
6. Maintenance and storage
6.1. Switching off page 13
6.2. Storage page 13
6.3. Maintenance page 13
6.4. Service and support page 13
7. Setup Tipps page 14

1. Product overview
1.1 General information
The T-up®Mk1 is a portable golf training machine. With two possible training settings
and an optional acoustic rhythm support, the T-up®Mk1 brings your training to a new
level. For example, several strokes can be executed without changing the booth and
grip. Repeatability of shots under identical conditions is possible and is efficient and
constant. There are two training settings, the manual mode and the sequence mode,
with or without rhythm support. In manual Mode (shot by shot) a sensor is triggered
with the club to make the T-up®Mk1 serve a ball. In the sequence mode, the amount of
balls required (up to 20 balls) and the distance in seconds are adjustable in which the
balls are to be placed by T-up®Mk1. In both modes, an acoustic support can be
selected, which can be set at speed (in bpm) and volume. Due to the patented storage
technique of the T-up®Mk1, the ball is always placed rested at the required point. This
allows the T-up®Mk1 to place the golf ball on tees, a plane hiiting mat and even on the
putting green. Up to 35 balls can be filled into the ball cup.
1.2 What you need to know
Before first use, you should carefully read the user manual to understand how it works
and protect the device from damage. The function of the T-up®Mk1 is robust and
simple, which requires proper handling.
1.3 WARNING
Disregarding the base instructions and security measures listed in the
user manual may cause damage to your T-up®Mk1 and other property.

2. Product overview

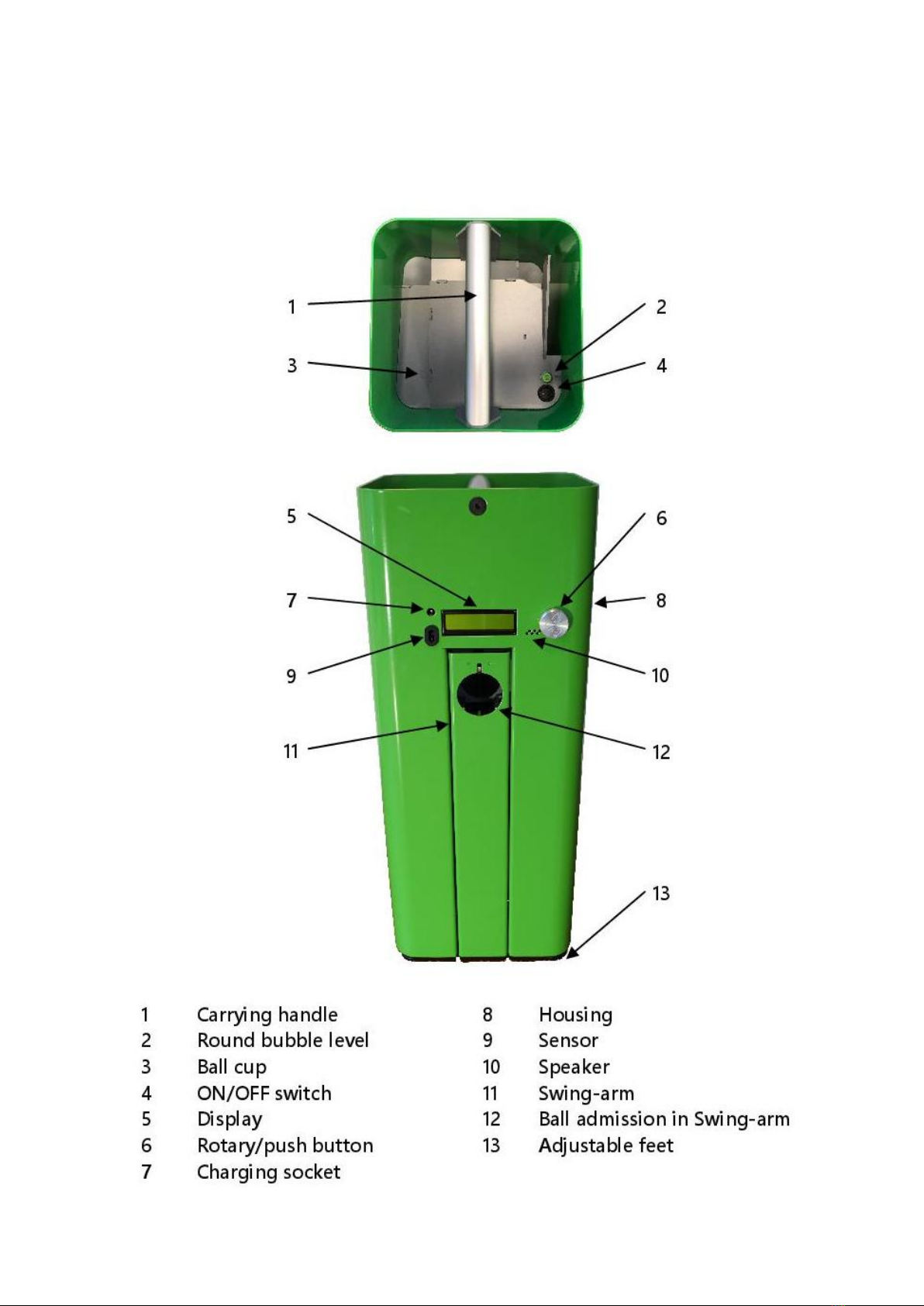

2.1 Components of the T-up® Mk1

2.2 Delivery of the T-up®Mk1
-T-up®Mk1 device
-Charger 220V
-T-up®Mk1 manual
2.3 Description of the T-up®Mk1
The T-up®Mk1 is a transportable training device, which is used by its programs to
optimize your shot rhythm and stroke dose. The device weighs about 5 kg and can be
used on driving ranges, in your own garden or other suitable practice places. All
T-up®Mk1 are quality controled in our factory. Therefore is it possible, that the ball
bowl shines used. This is no reason for a complaint.
The single ball function (manual mode):
At the single ball function you can trigger a ball on the sensor, as required. To do this,
you must keep the club directly in front of the sensor field (9).
The rhythm function (sequence mode):
At the rhythm function you can set the number of balls you want and the time of
storage. You always get an audible warning from T-up®Mk1, before the next ball is
placed.
The acoustic rhythm support:
In both modes can adjust a rhythm support, rhythm tempo in bpm and the volume.
This allows the acoustic support to be adapted to the player's rhythm.

3. Application basics

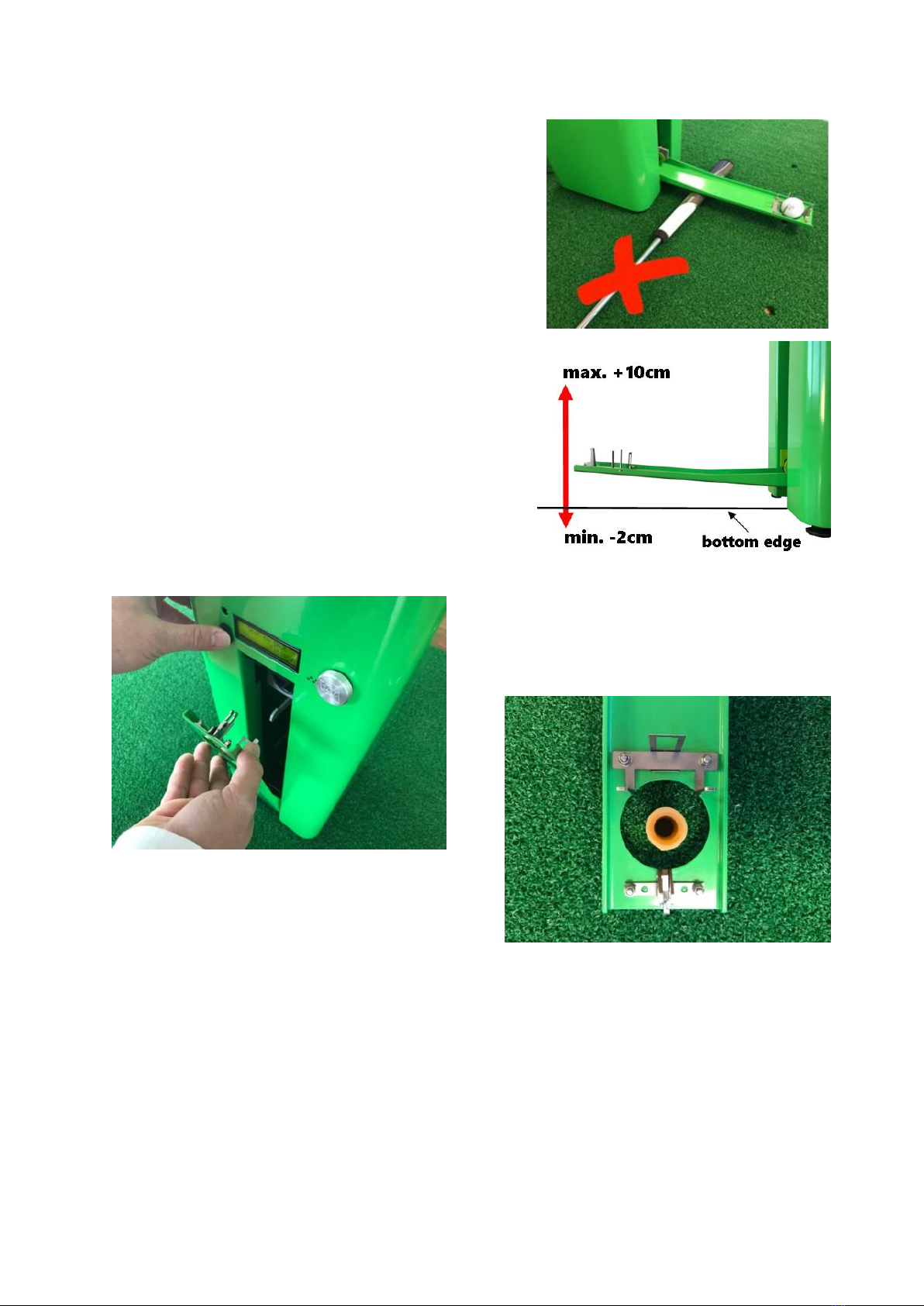

3.1 Alignung the T-up®Mk1
The T-up®Mk1 has a tube level (2) and adjustable feet (13), wich assist in setting up. First
place the T-up®Mk1 to the desired position. Make sure that the pile height is not less
than 2 cm and higher than 10 cm from the bottom edge of the T-up®Mk1. The Arm (11)
must be able to rotate over the entire path to the storage point. Control the position of
the tube level (2), in the housing. If the air bubble of the tube level is in circle, the device
can be started. If this is not the case, you can adjust the device's inclination with the
adjustable feet (13) until the air bubble is in the circle.
Aligning for storage on tee:
If the ball is placed on a rubber tee, loose a ball in manual mode by touching the sensor
(9) and hold the arm (11) before turning back into the housing (8). Take the ball out and
set the device with open arm so that the ball opening (12) of the arm is centered over the
tee. Put the arm back in the case. The device is now designed to operate on the tee.
3.2 On/Off Switch
In the Ball bowl (3) next to the tube level (2), the on / off switch is located (4). If the T-
up®Mk1 is not used for more than 3 minutes it switch in the stand by mode. By turning
the rotary-/push button by 180 degrees, the stand by mode will be deactivated again.
3.3 Setting the functions
After you have activated the T-up®Mk1,it appars in the display:
T-up
(Manu) Sequ AC
With the rotary-/push button you can choose between " Manu " (single ball function)
and " sequence " (sequence function). To Select the function press once on the button
(6).

3.4 Menu single ball function „Shot by Shot“

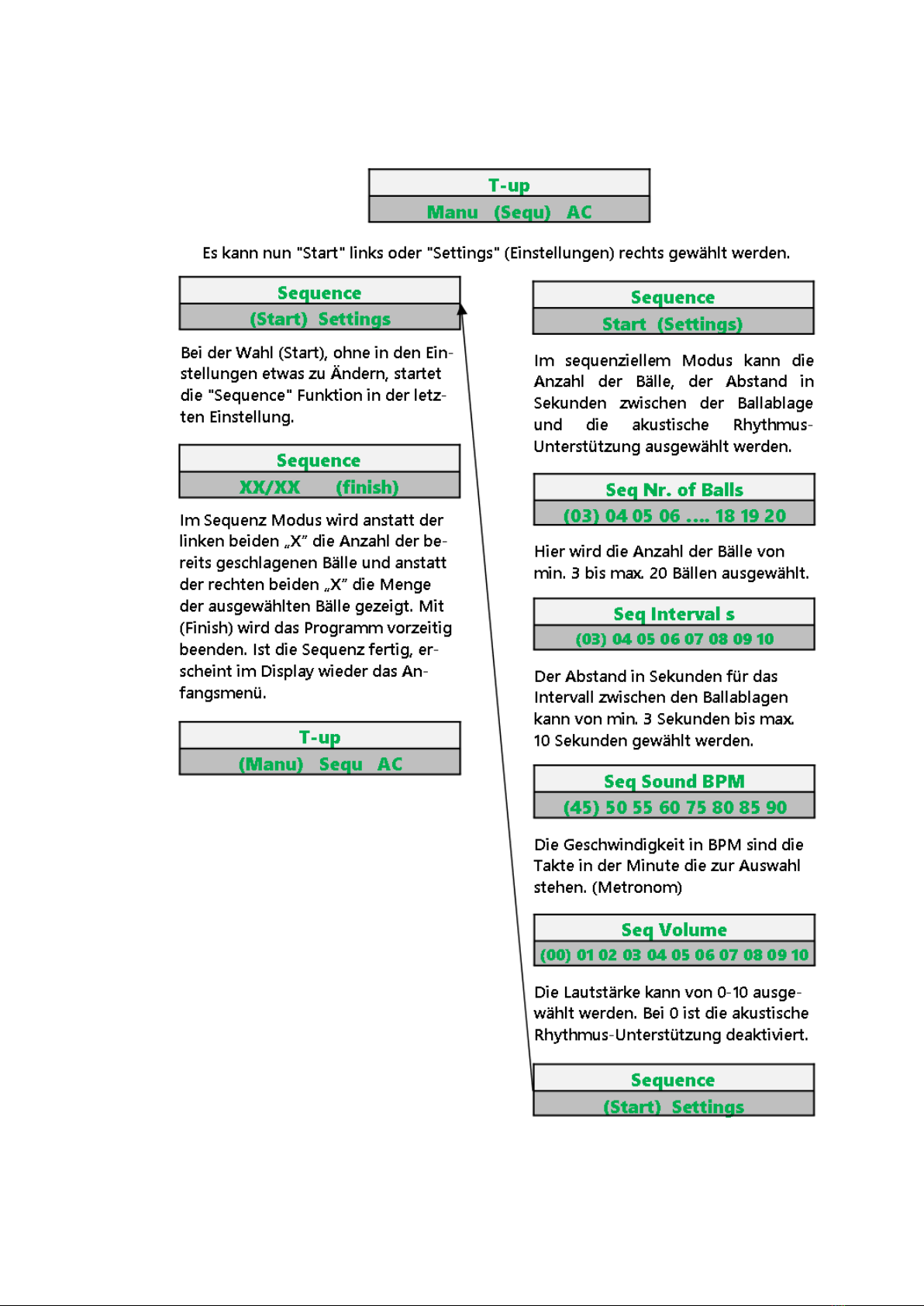

3.5 Menu rhythm function „Sequence Mode“

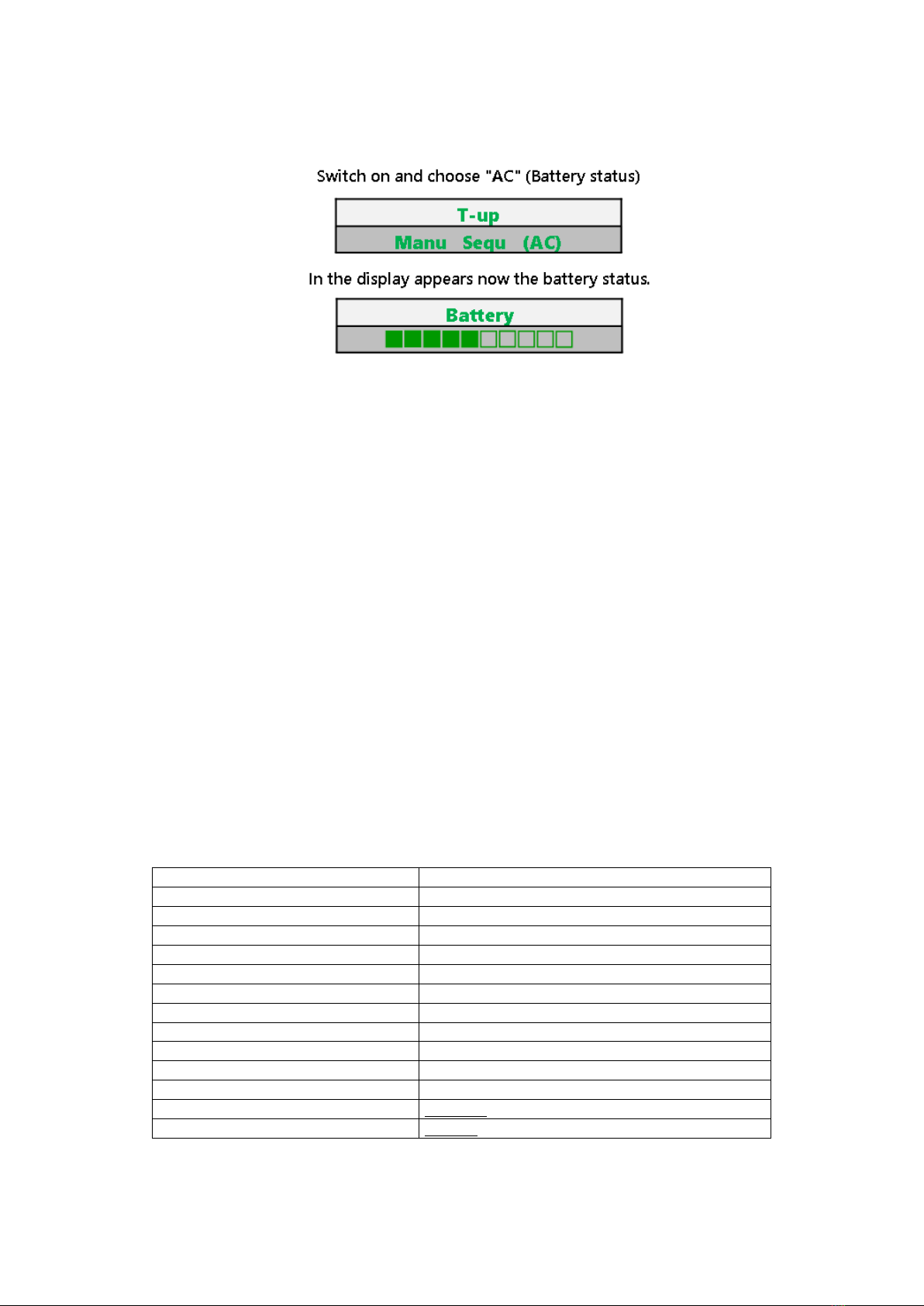

3.6 Menu AC (battery status)
A Signal sounds with a battery of 25% and one more time at 10%.
4. Battery informations and specifications
4.1 Warning. URGENT ATTENTION!
To load the T-up®Mk1 only the supplied charger must be used to avoid damage
and injury!!!
For the loading of Lithium Ion Batteries there is a special charger that loads the
batteries after a special battery charger. (CV = con standing current, constant voltage).
) the batteries must not be loaded over a voltage of 4,2 volts, otherwise there is a risk
of fire and explosion. It is advantageous to load the batteries only up to about 4,1
volts, as this is the life span or the Number of cycles significantly increased (if
applicable). Für das Laden von Lithium Ionen Akkus bedarf es eines speziellen
Ladegerät, das die Akkus nach einem speziellen Ladeverfahren lädt. (CCCV = constand
current, constant voltage.) Only Lithium Ion Chargers may be used for the loading.
4.2 Specifications
Trustfire 14500 - 900mAh 3,6V - 3,7V protected Li-Ionen cell (Flame)
Capacity
900mAh
Min. Capacity
800mAh
Rated voltage
3,6V - 3,7V
Load up voltage
4,2V
Unloading end voltage
2,75V
Chemical compsition
LiCoO2 (ICR)
Positive pole
Button Top
Protection
Protected up to 3A .
Diameter
14.15mm ± 0,1
Highth
50,95mm ± 0,15
Weight
22g ± 0,1
Loading process
CC-CV
Test results
lygte-info
Manufactor
Trustfire
Other features:
