TA HORIZONS PRO EXTRA V2 ULTRALIGHT V2 Series Installation guide

Page 1
TA HORIZONS 34’’ PRO EXTRA V2 ULTRALIGHT
ASSEMBLY INSTRUCTION MANUAL
Technical Data-
Wingspan : 34"
Length : 35”
AUW : 160-190g
(Depends upon the setup used)
Setup Recommendations (Not Included)-
Motor : 18-22G 1800-2300KV Outrunner
ESC : 12-16 amp
Servos : 3 X 9gms each
Propeller : 8-9” electric
Battery : 450-600Mah 2-3S Lipo
KIT ONLY
EPP CONSTRUCTION

Page 2
WARNING INFORMATION & SAFETY INSTRUCTIONS
Thank you for choosing TA Horizons.
If you have any questions, please contact us aforementioned email address.
Please read the entire manual thoroughly before you begin
to assemble this model.
Website: www.tahorizons.com Email: [email protected]
This R/C airplane is not a toy! Read and understand the entire manual before assembly. If
misused, it can cause serious damages to life and property. Fly only in open areas. If you
are not an experienced pilot and airplane modeler you must take the help of an experienced
pilot or an authorized flight instructor for the building and flying of this model aircraft.
These instructions are suggestions only on how to assemble this model. There are other ways &
methods also to do so. TA Horizons has no control over the final assembly because it specifically
depends upon the knowledge and experience of the person involved directly in its handling,
or the manner in which the model is assembled, radio gear installed, and electronic parts are used
and maintained. Thus, no liability is assumed or accepted for any damages resulting from the use
of the assembled model aircraft. By the act of using this user-assembled product, the user accepts
all the resulting liabilities. In no event shall TA Horizons’ liability exceed the original purchase price of
the kit.
The user is advised to comply with all local laws and regulations. TA Horizons will have no
responsibility over the user assembled product and its end use. TA Horizons has the right to change
any content on the website, product information brochure, or the manuals, at any point of time
without any prior notice.
TA Horizons checks each plane before shipping to ensure that each kit is in fine condition. We
have no bearing on the condition of any component parts damaged by use, modification, or in
assembling of the model. Inspect the components of this kit upon receipt. If you find any parts
damaged or missing, please contact TA Horizons immediately. We will not accept the return or
replacement of parts on which assembly work has already begun.
Our goal is to bring to you the best in quality and state of the art radio controlled aircrafts.
For those who demand the ultimate in precision, or for those who are just a weekend flyers and
want to feel good about their flights, our planes are in development from many months and
tested to ensure that these aircrafts will give you the best possible performance. We sincerely
hope that our products can provide the same thrill to you that we experience in this hobby.

Page 3
Kit Contents
1. EPP Parts
3. Carbon Rods / Strips / Tubes
1
2
3
4
1
2
3
Control rods
D 1.2mm 450mm L X 2 (Ele & Rud)
D 1.5mm 100mm L X 2 (Ailerons)
Undercarriage sq.tube
D 2x3mm L 225mm X 2
41mm Reinforcement Rods
L 1000mm X 10
Carbon Rods / Strips / Tubes
Please Note: After removing kit from shipping box,
lay each piece flat on a hard surface, this will allow
the airframe to straighten out if lightly bent from
shipping. Do not worry since EPP is very pliable and
can be bent back if out of shape. Double check that
you have all the above pictured items. If any of the
airframe or hardware items are missing, contact TA
Horizons before starting your build.
Flat 3X1mm 660mm L Front wing spar
Flat 3X1mm 325mm L Elevator spar
Flat 3X0.5mm 190mm L Ailerons renf X 2
Flat 3X0.5mm 180mm L Fuse renf
Flat 3X0.5mm 130mm L Fuse renf
EPP Parts
1
2
3
4
5
6
Fuselage
Wings
Horizontal stabilizer
Horizontal profile section
Wing truss supports X 2
Landing gear cover X 2
7
8
Side Force Generators X 5
Wheel Pants X 2
9Aileron truss support X 2
1
2
3
4
5
6
7
3D printed kit parts
Fuselage assembly jig
EPP Wheels X 2
150mm velcro
Quick links (4 X 1.5mm Slot, 4 X 1.2mm Slot)
Selftaping screw X 12
3D printed wheel bracket X 2
Hardware Parts
8
9
40mm 2mm CF Wheel Shaft X 2
60mm CF strip
2. Hardware / Small Parts
2
3
4
7
8
9
1
56
9
8
7
6
5
4
4
3
2
1

Page 4

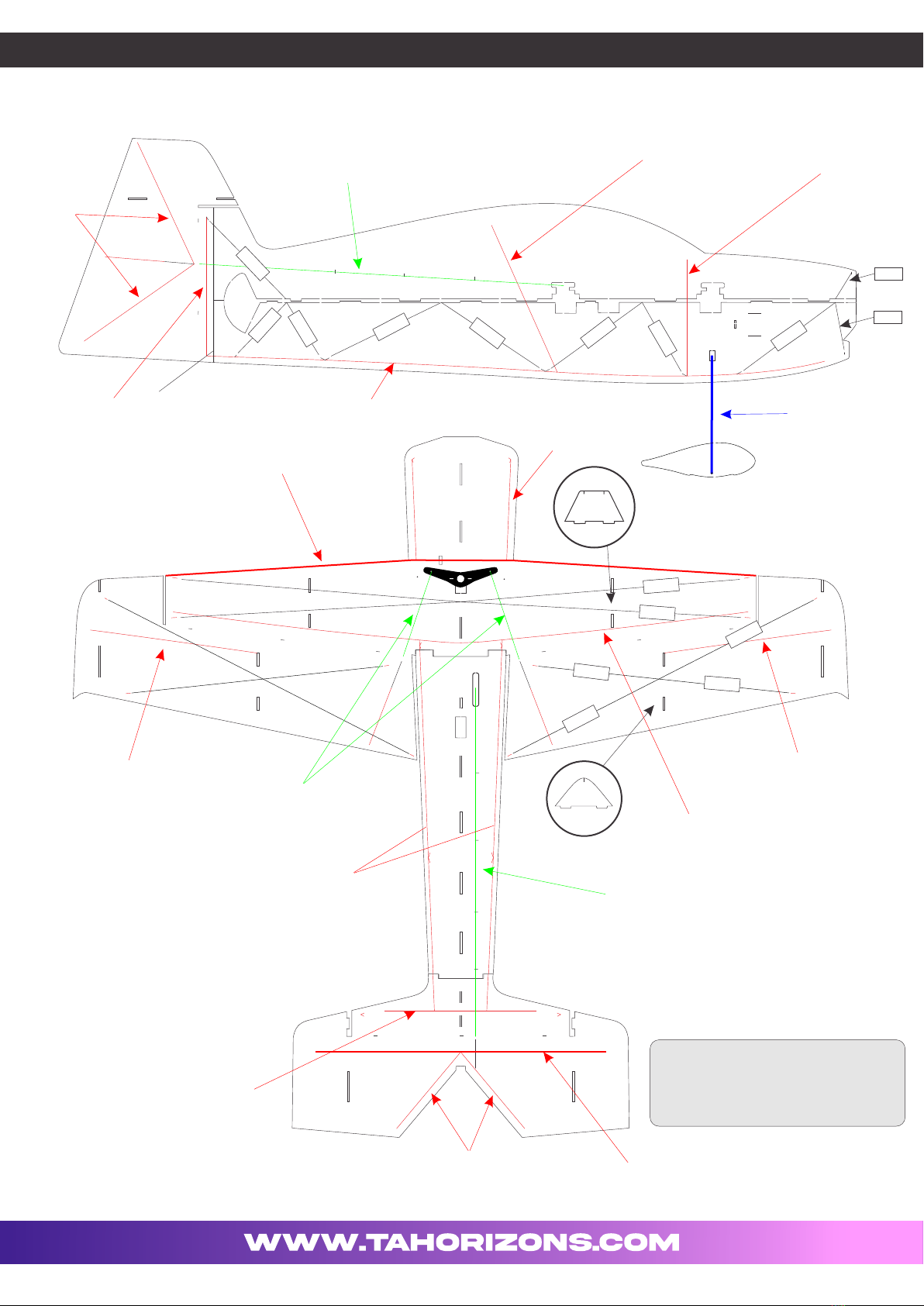

Exploded View
3X1X325
3X1X660
3X0.5X190
3X0.5X190
3X0.5X180 3X0.5X130
3X2X225
1.2X390
1.2X370
1.5X90
1X415
1X170
1X110
1X112
1X645
1X155
1X150
200mm145mm
200mm200mm
200mm200mm
200mm155mm
200mm150mm
200mm330mm
200mm330mm
200mm165mm
65mm
80mm
200mm135mm
200mm135mm
200mm145mm
200mm150mm
200mm145mm
200mm100mm
- Red color indicates carbon rods/strips
flushed into the foam.
- Green color indicates control rods.
- Black color indicates carbon trussing.
- Blue color indicates undercarriage.
1X690

Page 5
TOOLS AND BUILDING MATERIAL REQUIRED
• Heat Gun
• Tape Measure and Ruler
• Black Sewing Thread
• High Viscosity CA
• CA Spray Activator
• Hobby Knife w/new Blade
• Needle Nose Pliers
• Wire Cutters
• Low Temp Hot Glue Gun
• Scissors
• Small Phillips Screw Driver
• Thin CA
• Alenkey

Page 6
The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
1.

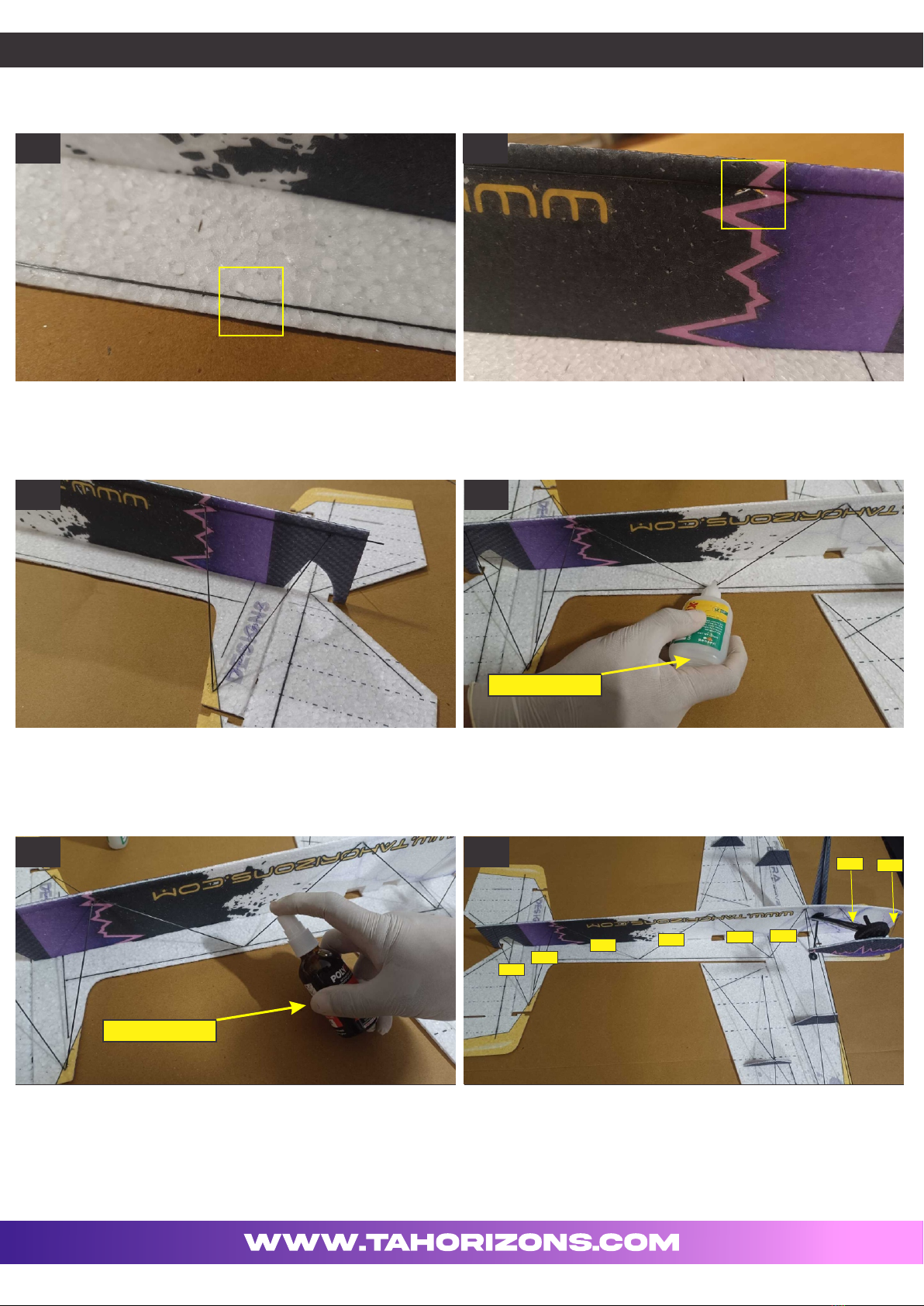

Bend them back on to each other as shown and let set for at least 2
hours. This will help to loosen up the movement of the surface.
(This is mandatory step)locate the hinged items as shown above, 2. Make a neat line of hot glue over any old credit card and spread it
over the hinge line show in the next picture.
3.
layer over the hinge line otherwise if put directly over foam you might
end up melting EPP.
It is very important to put glue on card first and then spreading a thin 4. It is not required to put glue all the way to hinge line just a inch of
glue on both inboard and outboard of the surface will do the job.
5.Here is the right amount of hot glue spread over the hinge line. 6. Building surface should be at least 2ft x 4ft and flat, use a wax paper
over the surface to avoid sticking EPP on it when gluing.
1 2
34
6
5
Hot Glue
WAX PAPER

Page 7
The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.

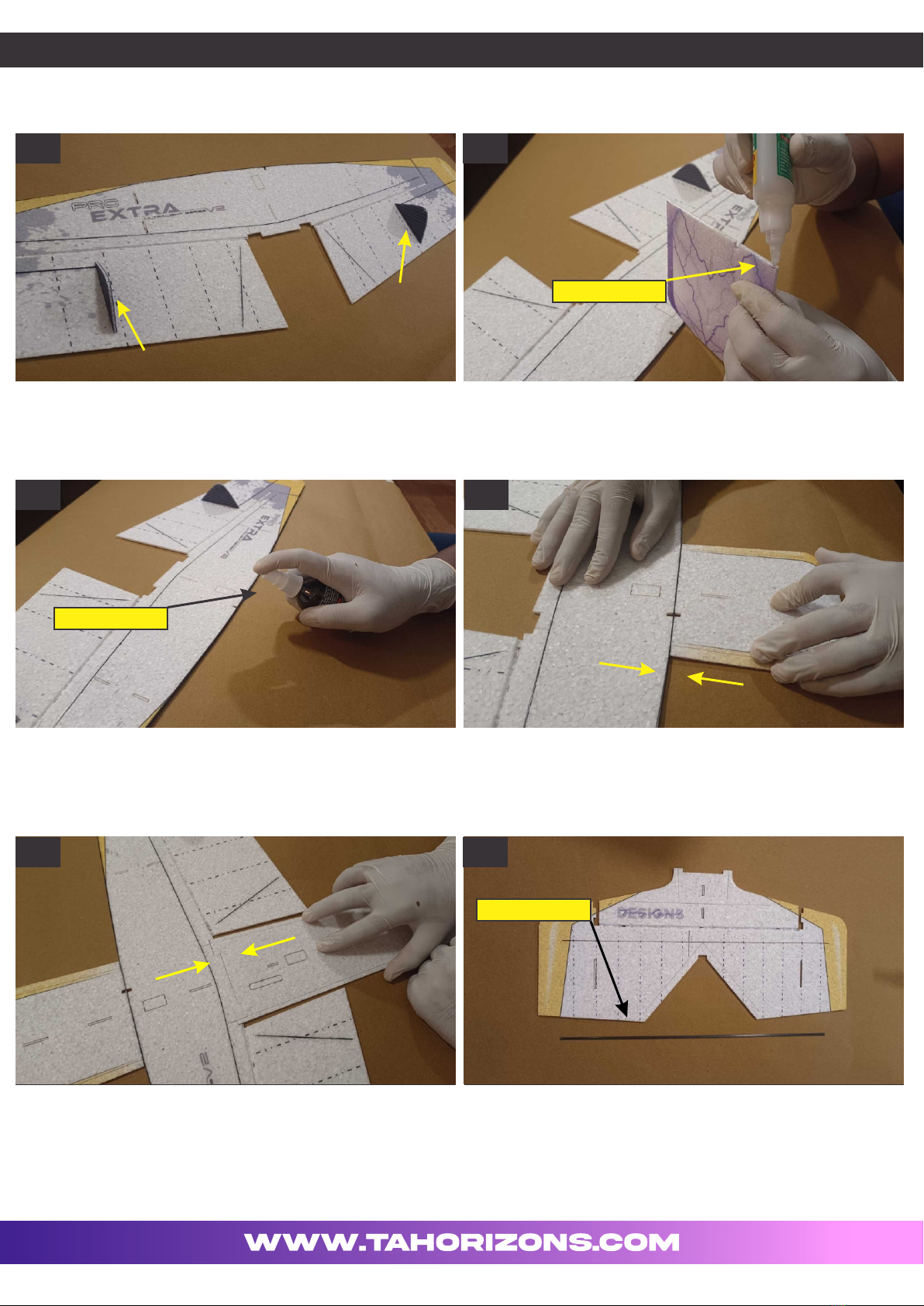

7. Locate the 3mm X 660mm CF Spar shown in the picture above 8.Apply a thin layer of HV Cyno on CF Spar, and glue it on the leading
edge of wing, like shown above.
9. Make sure to lay down the wing on the flat surface while glueing the
CF stripe.
10. Turn back the wing to glue down the reinforcement rods, if needed
use a scissor or a ball point pen to loosen down the pre cut laser lines.
11. For rear wing re-inforcement,insert the supplied 1mm rod into the
pre cut slot. (Check the page 4 of exploded view for more clear idea)
12. Make sure it is completely inserted into the slot.
8
9
11 12
7
1010
3X1X660MM
1mm Rod

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.

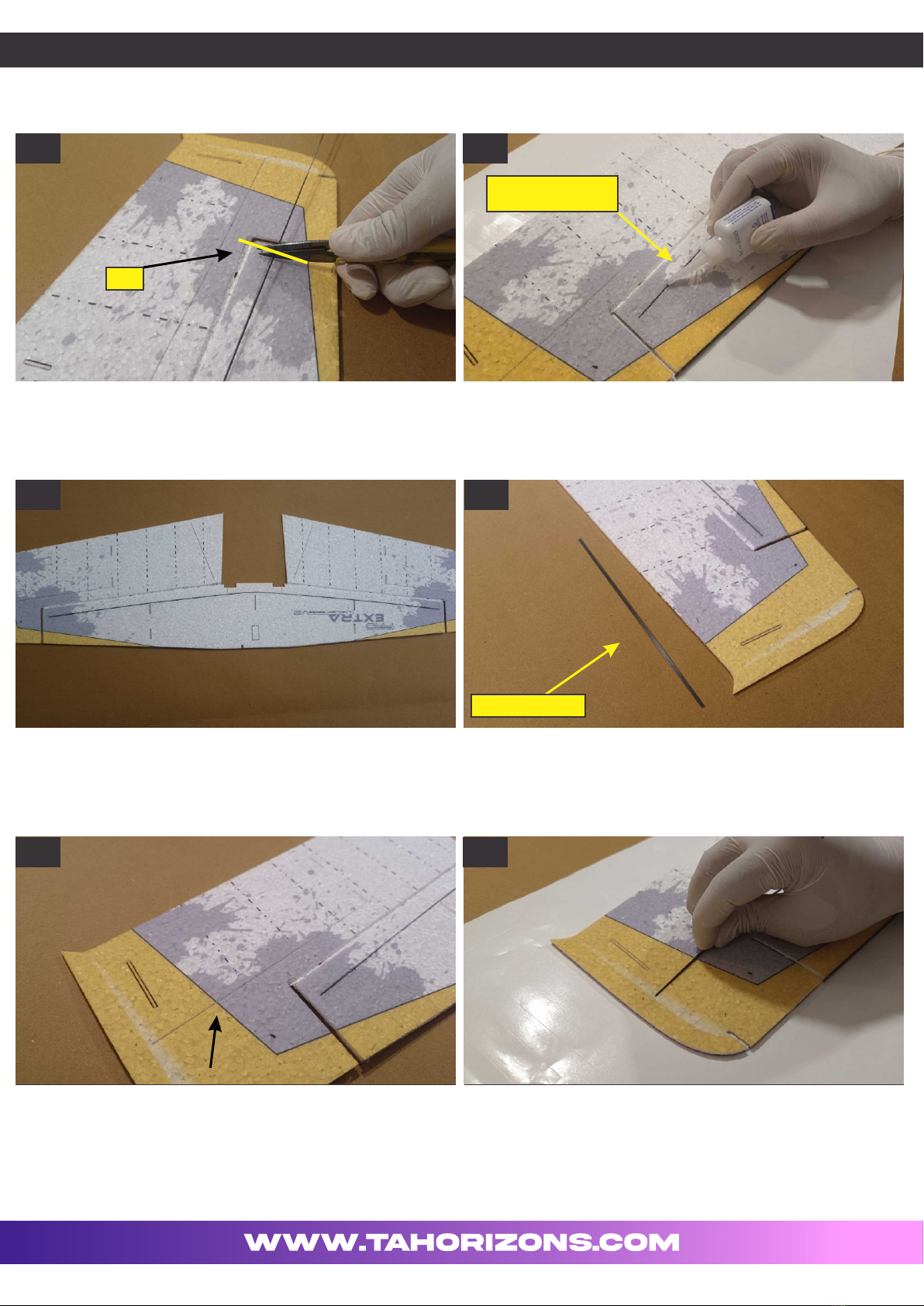

13. Once it reached at the end of Pre-cut slot, use a scissor or wire
cutter to cut down the excess rod.
14. Use thin cyno to glue this rod (Do not use HV CA), use spray
activator to cure it.
15. Here are both Leading edge stripe (3X1mm) and rear wing
reinforcement 1mm rod glued to the wing.
16. Locate the 3X0.5mm 190mm L CF Stripe for aileron
reinforcement.
17. Laser grooving for aileron reinforcement stripe is also pre cut. 18.Insert the stripe vertically into the precut slot, make sure it is
completely inserted into the slot.
14
13
15 16
Page 8
17 18
CUT
REGULAR THIN
CYNO ONLY
3X0.5X190MM

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
19.Use thin cyno to glue this stripe (Do not use HV CA), use spray
activator to cure it.
20. Up next is gluing the 1mm carbon rod into the precut slot for
aileron horn reinforcement.
21. For now, Only glue the indicated part of the rod, we will later glue
the complete rod along with the control horns.
22. Here is the complete wing reinforced using the carbon stipes and
rods. Make sure everything is flushed inside and perfectly glued.

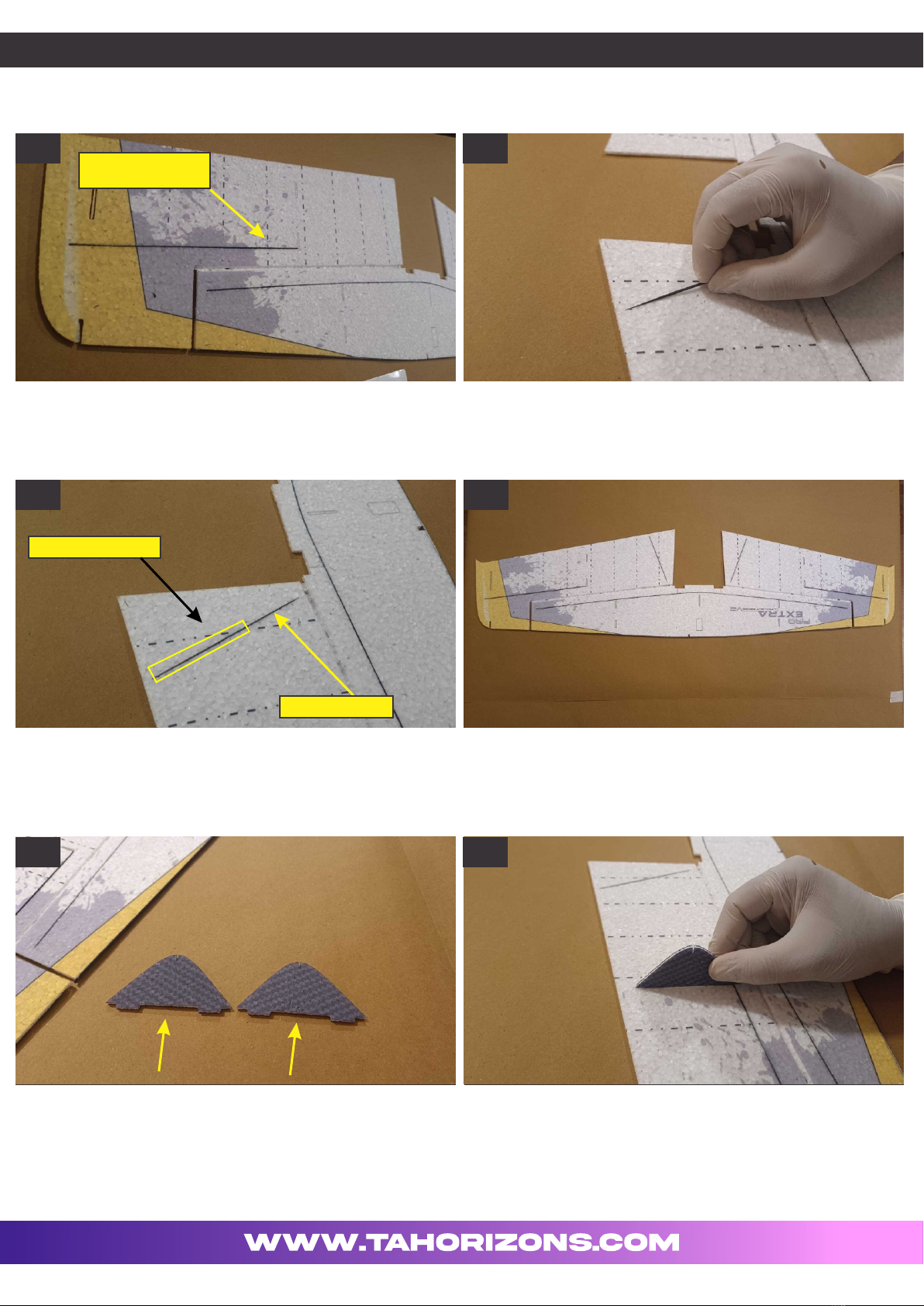

23. locate these triangle shaped pieces of foam for aileron trussing. 24. Using the HV Cyno and kicker, install the center support into it’s
respective slots located in the aileron control surface.
19
23
21
2020
22
24
REGULAR THIN
CYNO ONLY
1 MM Rod
GLUE HERE ONLY
Page 9

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
25.Once installed into the slots, make sure epeat for the
other side.
it is square, r 26. Horizontal fuselage nose section is next, Apply a bead of HV CA to
the edge of the nose piece that contacts the leading edge of the wing
as shown above.
27. Spray Activator (Kicker) to the mating surface of the wing’s leading
edge.
28. Using a straight edge and the indicated cutout as a guide for
alignment, bring the two pieces together. Make sure also that both
pieces are at on the workbench.
29.Lay down the shown parts on the flat surface with wax paper
on it and glue it together. Note that we are working from the bottom
side. The bottom side of this part is the side WITHOUT any printing.-
30. Locate the 1X3mm 325mm L stripe for elevator reinforcement.
25
27
29 30
26
28
GEL GLUE (HV)
ACTIVATOR
3X1X325MM
Page 10

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.

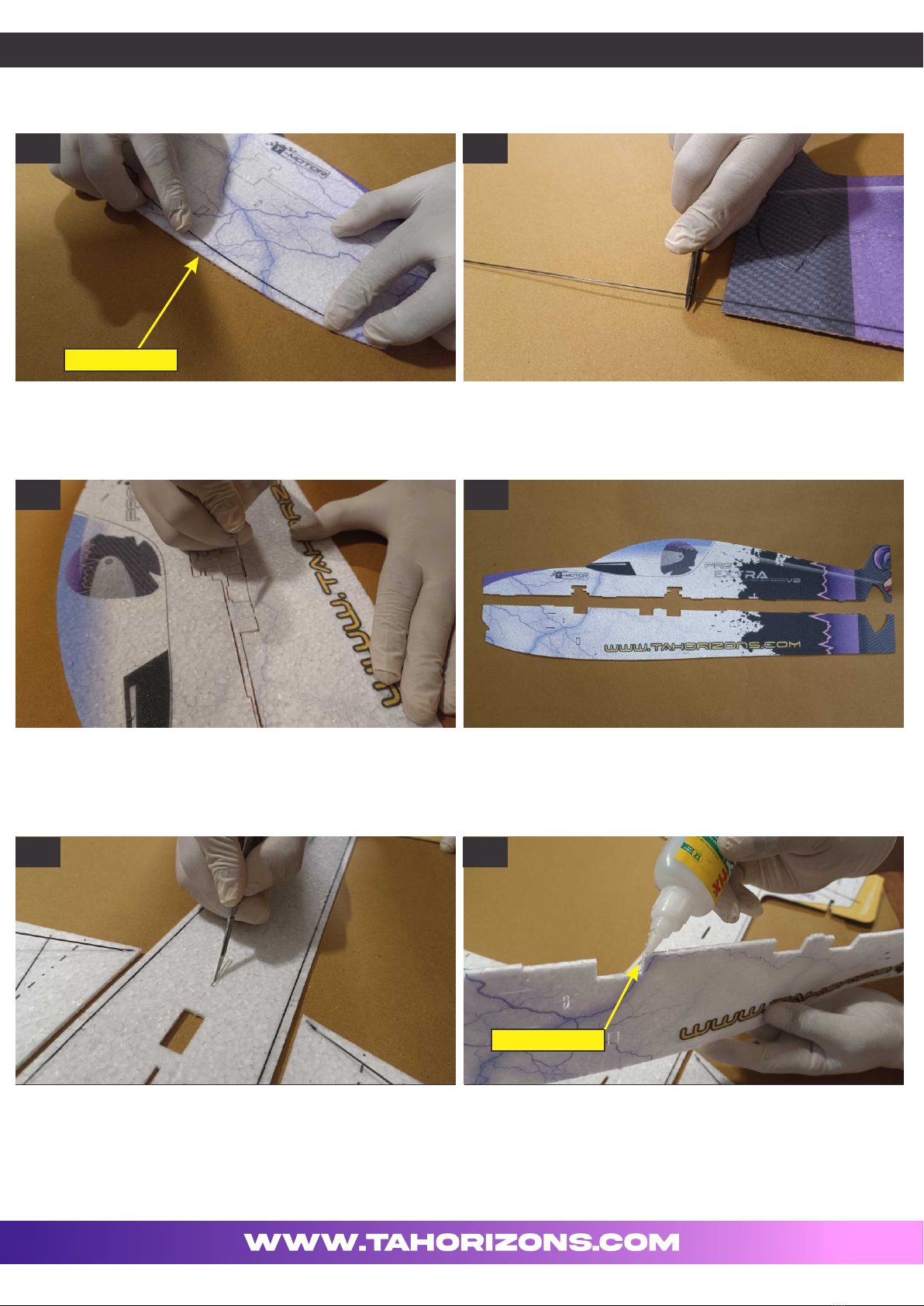

31. Glue it in the pre-cut groove, Use a spray activator (Kicker) to cure,
wipe off the excess glue if needed.
32. Install the 1mm carbon rod as shown above, again you need to cut
the required length from the supplied 1000mm rod or from any excess
remaining rod from the previous steps.
33. Apply a thin CA, don't forget to use a nonstick paper or something
similar.
34. Make sure they are flush. Spray the area with the kicker.
35.Lay down the shown parts on the flat surface with wax paper on it
and glue it together.
36. Reinforcement of horizontal profile section is next, make sure that
the slot in the area where the elevator attaches is free of glue.
31
33
35
32
34
36
1mm Rod
REGULAR THIN
CYNO ONLY
Page 11

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
37. Repeat the process where it attach to the wing as well. 38. Install the 1mm carbon rod to reinforce the tail section as shown
above.
39. Again you need to cut the required length from the supplied
1000mm rod or from any excess remaining rod from the previous
steps.
40. The horizontal piece of the fuselage also uses the 1mm carbon fiber
rod spanning the entire length from the rear wing spar to the horizontal
stab spar, cut the required length and insert the rod into the precut slot
like shown above.
41. Make sure everything is flushed, Use a thin CA to glue it. 42. Hit with kicker and verity that there is a good solid bond, if there are
loose areas simply add a little more CA and Kicker.
37
39
41
40
38
42
1mm Rod
1mm Rod
REGULAR THIN
CYNO ONLY
Page 12

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
43.
rod for reinforcement, locate the pre cut grooves as shown above.
Horizontal fuselage nose section also uses the same 1mm carbon 44. Install the 1mm carbon rod as shown above, again you need to cut
the required length from the supplied 1000mm rod or from any excess
remaining rod from the previous steps.
45. Use a thin CA and kicker to glue it. 46. Here is the complete bottom view of horizontal airplane section
reinforced with carbon rods and stripes.
47. Aileron Trussing is up next. Make sure the triangle piece of foam
that we have glued previously remains square thoughout the next
steps.
48. Locate the pre cut small slits on all 4 sides of aileron to insert the
rods into.
43
45
47
46
44
48
1mm Rod
Page 13

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
49. Locate one end of the 1mm carbon rod into the outboard slit, near
the leading edge of the aileron. Next make note of where the rod
crosses the center support, as indicated above, and cut the rod.
50. Once the rod is split, locate the opposite end of the rod, insert it
into a pre cut slit like shown above.
51. Once happy with the location and flatness of everything, glue the
ends and center area with CA.
52. All truss rods shown in position. Make sure the aileron is at on the
work surface and that the center support is still square.
53. Repeat for the other side. 54. Up next is the vertical fuselage section.
49
51
53
52
50
54
GEL GLUE (HV)
200mm
155mm
200mm
150mm
1mm Rod
Page 14

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
55. Belly of vertical fuselage also uses the 1mm carbon rod for
reinforcement, Lay into it’s designated slot. Again use the 1000mm
1mm carbon rod, cut length as advised in the next step.
56. NOTE - this will stick out approx 1/2inch beyond the end of the tail
of this piece shown in the above picture.
57. We can now began the vertical fuselage installation, use the blade
to separate both the parts
58. We can now began the vertical fuselage installation, use the blade
to separate both the parts
59. Use a blade to take out all the foam out of the assembly slots. 60. Apply a thin layer of HV CA to the mating surfaces of the lower
vertical fuselage.
55
59
57 58
60
56
1mm Rod
GEL GLUE (HV)
Page 15

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
61. Bring the two pieces together. Make sure the tabs and slots of the
two pieces are fully engaged, flush and square.
62. You will have a little time to work with and adjust for squareness.
Use a spray activator to cure it.
63. Locate the above parts for the undercarriage assembly. 64. Glue the center rim over the supplied black EPP wheels with center
hole aligned using HV CA (Do it for both the sides of wheels).
65. Here the supplied (3mm dia 225mm) tube and (2mm dia 40mm)
wheel shaft are glued on the wheel bracket.
66. Optionally use a heat shrink tubing for better cosmetic finish.
61
63
65
64
62
64
66
ACTIVATOR
GEL GLUE (HV)
Page 16

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
67. Glue the shown parts over the pre cut slots, for landing gear
assembly.
68. Glue the shown parts over the precut slots using the HV CA and
cure everything together using the kicker. Match the shown red area
with the precut slot in the EPP.
69. Install the undercarriage that we have prepared like shown in the
above image. Both wings are having different positioning of UC slots
with 3mm difference.
70. Make sure you have used the right orientation of the gear while
installing them.
71. Put a drop of HV CA over the joints and spray everything together. 72. Put a drop of HV CA over the joints and spray everything together.
67
69
71
68
70
72
FORWARD SLOT
BACKWARD SLOT
GEL GLUE (HV)
GEL GLUE (HV)
Page 17

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
73. Install the wheel over the shaft, make sure it is spinning freely, after
this slide in the wheel stopper. Put a small drop of HV CA over the shaft
and wheel stopper joint.
74. Glue the wheel pants on wheel stopper using the HV CA.
75. Locate the landing gear cover, glue it over the CF Undercarriage. 76. Truss braces on the under side of the Wing can be installed next,
locate the above parts for the next process.
77. Install one on each side as shown, make sure they are fully
engaged into their respective slots.
78. Again, all the wing and fuselage trussing is done using the 1mm
rod, Cut length of 330mm X 4 from the supplied 1000mm rods for the
next process.
73
75
77
74
76
78
GLUE HERE
1 X 330mm Rods
Page 18

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
79
ends, to insert the rods into.
. Locate the pre cut small slits on the wing tips, 2 slits on both the 80. Do not use any glue until the step that calls for it. The object will be
for the rods to be installed as shown above. Start by making sure the
wing is flat.
81. The last ends of the two pieces should engage into the slots just
behind the undercarriage.
82. Route them thru the slits in the truss brace. They will fit down into
the slit about 1/8 inch.
83. Position the carbon rods for the other wing and then at each of the
points where the carbon and foam meet, put a drop or two of thin CA
and set with kicker.
84. Up Next is the fuselage trussing. Locate the pre cut small slots all
over the tail, horizontal and vertical profile sections.
79
81
80
82
83 84
Page 19

The Build
Please Note: Few pictures shown below are of different plane and for reference purpose only.
85. Up Next is the fuselage trussing. Locate the pre cut small slots all
over the tail, horizontal and vertical profile sections.
86. Up Next is the fuselage trussing. Locate the pre cut small slots all
over the tail, horizontal and vertical profile sections.
87. Start by cutting the supplied 1000mm 1mm rods into sizes shown
on the page 4 of exploded view. Start installing them from the back.
88. Carbon rod needs to sit couple of mm into the pre cut slot into the
foam before gluing, Just put a small drop of HV Cyno to glue it.
89.Use a spray activator to cure it. 90. Repeat the step for the other side as well, Please refer to the (Page
4) of exploded view and above image for the length references.
85
87
86
88
89 90
GEL GLUE (HV)
ACTIVATOR
135mm
135mm
145mm
150mm 145mm 100mm
145mm 80mm
Page 20
