Taarup 7640 User manual

Operator’s manual
Round bale wrapper
Model Taarup 7640
with options
Operator´s manual round bale wrapper 7640 English,
issue 03-04, document version 2, programme version 1.06
UH124252

2
Operator´s manual round bale wrapper 7640

3
CE-certificate of conformity
CE certificate of conformity
We,
Kverneland Group Gottmadingen GmbH & Co. KG
Hauptstrasse 99
D-78244 Gottmadingen
Germany
declare under our sole responsibility that the product:
Bale processor type Taarup 7640
to which this declaration relates corresponds to the relevant basic safety
and health requirements of the Directives 89/392/EEC, 91/368/EEC, 93/
44/EEC and 93/68/EEC.
Gottmadingen, March 2nd 2004
Rudolf Mayer
General Manager
Enter here the serial number of your
machine:
Kverneland Group manufacturers of farm machinery reserve the right to
change designs and/or specifications without notice. This does not in-
clude an obligation to make changes to machines previously supplied.

4
Operator´s manual round bale wrapper 7640
Guarantee
This product is guaranteed for a period of one year from the date of delivery, against defects in material
and workmanship.
Components not manufactured by Kverneland, i.e. electrics and hydraulics, PTO shafts and tyres are
guaranteed according to the original manufacturer’s recommendation.
The components listed below have limited guarantee due to their function:
Tyres
Pre-stretcher rollers
Belts
Knives
Lamps
Fuses
Oil filter
Hydraulic seals of motors, valves and cylinders.
Weakening due to wear and tear is considered to be normal for these parts. The product guarantees for
these components are limited to manufacturing defects, breakage, poor workmanship, transport damage
etc on new machines.
Any damage to bearings that are fitted with grease nipples is not covered under the standard product
guarantee, if the damage is shown to be caused by rust or due to the ingress of liquids. Such damage is
caused by insufficient lubrication or the use of low quality lubricants.
Any damage caused by the use of corrosive additives in or nearby the machine is also not covered.
If a failure is expected to be covered under the guarantee, the owner or its representative should inform
the dealer when parts and/or repair work is required. Any guaranty claim should be applied for within the
period of guarantee.
The dealer should fill in one guarantee claim form for each matter and forward it to the Kverneland sales
company or importer before the 10th of the following month after the claim was raised.
The damaged parts should be marked with the number of the corresponding warranty claim and should
be stored for 6 months by the dealer, available for inspection by the Kverneland sales company or
importer if required.
Due to the operation of the Taarup products being out of the manufacturer’s control, the guarantee
covers the product quality only. Performance or any consequential losses are not covered.
The guarantee may be invalid if:
a) spurious spare parts are used or the product is repaired or modified without the Kverneland authorisa-
tion.
b) operator’s and service instructions given by the manufacturer are not complied with.
c) The machine is used for other purposes than those designed for.
The guarantee does not cover damage caused by normal wear.
Public safety regulations require from the manufacturer of this machine that all safety aspects regarding
the use of the machine is thoroughly evaluated. As a result of these obligations Kverneland and its
importer or sales company are not responsible for the function of components not shown in the spare
parts catalogue covering this product.
Kverneland reserve the right to change the product with no obligation to previously supplied machines.
Guarantee
Kverneland Group Operations Norway AS
Kverneland Nærbø
Torlandsvegen 3
N-4365 Nærbø
Norway

5
Content
Content
CE certificate of conformity................................ 3
Guarantee .......................................................... 4
1 Introduction .............................................. 6
2 Machine identification .............................. 7
3 Intended use of round bale wrappers ....... 8
4 Safety and liability.................................... 8
5 Technical specifications ......................... 14

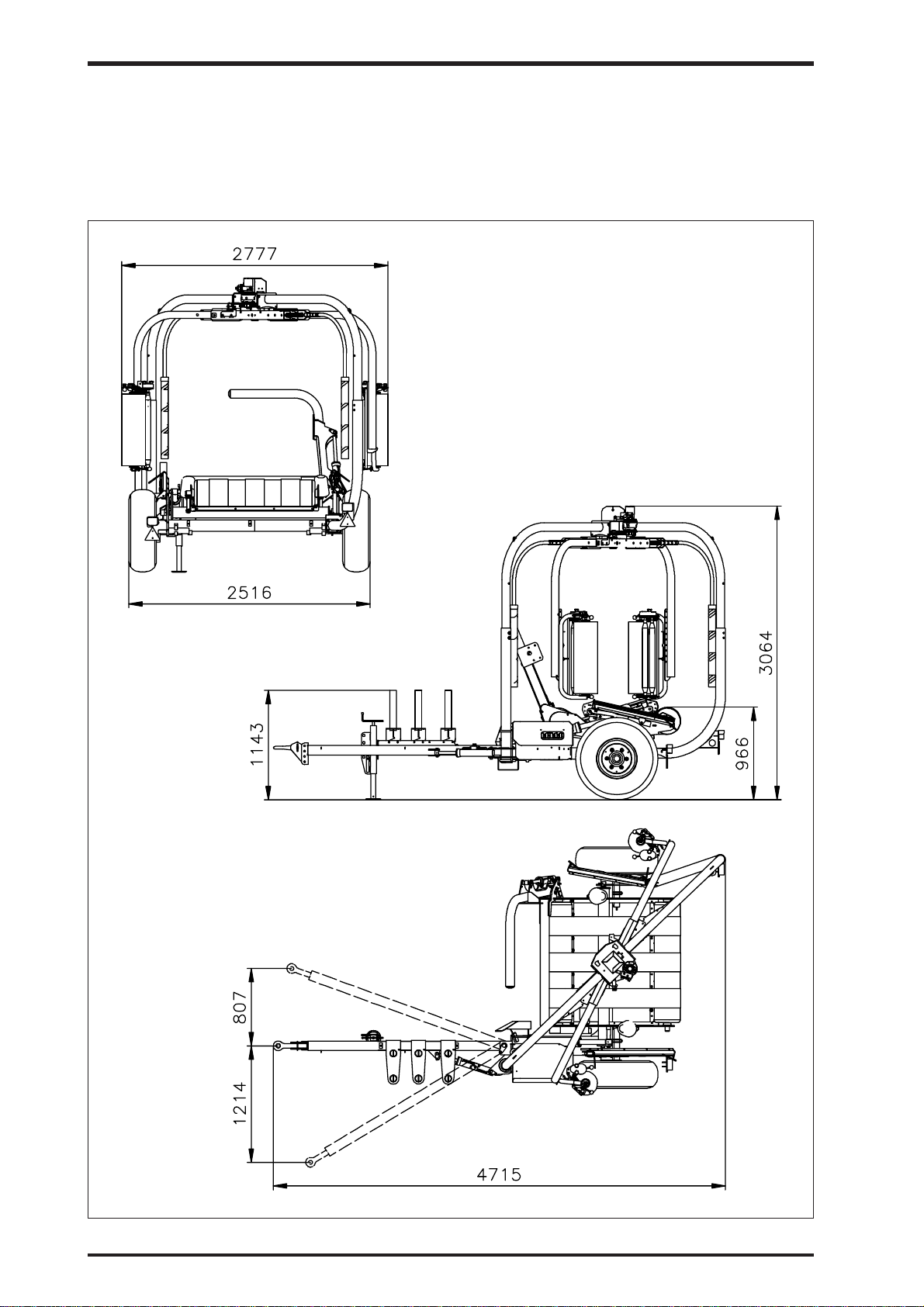

5.1 Dimensions ............................................ 14
5.2 Specifications......................................... 15
5.3 Product description ................................ 16
5.4 Main components of the wrapper ........... 17
6 Preparation for use................................. 18
6.1 Preparing a new machine ...................... 19
6.2 Connection to tractor or baler................. 22
6.3 Hydraulics .............................................. 23
6.4 Adaption for bale size ............................ 25
6.5 Stretch film............................................. 25
7 Wrapping................................................ 26
7.1 Loading film roll...................................... 26
7.2 Filmoverlap ............................................ 26
7.3 No. of film layers .................................... 26
7.4 Wrapping procedure............................... 27
7.5 After the first bale................................... 30
7.6 Driving technique ................................... 30
7.7 Before you leave the field ..................... 30
7.8 Daily checks ........................................... 31
8 Operation of model M ............................ 32
8.1 Lever functions....................................... 32
8.2 Wrapping procedure............................... 32
8.3 Flow chart hydraulics model M .............. 33
9 Operation of model S ............................. 34
9.1 Structure ................................................ 34
9.2 Safety..................................................... 34
9.3 Operation ............................................... 34
9.4 Manual mode [M] ................................... 35
9.5 Semiautomatisk modus [A] .................... 35
9.6 Flow chart electrics ................................ 37
9.7 Flow chart hydraulics model S ............... 38
10 Operate model C.................................... 40
10.1 Structure ................................................ 40
10.2 Mode of operation - sensors and
valves..................................................... 40
10.3 The control panel ................................... 41
10.4 Symbols ................................................. 42
10.5 Display information regarding panel
connection.............................................. 47
10.6 Idle mode ............................................... 47
10.7 User functions screen displays............... 48
10.8 Dealer functions ..................................... 51
10.9 Service functions ................................... 55
10.10 Process mode screen displays............... 58
10.11 Remote control....................................... 63
10.12 Flow chart hydraulics model C............... 65
11 Maintenance........................................... 66
11.1 Welding on machine .............................. 66
11.2 Chain tensioning .................................... 66
11.4 Lubrication ............................................. 66
11.5 Tyre air pressure .................................... 66
11.3 Retension bolts ...................................... 66
11.6 Hydraulic tractor oil replacement ........... 68
11.7 Cleaning ................................................. 68
11.8 Maintenance electrics & electronics....... 68
12 Troubleshooting ..................................... 69
12.1 Troubleshooting hydraulics .................... 69
12.2 Troubleshooting electrics ....................... 70
13 Notes...................................................... 71

6
Operator´s manual round bale wrapper 7640
The future of farming
1 Introduction
This operation manual contains all data required for safe and efficient working with
your bale wrapper. You will find all data and procedures concerning adjustment,
maintenance, lubrication as well as a short overview and explanation of optional
equipment.
Please keep this manual for reference. Your dealer will be pleased to help you if
problems occur or if you have questions. He is kept expertly informed by our staff.
Fill in the Delivery and warranty registration form, send it to your dealer and keep
the copy in a safe place. Enter the machine’s serial number, which you will find on
the type identification plate of the machine in the box below. It is important in case
of any service contact, when ordering parts, etc.
Please note that the specifications of each machine is country and customer
specific. Some equipment and processes described in this book might be optional.
Introduction
Kverneland Group Operations Norway AS
Kverneland Nærbø
Torlandsveien 3
N-4365 Nærbø
NORWAY

7
2 Machine identification
The machine’s serial number and the manufacturer’s address are found on the number plate
of the machine. See illustration below.
The serial number and year of manufacture for this machine is given below. This number is
important with regard to service and the correct supply of spare parts.
This machine is CE marked. This marking with appropriate EU statement of agreement means
that the machine complies with substantial health and security demands, and that it is in
accordance with the directives 89/392/ECC as amended by directive 91/368/EEC, 93/44/EEC
and 89/336/EEC.
Serial number :
Year of manufacture :
Serial number
Machine identification
Serial
number

8
Operator´s manual round bale wrapper 7640
3 Intended use of round bale wrappers
4 Safety and liability
This machine is exclusively designed for
wrapping round bales of straw materials,
mainly grass, in stretch film. A loading de-
vice brings the bale onto a roller table rotat-
ing the bale around its axis. A prestretcher
applies simultaneously thin film onto the
bale by rotating around the bale. When
completely covered in plastic, the bale is
discharged and brought forward to its stor-
age location.
All prescriptions, procedures, etc. stated
herein and/or through decals or other signs
on the machine should be taken into consid-
eration when operating this machine.
This machine shall be exclusively used for
the normal agricultural work.
Avoid accidents! Don’t learn safety the hard
way! Stay alert! Think SAFETY! Work
SAFELY! Prior to operating the machine
read and observe this operation manual
and all safety instructions and decals!
You are responsible for the SAFE operation
and maintenance of your equipment. It is
the operator’s responsibility to read and un-
derstand ALL safety and operating instruc-
tions in the manual and to follow these. You
must ensure that you and anyone else who
is going to operate, maintain or work around
the unit be familiar with the operating and
maintenance procedures and related safety
Information contained in this manual. The
manual will take you step-by-step through
your working day and alert you to all good
safety practices that should be adhered to
while operating this equipment!
Remember, you are the key to safety. Good
safety practices not only protect you but al-
so the people around you. Make these prac-
tices a working part of your safety pro-
gramme. Be certain everyone operating this
equipment is familiar with the recommended
operating and maintenance procedures and
follow all safety precautions. Most accidents
can be prevented. Do not risk injury or death
by ignoring good safety practices!
Machine must never be tested on a tractor
in an enclosed space because of the danger
from exhaust fumes!
Always check traffic and operational safety
before any putting the machine into opera-
tion!
Safety
Everyone must be given operating
instructions before starting to operate the
equipment. Pass on all safety advices also
to other users!
4.1 Safety instructions Adhere to the general rules of health and
safety precautions besides the advice of this
manual!
The installed warning and advisory signs
give important hints for a safe operation;
adhering to serves your own safety! Keep
safety decals and signs clean and legible at
all times.
Replace safety decals and signs that are
missing or have become illegible.
If original parts on which a safety decal or
sign was installed are replaced, be sure that
the replacement part also displays the cur-
rent decal or sign!
When making use of roads adhere to appli-
cable traffic rules!
Become acquainted with all installations and
control devices as well as with their function
before beginning the operation! Doing this
during operation would be too late!
The clothing of the operator should be tight.
Avoid wearing any loose clothing! Before
starting up, maintaining, and moving and/or
operating: check surrounding area (bystand-
ers, especially children!). Ensure sufficient
visibility during all operation and transport!
Nobody shall ride on the machine during
transport and/or field operation! Attach ac-
cessories in accordance with mounting in-
structions and only to the appropriate at-

9
taching points! Special care shall be taken
when (un)hitching the wrapper on/off the
tractor. Hitch and unhitch the unit from the
tractor on a firm, dry and level area. This will
lessen the possibility of tipping and/or sink-
ing into soft ground or mud!
When (un)hitching the wrapper from the
tractor place the jack stand into the corre-
sponding position!
Make certain the tractor is in safe operating
condition with adequate braking capabilities
for an implement of this weight! Adhere to
maximum permissible axle loads, total
weights and transport dimensions! Install
and check transport equipment, e.g. lighting,
warning devices, guards: ensure visibility
and proper functioning!
Control devices, e.g. ropes, hoses, etc. for
remote actuation of devices such as cylin-
ders, shall be guided and positioned in a
way they never inadvertently release nor
block desired movements/actuations!
For road transport bring wrapper in a trans-
port position and secure it! Roller table shall
be empty, loading arm shall be closed and
locked! Never leave the operator’s seat dur-
ing operation or transport! Moving behav-
iour, steerability and braking performance
are influenced by trailed equipment! Ensure
sufficient braking effect and safe managea-
bility!
Always adapt the speed to the local condi-
tions! When making short turns note the
larger radius because of increased width
and/or length of the combination as well as
mass and inertia changes due to the other
center of gravity position!
Do not operate a machine unless all protec-
tion is installed and in functional position!
Never stay or allow anyone to stay within
the operating area!
Before leaving the tractor apply the parking
brake, shut down the engine and remove
the ignition key!
Allow nobody to stay between tractor and
wrapper unless the tractor is prevented from
inadvertent rolling away by applied parking
brake and or placed blocks! Before
(un)hitching the wrapper set the controls in a
position that prevents from inadvertent actu-
ation of any function! When making any
field adjustments or carrying out mainte-
nance, make sure the tractor and implement
are positioned on a firm and level area!
The protection of the wrapper, e.g. shields
and guards, protects from penetrating into
danger areas! Therefore all protection must
be kept in optimal condition and moved into
the protecting position prior to starting to
work! Before performing any work on the
wrapper ensure satellite has stopped all ro-
tation, shut down the engine and remove
the ignition key!
Drive very carefully when negotiating hilly or
uneven terrain. Special care shall be taken
when discharging the bale: ensure it cannot
move uncontrollably! Do not allow anyone
else in the tractor driver’s area unless spe-
cific provision is made by the tractor manu-
facturer to accommodate a passenger. Even
if such is the case, travel with extreme cau-
tion!
Do not modify the equipment in any way.
Unauthorised modifications may impair the
function and/or safety and could affect the
life of the equipment! Repair damages prior
to next operation!
4.1.1 Hydraulics
The hydraulic system is under high pres-
sure! Never attempt to find or even to stop a
hydraulic leakage with your hands! High
pressure fluid easily penetrates skin and
clothes, causing severe injuries: see a doc-
tor immediately when injured!
When inspecting always use appropriate aid
(e.g.a piece of wood or sheet metal) and
wear safety goggles and gloves!
Regularly inspect hydraulic lines (hoses,
tubes, connections) and renew when found
defective or aged! Replacement parts shall
at least meet the appropriate technical man-
ufacturer’s specifications! When plugging in
the hydraulic quick-disconnect plug of a
hose always ensure the hydraulic socket is
not pressurized! Ensure sockets are clean!
Before starting to perform any work at the
hydraulic system, stop the tractor engine
and depressurize the system by repeatedly
actuating a hydraulic device! Safety shut-off
valve(s) must be closed in transport! Proper-
ly guide hydraulic hoses; position an uncou-
pled hydraulic hose to ensure coupling
plugs stay clean!
Safety

10
Operator´s manual round bale wrapper 7640
4.1.2 Wheels and tyres
When working on the wheels make sure that
the machine has been placed on the ground
safely (jack stand) and that it is secured by
blocks against unintentional rolling! Mount-
ing wheels and tyres requires sufficient
knowledge and availability of prescribed
tools and equipment being in perfect condi-
tion; repairs on tyres may only be performed
by trained staff with suitable tools!
Do not fit other tyre dimensions as pre-
scribed! Severe injury can occur! Check air
pressure regularly: ensure prescribed value!
Max. speed of travel is 40 km/h!
4.1.3 Storage
Store the unit in an area away from human
activity! Do not permit children to play on or
around the stored unit! Use the provided
jack stand supports, store in stable machine
mode!
4.1.4 Bale discharge
Never stay behind a wrapper working on a
slope. Keep clear of the bale ejection area.
Never attempt to stop a rolling bale: it may
weigh over 1400 kg!
Safety

11
4.2 Safety decals
Good safety practice requires that you
become familiar with the various safety
decals, the type of warning and the area, or
particular function related to that area,
requiring your SAFETY AWARENESS!
A safety decal does in no way absolve you
from the responsibility to comply with all
given safety instructions nor take all possi-
ble and necessary measurements to prevent
accidents!

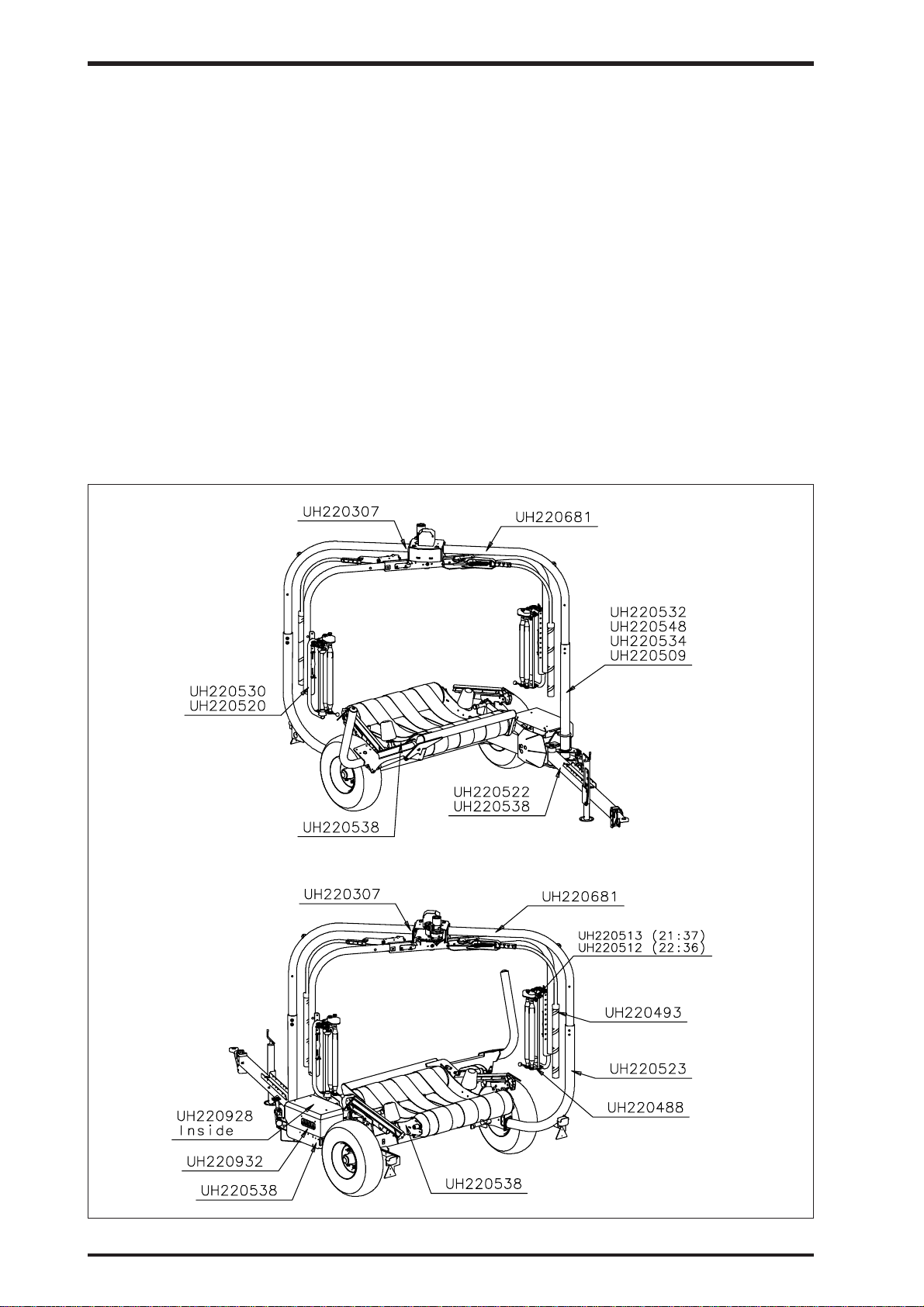

This machine has been marked with safety
decals in accordance with ISO 11684, i.e.
decals without text. Please find the decals
with an explanation of their meaning below:
Warning sign UH220532
Be careful! Read and understand the instructions in the manual
before the machine is put into service and before attempting adjust-
ment/maintenance.
Warning sign UH220522
Keep distance to the lift arm. It can move/be moved without warning.
Warning sign UH220523
Danger of trapping when discharging a bale. Keep onlookers away
from discharging area. Stop the tractor engine before attempting
adjustment.
Warning sign UH220528
Keep onlookers away from the working range of the machine. Safe
distances 5 meters. Do not walk under a raised bale.
Warning sign UH220534
Disconnect all electronics before welding commences.
Warning sign UH220538
Keep distance to the moving cutter arm. Hand or foot can be trapped
and cut.
Warning sign UH220548
Danger of trapping. Stop the tractor prior to any service.
Safety

12
Operator´s manual round bale wrapper 7640
4.3 Liability and warranty
In order to ensure safety, all persons work-
ing at and/or with this machine must read
and understand this operation manual.
Furthermore this machine shall always be
used, handled and stored in accordance
with the design and construction (intended
use) which also means:
Exclusively work in accordance with the
instructions given in the appropriate Assem-
bly, Operation and Repair Instructions
(manuals) including all valid Errata and
Supplements as well as taking into account
the relevant Service Bulletins; exclusively
use correct tools and equipment being in a
perfect condition! Strictly observe the appli-
cable local regulations concerning safety
and accident prevention, generally acknowl-
edged and approved technical, medical and
traffic rules as well as the functional limita-
tions and safety instructions stated in above
mentioned technical documentation!
Electric/electronic equipment (e.g. control
panels, indicators, etc.) including their
accessories (e.g. cables, sensors, etc.) must
be handled, treated and stored in accord-
ance with the general accepted standard
rules for non-waterproof electric and elec-
tronic equipment (e.g. wireless sets), i.e.
among others:
clean and dry storage;
inaccessibility for rodents, martens, etc.
prevent exposure to rain and undampened
shocks!
Do not use any parts (spares, accessories,
lubricants) other then those complying with
manufacturer requirements. A part complies
with those requirements when either genu-
ine or approved by the manufacturer or
when all its properties can be proven to
meet with the appropriate requirements for
that very use/ function!
Only well instructed people being familiar
with all possible danger shall work with or at
the machine!
The machine shall not be used nor trans-
ported unless all safety devices (covers,
plates, rails, curtains, locks, etc.) are cor-
rectly installed and in a perfect condition
and set in the appropriate safety position!
All safety decals and signs shall be legible
and in the correct place!
Unauthorized modification of or arbitrary
changes on the machine or parts of it ex-
clude any responsibility and reliability of the
manufacturer for the consequences of that
operation!
Attention:
Those disregarding above mentioned rules
act grossly negligent (careless) through
which all manufacturer warranty and reliabil-
ity for damages and all other consequences
become extinct! The negligent person
carries all risks!

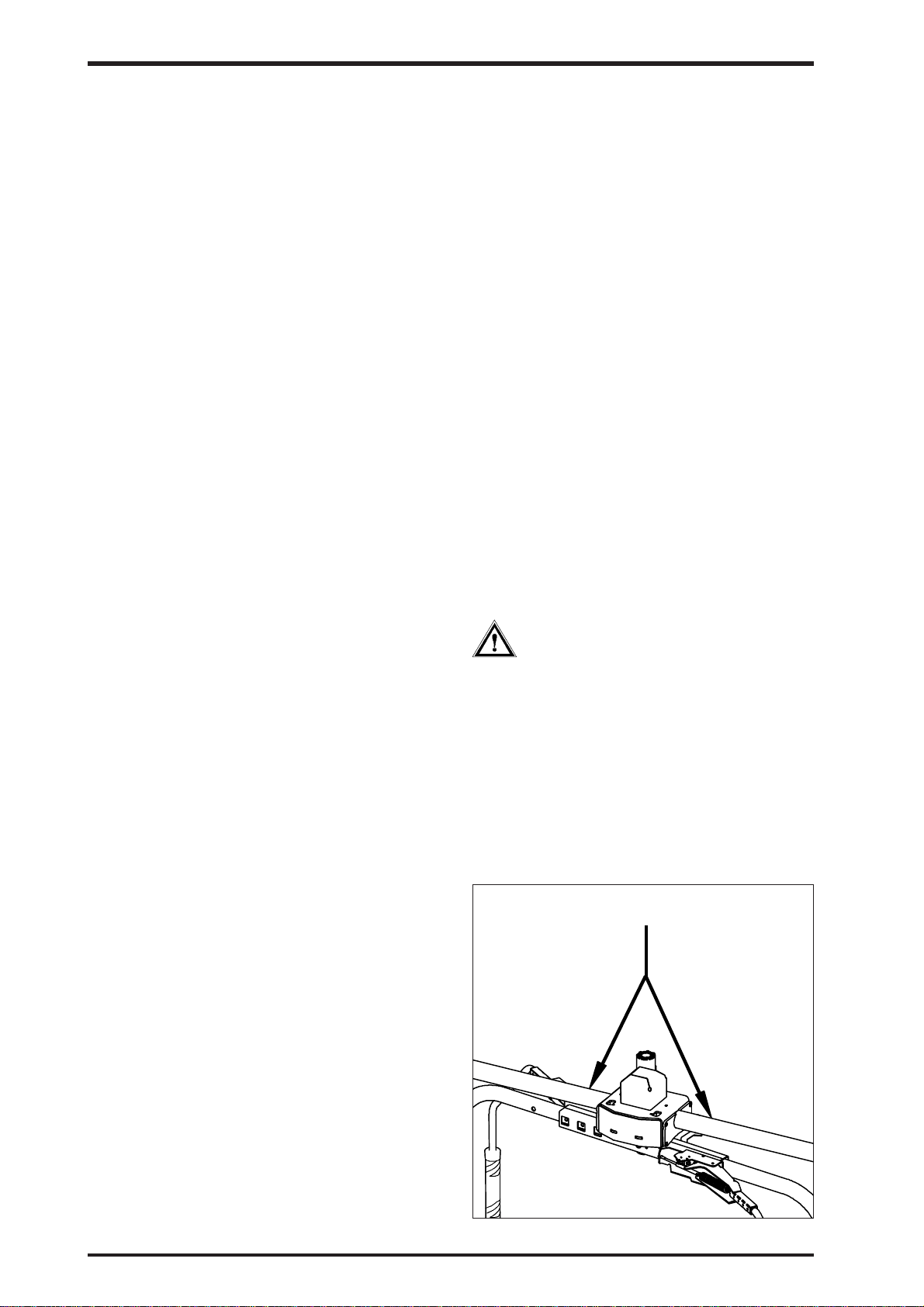

4.4 Lifting the machine with crane
Only use approved lifting device. The weight
of the machine is given in «Technical speci-
fications».
Be careful! Make sure that nobody stands
under or near the machine when it is being
lifted.
Use a guide wire to keep machine in posi-
tion.
Safety

13

14
Operator´s manual round bale wrapper 7640
5 Technical specifications
5.1 Dimensions
Valid for machine with wheel size 11,5/80-15,3". All measures are in mm (1" = 25.4mm)
Technical specifications

15
5.2 Specifications
Valid for standard equipped machine with wheel size 11,5/80-15,3"
Description Data
Dimensions
Total length 4715 mm
Width 2550 mm
Height work and transport 3070 mm
Height freight and storage 2550 mm
Weight
Machine with single pre-stretcher 1025 kg
Machine with two pre-stretchers 1125 kg
Wheel dimensions
Standard 11,5/80-15,3"
Optional 400/60-15,5"
Tractor requirements
Hydraulic hitch/tractor drawbar Ø52/Ø40mm
Hydraulic outlets Single acting with free return
Oilflow (free return) 26 l/min
Oilpressure 150 bar
Electric power supply 12V
Connection
Tractor Model M, S, C
Baler (require accessory) Model C
Pre-stretchers and film application
Film width 750mm
Nominal pre-stretch standard ca.. 70% (21:37)
Nominal pre-stretch optional ca. 60% (22:36)
Nominal pre-stretch optional ca. 30% (25:33)
Maximum wrapping speed ca. 35 o/min
No. of film layers 2+2+...
Overlap 50%
Control system
Model M Manual with cable controls
Model S Manual with electric joy-stick
Model C Computer control
Bale requirements
Diameter 1,2 – 1,6m
Width 1,2m
Maximum bale weight (Max 15 km/h) 1400 kg
Options
Hydraulic drawbar adjustment
Drawbar yoke for German tow ba
Baleturner
Rubber discharge mat
Filmmagazine
Remote control (Model C only)
Automatiic stop by film end (model C only)
Kit for wrapping with only one filmroll on machines with two pre-stretchers (model C only)
Specifications

16
Operator´s manual round bale wrapper 7640
5.3 Product description
This product is designed for the purpose of
strecth film wrapping of grass or other straw
material in the form of round bales. The
wrapper is trailed and loads the balers
driving direction. It is avaliable with different
control systems and is connected directly
behind the tractor. Model C can additionally
be mounted behind a baler.
Used behind a tractor, the wrapper works
off-set on the r.h. side of the tractor.
Used behind a baler, the wrapper works
directly in-line with baler.
The wrapper loads the bales by a loading
arm fitted to the table, and unloading is
done by tilting the table backwards. The
wapper is avaliable with on or two pre-
stretchers (750mm film width) attached to a
rotating satellitte arm.
The hydraulic functions are powered by the
tractors oil pump. The roller table and the
satellite is powered by hydraulic motors in
series. Hydraulic rams operate the table,
loading arm, filmcutter and drawbar.
Product description

17
14
9
3
8
2
11
7
6
5
10
5.4 Main components of the wrapper
1 Main frame
2 Drawbar
3 Roller table
4 Loading arm
5 Support roller
6 Tower
7 Satellite with safety arm
8 Film prestretcher
9 Filmcutter
* Control unit model M
** Control unit model S
***Control panel model C
11Hydraulic valve bank
Main components

18
Operator´s manual round bale wrapper 7640
W
T
B
A
SA
SF
DR
PL RT
LA
DC DB
6 Preparation for use
Read the operator’s manual. Great care
must be taken when starting a brand new
machine for the first time. Incorrect assem-
bly, faulty operations etc. may cause expen-
sive repairs and loss of profit. The Taarup
product guarantee does not cover damage
occurring when the instructions given in this
book are not followed.
Check that the machine is mounted correctly
and that it is not damaged. Assure that
electric wirings have length and position that
allow machine to move without causing any
damage to the wirings.
Check the connections between tractor and
machine. Make sure that hydraulic connec-
tions are properly fitted.
Check that the pre-stretcher rollers are
clean.
Lubricate the machine according to lubrica-
tion chart.
Check wheel bolts torque setting - to be
220Nm (160lb ft).
Remember that the operator is obliged to
ensure that the product is wrapped properly.
Preparation for use

19
6.1 Preparing a new machine
6.1.1 Packing
Remove all kind of packing. Any equipment
stored in the machine should be removed.
6.1.2 Wheels
Mount the wheels (W). Wheel nut torque is
220 Nm.
The distance from the wheels to any fixed
parts should be approx. 20mm. The track
width is adjustable by slackening the axle
bolts and sliding the axles outwards or
inwards.
6.1.3 Tower
The tower (T) has two height positions:
Pos 1. Freight / storage
Height 2,55m Std. wheels 11,5/80-
15,3")
Pos 2. Wrapping and transport
Height 3,1m (Std. wheels 11,5/80-
15,3")
Height adjustments:
Connect the tower (T) to approved lifting
device. in the lifting points (A and B)
Unfsaten the tower bolts and release the
hydraulic hoses and the electrical cables
which are fitted under the frame
Lift (or lower) the tower to the desired
posistion
Mount the tower bolts, the hydraulic
hoses and the electrical cables. Watch
out that hoses and cables are not dam-
aged.
6.1.4 Satellite arm
The satellite arms (SA) are mounted togeth-
er with the safety arms (SF) in the centre
section of the satelllite.
6.1.5 Safety arms
Safety arm is mounted on wrappers with
automatic satellite rotation. When the safety
arm is activated, the satellite rotation stops
immediately. To continue wrapping, pull the
arm to it’s normal position and re-start the
wrapping cycle.
Preparation for use

20
Operator´s manual round bale wrapper 7640
DC
DB
CY
MB
RT
LA
PL
PL
6.1.6Drawbar
Remove the transport bar and move the
drawbar (DR) untill the drawbar cylinder
(CY) or the mechanical positioning bar (MB)
can be fitted.
Mount the parking leg (PL).
Preparation for use
6.1.6.1 Height adjustment of draw-
bar
The objective is to get the correct height of
the drawbar for loading the bale onto the
wrapper. Check adjustments with wrapper
and tractor on level ground.
Tip roller table (RT) forward and move
loading arm (LA) in to loading position.
Adjust tilting with parking leg (PL) to make
lowest point of loading arm (LA) to be 5 to
10cm above the ground.
Adjust wrapper drawbar clevis/eye (DC) to fit
the height of the tractor drawbar/hitch main-
taining the desired ground clearance of 5-
10cm for the loading arm (LA). Make sure
that bolts are properly tightened.
6.1.6.2 Drawbar eye bushing
Use the drawbar eye bushing (DB) when
connecting to tractor drawbar. Fit with ring
and circlip on the upper side in order to
avoid damage to bushing.
6.1.7 Hydraulic hoses and
electrical cables
Check that the hydraulic hoses and cables
are positioned in a way that damage caused
by moving parts is avoided.
