Hedge Cutter 165 & Branch Cutter 1402 3
Important information
Hedge Cutter 165 & Branch Cutter 1402
Handbook
1. Edition - June 2017
The information contained in this manual is correct at the time of publication.
However, in the course of constant development, changes in specifications are
inevitable. Should you find the information given in this book different to the
machine it relates to please contact the “After Sales Department” for advice
© 2016
Please ensure that this manual is handed to the operator be-
fore using the machine for the first time. The operator must
fully understand the contents of this manual before using this
machine.
(If the machine is resold the Manual must be given to the
new owner!)

Hedge Cutter 165 & Branch Cutter 1402
4
Contents
Contents .......................................................................................................................4
USEFUL INFORMATION ..............................................................................................5
GENERAL INFORMATION...........................................................................................6
CE DECLARATION OF CONFORMITY........................................................................7
Notice............................................................................................................................8
Vehicle Ballast..........................................................................................................8
Front weights............................................................................................................8
Rear weights.............................................................................................................8
Factors that affect stability......................................................................................9
Suggestions to increase stability ...........................................................................9
Safety..........................................................................................................................10
Recommendations.....................................................................................................11
Risks ........................................................................................................................11
Always......................................................................................................................11
Never........................................................................................................................12
Specifikations.............................................................................................................12
Before starting work..................................................................................................13
Setting up for work ...................................................................................................13
Tool start..................................................................................................................13
Tool stop: .................................................................................................................14
Power lines...............................................................................................................14
Mounting/Dismounting/Working and Transportation.............................................15
Mounting ..................................................................................................................15
Transport position.....................................................................................................17
Work position............................................................................................................18
Field of application ...................................................................................................19
Operation .................................................................................................................21
Practical example.....................................................................................................22
Hydraulic telescope...................................................................................................23
Diagrams ....................................................................................................................24
Valve with flow divider..............................................................................................24
Work tools ..................................................................................................................25
Finger cutter.............................................................................................................25
Saws ........................................................................................................................26
Belt chart..................................................................................................................28
Correct adjustment of the belt ..................................................................................29
General maintenance instructions...........................................................................30
Lubrication................................................................................................................30
Hydraulic hoses........................................................................................................30
Oil Supply.................................................................................................................31
Maintenance chart....................................................................................................31
Bushes and bearings................................................................................................32
Storage.....................................................................................................................32
Problem solving.........................................................................................................33

Hedge Cutter 165 & Branch Cutter 1402 5
USEFUL INFORMATION
Before using the machine for the first time, it’s the seller’s responsibility that the buyer
is given this manual, and the seller is sure, that the buyer fully understands the manu-
al’s contents. If the machine is resold, the manual must be transferred to the new own-
er.
Please fill out the list below to ensure that the necessary information is at hand when
ordering spare parts etc.
Serial No.
Delivery date
Dealer
E-mail
Tlf.
Weidemann GmbH
Mühlhäuser Weg 45-49
34519 Diemelsee-Flechtdorf
Tlf.: [phone]
Fax: [phone]
Email: [email protected]
http: www.weidemann.de

Hedge Cutter 165 & Branch Cutter 1402
6
GENERAL INFORMATION
Read this manual before fitting or operating the machine or accessory. Whenever any
doubt exists contact your local dealer or Weidemann GmbH for assistance
Only use genuine Weidemann spare parts for Weidemann machinery and
equipment!

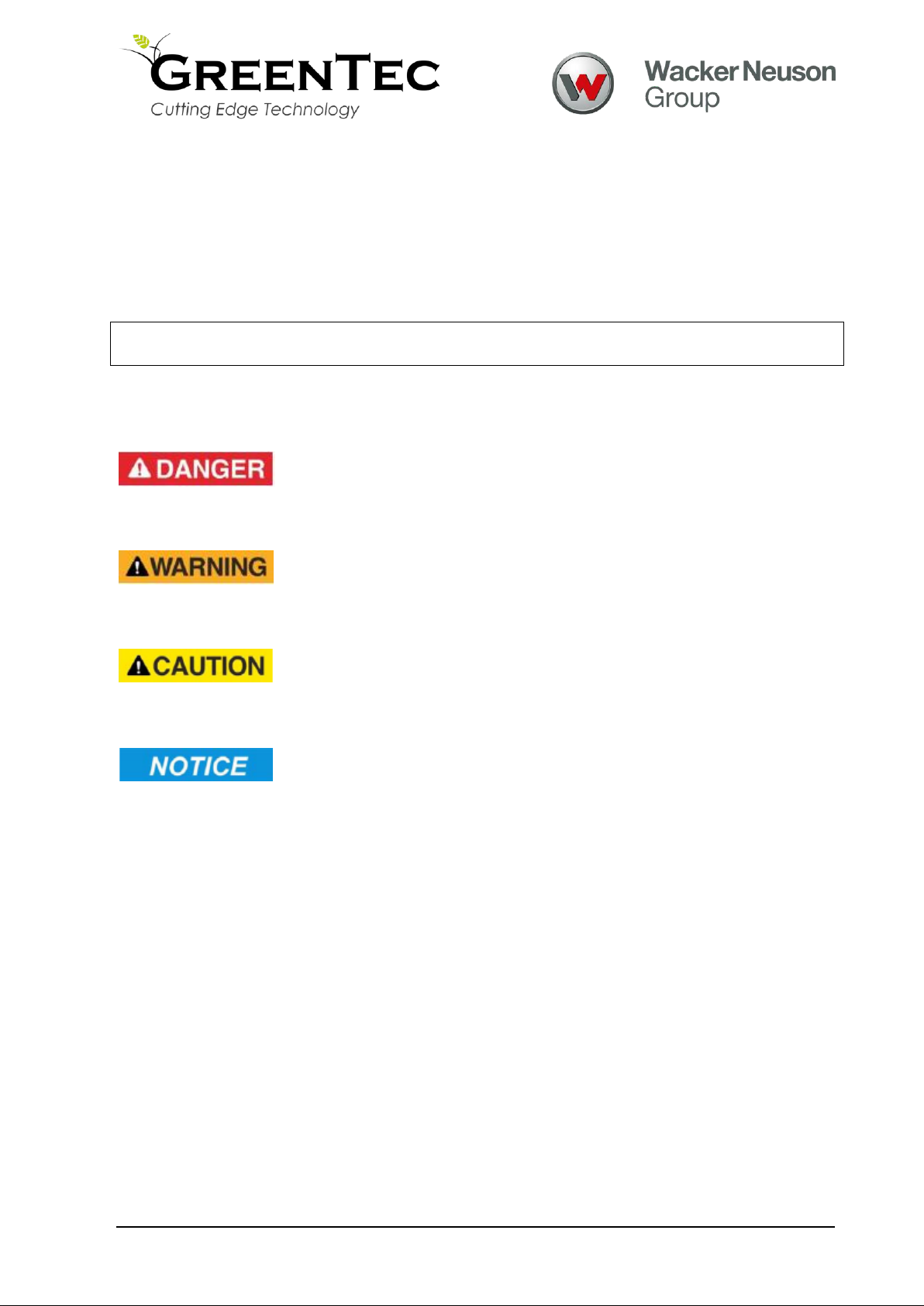

DEFINITIONS: The following definitions apply throughout this manual;
DANGER: Alerts to a hazardous situation which will result in death or serious injury if
not observed carefully.
WARNING: Alerts to a hazardous situation which could result in death or serious injury
if not observed carefully.
CAUTION: Alerts to a hazardous situation which could result in damage to the ma-
chine and/or equipment if not observed carefully.
NOTICE: Specific or general information considered important or useful to emphasize.
LEFT HAND (LH) & RIGHT HAND (RH): These terms are applicable to the machine
when fitted to the tractor and viewed from the rear; these terms also apply to tractor
references.
SERIAL PLATE
All machines are equipped with a serial number plate containing important information
relating to the machine including a unique serial number used for identification purpos-
es.
Note: Images in this manual are provided for instruction and informational purposes
only and may not show components in their entirety. In certain instances images may
appear different to the actual machine; where this occurs the general procedure will be
basically the same.

Hedge Cutter 165 & Branch Cutter 1402 7
CE DECLARATION OF CONFORMITY
Adapted EEC directive
EG Guideline 2006/42/EF, 89/392/EEC & 98/37/EC
We, GreenTec A/S, Merkurvej 25, 6000 Kolding, hereby declare that in terms of its
design, method of construction and our execution thereof, the item of machinery de-
scribed below complies with the basic health and safety regulations of the respective
EU Directives 2006/42/EF, 89/392/EEC, 98/37/EC and AMD 91/368/EEC, AMD
93/44/EEC, AMD 93/68/EEC, and the European Standard BSEN 292, Section 1: 1991
Safety of Machinery –General principles for design –Risk assessment and risk reduc-
tion; Section 2: 1991 technical principles and specifications and other national stand-
ards related to its design and construction, mentioned in the technical documents.
.
The Machinery Directive is supported by the following harmonized standards:
Product: WN Hedge Cutter & WN Branch Cutter
Product code: 1000369361,1000369362,1000369363,1000369364
1000369209, 1000369210, 1000369221, 1000369222
Serial no.: ___________
Type: Hedge Cutter & Branch Cutter
➢DS/EN ISO 12100 3rd edition 2011. Safety of Machinery –General principles for
design –Risk assessment and risk reduction.
➢DS/EN 953+A1 4th edition 2010. Safety of Machinery –Guards-General re-
quirements for the design and construction of fixed and movable guards.
➢DS/EN ISO 4413 1th edition 2010. Hydraulic fluid power –General rules and
safety requirements for systems and their components.
On behalf of GreenTec A/S
Date: 14.4.2016 Signature: ________________________________
John Christensen Sales Executive

Hedge Cutter 165 & Branch Cutter 1402
8
Notice
The following sections must be complied with in order to secure stability and safety.
PPE (personal protective equipment)
The machine operator must also use personal protective equipment (PPE) to minimize
the risk of serious injuries: Goggles (mesh visor EN1731 or safety goggles EN166),
Ear muffs (EN352), safety helmet (EN297), work gloves and identifiable work clothes.
Vehicle Ballast
It is imperative when attaching ‘third-party’ equipment to a vehicle that the
maximum possible stability of the machine and vehicle combination is achieved –this
can be accomplished by the utilization of ‘ballast’ in order to counter-balance the addi-
tional equipment added. WN Branch Cutter & WN Hedge Cutter were tested on
Hoftracs with 1800 kg, an axle base of 135 cm and a wheel gauge of 110 cm, meas-
ured from/to the outer edge of the wheel. As there are several different types of seg-
mented vehicles and a difference in the weight distribution, the given information must
be interpreted as ”guide lines”. Where possible, you should always choose wide tires in
order to increase the stability of the Hoftracs.
Front weights
May be required for rear mounted machines to place 15% of total outfit
weight on the front axle for stable transport on the road and to reduce ‘crabbing’ due to
the drag of the cutting unit when working on the ground.
Rear weights
May be required to maintain a reasonable amount of rear axle load on the
opposite wheel from the arms when in work; for normal off-ground work i.e. hedge cut-
ting this should be 20% of rear axle weight or more for adequate control. All factors
must be addressed in order to match the type and nature of the equipment added to
the circumstances under which it will be used –in the instance of Power Arm hedge
cutters it must be remembered that the machines center of gravity during work will be
constantly moving and will differ from that during transport mode, therefore balance
becomes critical.

Hedge Cutter 165 & Branch Cutter 1402 9
Factors that affect stability
➢Centre of gravity of the tractor/machine combination.
➢Geometric conditions, e.g. position of the tool and ballast.
➢Weight, track width and wheelbase of the vehicle.
➢Acceleration, braking, turning and the relative position of the tool during
these operations.
➢Ground conditions, e.g. slope, grip, load capability of the soil/surface.
➢Rigidity of implement mounting.
➢Pay close attention to the fact that the weight balance changes when using
Hoftracs with articulated pendulum joint, the faster this is moving.
Suggestions to increase stability
➢Increasing rear wheel track; a vehicle with a wider wheel track is more
stable.
➢Ballasting the wheels; it is preferable to use external weights but liquid
can be added to around 75% of the tire volume –water with anti-freeze or
the heavier Calcium Chloride alternative can be used.
➢Addition of weights –care should be taken in selecting the location of the
weights to ensure they are added to a position that offers the greatest ad-
vantage.
➢Front axle locking (check with tractor manufacturer).
NOTE: The advice above is offered as a guide for stability only and is not a guide to vehicle
strength. It is recommended that you consult your vehicle manufacturer or local dealer to obtain
specific advice on this subject, additionally advice should be sought from a tire specialist with
regard to tire pressures and ratings suitable for the type and nature of the machine you intend to
fit.

Hedge Cutter 165 & Branch Cutter 1402
10
Safety
Machine type:
WN Hedge Cutter
WN Branch Cutter

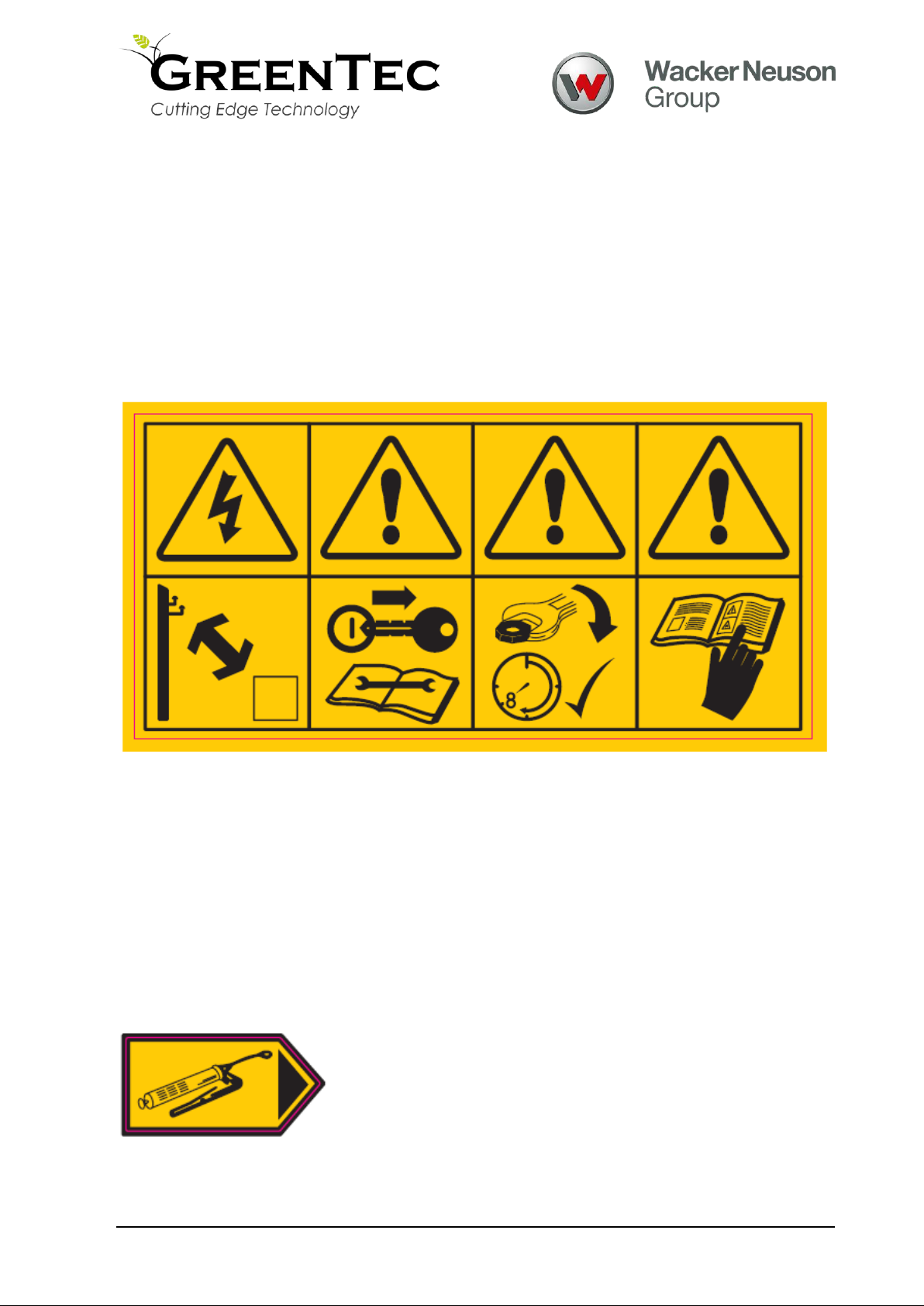

Safety stickers:

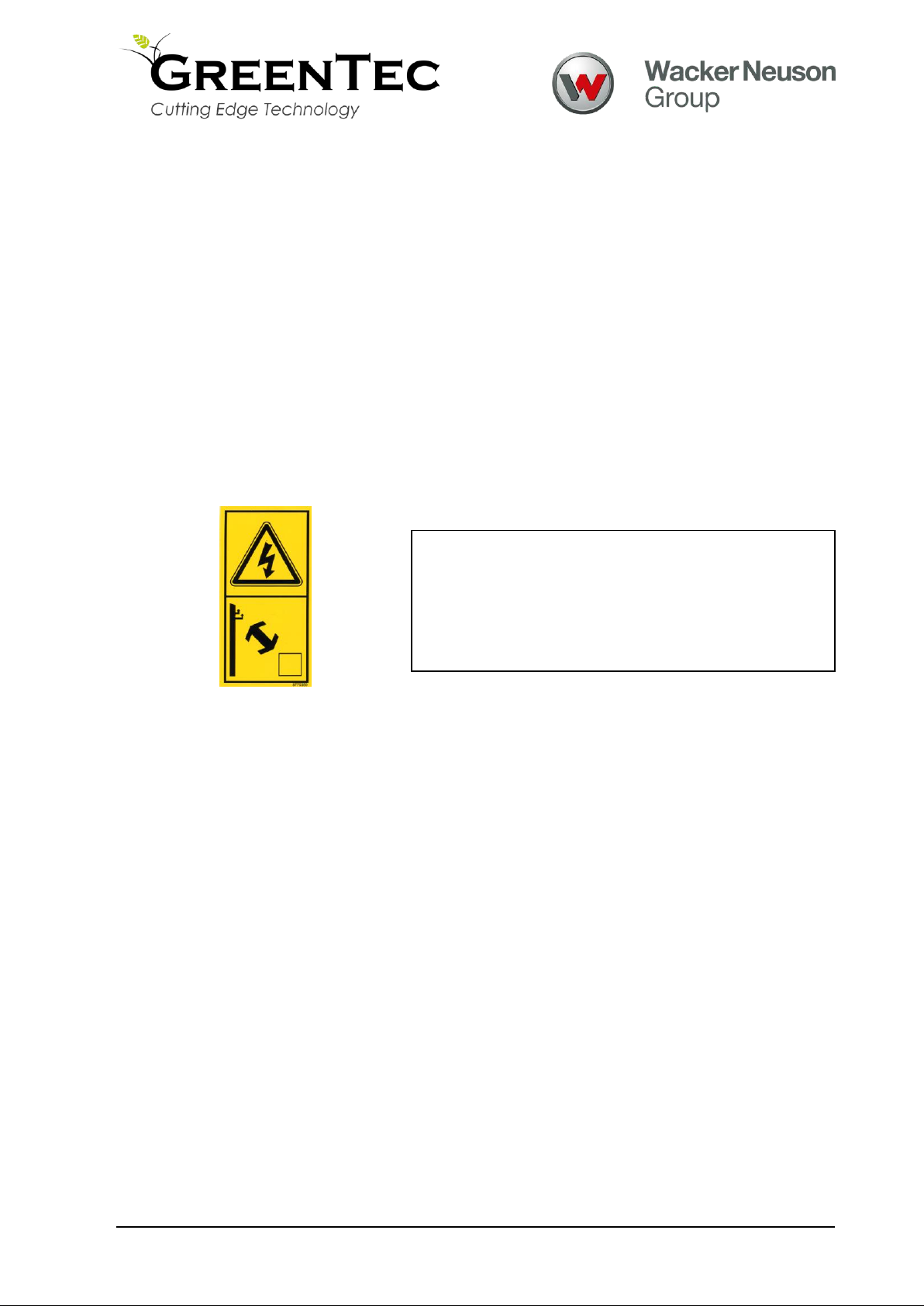

Warning!
Keep clear of elec-
tric cables. Please
note the chapter on
power lines.
Warning!
Stop engine and
remove key before
performing
maintenance or
repair work.
Warning!
Check all nuts
and bolts are
tight every 8
hours –retighten
if required.
Warning!
Carefully read oper-
ator’s manual before
handling this ma-
chine. Observe in-
structions and safety
rules when operat-
ing.
Nipple points
