Taco 0010-MSF-IFC User manual

Instruction Sheet
0010-MSF-IFC Multi-Speed Cartridge Circulator “Ser ice Pump”
with Integral Flow Check and 4–Bolt Uni ersal Flange
102-232
APPLICATION:
Use the “Service Pump” to replace most commonly used circulators.
• Maximum operating pressure is 125 psi (862 kPa).
• Maximum water temperature not to exceed nameplate rating.
• Cast iron circulators are to be used or closed loop systems only.
• Taco Cartridge circulator pumps are or indoor use only – employer uniquement
a linterieur.
CAUTION: 1. The addition of petroleum based fluids or certain chemical additives to systems
utilizing TACO equipment voids the warranty.
2. Use supply wires suitable for 90 C – ATTENTION: Employer des fils dalimentation
adequats pour 90 C.
WARNING: To avoid electrical shock, disconnect the power supply to the circulator and the main
electrical unit.
WARNING: Do not use in swimming pool or spa areas; pump has not been investigated for this
application.
WARNING: In the event the retaining screws have been pulled out of the housing, DO NOT replace
them. Use of any other screw may short out the stator windings, creating a risk of elec-
trical shock.
CAUTION: When installing electrical connections, do not apply mechanical loads to the capacitor
box; otherwise, retaining screws may be pulled out of the housing, making circulator
unusable.
SUPERSEDES: May 1, 2010 EFFECTIVE: July 15, 2014
Plant ID# 001-3904
CAUTION: Installations at higher elevations over 5000 feet must have higher fill pressure of 20 psi
minimum to prevent pump cavitation and flashing. Premature failure may result. Adjust
expansion tank pressure to equal fill pressure. A larger size expansion tank may be required.
INSTALLATION:
1. Location – Install the
“OO” circulator on the supply side o the boiler “pumping away” rom the expansion tank as shown in
Figure 1. This is the best pump location or optimum system per ormance and maintaining positive system pressure. An alter-
nate location is on the boiler return line as shown in Figure 2.
2. Mounting position – Mount circulator with the motor in the horizontal position. It may be mounted vertically with the
motor up, provided that the system cold ill pressure is at least 20 psi (138 kPa) to ensure proper air purging and pre-
vent lashing.
3. Rotating body – Body has an arrow on the ront that indicates direction o low. To rotate body, remove the our body
bolts, rotate body and replace bolts. Make sure that the junction box is NOT located underneath the circulator. (The
junction box must NOT be located in the 6 o’clock position, as viewed rom the motor end.)
4. Electrical connections – Observe all applicable codes when connecting to power supply.
The motor is impedance protected, and does not require additional overload protection.
Either colored wire rom the capacitor box can be attached to either colored wire rom the
power supply. There is no “hot” or “common” wire leading rom the capacitor box. Typical
installation would be to attach the white wire to the white (common) power supply wire and
either the yellow or blue wire to the black (hot) power supply wire. The pump cannot run
backwards.
SPEED Amps (Watts)
1 0.57 (62)
2 0.79 (88)
3 0.91 (109)
ELECTRICAL DATA
CAUTION: Do not use flat rubber gaskets on pump flanges. Only use O-ring gaskets provided or
leaking will result. Warranty will be void.

BOILER
FF
EXPANSION
TANK
ZONE 1ZONE 2
ZONE 1
ZONE 2
V2
V2
V3
V3
V1
PV4

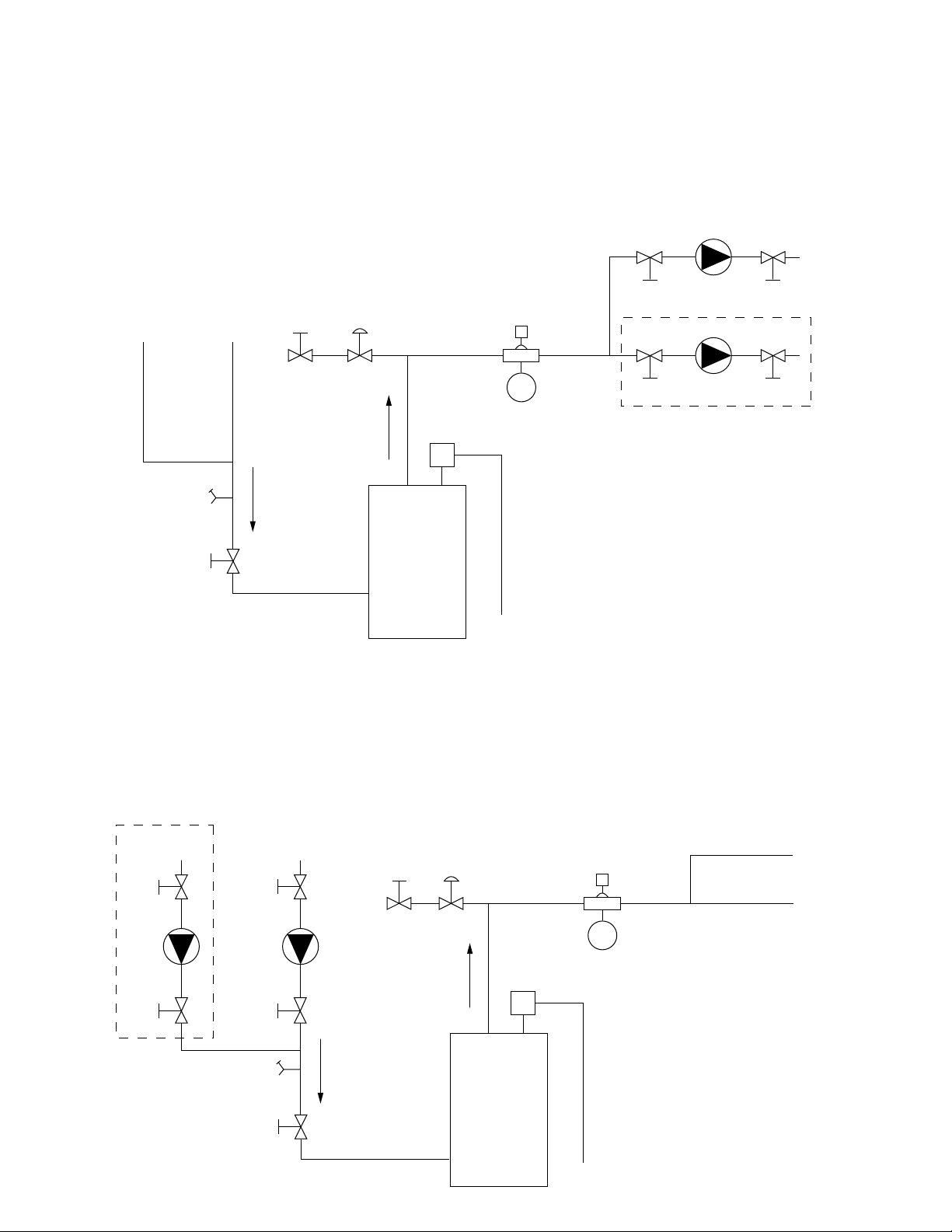

FIGURE 1:
PREFERRED PIPING
FOR CIRCULATORS
ON BOILER SUPPLY LINE
P
P
BOILER
FF
EXPANSION
TANK
ZONE 1
ZONE 2
V1
PV4
FIGURE 2:
ALTERNATE PIPING
FOR CIRCULATORS
ON BOILER RETURN LINE
ZONE 1ZONE 2
V2V2
V3V3
PP
KEY:
VI, V2, V3 = SHUT-OFF ISOLATION VALVE
P = TACO IFC CIRCULATOR
FF = FAST FILL BOILER FEED VALVE
PV4 = PURGE VALVE
RECOMMENDED PURGING STEPS:
1. CLOSE V1, PV4, V2
2. OPEN V3
3. OPEN FF VALVE
4. OPEN V2, PV4, TO PURGE ZONE 1
5. CLOSE FF VALVE
6. CLOSE V2, PV4
7. REPEAT STEPS 1 TO 6 FOR EACH
ADDITIONAL ZONE
8. OPEN V1 WHEN ALL ZONES ARE
PURGED
. ADJUST SYSTEM TO DESIRED
OPERATING FILL PRESSURE IF
REQUIRED
5. Fill system with tap water – The system must be illed be ore operating the circulator. The bearings are water lubricat-
ed and should not be allowed to operate dry. Filling the system will result in immediate lubrication o the bearings. It is
always good practice to lush a new system o oreign matter be ore starting the circulator.
6. Circulator operation – Operate the circulator or 5 minutes immediately a ter lushing the system to purge remaining air
rom the bearing chamber. This is especially important when installing the circulator during the o -season.
7. Turn speed dial on circulator to the desired speed and per ormance range. See Figure 3.

Your “00” circulator with an Integral Flow Check (IFC) is
designed or easy removal, service and replacement. Please
ollow these instructions to ensure proper service and operation
o the circulator.
REMOVAL:
1. Disconnect power to circulator and related equipment.
2. Shut o water supply. Isolate circulator using service valves
or drain system i valves are not available.
3. Allow system to cool to prevent scalding. Loosen lange bolts
slowly to relieve system pressure and remove circulator rom
the system. Access the IFC located in the discharge lange
(Figure 4).
4. Using needle nose pliers, care ully grip the IFC body and
remove slowly.
PROPER REMOVAL/REPLACEMENT OF THE INTEGRAL FLOW CHECK (IFC)
Figure 4: View o IFC in discharge
lange o “00” pump casing.
Flow (m^3/h)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5
Head (m)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0123 4 5 6 789101112131415161718192021222324252627282930
TOTAL HEAD (ft)
0
2
4
6
8
10
12
14
16
18
LLow - Speed 1
MMedium - Speed 2
High - Speed 3
H
Multi-Speed Circulators
0010-MSF-IFC
H
L
M
TOTAL FLOW (gpm)
Figure 3: Multi-Speed Control Dial
PUMP REPLACEMENT CROSS REFERENCE
60 Hz PERFORMANCE FIELD:
Multi-Speed Single Speed Models
TACO Armstrong B & G TACO
0010-MSF2-IFC
Service Pump
Speed 1 Astro-20 NRF-9F/LW 005, 005-IFC
Speed 3
Speed 2
S-25
–
100, NRF-22/33
LRF-20BF
110, 0010, 0010-IFC
007, 007-IFC

REPLACEMENT:
1. Make sure the IFC pocket is clean and ree o any debris.
2. Position IFC into the machined pocket inside the casing as shown in Figure 4. Firmly press the IFC into the pocket until
it snaps into place.
3. Reinstall circulator with new lange gaskets, i required.
4. Open water supply and re ill system. Check or any leaks.
5. Reconnect power to circulator and check or proper operation o system.
REPLACING MOTOR ASSEMBLY:
1. Disconnect the electrical supply.
2. Reduce system pressure to 0 psi and allow system to return to room temperature. Isolate the circulator by closing the
service valves or draining the system.
3. Remove the body bolts and swing motor assembly away rom the body.
4. Trans er impeller cartridge rom old motor to new motor making sure the cover plate is between the cartridge lange
and motor housing.
5. Install new motor, and reassemble circulator using the new gasket and bolts supplied.
6. Follow the “installation” procedure to start up the circulator
REPLACING CARTRIDGE ASSEMBLY:
1. Disconnect the electrical supply.
2. Reduce system pressure to 0 psi and allow system to return to room temperature. Isolate the circulator by closing the
service valves or draining the system.
3. Remove the body bolts and swing motor assembly away rom the body.
4. Pull cartridge out o the motor housing.
5. Install replacement cartridge, making sure that the cover plate is between the cartridge lange and motor.
6. Make sure the replacement cartridge corresponds to the ull circulator product number. A complete parts list is available
rom your local plumbing supply wholesaler.
7. Reassemble the circulator using the new gasket and bolts supplied.
8. Follow the “Installation” procedure to start up the circulator.
REPLACING CAPACITOR:
1. Replacement capacitor must have same rating as originally urnished.
LIMITED WARRANTY STATEMENT
Taco, Inc. will repair or replace without charge
(at the company’s option) any Taco 00 Series cir-
culator or circulator part which is proven de ec-
tive under normal use within three (3) years rom
the date o manu acture.
In order to obtain service under this warranty, it
is the responsibility o the purchaser to promptly
noti y the local Taco stocking distributor or Taco
in writing and promptly deliver the subject product
or part, delivery prepaid, to the stocking distrib-
utor. For assistance on warranty returns, the
purchaser may either contact the local Taco
stocking distributor or Taco. I the subject prod-
uct or part contains no de ect as covered in this
warranty, the purchaser will be billed or parts
and labor charges in e ect at time o actory
examination and repair.
Any Taco product or part not installed or operated
in con ormity with Taco instructions or which has
been subject to misuse, misapplication, the
addition o petroleum-based luids or certain
chemical additives to the systems, or other
abuse, will not be covered by this warranty.
I in doubt as to whether a particular substance
is suitable or use with a Taco product or part, or
or any application restrictions, consult the
applicable Taco instruction sheets or contact
Taco at (401-942-8000).
Taco reserves the right to provide replacement
products and parts which are substantially similar
in design and unctionally equivalent to the
de ective product or part. Taco reserves the right
to make changes in details o design, construc-
tion, or arrangement o materials o its products
without noti ication.
TACO OFFERS THIS WARRANTY IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. ANY
WARRANTY IMPLIED BY LAW INCLUDING
WARRANTIES OF MERCHANTABILITY OR
FITNESS IS IN EFFECT ONLY FOR THE DURA-
TION OF THE EXPRESS WARRANTY SET
FORTH IN THE FIRST PARAGRAPH ABOVE.
THE ABOVE WARRANTIES ARE IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR
STATUTORY, OR ANY OTHER WARRANTY
OBLIGATION ON THE PART OF TACO.
TACO WILL NOT BE LIABLE FOR ANY SPE-
CIAL, INCIDENTAL, INDIRECT OR CONSE-
QUENTIAL DAMAGES RESULTING FROM THE
USE OF ITS PRODUCTS OR ANY INCIDENTAL
COSTS OF REMOVING OR REPLACING
DEFECTIVE PRODUCTS.
This warranty gives the purchaser speci ic
rights, and the purchaser may have other rights
which vary rom state to state. Some states do
not allow limitations on how long an implied war-
ranty lasts or on the exclusion o incidental or
consequential damages, so these limitations or
exclusions may not apply to you.
Do your best work.®
TACO, INC., 1160 Cranston Street, Cranston, RI 02920 Telephone: (401) 942-8000 FAX: (401) 942-2360.
TACO (Canada), Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8. Telephone: 905/564-9422. FAX: 905/564-9436.
Visit our web site at: http://www.taco-hvac.com
Printed in USA
Copyright 2014
TACO, Inc.
