tacwise Master Nailer 191EL PRO User manual

MASTER NAILERTM 191EL PRO
A superb electric nailing/stapling gun which fires 180 nails from 15-35mm and 91 staples from
15-30mm quickly and neatly.
Rubberised
safety
trigger
Long
powercord
On/off
switch
Professional
quick release
reload catch
Soft rubber
handle grip
All metal professional
nose safety system
Long protruding nose
to nail into tight corners/grooves
Professional driver
blade system
Rubber protector
for soft surfaces
PRODUCT SPECIFICATIONS
Input Voltage : 220-240 volts 50 Hz
ax. Firing speed : 4-Nails/Staples-per second
ax. Length of nail : Up to 35mm long (fires six lengths)
ax. Length of staple : Up to 30mm long (fires four lengths)
ax. agazine Capacity : Holds up to 100 nails or staples
Nail/Staple Type (I PORTANT) : Use Tacwise Nails Type 180 and Tacwise Staples Type 91 only
Approvals :
TM
Position B
Position A

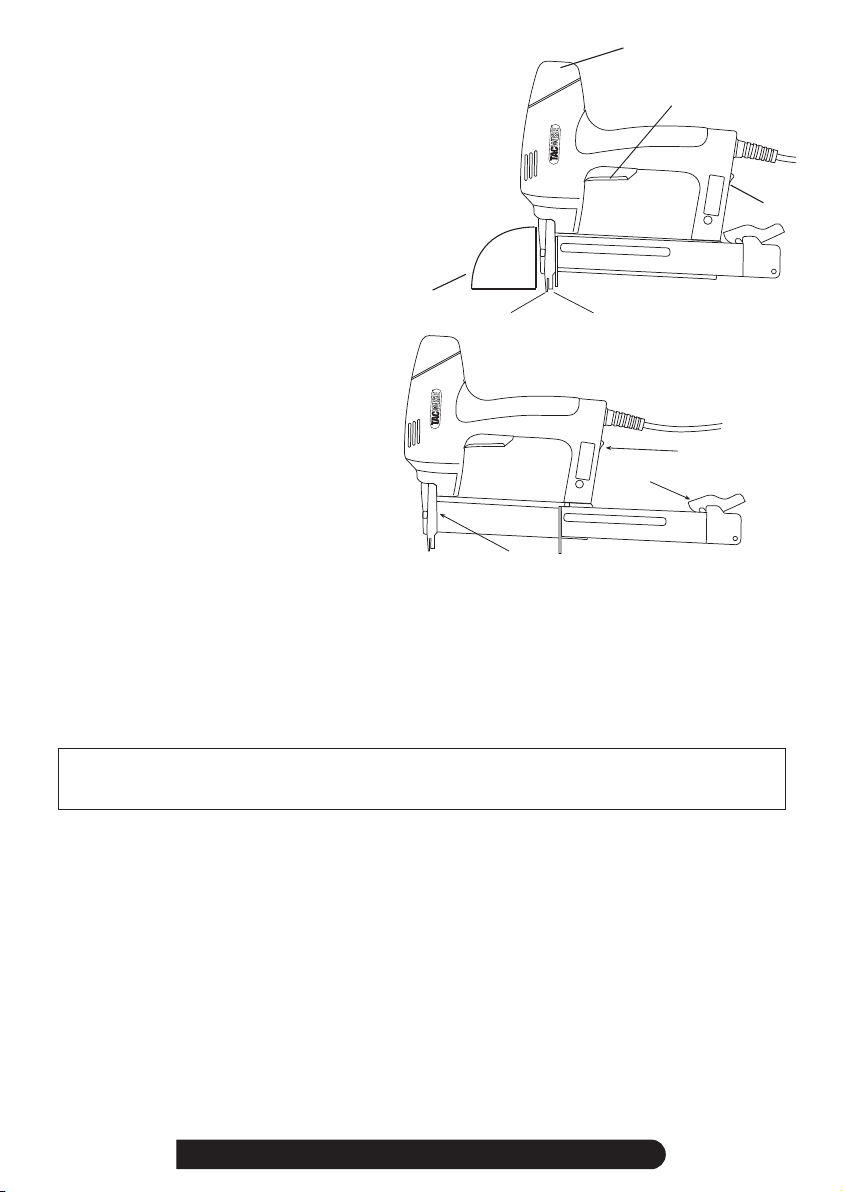

Catch
Magazine
Trac k
45º
DIRECTIONS FOR USE
Step one: Loading your aster NailerT Pro 191EL
1. Unplug from power source.
2. Only use Tacwise 180 Type Nails and Tacwise 91 Type
Staples which are designed especially for this machine.
3. Slide the pusher backwards from position B to position A by
releasing the catch (1).
4. Nails & Staples - tilt the gun at 45˚ angle and place the
nails/staples so that the top of the nail/crown of the staple is
in the uppermost of the magazine.
5. Push feeder back until release catch clicks.
SUITABLE APPLICATIONS: Softwood & hardwood applications, DF, Hobby/Crafts. Fine decorative trim, beading
and mouldings. Tongue & Groove panelling. Cabinet and plywood assembly, garden furniture and trellis work,
door/window assembly, hardwood flooring, panelling and trims. Plasterboard, picture/mirror frames. Sub-flooring
and many more...
15mm/20mm/25mm
/30mm/32mm/35mm
15mm/20mm
/25mm/30mm
NAILS 15mm-35mm
STAPLES 15mm-30mm
Distributed by
J W Ross

Step two: How to use nailer/stapler
1. Plug tool into mains power outlet.
2. Turn the tool on at the on/off switch.
3. Hold tool firmly with tacking mouth flat to workpiece
forming a 90º angle- the safety pin in the mouth of tool
must be pressed firmly against the workpiece or it will
not operate.
4. Squeeze trigger to fire the tool.
5. On hard surfaces press down on top of tool with
free hand.
6. On soft surfaces use light pressure to prevent deep
nail penetration, and use the red nose piece
(supplied) to prevent marking the surface.
5
4
3
2
90o
Tacking Mouth Safety Pin
CLEARING A JAMMED NAIL
In the unlikely event of the tool jamming:-
1. Turn the tool off at the on/off switch and
disconnect at power outlet.
2. Open feeder by pushing down on the
release catch.
3. Free nail/staple from inside the magazine.
2
3
1
SAFETY
• Always wear safety goggles. • Do not operate machinery when tired.
• Ensure tool is turned off at the on/off switch • Keep children away.
when not in use. • Never expose tool to rain.
• Do not wear loose clothing or jewellery. • Store tool in dry, secure place.
• Ensure damaged parts/defective switches • Never carry tool by cord or yank to
are repaired by an authorised service centre. disconnect from power outlet.
• Never operate near flammable liquids or • Do not alter or misuse tool.
explosive atmospheres.
WARNING: Not suitable for nailing/stapling into concrete, masonry, bricks or steel. DO NOT fire if the nails/staples
are jammed as this will cause damage to the driver blade. Ensure tool is turned off at the on/off switch when not in
use. Keep fingers off trigger until ready to drive staple/nail.
FASTENING TOOLS FOR THE PROFESSIONAL
Warranty
1. This product has been manufactured to a high quality standard. It is guaranteed against faulty materials and workmanship
for 12 months from purchase, Please retain your receipt as proof of purchase.
2. If the product is found to be defective within the relevant time period, we will either replace all defective parts or, at our
discretion, replace the unit free of charge with the same item or items of a greater value and / or specification.
3. This guarantee does not cover defects caused by or resulting from:
(a) misuse, abuse or neglect;
(b) hire use;
(c) repairs attempted by anyone other than our authorised repair centres; or
(d) damage caused by foreign objects, substances or accident;
(e) consumable and / or wear items such as driver blades, feeder springs etc.
4. This guarantee is offered in addition to, and does not effect, your statutory rights.
Distributed in Australia by J W Ross and Sons ( Australia ) Pty Ltd.
PO Box 352 North Ryde BC, NSW, 1670
Inquiries phone [phone]
