Tadiran Telecom AIROW 1 User manual

17
Installation
Manual
Air Purifier
Model: TADIRAN AIROW 1

2
TABLE OF CONTENT
Safety Hazard 3
Device Specification 4
Introduction 6
How Does It Work 7
How To Operate Your Device 7
Included Parts 8
Prior to Installation: Inspection & Location 9
Installation 10
Verification 13
Warranty 14
Indication for Use & Legal, Patent Info 15

3
SAFETY HAZARD
• This Class III appliance must
only be supplied at short-circuit
proof, safety extra-low voltage
corresponding to the marking on
the appliance.
• This Class III appliance must only
be supplied at SELV.
• This Class III appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning the use
of the appliance by a person
responsible for their safety.
Children should be supervised
to ensure that they do not play
with the appliance.
• This Class III appliance is not
intended to be installed as a
stand-alone device. It is always
installed in an indoor unit of
a ducted air conditioner (the
receiving equipment).
• This Class III installation manual
is intended to provide all required
instructions on how to install the
purifier into the indoor unit of the
air conditioning system.
• Verify that the installation is
performed in accordance with
the Installation diagram as in
page 11.
• Means for disconnection of
the supply mains must be
incorporated in the fixed wiring in
accordance with the wiring rules.
• This instruction is intended
for installing the purifier in the
receiving equipment, its safety
instructions – according to the
relevant standard –must be
described in the user manual of
the receiving appliance.
NOTE!
ÌThe device contains a sharp needle that carries high voltage and also
might cause injury. Never insert a finger or any other unprotected body part
into the device! Use only isolated tools when servicing or testing the device!
ÌOnly qualified and licensed HVAC technicians may install this device.
ÌThe installation is to be conducted by applicable regulations.
This appliance is Class III equipment

4
SPECIFICATIONS
Electrical
Power Supply Input Voltage 100 to 240 VAC
Power Supply Output Voltage 12 VDC 5%
AC Power Consumption 3 W Max
Device Power Consumption 1 W Max
Mechanical
Weight 300 g
Dimensions 13.6 x 10.4 x 7.5 cm
Housing Material ABS Plastic
Color White
Environment
Operation Temperature -5°C to +55°C
Operation Humidity
(Non-Condensing) 20%-90%, Non-Condensing
Air Flow Rating 4000 m3/H
Features
Maintenance Free Self-Cleaning Mechanism
LED Indication Green: Proper Operation / Red: Failure
Gas Emission
Hydrogen Peroxide Concentration < 15 ppb
Ozone Concentration < 5 ppb
+
-

5
OUTLINE DRAWING
* All dimensions are in centimeters.
Front View
7.57.5
10.410.4 13.613.6
Side View

6
INTRODUCTION
When installed in an air conditioning system, the TADIRAN AIROW 1
TM
will
reduce COVID
1
and other viruses
2
, bacteria
3
, and mold
4
. To learn more about
the tests, visit www.tadiran-international.com/scientific-testing.

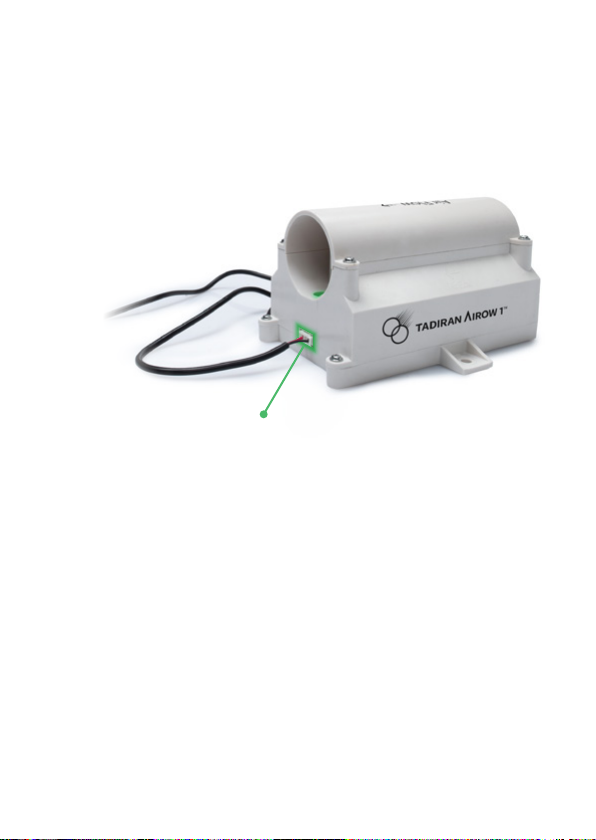

The following illustration depicts the TADIRAN AIROW 1
TM
device:
Needle
Air
Outlet
DC Power Connector
Air Outlet
Mounting Holes
Air Flow Direction
1. TADIRAN AIROW reduced detected SARS-COV-2 aerosol levels by 99.998% within 1 ½ hour
(1 cubic meter test chamber).
2. TADIRAN AIROW reduced MS2 levels by 99.9988% in 2½ hours (1 cubic meter test chamber).
3. TADIRAN AIROW reduced Staphylococcus Epidermidis by 99.9973% in 2½ hours
(1 cubic meter test chamber).
4. TADIRAN AIROW reduced levels of Aspergillus Niger by 98.93% in 2 hours
(1 cubic meter test chamber).
Air Inlet
Air Flow Direction

7
HOW DOES IT WORK?
The TADIRAN AIROW 1
TM
, converts moisture (H
2
O) and Oxygen (O
2
) into
hydrogen peroxide (H
2
O
2
). Hydrogen peroxide is capable of effectively
treating the polluted air in the air-conditioned space. The hydrogen peroxide
destroys bacteria, viruses and mold, improving the overall indoor air quality in
the conditioned space.
The principle of operation is based on the formation of an electric field
between a medical needle located in the center of the device and a metal
cylinder that surrounds the inside of the device. The device includes an
automatic needle cleaning mechanism that operates when the electronic
circuit detects the need for cleaning. You will hear a clicking sound when the
automatic cleaning mechanism is activated.
HOW TO OPERATE THE DEVICE?
The TADIRAN AIROW 1
TM
operates when it is connected to the power supply,
and it immediately starts purifying the air entering the air-conditioned space.
When activated, a green LED indicator inside the device lights up to indicate
the proper operation. A red LED indicates a malfunction.
Device Activated
(Green Light)
Device Malfunction
(Red Light)

8
INCLUDED PARTS
The TADIRAN AIROW 1
TM
device kit contains the following items:
OPTIONAL PARTS
To be purchased separately:
TADIRAN AIROW 1 Device
Wired Power Supply
Bracket and Installation
Screws
Installation Manual
(This document)
Display Kit
(Part number: 51619204400)
contains the following items:
› Display unit
› Splitter
› Extension DC power cable
› Display Cable
Installation Plate Kit
(Part number: 51619205400)
contains the following items:
› Installation Plate
› Screw 8x1/2
› Phillips drill head screw
› Lever plate
› Insulation
› Grommet
› Installation instructions

9
INSPECTION PRIOR TO INSTALLATION
After carefully opening the carton, unpack and inspect your TADIRAN AIROW 1TM.
Check the following:
LOCATION OF THE TADIRAN AIROW 1TM
This section provides instructions on where to locate the TADIRAN AIROW 1
TM
within an HVAC indoor unit.
No Damage to the TADIRAN AIROW 1
TM
Box
No Damage to the TADIRAN AIROW 1
TM
Device and Accessories
IMPORTANT!
Air Flow Direction - an arrow on the TADIRAN AIROW 1
TM
device indicates the
correct air direction. Ensure the device is oriented according to the arrow’s
direction.
Installation Location - The TADIRAN AIROW 1
TM
is installed inside the indoor
air conditioning unit.
• Installation Direction - The device is to be installed either in the return
air side, the air supply, or in the indoor unit between the filter and the coil
where the air flows through the TADIRAN AIROW 1
TM
device in the arrow
direction.
• Environmental Conditions - To assure proper operation, verify that the
temperature surrounding the device is within -5°C to +55°C and relative
humidity is kept within 20% to 90%, non-condensing.
• Device Footprint – The footprint of the device is 13.6x10.4x7.5cm.
• Clearance - Allow 5-centimeter clearance for air inlet and outlet at both
devices’ openings. Ensure the surface area of installation is free of dust,
cables, and any other interference.
• Air Flow Velocity - To assure proper operation, verify the air velocity
through the device will be 1.6 m/Sec or above.
SAFETY HAZARD!
Disconnect the air conditioner and the TADIRAN AIROW 1
TM
from the main
supply before performing the installation or before servicing the device.

10
INSTALLATION
This section provides step-by-step instructions on how to install the
TADIRAN AIROW 1TM within an HVAC indoor unit.
1
Connect the connector of the DC Power Supply cable to the TADIRAN
AIROW 1
TM
DC Power Connector.
Following is a diagram of the electrical connections, describing the
TADIRAN AIROW 1
TM
connections to the electrical box. To power the
device only when the indoor unit is on, connect the AC power supply to
the indoor unit fan AC supply or compressor control.
NOTE!
ÌTo stop the device operation, disconnect the DC power supply.
NOTE!
ÌThe power supply has the mean for disconnection of the
supply mains.
ÌThese means for the disconnection of the supply mains must
be incorporated in the fixed wiring in accordance with the
wiring rules.
ÌAn optional external switching of the DC supply to the
TADIRAN AIROW 1
TM
is available on the DC positive wire.
Mains Supply TADIRAN AIROW 1
Power
Supply
Optional external
DC switching
Supply mains
disconnection

11
2
Follow the next diagram that shows the minimum
space required for installation:
Air flow direction
2 cm
Air entering
* All dimensions are in centimeters.
5cm 13.6cm
10.4cm
3
Mount the TADIRAN AIROW 1
TM
inside the ductwork on a metal
surface using the magnets
attached to the base of the
device. This was designed to
assure a simple installation.
No drilling is required. Assure
that you have the device-
oriented properly for airflow
per the arrow direction.

12
INSTALLATION USING A BRACKET
1
Use this installation option where
the duct wall is coated with
insulation material or where it is
required to locate the device closer
to the center of the airflow, to
obtain the necessary air velocity
of 1.6 M/Sec.
2
Mount the TADIRAN AIROW 1
TM
on the bracket.

13
VERIFICATION
A green light will appear immediately after connecting the DC power.
This indicates the proper operation of the device.
Device Activated

14
Activating Warranty
To activate the 3-year warranty, follow the instructions on the
warranty certificate.
In case of a product issue that is under warranty, please be prepared
to provide the following:
The Serial Number (stamped on warranty card).
A Copy of the Bill of Sale or Invoice.
Proof of Installation by a Licensed HVAC Contractor
Thank you
for choosing
Contact your local distributor for any further questions.
For more details regarding Terms and
Conditions and Privacy Policy, visit our
website: www.tadiran-international.com
Copyright © 2022 - Tadiran International.
All rights reserved. This document may be
revised by Tadiran at any time.
WARRANTY
14

15
INDICATION FOR USE
This product is not a medical device and is not intended to be used as a medical
device or to cure any disease or condition, nor should it be used in the mitigation,
treatment, or prevention of any disease or condition.
LEGAL NOTICE
Only qualified and licensed HVAC technicians may install this device. Electricity
should never be connected while touching the inner parts of any electric device.
Tadiran will not be liable for any loss or damage in any case of misuse or
installation by a non-qualified person or not with compliance with the directions
included in this manual. Tadiran does not claim that the TADIRAN AIROW 1
TM
will ensure consumers using the device will not contract biological pathogens.
Consumers should continue to follow guidance from governmental health
organizations and certified health professionals about preventative measures.
Assembled in Romania
PATENT INFORMATION
Patented Self-Cleaning Mechanism:
Europe Patent NO. 3612311 | China Patent NO. CN 110740816
Patented Method of Use:
Europe Patent NO.3743196 (Albania, Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Macedonia, Malta, Monaco, Netherlands, Norway,
Poland, Portugal, Romania, San Marino, Serbia/Montenegro, Slovakia,
Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom.)
China Patent NO. CN 112739389
Israel Patent NO. 262022
South Korea Patent NO.10-2288840
Confirms To:
CARB Certified (California Air Resources Board)
cETLus recognized component mark (UL Std.867
+ certified to CSA Std. C22.2#187)
Verified ZERO OZONE (UL 2998)

16
TADIRAN Consumer and Technology Products Ltd.
Laskov St. 1, Afula 1834159 ISRAEL | www.Tadiran-international.com
TADIRAN AIROW 1TM and its logos are trademarks of Tadiran Consumer and
Technology Products Ltd.©2022 Tadiran, Consumer and Technology Products Ltd.
51302700560-A
