Tadiran Telecom AIROW 3 User manual

Hydrogen Peroxide Aerosol Disinfector
Installation
Manual
Innovative air purification solution
Model: TADIRAN AIROW 3™
Global Markets

– 2 – – 3 –
Safety
Table of Contents
Safety....................................................................... 3
Meet TADIRAN AIROW 3™................................4
Device Specifications......................................... 5
Included Parts....................................................... 6
Installation............................................................. 7
Verification ...........................................................11
Warranty ...............................................................13
Patent Information............................................ 14
• This Class III appliance must only be powered with short-
circuit proof, safety extra low voltage (SELV) corresponding
to the marking on the device.
• This Class III device must only be supplied at SELV.
• This Class III device is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless
they have been given supervision or instruction concerning
the use of the device by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the device.
• This Class III device is not intended to be installed as a stand-
alone device. It is always installed in the indoor part of an air
conditioner (the receiving equipment).
• This Class III installation manual is intended to provide all
required instructions on how to install the purifier into the
indoor part of an air conditioner.
• Verify that the installation is performed in accordance with
the installation diagrams.
• Means for disconnection of the supply mains must be incor-
porated in the fixed wiring following the wiring rules.
• Note that the device contains metal parts that carry high
voltage. Never insert a finger or any other unprotected
body part into the device! Use only isolated tools when
servicing or testing the device!
• The mains to the DC power supply has a contact separation
in all poles that provide full disconnection under overvoltage
category III conditions, the means for disconnection is a quick
disconnect mains plug.
Please follow the installation procedure stated below.
This Device is a Class III Equipment

– 4 – – 5 –
Parameters Value
Weight 100g
Dimensions 96X42X26mm (Net)
Housing Material ABS Plastic, White Color
Operation Temperature –5°C to +55°C
Operation Humidity
(Non-Condensing) 20%–80%
Input Voltage 12 VDC ± 10%
Power Consumption 1 W Max
Indication LED Green – Proper Operation
Red – Failure
Maintenance Zero Maintenance
Ozon Emission <=5 ppb
Hydrogen Peroxide Level <=15ppb
Warranty 3 Year Product Warranty
Meet
TADIRAN AIROW 3™
Device Specifications
The TADIRAN AIROW 3 device device is designed to be imple-
mented in High-Wall air conditioning systems. It is installed
on the air inlet side of the coil, in the indoor unit. TADIRAN
AIROW 3 reduces bacteria, viruses, and molds in the air and
improves the air quality in the conditioned space. The device
helps preventing the development of pollutants within the air
conditioning system.
The principle of operation is based on the formation of an electric
field between a metal wire, located in the center of the device,
and two rectangular metal plates that face the metal wire.
In case of malfunction: the device includes a manual cleaning
mechanism of the metal wire and metal plates.

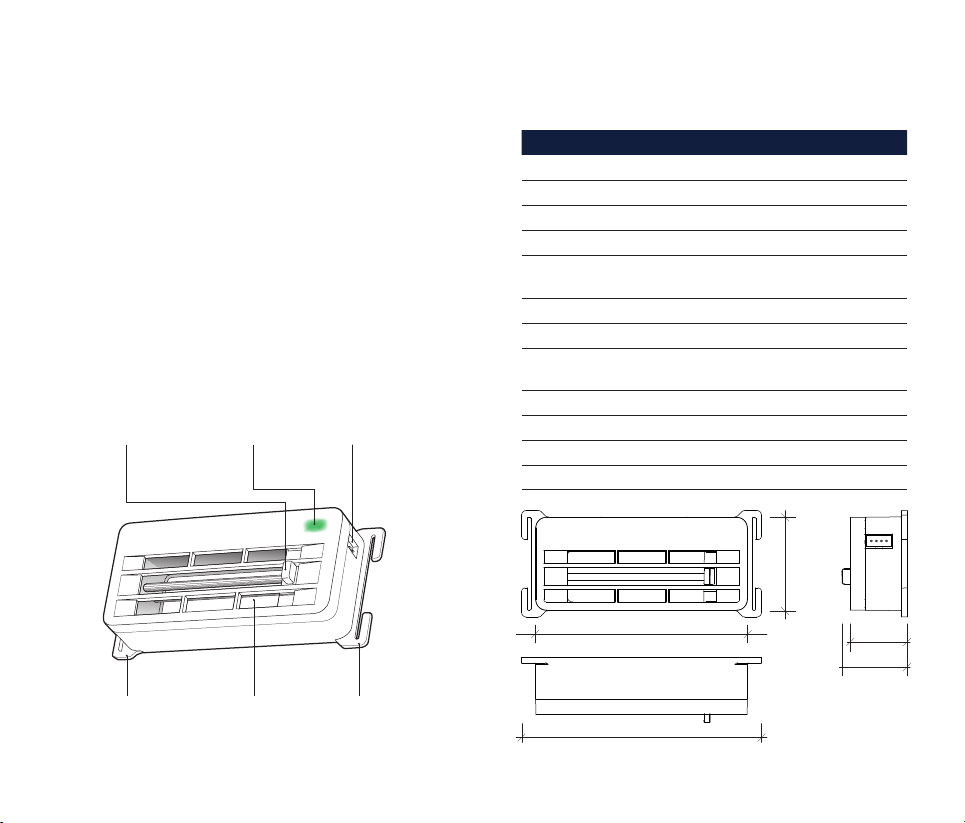

The following illustration outlines the TADIRAN AIROW 3 device.
General Note: All figures shown in this manual are for reference
only.
Air Inlet
Opening
Mounting
Clip Slot
Mounting
Clip Slot
+12V DC
Supply and
Control
Operation
Indicator
Cleaning
Mechanism
26mm
42mm
29mm
108mm
96mm

– 6 – – 7 –
Installation
TADIRAN AIROW 3™Device
Mounting Clips for 7mm
Tube Coil
TADIRAN AIROW 3 Power Supply 110/220VAC to 12 VDC
The TADIRAN AIROW 3™ device also comes with a 3-year
warranty card and safety sticker.
Mounting Clips for 5mm
Tube Coil
Included Parts
Insert the proper installation clips (5mm or 7mm), on both sides
of the unit as shown in the drawing above.
Only qualified and licensed HVAC technicians may install this
device. The TADIRAN AIROW 3 device, power supply and ad-
ditional accessories should be disconnected from any electric
supply when touching their surface or inner parts. Tadiran will
not be liable for any loss or damage in any case of misuse or
installation by a non-qualified person or not in compliance
with the directions included in this manual. Tadiran does not
claim that the TADIRAN AIROW 3™ will ensure consumers using
the device will not contract biological pathogens. Consumers
should continue to follow guidance from governmental health
organizations and certified health professionals about preven-
tative measures.
Disconnect the mains supply of the air conditioner before per-
forming the installation or before servicing the device.
NOTE!

Line – 110/230VAC, 50/60Hz
Neutral
Ground
– 8 – – 9 –
TADIRAN AIROW 3™ Power Supply
12 DVC Supply and Control

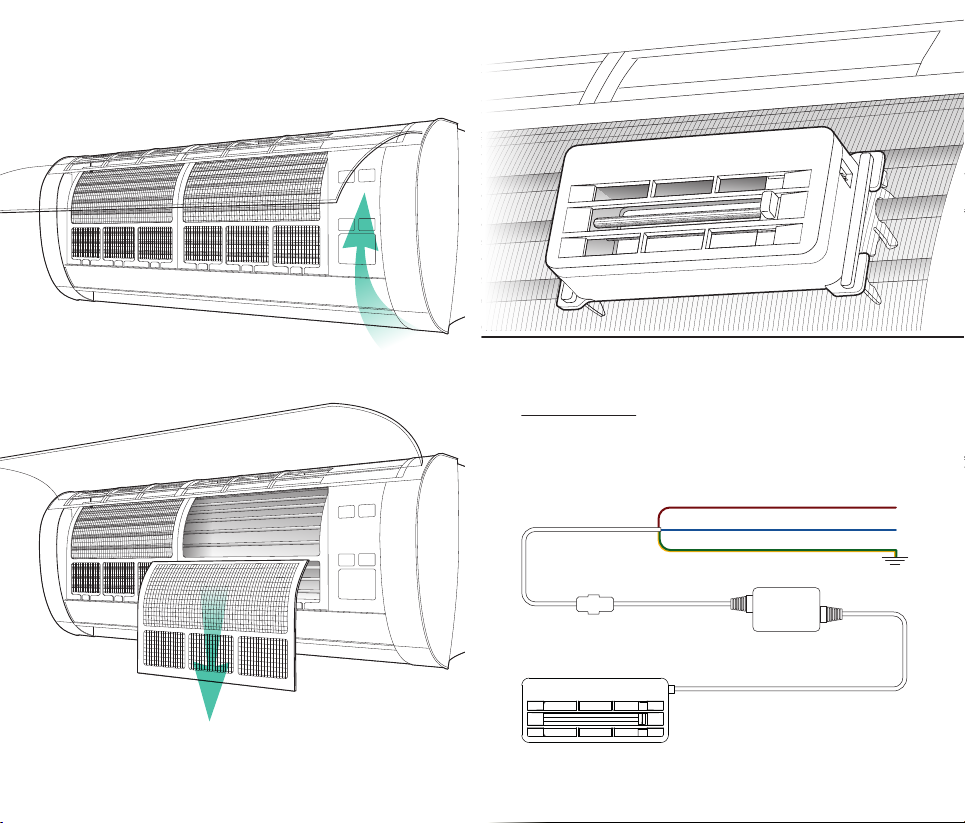

Mount the TADIRAN AIROW 3™ device, using the mounting clips,
onto the indoor unit’s coil, at the upper right corner of the coil.
The following is a diagram of the electrical connections,
describing the TADIRAN AIROW 3™ connections to the terminal
block of the indoor unit.
Open the indoor unit’s front panel.
Remove the air filter.
Before Installation, unplug the air conditioner from the mains
supply.

– 10 – – 11 –
• Mount the power supply in the back of the indoor unit.
• Connect the plug of the DC cable of the power supply to
TADIRAN AIROW 3™ unit.
• Connect the AC cable of the power supply to the terminal
block of the indoor unit.
Brown wire:
– In fix-speed systems to the compressor 230 or 110 VAC
command.
– In variable speed systems (inverter) or fix speed systems
where the compressor command is not available – to the
mains supply.
Blue wire: To the neutral terminal.
Yellow/Green wire: To ground.
• Place the safety sticker in a visible and accessible location,
near the terminal board.
After the unit is installed on the coil, disassemble the plastic
frame of the indoor unit.
• Reassemble the Plastic frame.
• Plug the air conditioner to the mains supply and turn on the
air conditioner.
• The green LED indicator on the TADIRAN AIROW 3™ lights up,
indicating normal device operation.
Verification

– 12 – – 13 –
Installation is
Completed!
Place the air filters back.
Close the front panel.
TADIRAN AIROW 3TM Warranty Registration
3 Years
Coverage
To ensure a valid 3 years warranty, don’t forget
to register your TADIRAN AIROW 3TM upon
installation*.
1. Go to www.tadiran-international.com/warranty
2. Enter your details and press “Submit”
3. You will receive a confirmation via email
*Only qualified and licensed HVAC technicians may install this device
Need Help?
Contact your local distributor for any further
questions.

– 14 – – 15 –
Any Space
Can be a Safe
Place
Patent Information
Indication for Use
This product is not a medical device and is not intended to be used as a
medical device or to cure any disease or condition, nor should it be used in
the mitigation, treatment, or prevention of any disease or condition.
Legal Notice
Only qualified and licensed HVAC technicians may install this device. The
TADIRAN AIROW 3™ device, power supply and additional accessories should
be disconnected from any electric supply when touching their surface or
inner parts. Tadiran will not be liable for any loss or damage in any case
of misuse or installation by a non-qualified person or not in compliance
with the directions included in this manual. Tadiran does not claim that the
TADIRAN AIROW 3™ will ensure consumers using the device will not contract
biological pathogens. Consumers should continue to follow guidance from
governmental health organizations and certified health professionals about
preventative measures.
Patented Self-Cleaning Mechanism:
Europe Patent NO. 3612311 (Pending)
China Patent NO. CN 110740816
Patented Method of Use
Europe Patent NO.3743196 (Albania, Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg,
Macedonia, Malta, Monaco, Netherlands, Norway, Poland, Portugal,
Romania, San Marino, Serbia/Montenegro, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey, United Kingdom)
China Patent NO. CN 112739389
Israel Patent NO. 262022
South Korea Patent NO. 10-2288840
Conforms to:
CARB (California Air Resources Board) – in process.
cETLus Recognized component mark (UL Std.867 + certified to CSA Std.
C22.2#187) – in process.
ZERO OZONE (UL 2998) – verification in process.
Assembled In Romania
