Taga Harmony TS Series User manual

TS series
1-SOURCE SPEAKER SELECTORS
Instruction Manual
TS-4
Edition 09-2020

2
Introduction
Thank you for purchasing this TAGA Harmony 1-source, multizone speaker selector.
TAGA Harmony speaker selector is a device which is an e󰀩cient, cost-e󰀨ective way of
expanding an audio system at home or commercial venues (bars, cafes, restaurants,
shops, conference rooms etc.) into a complex multi-room sound system.
The speaker selector distributes audio signals from an audio source (amplier,
receiver etc.) to speakers located in di󰀨erent zones.
Our speaker selector can work with a single audio source and multizones.
Each zone can be independently activated or deactivated.
This selector is equipped with the impedance protection circuit. Once activated
regardless of the number and nominal impedance of connected speakers it protects
the audio source (amplier) from being damaged due to impedance drop.
All functions are conveniently located on the front panel for easy access.
An additional speaker selector can be connected to this TS selector in order to expand
system capabilities and to add extra zones.
Zones
A number in a model name indicates the maximum number of zones which this product
can operate with.
Cleaning
Do not use strong or abrasive cleaners. Use a damp, soft cloth for cleaning.
Specications and the latest instruction manual edition
Full technical specications and the latest edition of the instruction manual
are available on www.TagaHarmony.com.

3
Contents
Safety Instructions 4
Front and Rear Panel 5
Hooking Up Speaker Cables 6
Connecting Audio Source and Speakers 6
Operation 7

4
4
Safety Instructions
1. Read Instructions - All the safety and operating instruc-
tions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the product and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Cleaning - do not use liquid cleaners or aerosol cleaners.
6. Water and Moisture - Do not use this product near water
- for example, near a bath tub, wash bowl, kitchen sink or
laundry tub; in a wet basement; or near a swimming pool;
and the like.
7. Accessories - Do not place this product on an unstable
cart, stand, tripod, bracket or table. The product may fall,
causing serious injury to a child or adult and serious
damage to the product. Use only with a cart, stand, tripod,
bracket or table recommended by the manufacturer or
sold with the product. Any mounting of the product should
follow manufacturer’s instructions and should use a
mounting accessory recommended by the manufacturer.
8. Ventilation - This unit may be equipped with slots and
openings in the cabinet (housing) which are provided for
ventilation and to ensure reliable operation of the product
and to protect it from overheating and these openings
must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should be not
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufactur-
er’s instructions have been adhered to.
9. Object and Liquid Entry - Never push objects of any kind
into this product through openings as this may short-out
parts that could result in a fire. Do not expose this appa-
ratus to dripping or splashing and ensure that no objects
filled with water, such as vases are placed on the appa-
ratus.
10. Servicing - Do not attempt to service this product yourself
as opening or removing covers may expose you to dan-
gerous hazards. Refer all servicing to qualified service
personnel.
11. Damage Requiring Service - Refer servicing to qualified
personnel under the following conditions:
• if liquid has been spilled or objects have fallen into the
product;
• if the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper ad-
justment of other controls may result in damage and will
require extensive work by a qualified technician to restore
the product to its normal operation;
• if the product has been dropped or damaged in any way;
• if the product exhibits a distinct change in performance -
this indicates a need for a service.
12. Replacement Parts - when replacement parts are re-
quired, be sure the technician has used replacement parts
specified by the manufacturer or with the same character-
istics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
13. Safety Check - Upon completion of any service or repairs
to this product, ask the service technician to perform
safety check to determine that the products is in proper
operating condition.
14. Wall of ceiling mounting - The product should be mounted
to a wall or ceiling only as recommended by the manu-
facturer.
15. Heat - The product should be situated away from heat
sources such as radiators, heat registers, stoves or other
products (including amplifiers) that produce heat.
16. Operating Environment - Operating environment temper-
ature and humidity of the unit: +5°C to +35°C (+41°F to
+95°F); less than 85% RH (cooling slots not blocked).
An exclamation mark in a triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
EN_safety_TS_08-20

5

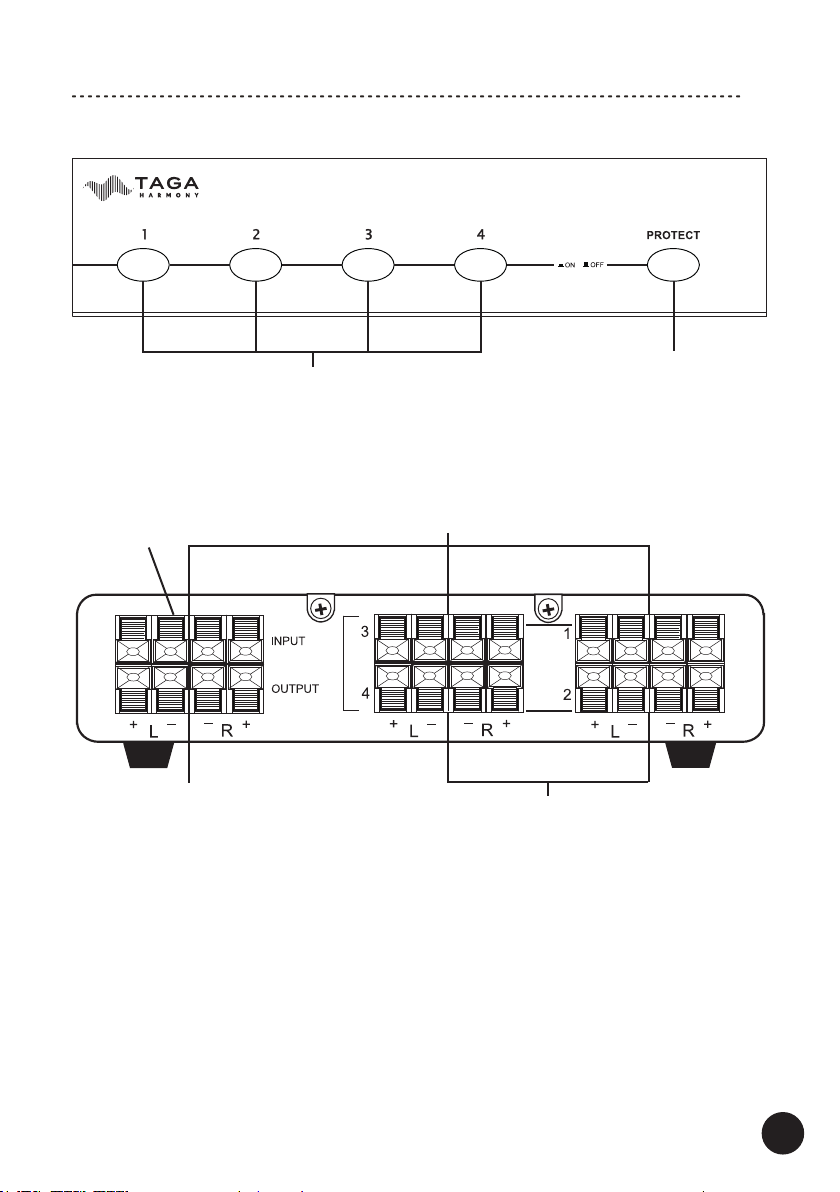

Front and Rear Panel
TS-4
/ TS-4 shown /
Bypass output
Push-in Spring Terminals
Amplier (receiver) input
Zone selectors Protecting Circuit Switch
Speakers Output to Zones

6

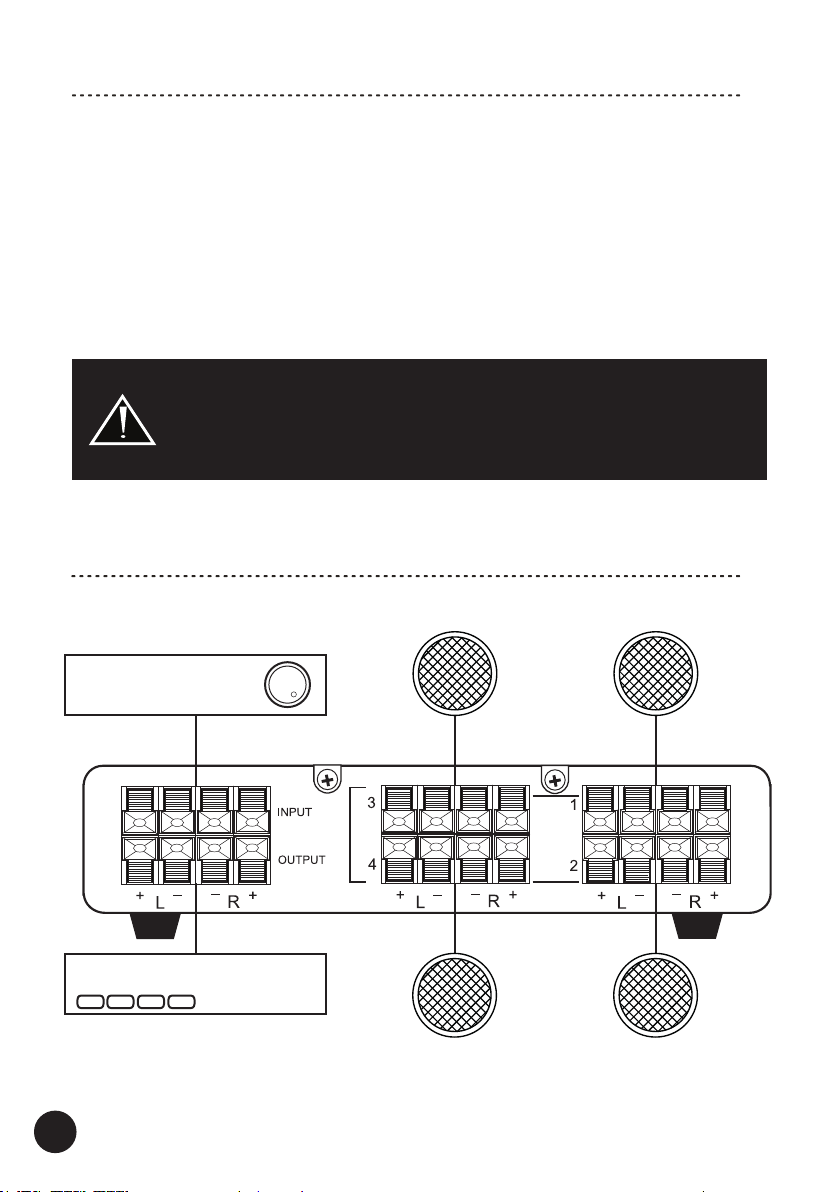

Hooking Up Speaker Cables
Connecting Audio Source and Speakers
Amplier, receiver etc.
Speakers in Zone #3 Speakers in Zone #1
Speakers in Zone #4 Speakers in Zone #2
Additional Speaker Selector
Before connecting make sure that your audio source is turned o󰀨.
Do not let bare speaker wires touch each other or any metal part
of this unit.
It can damage this unit and/or audio source / speakers.
The Push-in Spring Terminals can accommodate up to 14AWG speaker cables.
It is recommended to leave about 150 cm (5 feet) of extra cable at the selector end to
facilitate positioning and installation of the selector. Do not use staples, nails or other
metal objects to secure the cables.
You will get the best sound quality and least amount of hum by keeping the cables
away from other electrical wires and cables.
Pay attention to connecting the polarity of the selector correctly with the audio source
(amplier, receiver etc.) and speakers in each speaker group (RED + terminal
with RED + amplier / speaker connector, BLACK – terminal with BLACK – amplier
/ speaker connector).
Please refer to your audio source / speaker instruction manual for more information.

7
Operation
1. Make sure your audio source (amplier, receiver etc.) is switched o󰀨.
2. Make sure that the volume regulator on your audio source is set to minimum.
3. Switch OFF all the Zones on the Speaker Selector (Zone Selectors in the OFF
position).
4. Switch ON the Protecting Circut (the „PROTECT” switch is in the ON position).
5. Using speaker cables (not supplied with this product) connect your audio source to
the amplier INPUT terminals located on the rear of the Speaker Selector.
6. Using speaker cables (not supplied with this product) connect your speakers to the
required speakers OUTPUT terminals located on the rear of the Speaker Selector.
7. Switch on your audio source and start playback on a connected device.
8. Select active Zones (press ON Zone Selector switches for the corresponding
zones), to which you want to transmit an audio signal from your audio source.
9. Regulate volume on your audio source to adjust level of sound in in the active
Zones.
Zone Selectors:
ON: Press down one of there switches (the switch in the ON down position) to
transmit an audio signal from your amplier (receiver) to the speakers in the
corresponding zone (room).
OFF: Press it again to switch o󰀨 the transmission (the swiitch in the top position).
PROTECT Protecting Circuit Switch:
This model has manually activated impedance protection circuit.
In the ON position regardless of the number and nominal impedance of the
connected speakers it prevents of impedance drop below an unsafe level of 5 ohm,
what can cause damages to your audio source (amplier, receiver).
High volume levels can damage your amplier (receiver),
this products and / or speakers. This may void your warranty.
The speaker selector accepts speakers with the impedance
of minimum 4Ω or higher.
Connecting speakers with lower impedance may damage this unit,
audio source and / or speakers. This may void your warranty.
The total RMS power of all connected speakers should not exceed
the nominal RMS power of the audio source. Unless not all zones
are used at the same time - in such a case the total RMS power
of all speakers connected to the active zones should not exceed
the nominal RMS power of the audio source.
Failure to follow the above recommendations may damage this unit,
audio source and / or speakers.
This may void your warranty.

Bypass Output:
Addittional Speaker Selector can be connected to this output in order to expand system
capabillities and to add extra zones (rooms).
The OFF option should be used only when speakers and audio so-
urce have been selected and connected by a professional installer.
In the OFF position the protecting circuit is not operating - it can be useful if you
intend to use the speaker selector as a part of a planned system of impedance
matching volume regulatios, allowing you to get the most out of your amplier
(receiver).
ON: Press down the protecting circuit switch (the switch in the ON position).
OFF: Press it again to switch o󰀨 the protecting circuit (the switch in the OFF
position).
The RMS power of the audio source should not exceed the power
supported by this speaker selector otherwise this unit, audio source
and / or speakers may be damaged. This may void your warranty.
The Protecting Circuit Switch „PROTECT” should be always
switched ON :
• when connecting more than a single pair of speakers to a single
zone.
• when connecting 4Ω-impedance speakers to the speaker selector.
Failure to follow the above recommendations may damage this unit,
audio source and / or speakers.
This may void your warranty.

We strongly advise to contact a professional installer or dealer in order to install
TAGA Harmony products.
We recommend using high quality TAGA Harmony cables and other installation
accessories.
www.TagaHarmony.com
TAGA EUROPE
POLPAK POLAND Sp. z o.o.
AL.JEROZOLIMSKIE 331A
05-816 REGUŁY k/WARSZAWY, POLAND
Email: [e-mail]
IMPORTANT!
Your product is marked with the symbol as showed on the left.
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household waste or commercial waste.
Waste electrical and electronic equipement should be appropriately collected and
recycled as required by practices established for your country.
For information on recycling of this product, please contact your local authorities, your
household waste disposal service or the shop where you purchased the product.
Your product is marked with the symbol as showed on the left.
For EU (European Union) member users:
This product has been tested and found in compliance with
requirements of the European Community
2014/30/EU (EMC) directive.
Kit Content:
Speaker Selector 1EA
Instruction Manual 1EA

Notes

Notes

Notes
