tagarno Ring Light Series User manual

1
CONTENTS
1. INTENDED USE 2
2. WARNINGS 2
3. WARNING LABEL 2
4. REQUIRED AND OPTIONAL PRODUCTS 3
5. ASSEMBLING 4
6. CONNECTING 5
7. OPERATION 6
8. TECHNICAL SPECIFICATIONS 7
9. PRODUCT LABELS 8
10. DECLARATION OF CONFORMITY 9
11. COMPLIANCE STATEMENTS 10
MANUAL | TAGARNO RING LIGHT
Go to tagarno.com/productmanuals to nd manuals and tutorial videos.
VERSION: 1.2 | FIRMWARE 5.20 | 2020-09-15

2
WARNINGS
Read all safety information before you use the product.
Please pay attention when you see a warning label on the product.
This product is for indoor use only.
You must not discard this electrical/electronic product in domestic household waste.
Please dispose at your local recycling centre.
INTENDED USE
This product, consisting of a circular light source, a controller and power supply is intended as
an add-on to existing magnifying solutions to provide high quality shadowless illumination.
1. Read the manual before you use the product
2. Use the product only as specied, or the protection supplied by the product can
be compromised
3. Do not position the equipment so that it is difcult to operate the disconnecting
device (appliance inlet of external power supply, equipment input connector)
4. If fluids are spilled on the product, turn the system off immediately by pulling the power
supply out of the electrical outlet
5. Please do not connect the product, if visible damages appear
6. Do not dismantle any parts of the product, except where noted in the manual
7. Use only the power supply provided from TAGARNO
8. Do not look directly into the light source
9. Please note that UV lamps degrade over time. Within 2000 hours of use the intensity is
reduced to 80%
10. When using the UV ring light, be aware that the UV LEDs when in operation emit invisible
ultraviolet radiation, which may be harmful to eyes and skin, even for brief periods. Do
NOT look directly into the UV LED during operation. Be sure that you and all persons in
the vicinity wear adequate UV Safety protection for eyes and skin.
2. WARNINGS
1. INTENDED USE
3. WARNING LABEL
This following label is placed visibly on the product:
WARNING Possibly
hazardous optical radiation
emitted from this product.
AVERTISSEMENT Ce produit émet un
rayonnement optique
potentiellement dangereux.
WARNING UV emitted from
this product. Avoid eye and
skin exposure.
AVERTISSEMENT Ce produit émet un
rayonnement ultraviolet. Évitez d’exposer les
yeux et la peau.
UVUV
WARNING IR emitted from
this product. Do not look at
operating lamp.
AVERTISSEMENT IR émise par ce produit.
Ne regardez pas la lampe d’exploitation.
IRIR

3
4. REQUIRED AND OPTIONAL PRODUCTS

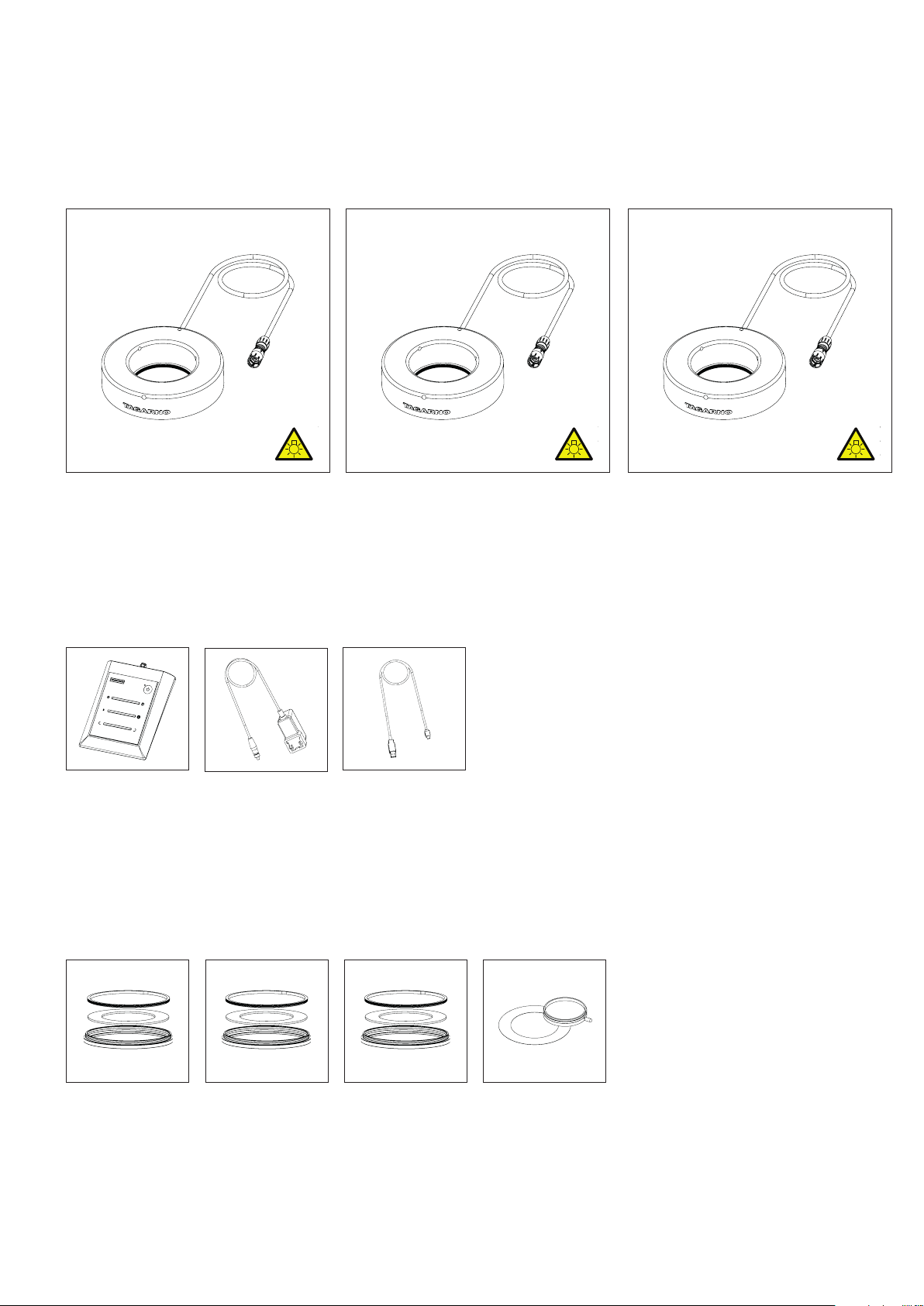

REQUIRED PRODUCTS FOR FULL USAGE
LIGHT OPTIONS
Ringlight White, Ring light UV and Ring light IR
USB cableLights control box Power supply
Ring light White
OPTIONAL PRODUCTS FOR ADDITIONAL USAGE
Ring light White Ring light UV Ring light IR
Polarizer kitDiffusor lens kitFresnel lens kit
(100 mm for Lens 1x Plan)
Fresnel lens kit
(40 mm for Lens +25 and +50)
WARNING UV emitted from
this product. Avoid eye and
skin exposure.
AVERTISSEMENT Ce produit émet un
rayonnement ultraviolet. Évitez d’exposer les
yeux et la peau.
UV
UV
WARNING IR emitted from
this product. Do not look at
operating lamp.
AVERTISSEMENT IR émise par ce produit.
Ne regardez pas la lampe d’exploitation.
IR
IR
WARNING Possibly
hazardous optical radiation
emitted from this product.
AVERTISSEMENT Ce produit émet un
rayonnement optique
potentiellement dangereux.

4
To attach accessories to the TAGARNO Ring light before mounting, follow the order below.
If you want to mount the ring light with no accessories, go directly to step 5.
1. Remove the lock ring
2. Stack lters in the following order, if needed:
• Polarizer lter
• Lens Frensel (with lens ridges towards the camera) or Optical diffusor
3. Place lock ring on top of lters and turn to fasten
4. Assemble lens holder and ring light
5. Attach the ring light on the camera head with the screws
6. If needed, attach optical analyzer lter
5. ASSEMBLING
ASSEMBLING

5
Connect the control box in the order shown above.
6. CONNECTING
1. Remote control
2. Ring light interface
3. Power supply
CONNECTING
Connector Description Type Connect to Specication
1Remote control USB 2.0 Micro-B female Microscope USB 2.0 Device, Self-powered.
Cable length < 3 m
2Ring Light interface Four pole Circular Connector Ring light Output: 12V 1.5A Max
Use only Light sources provided by TAGARNO
3Power supply DC Jack female Power socket Input: 12V 0.4A
Use only the power supply provided by TAGARNO:
Brand/Model: Mean Well/GEM18I12
Protection class II
Overvoltage category ll
Input: 100-240V 0.45-0.2A, 50/60Hz
Output: 12V 1.5A Max
21 3 13 2

6
7. OPERATION
LIGHTS CONTROL BOX

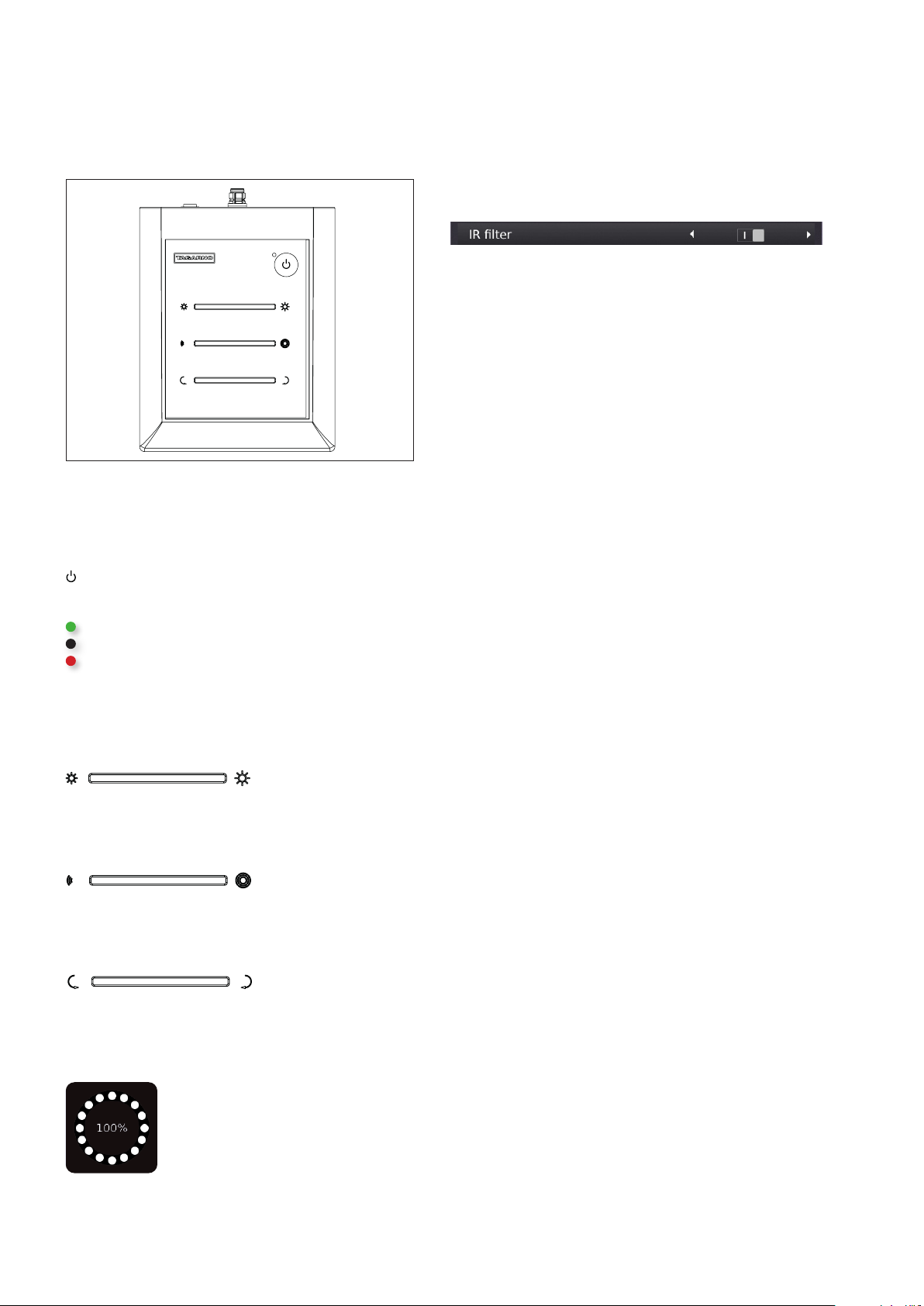

The control box uses nger touch. It contains a touch button
with LED indicator and these touch sliders:
SOFTWARE ADAPTION FOR IR RING LIGHT
Power/LED indicator
Touch the button for half a second to switch between
power on and off
LED green = ON
LED off = OFF
LED blinking red = No ring light detected
Intensity
Use the sliders to decrease or increase the light intensity,
respectively, or press on the slider to choose light intensity level.
Segmentation
Select the number of active LED segments from 1 to 16
Rotation
Rotate the active segments from 0 – 360°
An indicator in the top left corner of the monitor will show the
current settings of the ring light as they are being changed.
NB: When turning the microscope off, the ring light will also
switch off. The settings used at its last use will be recalled once
the microscope is turned back on.
When using the IR Ring light, the IR lter must be deactivated in the Set up
menu of the microscope.
Click this icon to disable/enable the IR lter.

7

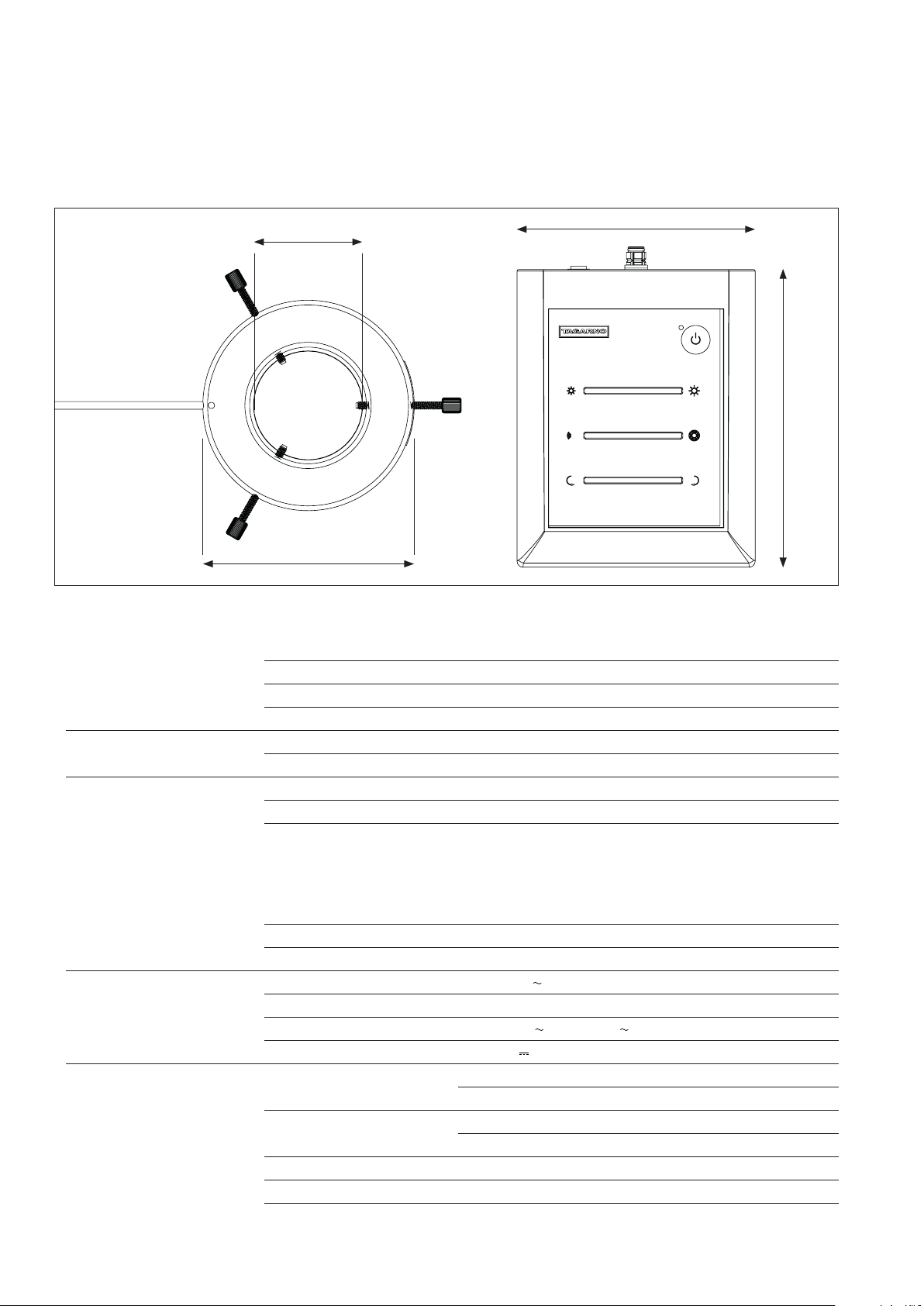

Dimensions Ø1: 32-60mm/1.26-2.36” Adjust using screws.
Ø2: 110mm/4.33”
H: 150mm/5.91”
W: 120mm/4.72”
Weight Lights control box 340g/0.75lbs
Ring light 280g/0.62lbs
Lighting LED count 48
Segmentation 16 segments of 3 LEDs each
White Color temperature: 6500K
Color rendering index: 85
Life expectancy for LED bulbs: approx. 35000 hours
Lux at 250 mm distance (no Fresnel lens mounted): 6500
Lux at 70 mm distance (100 mm Fresnel lens mounted): 30000
λpeak = 460 nm
IR λ = 830 nm
UV λ = 385 nm
Power requirements Line voltage 100 – 240V ±10%
Line frequency 50/60Hz
AC current consumption (typ.) 50mA/100V 20mA/240V
DC current consumption (typ.) 0.4A/12V
Environmental conditions Temperature Storage: -5 to 60ºC / 23 to 140ºF
Operation: 5 to 40ºC / 41 to 104ºF
Humidity range Storage: 20 to 90% RH non-condensing
Operation: 30 to 80% RH non-condensing
Altitude 0 to 2000m / 0 to 6500ft above sea level
Pollution degree 2
8. TECHNICAL SPECIFICATIONS
W
H
Ø2
Ø1

8
9. PRODUCT LABELS
These labels are placed on the product:
Lights control box, whiteLights control box, black
CONTROL BOX, ART. NO.: 303053
Supply: 12V 400mA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesirable operation
TAGARNO AS – Sandøvej 4, DK-8700 Horsens, Denmark.
Version: 1.04
yyyy-mm-dd
CONTROL BOX, ART. NO.: 303058
Supply: 12V 400mA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesirable operation
TAGARNO AS – Sandøvej 4, DK-8700 Horsens, Denmark.
Version: 1.04
yyyy-mm-dd

9
TAGARNO A/S
Sandøvej 4
8700 Horsens
Denmark
[phone]
[email protected]
www.tagarno.com
10. DECLARATION OF CONFORMITY
PRODUCT
MODEL
ART Ring Light for visual inspection units
MANUFACTURER
NAME TAGARNO A/S
ADRESS Sandøvej 4
ZIPCODE/CITY 8700 Horsens
COUNTRY Denmark
PHONE [phone]
DESCRIPTION
TAGARNO A/S hereby declares that the product listed above, consisting of control box, ring light(s) and a 12V power supply,
is in compliance with the following European directives:
2006/25/EU  ArticialOpticalRadiation
2014/30/EU Electromagnetic Compatibility
2014/35/EU Low Voltage Directive
By conforming to the following harmonized standard:
IEC 61326-1:2012 Class B / Basic Electromagnetic Environment
IEC 61010-1:2010/AMD1:2016 Cat II, Pollution degree 2
IECEE CB Scheme DK-06840-FC
The declaration is issued by:
MANUFACTURER TAGARNO A/S
TAGARNO LIGHTS CONTROL BOX | Product no.: 303053/303058
TAGARNO RING LIGHT, WHITE | Product no.: 303050
TAGARNO RING LIGHT, UV | Product no.: 303051
TAGARNO RING LIGHT, IR | Product no.: 303052

10
11. COMPLIANCE STATEMENTS
INDUSTRY CANADA COMPLIANCE STATEMENT
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus meets the requirements of the Canadian Interference Causing Equipment Regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le Matériel Brouilleur du Canada.
SAFETY
This product is designed to meet the requirements of the following electrical equipment safety standards for measurement,
control, and laboratory use:
IEC 61010-1
UL 61010-1
CSA C22.2 No. 61010-1
FCC COMPLIANCE STATEMENT (UNITED STATES)
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
