Tailwind E-BIKE User manual

E-BIKE USER
MANUAL
ATTENTION
Please read this manual carefully before enjoying your Tailwind E-Bike.
If you do not understand the information, or if you have a question that
this manual does not cover, please contact us at our website below.
TAILWINDEBIKES.COM

2
Tailwind E-Bikes User Manual
WELCOME
TO TAILWIND
Welcome to your new Tailwind E-Bike! You are entering a new
world of ease, luxury, and mobility. Whether you’re looking for an
environmentally friendly alternative to your regular gas-powered
vehicle, a fun way to avoid traic congestion, or simply want to
spend more time outdoors, we hope you enjoy your new E-Bike.
In a life full of headwinds and tailwinds, it is our honor to be the
wind at your back.
If you have questions or comments, please don’t hesitate to
contact us:
Email: [e-mail]
Web: tailwindebikes.com
THANK YOU FOR CHOOSING TAILWIND E-BIKES
For the latest and most accurate version of this manual,
please scan the QR code to the right, or visit
tailwindebikes.com/assembly
IMPORTANT
SCAN ME
FOR LATEST MANUAL

3
Tailwind E-Bikes User Manual
VEHICLE IDENTIFICATION NUMBER /
SERIAL NUMBER
FOR YOUR RECORDS
For future reference, please ll in the important information
below. Your serial number can be found on the inward-facing
surface of the frame seat stay or on head top tube.
Please retain your sales receipt for any possible warranty or loss
claims.
MY TAILWIND SERIAL NUMBER:
SERIAL
NUMBER
4.0 model
SERIAL
NUMBER
1.0 & 2.0 models
#

MY TAILWIND E-BIKE
Address
Purchase
Date
Purchase
Channel
Model
Color
Serial #
Name
4
Tailwind E-Bikes User Manual
FOR YOUR RECORDS
TAILWIND
WEBSITE AMAZON EBAY OTHER

ABOUT THIS MANUAL 06
IMPORTANT SAFETY INFORMATION 07
OPERATIONAL INSTRUCTIONS 10
ASSEMBLY INSTRUCTIONS 16
RECHARGING THE BATTERY 22
BATTERY AND CHARGER CARE 24
GEARS 25
LED DISPLAY & KEYS 26
BRAKES 27
TIRES & INNER TUBES 28
TROUBLESHOOTING 29
TAILWIND E-BIKES FAQS 30
INSPECTION AND MAINTENANCE 32
WARRANTY 34
TABLE OF
CONTENTS
TAILWIND E-BIKES

6
Tailwind E-Bikes User Manual
This manual was written to help you get the most
performance, comfort, enjoyment, and safety when
riding your new Tailwind E-Bike. The manual describes
specic care and maintenance procedures that help
protect your warranty and ensure years of trouble-free
use. Please pay particular attention to the section on
battery charging and maintenance.
It is important for you to understand your new Tailwind
E-Bike, its features, and its operation, so you get
maximum enjoyment with maximum safety. By
reading this manual before you go out on your rst
ride, you’ll know how to get the most from your new
Tailwind E-Bike.
It is also important that your rst ride on a new
Tailwind E-Bike is taken in a controlled environment,
away from cars, obstacles, and other cyclists.
ABOUT
THIS MANUAL01

Cycling can be a hazardous activity even under the best
of circumstances. Proper maintenance of your Tailwind
E-Bike is your responsibility, as it helps reduce the risk
of injury. This manual contains many warnings about
the consequences of failure to maintain or inspect your
Tailwind E-Bike. Improper use could result in serious injury
or death.
We recommend you use a trusted professional bike
technician to assemble your Tailwind E-Bike.
IMPORTANT
SAFETY INFORMATION02

8
Tailwind E-Bikes User Manual
A. ALWAYS WEAR A HELMET
Helmets signicantly reduce the number and severity of head
injuries. Always wear a helmet that complies with your state
laws when riding your Tailwind E-Bike. Check with your local
police department for requirements in your community. Make
yourself more visible by wearing bright reective clothing. Keep
your reectors clean and properly aligned. Use head and tail
lights in reduced lighting conditions. Wear sturdy shoes and eye
protection. Also check your state laws concerning other protective
gear that may be required when riding your Tailwind E-Bike.
B. KNOW YOUR TAILWIND E-BIKE
Your new Tailwind E-Bike incorporates many features and
functions that you may be unfamiliar with. Read this manual
thoroughly to understand how those features enhance your riding
pleasure and safety.
C. RIDE WITHIN YOUR LIMITS
Take it slow until you are familiar with the riding conditions, as
traction can be greatly reduced and brakes become less eective.
Never ride faster than conditions warrant or beyond your riding
abilities. Remember that alcohol, drugs, fatigue, and inattention
can signicantly reduce your ability to make good judgments and
ride safely.
D. KEEP YOUR E-BIKE IN SAFE CONDITION
For your safety and enjoyment, and to ensure a long life for your
Tailwind E-Bike, inspect and maintain your E-Bike regularly.
Follow the inspection and maintenance guidelines throughout this
manual. Check critical safety equipment before each and every
ride.
IMPORTANT SAFETY
INFORMATION

COMPONENT OR CONDITION INSPECT BEFORE
EVERY RIDE
INSPECT
PERIODICALLY*
CLEAN AND/OR
LUBRICATE ADJUST/TIGHTEN REPAIR/REPLACE IF NECESSARY
Tire pressure (55-65 psi) X X
Tire wear/damage X X
Brake pad adjustment X X
Wheel quick release adjustment X X
Head and tail lights X X
Controls and displays X
Seat post quick release adjustment X X
Brake pad wear X X
Brake cable tension/wear X X X
Spoke tension X X
Wheel true X X
Hub bearings X X X
Chain lubrication X X
Derailleur adjustment X X X
Reectors X X
Battery and charger X X
Headset adjustment X X X
Bottom bracket adjustment X X X
All bolts, nuts & mounting hardware X X X
*Every 5 to 10 rides depending on length and conditions of ride.

OPERATIONAL
INSTRUCTIONS03

11
Tailwind E-Bikes User Manual

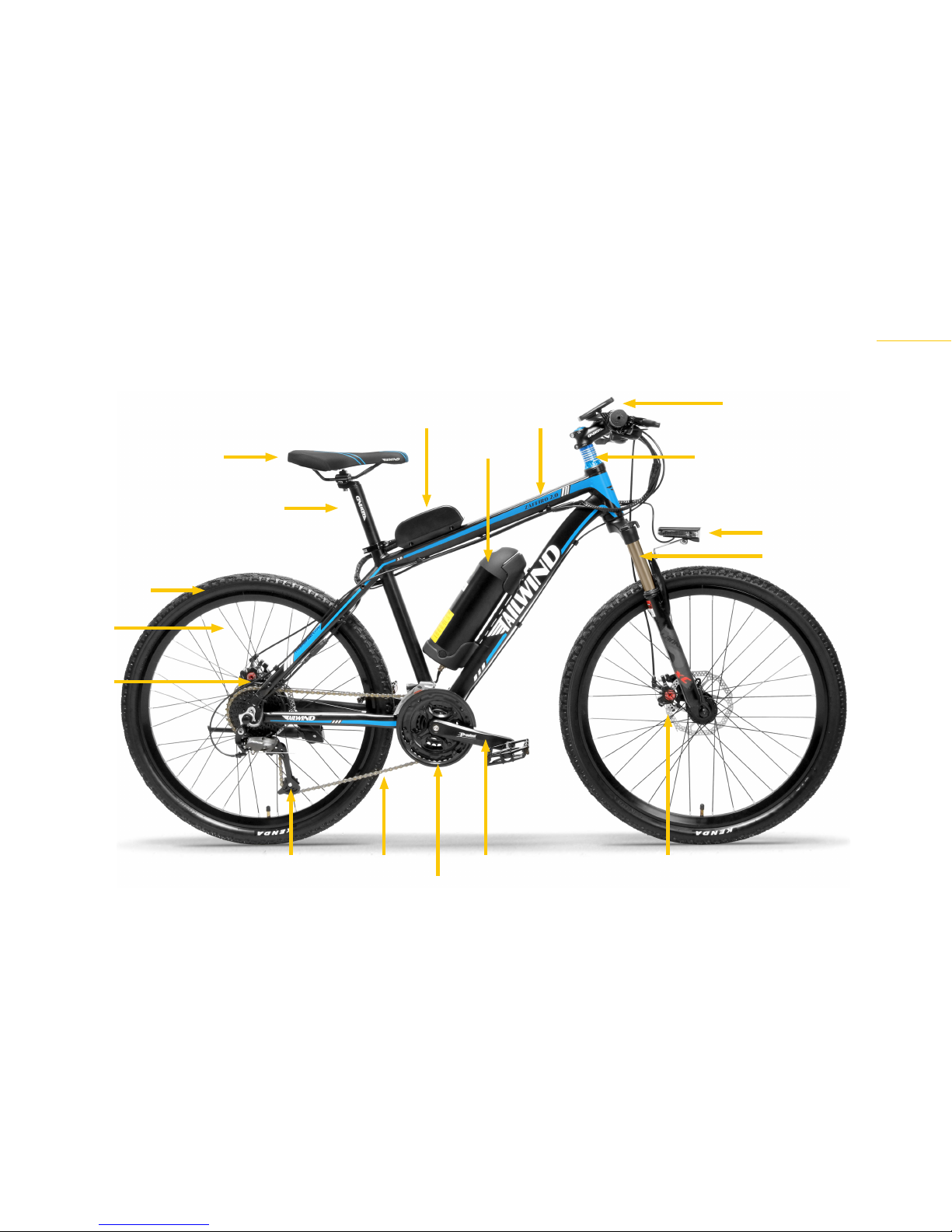

SEAT
SEAT POST
HEADLIGHT
BIKE STEM
HEADSET
LED DISPLAY
FORK
TIRE
SPOKES
MOTOR
REAR
DERAILLEUR CHAIN
CHAINRING
CRANK DISC
BRAKE
FRAMECONTROLLER
BATTERY

12
Tailwind E-Bikes User Manual

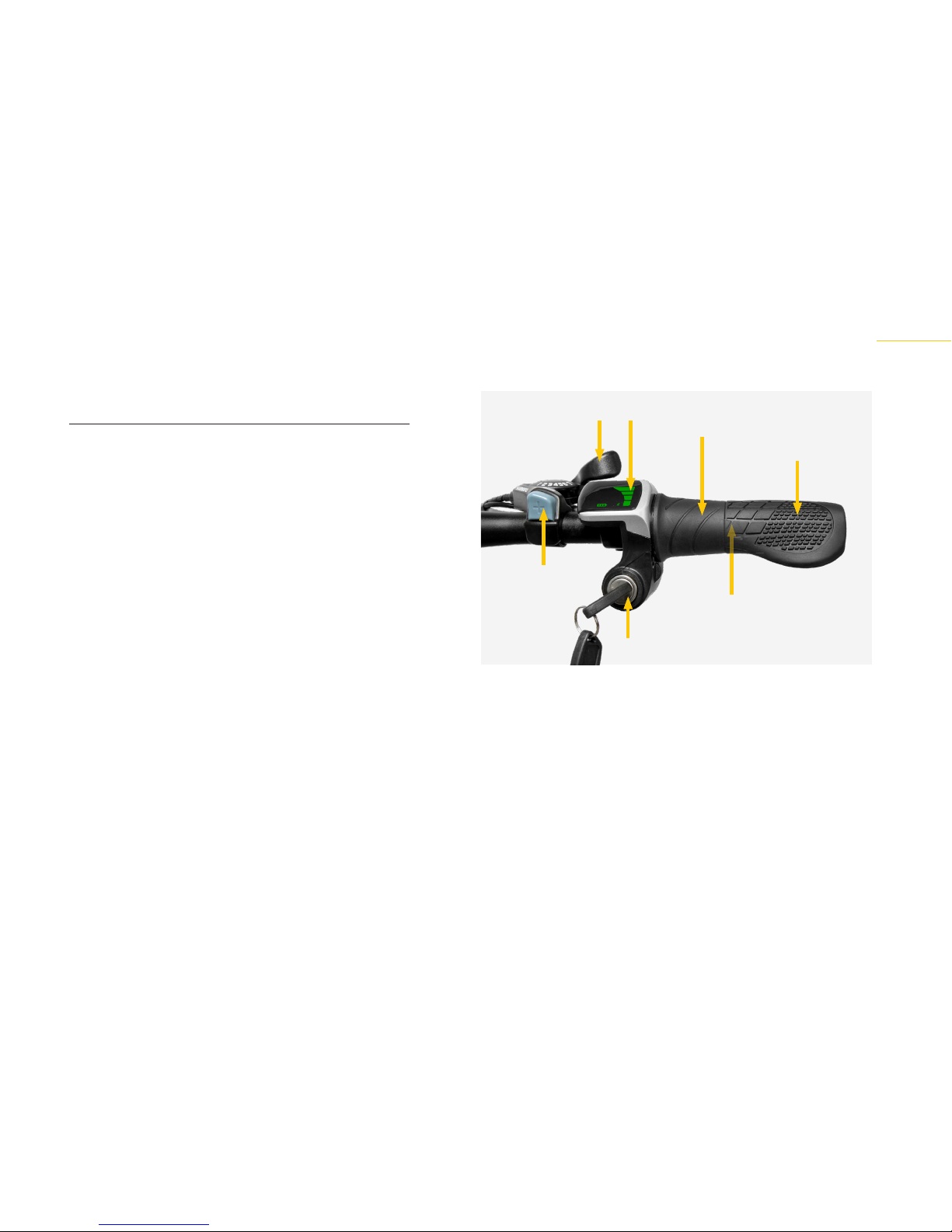

GRANITO 1.0 MODEL
-
A

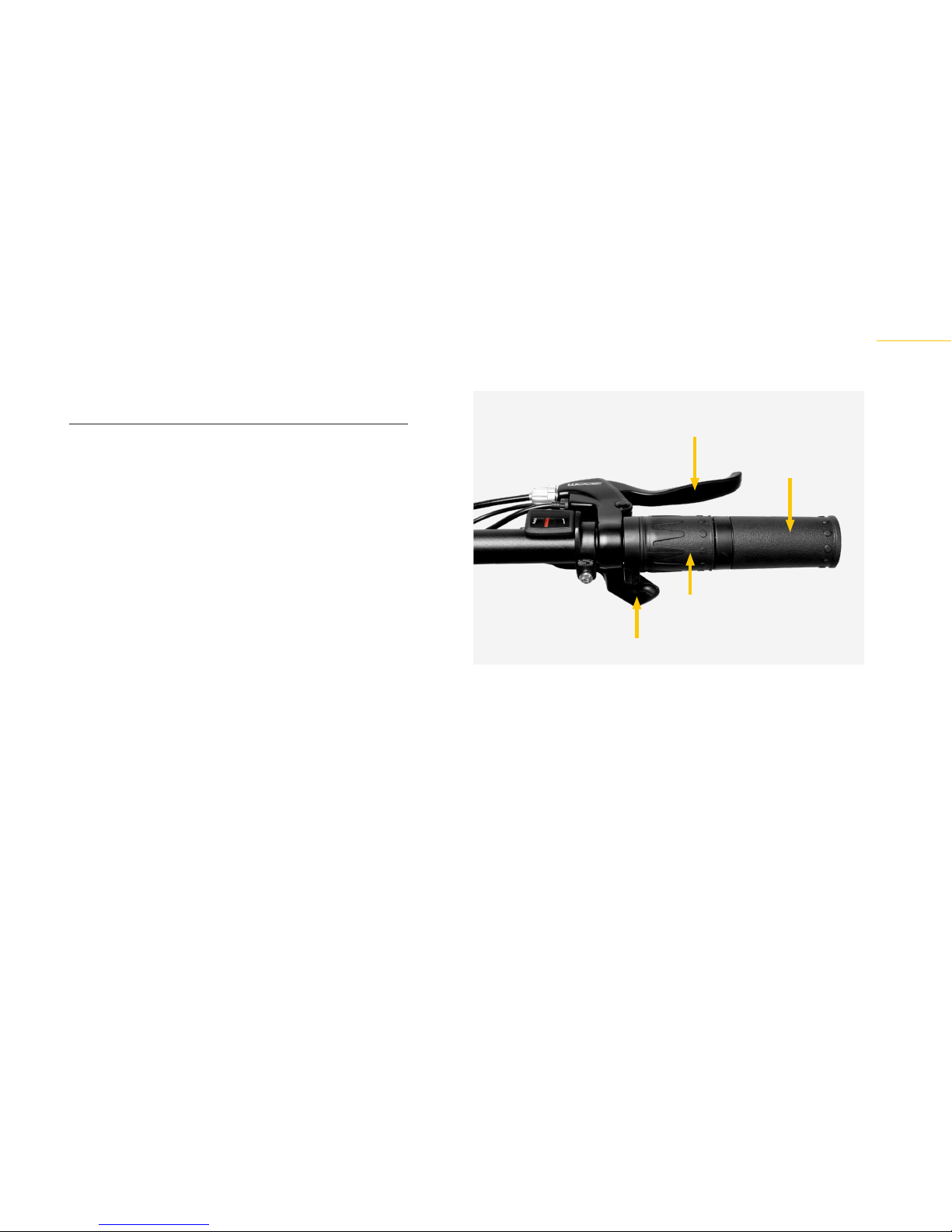

Rear Brake Lever (behind the handlebar grip in this
photo). The rear brake is activated by squeezing
the le brake lever. THIS IS THE OPPOSITE OF A
TRADITIONAL BICYCLE.
B
Le Handlebar Grip
C
Headight Button
D
Horn Button
E
Speed Control Button
Mode 1: Low Speed
Mode 2: Medium Speed
Mode 3: High Speed
F
Front Derailleur Shier — by pressing the lever while
pedaling, you can select any one of three gears
on the front wheel. The shier is labeled with the
corresponding gear selection.
F
CB
ADE
LEFT HANDLEBAR

13
Tailwind E-Bikes User Manual
GRANITO 1.0 MODEL
-
A
Rear Derailleur Shier — by pressing the button
while pedaling, you can increase gears from 1 to 7.
The shier is labeled with the corresponding gear
selection.
B
Rear Derailleur Shier — by pressing the lever
while pedaling, you can decrease gears from 7 to 1.
The shier is labeled with the corresponding gear
selection.
C
Battery Status Monitor
D
Twist Throttle — Twist this grip to apply power to the
motor.
E
Right Handlebar Grip
F
Front Brake Lever (behind the handlebar grip in this
photo). The front brake is activated by squeezing
the right brake lever. THIS IS THE OPPOSITE OF A
TRADITIONAL BICYCLE.
G
Ignition
E
D
B
G
A
F
RIGHT HANDLEBAR C

14
Tailwind E-Bikes User Manual
A
Rear Brake Lever. The rear brake is activated by
squeezing the le brake lever. THIS IS THE OPPOSITE
OF A TRADITIONAL BICYCLE.
B
Le Handlebar Grip
C
Power On/O Button:
Press M for 3 seconds to power on or power o your
Tailwind E-Bike
D
Speed Decrease/Cruising Button:
Press ▼ one time to decrease speed
Press ▼ for 3 seconds to turn on low speed cruise
function (about 4MPH) while in PAS 0 mode.
To set a dierent cruising speed, twist the right
handlebar throttle, setting the speed you want, then at
the same time, press ▼ for 3 seconds.
To cancel cruise function, squeeze right or le brake.
E
Speed Increase/Headlight Button:
Press ▲ one time to increase speed
Press ▲ for 3 seconds to turn on/o the headlight
F
Front Derailleur Shier — by pressing the lever while
pedaling, you can select any one of three gears
on the front wheel. The grip is labeled with the
corresponding gear selection.
A E
BC D F
ZAFIRRO 2.0 & RUBINO 4.0 MODELS
-
LEFT HANDLEBAR

15
Tailwind E-Bikes User Manual
A
Rear Derailleur Shier — by pressing the lever while
pedaling, you can select any one of nine gears
on the rear wheel. The grip is labeled with the
corresponding gear selection.
B
Front Brake Lever. The front brake is activated
by squeezing the right brake lever. THIS IS THE
OPPOSITE OF A TRADITIONAL BICYCLE.
C
Twist Throttle — Twist this grip to apply power to the
motor.
D
Right Handlebar Grip
D
B
A
C
ZAFIRRO 2.0 & RUBINO 4.0 MODELS
-
RIGHT HANDLEBAR

ASSEMBLY
INSTRUCTIONS04
IMPORTANT: We recommend you use a trusted professional bike technician to assemble your Tailwind E-Bike.

17
Tailwind E-Bikes User Manual

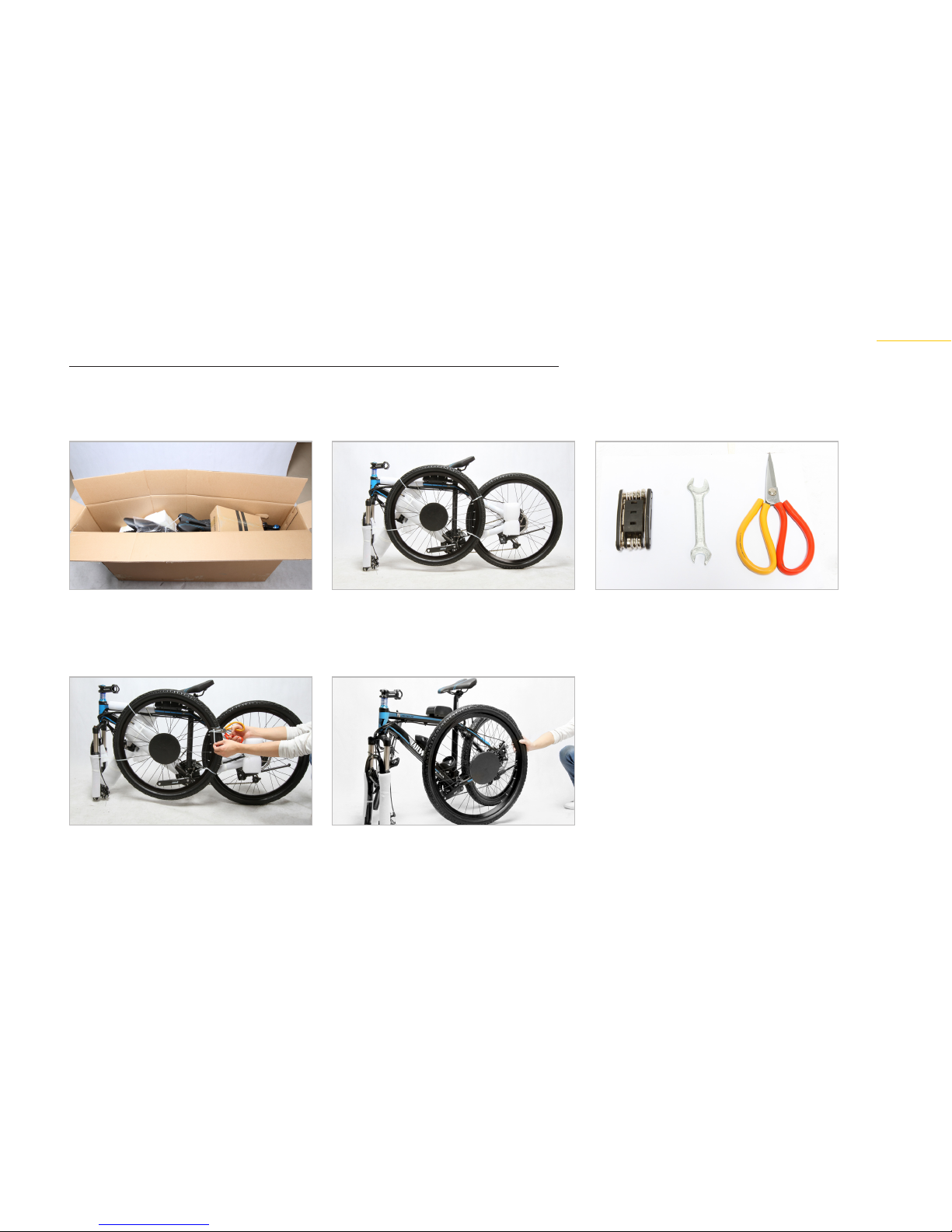

PART 1: REMOVE PACKAGING
01
Open the box.
04
Remove packing materials.
02
Remove your Tailwind E-Bike.
05
Remove front wheel.
03
Gather necessary tools.

18
Tailwind E-Bikes User Manual

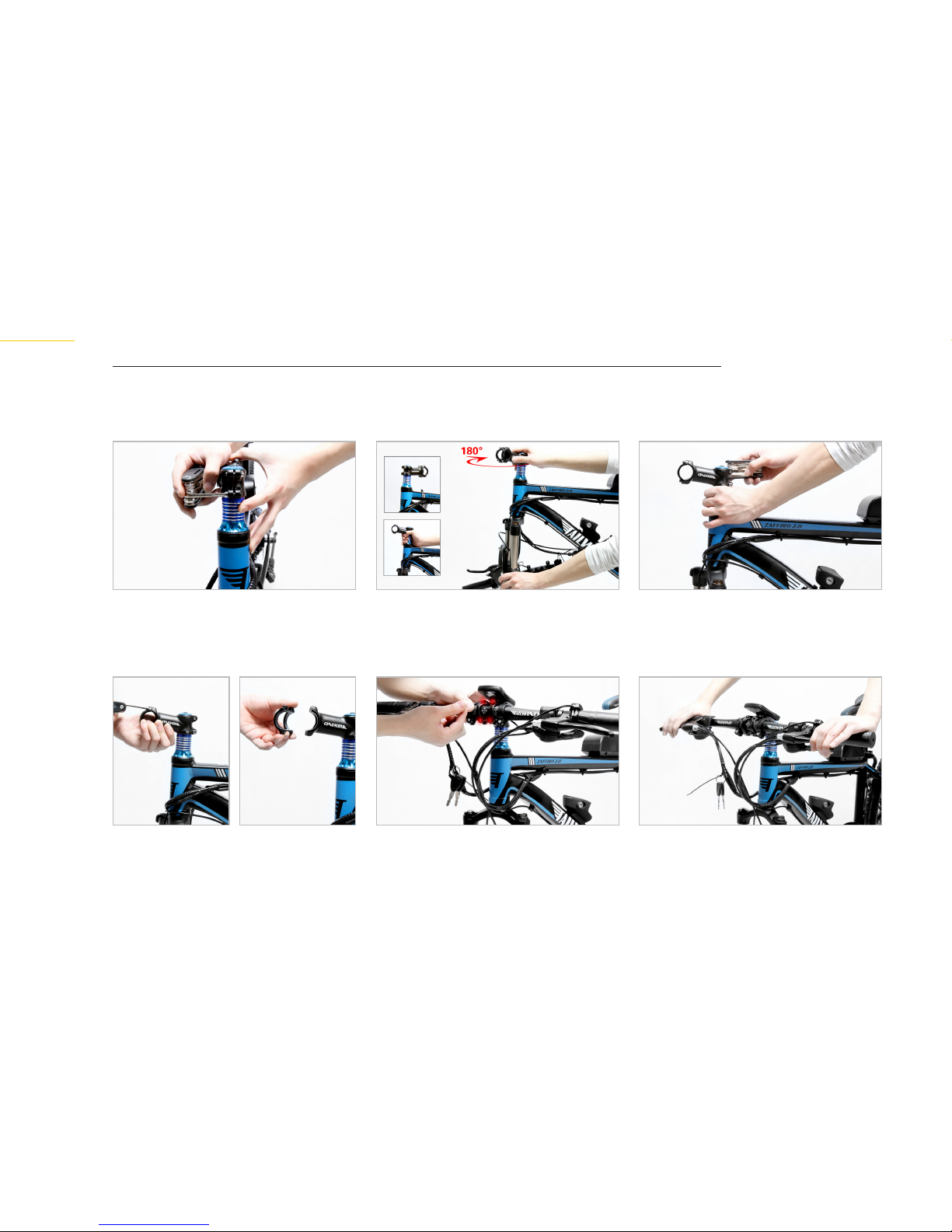

PART 2: HANDLEBAR ASSEMBLY
01
Loosen side bolts of stem.
04
Remove front 4 bolts from stem cover, them remove
stem cover.
02
Rotate the stem 180 degrees.
05
Mount handlebar onto stem, then replace stem cover
and tighten all 4 bolts.
03
Tighten side bolts of stem.
06
Adjust handlebar according to your needs, then
ensure all bolts are tightened rmly.

19
Tailwind E-Bikes User Manual

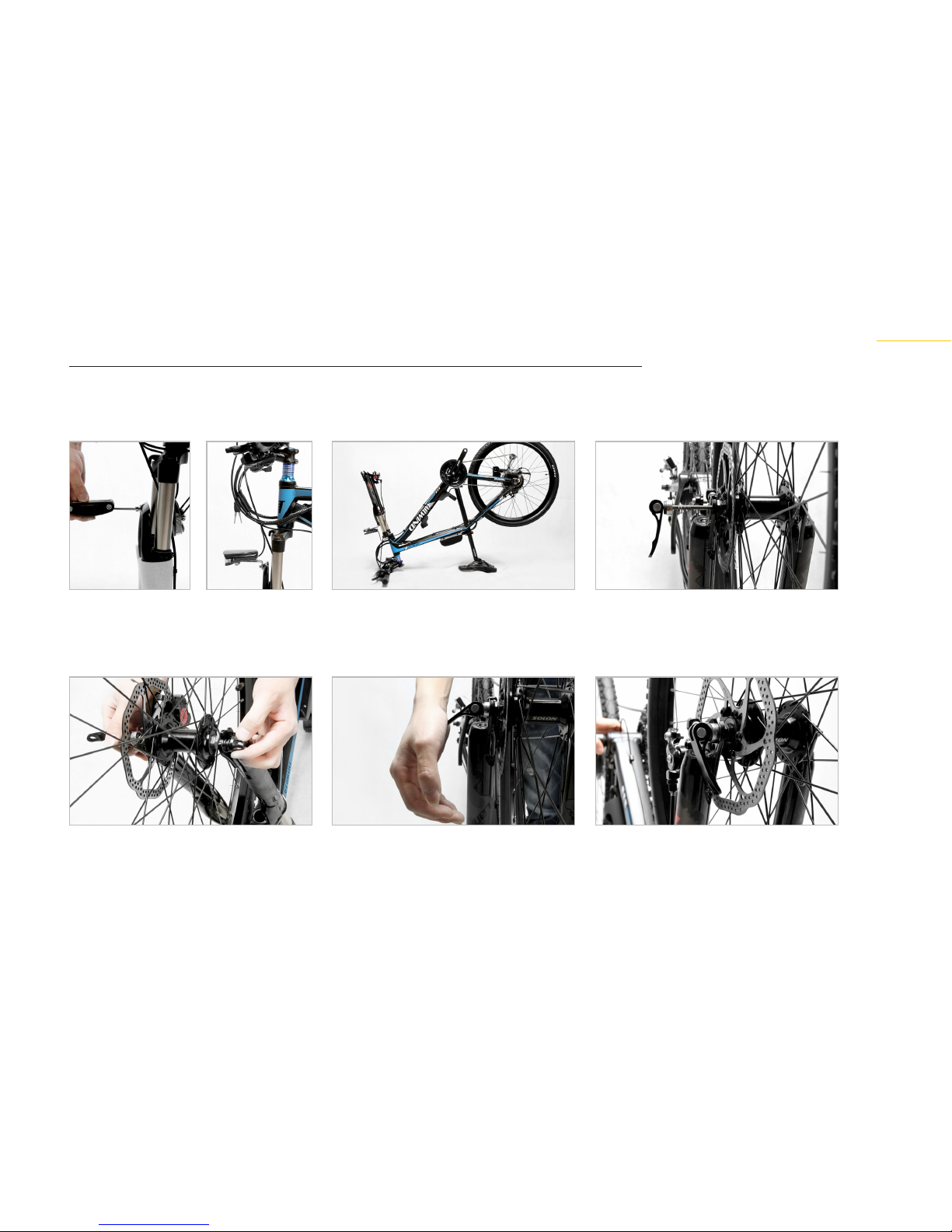

PART 3: HEADLIGHT & FRONT WHEEL ASSEMBLY
01
Remove bolt from headlight, then adjust headlight to
correct position and tighten bolt.
04
Insert front wheel quick release.
02
Turn bike upside down.
05
Lock front wheel quick release.
03
Release quick release screws and insert front wheel
into fork.
06
Quick release installation is complete.

20
Tailwind E-Bikes User Manual

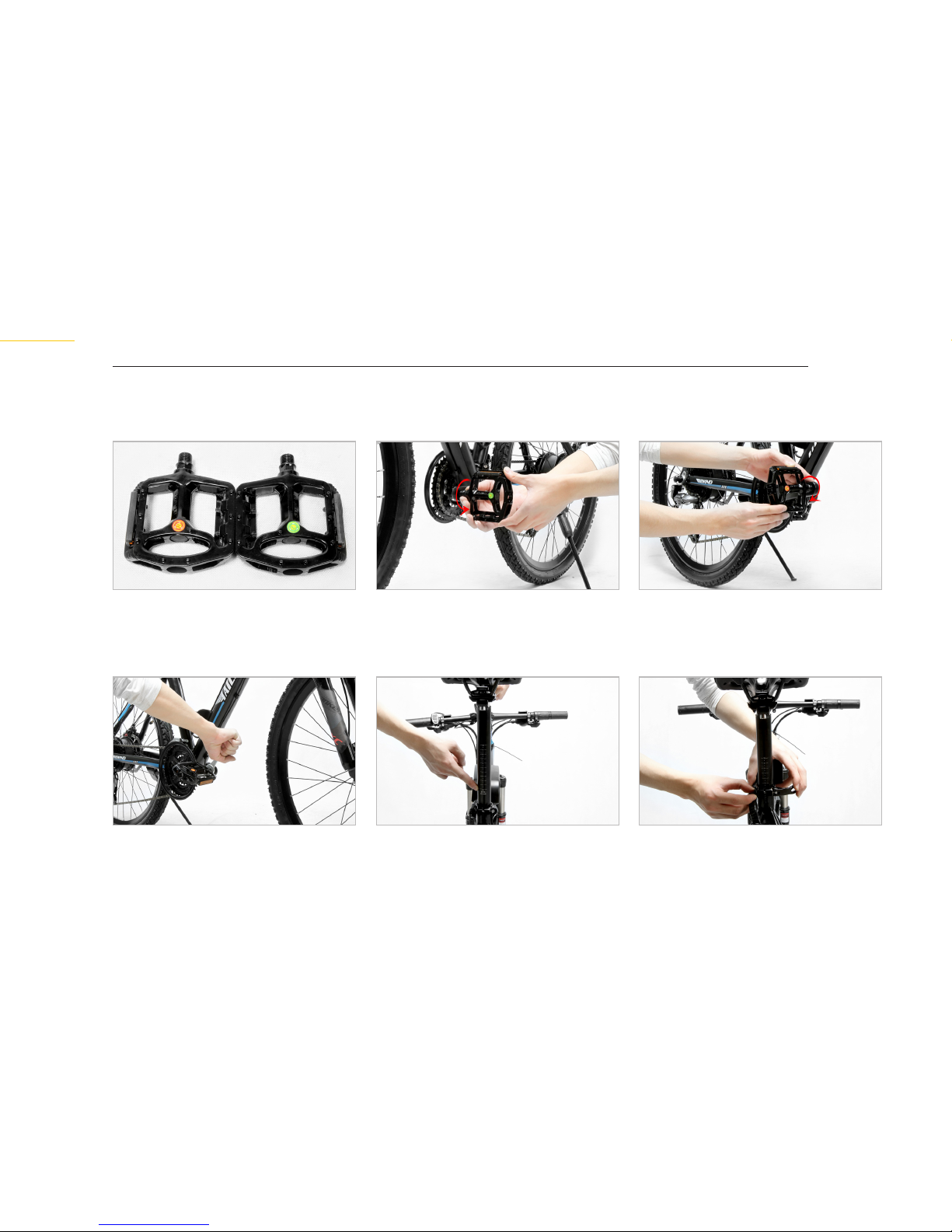

PART 4: PEDAL AND SADDLE MOUNTING
01
Identify right and le pedals.
04
Tighten both right and le pedals with wrench.
02
Install le pedal to the crank arm.
05
Adjust seat post according to your height, making sure
it’s within the safety line.
03
Install right pedal to the crank arm.
06
Fasten saddle clamp.
