Tamron AF18 User manual

Model A14
For Canon AF, Konica Minolta AF-D, Nikon AF-D, and Pentax AF
11.1 x zoom yields 28-300*range
on digital SLR cameras**
*When converted to 35mm film format. **With smaller-size image sensors.
new
http://www.tamron.com
Quick Guide
for
Lenses designed for exclusive use on
digital cameras with smaller-size imagers.
*This lens is not designed for use with 35mm film cameras and digital SLR cameras with image sensors larger
than 24 x 16mm.
*Specifications subject to change without notice.
© All rights reserved by Tamron Co., Ltd.
P1
P2
AF18-200mm F/3.5-6.3 XR Di-II is a new high power zoom lens from Tamron for exclusive use with digital SLR
cameras, designed to meet nearly every photographic situation. Tamron has been a pioneer of high power zoom lenses,
which cover everything from wide-angle to ultra telephoto with just one lens, and its representative product, 28-300mm
XR, is a great hit all over the world, supported by a number of prestigious awards bestowed worldwide.
The new AF18-200mm lens is designed to cover the same range as the 28-300mm does on a 35mm film camera, when
used with a digital SLR camera
* . *With smaller-size image sensor.

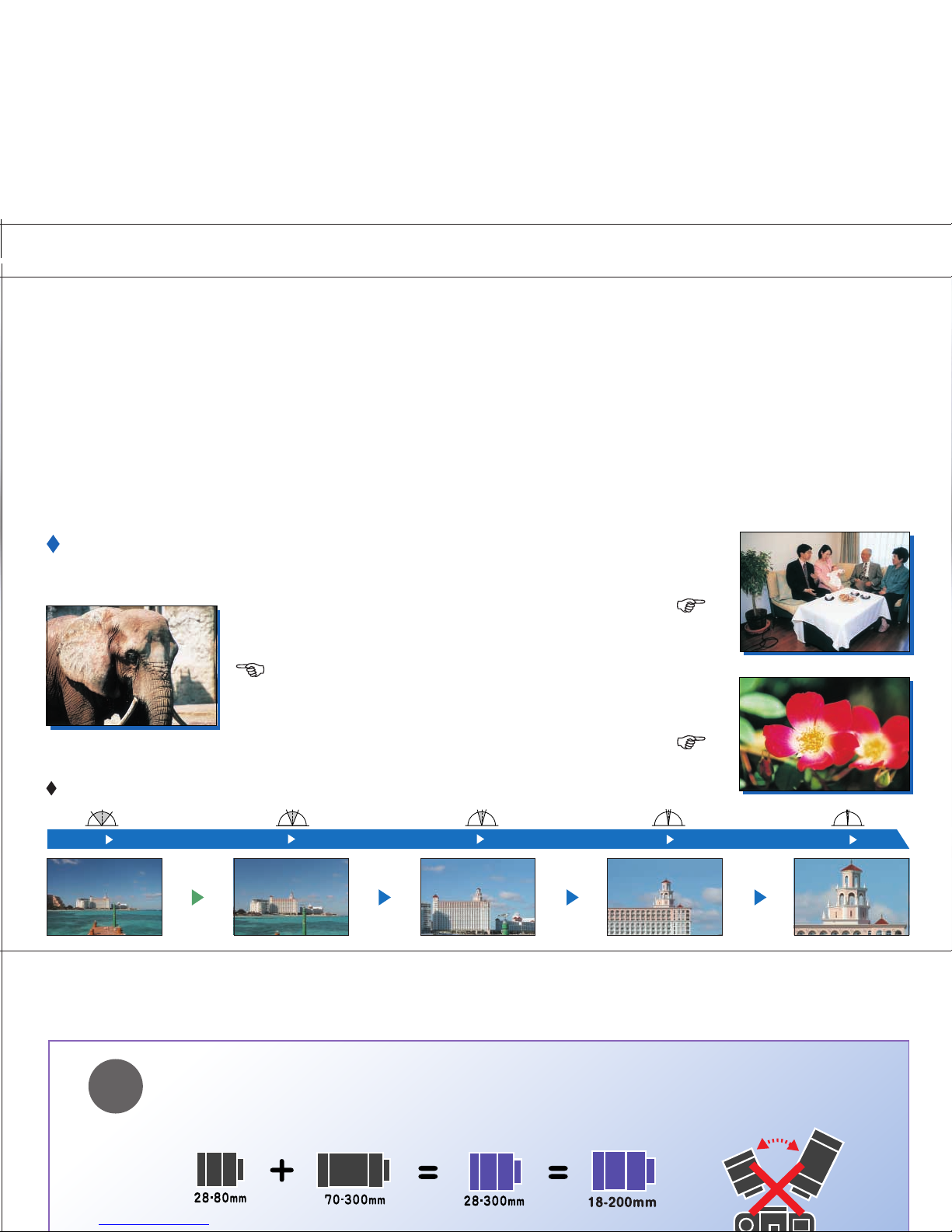

About this lens...
Indoor snap shots (wide-angle)
Close-ups of flowers etc. (macro capability)
Far-away subjects (ultra telephoto)
The lens covers nearly every photographic situation such as ...
18mm 50mm
100 mm
200 mm
28mm
Equivalent
78mm
Equivalent
35mm
54mm
Equivalent
155mm
Equivalent
300mm
Equivalent
Diagonal
75˚33'
Horizontal
65˚36'
Diagonal
31˚11'
Horizontal
26˚7'
Diagonal
15˚53'
Horizontal
13˚14'
Diagonal
7˚59'
Horizontal
6˚38'
Diagonal
43˚28'
Horizontal
36˚40'
Angles of View

A14QuickGuideFront
1
2
...Therefore, you won’t miss any shots, and chance of dust
or dirt getting in your camera on the CCD is minimized.
For Nikon AF-D
For Konica Minolta AF-D
For Canon AF For Pentax AF
Model A14
For Canon AF, Konica Minolta AF-D, Nikon AF-D, and Pentax AF
AF18-200mm F/3.5-6.3 XR Di-II is a new high power zoom lens from Tamron for exclusive use with digital SLR
cameras, designed to meet nearly every photographic situation. Tamron has been a pioneer of high power zoom lenses,
which cover everything from wide-angle to ultra telephoto with just one lens, and its representative product, 28-300mm
XR, is a great hit all over the world, supported by a number of prestigious awards bestowed worldwide.
The new AF18-200mm lens is designed to cover the same range as the 28-300mm does on a 35mm film camera, when
used with a digital SLR camera
* . *With smaller-size image sensor.

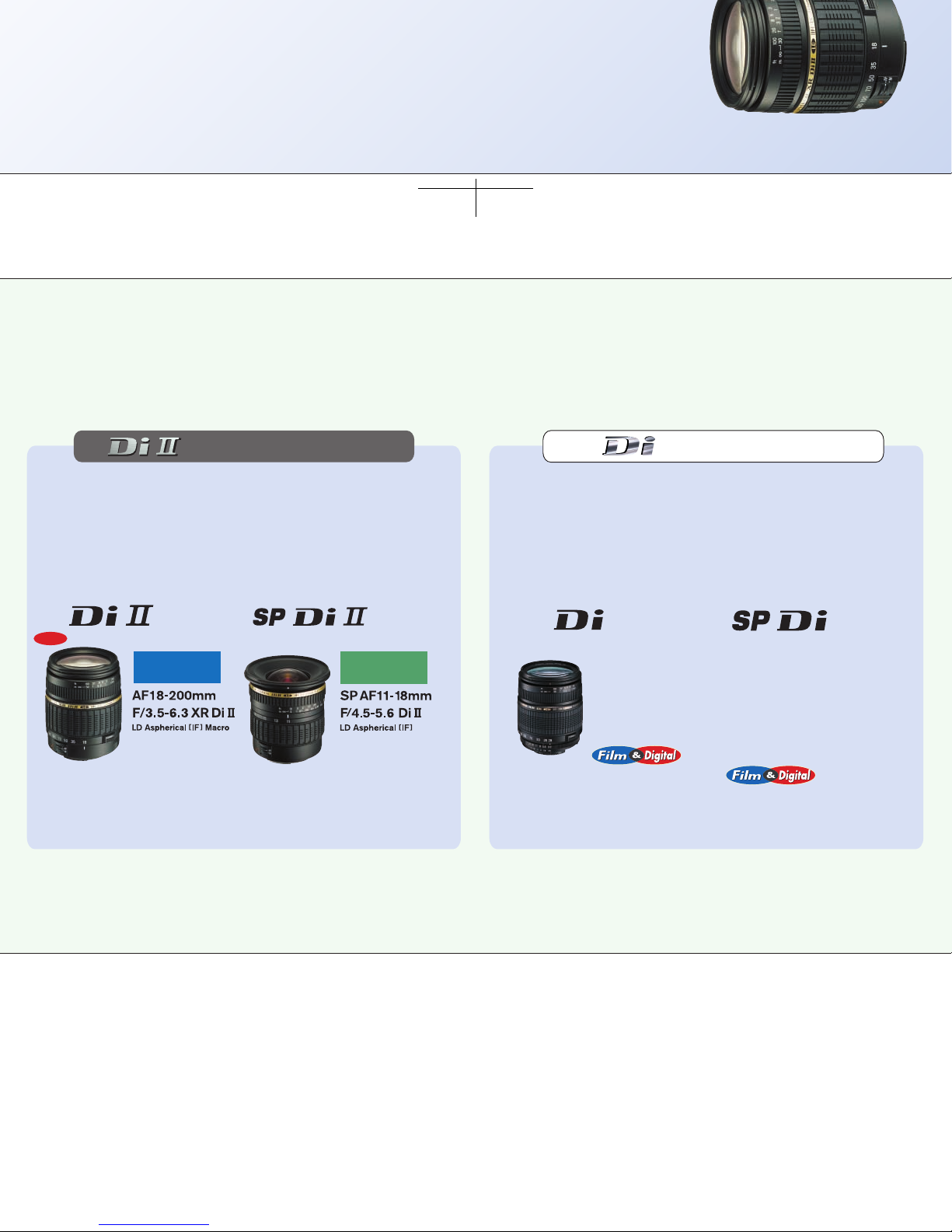

Tamron offers the AF18-200mm F/3.5-6.3 XR Di-II in four different mounts.
Please be sure to select the appropriate mount for your digital SLR camera.
Lens designed for
exclusive use on digital
All-in-one high ratio zoom
for digital SLR cameras
[
Equivalent to 28-300mm*
]*When converted to 35mm film format.
About this lens...
Why is it so convenient?
Does it fit my camera?
Indoor snap shots (wide-angle)
Close-ups of flowers etc. (macro capability)
Far-away subjects (ultra telephoto)
The lens covers nearly every photographic situation such as ...
Changing lenses is not necessary since it covers
nearly every photographic situation.
Amazingly compact and lightweight.
You can comfortably carry it anywhere, anytime.
Ideal to bring along
on your travels!
Tamron’s AF18-200mm F/3.5-6.3 XR Di-II is designed for exclusive use on digital SLR cameras
with smaller-size imagers. Please note it cannot be used with compact digital cameras, 35mm
film cameras and digital SLR cameras with image sensors larger than 24mm x 16mm.
Digital SLR
with image sensor
smaller than
24mm x 16mm
compact
digital camera
new
http://www.tamron.com
AF18-200mm F/3.5-6.3
XR Di LD Aspherical
[
IF
]
Macro
Quick Guide
for
Lenses designed for exclusive use on
digital cameras with smaller-size imagers.
*This lens is not designed for use with 35mm film cameras and digital SLR cameras with image sensors larger
than 24 x 16mm.
*Specifications subject to change without notice.
weight
398g
( 14oz .)*weight
665g
( 23.4oz .)*
*Values given are for the Nikon AF.
35mm
film camera
35mm
film camera
