TAMS WIB-5 User manual

n
n
WIB-5 n
n
Innenbeleuchtung
für Faller* Car-System
und Modellbahn-Fahrzeuge n
nAnleitung
Interior Lighting
compatible to Faller* Car-System
and Model Railway Carriages nManual
nMode d´emploi
Eclairage intérieur
pour Faller* Car-System
et véhicules ferroviares nHandleiding
n
Binnenverlichting
voor Faller* Car-System
en modelspoorvoertuigen n
n
Art.-Nr. 22-01-076 n
n

n
n
n
nDeutsch 3
nEnglish 13
nFrançais 23
nNederlands 33
n
n
n
n
n
n
n
n
© 08/2005 Tams Elektronik GmbH
Alle Rechte, insbesondere das Recht
der Vervielfältigung und Verbreitung
sowie der Übersetzung vorbehalten.
Vervielfältigungen und Reproduktionen
in jeglicher Form bedürfen der
schriftlichen Genehmigung durch die
Tams Elektronik GmbH.
Technische Änderungen vorbehalten.
© 08/2005 Tams Elektronik GmbH
All rights reserved. No part of this
publication may be reproduced or
transmitted in any form or by any
means, electronic or mechanical,
including photocopying, without prior
permission in writing from Tams
Elektronik GmbH.
Subject to technical modification.
© 08/2005 Tams Elektronik GmbH
Tout droits réservés, en particulier les
droits de reproduction et de diffusion
ainsi que le traduction. Toute
duplication ou reproduction sous
quelque forme que ce soit nécessite
l´accord écrit de la societé Tams
Elektronik GmbH.
Sous réserve de modifications
techniques.
© 08/2005 Tams Elektronik GmbH
Alle rechten voorbehouden. Niets uit
deze publicatie mag worden
vermenigvuldigd opgeslagen of
openbaar gemaakt, zonder
voorafgaande schriftelijke toestemming
van Tams Elektronik GmbH.
Technische wijzigingen voorbehouden.
n

WIB-5 English
Page 13
Table of contents
How to use this manual 14
Intended use 14
Safety instructions 14
EMC declaration 16
Summary of operation 17
Technical specifications 17
Checking the package contents 18
Required tools and materials 18
Safe and correct soldering 19
Mounting the interior lighting 20
FAQ 21
Manufacturer's note 21
Certification 21
Conditional warranty 22

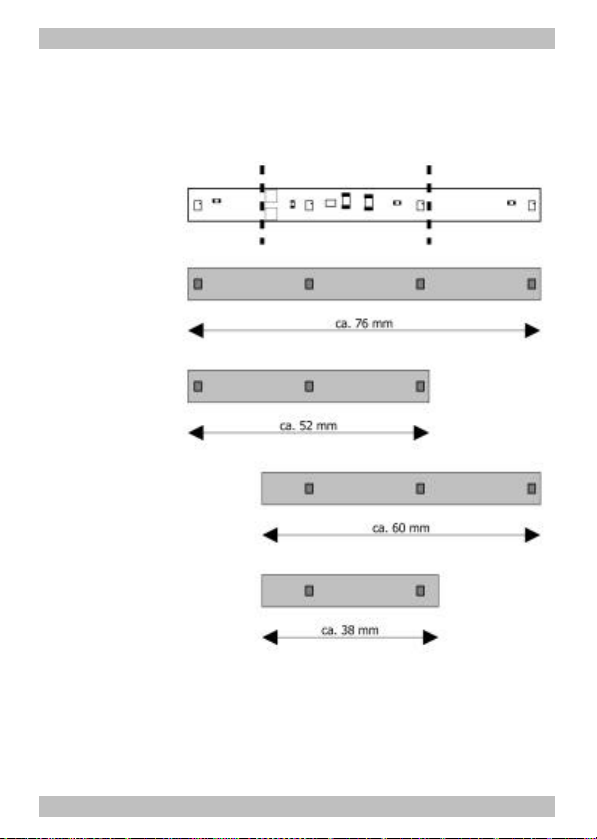

Shortening the PCB (Fig. 1) I
Mounting in a vehicle compatible to the Faller* Car System (Fig. 2) II

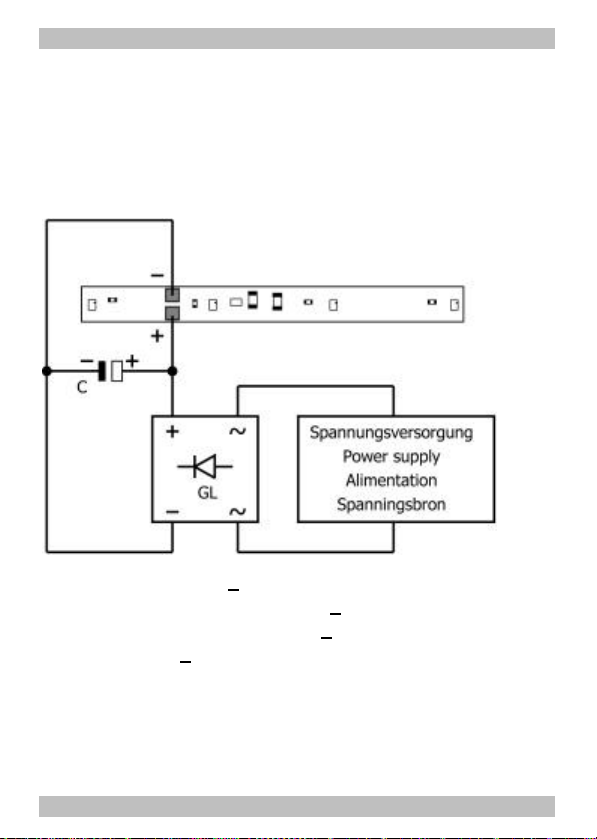

Mounting in a model railway vehicle (Fig. 3) III

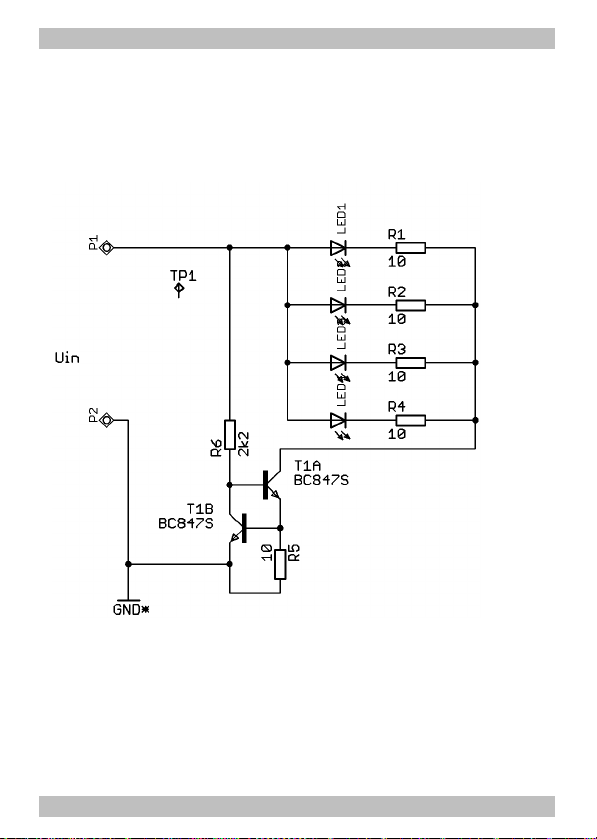

Circuit Diagram (Fig. 4) IV
(Pages I to IV in the centre of this handbook are removeable.)

English WIB-5
Page 14
How to use this manual
If you have no specialist technical training, this manual gives step-by-
step instructions for safe and correct fitting of the module, and
operation. Before you start, we advise you to read the whole manual,
particularly the chapter on safety instructions and the FAQ chapter. You
will then know where to take care and how to prevent mistakes which
take a lot of effort to correct.
Keep this manual safely so that you can solve problems in the future. If you pass
the module on to another person, please pass on the manual with it.
Intended use
The module can be used according to the specifications in this manual
as interior lighting for a model vehicle (e.g. bus compatible to the
Faller* Car-System, model railway carriage).
The module is not suitable for children under the age of 14. Reading,
understanding and following the instructions in this manual are
mandatory for the user. Any other use is inappropriate and invalidates
any guarantees.
Safety instructions
Mechanical hazards
Cut wires can have sharp ends and can cause serious injuries. Watch
out for sharp edges when you pick up the PCB.
Visibly damaged parts can cause unpredictable danger. Do not use
damaged parts: recycle and replace them with new ones.
Electrical hazards
§Touching powered, live components,
§touching conducting components which are live due to malfunction,
§short circuits,
§connecting the circuit to another voltage than specified,

WIB-5 English
Page 15
§impermissibly high humidity,
§condensation build up
can cause serious injury due to electrical shock. Take the following
precautions to prevent this danger:
§Never perform wiring on a powered module.
§Mounting the module should only be done in closed, clean, dry
rooms. Beware of humidity.
§Only use low power for this module as described in this manual and
only use certified transformers.
§Connect soldering irons only in approved mains sockets installed by
an authorised electrician.
§Observe cable diameter requirements.
§After condensation build up, allow a minimum of 2 hours for
dispersion.
§Use only original spare parts if you have to repair the kit or the
ready-built module.
Fire risk
Touching flammable material with a hot soldering iron can cause fire,
which can result in injury or death through burns or suffocation.
Connect your soldering iron or soldering station only when actually
needed. Always keep the soldering iron away from inflammable
materials. Use a suitable soldering iron stand. Never leave a hot
soldering iron or station unattended.
Thermal danger
A hot soldering iron or liquid solder accidentally touching your skin can
cause skin burns. As a precaution:
§use a heat-resistant mat during soldering,
§always put the hot soldering iron in the soldering iron stand,
§point the soldering iron tip carefully when soldering, and
§remove liquid solder with a thick wet rag or wet sponge from the
soldering tip.

English WIB-5
Page 16
Dangerousenvironments
A working area that is too small or cramped is unsuitable and can cause
accidents, fires and injury. Prevent this by working in a clean, dry room
with enough freedom of movement.
Other dangers
Children can cause any of the accidents mentioned above because they
are inattentive and not responsible enough. Children under the age of
14 should not be allowed to work with this module.
Little children can swallow small components with sharp edges, with
fatal results! Do not allow components to reach small children.
In schools, training centres, clubs and workshops, assembly must be
supervised by qualified personnel.
In industrial institutions, health and safety regulations applying to
electronic work must be adhered to.
EMC declaration
This product is developed in accordance with the European standards
EN 55014 and EN 50082-1, tested corresponding to the EC - directive
89/336/EWG (EMVG of 09/11/1992, electromagnetic tolerance) and
meets legal requirements.
To guarantee the electromagnetic tolerance you must take the
following precautions:
§Connect the transformer only to an approved mains socket installed
by an authorised electrician.
§Make no changes to the original parts and accurately follow the
instructions, circuit diagram and connections diagrams included
with this manual.
§Use only original spare parts if you have to repair module.

WIB-5 English
Page 17
Summary of operation
You can adapt the module to different carriage sizes by shortening the
PCB. The following partitioning of the PCB is possible:
§1 piece with a length of 75 mm and 4 LEDs (= complete length)
§1 piece with a length of 60 mm and 3 LEDs
§1 piece with a length of 52 mm and 3 LEDs
§1 piece with a length of 38 mm and 2 LEDs
A LED constant current source is integrated into the module to reduce
brightness fluctuations of the LEDs due to voltage variations.
The module is particularly designed for the use in vehicles compatible
to the Faller* car system, that are run with two accumulator batteries
(e.g. as interior lighting for busses).
When mounted in model railway carriages, a rectifier has to be
connected in series, as the module should be run with direct voltage
only. This applies to model railways that are run with direct voltage (2-
rail systems), too, as in these systems the polarity changes with the
direction of motion. In order to shunt short current interruptions you
can mount an additional electrolytic capacitor.
Technical specifications
Supply voltage 2 to 20 VoltD.C.
Current consumption approx. 30 mA
Protected to IP 00
Ambient temperature in use 0 - + 60 °C
Ambient temperature in storage -10 - + 80 °C
Comparative humidity allowed max. 85 %
Dimensions approx. 76 x 6,8 x 2 mm
Weight approx. 0,5 g

English WIB-5
Page 18
Checking the package contents
Check the contents of the package for completeness after unpacking:
§one module,
§one manual.
Required tools and materials
Make sure you have the following tools and materials ready for use:
§an electronic soldering iron (max. 30 Watt) with a fine tip,
§a soldering iron stand,
§a tip-cleaning sponge and a heat-resistant mat,
§a small side cutter and wire stripper,
§a pair of tweezers,
§tin solder (0,5 mm. diameter),
§enamelled copper wire or thin connecting wire,
§a rectifier (if mounted in model railway carriages),
§if necessary an electrolytic capacitor (to shunt short voltage
interruptions).

WIB-5 English
Page 19
!
Safe and correct soldering
Caution:
Incorrect soldering can cause dangers through fires and heat. Avoid
these dangers by reading and following the directions given in the
chapter Safety instructions. If you have had training in soldering you
can skip this chapter.
§Use a small soldering iron with max. 30 Watt. Keep the soldering tip clean
sothe heatof thesoldering ironis appliedto thesolder pointeffectively.
§Only use electronic tin solder with flux.
§When soldering electronic circuits never use soldering-water or
soldering grease. They contain acids that can corrode components
and copper tracks.
§Solder quickly: holding the iron on the joints longer than necessary
can destroy components and can damage copper tracks or
soldering eyes.
§Apply the soldering tip to the soldering spot in such a way that the wire
and the soldering eye are heated at the same time. Simultaneously add
solder (not too much). As soon as the solder becomes liquid take it
away. Hold the soldering tip at the spot for a few seconds so that the
solder flows into the joint, then remove the soldering iron.
§The joint should be held still for about 5 seconds after soldering.
§To make a good soldering joint you should use a clean and
unoxidised soldering tip. Clean the soldering tip with a damp piece
of cloth, a damp sponge or a piece of silicon cloth.
§After soldering check (preferably with a magnifying glass) tracks for
accidental solder bridges and short circuits. This would cause faulty
operation or, in the worst case, permanent damage. You can
remove excess solder by putting a clean soldering tip on the spot.
The solder will become liquid again and flow from the soldering
spot to the soldering tip.

English WIB-5
Page 20
!
!
Mounting the interior lighting
If necessary you have to adapt the length of the PCB to size of the
carriage first. You can saw through the PCB at the places shown in
fig. 1.
Pay attention not to damage the connection pads, the parts and
the connecting lines on the PCB when sawing.
Next solder the two connecting wires to the connection pads of the
PCB.
Mounting in a vehicle compatible with the Faller* Car System
Follow the connections diagram fig 2. Connect the connecting wires to
the accumulator batteries of the vehicle. Take into account the polarity
of the connections!
Mounting in a model railway vehicle
Caution:
If mounting the interior lighting in a model railway vehicle you have to
mount a rectifier in series, otherwise the module will be damaged. This
applies to model railways, that run with direct voltage (2-rail systems),
as well, as in these systems the polarity changes with the direction of
motion.
Follow the connections diagram fig 3. Connect the rectifier to the
voltage supply and the interior lighting. Take into account the polarity
of the connections!
A LED constant current source is integrated into the module to reduce
brightness fluctuations of the LEDs due to voltage variations.
Additionally you can mount an electrolytic capacitor which supplies the
voltage for running the module when the voltage is interrupted for a
short time (e.g. in areas with bad contacts). Use an electrolytic
capacitor with a capacity of at least 100 µF and a voltage sustaining
capability of at least 25 V. Follow the connections diagram fig. 3 when
mounting the capacitor.

WIB-5 English
Page 21
!
Fixing the interior lighting
After completing the connections, secure the lighting in place (eg. with
double sided adhesive tape).
FAQ
§Parts are getting very hot and/or start to smoke.
Disconnect thesystem from the mains immediately!
Possible cause: The module has been mounted without taking into
account the polarity.àCheck the connections. Possibly the module
is irreparably damaged.
Possible cause: The module has been mounted in a model railway
carriage without mounting a rectifier in series. àMount a rectifier.
Possibly the module is irreparably damaged.
§The interior lighting does not work.
Possible cause: The connection to the power supply is interrupted.
àCheck the connections.
Possible cause: The power supply to the vehicle is interrupted. à
Check the power supply.
If you cannot find the problem, please return the module for repair
(address on the cover page).
Manufacturer's note
According to DIN VDE 0869, the person who assembles and/or mounts
a circuit in its’ casing is the manufacturer of the product. If he sells the
product to another person he is responsible for passing on all the
relevant papers and his name and address.
Certification
This product conforms with the EC- directive 89/336/EWG on
electromagnetic radiation and is therefore CE certified.

English WIB-5
Page 22
Conditions of warranty
This product is guaranteed for two years. The warranty includes the
correction of faults which can be proved to be due to material failure or
factory flaw. We guarantee the function of the parts according to the
parameters in not mounted state as well as the adherence to the
technical specifications of the circuit when assembled and connected
according to the manual.
Other claims are excluded. By law, we are not responsible for damages
or secondary damages in connection with this product. We retain the
right to repair, make improvements, supply spare parts or return the
purchase price.
The following invalidate the warranty:
§using an unsuitable soldering iron, solder containing liquid acids or
similar,
§if damage is caused by not following the instructions in this manual
or the connection diagram(s)
§if the module has been altered and repair attempts have failed,
§if arbitrary changes in the circuit are made,
§if additional components are added which are not described in the
manual,
§if the copper tracks or soldering eyes are damaged,
§if damage occurs due to an overload of the module,
§if connected to a incorrect voltage or current,
§if damaged by other persons,
§if damaged by faulty operation or if damaged by careless use or
abuse.
* "Faller" is a registered and protected trade mark of Gebrueder Faller
GmbH, Guetenbach, Germany.

WIB-5
Seite - Page - Pagina I
Kürzen der Platine
Shortening the PCB
Raccourcissement de la platine
Inkorten van de print
nFig. 1
An den markierten Stellen kann die Platine gekürzt werden!
You can shorten the print at the marked spots!
La platine peut être raccourcie aux endroit marqués!
Op de gemarkeerde plaatsen kan de print ingekort worden!

WIB-5
Seite - Page - Pagina II
Einbau in ein Fahrzeug für das Faller* Car System
Mounting in a vehicle compatible to the Faller* Car System
Montage dans un véhicule du Faller* Car System
Inbouwen in een auto van het Faller* Car System
nFig. 2
G1 / G2 = VorhandeneAkkus
Existing accumulator batterries
Accus existants
Ingebouwdeaccu’s

WIB-5
Seite - Page - Pagina III
Einbau in ein Modellbahn-Fahrzeug
Mounting in a model railway vehicle
Montage dans un véhicule ferroviaire
Inbouwen in een modelspoorvoertuig
nFig. 3
C = Zusätzlicher Elko (>100 µF / 25 V)
Additional electrolytic capacitor (>100 µF / 25 V)
Condensateur supplémentaire (>100 µF / 25 V)
Extra elco (>100 µF / 25 V)
GL = Gleichrichter
Rectifier
Cellule redresseuse
Gelijkrichter

WIB-5
Seite - Page – Pagina IV
Schaltplan
Circuit diagram
Schéma de principe
Schakelschema
nFig. 4

n
n
n
Aktuelle Informationen und Tipps:
Information and tips: n
Informations et conseils:
Actuele informatie en tips: n
http://www.tams-online.de n
n
n
n
Garantie und Service:
Warranty and service: n
Garantie et service:
Garantie en service: n
n
Tams Elektronik GmbH n
Rupsteinstraße 10
D-30625 Hannover n
fon: +49 (0)511 / 55 60 60
fax: +49 (0)511 / 55 61 61 n
e-mail: [email protected] n
