Model Number:
THT-2530 / 2540

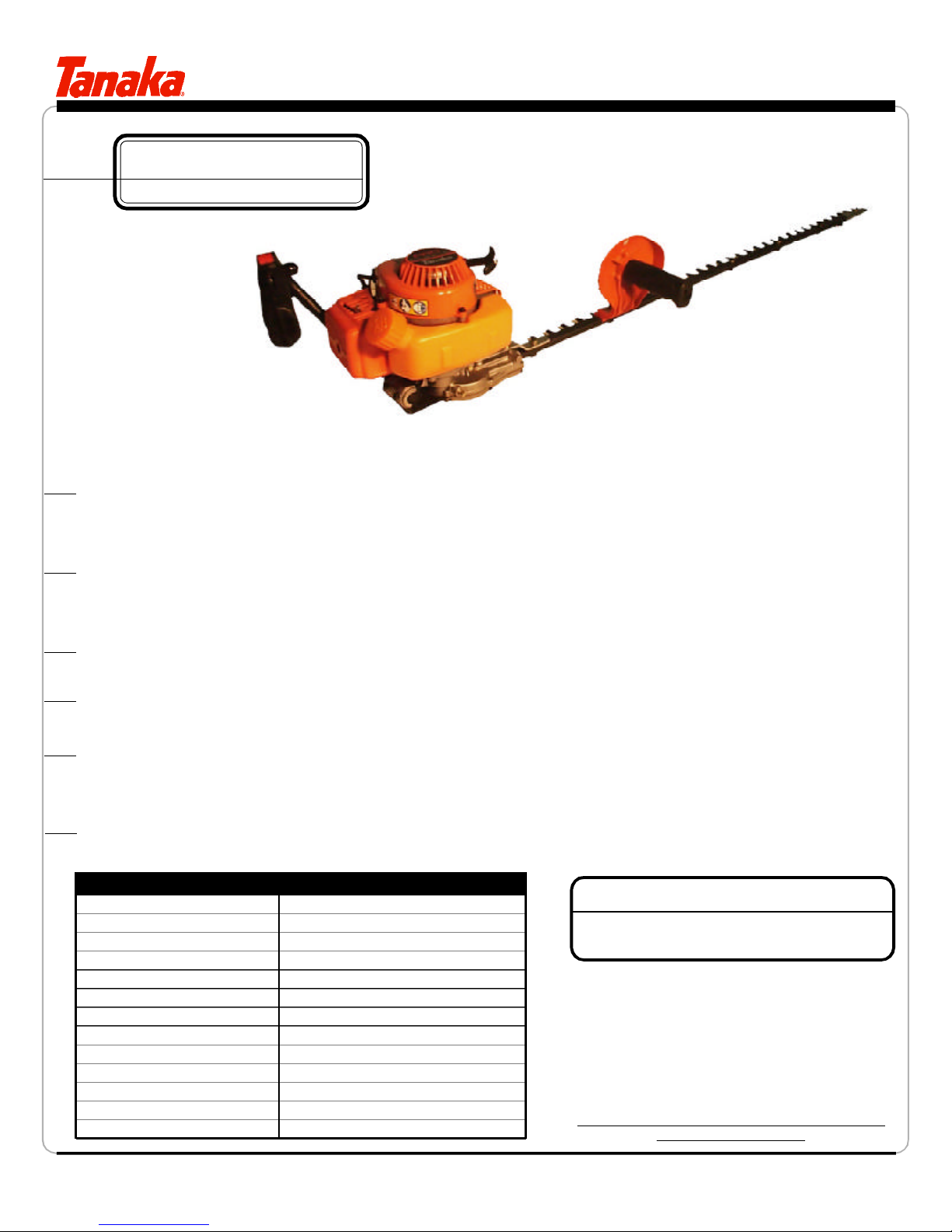

24cc, 1.3 hp Single Sided Hedge Trimmers
P/N 28581
Rev 000
Date 7/30/99
Note: The THT-2530 has 30 inch blades. The THT-2540 has 40 inch blades.

ISM, Inc. • 1028 4th Street SW, Suite B • Auburn, WA 98001 • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
PRODUCTINFORMATION
Features / Benefits
PRODUCTINFORMATION
All data and specifications are subject to change without notice
For more information, contact:
24cc, 1.3 hp engine features two piston rings and a stress relieved, chrome plated
cylinder for long engine life.
40 inch single-sided, dual reciprocating blades
provide powerful cutting action and added reach for larger jobs.
Heavy-Duty Gear Case provides added strength for tough cutting jobs.
Sound reduction system™reduces engine noise up to 44 percent.
Anti-vibration system reduces engine vibration which provides for longer and more
comfortable operation.
1 / 2 / 5 Warranty Coverage provides One-Year coverage for professionals, Two-
Year Coverage for Homeowners, and Five Years on the Electronic Ignition Module.
Optional Accessories:
ORDER # DESCRIPTION
Varies Perfect Mix™ 2-Cycle Engine Oil
Specifications
Engine Displacement cc (cu. in.)
24(1.4)
Power (h.p.) 1.3
Carburetion Walbro Diaphragm
Ignition System Transistorized Electronic
Fuel Tank Capacity / fl. oz. (cc) 11.8 (350)
Muffler System Sound Reduction System
Anti-Vibration Rear Handle
Clutch System Heavy-Duty Centrifugal
Rear Handle Fixed Position
Front Handle 2 Position / Single Post with Guard
Throttle Squeeze Type Safety Trigger
Blades / inches (mm) 40" (1016mm), Single Sided
Dry Weight / lbs. (kg) 13.0 (5.9)
Single Sided Hedge Trimmer
THT-2540-2540

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 1
THT-2530/40
ENGINE / CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1 157-06500-91 CAP,SPARK PLUG ASS’Y 1
2 018-11660-21 PLUG,SPARK 1
3 001-06600-90 SET,CYLINDER 1
4 994-16050-201 SCREW,5X20/WS 2
7 017-06500-20 GASKET, CYLINDER 1
8 041-01601-200 RING,PISTON 2
9 030-06600-90 SET,PISTON 1
10 037-01601-200 PIN,PISTON 1
11 039-01620-200 CIRCLIP,PISTON PIN 2
12 046-06500-801 CRANKSHAFT 1
13 999-62081-225 BEARING,NEEDLE,F-810 1
27 153-21533-90 SET, COIL, IGNITION 1
28 994-16040-226 SCREW,WS,4X22 2
36 250-06500-200 TUBE,INSULATOR 1
37 178-06500-80 CORD,STOP COMPLETE 1
40 274-0700D-80 CORD, 130MM 1

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 2
THT-2530/40
CRANKCASE, FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
21 072-06500-90 CRANKCASE ASS’Y 1
22 090-06500-200 GASKET,CRANKCASE 1
23 999-66122-269 SEAL,OIL,#12227 2
24 999-61600-100 BEARING,BALL,#6001 2
25 330-00200-210 SHIM,12.2X19X.10 V
25 330-00200-220 SHIM,12.2X19X.15 V
25 330-00200-230 SHIM,12.2X19X.20 V
25 330-00200-240 SHIM,12.2X19X.30 V
26 599-00601-200 CUSHION 1
30 994-14050-301 SCREW,5X30/S 3
31 155-21523-80 ROTOR, MAGNETO 1
32 992-01080-011 WASHER,8 1
33 992-10080-012 WASHER,S,8 1
34 991-01080-011 NUT,8 1
35 100-02100-200 BOLT,STUD,6X22 2
Shims are “as needed” to obtain
correct c/s side clearance
Includes bearings, seals & gasket
P/N046-06500-801

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 3
THT-2530/40
CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3
P/N455-06500-90

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 4
THT2530/40
CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
25 403-06500-200 GASKET,INTAKE 1
26 404-06500-90 MAINFOLD,INTAKE 1
27 994-16050-252 SCREW,5X25WS 2
30 402-06500-200 GASKET,CARBURETOR 1
33 999-67015-000 O-RING,P15 1
35 423-06500-80 BODY,CLEANER 1
36 470-06500-200 COLLAR 2
37 528-0650T-20 LEVER,CHOKE 1
38 992-04080-030 WASHER,8 1
39 476-01700-200 BOARD,BLOW OVER CHECK 1
40 992-10050-012 WASHER,S,5 2
41 990-11050-602 SCREW,5X60 2
43 446-06500-20 ELEMENT,CLEANER 1
44 452-06600-90 COVER,CLEANER 1
45 380-0637C-200 BOLT,CLEANER COVER 1
46 455-06500-90 CARBURETOR,SET 1
50 223-06500-90 PIPE,FUEL,ASS'Y 1
51 680-00731-201 CLIP 6.3 1
52 675-04042-80 FILTER,FUEL 1
53 591-06601-21 TANK,FUEL 1
54 595-0656B-90 CAP,GAS BLACK,NON VENT 1
55 659-00801-200 COLLAR 2
58 994-63050-185 BOLT,HEX 5X18PS 2
121 564-06601-90 VENT,AIR ASSY 1
122 565-06601-20 PIPE,AIR VENT 1
123 646-3252L-90 AIR VENT VALVE ASSY 1
124 680-00206-200 CLIP,5.5 1
125 561-00070-20 COVER,AIR VENT 1

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 5
THT-2530/40
CLUTCH, STARTER, MUFFLER COMPONENTS • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
03 738-06600-20 PROTECTOR,MUFFLER 1
04 737-06500-200 GASKET,MUFFLER 1
05 133-06500-200 SHIELD,HEAT 1
06 704-06500-90 SET,MUFFLER 1
07 992-01050-011 WASHER,5 2
08 990-51050-503 BOLT,HEX,5X50 2
11 112-06500-80 CASE,FAN 1
12 780-06097-200 SPRING,RECOIL 1
13 774-06097-200 PULLEY,STARTER 1
15 839-02010-20 SCREW,SET 1
16 798-06500-900 PULLEY,STARTER,ASS’Y 1
17 203-0604A-202 GROMMET 1
18 783-06097-200 ROPE,STARTER 1
19 785-06410-200 HANDLE,STARTER 1
20 994-15040-162 SCREW,PS,4X16 3
21 751-06500-200 GASKET, TAIL PIPE 1
22 721-06611-90 SET,TAIL PIPE 1
23 994-34040-081 SCREW,4X8/S 2
47 277-0634F-900 CLUTCH,ASS’Y 1
61 990-72045-164 SCREW,TAPPING,4.5X16 1
62 994-25040-128 BOLT,PS,4X12 2
65 790-06097-200 SPRING,STARTER PAWL 1
66 788-06500-20 PAWL,STARTER 1

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 6
THT-2530/40

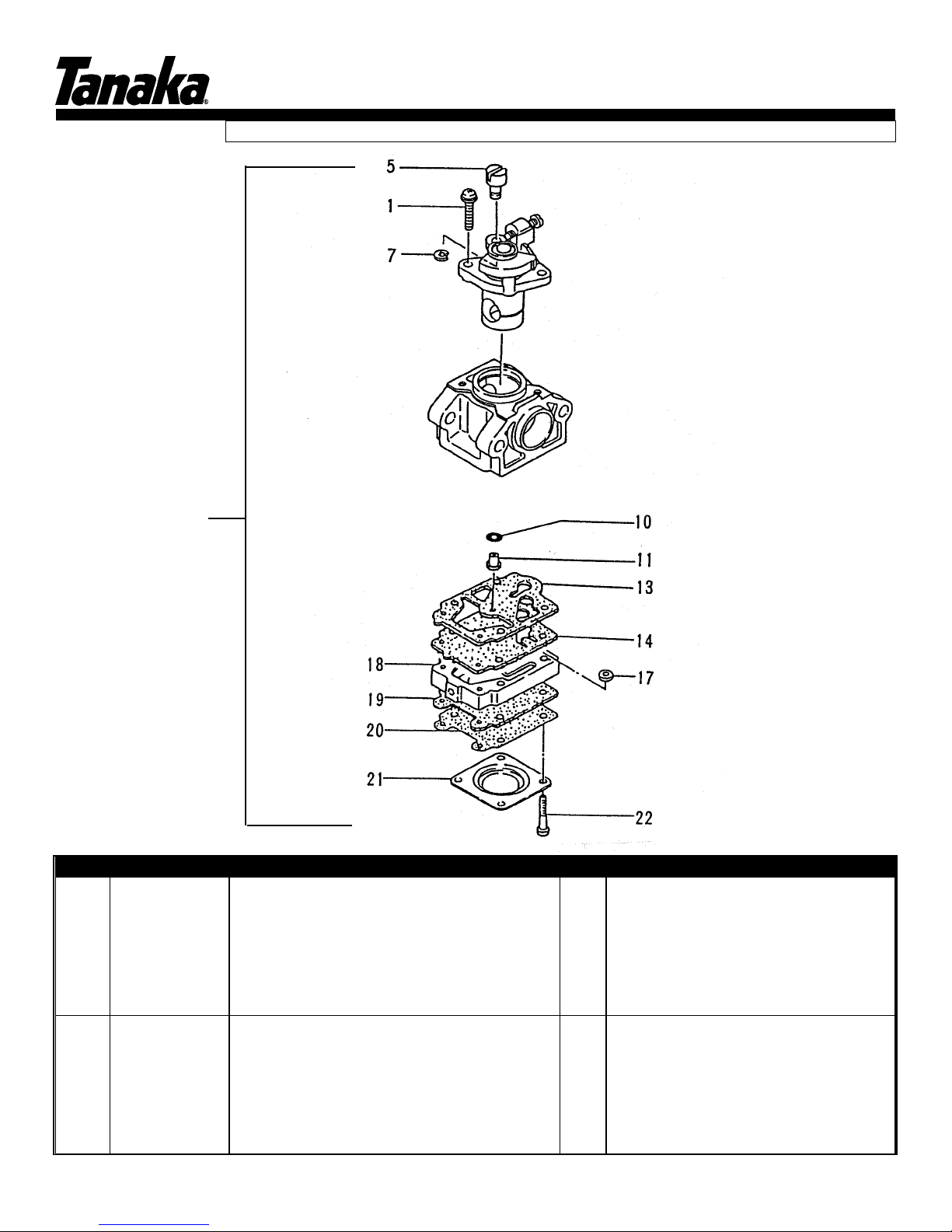

CARBURETOR ASSY • FIGURE 5
0
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
0 455-06500-90 CARBURETOR 1 *Contained in Carb Repair Kit
01 548-25140-200 SCREW,THROTTLE SET 2 P/N 650-25140-900
05 539-25120-200 SWIVEL 1 (not available individually)
07 489-25100-200 RING,STOP 1
10 550-25100-200 O-RING 1
11 599-2000W-35 JET,MAIN,#35 1
13 ~ *GASKET, PUMP 1
14 ~ *DIAPHRAGM, PUMP 1
17 ~ *SCREEN, INLET 1
18 575-25182-80 BODY,PUMP 1
19 ~ *GASKET, DIAPHRAGM 1
20 ~ *DIAPHRAGM, METERING 1
21 476-25004-200 COVER,DIAPHRAGM 1
22 548-25101-200 SCREW,SET 4

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 7
THT-2530/40
CLUTCH, GEAR CASE • FIGURE 6

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 8
THT2530/40
GEAR CASE • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
01 300-33185-20 CASE, GEAR"A" 1
02 993-51026-002 RING,STOP,IN,C-26 1
03 999-61600-000 BEARING,BALL,#6000 1
04 999-61600-002 BEARING,BALL,#6000Z 1
05 288-33185-80 HOUSING,CLUTCH 1
06 306-33185-20 GEAR 1 1
07 307-33185-20 GEAR 2 1
08 101-33185-80 ROD,CAM 2
09 100-33185-20 SHAFT,CAM 1
10 303-33185-20 GASKET,GEAR CASE 1
11 999-61608-000 BEARING,BALL,#608 2
16 085-33185-20 SEAL,GREASE A 2
19 247-33185-20 COLLAR 2
21 994-61050-254 BOLT,HEX HOLE,5X25S 6
22 300-32250-801 NIPPLE,GREASE 1
23 990-51060-183 BOLT,HEX.HOLE,6X18 2
26 990-53060-153 BOLT,HEX,6X15 1
27 992-00060-011 WASHER,SMALL,6 1
29 070-33185-20 PLATE,FIXING 2
30 462-33185-20 PLATE,SUPPORT 1
31 990-51040-083 BOLT,HEX.HOLE 4X8 4
43 994-40060-011 NUT,SPRING 6 2
60 301-33185-20 CASE,GEAR B 1
71 992-10060-012 WASHER,S,6 2
72 994-40060-011 NUT,SPRING 6 2

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 9
THT-2530/40
HANDLE, CUTTER BLADES • FIGURE 7

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 10
THT2530/40
HANDLE, CUTTER BLADES • FIGURE 7
REF PART NUMBER DESCRIPTION QTY COMMENTS
12 122-33185-20 GUIDE,CUTTER 40" 1
13 136-33185-20 PLATE,PROTECTION 1
14 990-52060-253 SCREW,HEX HOLE 6X25 2
17 121-33185-20 CUTTER B 40" 1
18 120-33185-20 CUTTER, A 40" 1
24 129-33202-201 WASHER,7 6
25 124-33202-21 BOLT, CUTTER FIXING, A 6
28 128-33202-200 HOLDER,BLADE 1
39 125-33202-205 BOLT,CUTTER FIXING B 1
40 051-33185-80 HANDLE B 1
41 515-37224-20 GRIP,HANDLE L 1
42 123-33202-200 NUT,CUTTER FIXING 7
44 992-01060-011 WASHER,6 1
45 992-10060-012 WASHER,S,6 1
46 992-01060-011 WASHER,6 3
49 138-33185-21 COVER,CUTTER 40" 1
50 122-33187-20 GUIDE,CUTTER 30" 1
51 121-33187-20 CUTTER B 30" 1
52 120-33187-20 CUTTER A 30" 1
53 129-33202-201 WASHER,7 4
54 124-33202-21 BOLT, CUTTER FIXING, A 4
55 128-37904-20 HOLDER,BLADE 1
56 123-3317A-20 NUT,CUTTER FIXING 5
57 138-3318B-21 COVER, CUTTER 30" 1

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 11
THT-2530/40
HANDLE, THROTTLE COMPONENTS • FIGURE 8

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 12
THT2530/40
HANDLE, THROTTLE COMPONENTS • FIGURE 8
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
01 053-33231-22 GRIP,HANDLE"A" 1
02 054-33231-23 GRIP,HANDLE"B" 1
03 230-33210-201 LEVER,THROTTLE 1
04 231-33210-200 LEVER,SAFETY 1
05 061-32600-201 SPRING,THROTTLE LEVER 1
06 170-32465-80 BUTTON, STOP SWITCH 1
07 925-32530-20 DECAL,STOP BUTTON 1
10 765-32120-20 CAP 1
13 994-16040-301 SCREW 4 X 30 / WS 2
14 994-16040-251 SCREW,4X25/WS 1
15 055-33185-90 ASSY,HANDLE GRIP 1
16 050-33185-80 HANDLE A 1
17 885-0650J-80 WIRE,THROTTLE 1
18 164-10015-00 TUBE,PROTECTION 1
19 994-16040-161 SCREW 4 X 16 /WS 3
22 991-78040-010 NUT,LOCK 4 6
23 990-11030-101 SCREW,3X10 1
24 258-11650-20 BUTTON,STOP 1
25 198-33130-200 CLAMP,CORD 1
33 994-61050-124 BOLT,HEX,5X12S 4
35 058-33185-20 BRACKET,HANDLE 1
36 060-33185-20 RUBBER,HANDLE DAMPER 2
75 813-20000-200 WRENCH,HEX,4 1
76 036-29331-501 SPANNER,COMBI 1

www.tanaka-usa.com
PARTSINFORMATION
[email protected]
Page 13
THT-2530/40

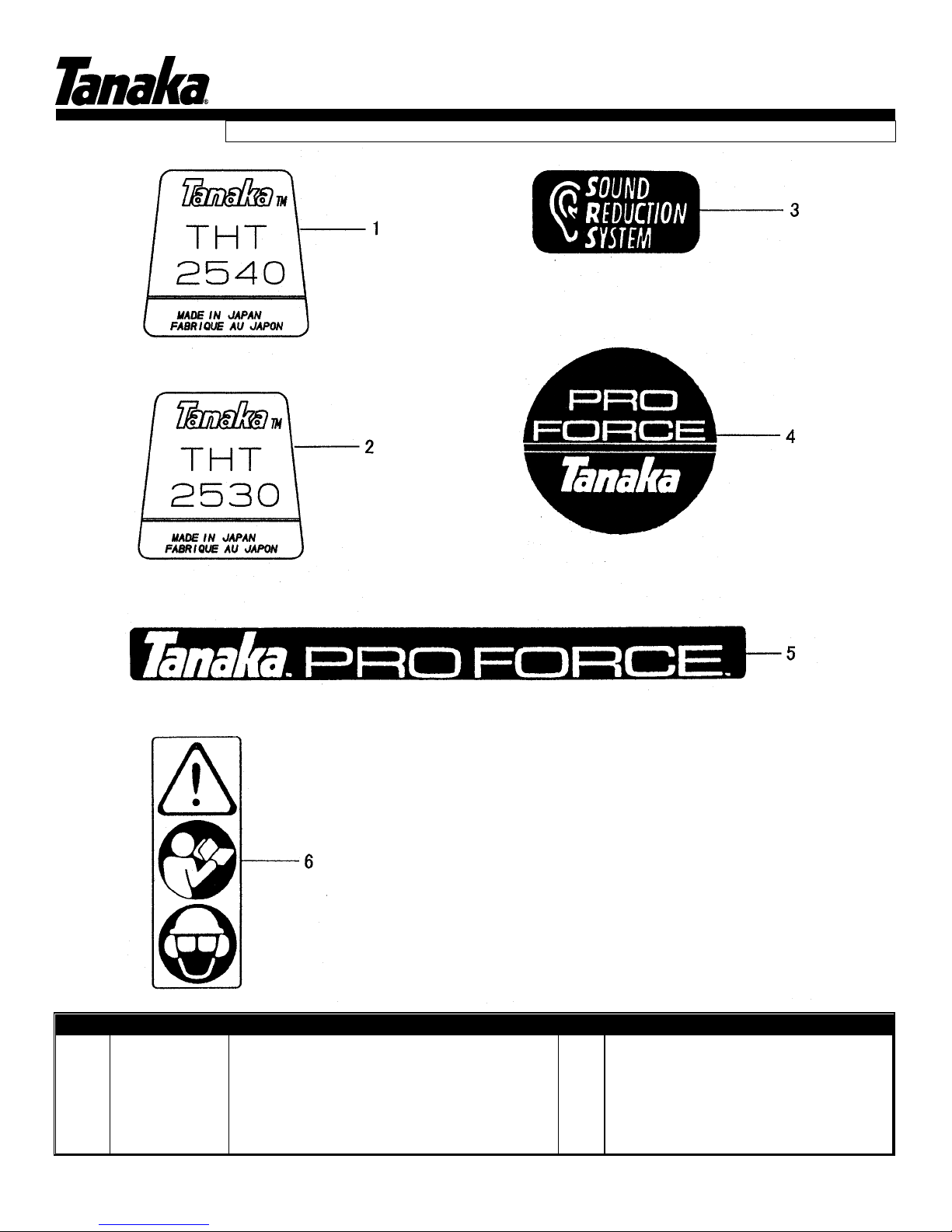

DECALS • FIGURE 9
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
01 906-06612-20 PLATE,NAME THT-2540 1
02 906-06613-20 PLATE,NAME THT-2530 1
03 911-06500-200 DECAL,SRS 1
04 950-37900-200 DECAL,PRO-FORCE A 1
05 951-37900-200 DECAL,PRO-FORCE 1
06 920-32466-20 DECAL,CAUTION 1

is marketed exclusively by:
ISM, Inc. • 1028 –4th Street, Suite B • Auburn, WA 98001 • Phone: [phone] • Fax: [phone]
www.tanaka-usa.com * [e-mail]
Model & Serial: THT-2100/THT-2120/THT-2510/THT-2520/THT-2540/HTD-2522PF/HTD-2526PF/HTD-
2530PF/HTS-2530PF.
All units produced after serial number W100101.
Reason: When these units are fitted with the aluminum safety shield, some experience
loosening of the blade jam nuts. A flat washer has been added between the nut
and the aluminum shield to help prevent the nut from becoming loose.
Models THT-2100, 2120, 2510 and HTD-2526PF, 2522PF require 3 washers.
Models THT-2520, 2540 and HTS-2530PF and HTD-2530PF require 2 washers
Part Number Changes:
Old Part # New Part # Description Remarks
992-01060-011 Washer
TECHNICAL SERVICE BULLETIN NUMBER PI 3118
Date: June 2001

is marketed exclusively by:
ISM, Inc. • 1028 –4th Street, Suite B • Auburn, WA 98001 • Phone: [phone] • Fax: [phone]
www.tanaka-usa.com * [e-mail]
Model & Serial: All THT, HTD, HTS, TPH hedgetrimmer models.
All units after serial number Y004401
Reason: All future production of hedgetrimmer models will utilize a blade-retaining nut that
is of the locking variety. These nuts are oblong on one side to prevent loosening
during use, but can be removed and re-installed without losing their locking
ability.
When adjusting blade-fastening hardware, thread the bolt (18) through the
blades and guide bar from the bottom, to a point where the flat washer (17), is still
able to rotate, (usually to seat, and then backed off between ¼ and ½ revolution).
Then install the lock nuts on the topside, tightening them while holding the bolt in
place. Tighten all nuts, and then re-check for adjustment prior to operation. A
lubricating agent, such as WD-40 should also be used to prevent sap build-up
and premature wear.
Part Number Changes:
Old Part # New Part # Description Remarks
123-33202-200 123-3317A-20 Lock Nut Reference #19
TECHNICAL SERVICE BULLETIN NUMBER PI 3119
Date: January, 2002
