T&D i.roc Ci70-Ex User manual

Intrinsically Safe PDA i.roc®Ci70 -Ex
PRODUCT GUIDE

www.iroc-ci70.com
CERTIFICATIONS Sample Conguration Code: Ci70AN2NN00W10 A 00111
Intrinsic Safety Standard Description
Config.
Number
Position 15
ATEX ZONE 1/21
IECEx ZONE 1/21
NEC CL I, DIV 1
Europe, Worldwide,
USA, Canada
1
NEC CI I, DIV 1 USA, Canada E
NEC CL I, DIV 1
IECEx ZONE 1/21
Worldwide, USA,
Canada
D
INMETRO Zone 1/21
NEC Cl I, Div 1
Brazil, USA N
ATEX MINING
IECEx MINING
Europe, Worldwide H
MSHA (USA MINING) USA I
TIIS Japan J
RADIO MODULES Sample Conguration Code: Ci70AN2NN00 F3 0A00111
Accessory Name Description Config. Number
Position 10
WLAN Module WLAN Module IEEE 802.11 a/b/g/n 00
WWAN + WLAN Module WLAN Module IEEE 802.11 a/b/g/n, GPS
UMTS/HSDPA/HSUPA, CDMA/EV-DO
F3
2
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
• Depending on country of
usage you have to select
your needed approval
which is marked on the
device.
i.roc®Ci70 -Ex
PRODUCT GUIDE
Zone 1 / Cl. I Div. 1

www.iroc-ci70.com
HEAD MODULES Sample Conguration Code: Ci70AN2 SN 00W10A00111
Data Capturing Module Description Config. Number
Position 8
SN-SE955-AA 1D Short Range Laser
Barcode Scanner
SN
EN-EX25 2D Multi Range
Barcode Imager
EN
NL-TLB30-AA 125/134 kHz LF RFID R/W
Module AirCoil
NL
NF-TLB30-AA 125/134 kHz LF RFID R/W
Module Ferrite
NF
NT-LID-AA TROVAN LF RFID R/W
Module
NT
NH-UNI13-AA 13.56 MHz HF RFID R/W
Module
NH
NE-UNI900-AA 868 MHz UHF RFID
R/W Module ETSI
NE
NU-UNI900-AA 915 MHz UHF RFID
R/W Module FCC
NU
Single Cap No data Capturing Module
attached
NN
3
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.

www.iroc-ci70.com
KEYPADS Sample Conguration Code: Ci70A N2 SN00W10A00111
Keypad Option Description Config. Number
Position 6
Numeric Keypad Numeric Keypad with large
function keys
N2
QWERTY Keypad Alphanumeric QWERTY Keypad Q2
Combined Head module
Description Config. Number
Position 8
+
SL-SE955-TLB30-AA LF RFID Reader
(Air Coil)
1D Barcode Scanner
Combination of 1D
Barcode Scanner and
125 / 134 kHz RFID
Reader
SL
+
SF-SE955-TLB30-AA LF RFID Reader
(Ferrite)
1D Barcode Scanner
Combination of 1D
Barcode Scanner and
125 / 134 kHz RFID
Reader
SF
+
SH-SE955-UNI13-AA HF RFID Reader
1D Barcode Scanner
SH
+
ST-SE955-LID-AA Trovan RFID Reader
1D Barcode Scanner
ST
4
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
i.roc®Ci70 -Ex
PRODUCT GUIDE

www.iroc-ci70.com

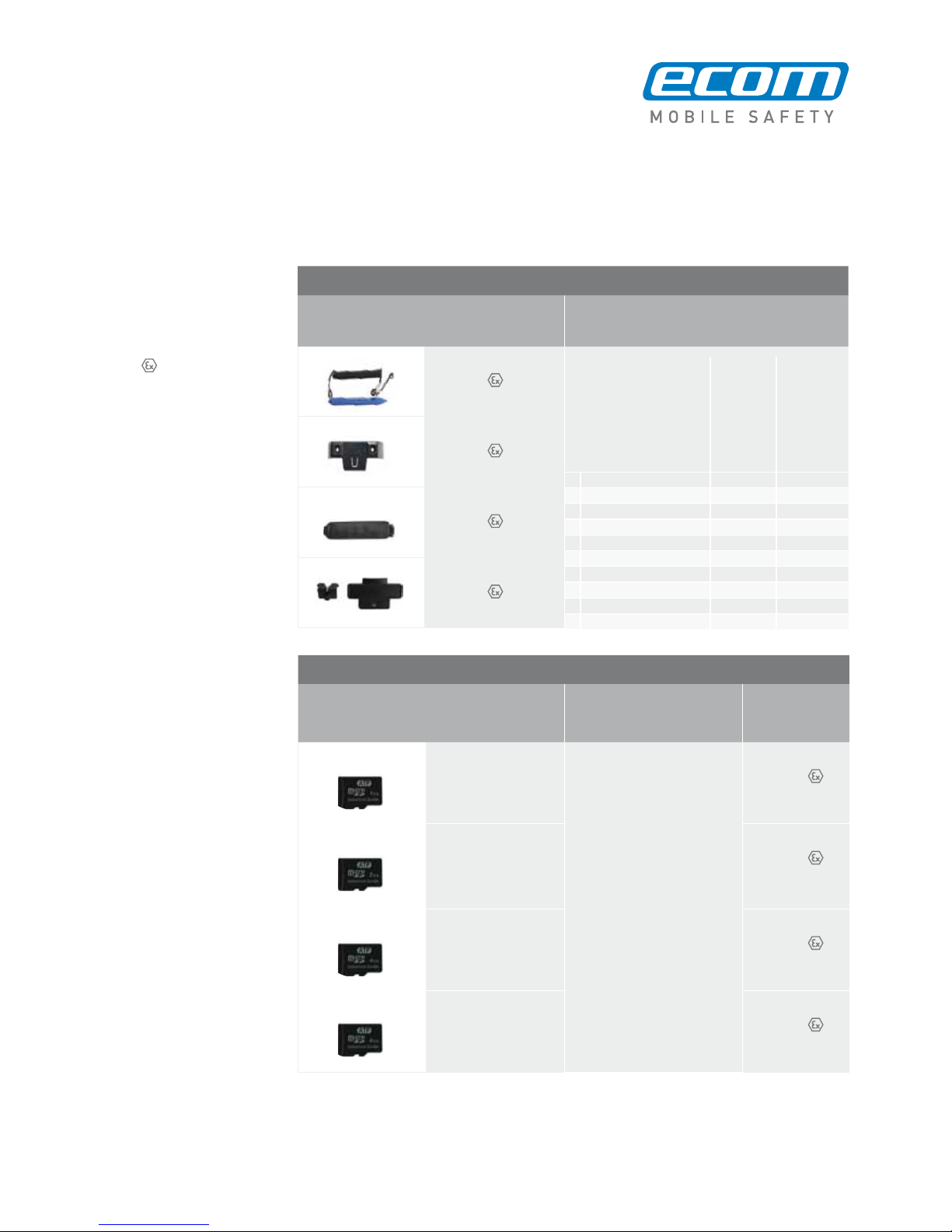

ACCESSORIES Sample Conguration Code: Ci70AN2SN00W10A00 2 41
Accessory Name
& Part Number
Config. Number
Position 18
Stylus Pen
A0030325
Bracket for Hand Strap
A0030317
Hand Strap
A0030316
Dust Cover
A0030318
MEMORY CARDS
Sample Conguration Code: Ci70AN2SN00W10A002 4 1
Accessory Name Description
Config. Number
& Part Number
Position 19
ATP microSD Card,
1 GB
Industrial grade microSD
Card for reliable perfor-
mance in all i.roc® Ci70 -Ex
operating environments.
1
A0030326
P/N 856-065-004
ATP microSD Card,
2 GB
2
A0030327
P/N 856-065-005
ATP microSD Card,
4 GB
4
A0030305
P/N 856-065-006
ATP microSD Card,
8 GB
8
A0030306
P/N 856-065-007
5
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
• Blue marked part num-
bers indicate Intermec
part numbers, black
marked parts indicate
ecom article numbers.
Stylus Pen
For use with bracket for
hand strap.
Bracket for Hand Strap
Required for use of hand
strap; provides retaining
fixture of stylus.
Hand Strap
Ensures a
firm grip.
Dust Cover
Provides
protection of
the docking
connector.
0none none none
1none none mounted
2mounted none none
3mounted none mounted
4mounted mounted none
5mounted mounted mounted
6mounted enclosed none
7mounted enclosed mounted
8enclosed enclosed none
9enclosed enclosed mounted

www.iroc-ci70.com

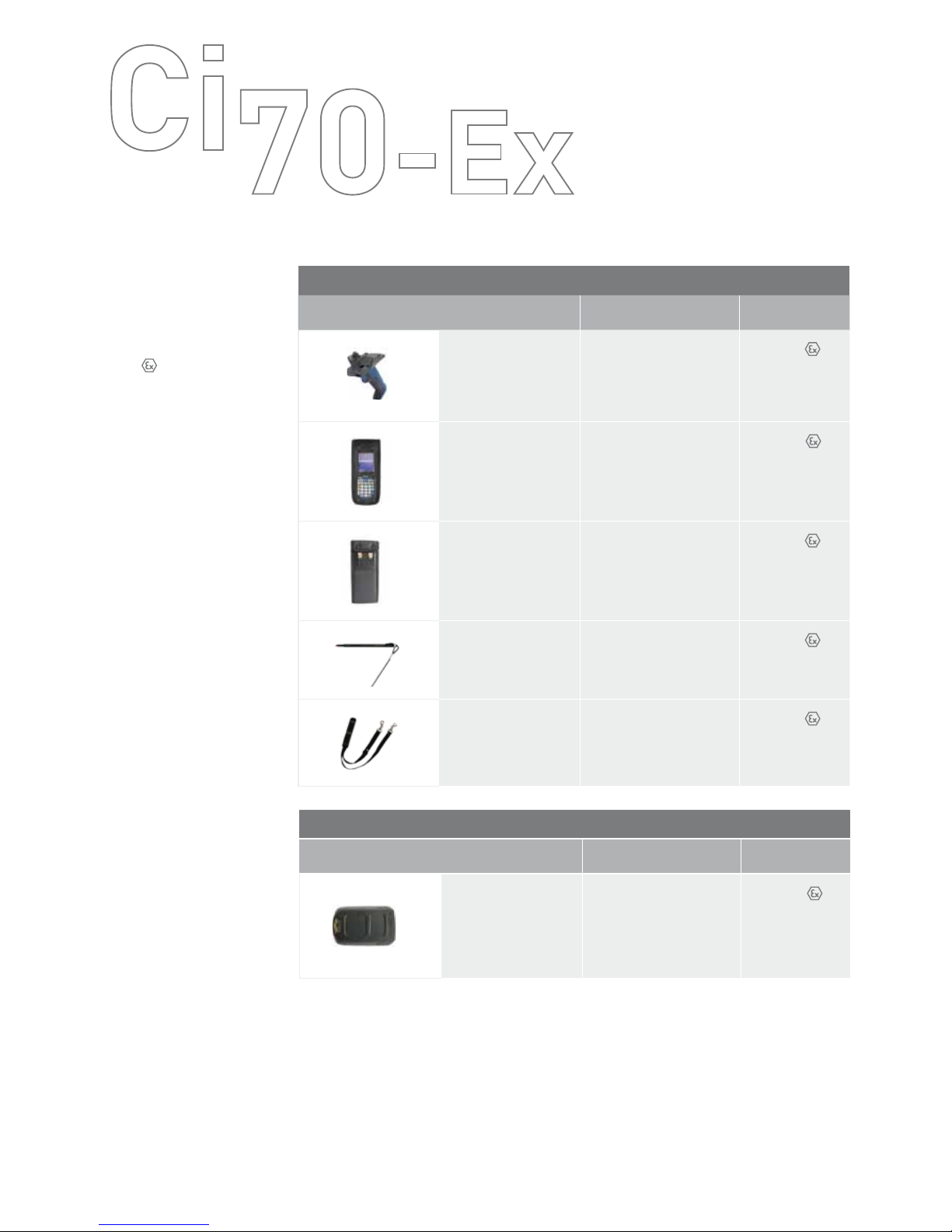

ACCESSORIES
Accessory Name Description Part Number
Scan Handle Scan handle, customer
installable.
A0030302
Carry Case Carry case including front
cover, one tethered stylus
and shoulder strap.
AS030310
Holster Holster including shoul-
der strap.
A0030304
Stylus Pen for
Carry Case
Replacement for stylus
provided with carry case.
A0002749
Shoulder Carrying
Strap
Strap for use with leather
carry case / holster.
A0030315
BATTERIES
Accessory Name Description Part Number
Spare Ex Battery Pack
AM Ci70 -Ex
Lithium-ion, 3.7 V, 4000
mAh. Only for use with
the i.roc
®
Ci70 -Ex.
One battery pack included
with every i.roc
®
Ci70 -Ex.
AS030300
6
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
i.roc®Ci70 -Ex
PRODUCT GUIDE

www.iroc-ci70.com

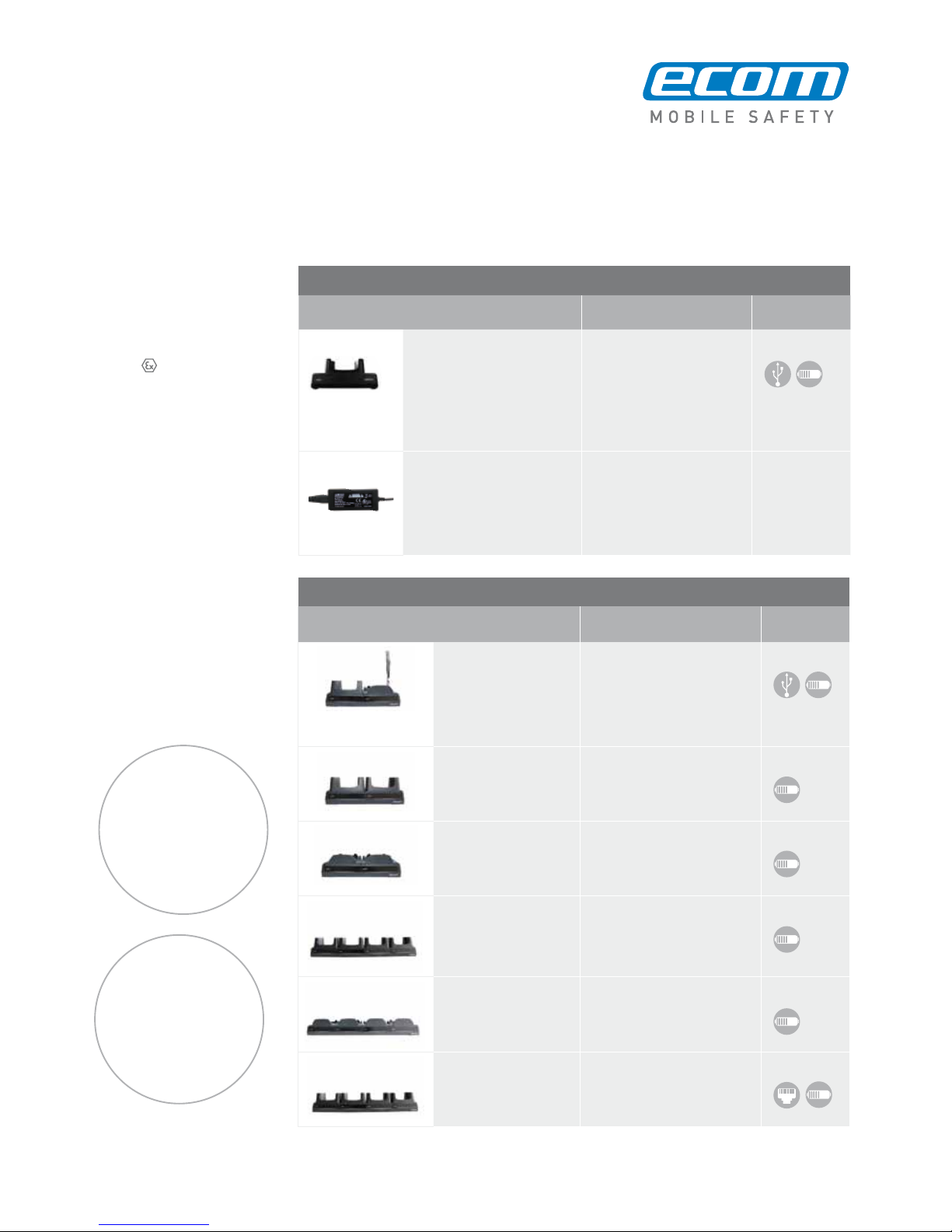

SINGLE DOCK AND POWER SUPPLY
Accessory Name Description Part Number
Single Docking Station For charging i.roc Ci70 –Ex.
Provides USB client functio-
nality. Includes USB cable,
power supply (EU power
cord) and adapter plug for
power cord.
AS030301
Power Supply for
Single Docking Station
Power supply incl. EU po-
wer
cord; weight approx.180 g
(6.3 oz)
For other power cords see
page 7.
A0030312
PRE-CONFIGURED FLEXDOCK PACKS *
Accessory Name Description Part Number
Desktop Dock For charging 1 i.roc® Ci70 -Ex
and 1 battery; provides USB
client functionality;
includes Torx screwdriver and
USB cable.
AS030312
Dual Dock PDA For charging 2 i.roc® Ci70 -Ex. AS030313
Dual Dock Batt For charging 2 batteries „AM
Ci70 -Ex“.
AS030314
Dual Dock PDA For charging 4 i.roc® Ci70 -Ex. AS030315
Quad Dock Batt For charging 4 batteries „AM
Ci70 -Ex“.
AS030316
Quad Dock Ethernet Provides Ethernet Connection;
For charging 4 i.roc® Ci70 -Ex.
A0030348
7
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
* Modular docking system for i.roc
®
Ci70 -Ex mobile computers and battery packs.
Packs contain assembled components.
INCLUDED
• Dock base
• Adapter cups
• Power supply
TO BE ORDERED
SEPARATELY
• AC power cord

www.iroc-ci70.com
FLEXDOCK PARTS
Accessory Name Description Part Number
Desktop Dock Base for USB client connec-
tivity (1 bay) and charging
23.1 x 12.7 x 4.0 cm
(9.1 x 5.0 x 1.6 in);
weight approx. 540 g (19.1 oz)
A0030307
P/N 852-920-002
Dual Dock Base for charging
23.1 x 12.7 x 4.0 cm
(9.1 x 5.0 x 1.6 in);
weight approx. 550 g (18.8 oz)
A0030308
P/N 852-918-002
Quad Dock Base for charging
44.5 x 12.7 x 4.0 cm
(17.5 x 5.0 x 1.6 in);
weight approx. 1.155 g
(40.8 oz)
A0030309
P/N 852-916-002
Battery Cup Insert for charging 1 bat-
tery pack „AM Ci70 -Ex“.
A0030310
Computer Cup Insert for charging
1 i.roc® Ci70 -Ex.
A0030311
Ethernet Adapter Including cables and po-
wer supply. Enables i.roc®
Ci70 -Ex to connect to
company network.
A0030324
8
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
• Blue marked part num-
bers indicate Intermec
part numbers, black
marked parts indicate
ecom article numbers.
i.roc®Ci70 -Ex
PRODUCT GUIDE

www.iroc-ci70.com
9

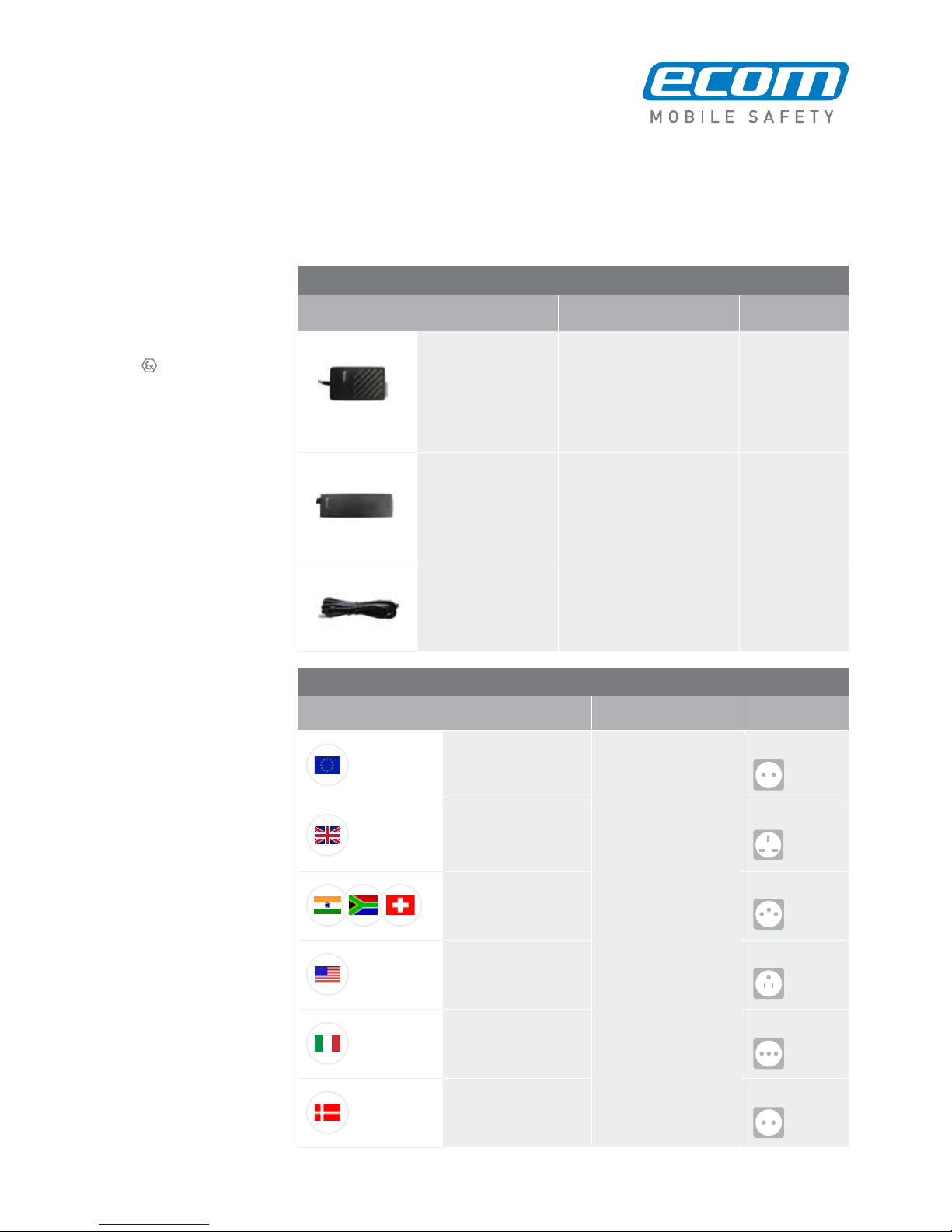

POWER SUPPLIES AND CABLES
Accessory Name Description Part Number
Power Supply for
Desktop and Dual
Dock
Power supply, 12 V, 48 W;
for use with Desktop Dock or
Dual Dock
13.0 x 7.6 x 3.3 cm
(5.1 x 3.0 x 1.3 in);
weight approx. 270 g (9.6 oz)
A0030313
P/N 851-095-131
Power Supply
for Quad Dock
Power supply, 12 V, 100 W;
for use with Quad Dock
18.0 x 5.8 x 3.9 cm
(7.1 x 2.3 x 1.5 in);
weight approx. 690 g (24.3 oz)
A0030314
P/N 851-064-327
USB cable Use with Desktop Dock for
USB client connection,
Standard A - Micro B.
A0030323
POWER CORDS
Accessory Name Description Part Number
AC Power Cord EU
To be ordered sepa-
rately with every
power supply, pre-
congured FlexDock
packs or Single Do-
cking Station (excep-
tion: Single Docking
Station includes EU
power cord).
A0009206
AC Power Cord UK
A0009208
AC Power Cord IN, ZA, CH A0009207
AC Power Cord US A0009209
AC Power Cord IT A0003485
AC Power Cord DK A0003486
• Unless otherwise
indicated all accessories
support the i.roc® Ci70
-Ex mobile computer.
• Only marked accesso-
ries are qualied for use
inside hazardous areas.
• Blue marked part num-
bers indicate Intermec
part numbers, black
marked parts indicate
ecom article numbers.

www.iroc-ci70.com
10
