Tangsong TSGL38 User manual

UV germicidal table lamp
user manual
Note: When using this product, it is forbidden to
directly irradiate people, animals or plants for a
long time, and do not look directly at the luminous
tube with eyes, in case to cause eye or skin burns.

Lamp

housing
UVlamp
controlpanel
©

remotecontrol 
Base

Product Parameter
Product name: UV disinfection table lamp
Product model: TSGL38
Rated
power:
38W
Rated
voltage:
85-265V
Rated
freq
u
e
nc
y:
50Hz
B
a
c
teri
c
idal
fa
c
tor:
U
V 253.7nm with Ozone
UV intensity: 120uw / cm2
Use
area:
30
㎡
-40
㎡
Timing mode: switch control, electronic timing
Induction method: microwave induction
Remote control mode: 30 meters wireless wall
remote control
Exe
cu
tive
sta
n
dard:
GB19258-2012
B
ase:
 
La
n
ter
n
:

Total
height:


尸三

(
)
(
)
(
)

勹

厂

Prod
uc
t Size
si
z
e


Instructions
1, Contact lamp to power, the default setting of lamp is standby mode, the red indicator above the
ON/OFF button will flash; The buzzer will sound “didi” indicating that it is paired with the remote
control , after the pairing is successful, the red indicator is always on to enter standby mode.
Pic.1
4, Human body induction: No matter which mode the lamp works in, when a person or pet
approaches, the built-in sensor of the lamp will sense it, the buzzer will sound “ didi”, and then the
lamp will stop working automatically. In order to prevent people or animals from being burned by
ultraviolet rays, the light will restart 45 seconds after the person or animal leaves; in the
timekeeping mode due to the induction interruption, the light will continue to work after the
person or animal leaves until the end of the set time.(see pic. 2)
5, The included remote control has the same control functions as the control panel, and the
maximum wireless wall penetration distance is 30 meters.
3, Timer mode: short press 15MIN / 30MIN / 60MIN button on the control panel or remote control,
the yellow indicator above the timer key on the control panel flashes quickly, the red indicator
above the ON / OFF key is always on, and the buzzer sounds “ didi” for 10 seconds, the lamp starts
to work; the lamp will automatically end work after 15 minutes / 30 minutes / 60 minutes, at the
end,the buzzer will emit a “di” and the red indicator light is always on. When the timer mode is
running, if you need to stop the work, press any button on the control panel to stop the UV lamp
work.
2, Automatic mode: On the control panel, short press ON / OFF to enter automatic mode (same
function as pressing the remote control key in standby mode), the red indicator on the top flashes
quickly, and the buzzer sounds “didi”, after 10S the lamp starts to work, the UV tube lights up,
enters the automatic operation mode, the red indicator turns off. In the automatic mode, the
lamp will automatically end after 45 minutes of continuous work. The red indicator light is always
on.When the automatic mode is running, if need to stop the work, press any key on the control
panel to stop the UV lamp work.

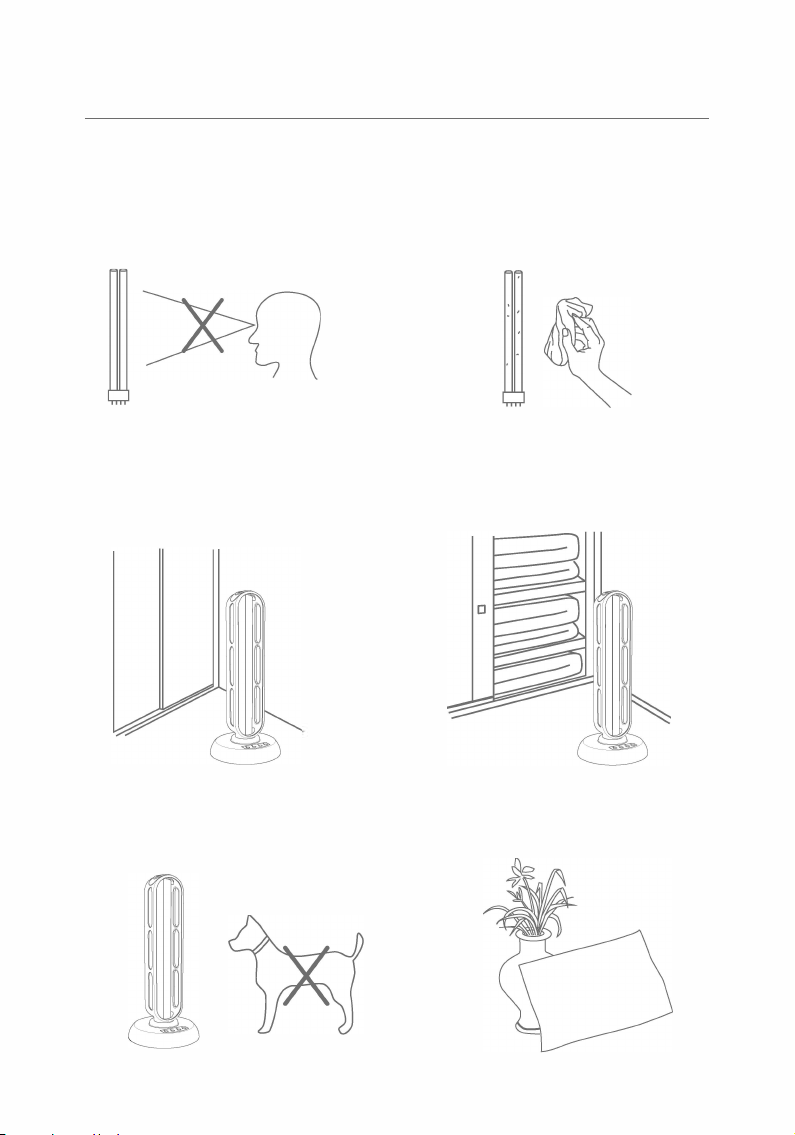

Precautions
· Do not look directly at the UV lamp. It should be
used without people, pets or plants. Prolonged
exposure to ultraviolet rays may cause skin burns,
irritation of the conjunctiva, and damage to plant
cell walls.
· When disinfecting with ultraviolet light, the room
should be kept clean and dry to reduce dust and
water mist. When the indoor five poisons are
below 20 ° C and above 40'C , the irradiation
time should be appropriately extended for 15-30
minutes.
· When disinfecting pet houses and children ' s
rooms, keep pets and young children away from
UV lamps and ensure that they do not touch the
disinfection table lamps and cause injuries.
· During use, the surface of the sterilizing table
lamp should be kept clean. When dust or oil is
found on the surface of the lamp tube, it should
be turned off and wiped at any time, otherwise
the germicidal effect of the lamp tube will be
affected.
· When disinfecting the surface of the object
with ultraviolet rays, the surface of the object to
be irradiated should be directly irradiated
within 1 meter of ultraviolet rays, the effect is
better.
· If there are calligraphy and painting
collections or plants in the sterilized space,
cover them with cloth or remove them from
the room during use.

Instructions for replacing the lamp
Step 1: Align the lamp connector with the base bayonet and insert it vertically, and check
whether the connection is firm.
Step 2: Make sure the installation is completed, and you can use it after power on.
Note: Before replacing the lamp, please contact the manufacturer to obtain
a lamp that matches this product. The factory is not responsible for the loss
caused by the privately purchased UV lamp replacement.
Product parts list
1Disinfection table lamp host
2Remote control
3. Product Manual
4. Warranty Card

Q& A
Q: The principle of UV sterilization?
A: Ultraviolet C-band irradiates microorganisms and destroys the DNA
(deoxyribonucleic acid) and RNA (ribonucleic acid) of various bacteria, viruses,
and microorganisms, causing bacteria, viruses, and microorganisms to lose their
viability and reproductive power to achieve the effect of disinfection.
Q: The applicable places of UV sterilizing lamp?
A: Applicable for indoor occasions of 30-40 square meters, such as hospitals,
classrooms, enterprises and institutions, this lamp is more suitable for household
disinfection, such as kitchens, toilets or other places that are prone to breed
bacteria and viruses.
Q: What should be paid attention to UV disinfection?
A: Please Attention! After UV disinfection, open the window for 20-30 minutes
before entering the room
Q: Can this lamp be used to sterilize quilt?
Q: How often to use the lamp?
A: Yes, the UV ray emitted by this lamp is equivalent to the sun’s rays. If it rains
frequently or there is no outdoor drying condition, it can be used, but please be
careful not to expose it to organic fabrics such as silk for more than 120 minutes,
may cause discoloration.
A: Usually 1~2 times per week.
Q: How long can the UV tube work? How about warranty?
A: Working hours of the UV tube is 8000 hours. This lamp is covered by one- year
warranty(man-made damage is not included).
Q: Will there occasional foreign matters in the tube affect it work?
A: The small white granules that are sometimes seen in the UV tube are mercury
particles. Due to the working principle of this UV lamp, mercury vapor in the lamp
tube is excited to emit light. There may be asmall amount of particle deposition
in the tube, which is normal and does not affect the use of the lamp.

Troubleshooting
Malfunction Solutions
The lamp can not light up
Please check whether the connection
position of the lamp and the base is
stable. After power off, press down on
the lamp tube firmly, there may be the
UV tube is not locked firmly.
The keys on the lamp can
work, but the remote
does work.
Please check the battery has installed in
remote control, or whether the battery is
dead.
The lamp does not light up
after following the instructions.
When you tap the lamp with
your hand, the lamp will flash.
After shutting down, press down on the lamp
firmly, there may be poor contact of the tube
because the UV tube is not locked firmly. If the
problem persists after stabilization. Please check
carefully if the filament is broken. If the filament
is broken, please contact the original seller to
replace the lamp.
According to the size of the room, make sure the
lamp completes the normal work for at least one
period of time, and the doors and windows need
to be closed during the disinfection.
Why doesn’t it smell like it has
been exposed under the
sunshine after disinfection?
Noted:
Prolonged exposure to UV rays can burn people’s skin and eyes; prolonged
inhalation of ozone can harm people’s respiratory tract; therefore, doors and
windows must be closed during disinfection, and people, plants and animals
must be kept away!
