TaoHorse X8802 User manual
1D 3-IN-One wireless barcode scanner
User Guide
X8802
Content
Technical Specication ...............................................................1
Charging .....................................................................................2
Bluetooth mode .......................................................................... 2
2.4G wireless mode .....................................................................3
USB wired mode ........................................................................4
Switch wireless modes ................................................................4
FAQ ........................................................................................ 5-6
Upload mode setting ............................................................... 6-7
Sound setting ...............................................................................8
Scanning mode setting ............................................................ 8-9
Battery remaining check .............................................................9
Keyboard language setting ........................................................10
Case sensitivity setting .............................................................11
Power Off setting ......................................................................11
Restore factory setting .............................................................12
Common used sufx setting......................................................13
Barcode setting ................................................................... 13-18
Setting for Prex/Sufx ...................................................... 18-20
Barcode List ........................................................................ 20-23
1
Thank you very much for purchasing our 2.4G wireless,
Bluetooth and USB wired 3-in-one barcode scanner. Please
kindly read this guide carefully as it explains many important
operating procedures.
Note: Please note that this scanner is a laser bar code scanner; it
cannot scan barcodes on screen. All the bar code on the digital
manual should be printed to scan!
Please keep this instruction for reference in the future.
If you have any question or concern about the operation of the
scanner, please contact us at [email protected] with our
scanner. We will reply you within 24 hours.
Package includes:
1 × wireless barcode scanner
1 × 2.4G USB receiver (use on PC)
1 × charging cable
1 × user guide
Technical Specication:
Light source Type: Visual lasing diode, the wave length
is 650mm
Trigger mode: Manual
Scanning pattern: Single scanning
Scanning speed: 200±2 times/s
Resolution: ≥4mil
Printing Contrast Ratio: The lowest reectivity difference is
30%
Bit error rate: 1/5 million
Input voltage: 5V DC±0.25V
Compatible barcode
type:
UPC/EAN, UPC/EAN with
supplements, Code 39, MSI,
Code11, Code39 Full ASCII, Code
128, Code bar etc.
Dimensions: 62*26*37inch (158*68*96 mm)
Weight: 8.8 oz. (250g)
Material: ABS+PC
Battery capacity: 800mAh
Memory: 512KB
3
Charging:
Please charge the scanner at least 30 minutes before use to
ensure that the scanner has enough power. To charge the
device, connect the scanner with USB charging adapter or
active USB port by using the supplied cable. The Red LED will
turn ON during charging and the LED indicator will turn green
after full charge. The scanner can be fully charged in around 2.5
hours.
Note:
1. Please use computer USB interface or 5V DC power adapter
for charging, other wrong power adapters will cause permanent
damage to scanner and battery.
2. The USB cable can be used for charging and receiving the
data.
3. When the top red indicator light cyclically ashes three times
and beeps continuously, it means the battery is at low power.
Please stop using and recharge it.
Quick Start Guide
This scanner supports 3 connections: Bluetooth mode, 2.4Ghz
wireless mode and USB wired.
When turn the scanner on for the rst time, the scanner will enter
into Bluetooth pairing by default.
We highly recommend you to use 2.4GHz wireless mode on the
computer, use Bluetooth mode on the smartphone, tablets.
1. Bluetooth mode quick start guide
--To use the scanner on Android / iOS device
STEP1. Turn on the scanner
STEP2. Turn on the Bluetooth of your device and search the
scanner that should show as“BPBL02, and click it to connect.
2
Wait few seconds, the scanner will beeps twice, which means
Bluetooth pairing is successful.
STEP3. Test the scanner using Notes app (iOS) or Microsoft
Excel (Android), click on any cell and then scan a barcode to see
if the barcode comes up on the cell.
Note 1: Once the pairing is successful, the keyboard of your
device will disappear. Scan the following code, the soft keypad
will show up; scan the code again, the soft keypad will be
hidden.
To show or hide iOS keyboard.
Disconnect Bluetooth.
2. 2.4GHz wireless mode quick start guide
--To use the scanner on computer
If you want to use the scanner on computer, please set up the
scanner wireless according to the following steps.
STEP1. Scan the following code “Disconnect Bluetooth” to
change the connection mode from Bluetooth mode to 2.4Ghz
wireless mode.
STEP2. Plug the USB receiver into USB port of your computer
STEP3. Open a blank Microsoft Excel, click any cell and then
scan a barcode to see if the barcode comes up on the cell.
4 5
Disconnect Bluetooth.
3. USB wired quick start guide
Plug and play, no need to scan any programming barcode to
switch to USB wired mode.
4.Switch wireless connection mode
-Bluetooth mode to 2.4G mode
If the scanner is paired with one smart device via Bluetooth and
you want to switch to 2.4G connections on a PC, you need to
disconnect the Bluetooth rst by scanning the barcode below,
and then plug the receiver into PC.
-2.4G mode to Bluetooth mode
If you want to switch back to Bluetooth, just unplug the receiver
and search the scanner on your smart device.
Note:
1) The USB connection mode is the rst priority to transfer
the data. For instance, if you scanner is paired with iPhone
via Bluetooth and then you connect the scanner with a new
PC via USB; the scanner will send scanned data to the PC
instead of iPhone.
2) The scanner can only be connected with one device either
Bluetooth or 2.4G wireless. Once it is connected with a
device wireless, it cannot be connected to a second device
before disconnection.
3) If you want to pair with a new device via Bluetooth, you
need to disconnect from the previous paired device rst
or simply scan the “clear Bluetooth connection” barcode
below.
Clear Bluetooth Connection.
FAQ:
Q1. If I scan a product barcode, will it include the name of the
product in the le automatically?
Answer: The scanner works like a keyboard. The scanner does
not interpret what the barcode is, it just “types” out a string of
alphabet numeric characters that the barcode represents.
It’s up to the database software you are using to interpret what
that string of characters means. Once you acquire the barcodes,
you have to correlate them to something more meaningful
by either purchasing a software service that will interpret the
barcode and relate it to a product, or you can use your own
internal inventory system to assign the barcodes to specic
products.
After creating the relationship between your barcode and the
corresponded information, when you enter the barcode into the
software by the scanner, your software will look up the barcode
and then output the related information of your product.
Q2. Some barcodes cannot be read, why?
A.Incomplete and unclear barcodes might not be read.
B.It is possible that the setting is off by default for some barcode
6 7
types that are not commonly used. You need activate a
specific barcode type to get it working. Please feel free
to contact us via [email protected] for further
assistance if you don’t know the exact type of barcode
that you are referring to.
Q3: It seems that the scanner reads the barcode successfully, but
no data is sent to my phone/tablet.
The scanner may be connected with other device via Bluetooth.
Please kindly check whether our scanner is connected with your
phone/tablet or not. If not, please kindly connect it with your
device via Bluetooth.
Also you may have activated the inventory mode, the scanned
data will be saved in the scanner instead of uploading, please
kindly scan “instant upload” barcode and then scan “normal
mode”.
Q4: Can I set the scanner to hit enter automatically after each
scan?
Yes, you can scan “set enter as sufx” barcode in the common
used sufx setting chapter.
Optional Function Settings
1. Upload mode setting
Two kinds of upload modes are supported in both Bluetooth
mode & 2.4GHz wireless mode.
1) Instant Upload Mode: Read barcodes and upload it straight to
the le you have opened.
** To set the scanner to upload barcode instantly, scan the
following code:
Instant upload mode.
Inventory mode.
Upload Data.
2) Inventory mode: Read barcodes and store the barcodes in
scanner’s own memory. You can upload the data to computer in
batch when you need them. Internal storage saves up to 2600
barcodes.
Note: Under inventory mode, the barcode will be saved in the
scanner and will not come up on your computer instantly. The
barcode comes up on your computer only when you scan the
settings code “upload data”
** Please scan the following barcode “inventory mode“ to
activate
** Scan “Upload Data” barcode to upload data from memory.
(For inventory mode only)
** Scan the “Display Total”barcode to show total number of
stored barcode. (For inventory mode only)
Display Total.
** Scan the barcode “Clear Data”to clear all stored barcode. (For
storage mode only)
8 9
Clear Data.
2. Sound setting
Turn on the Receiving Data sound
Turn off the Receiving Data sound
Turn on the Sending successful sound
Turn off the Sending successful sound
3. Scanning mode setting
Two kinds of scanning modes are supported in both Bluetooth
mode & 2.4GHz wireless mode.
3.1. Manual trigger mode (default):
When you press the trigger, the scanner will emit a red light to
read the barcode. When you release the trigger, the red light will
go off.
** Scan the following code to set the scanner to Manual trigger
mode.
Manual Trigger Mode
Automatic scanning mode
3.2. Automatic scanning mode
There’s no need to click the trigger in this mode. The red light of
the scanner will be on all the time.
** Scan the following code to set the scanner to Continuous
Scanning Mode.
4. Battery remaining
Put the cursor in the blank eld, scan the following barcode, the
battery remaining tip will comes up in the location of cursor.
Battshow
10 11
Germany
France
USA
Italy
Portugal
Spain
Belgium
Brail
5. Keyboard language setting 6. Case sensitivity setting
The scanner can change all the letter cases of barcode into
uppercase or lowercase.
Letter case of barcodes can be altered through scanning
correspondent bar code below.
Uppercase Letter
Lowercase Letters
Sleep time setting
20seconds
30seconds
7 Power off setting
The scanner will be powered off if there is no operation on it in
20 seconds by default. Short press on the trigger can wake it up.
First scan “sleep time setting”, then scan one of the following
barcode to set the time interval, when it’s idle exceeding the time
interval you set, the scanner will be power off.
12 13
60seconds
2minutes
5minutes
10minutes
20minutes
Default settings
8. Restore factory setting
To set the scanner to factory settings, please scan the code:
Note: When you return the scanner to factory default setting
under 2.4G mode, the scanner will disconnect from 2.4G adapter
for one or two seconds and then reconnect back in 2 seconds.
9. Common used sufx setting
By default, the scanner is sending a “carriage return” after
scanning a code (the same as pressing the ‘enter’ key).
Add Enter
Remove Enter
Add carriage return + linefeed
Add Tab
10. Barcode setting
UPC-A
UPC-A-Enable UPC-A-Disable
UPC-A to EAN-13-Enable UPC-A to EAN-13-Disable
14 15
Show UPC-A Check digit Hide UPC-A Check digit
Show UPC-A leading digit Hide UPC-A leading digit
EAN-13/8
Enable EAN-13 Disable EAN-13
EAN-13 to ISBN-Enable EAN-13 to ISBN-Disable
Show EAN-13 Check digit Hide EAN-13 Check digit
EAN-13 to ISSN-Enable EAN-13 to ISSN-Disable
Enable UPC/EAN Adds-on Disable UPC/EAN Adds-on
Enable EAN-8 Disable EAN-8
Show EAN-8 checksum Hide EAN-8 checksum
UPC-E
Enable UPC-E Disable UPC-E
Show UPCE leading digit Hide UPCE leading digit
Show UPCE checksum Hide UPCE checksum
16 17
UPC-E to UPC-A Enable UPC-E to UPC-A Disable
CODE39
Enable CODE 39 Disable CODE 39
Show Code39 start/stop digit Hide Code39 start/stop digit
Enable Code 39 FULL ASCII Disable Code 39 FULL ASCII
CODE128
Enable CODE 128 Disable CODE 128
CODEBAR
Enable CODABAR Disable CODABAR
Show CODABAR Start/stop
digit
Hide CODABAR Start/stop
digit
CODE32
CODE 32-Enable CODE 32-Disable
Interleaved 2 of 5
Interleaved 2 of 5-Enable Interleaved 2 of 5-Disable
Industrial 2 of 5
Industrial 2 of 5-Enable Industrial 2 of 5-Disable
18 19
MSI
MSI-Enable MSI-Disable
11. Setting for Prex/Sufx
Enter the prex settings
1
The end of Prex and sufx
Scanning shows the prex
Users can add prex/sufx to scanning result. The prex/sufx
can have 10 digits or characters at most.
11.1 Add prex
1. Scan “Enter the prex settings’” Barcode
2. Scan the number or characters you want to add in the barcode
list below, for example, you want to add $ in front of the
scanning result, then scan “$” barcode
3. Scan “End prex and sufx setting”
Enter the prex settings
Enter the sufx settings
End prex and sufx setting
Show the added prex
$
4. Scan “Show the added prex” barcode
11.2 Add sufx
1. Scan “Enter the sufx settings’” Barcode
20 21
Show the added sufx
@
2. Scan the number or characters you want to add in the barcode
list below, for example, you want to add @ at the end the
scanning result, then scan “@” barcode
3. Scan “End prex and sufx setting”
End prex and sufx setting
4. Scan “Show the added sufx” barcode
12. Barcode List
1. Uppercase alphabet
2. Lowercase alphabet
22 23

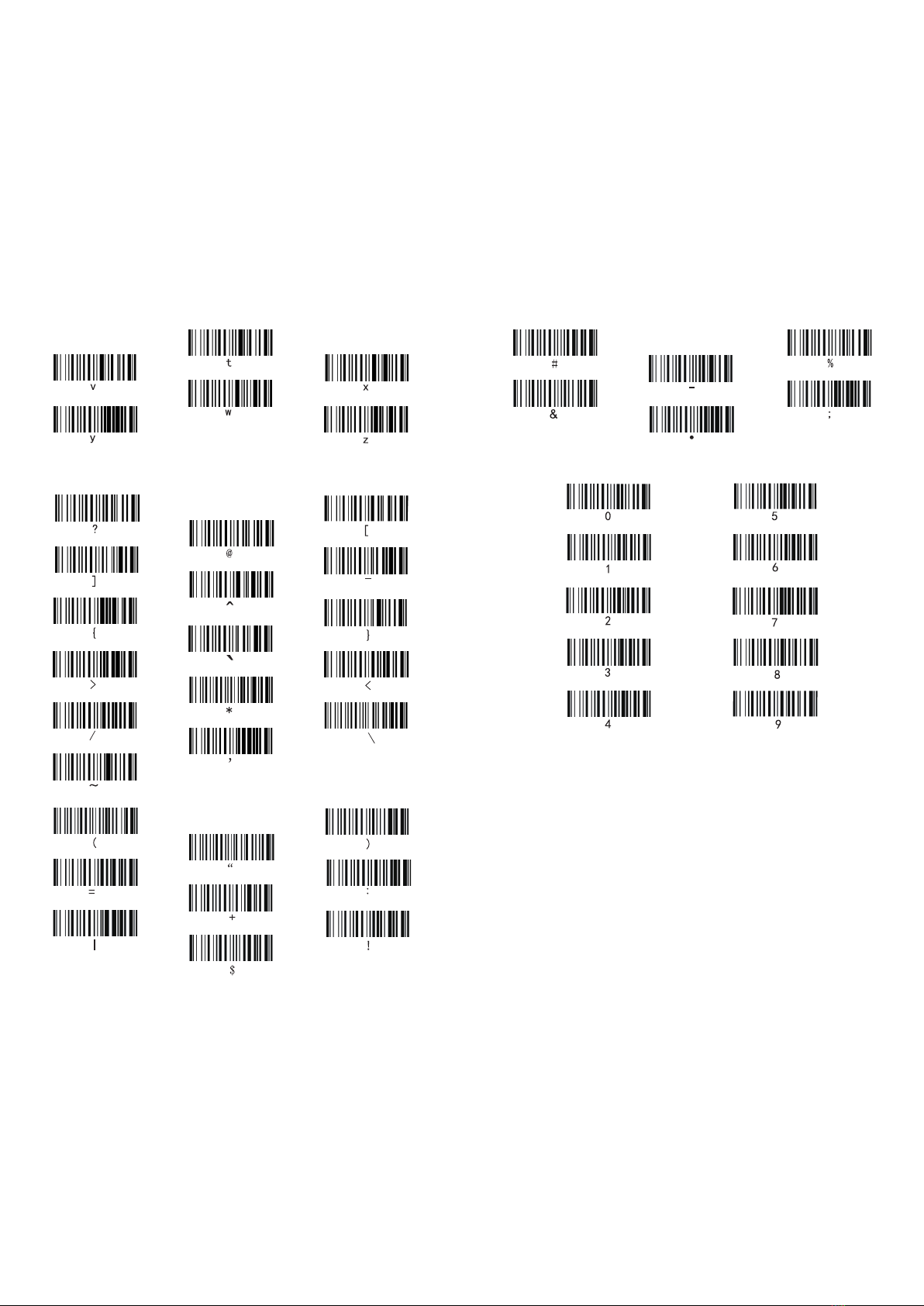

3. Symbol table 4. Digital table
Table of contents
