Tar River CSP User manual

MODEL CSP
COMPACT SNOW BLADES
OCTOBER 2020

Cauon!
The following safety precauons should be thoroughly understood before aempng to
begin assembling this machine.
1. Select an area for assembly that clean and free of any debris which might cause persons
working on the assembly to trip.
2. Do not li heavy parts or assemblies. Use crane jack, fork trucks or other mechanical de-
vice.
3. Never put hands, or any part of body, under blocked up assemblies if at all possible.
4. Aer compleng assembly, thoroughly inspect the machine to be sure that all nuts, bolts,
hydraulic ngs or any other fastened assemblies have been thoroughly ghtened.
5. Before operang equipment, if you have any queson regarding the proper assembly or
operaons, contact your dealer or the manufacturer.
Assembly!
1. Unpack the grade blade from shipping crate and check if there are any parts missing.
2. Assembly blade (45) to the moldboard (1).
3. Assembly swivel assembly (21) to the moldboard swivel frame (5).
4. Install the mounng frame (32) to the swivel assembly (21).
5. Then assembly the support foot (39) to the moldboard swivel frame (5).

Important Safety Informaon!
Working with unfamiliar equipment can lead to careless injuries, read the manual and the
manual for your tractor. Before assembly or operang, to acquaint yourself with the machine.
It is the grade blade owner’s responsibility, if this machine is used by any other person other
than yourself, is loaned or rented, to make certain the operator is instructed in safe and
proper use.
Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders
twenty ve (25’) from an operang grader blade. Only proper trained people should operate
this machine.
Personal protecon equipment including safety glasses, safety shoes, and gloves are recom-
mended during assembly, installaon, operaon, adjustment, maintaining, repairing,
removal, or moving the snow blade.
Never place any part of your body where it would be in danger if movement should occur
during assembly, installaon, operaon, adjustment, maintaining, repairing, removal, or
moving the snow blade.
Before you operate the snow blade, check over all pins, bolts, and connecons to be sure all
are securely in place. Replace any damaged or worn parts immediately.
Do not allow anyone who is not familiar with the safety rules and operation instructions to
use this snow blade.

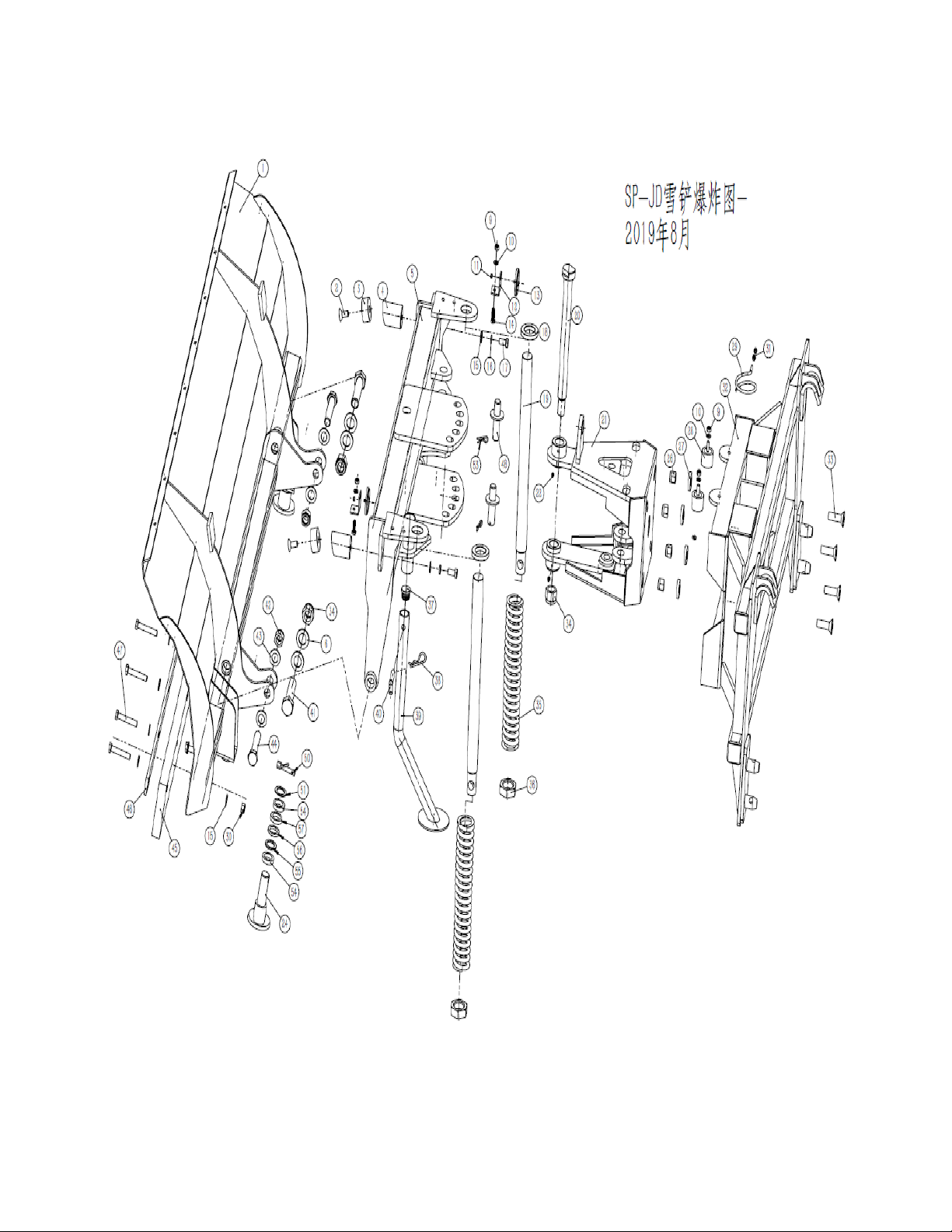

Posion Part # Descripon Qty
1SSP1001-60 SPA60-03.01 Moldboard- 60” 1
SSP1001-72 SPA72-03.01 Moldboard- 72” 1
SSP1001-84 SPA84-03-01 Moldboard- 84” 1
SSP1001-96 SPA96-03-01 Moldboard- 96” 1
2SSM1217530 GB/T 70.3-2000 Countersunk Head- Bolt- M12 x 1.75 x 30 2
3SSP1003 SP2000-02-04 Shock Absorber- M50 Dia. x M23 Length 2
4SSP1004 SP2000-02-05 Shock Block 2
5SSP1005 SP2000-02.01 Moldboard Swivel Frame 1
6FW24 GB/T 95-2002 Flat Washer– M24 5
9LNM08125 GB/T 889.1-2000 Self-locking Nut- M8 x 1.25 4
10 FW08 GB/T 95-2002 Flat Washer– M8
11 NM0508 GB/T 41-2000 Nut- M5 x 0.8 2
12 SSP1012 SP2000-02-01 Reector Stand 2
13 SSP1013 圆形红色反射器Φ57 Round Red Reector- M57 2
14 BM0812525 GB/T5781-2000 Bolt- M8 X 1.25 x 25 2
15 FW12 GB/T 95-2002 Flat Washer- M12 38
16 LW12 GB/T 93-1987 Lock Washer- M12 2
17 BM1217525 GB/T 5781-2000 Bolt- M12 X 1.75 x 25 2
18 SSP1018 SP2000-02-03 Spring retaining ring 2
19 SSP1019 SP2000-02-02 Spring sha 2
20 SSP1020 SP2000-01-07 Suspension Connecon Pin 1
21 SSP1021 SP2000-01.04 Hanging Hinge- Swivel 1
22 MSTSC06x1 JB/T7940.1-1995 Set Screw- M6 x 1.0 3
24 SSP1024 SPA Skid 2
26 LNM162 GB/T 889.2-2000 Self-locking Nut- M16 x 2.0 4
27 SSP1027 SP2000-01-5Spacing Washer - M16 4
28 SSP1028 SP2000-01-2Rubber Shock Block- M8 X 23 D40 H30 2
29 SSP1029 SP2000-01-3Clamp 1
30 LNM12175 尼龙自锁螺母 Self-locking Nut- M12 x 1.75 18
31 NM061 GB/T 41-2000 Nut- M6 x 1.0 2
32 SSP1032A SP-JD-01.01 Mounng Frame- John Deere mount 1
SSP1032B SP-SS-01.01 Mounng Frame– Skid Loader mount 1
33 SSM162055 GB/T 70.3-2000 Countersunk Head- Bolt- M16 x 2.0 x 55 4
34 LNM243 GB/T 889.1-2000 Self-locking Nut- M24 X 3.0 3
35 SSP1035 SP2000-02-06 Compression Spring- M10 X 50 X 346 2
36 TNM364 GB/T 6173-2000 Thin Nut- M36 x 4.0 2

Posion Part # Descripon Qty
37 SSP1037 Φ28塑料堵头 Plasc Plug- M28 1
38 RC4 B型销φ4 R-Clip- M4 1
39 SSP1039 SP2000-02.02 Support Foot 1
40 SSP1040 TS-66-05-01 Support Foot Lock Pin 1
41 BM2430110 GB/T 5780-2000 Bolt- M24 x 3.0 x 110 (Half-thread) 2
42 LNM2025 GB/T 889.1-2000 Self-locking Nut- M20 x 2.5 2
43 FW20 GB/T 95-2002 Flat Washer- M20 4
44 BM2025110 GB/T 5780-2000 Bolt- M20 x 2.5 x 110 (Half-thread) 2
45 SSP1045-60 SPA60-03-01 Rubber Edge- SPA60”1
SSP1045-72 SPA72-03-01 Rubber Edge- SPA72”1
SSP1045-84 SPA84-03-01 Rubber Edge- SPA84”1
SSP1045-96 SPA96-03-01 Rubber Edge- SPA96”1
RB10028-60 Metal Edge– 60” 1
RB10028-72 Metal Edge– 72” 1
RB10028-84 Metal Edge– 84” 1
RB10028-96 Metal Edge– 96” 1
46 SSP1046-60 SPA60-03-02 Rubber Edge Holding Plate- SPA60 1
SSP1046-72 SPA72-03-02 Rubber Edge Holding Plate- SPA72 1
SSP1046-84 SPA84-03-02 Rubber Edge Holding Plate- SPA84 1
SSP1046-96 SPA96-03-02 Rubber Edge Holding Plate- SPA96 1
47 BM162070 Flat Head Carriage Bolt- M16 x 2.0 x 70 For Rubber Blade
FCBM162060 Flat Head Carriage Bolt- M16 x 2.0 x 60 For Metal Blade
47 BM1217570 GB/T 5780-2000 Bolt- M12 x 1.75 x 70 (Half-thread) For Rubber Edge 18
48 SSP1048 SPA Adjustment Pin 2
50 LYNPN10 03.35.008 Lynch Pin- M10 2
51 SSP1051-2SPA Adjustment Shims- M2 2
54 SSP1051-9SPA Adjustment Shims- M9 4
55 SSP1051-3SPA Adjustment Shims- M3 2
56 SSP1051-5SPA Adjustment Shims- M5 2
57 SSP1051-7.5 SPA Adjustment Shims- M7.5 2

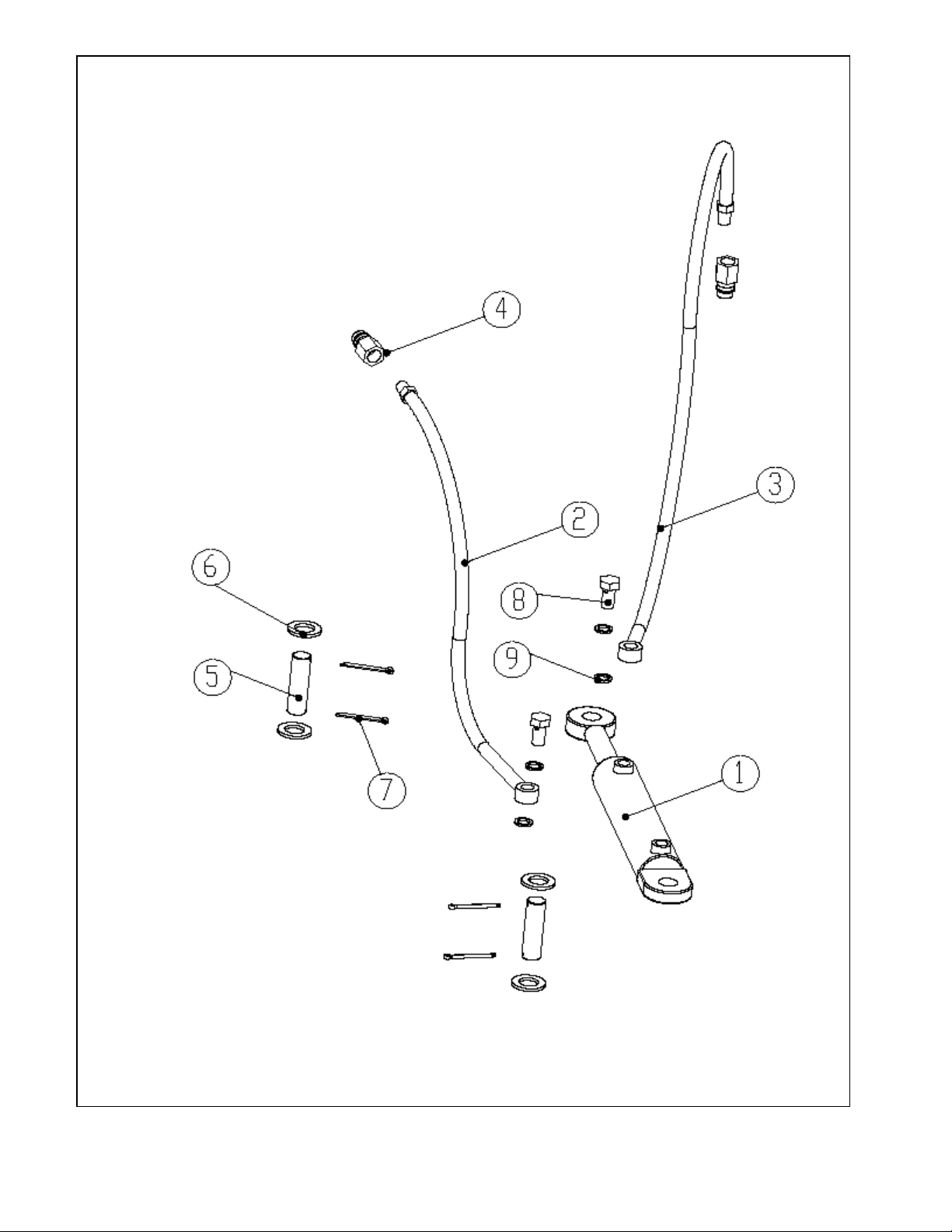

Posion Part # Descripon Qty
1SSP2001 SP2000-04.01 Cylinder 1
2SSP2002 SP2000-04.03 Hydraulic Hose- 10I-1215 1
3SSP2003 SP2000-04.02 Hydraulic Hose– 10I-1755 1
4SSP2004 快换接头（公）G1/2 Quick change connector (male) G1 / 2 2
5SSP2005 SP2000-01-8Pin- M25 X 85 2
6FW24 GB/T 95-2002 Flat Washer- M24 4
7CP5x60 GB/T 91-2000 Coer Pin- M5 X 60 ??? 4
8BANJOBM1615 空心螺栓M16*1.5 Banjo Bolt- M16 X 1.5 2
9CompFW16 组合垫圈φ16 Compression Washer- M16 4
