TASCAM DV-RA1000HD
CONTROL I/O Terminals
RS-232C Protocol Specifications
Ver. 1.00
October 2007
TEAC

TASCAM DV-RA1000HD RS-232C Protocol Specifications
1 TEAC Corporation
1. Overview
The DV-RA1000HD (here referred to as “controlled device”) functions can be controlled using a serial
RS-232C connection from an external device, such as a computer. Such a device is referred to here as
the “external controller”.
2. Specifications
Electrical Specifications
Conforms to standard JIS X-5101 (equivalent to former JIS-C-6361 and EIA RS-232C
standards) Note that this is not compatible with the RS-422 used
in professional VTR units.
Impedance at receiver When measured with an applied voltage of between +/-3 V and
+/-15 V, the DC resistance is between 3 kohm and 7 kohm.
Total load capacitance of < 2500 pF
Open circuit voltage at transmitter < 25V
Open circuit voltage at receiver < 2V
Signal voltage When the open circuit voltage at the receiver is 0 V, the signal
voltage is between +/-5 V and +/-15 V against a load impedance
of between 3 kohm and 7 kohm.
Signal discrimination Logical “1” = < -3V
Logical “0” = > +3V
Communication format
Circuit type 3-wire, Half-duplex
Transmission type Digital binary serial
Data speed (baud rate) 38400 bit/sec
Word length 8-bit
Parity bit None
Stop bit 1 bit
(* Word length, parity bit, and stop bit of DV-RA1000HD are fixed.)

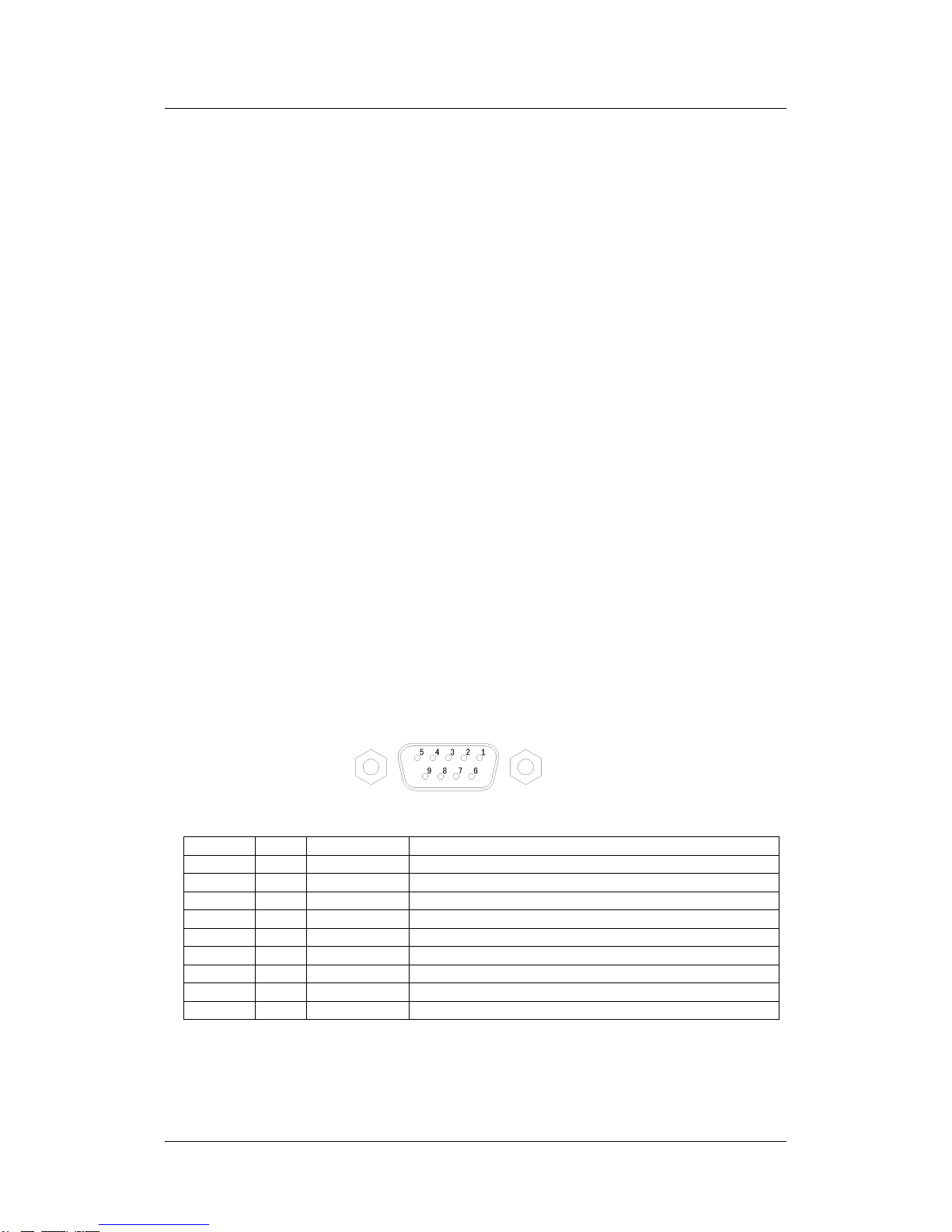

Connector pin-out
Connector D-sub 9pin female (Inch screw thread)
Terminal pin-out and input/output signals
Pin No. In/Out Signal name Description
1 - NC Not connected
2 In Rx Data Data received at this pin *1
3 Out Tx Data Data transmitted from this pin
4 Out (Reserved) Reserved
5 - GND Signal ground pin
6 In (Reserved) Reserved
7 Out RTS Requested To Send *2
8 In CTS Clear To Send *2
9 - NC Not connected
*1: Impress voltage complied with RS-232C standard to Rx Data.
*2: DV-RA1000HD doesn’t have RTS/CTS terminals for loop-back in this connector. Make sure the
specifications of external controller and if necessary, please have the loop-back circuit outside of
the DV-RA1000HD.

TASCAM DV-RA1000HD RS-232C Protocol Specifications
2 TEAC Corporation

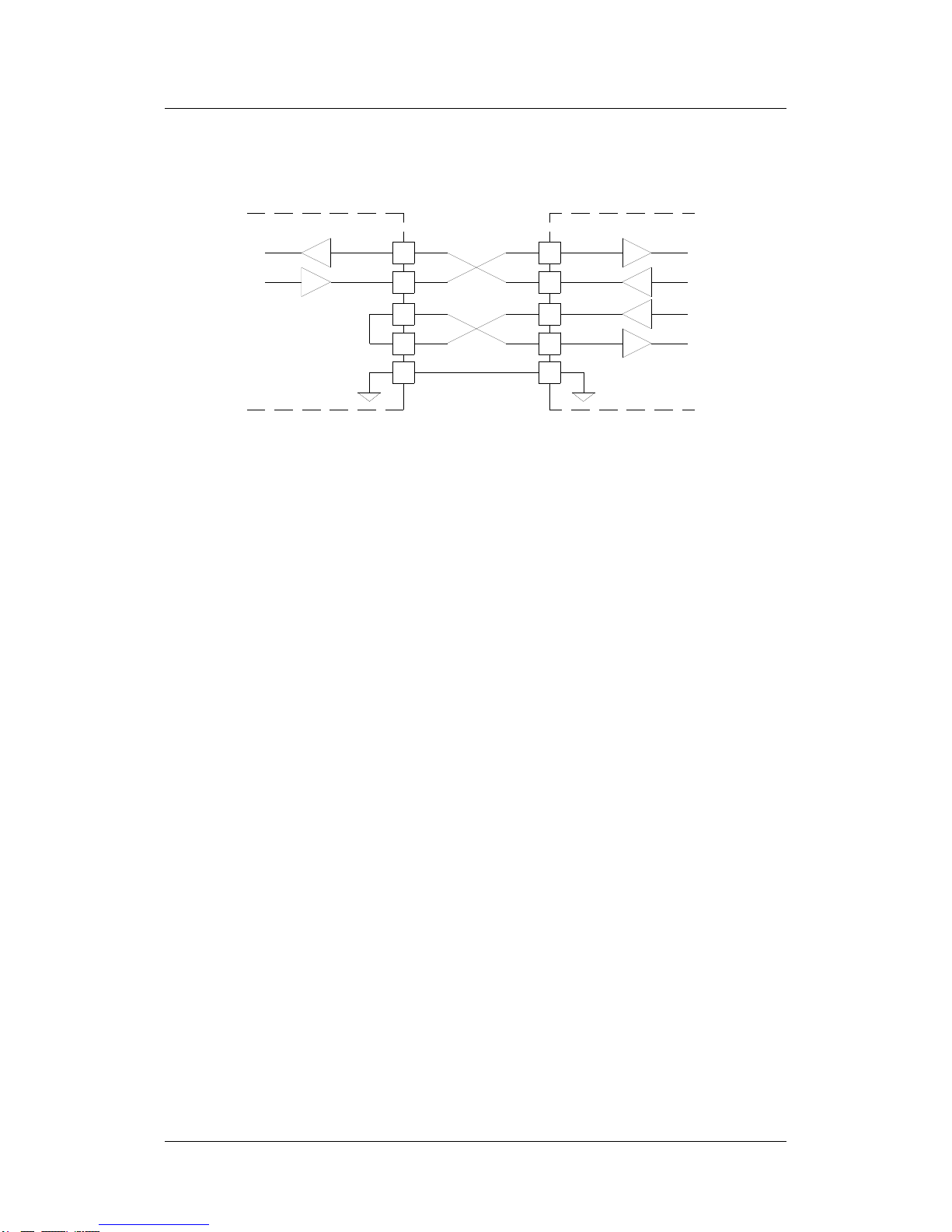

2
3
5
RXD
TXD
RTS
CTS
GND
RXD
TXD
RTS
CTS
GND
7
8
DV-RA1000HD External controller

TASCAM DV-RA1000HD RS-232C Protocol Specifications
3 TEAC Corporation
3. Command Format
Command Format Overview
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 … Byte n
LF ID Command Data 1 Data 2 Data 3 Data 4 … CR
The codes described here are transmitted in ASCII format (e.g. a command described as “23” is transmitted
as ASCII ’2’ followed by ASCII ’3’).
Uppercase letters are used for letters ’A’ through ’F’.
All commands must be prefixed by a line-feed (LF) character [0Ah] followed by a Machine ID.
All commands are terminated by a carriage return (CR) character [0Dh].
Sample commands
Sample 1: PLAY command (Machine ID=0)
When the controlled device is in STOP/READY mode, this command starts playback.
The PLAY command is [12], and it is transmitted using the following sequence:
ID Command
ASCII LF 0 1 2 CR
HEX 0Ah 30h 31h 32h 0Dh
Sample 2:Direct search for track 12 (Machine ID=0)
In order to perform this operation, “DIRECT TRACK SEARCH PRESET [23]” command is used.
The track number is also sent as a parameter (data). This is sent in four bytes, as shown below:
ID Command Data：12th track
ASCII LF 0 2 3 1 2 0 0 CR
HEX 0Ah 30h 31h 32h 31h 32h 30h 30h 0Dh
The four data bytes represent, in order, the following digits of the track number: the “tens” digit
(1), the “units” digit (2), the “thousands” digit (0), and the “hundreds” digit (0).
Machine ID
Machine ID of this device is fixed to [0]. A command with other Machine ID than [0] is ignored.

TASCAM DV-RA1000HD RS-232C Protocol Specifications
4 TEAC Corporation
List of Commands
Control/Preset/Sense Command Return Command
0F INFORMATION REQUEST 8F INFORMATION RETURN
10 STOP
12 PLAY
13 RECORD
14 READY
16 SHUTTLE
18 TRAY/EJECT
1A TRACK SKIP
23 DIRECT TRACK SEARCH PRESET
25 PITCH CONTROL DATA PRESET A5 PITCH CONTROL DATA RETURN
27 CLOCK DATA PRESET A7 CLOCK DATA RETURN
2C TIME SEARCH PRESET
2E FADE IN/OUT TIME PRESET AE FADE IN/OUT TIME RETURN
34 RESUME PLAY SELECT B4 RESUME PLAY SELECT RETURN
35 PITCH CONTROL SELECT B5 PITCH CONTROL SELECT RETURN
36 AUTO READY SELECT B6 AUTO READY SELECT RETURN
37 REPEAT SELECT B7 REPEAT SELECT RETURN
3B AUTO SPACE SELECT BB AUTO SPACE SELECT RETURN
3C MUTE SELECT BC MUTE SELECT RETURN
3E FADE IN/OUT SELECT BE FADE IN/OUT SELECT RETURN
4D SINGLE PLAY SELECT
4E SINGLE PLAY SENSE CE SINGLE PLAY SENSE RETURN
50 MECHA STATUS SENSE D0 MECHA STATUS RETURN
55 TRACK No. SENSE D5 TRACK No. RETURN
56 DISC STATUS SENSE D6 DISC STATUS RETURN
57 CURRENT TRACK INFORMATION SENSE D7 CURRENT TRACK INFORMATION RETURN
58 CURRENT TRACK TIME SENSE D8 CURRENT TRACK TIME RETURN
59 TITLE SENSE D9 TITLE RETURN
5D TOTAL TRACK No./TOTAL TIME SENSE DD TOTAL TRACK No./TOTAL TIME RETURN
5E PGM TOTAL TRACK No./TOTAL TIME SENSE DE PGM TOTAL TRACK No./TOTAL TIME RETURN
5F KEYBOARD TYPE SENSE DF KEY BOARD TYPE SENSE RETURN
F0 ERROR SENSE REQUEST
F1 CAUTION SENSE REQUEST
F2 ILLEGAL STATUS
F4 POWER ON STATUS
F6 CHANGE STATUS
78 ERROR SENSE F8 ERROR SENSE RETURN
79 CAUTION SENSE F9 CAUTION SENSE RETURN
7F VENDER COMMAND FF VENDER COMMAND RETURN

TASCAM DV-RA1000 RS-232C プロトコル仕様書
5 ティアック株式会社
Command Sequence
The DV-RA1000HD does not have the “ACK” command for the each transport control command and data
preset command.
When a request command is transmitted from external controller to the controlled device, the controlled
device sends an appropriate return command.
When the mechanism status of the controlled device is changed (i.e. from stop to play), or an error occurs,
the controlled device sends a command to notify such change to the external controller.
Some samples of command sequence are described below:
Note that an interval of at least 20 ms must be left between commands.
Sample 1: Transport control (i.e. PLAY)
The controlled device is in STOP mode.
Send the transport control (PLAY) command from the external controller to the controlled device.
The controlled device starts playback and sends the CHANGE STATUS return command.
Command
External controller Controlled device Status of the controlled device
STOP
PLAY -> Starts playback
<- CHANGED STATUS Send the CHANGE STATUS
return command
Sample 2: To preset a data (i.e. PITCH CONTROL DATA PRESET)
Send the PITCH CONTROL DATA PRESET command with pitch control value from the external
controller to the controlled device.
The controlled device sets the pitch control data.
Command
External controller Controlled device Status of the controlled device
PITCH CONTROL DATA
PRESET (i.e. –1.0%) -> Sets pitch control data to -1.0%.
Sample 3: To request the status or a data currently set (i.e. PITCH CONTROL DATA)
Send the PITCH CONTROL DATA PRESET command with request data from the external
controller to the controlled device.
If the controlled device has the pitch control data, the controlled device returns the PITCH
CONTROL DATA RETURN with pitch control value.
Command
External controller Controlled device Status of the controlled device
PITCH CONTROL DATA
PRESET (with FF) ->
<- PITCH CONTROL DATA
RETURN

TASCAM DV-RA1000 RS-232C プロトコル仕様書
6 ティアック株式会社
Sample 4: Get the status of the controlled device then go to next operation
The controlled device sends the CHANGE STATUS when the machine status is changed.
This CHANGE STATUS command is useful for checking the current machine status by using the
MECHA STATUS SENSE command.
This example describes that checks the Record Ready status then starts recording.
Command
External controller Controlled device Status of the controlled device
STOP
RECORD (Record Ready) ->
<- CHANGE STATUS Send the CHANGE STATUS
return command
MECHA STATUS SENSE ->
<- MECHA STATUS RETURN Send the Record Ready status
PLAY(Record) ->
<- CHANGE STATUS Send the CHANGE STATUS
return command

TASCAM DV-RA1000 RS-232C プロトコル仕様書
7 ティアック株式会社
4. Command Detail
Commands, data, and machine IDs which are described here are represented in characters (ASCII).
A command is a 2-byte character, a Machine ID is a 1-byte character, and each data is a 1-byte
character.
The DV-RA1000HD can have up to 99 tracks and up to 99 projects.
4-1. INFORMATION REQUEST
Requests the internal software version number of the controlled device.
Command 0F
Data None
Return INFORMATION RETURN [8F]
4-2. STOP
Puts the controlled device into STOP mode.
Command 10
Data None
Return None
4-3. PLAY
Puts the controlled device into PLAY mode.
Command 12
Data None
Return None
4-4. RECORD
Puts the controlled device into RECORD READY mode. When the controlled device is recording,
increments the track. Adds the track mark.
Command 13
Data 2 bytes
Return None
Data 1 Data 2 Description Remarks
0 1 Record Ready Puts the controlled device into RECORD READY mode.
When the controlled device is recording, increments the track.
0 2 Track Mark Adds the track mark.
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-5. READY
Puts the controlled device into READY mode.
Command 14
Data 2 bytes
Return None
Data 1 Data 2 Description Remarks
0 1 Ready On
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
8 ティアック株式会社
4-6. SHUTTLE
Performs the search function in SHUTTLE mode.
SHUTTLE mode is maintained until the other command such as STOP, PLAY, or READY is received.
Command 16
Data 2 bytes
Return None
Data 1 Data 2 Description Remarks
0 0 Shuttle Forward Searches in shuttle mode in forward direction
0 1 Shuttle Reverse Searches in shuttle mode in backward direction
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-7. TRAY/EJECT
Ejects or load a disc.
Command 18
Data None
Return None
4-8. TRACK SKIP
Allows track selection to the previous or next start-of-track position.
The transport mode when this command is received (playing or pausing) is maintained after skipping.
Command 1A
Data 2 bytes
Return None
Data 1 Data 2 Description Remarks
0 0 Track Skip Next Skips to the next track.
0 1 Track Skip Previous If the playback position is beginning of a track (within 1
sec.), skips to the start point of the previous track. If not,
skips to the start point of the current track.
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-9. DIRECT TRACK SEARCH PRESET
Searches the track then play start.
Command 23
Data 4 bytes
Return None
Description Remarks
Data 1 Tens digit of track number
Data 2 Units digit of track number
Data 3 Thousands digit of track number
Data 4 Hundreds of track number
Track number
Sample) 2300: Track 23
・ If the specified track number does not exist on the disc, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
9 ティアック株式会社
4-10. PITCH CONTROL DATA PRESET
Sets the Pitch Control value from –6.0% to +6.0% in 0.1% steps.
When this command is transmitted with request data ([FF]), the controlled device returns the PITCH
CONTROL DATA RETURN command [A5].
The pitch control function is turned on and off using the PITCH CONTROL SELECT command [35].
Command 25
Data 4 bytes or 2 bytes
Return PITCH CONTROL DATA RETURN [A5]
Data 1 Data 2 Data 3 Data 4 Description Remarks
0
1 Positive (+) value Negative (-) value
N2 N3 N1
Preset % N1: Tens of pitch control value
N2: Units of pitch control value
N3: 1st decimal of pitch control value
[Sample] 2010: -2.0%
F F … Pitch Control
value request Requests the currently set the Pitch Control value
・ If the specified data is out of range, the controlled device sends ILLEGAL [F2].
4-11. CLOCK DATA PRESET
Sets the date and time.
Command 27
Data 2 bytes or 10 bytes
Return CLOCK DATA PRESET RETURN [A7]
Description Remarks
Data 1 Tens digit of Christian era
Data 2 Units digit of Christian era
Data 3 Tens digit of months
Data 4 Units digit of months
Data 5 Tens digit of days
Data 6 Units digit of days
Data 7 Tens digit of hours
Data 8 Units digit of hours
Data 9 Tens digit of minutes
Data 10 Units digit of minutes
If both Data 1and 2 are F, sends the
clock data currently set
・ If the specified data (date or time) does not exist, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
10 ティアック株式会社
4-12. TIME SEARCH PRESET
Locates to the specified track and time in minutes and seconds. If the controlled device is in stop or play
mode, playback will start at the specified time. If the controlled device is in ready mode, the playback
position will move to the specified time, and the controlled device will enter ready mode there. The time
specified must be a valid time (e.g. the track must exist on the disc).
Command 2C
Data 12 bytes
Return None
Description Remarks
Data 1 Tens digit of track number
Data 2 Units digit of track number
Data 3 Thousands digit of track number
Data 4 Hundreds digit of track number
Data 5 Tens digit of minutes
Data 6 Units digit of minutes
Data 7 Thousands digit of minutes
Data 8 Hundreds digit of minutes
Data 9 Tens digit of seconds
Data 10 Units digit of seconds
Data 11 Tens digit of frames
Data 12 Units digit of frames
[Sample]
020003001030: 2tr 03m 10s 30f
Frame search can be done for DVD/HDD
only
・ If the specified data (Track number and time) does not exist on the disc, the controlled device sends
ILLEGAL [F2].
4-13. FADE IN/OUT TIME PRESET
Sets the fade in and out time.
When this command is transmitted with request data ([00FF] or [01FF]), the controlled device returns the
FADE IN/OUT TIME RETURN command [AE].
The FADE mode is turned on and off using the FADE IN/OUT SELECT command [3E].
Command 2E
Data 4 bytes
Return FADE IN/OUT TIME RETURN [AE]
内容 備考
Data1
Data2 00: FADE IN setting
01: FADE OUT setting
Data3 1st decimal digit of Fade In/Out time FF
Data4 2nd decimal digit of Fade In/Out time
Data5 Tens digit of the Fade In/Out time
Data6 Units digit of the Fade In/Out time
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
・ If the specified data is out of range, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
11 ティアック株式会社
4-14. RESUME PLAY SELECT
Turns the Resume function on and off.
When this command is transmitted with request data ([FF]), the controlled device returns the RESUME
PLAY SELECT RETURN command [B4].
Command 34
Data 2 bytes
Return RESUME PLAY SELECT RETURN [B4]
Data 1 Data 2 Description Remarks
0 2 RESUME OFF Turns the Resume function off
0 3 RESUME ON Turns the Resume function on
F F Resume mode status request Requests the Resume mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-15. PITCH CONTROL SELECT
Turns the Pitch Control mode on and off.
When this command is transmitted with request data [FF], the controlled device returns the PITCH
CONTROL SELECT RETURN command [B5].
The Pitch Control value is set using the PITCH CONTROL DATA PRESET command [25].
Command 35
Data 2 bytes
Return PITCH CONTROL SELECT RETURN [B5]
Data 1 Data 2 Description Remarks
0 0 Pitch Control Off Turns the Pitch Control mode off
0 1 Pitch Control On Turns the Pitch Control mode on
F F Pitch Control mode
status request Requests the Pitch Control mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-16. AUTO READY SELECT
Turns the Auto Ready mode on and off.
When this command is transmitted with request data [FF], the controlled device returns the AUTO
READY SELECT RETURN command [B6].
Command 36
Data 2 bytes
Return AUTO READY SELECT RETURN [B6]
Data 1 Data 2 Description Remarks
0 0 Auto Ready Off Turns the Auto Ready function off
0 1 Auto Ready On Turns the Auto Ready function on
F F Auto Ready mode status request Requests the Auto Ready mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
12 ティアック株式会社
4-17. REPEAT SELECT
Sets the Repeat mode.
When this command is transmitted with request data [FF], the controlled device returns the REPEAT
SELECT RETURN command [B7].
Command 37
Data 2 bytes
Return REPEAT SELECT RETURN [B7]
Data 1 Data 2 Description Remarks
0 0 Repeat Off Sets the repeat mode to off
0 1 All Repeat Sets the repeat mode to all
0 1 Single Repeat Sets the repeat mode to single
F F Repeat mode status request Requests the repeat mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-18. AUTO SPASE SELECT
Turns the Auto Space mode on and off.
When this command is transmitted with request data [FF], the controlled device returns the AUTO
SPACE SELECT RETURN command [B6].
Command 3B
Data 2 bytes
Return AUTO SPACE SELECT RETURN [BB]
Data 1 Data 2 Description Remarks
0 0 Auto Space Off Turns the Auto Space function off
0 1 Auto Space On Turns the Auto Space function on
F F Auto Space mode status request Requests theAuto Space mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-19. MUTE SELECT
Turns the Mute mode on and off.
When this command is transmitted with request data [FF], the controlled device returns the MUTE
SELECT RETURN command [BC].
Command 3C
Data 2 bytes
Return MUTE SELECT RETURN [BC]
Data 1 Data 2 Description Remarks
0 0 Mute Off Turns the Mute function off
0 1 MUte On Turns the Mute function on
F F Mute mode status request Requests the Mute mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].

TASCAM DV-RA1000 RS-232C プロトコル仕様書
13 ティアック株式会社
4-20. FADE IN/OUT SELECT
Sets the Fade in/out mode.
When this command is transmitted with request data [FF], the controlled device returns the FADE
IN/OUT SELECT RETURN command [BE].
Fade In and Out time are set using the FADE IN/OUT TIME PRESET command [2E].
Command 3E
Data 2 bytes
Return FADE IN/OUT SELECT RETURN [BE]
Data 1 Data 2 Description Remarks
0 0 Fade In/Out mode Off
0 2 Fade In/Out mode On
F F Fade In/Out status request Requests the Fade In/Out mode status
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-21.SIGLE PLAY SELECT
Sets the Single Play mode.
Command 4D
Data 2 bytes
Return None
Data 1 Data 2 Description Remarks
0 0 Single Off
0 1 Single On
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-22. SINGLE PLAY SENSE
Requests the status of the Single Play mode.
Command 4E
Data None
Return SINGLE PLAY RETURN [CE]
4-23. MECHA STATUS SENSE
Requests the status of the mechanism.
The contents of the reply are described in the MECHA STATUS RETURN command.
Command 50
Data None
Return MECHA STATSU RETURN [D0]
4-24. TRACK No. SENSE
Requests the current track number.
Command 55
Data None
Return TRACK No. STATUS RETURN [D5]
4-25. DISC STATUS SENSE
Requests information on the presence or absence of a disc in the controlled device, what kind of disc,
and whether a disc is recordable or playback-only.
The contents of the reply are described in the DISC STATUS RETURN command.
Command 56
Data None
Return DISC STATUS RETURN [D6]

TASCAM DV-RA1000 RS-232C プロトコル仕様書
14 ティアック株式会社
4-26. CURRENT TRACK INFORMATION SENSE
Requests the elapsed time form of the current track time (play or ready modes).
Command 57
Data None
Return CURRENT TRACK INFORMATION RETURN [D7]
4-27. CURRENT TRACK TIME SENSE
Requests the specific form of the current track time (play or ready modes).
Command 58
Machine ID 0
Data 2 bytes
Return CURRENT TRACK TIME RETURN [D8]
Data 1 Data 2 Description Remarks
0 0 Elapsed Time Requests the elapsed time of the track time
0 1 Remain Time Requests the remaining time of the track time
0 2 Total elapsed Time Requests the total elapsed time of the disc
0 3 Total Remain Time Requests the Total remaining time of the disc
・ If the specified data is other than described above, the controlled device sends ILLEGAL [F2].
4-28. TITLE SENSE
Requests the track or project title in the DVD/HDD mode.
Requests the disc or track title in the CD mode.
Command 59
Data 4 bytes
Return TITLE RETURN [D9]
Description Remarks
Data 1 Tens digit
Data 2 Units digit
Data 3 Thousands digit of months
Data 4 Hundreds digit
0000: Project or disc title
0001 – 0099: Track title
・ If the specified data (date or time) is over 100, the controlled device sends ILLEGAL [F2].
4-29. TOTAL TRACK No./TOTAL TIME SENSE
Requests the total number of the tracks and the running time on a disc.
In MP3 discs, requests the total number of tracks.
Command 5D
Data None
Return TOTAL TRACK No./TOTAL TIME RETURN [DD]
4-30. PGM TOTAL TRACK No./TOTAL TIME SENSE
Requests the total number of the programmed tracks and the running time of the programmed tracks.
Command 5E
Data None
Return PGM TOTAL TRACK No./TOTAL TIME RETURN [DE]
4-31. KEYBOARD TYPE SENSE
Requests the Keyboard type setting information.
Command 5F
Data None
Return KEYBOARD TYPE SENSE RETURN [DF]

TASCAM DV-RA1000 RS-232C プロトコル仕様書
15 ティアック株式会社
4-32. ERROR SENSE
Should be transmitted by the external controller on receipt of an ERROR SENSE REQUEST [F0] from
the controlled device, to determine the exact error.
The contents of the reply are described in the ERROR SENSE RETURN [F8] command.
Command 78
Data None
Return ERROR SENSE RETURN [F8]
4-33. CAUTION SENSE
Should be transmitted by the external controller on receipt of an CAUTION SENSE REQUEST [F1] from
the controlled device, to determine the exact error.
The contents of the reply are described in the CAUTION SENSE RETURN [F9] command.
Command 79
Data None
Return CAUTION SENSE RETURN [F8]
4-34. VENDER COMMAND
This is an exclusive command for the DV-RA1000HD.
Command 7F
Data Not fixed
Return VENDER COMMAND RETURN [FF]
Data 1 Data 2 Description Remarks
0 0 Monitor Select
0 1 Project Open
0 2 Project Number Sense
0 3 Drive Select
MONITOR SELECT
Sets the input monitor mode.
Data 4 bytes
Data 3 Data 4 Description Remarks
0 0 Input Monitor Off
0 1 Input Monitor On
F F Sense Requests the current setting
PROJECT OPEN
Open a project.
Data 4 bytes
Description Remarks
Data 3 Tens digit of a project
Data 4 Units digit of a project
PROJECT NUMBER SENSE
Requests the number of project
Data 4 bytes

TASCAM DV-RA1000 RS-232C プロトコル仕様書
16 ティアック株式会社
DRIVE SELECT
Select the drive.
Data 4 bytes
Data 3 Data 4 Description Remarks
0 0 ODD
0 1 HDD
F F Sense Requests the current setting

TASCAM DV-RA1000 RS-232C プロトコル仕様書
17 ティアック株式会社
5. Return Command Detail
5-1. INFORMATION RETURN
Transmitted in response to an INFORMATION REQUEST command [0F].
Returns the software version of the controlled device.
Command 8F
Data 8 bytes
Request command INFORMATION REQUEST [0F]
Data 1 Tens digit of software version Sample data for Data 1 - Data 4
Data 2 Units digit of software version 0100 Version 1.00
Data 3 1st decimal digit of software version
Data 4 Hundreds digit of software version
Data 5 Thousands digit of software build Sample data for Data 5 - Data 8
Data 6 Hundreds digit of software build 0100 Build 100
Data 7 Tens digit of software build
Data 8 Units digit of software build
5-2. PITCH CONTROL DATA RETURN
Transmitted in response to a PITCH CONTROL DATA PRESET command [25] with the request data
([FF]) to show the currently set Pitch Control value.
Command A5
Data 4 bytes
Request command PITCH CONTROL DATA PRESET [25]
Data 1 Data 2 Data 3 Data 4 Description Remarks
0
1 Positive (+) value Negative (-) value
N2 N3 N1
Preset % N1: Tens digit of pitch control value
N2: Units digit of pitch control value
N3: 1st decimal of pitch control value
Sample) 2010: -2.0%
5-3. CLOCK DATARETURN
Transmitted in response to a CLOCK DATA PRESET command [27] with the request data ([FF]) to show
the Clock data.
Command A7
Data 12 bytes
Request command CLOCK DATA PRESET [25]
Description Remarks
Data 1 Tens digit of Christian era
Data 2 Units digit of Christian era
Data 3 Tens digit of months
Data 4 Units digit of months
Data 5 Tens digit of days
Data 6 Units digit of days
Data 7 Tens digit of hours
Data 8 Units digit of hours
Data 9 Tens digit of minutes
Data 10 Units digit of minutes
Data 9 Tens digit of seconds
Data 10 Units digit of seconds

TASCAM DV-RA1000 RS-232C プロトコル仕様書
18 ティアック株式会社
5-4. FADE IN/OUT TIME RETURN
Transmitted in response to a FADE IN/OUT TIME PRESET command [2E] with the request data ([00FF]
or [01FF]) to show the currently set the Fade In and Out time.
Command AE
Data 4 bytes
Request command FADE IN/OUT TIME PRESET [2E]
内容 備考
Data1
Data2 00: FADE IN setting
01: FADE OUT setting
Data3 1st decimal digit of Fade In/Out time
Data4 2nd decimal digit of Fade In/Out time
Data5 Tens digit of the Fade In/Out time
Data6 Units digit of the Fade In/Out time
5-5. RESUME PLAY SELECT RETURN
Transmitted in response to a RESUME PLAY SELECT command [34] with the request data ([FF]) to
show the currently set the Resume setting.
Command B4
Data 4 bytes
Request command RESUME PLAY SELECT [34]
Data 1 Data 2 Description Remarks
0 2 Resume Off
0 3 Resume On
5-6. PITCH CONTROL SELECT RETURN
Transmitted in response to a PITCH CONTROL SELECT command [35] with the request data ([FF]) to
show the currently set the Pitch Control mode status.
Command B5
Data 2 bytes
Request command PITCH CONTROL SELECT [35]
Data 1 Data 2 Description Remarks
0 0 Pitch Control Off Pitch Control mode is turned off
0 1 Pitch Control On Pitch Control mode is turned on
5-7. AUTO READY SELECT RETURN
Transmitted in response to an AUTO READY SELECT command [36] with the request data ([FF]) to
show the currently set the Auto Ready mode status.
Command B6
Data 2 bytes
Request command AUTO READY SELECT [36]
Data 1 Data 2 Description Remarks
0 0 Auto Ready Off Auto Ready function is turned off
0 1 Auto Ready On Auto Ready function is turned on

TASCAM DV-RA1000 RS-232C プロトコル仕様書
19 ティアック株式会社
5-8. REPEAT SELECT RETURN
Transmitted in response to a REPEAT SELECT command [37] with the request data ([FF]) to show the
currently set the repeat function status.
Command B7
Data 2 bytes
Request command REPEAT SELECT [37]
Data 1 Data 2 Description Remarks
0 0 Repeat Off Repeat mode is off
0 1 All Repeat All Repeat mode is on
0 2 Single Repeat Single Repeat mode is on
0 3 A- Start point of A-B repeat is set
0 4 A-B Repeat A-B Repeat mode is on
5-9. AUTO SPACE SELECT RETURN
Transmitted in response to an AUTO SPACE SELECT command [3B] with the request data ([FF]) to
show the currently set the Auto Space mode status.
Command BB
Data 2 bytes
Request command AUTO SPACE SELECT [3B]
Data 1 Data 2 Description Remarks
0 0 Auto Space Off Auto Space function is off
0 1 Auto Space On Auto Space function is on
5-10. MUTE SENSE RETURN
Transmitted in response to an MUTE SELECT command [3C] with the request data ([FF]) to show the
currently set the Mute mode status.
Command BC
Data 2 bytes
Request command MUTE SELECT [3C]
Data 1 Data 2 Description Remarks
0 0 Mute Off Mute function is off
0 1 Mute On Mute function is on
5-11. FADE IN/OUT SELECT RETURN
Transmitted in response to a FADE IN/OUT SELECT command [3E] with the request data ([FF]) to show
the currently set the Fade In/Out function status.
Command BE
Data 2 bytes
Request command FADE IN/OUT SELECT [3E]
Data 1 Data 2 Description Remarks
0 0 Fade In/Out Off
0 1 Fade In/Out Rehearsal
0 2 Fade In/Out On
