TASKING iSYSTEM Infineon DAP Instructions for use

Infineon DAP/DAPE II Active Probe
Hardware User Manual
V1.1, September 2023
isystem.com/start

General safety instructions
Please read the following safety precautions carefully before putting this device to use to avoid
any personal injuries, damage to the instrument, or to the target system. Use this instrument
only for its intended purpose as specified by this manual to prevent potential hazards.
Use included power cord and power supply
The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if
you need to consider an alternative power.
Use grounding wire
Prior to applying power to either the BlueBox or the target, connect the device and the target
system together with the included grounding wire. This is to avoid potential damage caused by
any voltage difference between the device and the target system.
Use proper overvoltage protection
Ensure proper protection to avoid exposing the BlueBox device or the operator to overvoltage
surges (e.g. caused by thunderstorm, mains power).
Do not operate without cover
Do not operate the device with cover removed.
Avoid circuit and wire exposure
Do not touch exposed components or wires when the device is powered.
Do not operate with suspected damage
If you suspect damage may have occurred, the BlueBox device must be inspected by qualified
service personnel before further operation.
Do not operate the device outside its rated supply voltage or
environmental range
Consult with iSYSTEM before using equipment outside of the parameters provided in this
manual.
This symbol is used within the manual to highlight further safety notices.

Contents
Package content ................................................................................................................................ 4
Specifications ....................................................................................................................................... 5
Operation ............................................................................................................................................... 6
Recommended Target Debug Connectors and Position ................................................................ 8
mDIO cable ................................................................................................................................................ 9
ECU14 DAP 10-pin 1.27mm Converter ............................................................................................. 10
MEDC17 DAP 10-pin 1.27mm Converter .......................................................................................... 11
10-pin DAP2 to 22-pin ERF8 DAP2 Converter ................................................................................ 12
DAP 10-pin 1.27mm to HSTCU (USB-C) Converter ......................................................................... 13
Hardware Setup and Configuration ..................................................................................... 15
Accessories ......................................................................................................................................... 16
User Notes .......................................................................................................................................... 17

Package content
Infineon DAP/DAPE II Active Probe enables debugging, tracing and testing of Infineon’s AURIX™
microcontroller family. It supports DAP and DAPE debug interface operating at their maximum
frequency. Its small and compact hardware size allows for connecting to a target
microcontroller in a confined space as far as 10 m away.
The Infineon DAP/DAPE II Active Probe kit is delivered with the following components:
Infineon DAP/DAPE II
Active Probe
Two 10-pin 1.27mm 10cm
long ribbon cables
1m FNet
Cable
Ordering code:
IC57163-1
Ordering code:
IA10PIN10PIN127-AP
Ordering code:
BB-FNET-100

Specifications
GENERAL
Supply voltage
9.0V DC via FNet cable
Operating temperature
10°C to 40°C
Storage temperature
-10°C to 60°C
Humidity
5% to 80% RH
MECHANICAL
Size
95 x 55 x 20 mm
Weight
0.155 kg
Cable length
10 cm
OPERATION
Communication
interface to BlueBox
iSYSTEM proprietary FNet
Debug signal valid
input voltage range
5.0V (max. 5.5V)
Power consumption
Max. 2.5 W (dependent on operation mode)
TARGET SIGNALS
Debug signals
33 Ohm series termination/protection resistors
DAP1-3 and DAPE1-3
10k Ohm pull-down
DAP_RESET
1k Ohm pull-up
5 mA via VREF needed for hot-attach functionality.

Operation
A– 10-pin DAP connector, with the following pinout:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
I
Reference Voltage
Vref
1
2
DAP1
DAP Data
I/O
Ground
GND
3
4
DAP0
DAP Clock
O
Ground
GND
5
6
DAP2
Optional 2nd Data Pin
I/O
Not Connected
NC
7
8
nTRST/DAPE
N
Optional 3rd Data Pin
I/O
Ground
GND
9
10
nRESET
Reset
O
10-pin DAP pinout
B – 10-pin DAPE connector, with the following pinout:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
I
Reference Voltage
Vref
1
2
DAPE1
DAP Data
I/O
Ground
GND
3
4
DAPE0
DAP Clock
O
Ground
GND
5
6
DAPE2
Optional 2nd Data Pin
I/O
Not Connected
NC
7
8
DAPEN/DAP
3
Optional 3rd Data Pin
I/O
Ground
GND
9
10
NC
Not Connected
10-pin DAPE pinout
C – The indicator light provides the status of the Active Probe as follows:
Permanently green – Powered on and ready to use.
Blinking green – Establishing connection with the BlueBox.

Blinking blue – Reprogramming SPLASH.
Permanently magenta – Golden image loaded and ready to use.
D – mDIO port with the marked Pin1 on the housing
mDIO port provides two digital signals, which can interact with the embedded target. Each can
be configured either for input or output operation.
Number
Name
Pin1
IOØ
Pin2
IO1
Pin3
GND
mDIO port pinout
mDIO port on the Active Probe
E – FNet connector, that connects the Active Probe to the iC5700 BlueBox. The FNet cable is
delivered with the Active Probe.
When powering on the system, switch the BlueBox on before powering on the target.
When powering down the system, power off the target before powering off the
BlueBox!
Use only original accessories for powering and connecting with the BlueBox. Consult
with technical support before attempting to use any other accessory.

Recommended Target Debug Connectors and Position
The target debug connector is a 10-pin, 1.27mm, double-row connector (e.g. Samtec FTSH-105-
01-L-DV,Samtec FTSH-105-01-L-DV-K with Keying Shroud).
1. Use the target debug connector(s) with the Keying Shroud option since incorrect connection
can cause damage to the hardware.
2. Pin 1 of the connector(s) should be located toward the PCB’s edge to prevent the need to twist
or fold the debug ribbon cable(s) (see the picture below).
3. When using DAP and the DAPE debug interfaces, the DAPE connector should be placed to the
left of the DAP connector when looking from the edge of the PCB. The connectors must be at
least 11.0 mm apart, although a distance of 16.8 mm is recommended. The goal should be to
link the Active Probe to the target hardware via non-twisted and, when DAPE is used, parallel
ribbon cables.

mDIO cable
Ordering code
BB-AP-MDIO-20
mDIO Cable is used to connect the Active Probe mDIO port with the signals around the
debugged microcontroller, which can then be either read or controlled by the debugger. For
example, the debugger can periodically service an external watchdog through the mDIO output
or just read and record an external signal through the mDIO input. It must be ordered separately.
Length of the cable is 20 cm.
The following pinout is valid on the Active Probe side:
Number
Name
Color
Pin1
IOØ
White
Pin2
IO1
Brown
Pin3
GND
Black
mDIO Cable pinout

ECU14 DAP 10-pin 1.27mm Converter
Ordering code
IADAP10ECU14
The ECU14 converter and the pinout has been defined by Bosch. The ECU14 DAP 10-pin
converter is connecting at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter
(Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1)
acting as a pinout converter is available for TriCore targets featuring the ECU14 10-pin 1.27mm
target debug connector. It must be ordered separately.
A1 - The following pinout is valid on the target side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
Ground
GND
1
2
DAP0
DAP clock
O
Not Connected
NC
3
4
DAP2
Optional 2nd Data pin
I/O
I/O
DAP Data pin
DAP1
5
6
DAPEN
Optional 3rd Data pin
I/O
Not Connected
NC
7
8
Vref
Reference voltage
I
Not Connected
NC
9
10
nRESET
Reset
O
Revision A1: 10-pin ECU14 target pinout
A2 - The following pinout is valid on the target side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
Ground
GND
1
2
DAP0
DAP clock
O
I/O
Optional 3rd Data pin
nTRST/DAPE
N
3
4
DAP2
Optional 2nd Data pin
I/O
I/O
DAP Data pin
DAP1
5
6
DAPEN
Optional 3rd Data pin
I/O
Not Connected
NC
7
8
Vref
Reference voltage
I
Not Connected
NC
9
10
nRESET
Reset
O
Revision A2: 10-pin ECU14 target pinout
Signal Direction is described from the BlueBox perspective.
The pin next to the alignment pin is pin 10 and not pin 1!
Pin is marked with a number 1 directly on the converter target
connector.

MEDC17 DAP 10-pin 1.27mm Converter
Ordering code
IADAP10MEDC17
The MEDC17 converter and the pinout has been defined by Bosch. Converter is connected at the
end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering code IC50163-2) or
Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a pinout converter and
is available for TriCore targets featuring the MEDC17 10-pin 1.27mm target debug connector.
The adapter must be ordered separately.
The following pinout is valid on the target side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
1
2
Ground
GND
3
4
DAP0
DAP clock
O
I/O
DAP Data pin
DAP1
5
6
I/O
Power on Reset
nRESET
7
8
nTRST/DAPEN
Optional 3rd Data pin
I/O
I/O
Reference Voltage
Vref
9
10
DAP2
Optional 2nd Data pin
I/O
10-pin MEDC17 target pinout
Signal Direction is described from the BlueBox perspective.
The pin next to the alignment pin is pin 10 and not pin 1!
Pin is marked with a number 1 directly on the converter target
connector.
The converter connects to the target via a 10-pin 1.27mm connector, Samtec SFM-105-02-L-D-A.
A target should feature a matching part, for example Samtec TFM-105-02-L-D.

10-pin DAP2 to 22-pin ERF8 DAP2 Converter
Ordering code
IA10PINDAP22PINSAM
A converter connecting at the end of the 10-pin 1.27 mm DAP debug cable is available for
Infineon 22-pin ERF8 Aurix pinout. This converter must be ordered separately.
The following pinout is valid on the target side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
Not Connected
NC
1
2
Vref
Reference Voltage
I
Not Connected
NC
3
4
DAP0
DAP Clock
O
Ground
GND
5
6
DAP1
DAP Data pin
I/O
Not Connected
NC
7
8
NC
Not Connected
Not Connected
NC
9
10
DAP2
Optional 2nd Data pin
I/O
Ground
GND
11
12
nTRST
JTAG
O
Not Connected
NC
13
14
NC
Not Connected
Not Connected
NC
15
16
NC
Not Connected
Ground
GND
17
18
NC
Not Connected
Not Connected
NC
19
20
NC
Not Connected
Not Connected
NC
21
22
RESET
Reset
I/O
22-pin ERF8 AURIX target pinout
Signal Direction is described from the BlueBox perspective.
When initially connecting the BlueBox to a target, ensure the debug adapter pinout
matches the Target connector to avoid potential hardware failure.
This debug adapter features resettable fuses on pins 2, 4, 5, 6, 10, 11, 12, 17 and 22. These fuses
protect debug signals against overcurrent and cycle back to a conductive state after the
excessive current fades away.
The debug adapter connects to the target via a 22-pin ERF8 connector, Samtec ASP-137971-02.
The target must have populated a matching part, for example Samtec ASP-137969-01, Samtec
Series ERF8, Rugged High Speed Socket.
How to connect Hardware (video)
isystem.com/connect-hardware
Cross Table Converters/Debug Adapters/Active Probes
isystem.com/cross-table

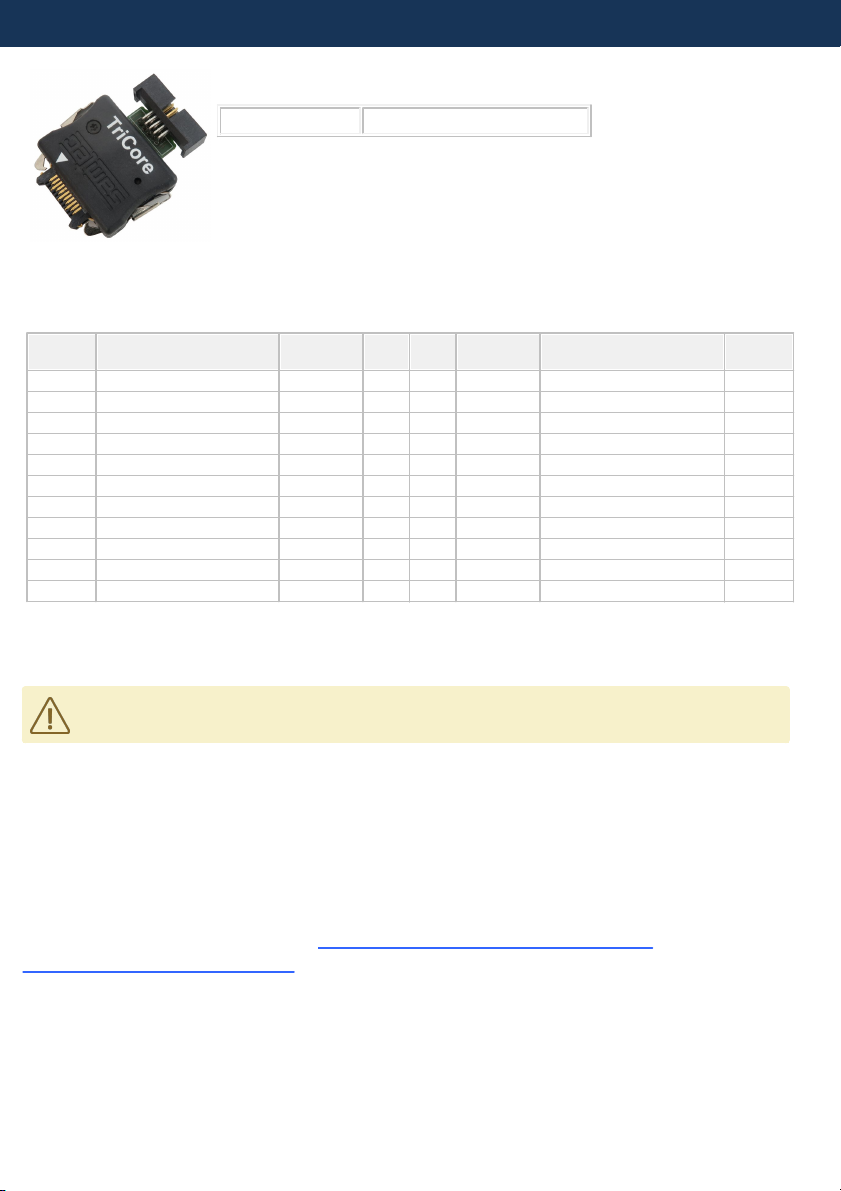

DAP 10-pin 1.27mm to HSTCU (USB-C) Converter
Ordering code
IADAP10-HSTCU
This converter is used to connect via 10-pin 1.27mm Infineon DAP2 Wide Debug Adapter
(Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) to
the USB-C target debug connector. The converter must be ordered separately.
When attaching this converter to the Active Probe, make sure its marking A and
marking B is aligned and matches with the markings on the Active Probe connector.
The following pinout is valid on the converter side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
I
Reference Voltage
Vref
1
2
DAP1
DAP Data pin
I/O
Ground
GND
3
4
DAP0
DAP clock
O
Ground
GND
5
6
DAP2
Optional 2nd DAP Data pin
I/O
Not Connected
NC
7
8
DAP3
Optional 3rd DAP Data pin
I/O
Ground
GND
9
10
nRESET
Reset
I/O
10-pin Infineon DAP pinout

The following pinout is valid on the target side:
Signal
Direction
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal
Direction
Ground
GND
A1
B12
NC
Not Connected
Not Connected
NC
A2
B11
NC
Not Connected
Not Connected
NC
A3
B10
NC
Not Connected
Not Connected
NC
A4
B9
NC
Not Connected
IO
Target Reset Pin
nRESET
A5
B8
DAP1
DAP Data
I
IO
Optional 2nd DAP data
DAP2
A6
B7
nTRST*
JTAG
IO
Optional 3rd DAP data
DAP3
A7
B6
NC
Not Connected
O
DAP Clock
DAP0
A8
B5
Vref
Reference Voltage
I
Not Connected
NC
A9
B4
NC
Not Connected
Not Connected
NC
A10
B3
NC
Not Connected
Not Connected
NC
A11
B2
NC
Not Connected
Ground
GND
A12
B1
GND
Ground
USB-C pinout
Signal Direction is described from the BlueBox perspective.
* Permanently pulled-up.
When initially connecting the BlueBox to a target, ensure the debug adapter pinout
matches the Target connector to avoid potential hardware failure.

Hardware Setup and Configuration
For detailed visual presentation of the hardware setup and configuration, refer to
Getting started tutorial. Use short link isystem.com/start.
1. Connect the power supply cable. BlueBox should be switched off.
2. First connect via USB. Later you can configure TCP/IP connection to work remotely.
3. Connect the Grounding wire to the BlueBox and the Target.
If the Grounding wire is not connected, the ground potential difference between the
BlueBox and the Target can exceed well over 1000V even before any of the devices are
powered up. This voltage difference is discharged over the BlueBox and the Target,
leading to the possible destruction of electronic components.
4. Connect FNet cable of Active Probe to the BlueBlux FNet port.
Although it looks similar to the HDMI interface, the FNet Port is not compatible with
HDMI or any HDMI accessories.
Connecting iSYSTEM hardware to HDMI accessories will damage the hardware and
will render the iSYSTEM hardware warranty void.
5. Allocate the pin 1 on the Target and the ribbon cable connector.
6. Push (and remove) the connector PARALLEL to the Target.
7. (optional) Repeat step 2. and 3. with the DAPE cable.
8. Power ON the hardware in the following order:
a. BlueBox
b. Target
9. Install winIDEA and create a new workspace.
10. Configure Debug channel modes via Hardware / CPU Options / SoC.
For troubleshooting refer to Knowledge Base - kb.isystem.com.
More general settings are described in winIDEA Help.

Accessories
Analog/Digital and Network Trace
Ordering Code
Description
IC57031
IOM6 Hub (3 x FNet & FBridge)
IC57040
IOM6 CAN/LIN
IC57041
IOM6 ADIO
IC57125-1
ARM HSSTP II Active Probe
IC57163-1
Infineon DAP/DAPE II Active Probe
IC57164
Infineon AGBT Active Probe
IC57150
MPC5x/SPC5x Aurora Active Probe
IC57166
Infineon SGBT (HSTCU) Active Probe
Infineon DAP/DAPE II Active Probe Accessories
Description
Ordering Code
Two 10-pin, 1.27mm, 10cm long DAP
interface ribbon cables
IA10PIN10PIN127-AP
ECU14 DAP 10-pin 1.27mm Converter
IADAP10ECU14
MEDC17 DAP 10-pin 1.27mm Converter
IADAP10MEDC17
10-pin DAP2 to 22-pin ERF8 DAP2 Converter
IA10PINDAP22PINSAM
DAP 10-Pin 1.27 to HSTCU (USB-C) Converter
IADAP10-HSTCU
10-pin, 1.27mm, custom length DAP interface
ribbon cable
IA10PIN10P-AP-CUST
1.0m FNet Cable
BB-FNET-100
3.0m FNet Cable
BB-FNET-300
5.0m FNet Cable
BB-FNET-500
Please refer to the iC5700 BlueBox for all current iC5700 accessories.
More information about our products on www.isystem.com or via sale[email protected].

User Notes
This page is intentionally left blank.

This page is intentionally left blank.

This page is intentionally left blank.

www.isystem.com
Visit our website for:
· Support - isystem.com/support
· Tutorials - isystem.com/start
· Knowledge Base - kb.isystem.com
