Taurus ergometer RB10.5 PRO User manual

TFRB105.02.05
max. 180 kg
~ 60 Min.
CM
72 kg
Assembly and Operating Instructions
Recumbent Bike RB10.5 Pro
L 170 | W 75 | H 122
Art.No. TF-RB105-2

2RB10.5

3
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.

4RB10.5
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

5
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14
3 OPERATING INSTRUCTIONS 24
3.1 Console display 24
3.2 Button functions 25
3.3 Powering on the equipment 26
3.4 Standby mode 26
3.5 MANUAL (Manual programs) 27
3.5.1 Quick-Start program 27
3.5.2 Target programs 27
3.6 PROGRAM (Prole programs) 28
3.7 USER (User dened program) 30
3.8 H.R.C. (Heart rate controlled programs) 31
3.9 WATT (Watt program) 32
3.10 RECOVERY (Recovery function) 32
3.11 BODY FAT (Body fat analysis) 33
3.12 Bluetooth and tness apps 34
4 STORAGE AND TRANSPORT 35
4.1 General Instructions 35
4.2 Transportation Wheels 35
5 TROUBLESHOOTING, CARE AND MAINTENANCE 36
5.1 General Instructions 36
5.2 Faults and Fault Diagnosis 36
5.3 Error codes and troubleshooting 37
5.4 Maintenance and Inspection Calendar 38
6 DISPOSAL 38

6RB10.5
7 RECOMMENDED ACCESSORIES 40
8 ORDERING SPARE PARTS 41
8.1 Serial Number and Model Name 41
8.2 Parts List 42
8.3 Exploded Drawing 46
9 WARRANTY 47
10 CONTACT 49

7
1 GENERAL INFORMATION
1.1 Technical Data
LCD display:
+ Training duration in min.
+ Speed in km/h
+ Training distance in km
+ Calories in kcal
+ Heart rate (using the hand pulse sensors or a chest strap)
+ RPM
+ Watts
Brake system: Electro-magnetic induction brake
Resistance levels: 32
Flywheel mass: 10kg
Wattage
Adjustable range in the watt programme: 10-350 W
Min. and max. Watt at 60 RPM: 20-300 W
Min. and max. Watt at 100 RPM: 73-569 W
User proles: 4
Programs in total: 23
Quick-start program: 1
Target programs: 4
Pre-set programs: 12
User dened programs: 1 (per user)
Heart rate programs: 4
Watt programs: 1
Recovery test: 1
Body fat test: 1
Weight and dimensions:
Packaking dimensions (LxWxH): 182 cm x 69 cm x 36 cm
Set-up dimensions (LxWxH): 170 cm x 75 cm x 122 cm
Article weight (gross, incl. packaging): 87.5 kg
Article weight (net, without packaging): 72 kg
Maximum user weight: 180 kg

8RB10.5
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.

10 RB10.5
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

12 RB10.5

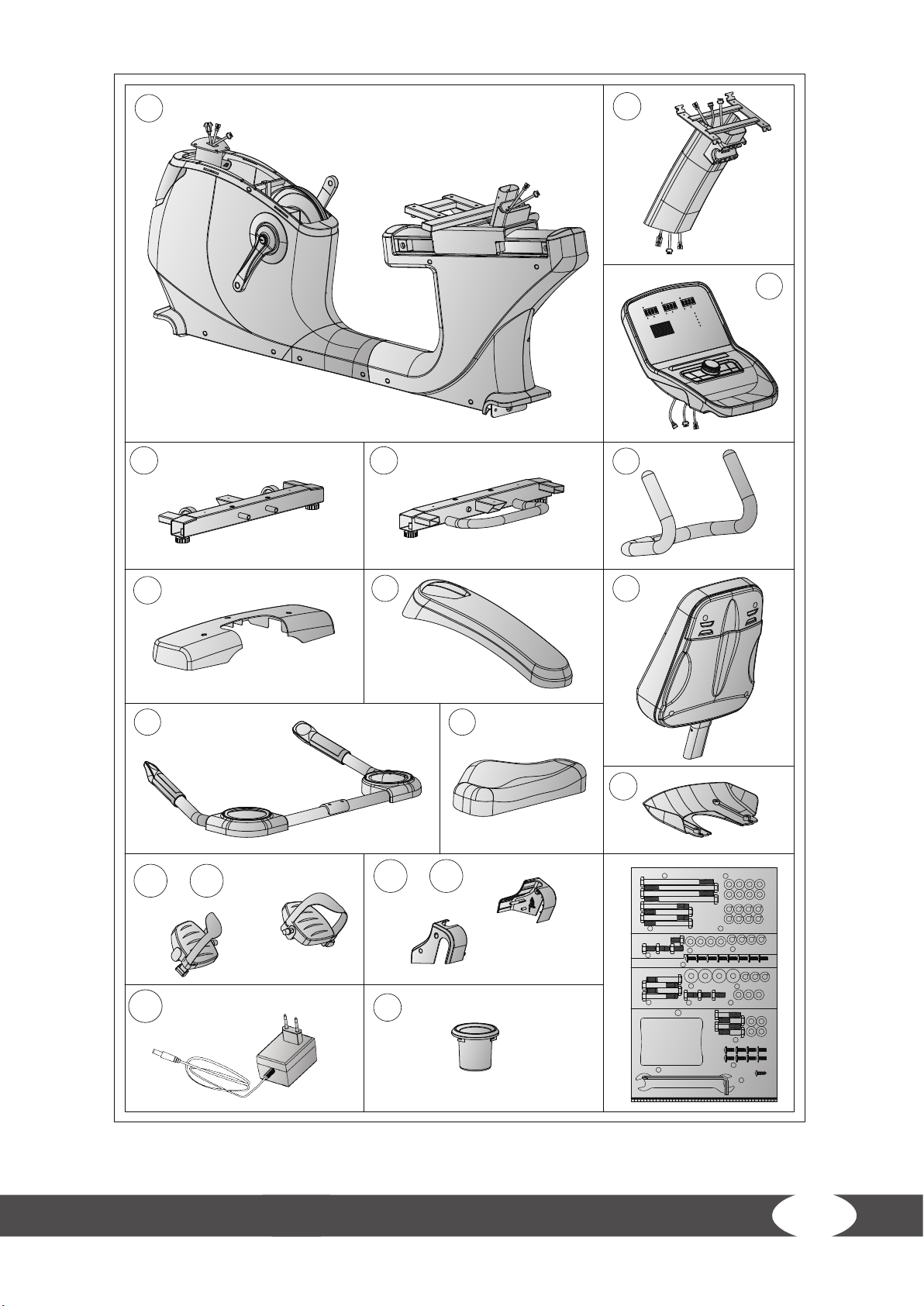

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

1
X 1X1
76
17
2
4
5
X1X1
72
119
75
40
X1
X1
X1
X1X1
114 & 115
X2X1
36 69
51L & 51R
X1X1
X2
20
STEP 1
KH-744S0
STEP 2
STEP 5
STEP 4
STEP 3
7 M8*1.25*70L 4PCS 9 D15.4*D8.2*2T 8PCS
(mm)
16 D16*D8.5*1.2T 8PCS
7A M8*1.25*110L 4PCS
15 M8*1.25*15L 4PCS
16 D16*D8.5*1.2T 4PCS 9 D15.4*D8.2*2T 4PCS
42 97.2*75*42 1PC
41 M8*1.25*50L 4PCS
8 D22*D8.5*1.5T 4PCS
15 M8*1.25*15L 3PCS
9 D15.4*D8.2*2T 3PCS
16 D16*D8.5*1.2T 3PCS
112 M8*1.25*35L 4PCS
16 D16*D8.5*1.2T 4PCS
39 M5*12L 8PCS
39 M5*12L 8PCS
38 ST4.2*15L 1PC
124
x1
13

14 RB10.5
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Mounting the stabilisers
1. Remove and dispose of the fastener along with the two screws - they are not part of the mounting
kit (see gure 1-1).
⚠CAUTION:
For the next step, the equipment must be lifted on one side. Use the help of another person to
do this. For additional stabilization, you can use the polystyrene from the packaging material
and place it under the equipment.
2. Mount the rear stabiliser (2) to the main frame (1) using two screws (7 & 7A), four washers (16) and
four spring washers (9) (see g. 1-2).
3. Remove and dispose of the mounting kit along with the two screws - they are not part of the
mounting kit (see g. 1-3).
4. Mount the front stabiliser (4) to the main frame (1) using two screws (7 & 7A), four washers (16) and
four spring washers (9) (see g. 1-4).
5. Now tighten all screws tightly.

15
7
9
16
7A
2
91 6 7A
7
1
2
91 6 7A
7
1
9716
7A
4
9716
7A
4
M8x1.25x70L
D16xD8.5x1.2T
x4
x8
x8
D15.4xD8.2x2T
13
15
M8x1.25x110L
x4
1-3
1-1
1-2
1-4
15

16 RB10.5
Step 2: Mounting the front post
1. Slide the cover (11) up along the front post (17) (see g. 2-1).
2. Connect the cables (64 & 65) and the cables (14 & 18) with one another (see g. 2-2).
3. Insert the front post (17) into the main frame holder (1).
4. Connect the front post (17) with the main frame holder (1) with four bolts (15), four spring
washers (9) and four at washers (16).
5. Slide the cover (11) down again (see g. 2-4).
Step 3: Alignment of the feet
If the oor is uneven, you can stabilise the training equipment by turning the two adjustable screws
under the main frame.
1. Lift the equipment on the desired side and rotate the adjustable screws under the main frame.
2. Rotate the screws clockwise in order to unscrew them, therefore raising the equipment.
3. Rotate the screws counterclockwise in order to lower the equipment.

17
11
17
64
65
65
64
9
15
16
11
17
15
9
16
18
14
18
14
1
M8x1.25x15L
D16xD8.5x1.2T
x4
x4
x4
D15.4xD8.2x2T
13
15
2-1
2-2
2-4
2-3
17

18 RB10.5
Step 4: Mounting the console
1. Connect the cables (76 & 64) and the cables (76 & 14) with one another (see g. 3-1).
2. Place the console (76) on the front post (17).
3. Attach the console (76) to the front post (17) with four screws (39) (see g. 3-2).
4. Fix the cover (40) to the console (76) with four screws (39) (see g. 3-3).

76
39
40 39
64
76
14
76
39
17
76
17
39
40
64
14
1
39
Step-3
M5*12L
x8
3-1
3-2
3-3
19

20 RB10.5
Step 5: Mounting the handles and backrest
1. Insert the backrest (119) into the main frame (1) and secure with three screws (15), three
washers (16), and three spring washers (9).
2. Connect the cables (37L & 18) and the cables (37R & 18) (see g. 4-1).
3. Attach the handles with the hand pulse sensors (36) to the main frame (1) with two screws (41)
and two curved washers (8).
4. Place the bottle holders (20) in the holders of the handles with the hand pulse sensors (36).
5. Attach the front handlebar (72) to the front post (17) with two screws (41) and two curved
washers (8).
6. Place the cover (42) on the front handlebar (72) on the screw connection.
