Taurus UB9.9 User manual

TF-UB99.01.05
max. 180 kg
L 122 | B 61 | H 154
~ 90 Min.
CM
58 kg
Assembly and Operating Instructions
Upright Bike UB9.9
TF-UB99

UB9.9
2

UB9.9
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
3 OPERATING INSTRUCTIONS 20
3.1 Console display 20
3.2 Button functions 21
3.3 Powering on the crosstrainer 22
3.4 Standby mode 22
3.5 MANUAL (Manual programmes) 23
3.5.1 Quick-Start programme 23
3.5.2 Target programmes 23
3.6 PROGRAM (Prole programmes) 24
3.7 USER (User dened programme) 26
3.8 H.R.C. (Heart rate controlled programmes) 27
3.9 WATT (Watt programme) 28
3.10 RECOVERY (Recovery function) 28
3.11 BODY FAT (Body fat analysis) 29
3.12 Bluetooth and tness apps 30
4 STORAGE AND TRANSPORT 31
4.1 General Instructions 31
4.2 Transportation Wheels 31
5 TROUBLESHOOTING, CARE AND MAINTENANCE 32
5.1 General Instructions 32
5.2 Faults and Fault Diagnosis 32
5.3 Error Codes and Troubleshooting 33
5.4 Maintenance and Inspection Calendar 33
6 DISPOSAL 33

UB9.9
4
7 RECOMMENDED ACCESSORIES 34
8 ORDERING SPARE PARTS 35
8.1 Serial Number and Model Name 35
8.2 Parts List 36
8.3 Exploded Drawing 40
9 WARRANTY 41
10 CONTACT 43

UB9.9
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2008 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

UB9.9
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

UB9.9
7
1 GENERAL INFORMATION
1.1 Technical Data
LCD Display:
+ Training duration in min.
+ Speed in km/h
+ Training distance in km
+ Calories in kcal
+ Incline in %
+ Heart rate (using the hand pulse sensors or a chest strap)
+ RPM
+ Watts
Brake system: Electro-magnetic induction brake
Resistance levels: 32
Watt range: 10–350W (to be set in 5 W steps)
Fylwheel mass: 10kg
User memory: 4
Programmes in total: 25
Quick Start programmes: 1
Target programmes: 4
Pre-set programmes: 12
User dened programmes: 1
Heart rate programmes: 4
Watt programmes: 1
Recovery programmes: 1
Fitness programmes: 1
Weight and Dimensions:
Package dimensions (LxWxH): 125 cm x 37 cm x 80 cm
Set-up dimensions (LxWxH): 122 cm x 61 cm x 154 cm
Article weight (gross, incl. packaging): 65.5 kg
Artikelgewicht (net, without packaging): 58 kg
Maximum user weight: 180kg

UB9.9
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

UB9.9
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

UB9.9
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

75 66
X 1
X 1
5
X 2
40
X 1
X 1
X 1
51L
X 1
X 1
36
X 1
76
X 1
2
4
X 1 X 1
X 1
X 1
113
69
X 1
X 1
17
&
51R
104 & 105
106
70
7 M8*1.25*70L 4PCS 9 D15.4*D8.2*2T 8PCS
(mm)
STEP 1
KH-734S2
16 D16*D8.5*1.2T 8PCS
7A M8*1.25*110L 4PCS
STEP 3
15 M8*1.25*15L 4PCS 16 D16*D8.5*1.2T 4PCS 9 D15.4*D8.2*2T 4PCS
STEP 4
39 M5*12L 6PCS
STEP 5
41 M8*1.25*50L 2PCS
8 D22*1.5T 2PCS
42 97.2*75*42 1PC
38 ST4.2*15L 4PCS
39 M5*12L 8PCS
107 ST4.2*15L 4PCS
UB9.9
11

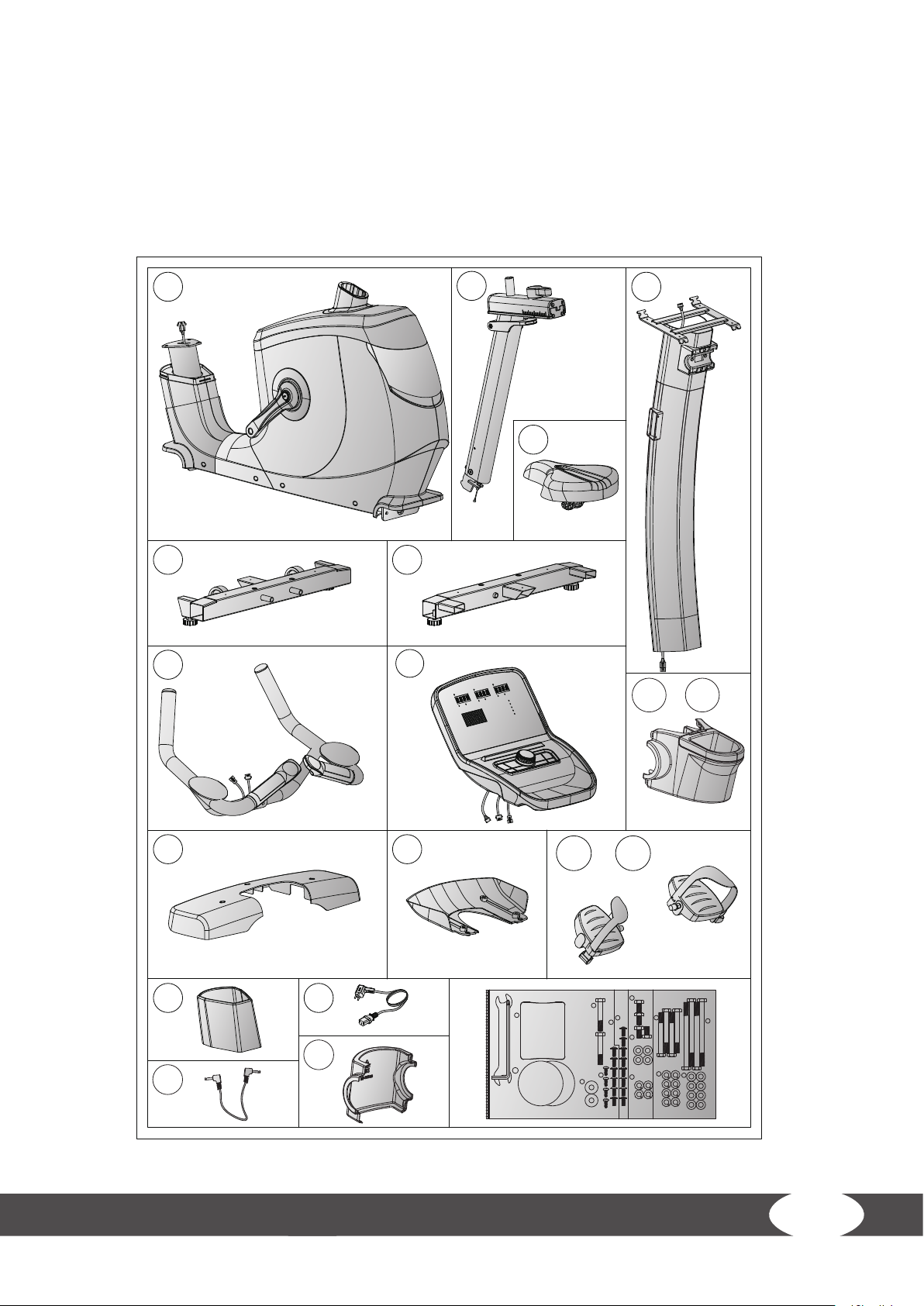

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

UB9.9
12
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

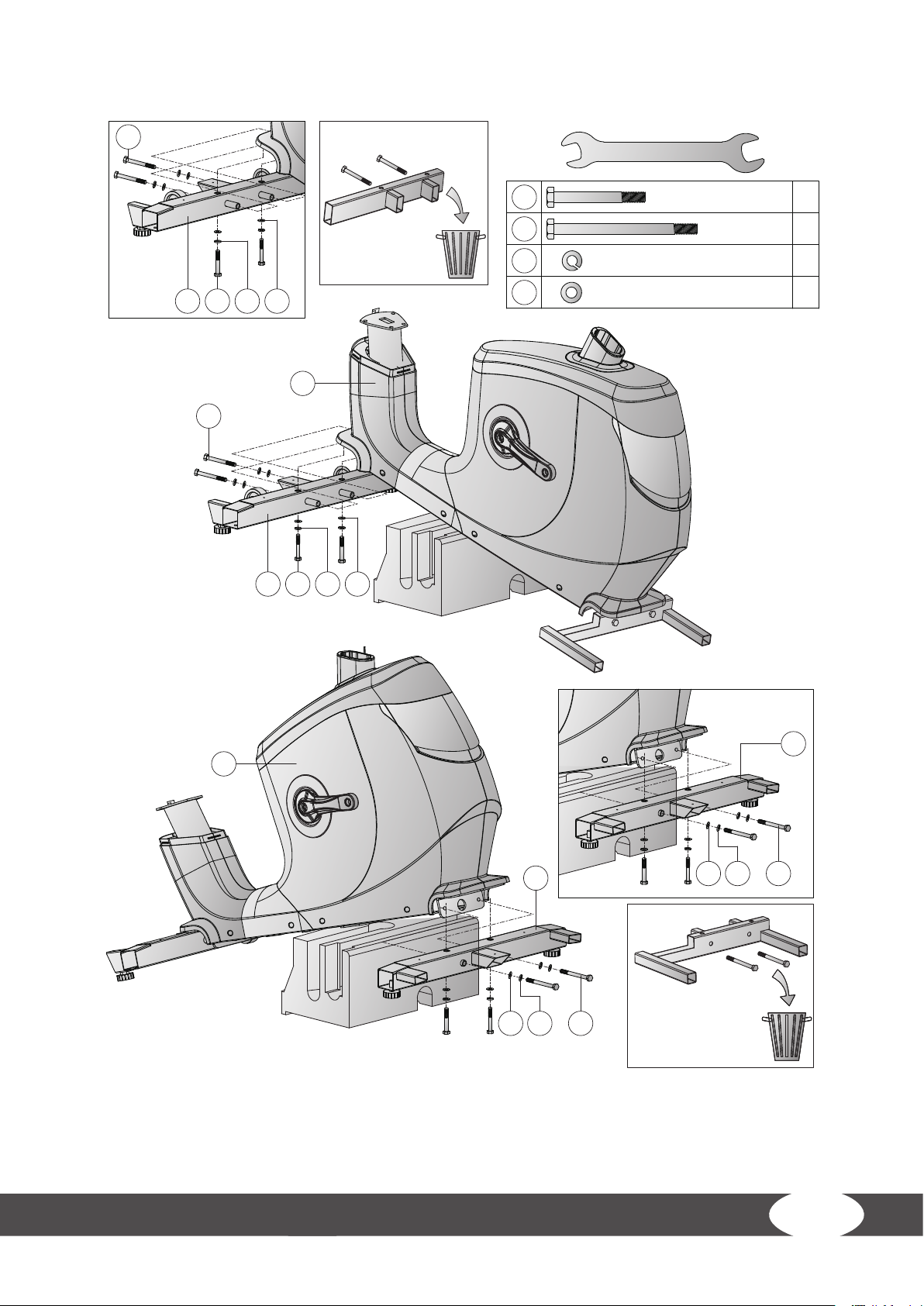

Step 1: Mounting the front and rear stabiliser
⚠CAUTION
For this assembly step, the device must be lifted on one side. For this purpose, consult the help
of another person. For additional stabilisation, you can use the polystyrene from the packaging
material and place it under the device.
1. Remove and dispose the front attachment of the unit together with the two screws (seeg.1-1).
These are not required for assembly.
2. Lift the front frame and mount the front stabiliser (4) to the main frame (1) with four washers
(16), four spring washers (9), two screws (7A), two screws (7) (see g. 1-2) and hand-tighten the
screws.
3. Remove and dispose the rear attachment of the unit together with the two screws (see g. 1-3).
These are not required for assembly.
4. Lift the rear frame and mount the rear stabiliser (2) to the main frame (1) with four washers
(16), four spring washers (9), two screws (7A), two screws (7) (see g. 1-4) and hand-tighten the
screws.

1-1
1-3
7
9
16
7A
4 7 9 16
7A
4 7 9 16
7A
2
916 7A
1
1
2
916 7A
Step-1
M8x1.25x70L
D16xD8.5x1.2T
x4
x8
x8
D15.4xD8.2x2T
M8x1.25x110L
x4
1-2
13
15
1-4
UB9.9
13

Step-2
13
15
13
1
13
UP
DOWN
2-3
2-4
2-1
2-2
UB9.9
14
Step 2: Mounting the saddle
1. Mount the saddle to the seat post (13) and hand-tighten the nuts with the tool (see gs. 2-1
and 2-2).
2. Pull the lock on the seat post (13) towards the saddle and insert the seat post (13) into the main
frame (1) (see g. 2-3).
LNOTICE
If the seat position does not meet your requirements after assembly has been completed, the
height of the seat and its lateral alignment can be adjusted as shown in gs. 2-3 and 2-4.

Step-3
3-1
3-2
M8x1.25x15L
D16xD8.5x1.2T
x4
x4
x4
D15.4xD8.2x2T
13
15
1
75
17
64
65
9
15
16
75
17
65
64
15
9
16
UB9.9
15
Step 3: Mounting the front post
1. Slide the cover (75) on the front post (17) upwards (see g. 3-1).
2. Connect the two console cables (64 & 65) together (see g. 3-2).
࣑ATTENTION
Make sure not to clamp the cables during the next step.
3. Place the front post (17) on the main frame (1) and mount the front post (17) with four
washers(16), four spring washers (9) and four screws (15).
4. Slide the cover (75) down and let snap the cover into place.

64
76
76
64
39
1
76 76
17
39
17
76
17
39
40
40
39
39
Step-4
4-1
4-2
4-3
4-4
M5*12L
x8
UB9.9
16
Step 4: Mounting the console
1. Connect the console cable (64) to the console cable (76) shown in gure 4-1.
2. Pass the remaining console cables from the console (76) through the front post opening (17)
(see g. 4-2).
3. Mount the console (76) on the front post (17) with four screws (39) (see g. 4-3) and hand-tighten
the screws.
4. Mount the console cover (40) below the console (76) on the front post (17) using four screws(39)
(see g. 4-4) and hand-tighten the screws.

Step-5
M5*12L
x6
M8x1.25x50L
x2
D22*D8.5*1.5T
x2
13
15
L
R
841
36
17
76
37L
76 76
37R
48R
51R
51R
51L
48L
51L
48L
66
66
11
39
5
39
5
39
41
8
42
107
106
5-2
5-3
38
17 5-1
105
ST4.2*15L
x438
UB9.9
17
Step 5: Mounting the handles and bottle holder
1. Connect the cables from the console (76) to the cables for the speed buttons (37L & 37R).
2. Mount the handlebar (36) to the front post (17) using two curved washers (8) and two screws(41)
and hand-tighten the screws.
3. Place the cover for the handlebar (42) on the screw connection.
4. Mount the rear bottle bracket (105) to the front post (17) using four screws (38) (see g. 5-1).
5. Place the two end caps (107) into the rear bottle bracket (105) (see g. 5-2).
6. Snap the front bottle bracket (106) into the rear bottle bracket (105) (see g. 5-3).

L
R
48R
51R
51R
51L
48L
51L
48L 1
39
5
39
5
M5*12L
x6
39
UB9.9
18
Step 6: Mounting the pedals and foot covers
1. Turn the left pedal (51L) counterclockwise on the left crank (48L) on the main frame (1).
2. Turn the right pedal (51R) clockwise on the right crank (48R) on the main frame (1).
3. Place the rear and front covers (5) on the rear and front stabilzers (2 & 4) and mount each cover
(5) with three screws (39).

Step-
2
13
15
13
1
13
UP
DOWN
2-3
2-4
2-1
2-2
48L
66
66
1
UB9.9
19
Step 7: Alignment of the feet
If the oor is uneven, you can stabilise the equipment by turning the adjustable screws under the
main frame.
1. Lift the equipment on the desired side
and rotate the adjustable screws under
the main frame.
2. Rotate the screws clockwise in order
to unscrew them, therefore raising the
equipment.
3. Rotate the screws counterclockwise in
order to lower the equipment.
Step 8: Connecting the equipment to the mains supply
࣑ATTENTION
The equipment must not be connected to a power
board, otherwise it cannot be guaranteed that the
equipment will be supplied with sucient power.
Technical errors can happen as a result.
Connect the power cable (66) to the unit and then plug
the power cable (66) into a socket which complies with
the specications in the chapter on electrical safety.

UB9.9
20
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
3.1 Console display
DISPLAY DESCRIPTION
TIME + Display of the elapsed training time (0:00 - 99:59)
+ Set a target time with the rotary knob (0:00 - 99:00) in 1 min. increments-
SPEED Display of the current speed (max. 99.9)
DISTANCE + Display of the distance covered (0.00-99.99)
+ Set a target distance with the rotary knob (0.00-99.0) in 1km increments
CALORIES
+ Display of the calories burned (0-9999)
+ Set a target calorie value with the rotary knob (0-9999) in 10 Cal.
increments-
RPM Display of the current revolutions per minute (RPM) (0-999)
LEVEL Display of the current resistance level
WATTS Display of the Watt value (0 -999)
PULSE
+ Display of your heart rate (0-230)
+ Set a heart rate target with the rotary knob (0-30-230) in singluar
increments
