Taurus IC70 Pro User manual

Indoor Cycle IC70 Pro
TF-IC70PRO-2
TFIC70PRO.02.02
Assembly and operating instructions

IC70 Pro
2

IC70 Pro
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
2.4 Adjustments 16
2.4.1 Adjusting the Handlebar and Saddle 16
2.4.2 Changing the Battery 16
2.4.3 Adjusting the Tension 18
2.4.4 Using the Emergency Brake Function 18
3 OPERATING INSTRUCTIONS 19
3.1 Console Display 19
3.2 Button Functions 20
3.3 Programmes 20
3.3.1 Quick Start Programme 20
3.3.2 Target Programmes 20
4 STORAGE AND TRANSPORT 21
4.1 General Instructions 21
4.2 Transportation Wheels 21
5 TROUBLESHOOTING, CARE AND MAINTENANCE 22
5.1 General Instructions 22
5.2 Faults and Fault Diagnosis 22
5.3 Lubricating the Felt Brake 23
5.4 Maintenance and Inspection Calendar 23
6 DISPOSAL 23
7 RECOMMENDED ACCESSORIES 24

IC70 Pro
4
8 ORDERING SPARE PARTS 25
8.1 Serial Number and Model Name 25
8.2 Parts List 26
8.3 Exploded Drawing 29
9 WARRANTY 31
10 CONTACT 33

IC70 Pro
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

IC70 Pro
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

IC70 Pro
7
1 GENERAL INFORMATION
1.1 Technical Data
LCD - Display of
+ training time
+ training route
+ calorie consumption
+ heart rate
Braking system: Felt Brake
Flywheel: 20 kg
Dimensions and weight
Article weight (gross, incl. packaging): 63 kg
Article weight (net, without packaging): 56.5 kg
Packaging dimensions (LxWxH): 106 cm x 21.5 cm x 96 cm
Set-up dimensions (LxWxH): 124 cm x 53 cm x 123 cm
Maximum user weight: 130 kg

IC70 Pro
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

IC70 Pro
9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment. Make sure that you leave
at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the
equipment as a training zone. This is the minimum required area in order to safely use the
equipment. The recommended free zone around the equipment should be at least 60 cm on
each side and 45 cm in front of and behind the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
Training zone

IC70 Pro
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

4
4
4
2
2
1
M10*90
M16*25
M16*20
Φ10
M10
1
φ28*122
1
1
1
1
1
1
1
1
1
1* M6*10
1* M6*10
4* M5*10
IC70 Pro
11

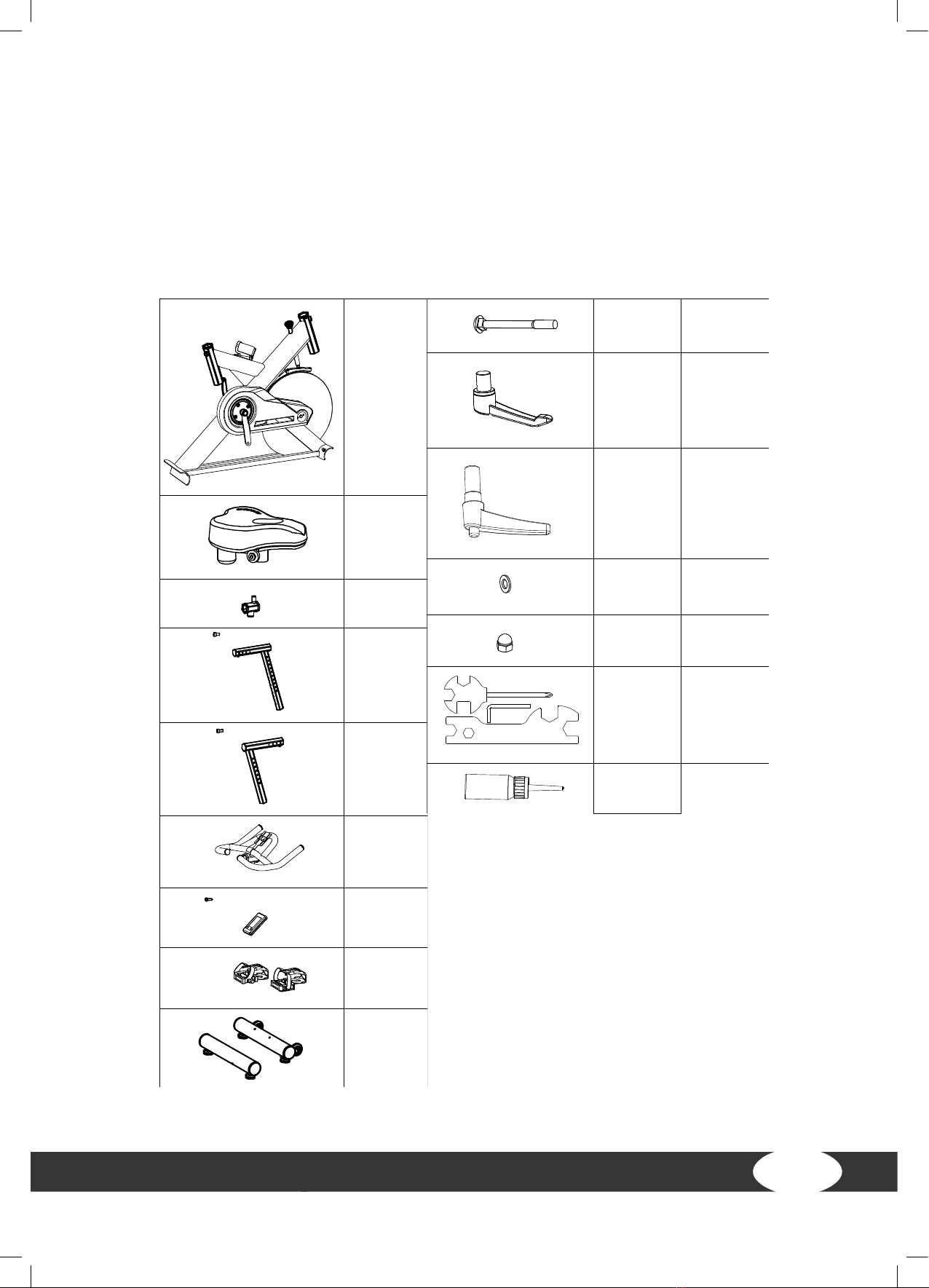

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

IC70 Pro
12
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

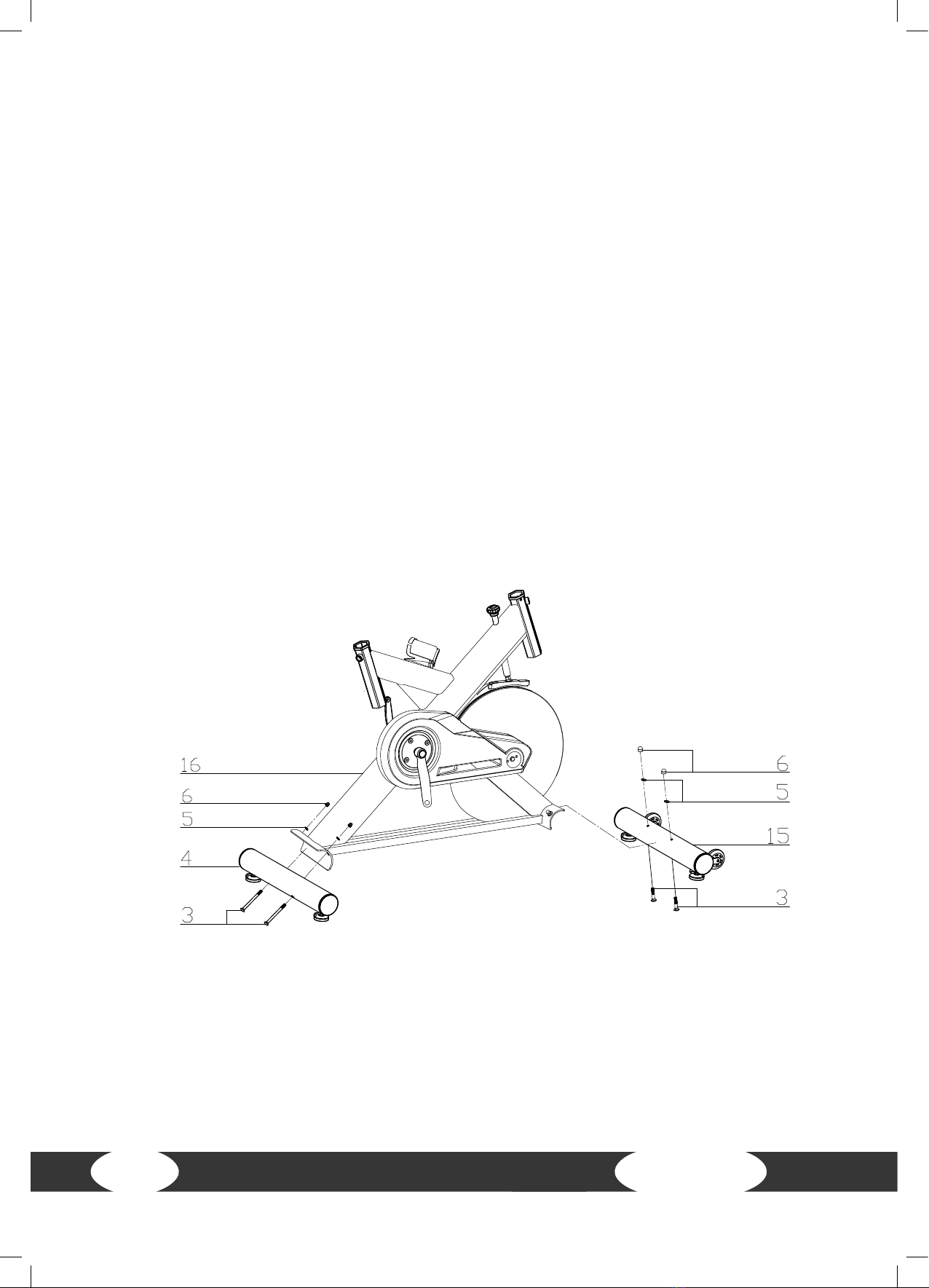

Step 1: Assembly of the stabilizers
1. Attach the front stabilizer (15) to the Main Frame (16) using two at washers (5), two domed
nuts (6) and two carriage bolts (3).
2. Attach the rear stabilizer (4) to the main frame (16) using two at washers (5), two domed nuts
(6) and two carriage bolts (3).

IC70 Pro
13

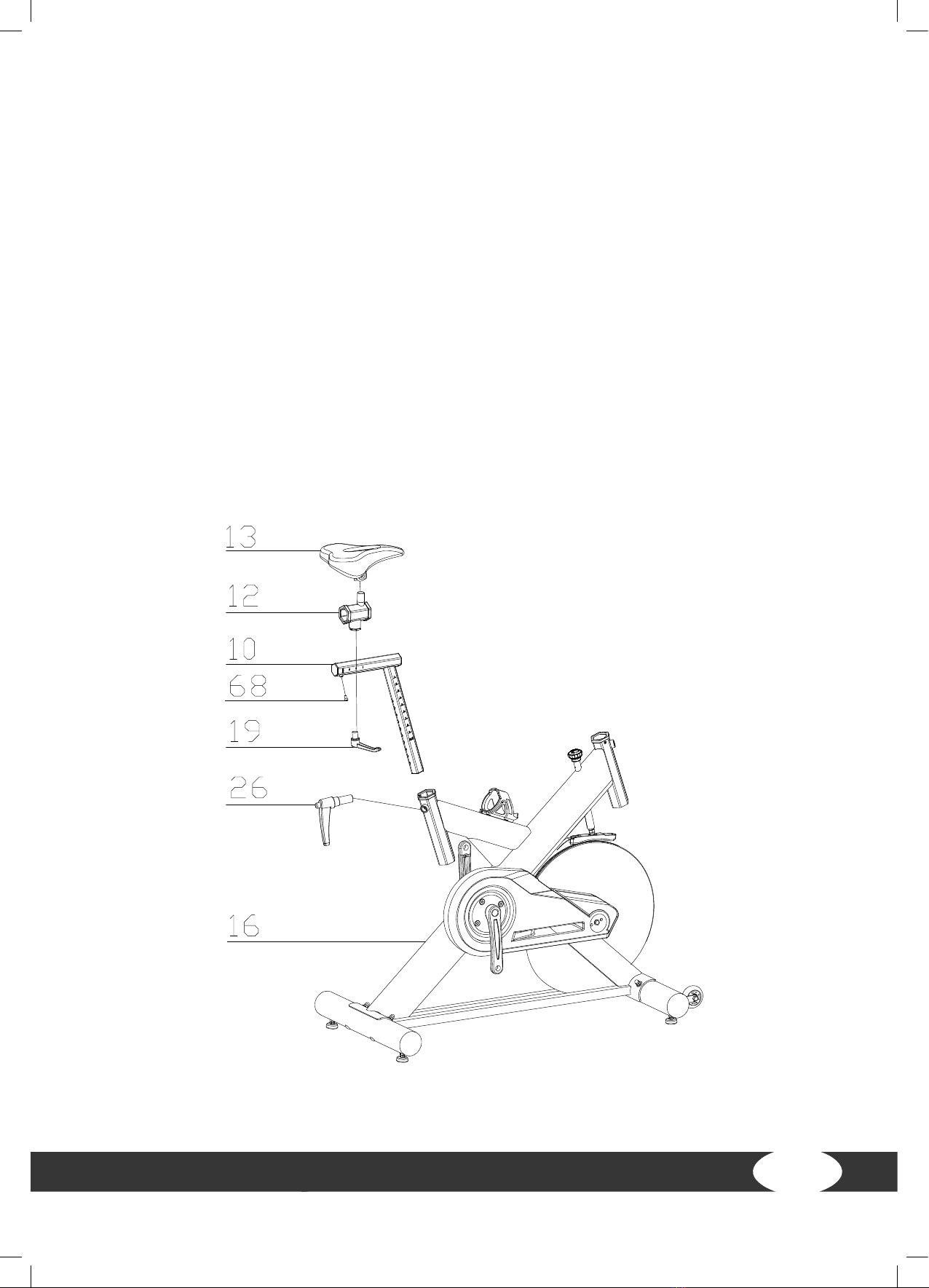

Step 2: Assembly of the Seat
1. Slide the vertical seat post (10) into the seat post housing of the main frame (16).
2. Align the vertikal seat post (10) to the desired height.
3. Attach the L shape knob (26).
⚠CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
4. Slide the Seat Post (12) onto the vertical seat post (10) and align it to the desired position.
5. Secure the seat post (12) to the vertical seat post (10) with the L shape knob (19) and the
bolt(68).
⚠CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
6. Now x the Seat (13) to the Seat Post (12) as shown, and tighten the screws under the seat.

IC70 Pro
14
Step 3: Assembly of the handlebar and the console
1. Slide the handlebar post (17) into the handlebar post housing of the main frame (16).
2. Align the handlebar post (17) to the desired height.
3. Attach the L shape knob (26).
⚠CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
4. Slide the handlebar (18) onto the handlebar post (17) ) and align it to the desired position.
5. Secure the handlebar (18) to the handlebar post (17) with the L shape knob (19) and the bolt(68).
⚠CAUTION
Please take note that the L shape knob audibly engages in one of the adjustment holes.
LNOTICE
Before performing the next step, insert the supplied battery into the console.To insert or replace
a battery, follow the instructions in Section 2.4.2.
6. Fix the computer (80) to the handlebar (18) with four
bolts (81).

IC70 Pro
15
Step 4: Assembly of the pedals
LNOTICE
+ The pedals (1L & 1R) are marked with an„L“ and an„R“ for left and right.
+ The right crank arm is in sitting position on the right side.
1. Attach the left pedal (1L) to the left crank arm by turning the pedal (1L) counterclockwise onto
the crank arm.
2. Attach the right pedal (1R) to the right crank arm by turning the pedal (1R) clockwise onto the
crank arm.

IC70 Pro
16
2.4 Adjustments
2.4.1 Adjusting the Handlebar and Saddle
Both the handlebar and the saddle can be adjusted horizontally and vertically.
1. To do this, loosen the L lever at the appropriate point and pull it out a little. Now position either
the saddle or the handlebar in the desired position.
⚠CAUTION
Make sure that the L lever audibly engages in one of the adjustment holes.
2. Now release the L lever and tighten it.
2.4.2 Changing the Battery
LNOTICE
+ As soon as the console registers no movement or action for approx. 4 minutes, it switches
to the energy-saving mode. You can exit the energy-saving mode by pressing any key. The
original values are retained.
+ If the display does not function correctly, replace the battery. Please note that in such a case
the original values will not be saved.
+ You need to remove the console from the handlebar to be able to change the battery.
1. Pull up the clip on the side of the battery compartment and remove the cover.
LNOTICE
Pay attention to the marks on the battery before inserting the battery. Align the battery so that
+ points up and - points down.
2. Insert a new CR2032 battery.
3. Close the battery compartment by replacing the cover.

IC70 Pro
17
LIMPORTANT NOTICE

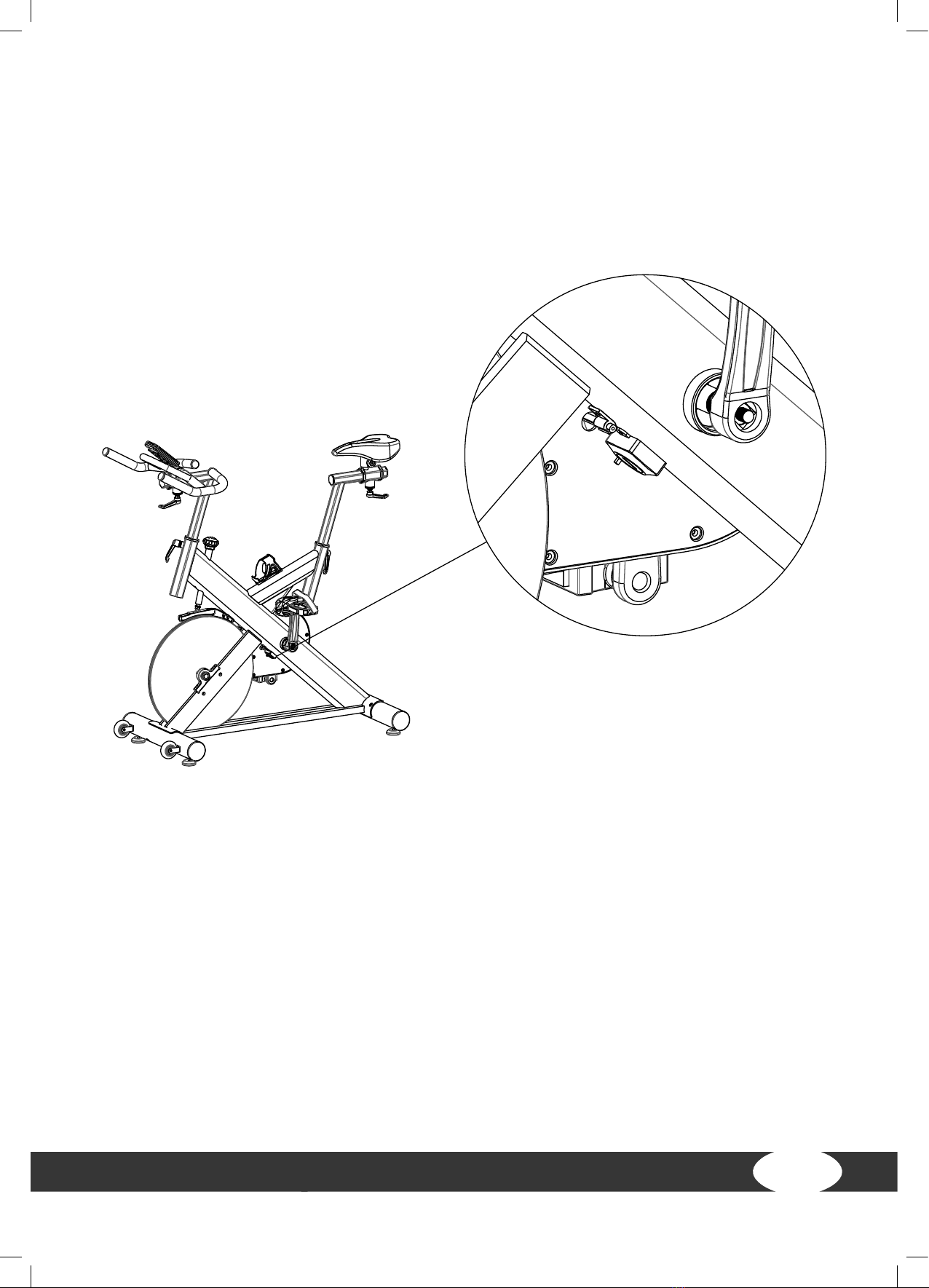

Switch on the sensor located at the position shown before using your indoor cycle for the rst time.
It is not necessary to turn o the sensor after each training session. However, if you do not use the
indoor cycle for a longer period of time, we recommend switching o the sensor.

IC70 Pro
18
2.4.3 Adjusting the Tension
+ To increase the resistance, turn the emergency
brake & tension control knob (30) to the right.
+ To decrease the resistance, turn the emergency
brake & tension control knob (30) to the left.
2.4.4 Using the Emergency Brake Function
⚠WARNING
Use this safety feature in any emergency situation
where you need to get o the indoor cycle or
bring the ywheel to a standstill.
The same knob that allows you to adjust the resistance
of the indoor cycle also doubles as the emergency
brake.
To use the emergency brake rmly press down
on the emergency brake & tension control knob (30).

IC70 Pro
19
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.

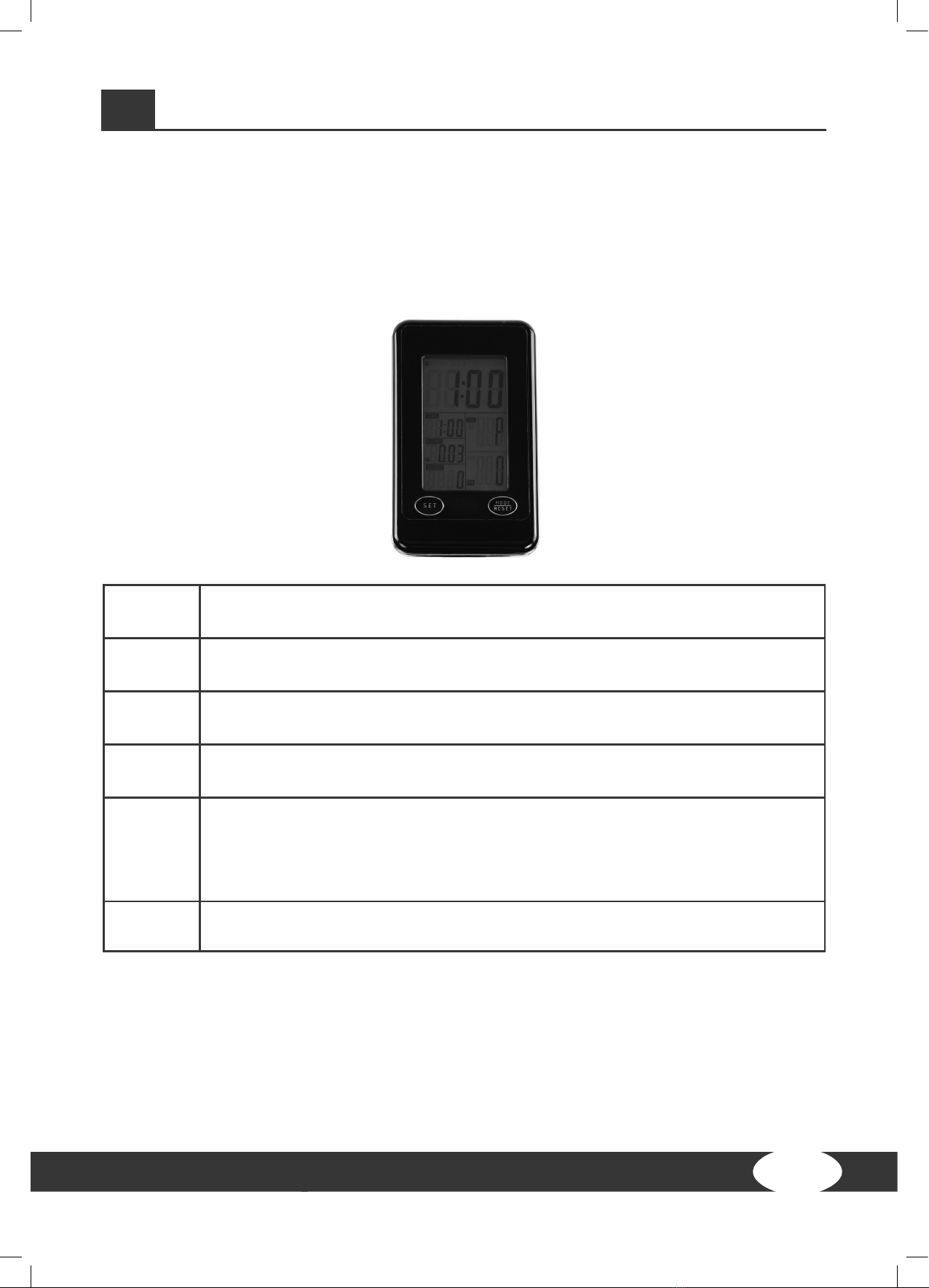

3.1 Console Display
TIME + Display of the training time
+ Display range 0:00 - 99:59
SPEED + Display of the current speed
+ Display range 0.0 - 240 km/h or ml/h
DISTANCE + Display of the covered distance
+ Display range 0 - 999.9 km or ml
CALORIES + Display of calories
+ Display range 0 - 999.9 kcal
PULSE + Display of the current heart rate
LNOTICE
This indoor cycle is not equipped with hand pulse sensors. To use this function,
a chest strap is neccessary.
SCAN + Automatically changing display of individual parameters (TIME - DISTANCE -
CALORIES - RPM/SPEED)

IC70 Pro
20
3.2 Button Functions
MODE/
RESET
+ Use this button to switch between the pararneters and to conrm all your
settings.
+ Press and hold this button for approx. 2 seconds to reset all values.
SET + Use this button to set the Display of the current speed
3.3 Programmes
3.3.1 Quick Start Programme
To start the Quick-Start program, simply pedal. All values are incremented. To exit the program, press
the reset button.
3.3.2 Target Programmes
There are several setting options for the target programmes:
Training depending on one target value:
Set the desired target value for time, calories or distance with the SET-button and conrm with the
MODE-button. Step on the pedals and the programme starts. The set value is counted down, the
other values are counted up. As soon as the set target value is reached, an acoustic signal is heard.
Training depending on several target values:
If you set multiple values for parameters, the corresponding values will be counted down during the
workout. Potentially unspecied values are counted up. The programme stops as soon as one of the
set values reaches 0 and an acoustic signal is heard.
