Taurus TF-Z99PRO-21 User manual

TFZ99PRO21.01.05
TF- Taurus Smart Bike Z9.9 Pro
max. 150 kg
~ 60 Min.
CM
66 kg
Art. No. TF-Z99PRO-21
Assembly and Operating Instructions
L 153 | W 52 | H 158

2Z9.9 Pro

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14
3 OPERATING INSTRUCTIONS 23
3.1 Console Display 23
3.2 Button Functions 24
3.3 Further Functions 25
3.4 Programmes 26
3.4.1 Quick-Start Programme/Target Programme 27
3.4.2 Pre-set Programmes 28
3.4.3 Interval Programme 29
3.4.4 Heart Rate Controlled Programmes 30
3.4.5 Watt Programme 32
3.4.6 Virtual Training Routes 33
3.5 Multimedia and Software Updates 36
4 STORAGE AND TRANSPORT 38
4.1 General Instructions 38
4.2 Transportation Wheels 38
5 TROUBLESHOOTING, CARE AND MAINTENANCE 39
5.1 General Instructions 39
5.2 Faults and Fault Diagnosis 39
5.3 Error Codes and Troubleshooting 40
5.4 Maintenance and Inspection Calendar 41
6 DISPOSAL 41
7 RECOMMENDED ACCESSORIES 42

4Z9.9 Pro
8 ORDERING SPARE PARTS 43
8.1 Serial Number and Model Name 43
8.2 Parts List 44
8.3 Exploded Drawing 47
9 WARRANTY 49
10 CONTACT 51

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

6Z9.9 Pro
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be
updated. If you notice any discrepancies during assembly or use, please refer to
the manual uploaded to the webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the instructions
again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
TFT Display of
+ Speed in km/h
+ Rotations per minute
+ Training time in min
+ Training distance
+ Calorie consumption in kcal
+ Heart rate (when using the chest strap)
+ Watt
Resistance system: electrical magnetic brake system
Resistance levels: 32
Flywheel mass: 15 kg
Wattage
Min. and max. Watt at 60 RPM: 25-330 W
Min. and max. Watt at 100 RPM: 53-750 W
Adjustable range in the Watt programme: 20-350 W
Total training programmes: 20
Quick Start programmes: 1
Target programmes: 1
Pre-set programmes: 12
Interval programmes: 1
HRC programmes: 4
Watt programmes: 1
Weight and Dimensions:
Article weight (gross, incl. packaging) approx.: 73 kg
Article weight (net, without packaging) approx.: 66 kg
Packaging dimensions (L x W x H) approx.: 126 cm x 33 cm x 90 cm
Set up dimensions (L x W x H) approx.: 153 cm x 52 cm x 158 cm
Maximum user weight: 150 kg
Check your TFT console regularly for possible software updates.
If available, make sure to carry out the updates.

8Z9.9 Pro
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
+ If your purchased item is equipped with aTFT console, software updates must be carried out
regularly. Follow the instructions on the console to perform the update(s).
+ The software systems on gym equipment with TFT consoles are set up only for the pre-
installed apps. Do not install any additional apps.
LNOTICE
+ Thepre-installedappsonTFTconsolesareproducedandprovidedbyexternalmanufacturers.
Sport-Tiedje does not take any responsibility for the availability, functionality or contents of
these apps.

10 Z9.9 Pro
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

12 Z9.9 Pro
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

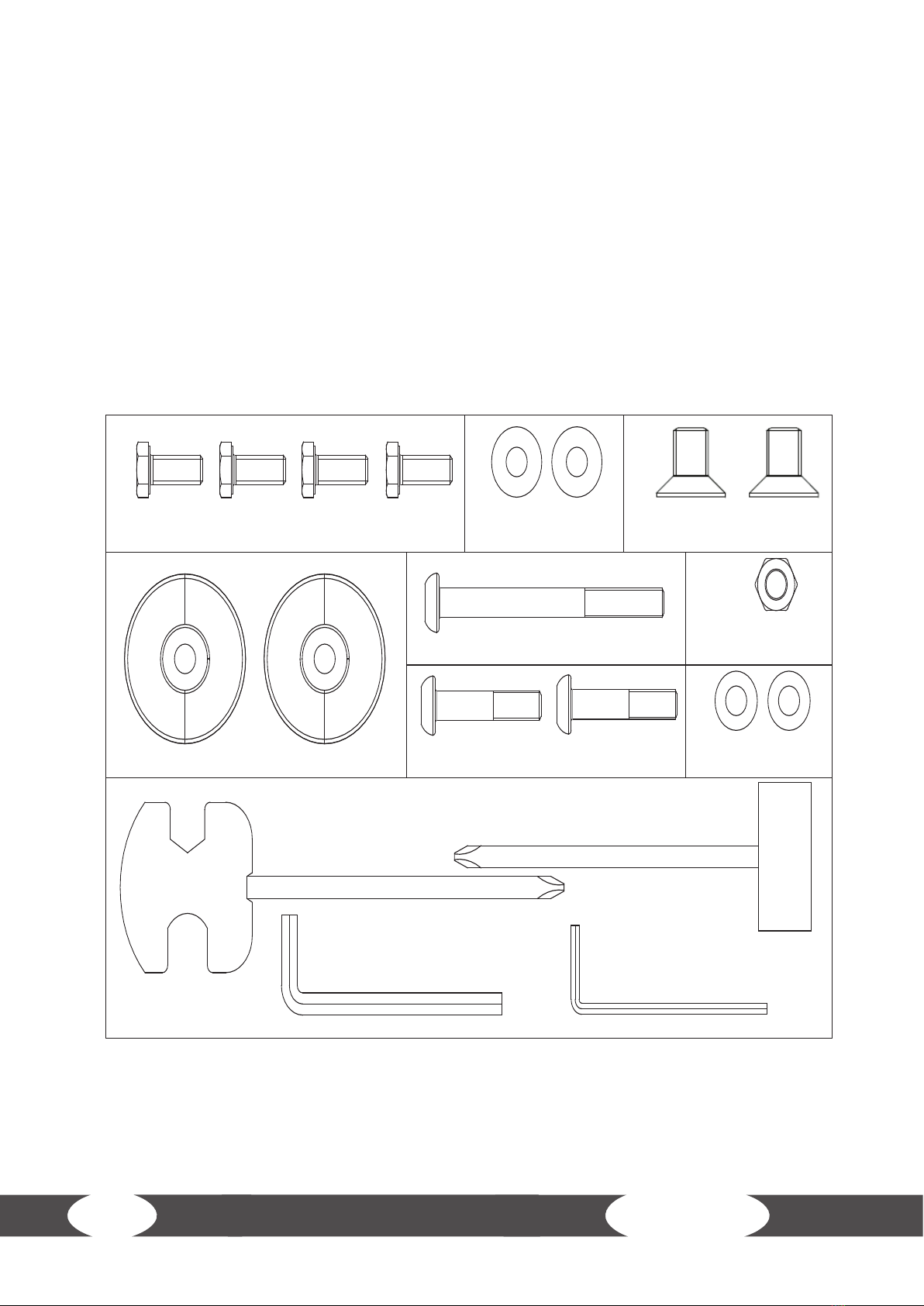

Q-2 Flat washer
Φ8* Φ*16*2T (4)
Q-1 Hex screw
M8xP1.25x20mm (4) Q-3 Hex screw M5*16L (2)
Q-4 Screw cover Φ8*Φ46 (2)
Q-5 Allen bolt M8*85L (1) Q-6 Lock nut M8 (1)
Q-7 Allen bolt M8*40L (2) Q-8 Flat washer
Φ8*Φ16*2T (2)
Q-10 Screwdriver (1) (Pedal Wrench)
Q-9 Box spanner (1)
Q-12 Allen key 6mm (1) Q-11 Allen key 3mm (1)
Hardware pack

A
M / N
L-35L / L35R
L / R
D-1 / P-11
C / O-1
B-1 / E-1
13
Manual

14 Z9.9 Pro

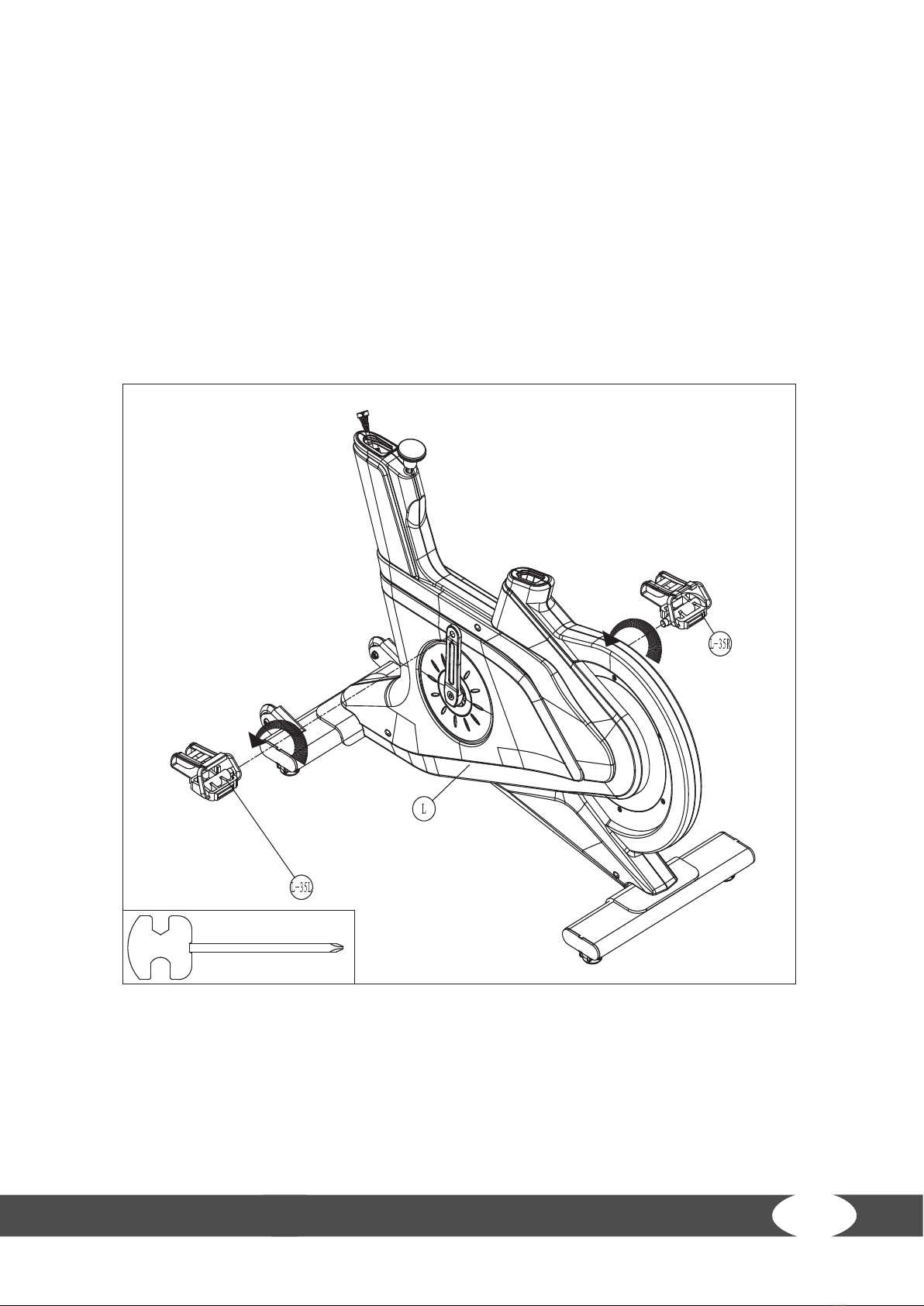

2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.
Step 1: Assembly of the Front and Rear Stabilizer
1. Mount the front stabilizer (M) and rear stabilizer (N) to the main frame (L) with two hex screws
(Q-1) and two at washers (Q-2) each.
2. Tighten the screws with the tool.

15
Step 2: Assembly of the Pedals
1. Screw the right pedal (L-35R) into the thread of the pedal axis located on the right side of the
main frame by turning it clockwise.
2. Screw the left pedal (L-35L) into the thread of the pedal axis located on the left side of the main
frame by turning it counter clockwise.
3. Tighten the pedals (L-35R / L35-L) with the tool.
⚠CAUTION
Make sure to screw in the pedals completely.

16 Z9.9 Pro
Step 3: Assembly of the Seat Post and Seat
1. Insert the seat post (O-1) into the main frame (L).
2. Attach the seat (P-11) to the seat post (O-1).
3. Tighten the pre-assembled screw connection on the underside of the seat (P-11) with the tool.

(1) (2)
(3)
17
Step 4: Assembly of the Handlebar
1. Remove the pre-assembled screw (C-2) and limit piece (C-5).
2. Loosen the pull pin (B-5) and slide out the upper slider (B-4).
3. Attach the handlebar (B-1) to the upper slider (B-4) with two hex screws (Q-3) using the tool (g.
1).
4. Slide the handlebar into position as shown in g. 2.
5. Secure the limit piece (C-5) and the lower cover (C-1) with the previously removed screw (C-2)
using the tool (g. 3).

18 Z9.9 Pro
Step 5: Assembly of the Holder Tube
1. Carefully pull the cable (C-3) through the handlebar post (C).
࣑ATTENTION
Make sure not to pinch the cables during the following steps.
2. Mount the holder tube (E-1) to the the handlebar post (C) with two allen bolts (Q-7) and two
at washers (Q-8).
3. Tighten the bolts (Q-7) with the tool.

19
Step 6: Assembly of the Handlebar Post
1. Connect the cables C-3 and L-12.
࣑ATTENTION
Make sure not to pinch the cables during the following steps.
2. Attach the handlebar post (C) to the main frame (L).
3. Fixate the handlebar post (C) by turning the lever clockwise on the right side of the main frame
(L).

20 Z9.9 Pro
Step 7: Assembly of the Console Support
1. Mount the console support (D-1) to the top of the holder tube (E-1) with one allen bolt (Q-5),
two screw covers (Q-4) and one nut (Q-6).
2. Tighten the screw connection with the tools.
