Taurus Multi-gym UltraForce Planning guide

TFUF.01.02
TF-
max. 120 kg
~ 60 Min.
CM
33 kg
Assembly and Operating Instructions
Art. No. TF-UF-PRO
L 108 | W 56 | H 139
Multi-gym UltraForce

2Ultra Force

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Parts Overview 12
2.4 Warning notes/warning sticker 13
2.5 Assembly 17
3 STORAGE AND TRANSPORT 32
3.1 General Instructions 32
3.2 Transportation Wheels 32
4 WORKOUT INSTRUCTIONS 33
4.1 General training instructions 33
4.2 Exercise and safety notes 34
4.3 Exercise manual 35
4.4 Equipment settings 35
4.5 Stretching exercises for leg & chest muscles 37
4.6 Workout journal 39
5 TROUBLESHOOTING, CARE AND MAINTENANCE 40
5.1 General Instructions 40
5.2 Faults and Fault Diagnosis 40
5.3 Maintenance and Inspection Calendar 41
6 DISPOSAL 41
7 RECOMMENDED ACCESSORIES 42

4Ultra Force
8 ORDERING SPARE PARTS 43
8.1 Serial Number and Model Name 43
8.2 Parts List 44
8.3 Exploded Drawing 48
9 WARRANTY 49
10 CONTACT 51

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-
professional (e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional
use (e.g. tness studios).

6Ultra Force
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and dimensions:
Article weight (gross, including packaging): 88.6 kg
Article weight (net, without packaging): 87 kg
Packaging dimensions of the box (L x W x H):
No. 1 approx. 151 cm x 49 cm x 22 cm, weight: 42 kg (gross, including packaging)
No. 2 approx. 116 cm x 85 cm x 16 cm, weight: 46.61 kg (gross, including packaging)
Set-up dimensions (L x W x H): approximately 134 cm x 165 cm x 208 cm
Maximum user weight: 150 kg/330 lbs

8Ultra Force
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10 Ultra Force
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

11
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be
contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly
must not be carried out.

12 Ultra Force
2.3 Parts Overview

13

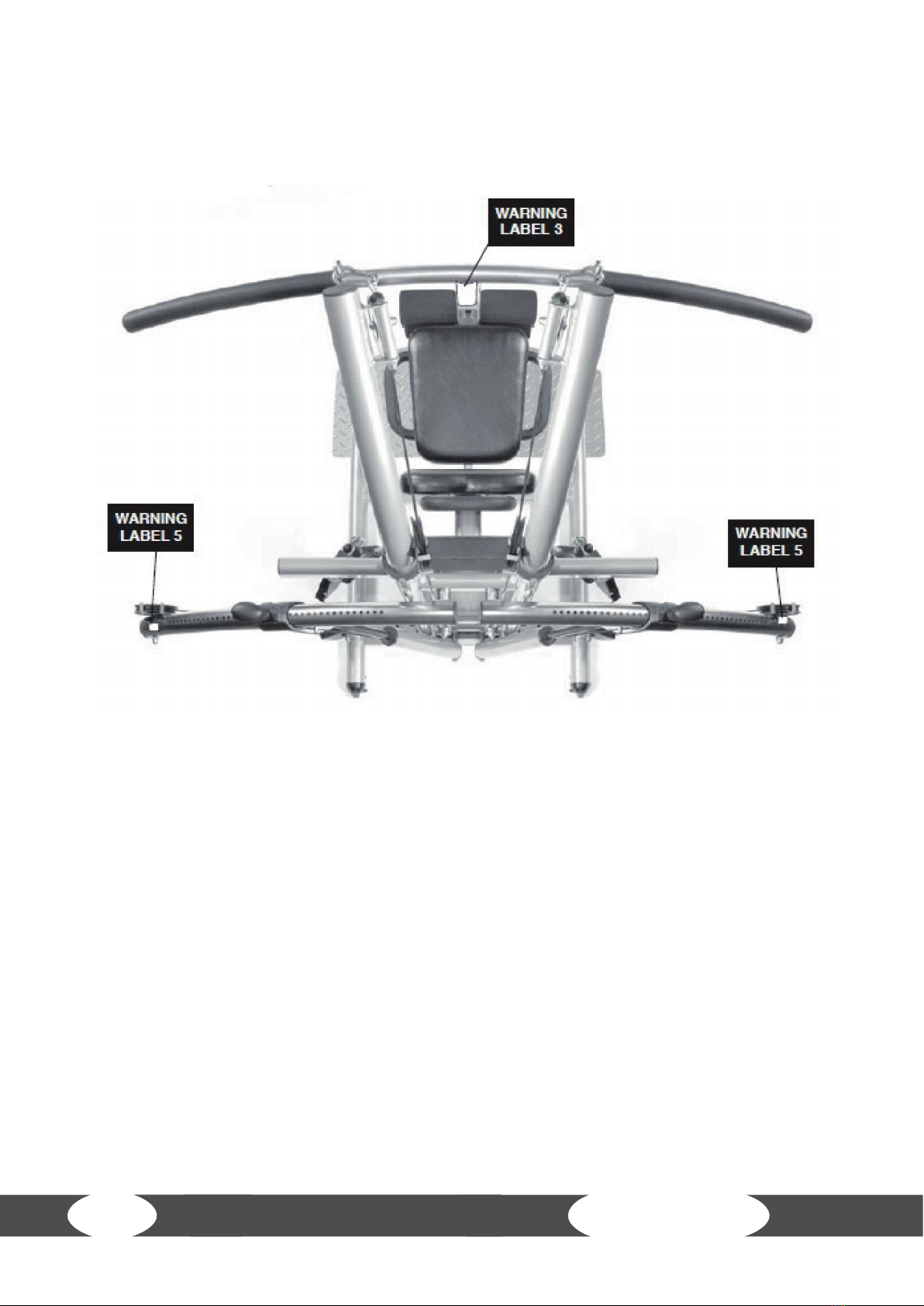

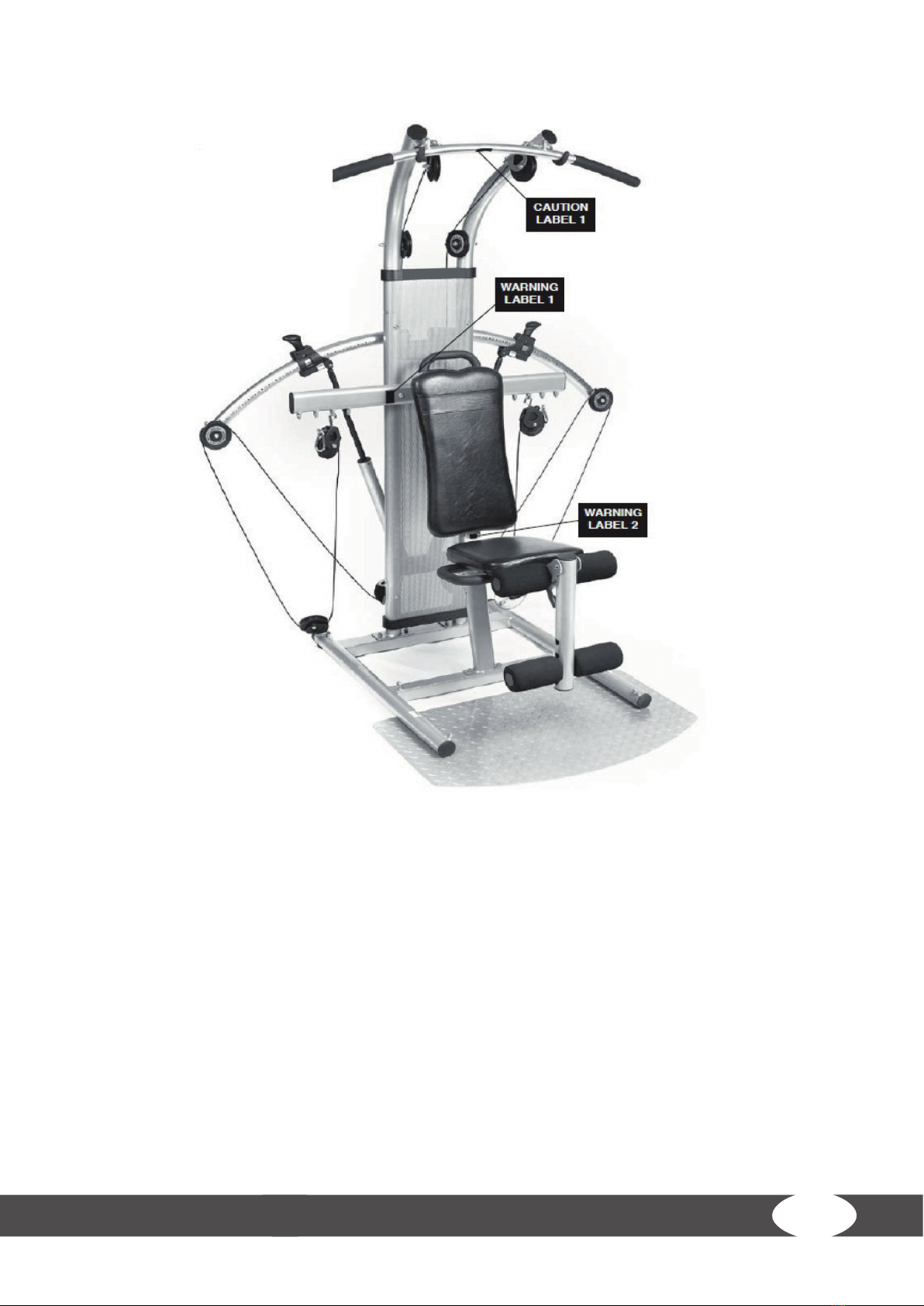

2.4 Warning notes/warning sticker
IMPORTANT: Please observe the attachment of the following warning and attention stickers
on your equipment:
CAUTION LABEL 1
If you are not using the lat bar, always hang it in the holder.
WARNING LABEL 1
If you do not read and follow the safety instructions provided in the user instructions and video,
this MAY RESULT IN SERIOUS INJURIES OR DEATH. KEEP AWAY FROM CHILDREN. Maximum user
weight: 330 lbs/150 kg. Replace this sticker if it is damaged, illegible or was removed. Class HC.
WARNING LABEL 2
Crushing hazard: Keep hands away during assembly and disassembly.

14 Ultra Force
WARNING LABEL 3
Crushing hazard! Keep hands away while using!
WARNING LABEL 5 (6 positions)
Do not touch the pulleys and mobile parts.

15
WARNING LABEL 4 (2 positions)
WARNING! Make sure that the pin is locked in the position before you begin the exercise.
WARNING LABEL 7 (2 positions)
WARNING! When you do exercises while standing, keep your feet on the ground plate.

16 Ultra Force
CAUTION LABEL 2
NOTE! In order to transport the equipment, we recommend doing this with two persons.
WARNING LABEL 5 (6 positions)
WARNING! Do not touch the pulleys and mobile parts.
WARNING LABEL 6 (2 positions)
WARNING! Crushing hazard - only use adjusting arm with free hands.
WARNING LABEL 8 (2 positions)
WARNING! Content under pressure; DO NOT OPEN. Keep away from heat and re.
WARNING LABEL 9 (2 positions)
WARNING! Do not remove pulley form this position after the equipment has been assembled.

17
2.5 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

18 Ultra Force
Required parts for step 1:

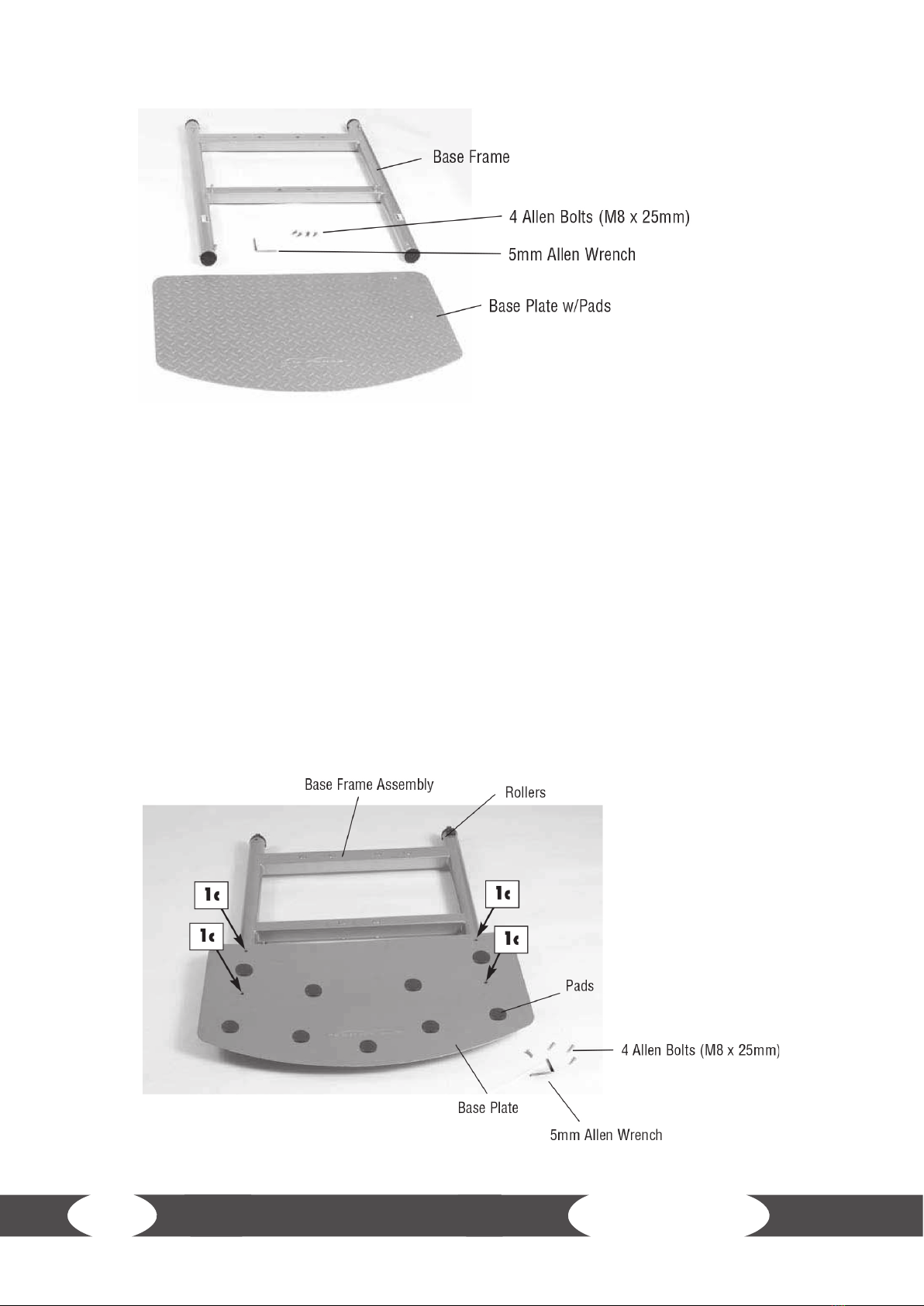

Step 1: Assembly base frame
1. Turn the main frame with the warning notes downward.
2. Position the ground plate on the main frame on the opposite side of the transport wheels and
make sure that the bent side of the ground plate shows outward.
3. Align the holes in the ground plate with the main frame and attach the parts with the four
screws.
Turn the assembled frame upwards (warning notes point upwards).

19
Required parts for step 2:
Step 2: Assembly of rear frame
1. Turn around the rear
frame so that it is on
the auxiliary strut and
the warning notes point
downwards.
2. Place the perforated
cover and the crossbar
on the frame and align
the holes. The warning
notes on the crossbar
should point in your
direction.
3. Attach the parts by
placing the two screws
through the exterior
holes of the crossbar,
the perforated cover
and the frame and
tighten with two nuts.

20 Ultra Force
All nuts and screws are brought in from the front to back - with the nut on the backside.
Required parts for step 3:
Step 3: Assembly backrest supporting frame
1. Loosen the screws from the handle of the backrest.
2. Mount the handle with the previously loosened screws on the small crossbar on the upper end
of the backrest frame. Tighten the screws with the Allen wrench.
3. Turn the backrest and remove the pre-mounted backside.
4. Turn the backrest frame so that the brackets are at on the backrest. Make sure that the upper
end of the backrest (end with the logo) is on the upper end
of the frame (end with handle) (see bottom right). Mount
the backrest in this position by tightening the Allen screws
previously loosened in step 3c.
