Taurus Multi-Gym WS3 User manual

TF-WS5-6
TFWS5.06.01
Assembly Instructions
Multi-Gym WS3
TF-WS3-2

WS3
2

WS3
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 14
2.4 Cable Installation Overview 34
3 STORAGE AND TRANSPORT 35
3.1 General Instructions 35
4 TROUBLESHOOTING, CARE AND MAINTENANCE 36
4.1 General Instructions 36
4.2 Faults and Fault Diagnosis 36
4.3 Maintenance and Inspection Calendar 37
5 DISPOSAL 37
6 RECOMMENDED ACCESSORIES 38
7 ORDERING SPARE PARTS 39
7.1 Serial Number and Model Name 39
7.2 Parts List 40
7.3 Exploded Drawing 45
8 WARRANTY 46
9 CONTACT 48

WS3
4

WS3
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

WS3
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

WS3
7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and dimensions:
Article weight (gross, inc. packaging): 398,5 kg
Article weight (net, without packaging): 193 kg
Packaging dimensions (LxWxH):
No. 1 approx. 194 cm x 32 cm x 24 cm
No. 2 approx. 163 cm x 32 cm x 24 cm
No. 3 approx. 120 cm x 59 cm x 24 cm
No. 4 approx. 111 cm x 101 cm x 18 cm
No. 5 approx. 40 cm x 20 cm x 23 cm
No. 6 approx. 40 cm x 20 cm x 23 cm
No. 7 approx. 40 cm x 20 cm x 31 cm
Set-up dimensions (LxWxH): approx. 215 cm x 117 cm x 205 cm
Maximum user weight: 150 kg

WS3
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

WS3
9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

WS3
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

WS3
11

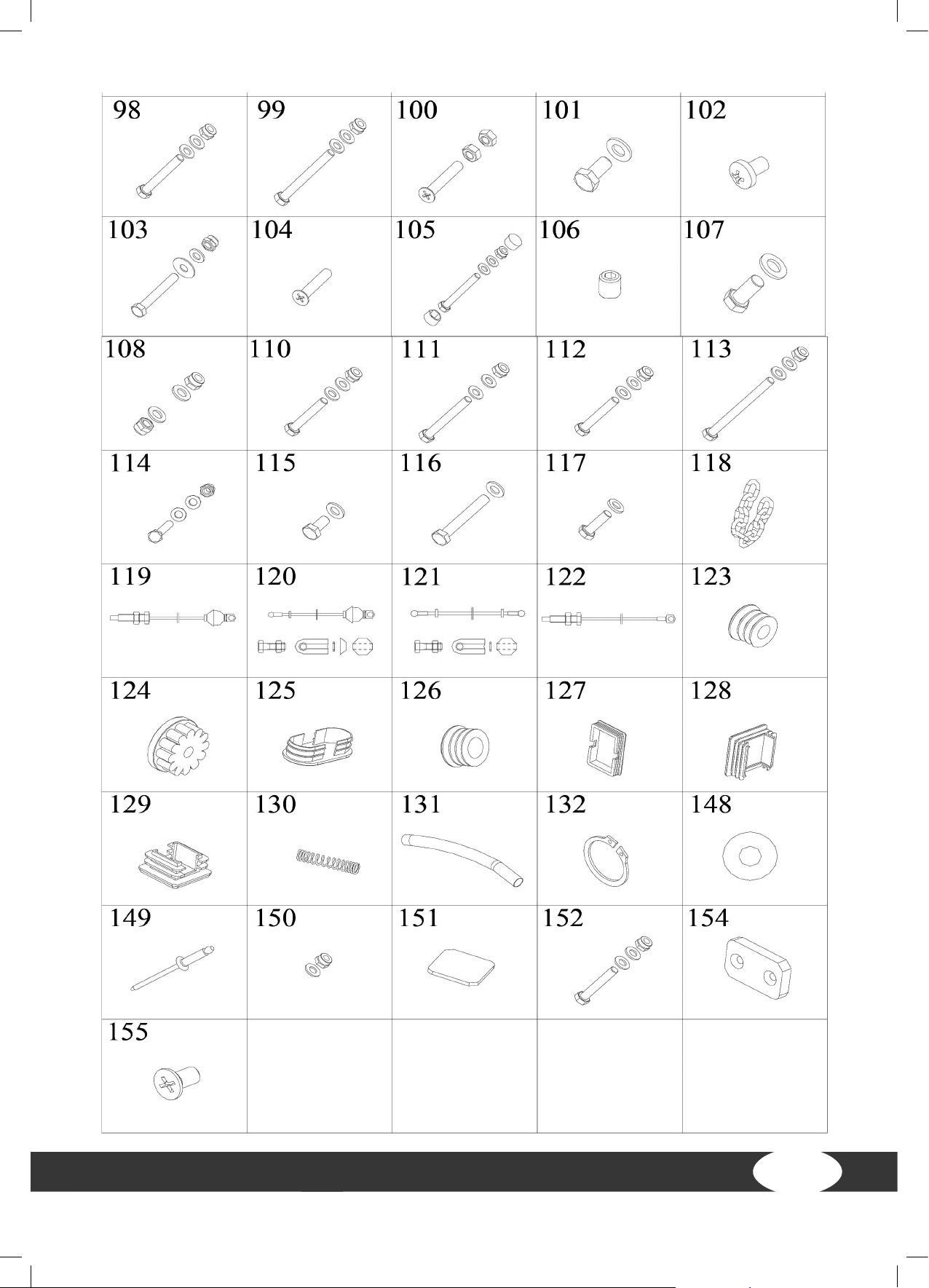

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

WS3
12

WS3
13

WS3
14
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the bolts
using the tool only when you are instructed to do so.
Step 1
1. Place the end caps (79) onto the base frame (1), the bottom cross connector (6) and the side
row connector (7).
2. Screw two bolts (97) into the bottom side of the bottom cross connector (6).
3. Mount the bottom cross connector (6) and the side row connector (7) to the base frame (1) with
two bolt sets (96).
4. Mount the front upright frame (A8) to the base frame (1) with two bolt sets (95).
5. Mount the rear connector (11) to the base frame (1) with two bolt sets (95).
6. Mount the rear upright frame (5) to the base frame (1) with two bolt sets (95).
7. Tighten all bolts with the tool.

2x
WS3
15

2x
WS3
16

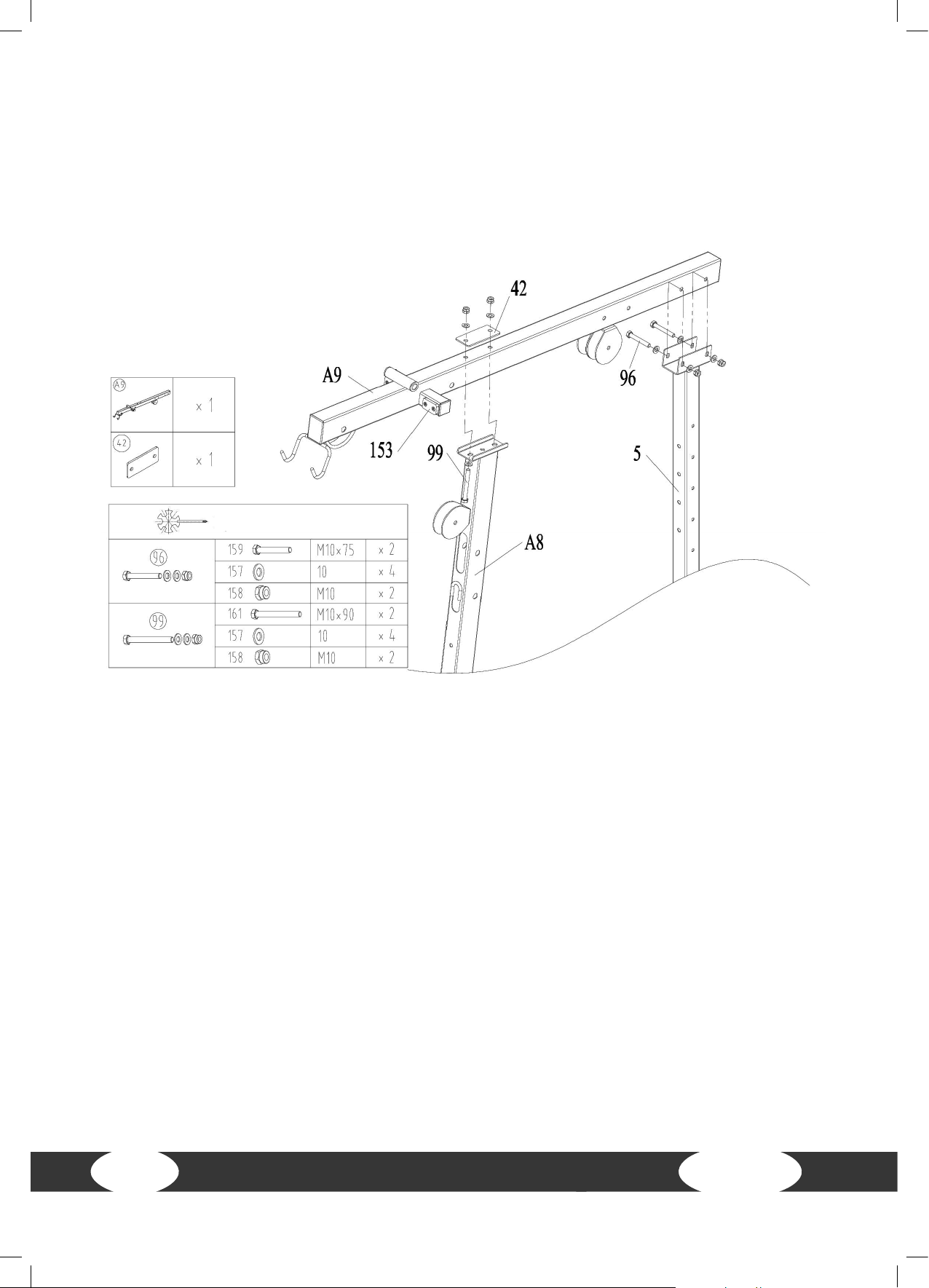

Step 2
1. Mount the top frame (9) to the rear upright frame (5) with two bolt sets (96).
2. Mount the joint plate (42) and the top frame (A9) to the front upright frame (A8) with two bolt
sets (99)..
3. Tighten all bolts with the tool.

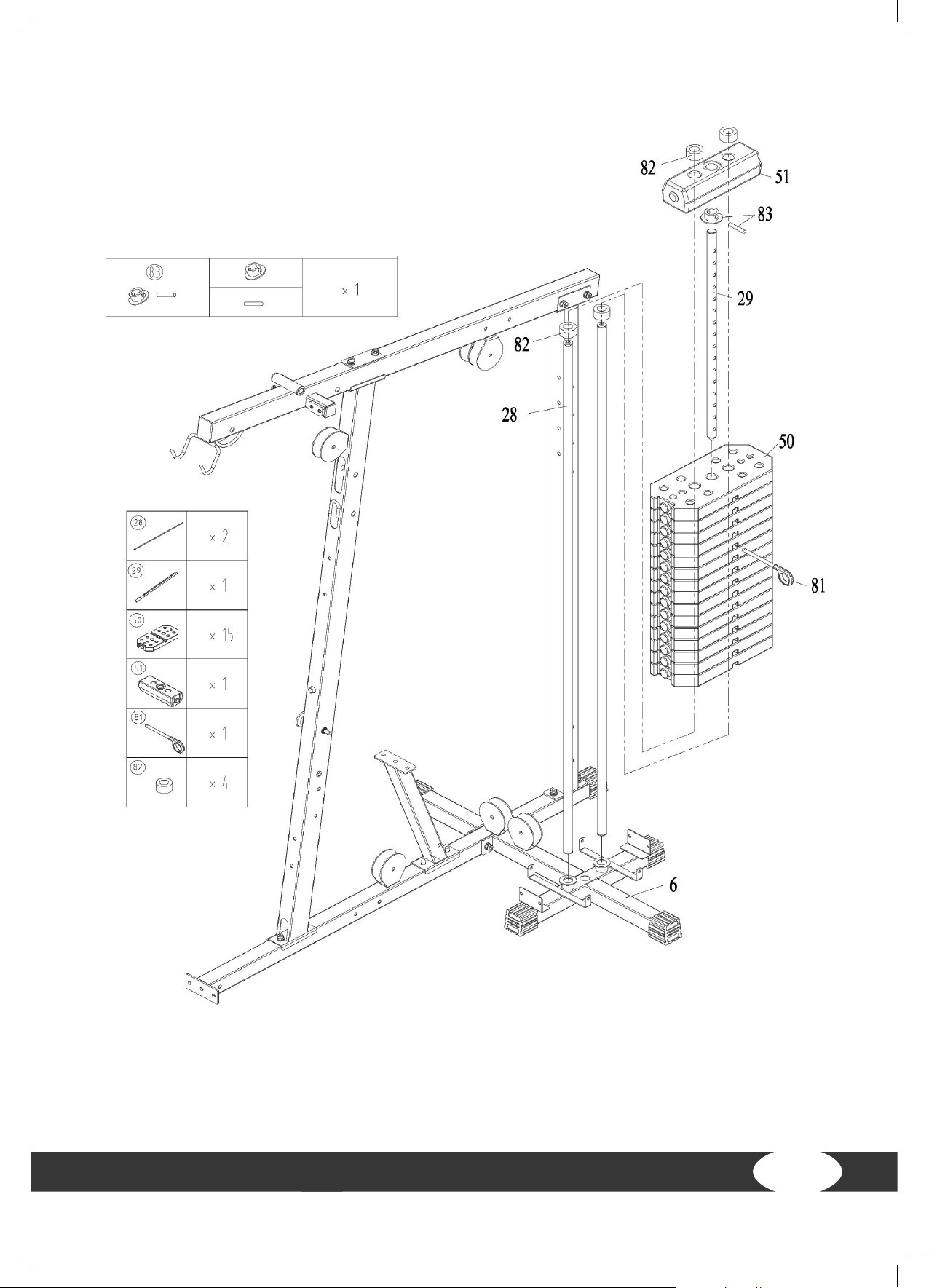

Step 3
1. Screw both guide rods (28) onto the bottom cross connector (6).
2. Shove one buer (82) over each guide rod (28).
3. Place the plates of the weight stack (50) onto the guide bars (28) one by one.
4. Mount the top plate (51) with the stabilizer (83) to the selector rod (29).
5. Put the selector rod (29) over the guide rods (28) into the slot of the weight stack plates (50).
6. Place one buer (82) onto each guide rod (28).
LNOTICE
Two buers (82) should be installed at the end under the weight stack plates (50) and two
buers (82) above the top plate (51).
7. Insert the selector pin (81) into the slots of the weight plates (50).

WS3
17

2x
WS3
18
Step 4
1. Mount the xing bracket (10) to the guide rods (28) with two bolt sets (101).
2. Mount the joint plate (42) and the xing bracket (10) to the top frame (9) with two bolt sets (96).
3. Mount the buer (84) to the xing bracket (10) with one bolt set (100).
4. Tighten all bolts with the tool.

2x
WS3
19
Step 5
1. Mount the cable arm assemble (A13) to the rear connector (11) with two bolt sets (103).
2. Screw the cable arm assemble (A13) to the front upright frame (A8) with two bolt sets (96).
3. Place the end caps (79) onto the front base tube (2).
4. Mount the low row connector (3) and the front base tube (2) to the base frame (1) with two bolt
sets (96).
5. Mount the foot plate (4) to the low row connector (3) and insert the round tube (A37). Secure
the connection with a screw (102).
6. Tighten all bolts with the tool.

WS3
20
Step 6
1. Mount the seat cushion support (A20) to the base frame (1) with one bolt set (96).
2. Insert the cushion support (22) into the seat cushion support (A20) and secure the connection
with the fast pin (86).
3. Mount the seat cushion support (A20) and the joint plate (42) to the front upright frame (8) with
two bolt sets (99).
4. Mount the buer (84) to the seat cushion support (A20) with a screw (104).
5. Mount the leg extension (21) to the cushion support (A20) with one bolt set (105).
6. Shove the foam roller (88) over the ends of the leg extenstion (21) and secure them with one
plug (89) on each side.
7. Mount the back cushion support (A24) to the front upright frame (8) with one bolt set (150).
8. Mount both cable arms (A14) to the cable arm assemble (A13), place the axle collars (15) on
both cable arms (A14) and secure each with two bolts (106).
9. Tighten all bolts with the tool.
