Taylex Advanced Blower System User manual

1
Owner’s Manual
Taylex Advanced Blower System
TAYLEX.COM.AU

2
Taylex Systems produce the
highest quality euent for the
safest and best environmental
outcome.
Wastewater Recycling
Systems for Australian &
New Zealand homes that
protect your family and our
environment.

Trust Taylex
What is a Wastewater Treatment System
How does my Wastewater Treatment System work?
What keeps my system healthy?
What upsets the balance?
Suitable Products
Products to avoid
Servicing your Wastewater Treatment System

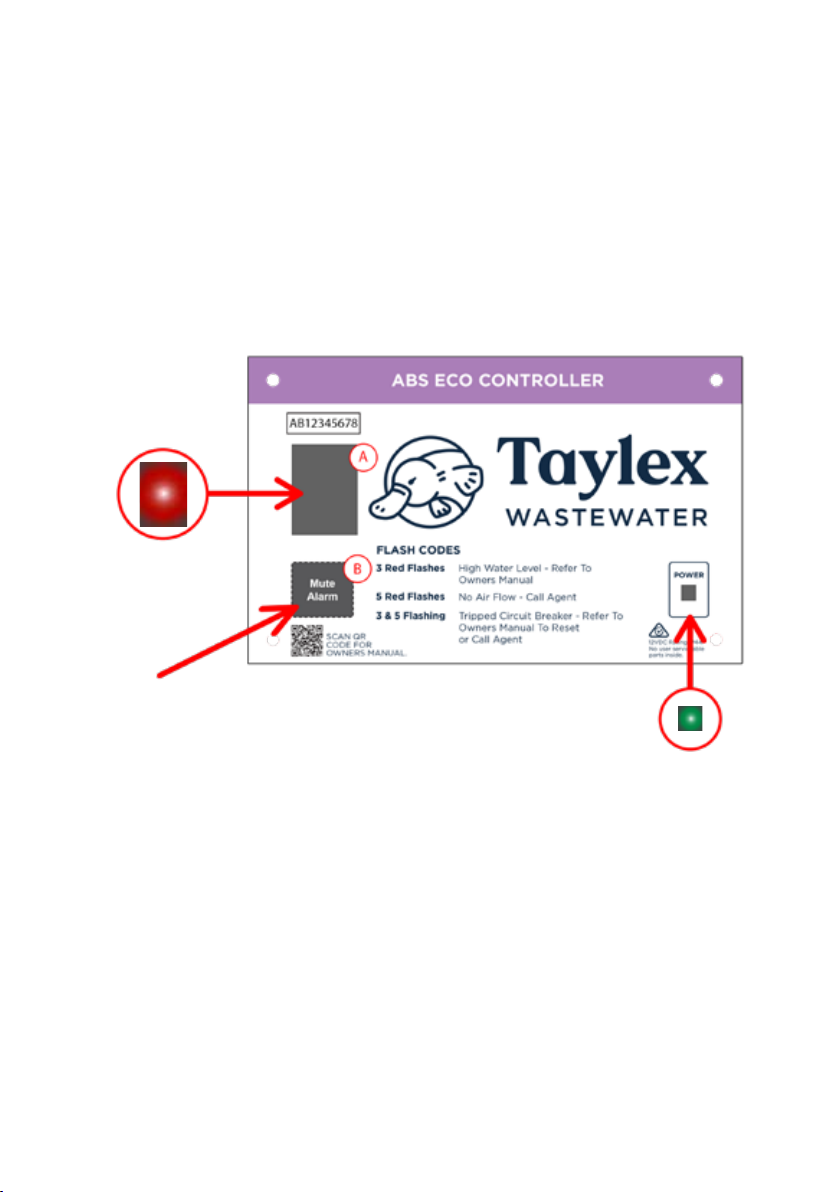

Operating Instructions for Eco Controller
Help & Troubleshooting
Alarm Codes (Trouble Shooting)
Warranty
RCM Compliance Certificate
1
2
3
5
6
7
9
10
11
14
15
17
18

1
Expertise
With over 50 years of experience
building our reputation, Taylex is
the trusted voice for the wastewater
industry. We work closely with the
national manufacturers association
and governing bodies to lobby
for more stringent wastewater
regulations to ensure the highest level
of treatment is met and to provide
you with the best results possible.
Integrity
We honour warranties. We stand
behind our products, for their lifetime,
no questions, no fine print. We are an
Australian owned and made family
business. We are passionate about
producing quality products that work.
We take care of our sta. We value
the environment and human health.
Flexibility
Taylex has a system that will work for
you. In dicult terrain or soil, for the
size of your house or the slope of your
block, Taylex systems are adaptable.
We are eager to work with you and
become part of the solution.
Trust Taylex
Welcome to Taylex, an Australian family-owned company founded in 1969.
We have 80 plus employees and over 80 trained wastewater specialists
who market, install and service our range nationally in Australia and New
Zealand. Post installation, we have a network of over 300 trained Service
Technicians to provide the ongoing care and maintenance for your system.
We manufacture a range of products for Wastewater, Rainwater and
Stormwater applications, we also oer Servicing for our wastewater
systems. Taylex was the first company to manufacture Home Sewage
Treatment Systems in Australia and we continue to be leaders in our field.
Innovation
Taylex is at the cutting edge of
environmentally sound wastewater
treatment that is healthy and
sustainable for your family and the
environment. We are constantly
testing and improving our systems
to not only provide unparalleled
quality and unmatched results,
but to ensure the most stringent
safety standards are met. We are
constantly striving to improve and
perfect.
Functionality
Our Systems work! Taylex use
Monolithic, singe piece moulds
meaning no deteriorating seals
or weak post-joined walls, which
would expose your family to the
risk of catastrophic failure of your
system. There’s no skimping on
parts from the biggest pump down
to the smallest seal. Our systems are
designed and engineered to last as
long as your home.

2
What is a Wastewater Treatment
System?
Taylex Wastewater Treatment Systems are safe, environmentally sound,
reliable, and cost-ecient. Our advanced systems use natural processes to
turn your household wastewater into clear, odourless water.
Secondary treatment systems are the most commonly used systems in
Australia. They treat your household wastewater to very high quality, allowing
you to reuse your water in areas closer to your home and neighbouring
properties, often above ground, with complete peace of mind.
Secondary Treatment Systems are designed to treat all the wastewater that is
generated by your home. The wastewater includes the sewage (black water)
that is discharged from the toilets and bidets and the sullage (grey water)
that is discharged from sinks, washing machines, dishwashers, showers, and
baths. Your Taylex ABS treats wastewater in an environmentally sustainable
way by making use of the naturally occurring bacteria that are present in the
wastewater. The system is designed to hold the polluted or degraded water
in a series of compartments where various types of bacteria can flourish
and in doing so, “treat” the water, naturally, without dangerous chemicals or
additives.
Secondary Wastewater Treatment Systems are sometimes known by dierent
names in dierent areas.
Here are some of the names you might have heard;
Home Sewage Treatment Plant (HSTP)
Secondary Treatment System (STS)
On-site Sewage Facilities (OSSF)
Aerated Wastewater Treatment Systems (AWTS)
Aerobic Treatment Units (ATU)
Aerobic Septic Systems
Wastewater Treatment Systems

3
How does my Taylex Wastewater
Treatment System work?
All household wastewater from your bathrooms, toilets, kitchen, and
laundry naturally flows into your Taylex Wastewater Treatment
System using gravity.
Step One
The first stop for your household wastewater is in the ‘Primary Chamber’.
Here solids will naturally sink to the bottom and fats and oils will naturally
float to the top, leaving a clearer “Supernatant Zone” in the middle. This
zone will transfer to the next stage of treatment.
Step Two
Next is the ‘Secondary Chamber’. Further settling happens here. Again,
water from the middle flows onto the next stage. In a traditional Septic
System, this is where the journey would end and euent would now be
pumped onto your property and into our environment, relying on sand or
soil to do the rest. With a Taylex Wastewater Treatment System, there are
still four more steps to produce clean, clear, safe water for your yard. If
you have an ABS-NR there is an additional Bio Block in this chamber, that
encourages further separation of solids.
Step Three
The ‘Aeration Chamber’ is next up. This is where the magic happens. Your
quiet, reliable, energy-ecient Nitto Blower sends oxygen into the chamber
in the form of tiny bubbles. These bubbles pass through a specially designed
structure called “Bio-Mass”. Bio Mass is purpose designed to trap the air
bubbles to feed naturally occurring ‘Aerobic bacteria’. These microscopic
Eco-Warriors are now hard at work, chomping through most of the
remaining organic matter, polishing the water, and eliminating odour.

4
Step Four
Step four is in the ‘Clarification Chamber’. More settling occurs here. Once
settled to the bottom, this potent mix of Aerobic bacteria and fine particle
solids are recirculated to the Primary Chamber to keep it healthy and
working hard (not smelly).
Step Five
The final step in the treatment process is the ‘Disinfection Chamber’. The
water gets a ‘kiss’ goodbye from our Chlorinator which removes any harmful
bacteria, viruses and pathogens. Using less chlorine per litre than your
average swimming pool, the system removes any harmful bacteria, viruses
and pathogens.
Step Six
Lastly, when the Disinfection Chamber fills up, your dependable irrigation
pump automatically switches on to send your water out to do its job in your
yard. Crystal clear water irrigates your designated area and returns safely to
nature, continuing to a healthy water cycle.
1 2 3 4 5
6

5
What keeps my system healthy?
Food
Your household wastewater is rich with organic matter that nourishes the
good bacteria in your Taylex ABS. ‘Food’ comes from toilets, hand basins,
sink, showers, washing machines, in fact anything natural that we put down
the sink or flush down the toilet.
Air
The Taylex system is fitted with a Nitto air blower that takes fresh air and
introduces it to the water through an aerator diuser. The oxygen in the air
dissolves into the water as it bubbles up to the top. This gives the water a
higher than normal dissolved oxygen content allowing the good bacteria to
breathe, live and treat your wastewater.
Regular Servicing
For the Taylex system to work to the best of it’s ability, it needs to be serviced
every 3 months. Not only is this regulation, it guarantees your system is
getting the adequate care it needs.

6
What upsets the balance in my system?
The greatest cause of problems for Wastewater Treatment Systems
are harmful cleaning products and the washing machine. When using
household cleaning products, please remember to:
Adhere to the cleaning product manufacturer’s
recommended measured dosage. Do not free pour.
Use cleaning products that are bio-degradable, low
phosphorus and labelled ‘Safe for onsite treatment
systems’.
Antibiotics
Never pour antibiotics down the sink or flush down the toilet. This can cause
problems throughout the system.
Cleaning Products
The good bacteria in your treatment system may class certain cleaning
products as poisons if high levels are used. Please always use environmentally
friendly products. Your treatment system relies on bacteria for it to work
eectively, therefore any product labelled as anti-bacterial can be harmful
to your system if used frequently or in large doses. Any bleaches or harsh
chemicals should only be used once a week and in small doses, if required.
The use of harsh chemicals in high levels can aect the function of your
system.
Washing Machines
Try to evenly spread your washing over the course of the week. Avoid, where
possible, washing everything in one day. It puts a large amount of water into
your treatment system all at once, and puts uneccesary strain on your system.
Liquid soaps breakdown more easily than powder. Only use the amounts as
outlined on the label.

7
Suitable Products
Dishwashing Liquids
As a rule of thumb, it is always recommended to go for dishwashing liquids
labeled as ‘Environmentally Friendly’ or ‘Green’. In general, products that are
non-toxic, non-chlorine based, and biodegradable are considered safe.
Surface Cleaners
Similar to above, it’s suggested to look for environmentally friendly products.
It is also important to look out for products which are non-antibacterial or
harsh chemically.
Toilet Cleaners
The majority of cream cleaners are usually deemed suitable. Similarly,
you want to look for products that are biodegradable, natural, and
environmentally friendly. Toilet fresheners are not recommended.
Floor Cleaners
It is recommended to use hot soapy water to clean floors. Using floor
cleaners is generally acceptable at controlled levels. It’s advised to stay away
from heavy chemical cleaners.
Laundry Powders, Liquids and Bath Salts
Select low phosphorus, sodium and sulphur products. Washing soda can
occasionally be added (less than half a cup) to help reduce foaming if
necessary. When using Epsom salts in your bath, use small amounts, less than
2 cups of Epsom salt per bath, no more than once per week.
Pet / Animal Washing In Basins
Pets are treated with products to maintain their health (especially fleas). If
washed in a laundry, bath, or shower, the treatment used could flow through
to the system and cause operational problems.

8
Personal Hygiene
When considering products to use for soaps and body wash
we strongly advise looking for the following; organic ingredients, PH
balanced, low-phosphorous or phosphorous-free, non-toxic, biodegradable
products, low in sodium and sulphur.
A Note On ‘Greywater and Septic Safe’ / ‘Biodegradable’
Whilst most of the time products labeled as ‘greywater safe’, ‘septic safe’, or
‘biodegradable’ are safe for use in your treatment system. Many plant-based
cleaners are powerful antibacterials. Some products marketed as ‘Green’
or ‘biodegradable’ can be more damaging to our environment than more
traditional cleaning products. When selecting cleaning products, if in doubt,
always look for products that are phosphate-free or low phosphate.
Too Much Of Anything Is A Bad Thing
When using cleaning products in your home, always remember that too much
of anything can harm the good bacteria in your system. Moderation is key.
Please Note
If your technician notices there is a problem, they may recommend that you
limit the use of specific products (even if it is listed here as suitable).
Taylex promotes the use of low phosphorus, phosphorus free, low sodium &
low sulphur products. This practice will reduce the phosphorus levels released
to the environment and prolong the life of your phosphorus removal filter (if
fitted).

9
Products to Avoid
Strong Antibacterials
Cleaning products which contain any of the following should only be used
in small doses in your Taylex System; bleaches, disinfectants, whiteners,
chlorine, anti-bacterials (Natural anti-bacterials such as Eucalyptus and Tea-
tree oils included).
Caustic Oven or Drain Cleaners
Drain cleaners can do more harm then good for your system. If you want to
safely clean your drains, we recommend the traditional method of vinegar
and baking soda as a safe and eective alternative.
Sanitary Products
Products such as Nappy liners, sanitary pads, condoms, ANY wipes, non
biodegradable sanitary products should never be flushed, as they will not
break down in your system.
Kitchen Related Products
Avoid putting things such as dairy products, cooking oils, excess food scraps
(especially from a garbage grinder) and anything from your home brew kit
down the sink, drains or toilet.
Excess Water
Using too much water in one go can be bad for your system. It can cause the
system to block or not flow as eciently as it should. As a result, your system
can shut down or smell. To avoid this, spread out activities which require
high water usage, such as doing the laundry or dishes and taking baths or
showers.
Other Things To Avoid
Never put, automotive oils, hair dyes, antibiotics, bandages, dead fish / small
animals and hair down the sink, drain or toilet. Doing so can cause extensive
damge to your system.

10
Servicing your Wastewater Treatment
System
Taylex treatment systems are required to be serviced quarterly and
may only be serviced by licensed wastewater service personnel. Not
only is it a council requirement, Taylex servicing will also:
HOW CAN YOU ASSIST IN SERVICING YOUR TAYLEX WASTEWATER
TREATMENT SYSTEM?
Do not cover the top of the tank with decking, earth, gravel,
mulch, concrete, pavers, pot plants, barbecue, swing set,
seats, etc.
Provide clear, safe access to the system and the inspection
openings. Ensure that plants, trees, and grass around the
system are trimmed and cut.
If you have a locked yard, provide your service person with a
key.
Make sure surface water does not pool and can never enter
the tank, even during torrential rain events.
Ensure that all council
reporting requirements are
met.
Send your service reports to
your local council on your
behalf (where required).
Send your reports and
invoices to you electronically
(when possible).
Provide spare parts to
current contract holders at a
discounted rate.
Oer an extended warranty
of 3 years for electrical and
mechanical parts if you hold a
current service contract and
the parts were installed by
us. Standard warranty is 12
months.
In the unlikely event of a
breakdown or emergency,
we prioritise call outs for our
current customers and charge
at a discounted rate.

11
Operating Instructions
- ABS Eco Controller
Introduction
The Taylex ABS Eco Controller has a number of features that are explained in
this section.
The Eco Control Panel monitors and controls the Treatment System’s air
blower, pump and registers an alarm when it detects a fault in the system.
The Taylex ECO Controller Assembly (complete with Controller, Control Panel
Box, 3 x GPO Assembly and Blower Box) is classed as electrical equipment
and has been certified to comply with AS/NZS3820 and AS/NZS 3100:2017,
meeting the Electrical Safety requirements in Australia and New Zealand.
Your Taylex ABS is designed to operate automatically and its operation will
usually be event free. The Eco Control Panel provides visual and audible
indictors of both normal operating conditions and fault conditions.
Normal Operation at Start-up
When the power is switched on to your Taylex ABS Eco Control Panel, the
display (A) will flash twice. The audible alarm will sound in unison with the 2
flashes, this is a TEST MODE. At the completion of the Test Mode, the display
will show a single green light in the ‘Power’ indicator to indicate that the
system has tested correctly and is in normal operation.

12
Flashing
-Fault detected
Press to mute
alarm for 24
hours. Solid green
-Power is on

13
The Power Supply
The power outlets for the ECO Controller for your system are located inside
the Blower Box. Each switch must be in the ON position at all times. If any or
all switches are OFF, the treatment process and alarms may not function.
The single GPO is for the 240V – 12V power supply for your controller and the
double GPO is for your Pump and Blower. The double GPO contains a 7amp
breaker underneath the GPO, which will activate in the case of a fault with the
pump and/or blower. If the breaker is activated it will trigger the associated
alarm on the Controller. You can reset the Breaker by pushing in the reset
button (see page 15 for full instructions). If the breaker is activated again,
please contact your Service Agent to rectify the issue.
Normal Operation
RESET BUTTON
Circuit Breaker
Activated / “Tripped”
Optional Extra
A 12volt In House Alarm Panel is
available as an optional extra to the
system. If required, the panel can be
fitted during the installation of the
system. The In House Alarm Panel
is connected to the same circuit as
the Alarm, situated on the system,
and works in tandem with the same
functions listed above. To mute the In
House Alarm, press the red button, this
will silence the alarm. The alarm at the
system will still function, and needs to
be muted separately. The LED light on
the In House Alarm panel will continue
to flash until the fault is rectified.
FIGURE (2)

14
Who to Contact for Help and Trouble-
shooting
Before you call for help, and to avoid unnecessary call-out fees, check these
items:
1. Is the power turned ON at the system?
2. Are there lights ON in the panel face?
3. Has a Safety Switch tripped in your main switchboard or sub
board?
4. Has the irrigation hose become kinked, preventing the system
pumping out?
5. If you have removable “Turf Keys” on your sprinklers, make
sure they are engaged properly, PUSH DOWN HARD (Surface
irrigation only).
6. Is the irrigation outlet filter blocked? (If fitted)
Resetting your system
If you have identified an issue, once it is fixed you can try resetting your
system:
1. Turn the system OFF, remove the 4 screws on the (Blue or Green)
blower box cover and turn the single power point ONLY OFF.
This will reset the program.
2. Turn the system ON again using the single power point switch.
3. If the system starts and operates correctly, observe the system
over the next few days for another ALARM event and discuss
it with your Service Agent.
4. If the system goes back into ALARM mode, call your
Service Agent. Limit your water usage until the fault is
rectified.
Contact your local wastewater specialist.
taylex.com.au
1300 TAYLEX

15
Alarm Codes (Trouble Shooting)
Alarm Meaning Action
1 Flash Normal Operation None required
3 Flashes The water level is high Please see below
5 Flashes There is no airflow Call your Service Agent
3 & 5 Flashes Tripped Circuit Breaker Reset Breaker or call your
Service Agent
3 Flashes - High Water Alarm
A high water level may be self-correcting. It can be caused by multiple
sources of water coming in, overloading the system. If you think this may
have occurred, then wait for 15 minutes until the surge flow has stopped
and see if the alarm stops. If sprinklers are still operating, recheck the alarm
when they stop to see if the alarm has stopped. If it does not then check the
following:
1. Is there a filter on the irrigation line before the euent
disposal area? Is it blocked?
2. Is the irrigation line kinked or broken?
3. Has the irrigation pump failed?
4. Surface irrigation – Are all the turf valves connected?
If you can rectify any of these problems yourself, then you will save the call-
out cost of your Service Provider. However, they are experts in this field and
will assist you whenever you need their help. Call them whenever you need
their assistance or you are in doubt about what you need to do. They will
happily assist you over the phone.
5 Flashes - No Air Flow
When your alarm has 5 flashes it means no air flow. This is usually an
indication that the blower is not working properly. this can be caused by a
range of things, for example, if your system short circuits.
If this alarm is activated for your system, we suggest you call your local
wastewater specialist.

16
3 & 5 Flashes - Tripped Circuit Breaker
When your alarm has 3 and 5 flashes, this means you have a tripped circuit
breaker. This can be caused by issues with the aerator or other electrical
components. If this happens refer to the diagram on page 13 and reset the
breaker.
Resetting the Breaker
1. Remove the 4 screws on the blower box.
2. Underneath the double power point locate the button as shown
below.
3. Turn o both switches (1 = Pump & 2 = Blower)
4. Push in the reset button and wait 10 seconds.
5. Switch on switch 1 and wait 10 seconds.
6. Switch on switch 2 and wait 10 seconds.
7. If the circuit breaker “Trips” when either one of the switches are
turned on, this would indicate there is a problem with the
pump or blower. Leave the faulty switch in the o position
and notify your service agent immediatley.
8. If the system doesn’t alarm, monitor for the next 3 days.
9. If the system continues to alarm, call your local wastewater sepcialist.
Normal Operation
RESET BUTTON
Circuit Breaker
Activated / “Tripped”
1 2 3

17
Warranty
Every Taylex ABS Wastewater Treatment System is covered by a full manufac-
turer’s warranty. There is a 15 year warranty* on the pre-cast concrete tank.
There is also a 3 year* warranty on all electrical and mechanical components,
including the irrigation pump (a 12 month standard warranty and a further
24 months extended warranty is available when you purchase your 2nd and
3rd year of service calls with a Taylex Approved Service Agent). Warranties
apply from the date of commissioning or 90 days from the date of purchase
(whichever is sooner).
This guarantee does not cover damage caused by misuse, neglect, failure to
keep the unit clean and functional, accident, use of incorrect power supply,
or repair and / or attempts to repair by unauthorised personnel. The benefits
conferred by this warranty are in addition to all other rights and remedies in
respect of the product which the consumer has under the Trade Practices Act
and other legislations.
TO ENSURE YOUR WARRANTY IS VALID, THE FOLLOWING SHOULD BE
OBSERVED:
DO NOT use system or allow wastewater to enter tanks before power services
are available to the System and a Taylex Authorised Distributor has been no-
tified of pending occupancy of the property and has subsequently commis-
sioned (activated) the system.
DO NOT cover lids with soil
DO NOT position decking, concrete paths or driveways over System
DO NOT allow surface water to enter the System by incorrect falls and land-
scaping around the system.
NEVER turn the power o unless instructed to do so by your Service Agent
* Terms and Conditions apply
