HOME OWNERS MANUAL
Taylex™ Advanced Blower System
(ABS)
An AdvancedSecondary
Home Sewage Treatment Plant (HSTP)
Aerated Wastewater Treatment System (AWTS)
or Aerated Treatment Unit (ATU)

Taylex ABS Home Owners Manual ©Copyright June 2017
TABLE OF CONTENTS
1. About Taylex
2. What is a Home Sewage Treatment Plant (HSTP)
3. How does a HSTP work?
4. What does a HSTP need?
5. What upsets the balance?
6. Suitable Products
7. Avoidable Products
8. How to look after your HSTP?
9. Servicing your Taylex HSTP
10. Warranty
11. Operating Instructions for your Controller
12. Alarm Codes
13. Who to contact for help

1. ABOUT TAYLEX™
Taylex is an Australian Company which commenced business in 1969 manufacturing the first
Taylex has a national group of Authorised Distributors who market, install and service the
range of Taylex tanks throughout Australia. They are all privately owned and operated small
business enterprises in your local area. They are issued with Certificates of Competency by
Taylex verifying their successful training in the installation and maintenance of Taylex
equipment.
Taylex has an ongoing commitment to the industry and is a member of the Wastewater
Practitioners Association. It has ISO:9000 Certification and its products are approved by all
State Authorities and comply with all relevant Australian Standards.
Taylex also has a commitment to continually developing the best products by way of its
Research & Development activities. The Taylex ABS is a product of this research.
Most importantly, Taylex has a continuing commitment to its clients, the end user of its
products. This is honoured by only appointing the best tradespeople as its Authorised
Distributors, generously honouring any valid Warranty claim that a Distributor presents on an
owner’s behalf, providing spare parts back-up, in-service training at our manufacturing works
and assistance, when necessary, in the field.
Taylex is now operated by the second generation of the founding families and we are
determined to be here for at least the next 40 years.
Please refer to our website for additional information
www.taylex.com.au
purpose designed Home Sewage Treatment Plant in Australia. Our Head Office and factory
is based in Ormeau, Southern Queensland.
Taylex ABS Home Owners Manual ©Copyright June 2017

2. WHAT IS A HOME SEWAGE TREATMENT PLANT (HSTP)?
Also known as an Aerated Wastewater Treatment System (AWTS).
A HSTP is a tank that contains and treats all of the waste water generated from your home.
This means you can have all the advantages of mains sewerage, even when there is none –
full flush toilets, installation of a washing machine and dishwasher, multiple baths and
showers, hand basins, en-suite to the master bedroom, a family bathroom as well as a
guests toilet and hand basin – and ALL THE WATER YOU USE IN THE HOME IS
AUTOMATICALLY RE-USED IN YOUR GARDEN.
It is your own mini sewage treatment plant.
3. HOW DOES A HSTP WORK?
The wastewater from your home contains numerous types of living bacteria. Some of these
bacteria use our waste products as a food source while others use these waste eating
bacteria as their food source.
This process is natural and is just how nature intended it to be. When the wastewater is
supplied with oxygen, these natural bacteria double their numbers every 8 hours until there
are literally billions of them living in the tank, automatically reducing the wastes to a non-
polluting liquid – reclaimed water.
Taylex ABS Home Owners Manual ©Copyright June 2017

Clear
Recycled
Water for
Irrigation
The Four Stages
to a Taylex
Treatment System
Primary and Secondary
Anaerobic Digestion
and Sedimentation
Chambers
All Household
Waste Enters
The System
Aerobic
Biological
Digestion
Begins in the
Aeration Chamber
Final Digestion
and Settling Occurs
in the Clarification Chamber
Disinfection
Occurs in the
Irrigation
Chamber
1
2
3
4
AN EXPLANATION OF HOW YOUR TAYLEX ABS OPERATES
©Copyright June 2017
Taylex ABS Home Owners Manual

4. WHAT DOES A HSTP NEED?
a) FOOD
b) AIR
c) A GOOD ENVIRONMENT
FOOD
This is supplied in the water we discharge into the tank. It comes from the toilets, hand
basins, sink, showers, washing machine, in fact anything that we put down the sink or flush
down the toilet.
AIR
The Taylex tank is fitted with an air blower that takes fresh air and introduces it to the water
through an aerator disc. Some of the gaseous oxygen in the air dissolves in the water as it
bubbles up to the top and this gives the water a higher than normal dissolved oxygen
content. This is how the bacteria breathe, live and multiply: they can access the dissolved
oxygen.
A GOOD ENVIRONMENT
This is where you have a major influence.
- Too much FOOD will kill the bacteria.
- Too little AIR will kill the bacteria.
- Heavy Pollutants will degrade A GOOD ENVIRONMENT and kill the bacteria.
Taylex ABS Home Owners Manual ©Copyright June 2017

5. WHAT UPSETS THE BALANCE
The greatest cause of problems with your treatment plant are cleaning products and
the washing machine.
CLEANING PRODUCTS
Unfortunately what we call cleaning products, your HSTP may class as poisons. Like
humans, some poisons kill us while others will just make us sick and the same will happen
to the bacteria in your HSTP. You must use environmentally friendly products.
Your treatment system relies on bacteria for your system to work effectively. Any product
used that kills bacteria is harmful to your system. If you wish to use some of the harsher
cleaning products, it is suggested that you use a bucket and discard the contents in the
garden. This also applies to disinfectant, surface sprays and wipes.
WASHING MACHINES
Try to evenly spread your washing over a period of a week. Avoid, where possible, washing
everything in one day. It puts too much water in the system and your HSTP will struggle to
cope. Liquid soaps breakdown easier than granulate styles do. Try not to be heavy
handed with the amount of soaps you use.
When working properly, your HSTP will work efficiently with no odours or problems.
It needs a happy balance.
Taylex ABS Home Owners Manual ©Copyright June 2017

6. SUITABLE PRODUCTS
All products should be used in moderation
DISWASHING LIQUIDS
Adds Morning Fresh Bushlands Rix
Palmolive Sunlight Greenapple Kit
Finish for Dishwashers (limit quantity)
SURFACE CLEANERS
Jiff Cream Cleaner Spray & Wipe (limit quantity)
Nifty Swipe
Shower Power Windex
TOILET CLEANERS
Jiff Cream Cleaner or any cream cleaner – Toilet fresheners are not
recommended.
FLOOR CLEANERS
Use hot water and detergent.
LAUNDRY POWDERS AND LIQUIDS
Please look at the Independant Laundry Product Research which is
available on the internet at www.lanfaxlabs.com.au
Please Note:
The above list is not intended to promote or discredit the product
of any Company. It is provided to assist in ensuring the satisfactory
on-going operation of your system
Taylex ABS Home Owners Manual ©Copyright June 2017

7. AVOIDABLE PRODUCTS
ANTIBACTERIAL SOLUTIONS
Antibiotics Nappy Plus Pineoclean Blue Loo
Napisan Preen Soaker Bio-Ad Nappy Soft
Tri-zyme Bio Jo Nappy Fresh Toilet Duck
Milton Tablets Nursil Toilet Cleaners
BLEACHES
Domestos Lemon Bleach White King Budget Lemon
Zixo Fiesta Marvolinn
OTHER CLEANERS
Ajax ESP Herbal Metho or Kero Swipol
Aussa Exit Mould Flea, Tick Wash
Handy Andy Bubble Baths Floor Cleaners
Spirits/Alcohol Draino Caustic Oven Cleaners
Green Choice Down to Earth
Please Note:
The above list is not intended to promote or discredit the product of any Company. It is
provided to assist in ensuring the satisfactory on-going operation of your system.
Taylex ABS Home Owners Manual ©Copyright June 2017

8. HOW TO LOOK AFTER YOUR TAYLEX HSTP
• Never turn the electricity supply to the plant OFF*. Turning the supply OFF will:
1. Stop the air supply and kill the bacteria.
2. Flood the system
3. Disable the alarm system
4. Cause back-up in your sewer line from the house
The plant will smell, the equipment may be damaged and you will be in contravention of your
“Permit to Use” and “Occupancy Certificate”.
• Never pour down the sink or flush down the toilet any of the following:
1. Anything from your home brew kit
2. Sour milk or yogurt
3. Cooking oils
4. Excess food scraps (particularly from a garbage grinder)
All of these will provide too much food material for the bacteria to use. They must be
disposed of in proper containers in your garbage collection.
•Never dispose of any of the following items into the system
1. Automotive oil
2. Bleaches, disinfectants, whiteners
3. Nappy liners, condoms, sanitary napkins
Automotive oil is not treatable by the bacteria; the disinfectants will take away all the
bacteria’s oxygen; the sanitary items are impregnated with anti-bacterial matter, so they will
never break down. The results will be - the bacteria will die. The tank will almost certainly
need to be pumped out to remove the gross pollutants and the tank refilled and re-started.
Whatever the product, always ensure that it is marked as Bio-degradable and Safe for Use
in septic/onsite systems. Refer to the LANFAX LABORATORIES INDEPENDENT
LAUNDRY PRODUCT RESEARCH website for more unbiased information.
www.lanfaxlabs.com.au
Taylex ABS Home Owners Manual ©Copyright June 2017

9. SERVICING YOUR TAYLEX HSTP
All HSTP are required by State laws to be serviced on a regular basis. Your local municipality
enforces these laws. Systems may only be serviced by appropriately trained and
licensed Wastewater Service personnel.
There are better reasons for servicing your Taylex HSTP than just complying with the law.
Your service person is trained to monitor your system; they can detect problems often before
they become a hazard. More importantly, a properly operated and maintained system is your
contribution to the environment, right in your own back yard. Correctly operating systems do
not smell, they guarantee a healthy physical environment. They save water and protect the
health of your family, friends and neighbours.
• HOW CAN YOU ASSIST IN SERVICING YOUR TAYLEX HSTP?
1. Do not cover the top of the tank with earth, gravel, tanbark, concrete, pavers, pot
plants, barbecue, swing set, seat etc.
2. Provide clear access to the plant and the inspection openings.
3. If you have a locked yard, provide your service person with a key.
4. Make sure surface water does not pool and can never enter the plant, even
during torrential rain events.
Taylex ABS Home Owners Manual ©Copyright June 2017

• DO NOT use system or allow waste water to enter tanks before power services are
available to the System and a Taylex Authorised Distributor has been notified of pending
occupancy of the property and has subsequently commissioned (activated) the system.
• DO NOT cover lids with soil
• DO NOT position concrete paths or driveways over System
• DO NOT allow surface water to enter System by incorrect falls and landscaping around
System.
• NEVER turn the power off unless instructed to do so by your Service Agent
10. WARRANTY
Every Taylex Advanced Blower System is covered by a full manufacturers warranty. There is a
15 year warranty on the pre-cast concrete or plastic tank. There is also a 3 year* warranty on
all electrical and mechanical components including the irrigation pump (a 12 month standard
warranty and a further 24 months extended warranty is available when you purchase your 2nd
and 3rd year of service calls with a Taylex Approved Service Agent). Warranties apply from
the date of commissioning or 90 days from the date of purchase (whichever is sooner).
This guarantee does not cover damage caused by misuse, neglect, failure to keep the unit
clean and functional, accident, use of incorrect power supply, or repair or attempts to repair by
unauthorised personnel. The benefits conferred by this warranty are in addition to all other
rights and remedies in respect of the product which the consumer has under the Trade
Practices Act and other legislations.
TO ENSURE YOUR WARRANTY IS VALID, THE FOLLOWING
SHOULD BE OBSERVED:
Taylex ABS Home Owners Manual ©Copyright June 2017

11. OPERATING INSTRUCTIONS FOR CONTROLLER
1. Introduction
The Taylex ABS Control Panel has a number of features that are explained in this
section.
The basic purpose of the Control Panel is to activate and control the functioning of the
Treatment Plant’s air pump and to register an alarm when it detects a fault in the
system.
Taylex ABS Home Owners Manual ©Copyright June 2017

2. General
Your Taylex ABS is designed to operate automatically and its operation will usually be
event free. The Control Panel provides visual and audible indictors of both normal
operating conditions and fault conditions. The illustration on the previous page provides
description markers that correspond with the following description of their operation.
A. POWER OFF/ON. Once your Taylex ABS has been commissioned, this
switch must remain ON at all times.* If it is turned OFF no treatment will take
place and no alarms will function.
B. DISPLAY. This is a 9 digit display that describes normal and abnormal
conditions by using a numerical code 1 – 9. See later in this document to
understand their meaning.
C. MUTE ALARM. This is a “soft touch” key that when pressed, silences the
audible alarm for a period of 24 hours.
D. CIRCUIT BREAKER. This is a resettable electrical overload that protects
your air pump in the event of an excess draw of current. When “tripped” or
“open” the square button will protrude from the face of the Control Panel. An
audible alarm consisting of 5 consecutive “beeps” will sound, the Strobe Light
(E) will flash 5 times consecutively and the number 2 will be displayed on the
Display (B)
E. STROBE LIGHT. This is a high intensity red light, mounted on the top of the
Control Panel, that flashes in unison with the audible alarm to make you
aware of a fault condition.
Taylex ABS Home Owners Manual ©Copyright June 2017

3. Normal Operation at Start-up
Every time that power is switched on to your Taylex ABS Control Panel, the display (B) will
count down from 9 to 1. The audible alarm will sound in unison with the numeric progression.
This is a TEST MODE, at the completion of which, the display will show a 0 rotating to
indicate that the system has tested out correctly. Unless a visual or audible alarm occurs, this
is the normal operating display.
4. Low Occupancy Mode.
This function should NOT be accessed by the Home Owner. If it is required, it will be
activated by your Service Agent. Incorrect use of this mode may result in poorly treated water
being discharged into the environment possibly causing degradation of your land and
becoming a health hazard to you, you family, friends and neighbours.
5. Alarm Recognition and Rectification.
Visual Alarms - Strobe Light (E) and Display (B )
All faults are indicted by the numbers appearing in the display (B) and by the corresponding
number of flashes of the strobe light (E). If two faults occur simultaneously, then two numbers
will be displayed in sequence, the strobe will mimic these numbers and after a short interval,
the display and alarm will repeat the sequence.
Audible Alarm and how to Silence it.
The audible alarm mimics the number of flashes of the Strobe light and the visual display. To
silence the audible alarm, press the Soft Touch Mute Alarm key (C) briefly once. This will
silence the alarm for 24 hours, the Display (B) will now flash showing the fault code and
indicating that the alarm has been muted. Should another fault occur while the alarm is
muted, a new alarm will sound. If the faults are not rectified, the alarm will sound again at the
expiration of 24 hours as a reminder that the plant is not operating correctly. The visual
alarms cannot be turned off until all faults are rectified.
Taylex ABS Home Owners Manual ©Copyright June 2017

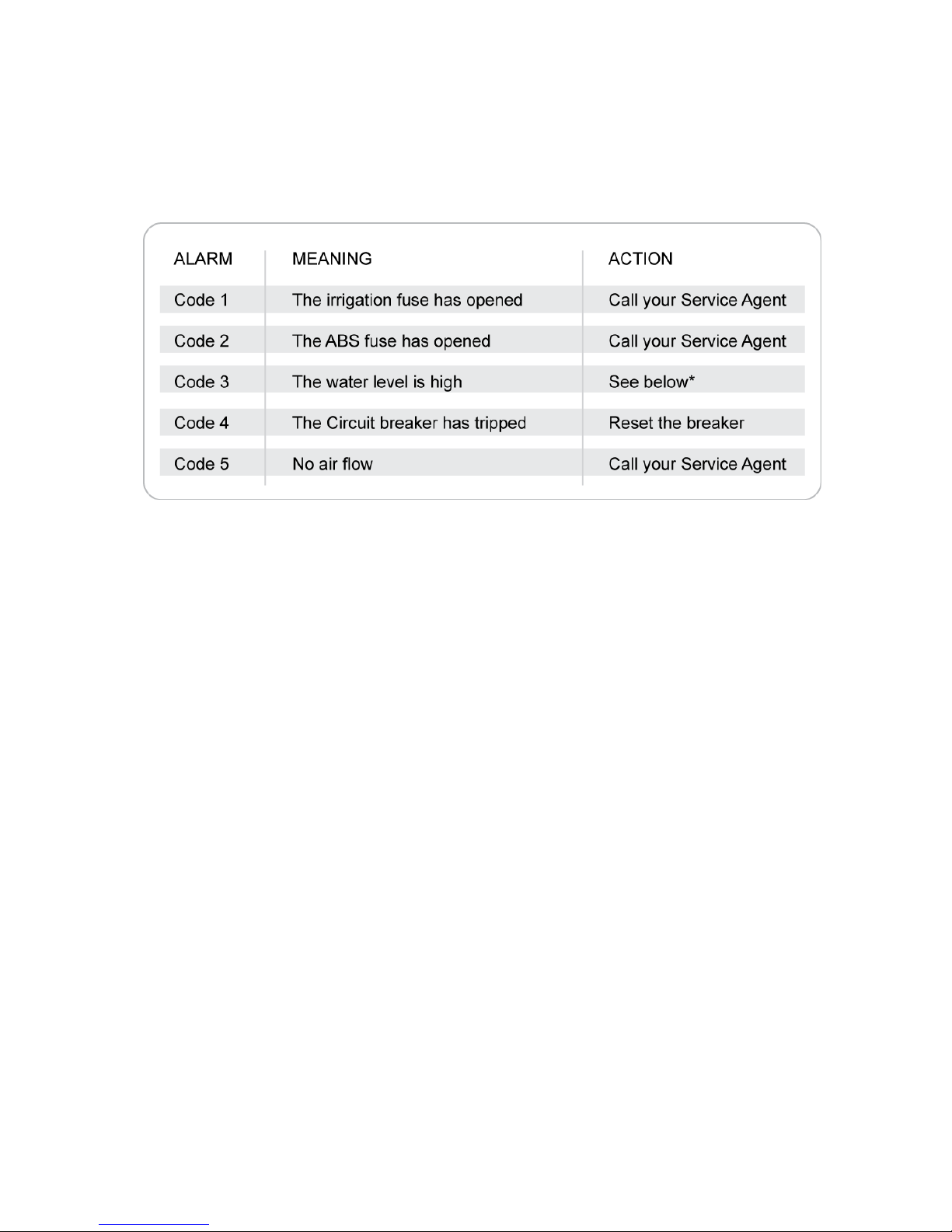

12. Alarm Codes
A high water level may be self correcting. It can be caused by the washing machine
discharging at the same time as the bath is being emptied and the dishwasher is pumping
out. If you think this may have occurred, then wait for 15 minutes until the surge flow has
stopped and see if the alarm stops. If it does not then check the following:
a. Is there a filter in the outlet line before the sprays or drippers? Is it blocked?
b. Is the irrigation line kinked or broken?
c. Has the irrigation pump failed?
If you can rectify any of these problems yourself, then you will save the call out cost of your
Service Provider. However, they are experts in this field and will assist you whenever you
need their help. Call them whenever you need their assistance or you are in doubt about
what you need to do. They will happily assist you over the phone.
Taylex ABS Home Owners Manual ©Copyright June 2017

Before you call for help and to avoid unnecessary call out fees, check these items
before you call for assistance:
1. Is the power turned ON at the plant?
2. Are there lights ON in the panel face?
3. Has a Safety Switch, not related to the plant, tripped in your switchboard?
4. Has the outlet hose become kinked, preventing the plant pumping out?
5. If you have removable “Turf Keys” on your sprinklers, make sure they are engaged
properly, PUSH DOWN HARD.
6. Is the outlet dripper filter blocked?
If you have an issue, you can try to reset your system with the following sequence:
a. Turn the system OFF using the control panel ON/OFF switch on the front
of the panel. This will reset the program.
b. Turn the system “ON” using the ON/OFF switch.
c. If the system starts and operates correctly, observe the system over the
next few days for another ALARM event and discuss it with your Service
Agent.
d. If the system goes back into the ALARM mode, call your Service
Agent. Limit your water usage until the fault is rectified.
You can find your closest Agent on our website
www.taylex.com.au
or call the numbers on the back cover of this manual.
Taylex ABS Home Owners Manual ©Copyright June 2017
13. WHO TO CONTACT FOR HELP / TROUBLESHOOTING

For Assistance Please Call
Your Authorised Distributor
www.taylex.com.au
1300 TAYLEX
If the office is closed, a recorded message will give you a
24 Hour Assistance Hotline for your area.
(If no answer please leave your name and number on the messagebank)
Home Owners Manual For Taylex Advanced Blower System
©June 2017 - Copyright
Taylex Industries Pty. Ltd.
Taylex ABS Home Owners Manual ©Copyright June 2017
