Taylor Freezemaster 300 Series User manual

Models 336, 338 & 339
Freezemaster
300 Series
Operating Instructions
036029-M
4/16/09

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
EApril, 2009 Taylor
All rights reserved.
036029--M
The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Models 336, 338 & 339 Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Section 2 To the Operator 4...........................................
Compressor Warranty Disclaimer 4.......................................
Section 3 Safety 5....................................................
Section 4 Operator Parts Identification 7...............................
Model 336 7............................................................
Model 338 8............................................................
Model 339 9............................................................
Three Spout Door 10.....................................................
Accessories 11..........................................................
Section 5 Important: To the Operator 12.................................
Symbol Definitions 12....................................................
Power Switch 13.........................................................
Indicator Light -- “Mix Low” 13.............................................
Mix Refrigeration Button 13...............................................
“Standby” 13............................................................
“Wash” 13...............................................................
“Auto” 13................................................................
Reset Button 14.........................................................
Air Tube 14.............................................................
Adjustable Draw Handle 14...............................................
Section 6 Operating Procedures 15.....................................
Assembly 15............................................................
Sanitizing 19............................................................
Priming 21..............................................................
Closing Procedure 22....................................................
Draining Product From the Freezing Cylinder 22.............................

Models 336, 338 & 339 Table of Contents
Table of Contents -- Page 2
Rinsing 22..............................................................
Cleaning 23.............................................................
Disassembly 23..........................................................
Brush Cleaning 23.......................................................
Section 7 Important: Operator Checklist 25..............................
During Cleaning and Sanitizing 25.........................................
Troubleshooting Bacterial Count 25........................................
Regular Maintenance Checks 25...........................................
Winter Storage 26........................................................
Section 8 Troubleshooting Guide 27....................................
Section 9 Parts Replacement Schedule 30...............................
Section 10 Parts List 31.................................................
Wiring Diagrams 41......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
EApril, 2009 Taylor
All rights reserved.
036029--M
The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Models 336, 338 & 339 To the Installer
Section 1 To the Installer
The following are general installation instructions. For
complete installation details, please see the check out
card.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on
the equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and
service.
SAuthorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer must
be disconnected prior to performing any repairs.
Failure to follow this instruction may result in personal
injury or death from electrical shock or hazardous
moving parts as well as poor performance or damage
to the equipment.
Note:Allrepairsmustbeperformedbyan
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area the unit is to be installed in before
uncrating the unit making sure that all possible
hazards the user or equipment may come into have
been addressed.
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
Air cooled units require a minimum of 3” (76 mm) of
clearance around all sides of the freezer to allow for
adequate air flow across the condenser(s). Failure to
allow adequate clearance can reduce the refrigeration
capacity of the freezer and possibly cause permanent
damage to the compressor.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of
70_-75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean the unit. Failure to
follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
equipment damage.
Uncrate the unit and inspect it for damage. Report any
damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

2Models 336, 338 & 339To the Installer
101012
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided with
a hand shut--off valve. On the underside rear of the
base pan, two 1/2” I.P.S. water connections for inlet
and outlet have been provided for easy hook--up. 1/2”
inside diameter water lines should be connected to the
machine. (Flexible lines are recommended, if local
codes permit.) Depending on local water conditions, it
may be advisable to install a water strainer to prevent
foreign substances from clogging the automatic water
valve. There will be only one water “in” and one water
“out” connection for both single--head and
double--head units. DO NOT install a hand shut--off
valve on the water “out” line! Water should always flow
in this order: first, through the automatic water valve;
second, through the condenser; and third, through the
outlet fitting to an opentrapdrain.
A back flow prevention device is required
on the incoming water connection side. Please
refer to the applicable National, State, and local codes
for determining the proper configuration.
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70-1987. The purpose of the
NEC code is the practical safeguarding of persons and
property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. In all other areas of the world,
equipment should be installed in accordance with the
existing local codes. Please contact your local
authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
DO NOT operate this freezer with larger fuses
than specified on the unit data label. Failure to follow
this instruction may result in electrocution or damage
to the machine.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipments frame.
Stationary appliances which are not equipped
with a power cord and a plug or another device to
disconnect the appliance from the power source must
have an all-pole disconnecting device with a contact
gap of at least 3mm installed in the external
installation.
Appliances that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected or not
used for long periods, or during initial installation, shall
have protective devices such as a GFI, to protect
against the leakage of current, installed by the
authorized personnel to the local codes.

3
Models 336, 338 & 339 To the Installer
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not lighter than
ordinary polychloroprene or other equivalent synthetic
elastomer-sheathed cord (Code designation 60245
IEC 57) installed with the proper cord anchorage to
relieve conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder of any model freezer.
Note: The following procedures should be performed
by a trained service technician.
To correct rotation on a three--phase unit, interchange
any two incoming power supply lines at freezer main
terminal block only.
To correct rotation on a single--phase unit, change the
leads inside the beater motor. (Follow diagram printed
on motor.)
Electrical connections are made directly to the
terminal block provided in the main control box located
behind the service panel.
Refrigerant
In consideration of our environment, Taylor
proudly uses only earth friendly HFC refrigerants. The
HFC refrigerant used in this unit is R404A. This
refrigerant is generally considered non-toxic and
non-flammable, with an Ozone Depleting Potential
(ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

4Models 336, 338 & 339To the Operator
Section 2 To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor soft--serve models covered in
this manual consist of the following: 336, 338 and 339.
These units, when properly operated and cared for, will
produce a consistent quality product. Like all
mechanical products, they will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator’s Manual should be read before
operating or performing any maintenance on your
equipment.
Your Taylor freezer will NOT eventually compensate
for and correct any errors during the set--up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment’s operation, both assembly and
disassembly, go through these procedures together in
order to be properly trained and to make sure that no
confusion exists.
In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.
Note: Warranty is valid only if the parts are authorized
Taylor parts, purchased from an authorized Taylor
Distributor, and the required service work is provided
by an authorized Taylor service technician. Taylor
reserves the right to deny warranty claims on
equipment or parts if non--approved parts or
refrigerant were installed in the machine, system
modifications were performed beyond factory
recommendations, or it is determined that the failure
was caused by neglect or abuse.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the product to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term indicated on the warranty card
accompanying this machine. However, due to the
Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop--in
replacements for numerous applications. It should be
noted that, in the event of ordinary service to this
machine’s refrigeration system, only the refrigerant
specified on the affixed data label should be used.
The unauthorized use of alternate refrigerants will void
your compressor warranty. It will be the owner’s
responsibility to make this fact known to any technician
he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should a
new alternate prove, through our testing, that it would
be accepted as a drop--in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor
Distributor or the Taylor Factory. Be prepared to
provide the Model/Serial Number of the unit in
question.

5
Models 336, 338 & 339 Safety
Section 3 Safety
We at Taylor Company are concerned about the safety
of the operator when he or she comes in contact with
the freezer and its parts. Taylor has gone to extreme
efforts to design and manufacture built--in safety
features to protect both you and the service technician.
As an example, warning labels have been attached to
the freezer to further point out safety precautions to the
operator.
IMPORTANT -- Failure to adhere to the
following safety precautions may result in severe
personal injury or death. Failure to comply with
these warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.
DO NOT operate the freezer without reading
this Operator Manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipments frame.
DO NOT use a water jet to clean or rinse the
freezer. Failure to follow these instructions may result
in serious electrical shock.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT operate the freezer with larger
fuses than specified on the freezer data
label.
SDO NOT attempt any repairs unless the
main power supply to the freezer has been
disconnected.
SStationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

6Models 336, 338 & 339Safety
SDO NOT allow untrained personnel to
operate this machine.
SDO NOT operate the freezer unless all
service panels and access doors are
restrained with screws.
SDO NOT remove any internal operating
parts (examples: freezer door, beater,
scraper blades, etc.) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury to fingers or hands from hazardous
moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater asssembly. The scraper blades
are very sharp.
This freezer must be placed on a level
surface. Failure to comply may result in personal injury
or equipment damage.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to the
cleaning section of this manual for the proper
procedure to clean this unit.
DO NOT obstruct air intake and discharge openings:
3” (76 mm) minimum air space on sides and rear, and
7--1/2” (191 mm) on the bottom. The Model 338
requires 4--1/4” (108 mm) on the bottom.
Failure to follow this instruction may cause poor
freezer performance and damage to the machine.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of 70_-
75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

7
Models 336, 338 & 339 Operator Parts Identification

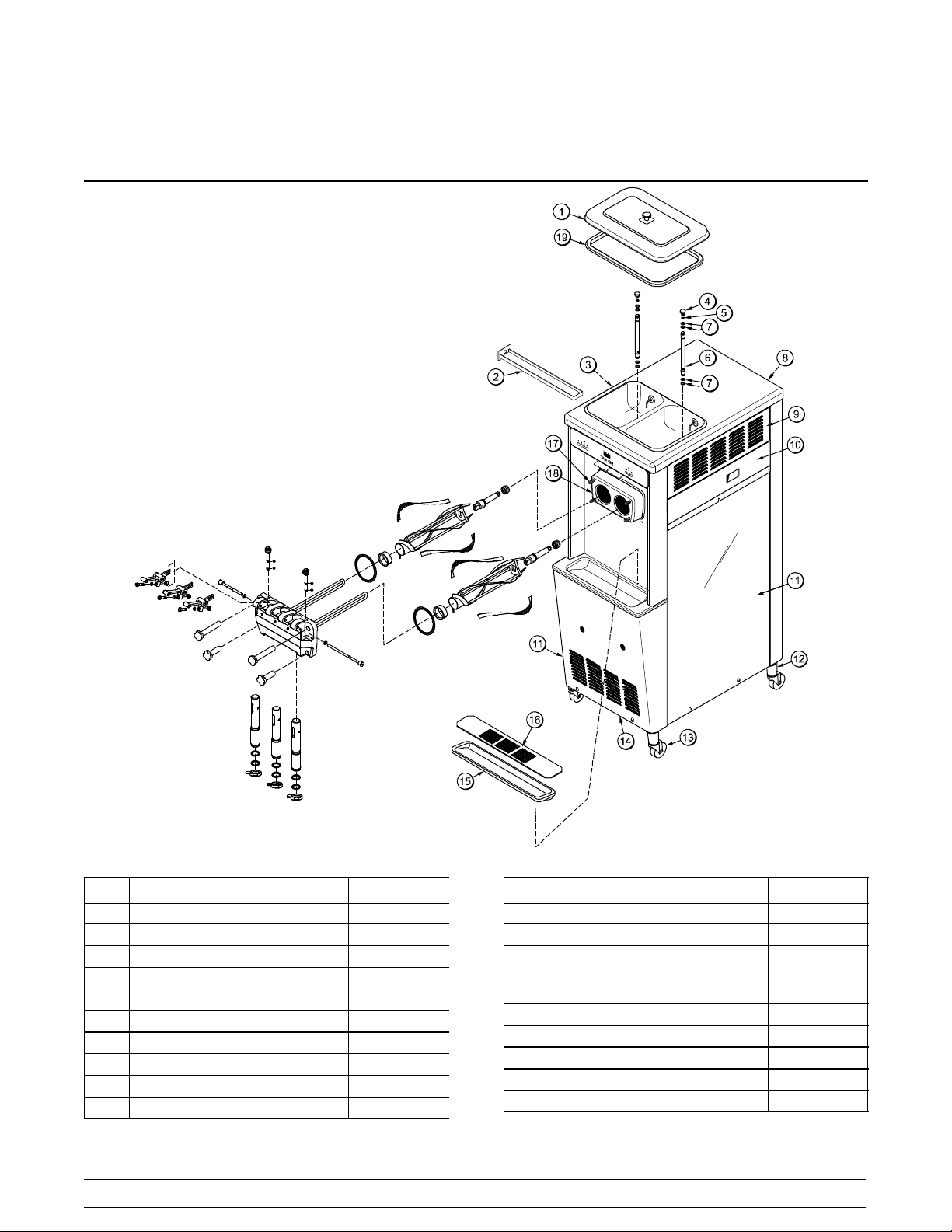

Section 4 Operator Parts Identification
Model 336
Figure 1
Item Description Part No.
1Cover A.--Hopper X37963--SER
2Pan--Drip 17--1/4” Long 027504
3Panel--Upper Side Left 028740
4Orifice 022465--100
5O--Ring 3/8 OD x .070 W 016137
6Tube--Feed 5/32 Dia. Hole 043461--2
7O--Ring .563 OD x .070 043758
8Panel--Rear 029816
9Louver--Side Top 051191
10 Panel--Upper Side Right 028741
Item Description Part No.
11 Panel A.--Lower Side (R & L) X24424
12 Adaptor A.--Caster X18915
13 Caster--Swivel 5/8 Stem 4”
Wheel
018794
14 Panel--Service *336* 042824
15 Tray--Drip 16--7/8 L x 5--1/8 020157
16 Shield--Splash 022765
17 Stud--Nose 022822
18 Panel A.--Front X42821--SP1
19 Gasket--Hopper Cover--8 Qt. 037042

8Models 336, 338 & 339Operator Parts Identification
Model 338
Figure 2
Item Description Part No.
1Cover A.--Hopper--Standard X38458--SER
2Gasket--Hopper Cover 20 Qt. 038474
3Orifice 022465--100
4O--Ring 3/8 OD x .070 W 016137
5Tube A.--Feed SS 5/32 Hole X29429--2
6O--Ring .643 OD x .077 W 018572
7Panel--Rear 051600
8Louver--Side Top 051191
9Panel A.--Side Upper Right X48596
Item Description Part No.
10 Panel--Side (Lower Right) 048487
11 Panel A.--Side Left X51596--SER
12 Stud--Nose Cone 022822
13 Panel A.--Front X51590
14 Pan A.--Drip--15--1/8 Long X51601
15 Shield--Splash 23 Long 022766
16 Tray--Drip 22--7/8 L x 5--1/8 W 014533
17 Leg--4” SS w/O--Ring 013458
18 Skirt--Air Flow 048489

9
Models 336, 338 & 339 Operator Parts Identification
Model 339
Figure 3
Item Description Part No.
1Cover A.--Hopper--Standard X38458--SER
2Gasket--Hopper Cover 20 Qt. 038474
3Orifice 022465--100
4O--Ring 3/8 OD x .070 W 016137
5Tube A.--Feed SS 5/32 Hole X29429--2
6O--Ring .643 OD x . 077 W 018572
7Panel--Rear 053782
8Louver--Side Top 051191
9Panel--Upper Side Right 028741
10 Panel A.--Lower Side (R & L) X24424
Item Description Part No.
11 Pan--Drip 17--1/4” Long 027504
12 Panel--Upper Side Left 028740
13 Stud--Nose Cone 022822
14 Panel A.--Front X32956
15 Adaptor A.--Caster X18915
16 Shield--Splash 23 L 022766
17 Tray--Drip 22--7/8 L x 5--1/8 W 014533
18 Panel--Service 024439
19 Caster--Swivel 5/8 Stem 4” 018794

10 Models 336, 338 & 339Operator Parts Identification
Three Spout Door
Figure 4
Item Description Part No.
1Seal--Drive Shaft 032560
2Shaft--Beater 033235
3Beater A.--2.8 Qt. Helicore X35466
4Blade--Scraper--Plastic 035480
5Bearing--Front 050216
6Gasket--Door HT 4” Double 048926
7O--Ring 3/8 OD x .070 W 016137
8Plug--Prime 028805
9Handle A.--Draw--Adjustable X55096
9a Handle--Adjustable 028804
9b Screw--Adjustment--Stainless 055092
Item Description Part No.
9c O--Ring 1/4 OD x .070 W 015872
9d Nut--5/16--24 18--8 SS Jam 029639--BLK
10 Nut--Stud Long 034382
11 Nut--Stud Short 034383
12 Valve A.-- Draw X18303
13 O--Ring 7/8 OD x .103 W 014402
14 Cap--Design 1.010” ID--6 Point 014218
15 O--Ring5/16ODx.070W 016272
16 Rod A.--Pivot X20683
17 Door A.--3 Spout X51532--15

11
Models 336, 338 & 339 Operator Parts Identification
Accessories
Figure 5
Item Description Part No.
1Tool--O--Ring Removal 048260--WHT
2Brush--Rear Bearing 1” D x 2”L 013071
3Brush--Double Ended 013072
4Brush--Draw Valve 1” x 2” x 17” 013073
5Brush--Mix Pump Body 3” x 7”
White
023316
*6
Sanitizer Kay--5 (125 Pkts) 041082
Sanitizer--Stera Sheen
(100 Pkts)
055492
Sanitizer--Stera Sheen
(64 oz. Jar)
010425
Item Description Part No.
7Pail--Mix 10 Qt. (336 & 339) 013163
8Deflector--Blower Exhaust
(339)
047912
9Deflector--Blower Exhaust--
Side Discharge (336)
048345
10 Skirt--Air Flow (338) 048489
11 Pail--Mix 6 Qt. (338) 023348
*Item 6: A sample of Kay--5 or Stera Sheen is shipped
with new equipment. Order additional sanitizer, using
one of the part numbers listed.

12 Models 336, 338 & 339Important: To the Operator
Section 5 Important: To the Operator
Item Description
1Power Switch
2Mix Refrigeration Button
3Standby Button
4Wash Button
5Auto Button
6Indicator Light “MIX LOW”
7Reset Button
Symbol Definitions
The following chart identifies the symbol definitions used on the operator switches.
=ON
=OFF
=MIX
= WASH
=MIXLOW
= STANDBY

13
Models 336, 338 & 339 Important: To the Operator
Power Switch
When placed in the “ON” position, the power switch
allows SOFTECHRcontrol panel operation.
Indicator Light -- “Mix Low”
Located on the front of the machine is a mix level
indicating light. When the light is flashing, it indicates
that the mix hopper has a low supply of mix and should
be refilled as soon as possible. Always maintain at
least 3” (76 mm) of mix in the hopper. If you neglect to
add mix, a freeze--up may occur. This will cause
eventual damage to the beater, blades, drive shaft,
and freezer door.
Mix Refrigeration Button
When the mix refrigeration button is pressed, the light
comes on indicating the mix hopper refrigeration
system is operating. The mix refrigeration is controlled
by the left side of the freezer as viewed from the
operator end. The mix refrigeration function cannot be
cancelled unless the “AUTO” or “STANDBY” modes
are cancelled first.
“Standby”
The Separate Hopper Refrigeration System (SHR)
and the Cylinder Temperature Retention System
(CTR) are standard features. The SHR feature
incorporates the use of a separate small refrigeration
system to maintain the mix in the hopper below
40_(4.4_C) to assure bacteria control. The CTR
feature works with the SHR to maintain a good quality
product. During long “No Sale” periods, it is necessary
to warm the product in the freezing cylinder to
approximately 35_Fto40_F(1.7_Cto4.4_C) to
prevent overbeating and product breakdown.
To activate the SHR and CTR features, press the
“STANDBY” button. Remove the air orifice and place
the air tube (end without the hole) into the mix inlet
hole.
When the “STANDBY” button is pressed, the light
comes on, indicating the CTR (Cylinder Temperature
Retention System) feature has been activated. In the
“STANDBY” mode, the “WASH” and “AUTO” functions
are automatically cancelled. The mix refrigeration
function is automatically locked in to maintain the mix
in the hopper.
To resume normal operation, press the “AUTO” button.
When the unit cycles off, the product in the freezing
cylinder will be at serving viscosity. At this time, place
the air tube (end with the hole) into the mix inlet hole
and install the air orifice.
“Wash”
When the “WASH” button is pressed, the light comes
on. This indicates beater motor operation. The
“STANDBY” or “AUTO” modes must be cancelled first
to activate the “WASH” mode.
Note: The Model 336 cannot be operated in
the “WASH” mode if the opposite side of the freezer is
in “AUTO”. Failure to comply with this instruction will
cause the rinse or sanitizing solution to freeze.
“Auto”
When the “AUTO” button is pressed, the light comes
on. This indicates that the main refrigeration system
has been activated. In the “AUTO” mode, the “WASH”
or “STANDBY” functions are automatically cancelled.
The mix refrigeration function is automatically locked
in to maintain the mix in the mix hopper.
Note: An indicating light and an audible tone will
sound whenever a mode of operation has been
pressed. To cancel any function, press the button
again. The light and mode of operation will shut off.

14 Models 336, 338 & 339Important: To the Operator
091030
Reset Button
The reset button is located in the service panel. The
reset protects the beater motor from an overload
condition. If an overload occurs, the reset mechanism
will trip. To properly reset the freezer, press the
“AUTO” button to cancel the cycle. Place the power
switch to the “OFF” position. Press the reset button
firmly.
Note: Do not use metal objects to press the
reset button. Failure to follow this instruction may
result in electrocution.
Turn the power switch to the “ON” position. Press the
“WASH” button and observe the freezer’s
performance. Open the side access panel. Make sure
the beater motor is turning the drive shaft in a
clockwise direction (from the operator end) without
binding.
If the beater motor is turning properly, press the
“WASH” button to cancel the cycle. Press the “AUTO”
button (on both sides of the unit) to resume normal
operation. If the freezer shuts down again, contact a
service technician
Air Tube
The air tube serves two purposes. One end of the tube
has a hole and the other end does not.
Figure 6
1. After priming the machine, lubricate the o--rings
on the air tube (the end with the hole) and
place it into the mix inlet hole. Every time the
draw handle is raised, new mix and air from the
hopper will flow down into the freezing cylinder.
This will keep the freezing cylinder properly
loaded and will maintain overrun.
2. During long “No Sale” periods, remove the air
orifice. Lubricate the o--rings on the air tube
(the end without the hole), and place it into
the mix inlet hole. This will prevent any mix
from entering the freezing cylinder.
The air orifice is used to meter a certain amount
of air into the freezing cylinder. The air orifice
maintains overrun and allows enough mix to enter
the freezing cylinder after a draw.
Adjustable Draw Handle
These units feature an adjustable draw handle to
provide the best portion control. The draw handle
should be adjusted to provide a flow rate of 5 to 7--1/2
oz. of product per 10 seconds. To INCREASE the flow
rate, turn the screw COUNTERCLOCKWISE. Turn
the screw CLOCKWISE to DECREASE the flow rate.
During “Sanitizing” and “Rinsing”, the flow rate can be
increased by removing the pivot pin and placing the
restrictive bar on the TOP. When drawing product,
always place the restrictive bar on the bottom.
IMPORTANT! When dispensing product, pull only
one draw handle at a time.
Figure 7

15
Models 336, 338 & 339 Operating Procedures
Section 6 Operating Procedures
Each unit stores mix in a hopper. The mix then flows
by gravity through an air tube down into the freezing
cylinder. They all have 2.8 quart (2.6 liter) capacity
freezing cylinders. All models have 20 quart (18.9 liter)
mix hoppers.
Duplicate the following procedures, where they apply,
for the second freezing cylinder.
We begin our instructions at the point where we enter
the store in the morning and find the parts
disassembled and laid out to air dry from the previous
night’s cleaning.
These opening procedures will show you how to
assemble these parts into the freezer, sanitize them,
and prime the freezer with fresh mix in preparation to
serve your first portion.
If you are disassembling the machine for the first time
or need information to get to this starting point in our
instructions, turn to page 23, “Disassembly”, and start
there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
MAKE SURE THE CONTROL SWITCH IS
IN THE “OFF” POSITION.
Step 1
Install the drive shaft. Lubricate the groove and shaft
portion that comes in contact with the bearing on the
beater drive shaft. Slide the seal over the shaft and
groove until it snaps into place.
DO NOT lubricate the hex end of the drive
shaft. Fill the inside portion of the seal with 1/4” more
lubricant and lubricate the flat side of the seal that fits
onto the rear shell bearing.
Figure 8
Insert the drive shaft into the freezing cylinder, hex end
first, and into the rear shell bearing until the seal fits
securely over the rear shell bearing. Engage the hex
end firmly into the drive coupling. Be sure the drive
shaft fits into the drive coupling without binding.
Figure 9

16 Models 336, 338 & 339Operating Procedures
Step 2
Take one of the scraper blades and slip it under the
hook at the front of the beater. Wrap the blade around
the beater following the helix and pushing the blade
down onto the helix as you wrap. At the back end of the
beater, slip the blade under the hook. Repeat this
step for the second scraper blade.
Figure 10
Holding the beater securely, slide the beater one third
of the way into the freezing cylinder. Looking into the
freezing cylinder, align the hole at the rear of the beater
with the flats on the end of the drive shaft.
Figure 11
Slide the beater the remainder of the way into the
freezing cylinder and over the end of the drive shaft.
The beater should fit snugly, but not so tightly that the
beater cannot be turned slightly to engage the drive
shaft. If the beater slides in too easily with little or no
resistance, there will not be enough force against the
beater to hold the blades in place. If this is the case,
contact your authorized Taylor service agent.
Repeat Steps 1 and 2 for the other side of the freezer.
Step 3
Assemble the freezer door. Place the large rubber
gaskets into the grooves on the back side of the
freezer door.
Slide the white plastic front bearings over the baffle
rods onto the bearing hubs making certain that the
flanged end of the bearing is resting against the freezer
door.
DO NOT LUBRICATE THE GASKETS OR
THE FRONT BEARINGS. Damage to components
may occur.
Figure 12
Slide the two o--rings into the grooves on the prime
plugs. Apply an even coat of Taylor Lube to the o--rings
and shafts.
Figure 13
