TCL C440BFB User manual
C440BFB
C440BFG
C440BFC
C440BFN
C440BFS
C440BFW
Frost-free Refrigerator Operating Instructions
■Please carefully read the operation instructions before powering on, and keep them
safe for future reference.
■The products may subject to changes without notice.
1
Contents
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not play with the appliance.
2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6.WARNING: Do not damage the refrigerant circuit.
7.WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
9.This appliance is intended to be used in household and similar applications such as
— Staff kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.
Congratulations on purchasing this TCL refrigerator. We hereby express our thanks.
P2
P7
P8
P9
P11
P10
P12
P13
P17
P17
P16
P18
Safety instructions ------------------------------------------------------------------------
Product introduction ----------------------------------------------------------------------
Handling and placement -----------------------------------------------------------------
Preparations prior to use ----------------------------------------------------------------
Operation keys ----------------------------------------------------------------------------
Operation and diagram of display board --------------------------------------------
Food storage -------------------------------------------------------------------------------
Door Reversal-------------------------------------------------------------------------------
Operation keys------------------------------------------------------------------------------------
Operation notes -----------------------------------------------------------------------------
Care and maintenance ------------------------------------------------------------------
Failure analysis -------------------------------------------------------------------------
Non-failures -------------------------------------------------------------------------------
Technical parameter -------------------------------------------------------------------
P15
P14
2
&
「
3
Risk of fire/flammable materials
Do not place multiple portable socket outlets (power boards)
or power supplies at the rear of the appliance.
34
& Safety information
Daily use
Care and cleaning
& Safety information
Installation
Service
Q
G
Energy saving
5
& Safety info rmation
Environment Protection
Pacging marials
Disposal of the applian
3. R
WARNING: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigeration products are still dangerous- even if they sit for a "just a few days". If you are
getting rid of your old appliance, please follow the below instructions to help prevent
accidents.
Before You Throw Away Your Old Refrigeration Product:
- Take off the doors
- Leave the shelves in place so that children may not easily come inside.
6
7
Product specifications subject to change.

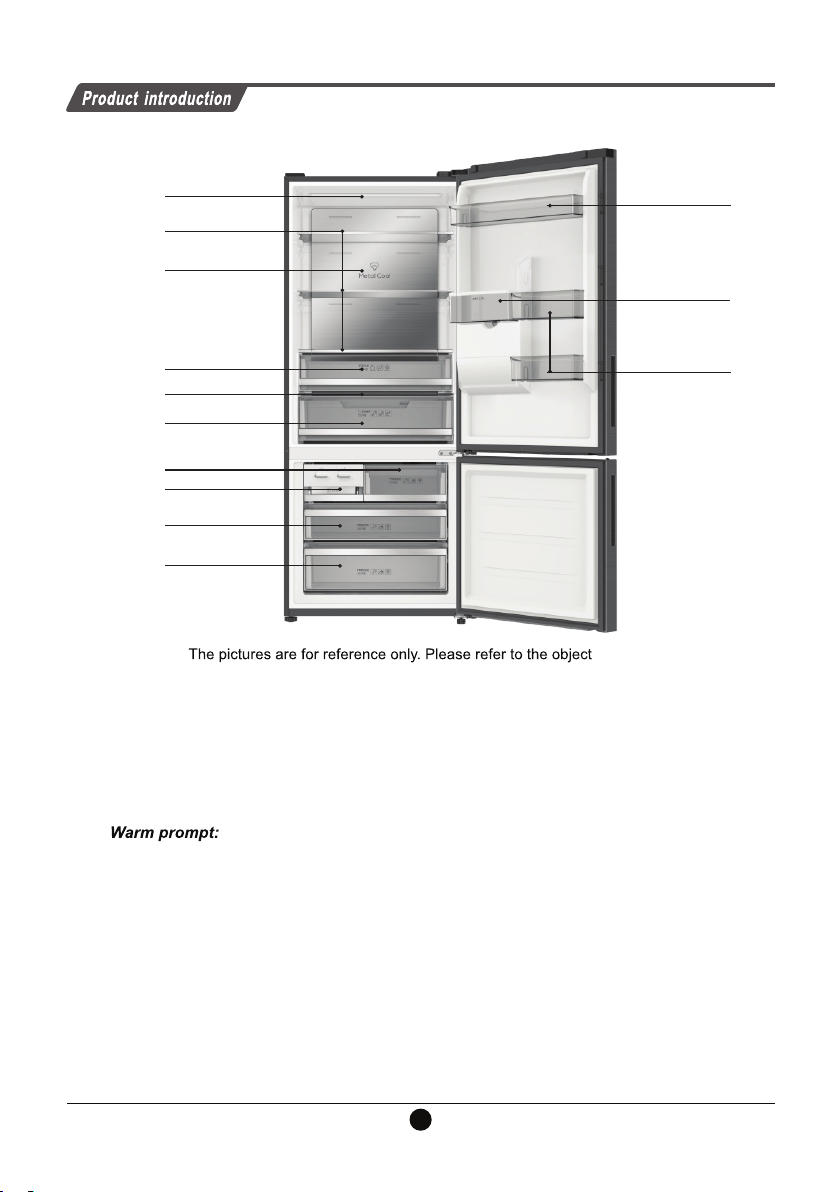

Lighting Strip
Refrigeration Air
Humidity-Controlled
Twist ice maker
Upper Freezer
Lower Freezer
Half-Bottle Shelf
Bottle Shelf
Water Tank
Duct Back Plate
Variable Temperature
Zone Shelf
Crisper Drawer
Variable
Temperature
Zone Component(T-Temp)
Half Drawer
Middle Freezer
Drawer
Drawer
Refrigerating shelf
8

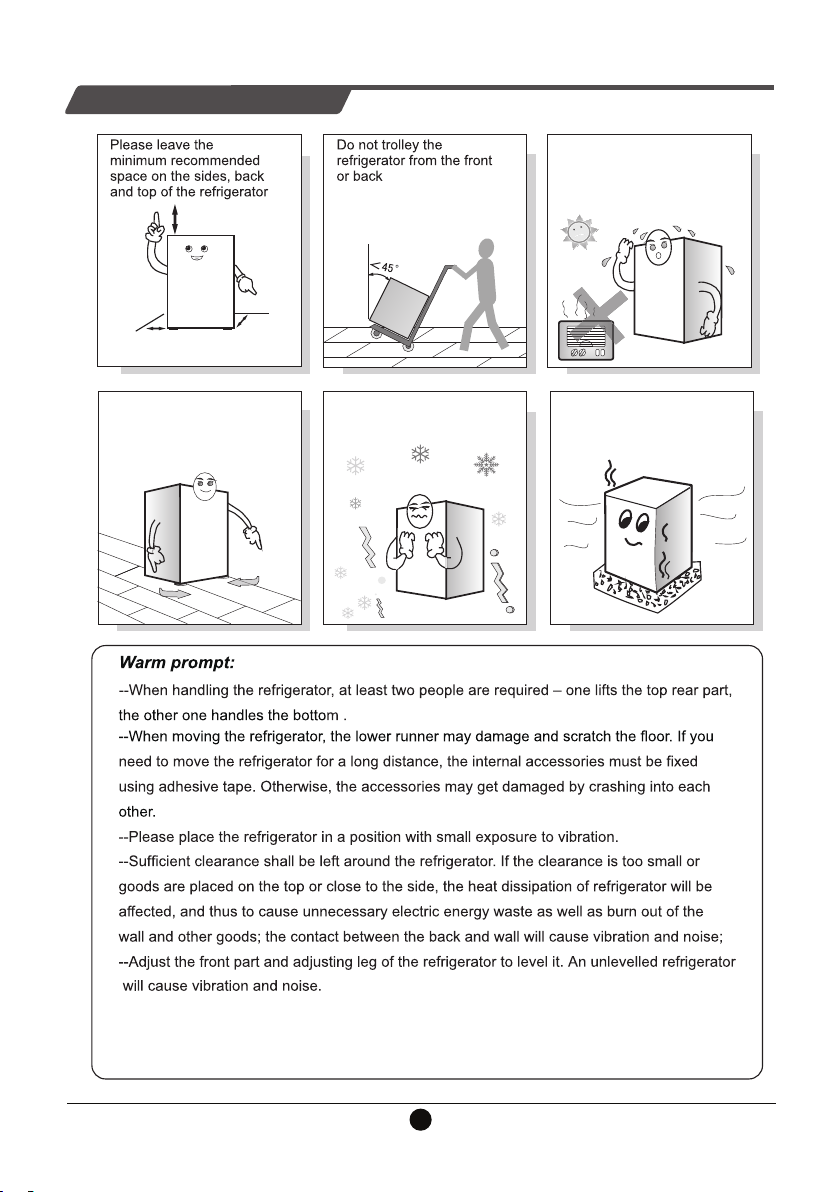

Handling and placement
The refrigerator shall be
placed in an environment
which is dry, has good
ventilation, far from direct
sunshine and heat source.
>30cm
>10cm >10cm
The refrigerator shall be
placed on a flat and firm
surface. If the ground is not
flat, adjust the adjusting leg
to keep it level.
Never place the refrigerator
into a very cold environment
that may get frozen.
Do not operate the refrigerator on the foam
base it was shipped on. This will help heat
dissipation and reduce the risk of fire.
689 703 690
9
The appliance should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down
on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.
Please refer to the product introduction picture on page 5 for the placement of accessories.
Preparations prior to use
1. Remove fixing tape 2. Connect to power 3. Store food after
connecting to power
for 2-3 hours
Wipe with
warm and
wet cloth
In hot summer, 24 hours are
needed to fully freeze the food.
Check the refrigerating condition
on the second day.
Do not open the
doors frequently
to save electricity.
The plastics deodorant will disappear
automatically after freezing for a while.
1.Remove all packing materials such as adhesive tape, plastic bags, etc., especially the foam base.
2.Use a warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent
can be added to warm water).
3. After leveling and cleaning the refrigerator, keep it upright for about 2 hours before plugging in
the power for the first time.Let the refrigerator run for 2 to 3 hours before storing foods.
10
Operation and diagram of the electronic control panel
11
5,Variable greenhouse
Temperature adjustment in the variable temperature zone (T-Temp) (C440BFB/W/S/N/C/G)
In the unlocked state, repeatedly press the "Zone" button until the T-temp space lights up, then press the
"Regulate" button to adjust the temperature in the variable temperature space. Each press of the "Regulate"
button lowers the temperature by one level. The set temperature in the variable temperature zone cycles
between "4"-"- 1"-"- 3"-"4". When the temperature setting is complete, the set temperature level is confirmed.
When the refrigerator compartment is set to "O F",
the variable temperature space displays the "O F" level, and the variable temperature
space level cannot be adjusted.
Powering on for the first time
12
refrigerator chamber
freezing function after it is under in high freezing status for 4 hours.
Foods storage
refrigerator chamber (2℃~8℃)
--The refrigerator chamber is mainly used for storing short-term foods, like milk, eggs and bottled
drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to
prevent the back from frosting and the power from increasing.
freezer chamber (-24℃~-15℃)
--The freezer chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags
separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezer
chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.
13
Door Reversal
For Door Reversal, please contact TCL Customer service for detailed instruction
Adjustable Temperature Space Component (-3，-1，4℃)
The appropriate storage space is provided for different types of food such as chilled, fresh,
and infant foods:
4℃: Ideal for storing fruits and vegetables, locking in nutrients and preventing nutrient loss.
-1℃: Suitable for storing eggs, dairy products, beverages, sausages, etc.
-3℃: Perfect for storing ready-to-eat fresh meat, seafood, fish, and shrimp.
Slowly lift the twist ice
maker, and remove it
toward the operator.
Fill the ice box with
drinking water via kettle.
Warm prompt
The twist ice maker is filled with water only. It is prohibited to fill any liquid which is not drinkable. Fill the ice box
with drinking water via kettle or other liquid container. Except for regular cleaning, the outer frame of the twist ice
maker shall not be directly exposed to water, which otherwise may lead to the risk of function loss. Prior to
loading in the refrigerator, check for liquid residue on the outer frame of the twist ice maker. Clean the outer frame
with dry towel when necessary.
Troubleshooting

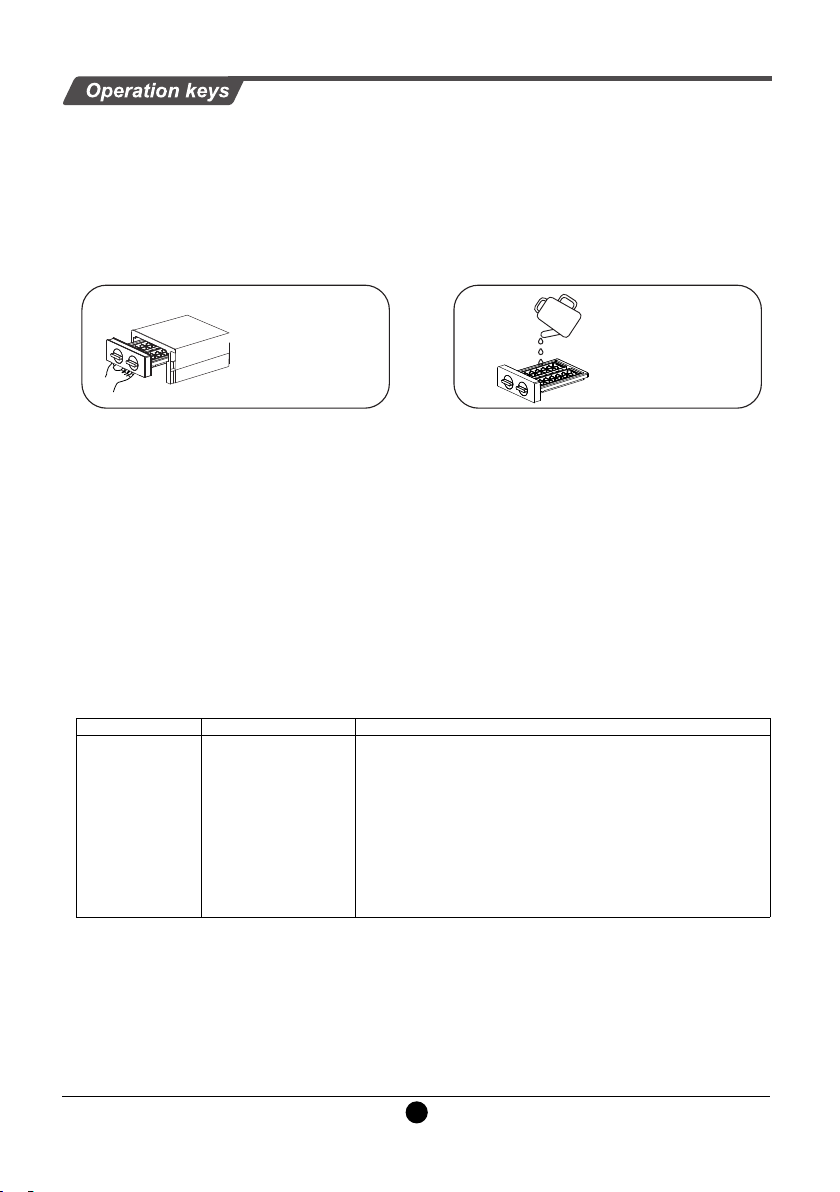

Twist Ice Maker Operation Instructions(Available on selected models)
Slowly lift the twist ice maker, and remove it toward the operator.
Fill the ice box with drinking water via kettle.
After a period of time in the refrigerator, twist the knob on the ice maker to release the ice cubes onto the ice box.
Fault Cause Actions
Unable to remove
the twist ice
maker
Liquid residue on the
outer frame of the
twist ice maker, which
has frozen, thus
making the ice
maker’s adhesion to
the refrigerator
After removal of the ice cube pallet, hold the twist ice maker
with hand and vibrate it with an attempt to break up the bonded
ice cube, and then remove the ice maker.
If the above action fails, switch o f
fthe refrigerator, Remove
freezer items and drawers. Open the refrigerator door to allow
the ice cube bonded onto the ice maker to get defrosted by
itself. Finally, remove the ice maker.
14
Take out by pulling upwardly
and outwardly in a slight way
Take out by pulling outwardly
yawthgilsaniyldrawpudna
--Disassembly of components of water storage tank:The disassembly method of the water
storage tank is same with the installation method. Just implement it in the reverse direction.
★★ Warm prompt:
When adding the water in the water storage tank, the water addition cannot exceed the tip line
of maximum water storage scale;
To ensure the water quality, it is suggested to clean the water storage bucket and outlet water
pipe regularly.
During the maintenance and cleaning of water storage tank and pipes, it is suggested to
disconnect power supply to avoid the accident.
Pay attention to the operating strength when opening the door,lest the water in the storage tank
overflowed by opening the door too fast.

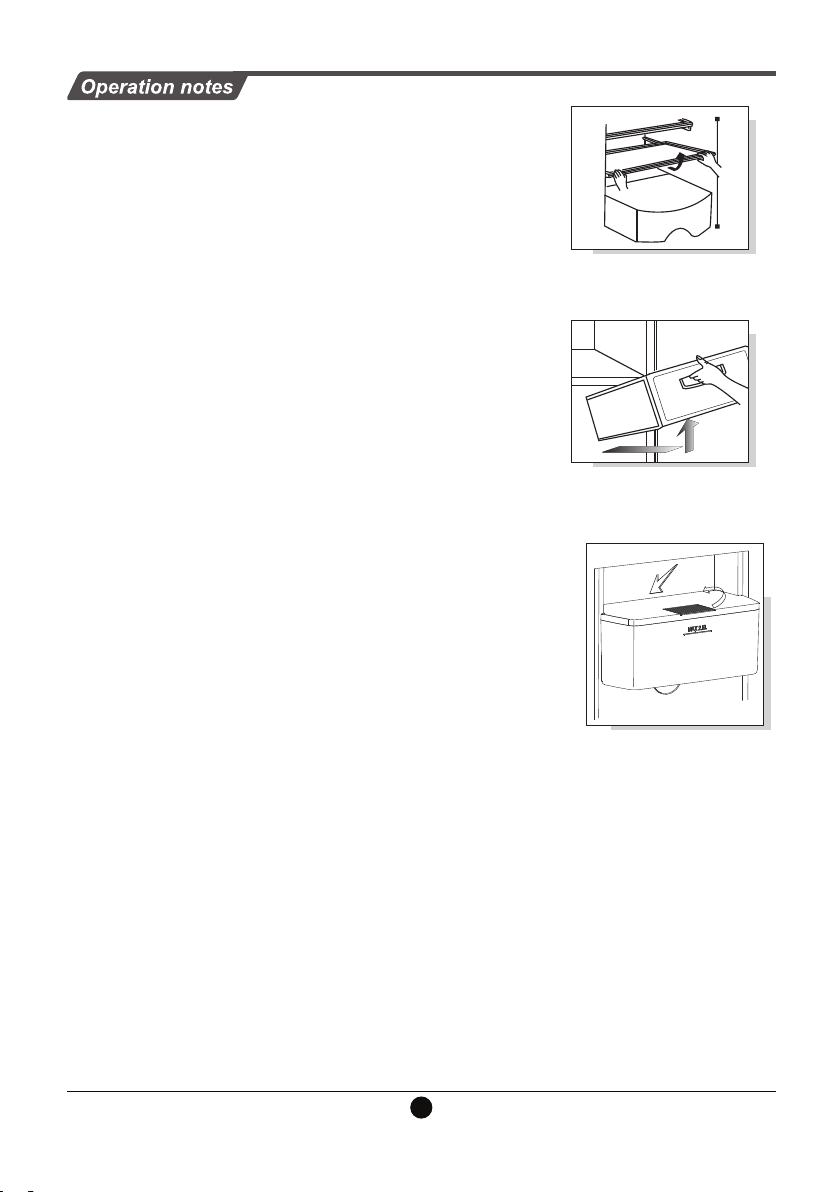

Disassembly and assembly method of accessory
--Glass shelf in the refrigerating chamber: the height of the shelf is
adjustable, which facilitates the storage of articles with different
volumes. Pull the shelf outwardly and upwardly in a slight way to
take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can
be taken out by pulling outwardly.
--Adjustable temperature space component It is a three-level variable
temperature drawer, which allows you to choose between -3/-1/4C through
visible control, providing suitable storage space for different types of food
such as chilled, fresh, and infant foods.
--Drawer in the freezing chamber: storing foods to be preserved for long-
term, such as meat and fish. It can be taken out by pulling outwardly and
lifting upwardly.
Kindly tips: It is recommended to put into the large piece of meat
after being cut into small pieces, to avoid difficult cutting after being frozen.
The quick-freezing foods shall be distributed uniformly and stored together
after being frozen.
--Refrigerating cabinet door holder: for storing eggs, different kinds of bottled
drinks and other fragmentary items. When is disassembled,it can be gently
squeezed from both sides to the middle and at the same time observe
whether the buckles are removed and then slowly lift it out.
--
Caution: do not pull out the refrigerating cabinet door holder forcibly when it
is dismantled, so as not to damage the refrigerator
--Water tank assy.：For water storage of water-dispenser 。
---Filling the water tank：Flip the tank cover to 120°, then
feed water into the tank. After feeding water close the cover.
--Installation of water storage tank: Before installing the water storage tank,
firstly, hold the both sides of the water storage tank by hand with balanced
force, and slowly press along the arrow direction until it cannot be pressed
further.
This indicates that the water storage tank is installed well, otherwise,
please continue to install.
Gently pull and get out along
the reverse direction of arrow
120°
15
16
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off
the oil contamination and other dirt. Then completely wipe off the
detergent.
--Do not use alkaline detergent, soap powder, gasoline and
alcohol, talcum powder etc.; otherwise the coats or plastics may
be damaged;
--Regularly clean the refrigerator body and clear the ground dusts
to keep the refrigerator clean.
Inspections after maintenance:
1. Whether there are damages to the power line and plug; 2.
Whether there are dusts on the power plug; 3. Whether there is
abnormal heat on the plug; 4. Whether the socket is loose; 5.
Whether the plug is totally inserted.
Note:
If the power line and plug is damaged and there exist dusts,
electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before re-plugging
it;
Do not put your hands under the refrigerator to avoid getting hurt.
Care and maintenance
Please use neutral
detergent
Neut ral detergent
Unplug the refrigerator
plug before cleaning
Operation keys
-- Water dispenser: The users can take the drinking water through the
equipment at any time according to the own needs,
- Water taking: When the users want to drink water, they need to press
(extrude) the water-taking handle or use the rigid container to press
(extrude) the water-taking handle until the water outlet flows the water
and after meeting the needs. After taking water, stop pressing(extruding) ,
release the water-taking handle, and the water stops flowing.
Before taking water, please ensure the water storage tank has enough
drinking water;
Please ensure the water quality in the water storage tank is better without
impurities and foreign matters, etc., to avoid blocking the water outlet.
The users are suggested to use 2.5L of drinking water at least in one week to ensure the
fresh water source in the water way system.
When taking water, it is suggested to close the door with water dispenser to avoid the shaking
of refrigerator door, sprinkling of water and other accidents in the process of taking water.
Due to the different areas and seasons, as well as the instability of indoor environment
temperature and humidity, it is the normal phenomenon if the water dispenser has water
droplets and condensation in other places except for the water outlet. Please wipe it with
towel and duster cloth, will not affect the usage.
★★ Warm prompt:
Water-taking handle
17

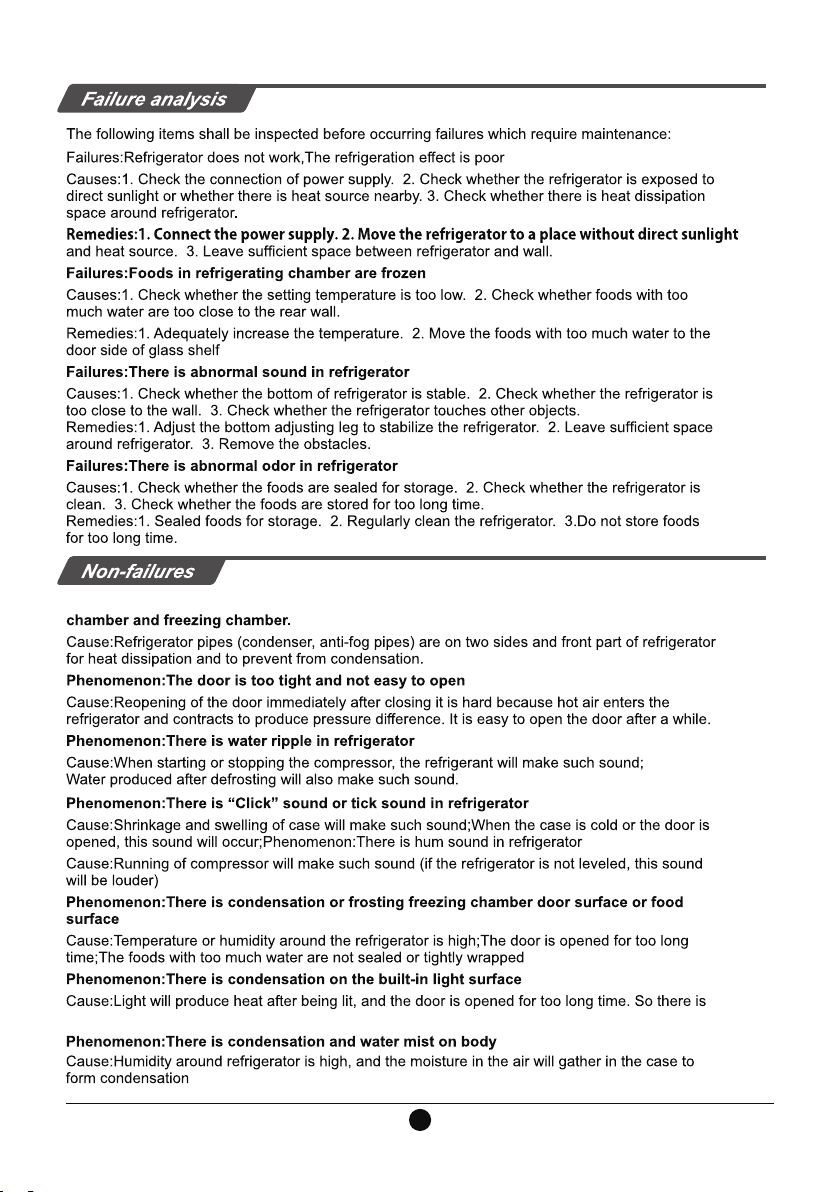

Temperature difference,and thus the light case will have condensation
Phenomenon:Heat on two sides and spacing part surface between refrigerating
Weight
Dimension(mm)
18
C440BFB
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
Annex
3
/
1
Model
1
1
1
Refrigerating shelf
Humidity-ControlledSpace Component
Adjustable Temperature Space Shelf
Adjustable TemperatureSpace Component
Twist ice maker
Upper Half-Drawer of the Freezer
Middle Drawer of the Freezer
Lower Drawer of the Freezer
Bottle Rack
Water Tank
Half-Bottle Rack
crisper drawer cover
Fruit and Vegetable Drawer Component
Ice-making box
Egg box
Operating instruction
1
1
1
1
1
1
2
/
/
1
C440BFB
C440BFG
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
C440BFC
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
C440BFN
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
C440BFS
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
C440BFW
703*689*1725mm
T
I
412L
106L
2W
76kg
1.65A
220-240V〜50Hz
R600a,52g
39dB(A)
270L
36L
249kWh/y
3
/
1
1
1
1
1
1
1
1
1
1
2
/
/
1
C440BFG
3
/
1
1
1
1
1
1
1
1
1
1
2
/
/
1
C440BFC
3
/
1
1
1
1
1
1
1
1
1
1
2
/
/
1
C440BFN
3
/
1
1
1
1
1
1
1
1
1
1
2
/
/
1
C440BFS
3
/
1
1
1
1
1
1
1
1
1
1
2
/
/
1
C440BFW
This manual suits for next models
5
Table of contents
Other TCL Refrigerator manuals
