TCL RP318BXE0 User manual

RP318BWE0

Etichettatura Ambientale degli Imballaggi
Cartone d'imballaggio
(Pannello di fibra ondulato) 20PAPPAP 20
Collezione di carta
Parti di protezione
(Pannello di fibra ondulato)20PAPPAP 20
Collezione di carta
Cartone d'imballaggio
(Pannello di fibra non ondulato)
21PAPPAP 21
Collezione di carta
Parti di protezione
(Pannello di fibra non ondulato)
21PAPPAP 21
Collezione di carta 4LDPELDPE 4
Collezione di plastica
Sacchetto di plastica per
l'imballaggio del manuale 2HDPE
HDPE 2
Collezione di plastica
Sacchetto di plastica per
l'imballaggio del prodotto
22PAPManuale
PAP 22
Collezione di carta
Etichetta di efficienza energetica
22PAPPAP 22
Collezione di carta 22PAPScheda di garanzia
PAP 22
Collezione di carta
22PAPAltra etichetta (Carta)
PAP 22
Collezione di carta 4LDPEParti di protezione (EPE)
LDPE 4
Collezione di plastica
Schiuma EPS (EPS+PP)
PS+PP 7
Collezione di plastica 7PS+PP6PSSchiuma EPS (EPS)
PS 6
Collezione di plastica 6PSParti di protezione (EPS)
PS 6
Collezione di plastica 5PPCintura di imballaggio
PP 5
Collezione di plastica

P2P5P6P7P8P8P10P10P11P11P14P14P15P15Safe recovery instructions P16Description of climate types P16Thank you for choosing our refrigerator. We appreciate your trust and suppo.We will do our best to see you. We hope you enjoy your new purchase!1.This appliance is not intended for use by persons (including children) with reduced physical, senso or mental capabilities, or lacking experience and knowledge, unless they are given supeision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supeised to ensure that they do not play with the appliance.2.If the power cord is damaged, it must be replaced by the manufacturer, its seice agent or similarly qualied persons in order to avoid a hazard.3.This appliance can be used by children aged from 8 years and above and persons with reduced physical, senso or mental capabilities or lacking experience and knowledge if they are given supeision or instruction concerning safe use of the appliance and understand the associated hazards. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supeision.4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.6.WARNING: Do not damage the refrigerant circuit.7.WARNING: Do not use electrical appliances inside the food storage compaments, unless they are the type recommended by the manufacturer.8.Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.9.This appliance is intended to be used in household and similar applications such as— Sta kitchen areas in shops, oces and other working environments;— Farm houses and hotels, motels and other residential type environments;— Bed and breakfast type environments;— Catering and similar non-retail applications.10.This product contains a light source of energy eciency class F for light source ERP, test with(without) light cover.

WarningWarning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.Warning: Do not damage the refrigerating circuit.Warning: Do not use electrical appliances inside the food storage compaments, unless they are of the type recommended by the manufacturer.Warning: Do not put food and liquids in glass containers in the freezing chamber to avoid glass breakage.Warning: If powered o, the refrigerator will be powered on 5min later to avoid compressor damage.Warning: If any live pa, abnormal noise, smell, smoke or other abnormality is found during use, power o the appliance immediately and contact the aftersales seice timely.Warning: Do not inse your ngers or hands into the bottom of the refrigerator, especially into the bottom at the back; you can be hu by sharp objects.Warning: Children must not play with or climb the refrigerator. Children must be supeised by their parents to avoid danger.Warning: Do not put your hand between the doors when opening or closing the refrigerator door; otherwise you may get smashed ngers. Use the door handle to open or close the door.Warning: Under the climate classes SN,N, ST and T, the appliance should operate at ambient temperatures ranging from 10℃ to 43℃. If the appliance operates outside the rated climate class (ambient temperature range), it may not be able to maintain a satisfying interior temperature.Opening the door for long periods can cause a signicant temperature increase in the refrigerator compaments.Regularly clean suaces that can come in contact with food and accessible drainage systems.Clean water tanks if they have not been used for 48 hours.Store raw meat and sh in sealed or covered containers in the refrigerator to prevent them touching or dripping onto other food.Two-star frozen-food compaments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.One-, two- and three-star compaments are not suitable for freezing fresh food.If the refrigerator is left empty for an extended period of time, please leave it disconnected, defrosted, clean, and d, with the doors open to prevent mould developing within the appliance.Warning: When positioning the appliance, ensure the power cord is not trapped or damaged.

Warning: Risk of fire / flammable materials.Warning: Do not locate multiple poable socket-outlets or poable power supplies at the rear of the appliance.CautionCaution: The power supply shall be consistent with the information on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, re may be caused due to overheat.Caution: Never pull the power cord by hand. Hold and unplug the power connector from the socket to disconnect the power supply. Never touch the power cord or connector with wet hands to avoid electric shock.Caution: The power cord must not be squeezed by the refrigerator or any heavy load, and the power cord should not be bent extremely. The damage or peeling of power cord may result in re or electric shock. If the power cord is broken or cut, please contact the after-sales seice immediately.Caution: No ammables, explosives, corrosive acid or alkaline substances are allowed in the refrigerator.Caution: The refrigerator must not be used in the rain or under the sunshine.Caution: It is forbidden to place a container lled with liquid on the refrigerator because the breakage or turnover of the container may aect the electrical insulation of refrigerator and result in electric shock or re.Caution: The refrigerator must not be disassembled or modied without permission. The repair must be peormed by a specialist.Caution: In case of leakage of any ammable gas such as coal gas, close the leaking valve rst and then open the window for ventilation. Do not unplug the refrigerator connector immediately to avoid re or explosion caused by electric spark.Caution: Refrigerating appliances – in paicular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too high in the frozen food compament) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

Caution: Eeescent drinks should not be stored in food freezer compaments or cabinets or in low-temperature compaments or cabinets, and food like water ices should not be consumed too cold.Caution: Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food.Caution: During defrosting, precautions are necessa to prevent an undue temperature rise of the frozen food, such as wrapping the frozen food with newspaper.Caution: A temperature rise of the frozen food during manual defrosting, maintenance or cleaning could shoen the storage life.Caution: Care is required for the frozen food in storage if the refrigerator is out of seice for an extended period of time (interruption of power supply or failure of the refrigerating system).Caution: Measures must be taken when the refrigerator is switched o and out of seice temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

Warning:ar--When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident). --When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other. --Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident. --Sufficient clearance shall be left around. If the clearance is too small or if goods are placed on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise; --Adjust the front part and adjusting leg of the refrigerator to level it. A unlevel refrigeratorrefrigerator will cause vibration and noise.

This refrigerating appliance is not intended to be used as a built-in appliance

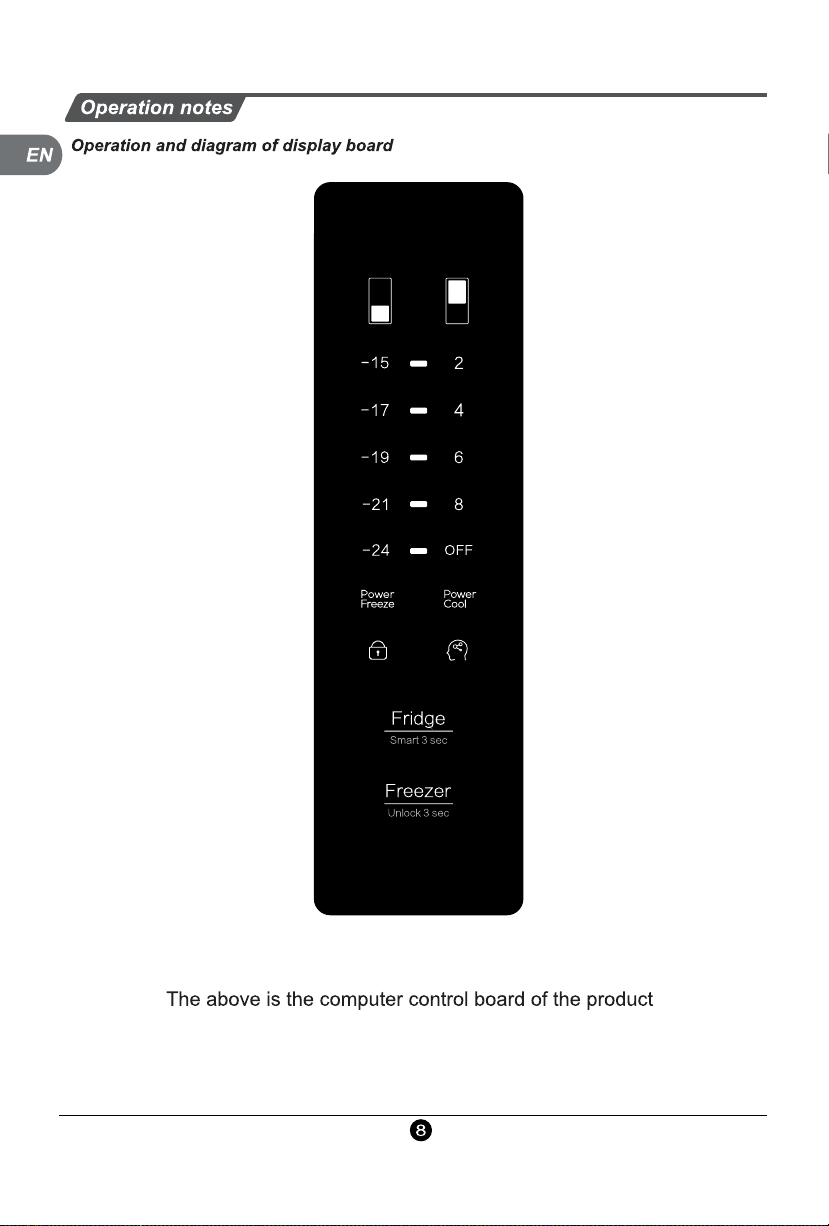

When there is no key operation on the display panel within 30 seconds, the display goes out and the keyboard is automatically locked. When the display is off, press any key for the first time to wake up the display, press and hold the " " key for 3 seconds to unlock, and then press the key again to make the key function effective.The first time the power is tutmed on, the refrigerator operates according to the refrigerator room at 6℃ and in the freezer at -19℃Freezer

Replaceable (LED only) light source by a professional

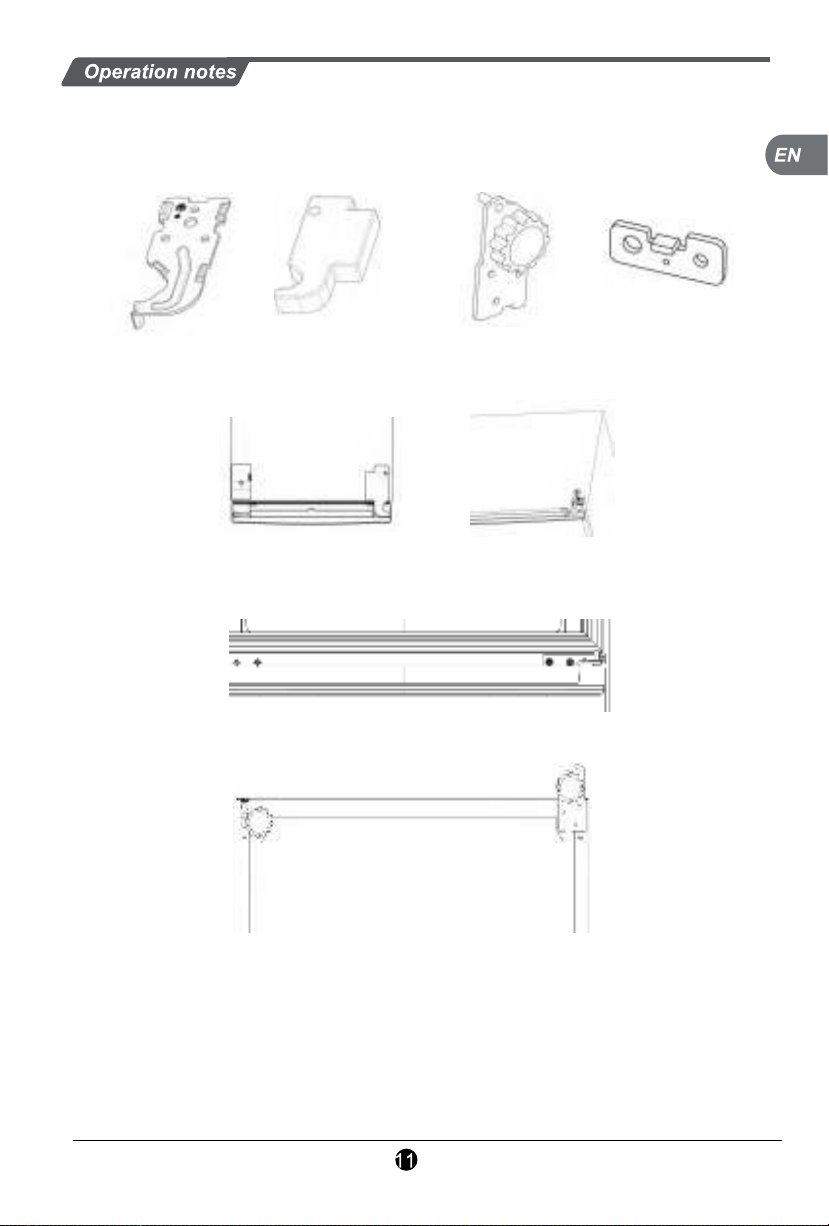

Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed. Please prepare the following items in advance:Left upper hinge × 1 left upper hinge cover × 1 lower left hinge assembly × 1 left door stop × 2 1.Close the door and take out the screws from the upper hinge cover with a cross screwdriver.Remove the hinge cover, then disassemble the connection terminal, remove the top hinge and take off upper door. Remove left screw cover. 2.Take out the screws of the middle hinge with a cross screwdriver, remove the middle hinge,remove the screw cover at the left screw hole, and take down the lower door. 3.Laying down the refrigerator, and remove the lower hinge and leveling angle at the bottom ofthe refrigerator. 4.Remove the wire cover on the upper end of the upper door, change the wiring harness from theright side to the left side, and install the left door stop to the left side of the upper door and lower door. (the replacement of upper door and lower door stop is the same as that of lower door, and the lower left figure will be changed to right picture)

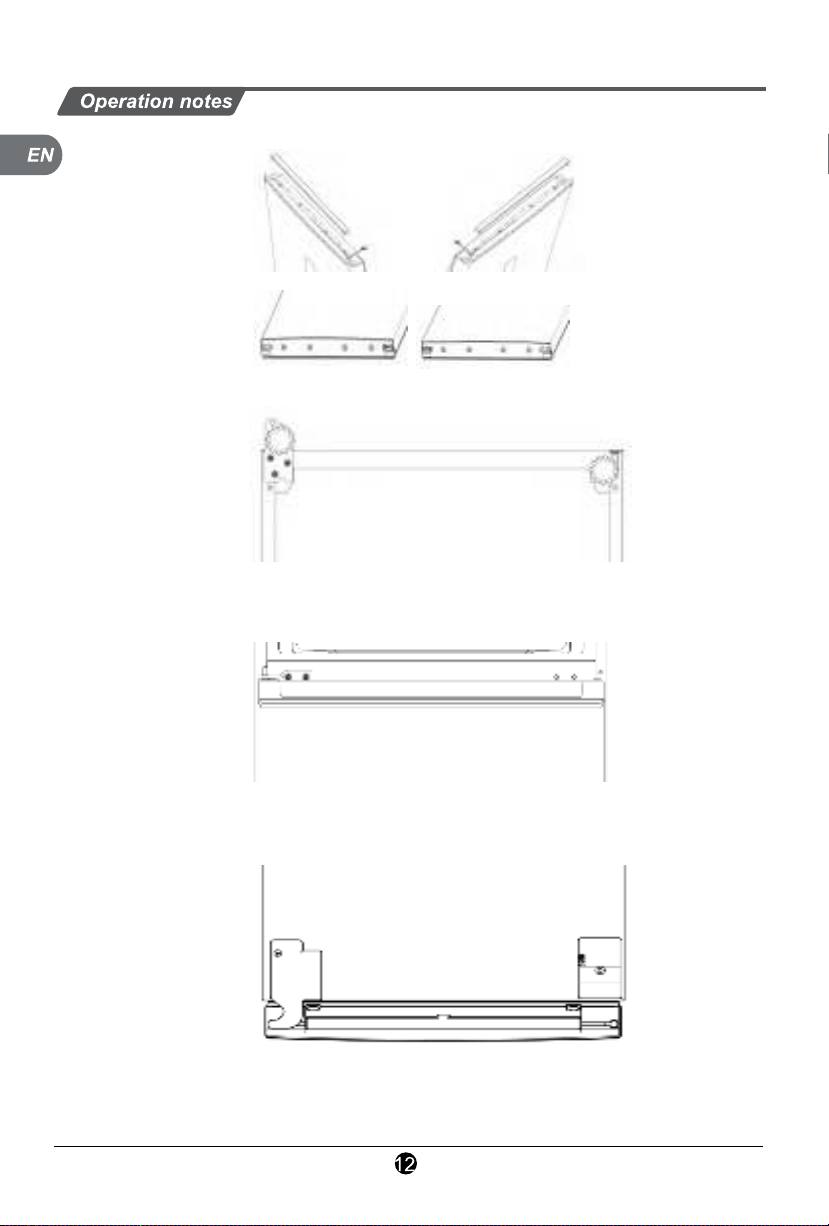

5.Install the previously prepared lower left hinge assembly on the left, install the previouslyremoved leveling angle to the right, and install the lower door. 6.Install the middle hinge at the left mounting position, and install the previously removed screwcover to the right screw hole. 7.Install the upper door, connect the terminals, install the left upper hinge, the left upper hingecover and the previously removed screw cover. Reverse door complete. (the upper hinge and hinge cover are installed on the left as shown in the figure, and the screw cover is in the right position) 8.After the operation is completed, Please wait for a while and plug in the power supply. ame asthat of lower door, and the lower left figure will be changed to right picture)

Changing the LightAny replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.Handy tips: It is recommended to put into the large piece of meat It is suggested to clean the refrigerator once per month;

The following items shall be inspected before occurring failures which require maintenance:Failures:Refrigerator does not work,The refrigeration effect is poorCauses:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator. Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall. Failures:Foods in refrigerating chamber are frozenCauses:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall. Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelfFailures:There is abnormal sound in refrigeratorCauses:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects. Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles. Failures:There is abnormal odor in refrigeratorCauses:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long .Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3.Do not store foods for too long time.Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber. Cause:Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation. Phenomenon:The door is too tight and not easy to openCause:Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while. Phenomenon:There is water ripple in refrigeratorCause:When starting or stopping the compressor, the refrigerant will make such sound;Water produced after defrosting will also make such sound. Phenomenon:There is “Click” sound or tick sound in refrigeratorCause:Shrinkage and swelling of case will make such sound;When the case is cold or the door is opened, this sound will occur;Phenomenon:There is hum sound in refrigeratorCause:Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)Phenomenon:There is condensation or frosting freezing chamber door surface or food surfaceCause:Temperature or humidity around the refrigerator is high;The door is opened for too long time;The foods with too much water are not sealed or tightly wrappedPhenomenon:There is condensation on the built-in light surfaceCause:Light will produce heat after being lit, and the door is opened for too long . So there is temperature difference, and thus the light case will have condensation. Phenomenon:There is condensation and water mist on bodyCause:Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

RP318BWE0
RP318BWE0

SymbolSTNSNAmbient temperature ranges℃+ 10 to + 32+ 16 to + 32+ 16 to + 38+ 16 to + 43TClassExtended temperateTemperateSubtropicalTropicalTable 1 Climate classesExtended temperate:‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;temperate:‘this refrigerating appliance is intended to be used at ambienttemperatures ranging from 16 °C to 32 °C’;Subtropical:‘thisrefrigeratingapplianceisintendedtobeusedatambienttemperaturesrangingfrom16°Cto38°C’;Tropical:‘thisrefrigeratingapplianceisintendedtobeusedatambienttemperaturesrangingfrom16°Cto43°C’;Dear customerif you need customer service, please check warranty card for further information.DisposalOld appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling.Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local council.Correct Disposal of this product.This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To retum your used device, please use the return and ollection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycing.
Description of climate types
