TCL RP466CXF0 User manual

RP466CXF0
RP466CXF0CY
RP466CXF0UK

Etichettatura Ambientale degli Imballaggi
Cartone d'imballaggio
(Pannello di fibra ondulato)
20
PAP
PAP 20
Collezione di carta
Parti di protezione
(Pannello di fibra ondulato)
20
PAP
PAP 20
Collezione di carta
Cartone d'imballaggio
(Pannello di fibra non ondulato)
21
PAP
PAP 21
Collezione di carta
Parti di protezione
(Pannello di fibra non ondulato)
21
PAP
PAP 21
Collezione di carta
4
LDPE
LDPE 4
Collezione di plastica
Sacchetto di plastica per
l'imballaggio del manuale
2
HDPE
HDPE 2
Collezione di plastica
Sacchetto di plastica per
l'imballaggio del prodotto
22
PAP
Manuale
PAP 22
Collezione di carta
Etichetta di efficienza energetica
22
PAP
PAP 22
Collezione di carta
22
PAP
Scheda di garanzia
PAP 22
Collezione di carta
22
PAP
Altra etichetta (Carta)
PAP 22
Collezione di carta 4
LDPE
Parti di protezione (EPE)
LDPE 4
Collezione di plastica
Schiuma EPS (EPS+PP)
PS+PP 7
Collezione di plastica
7
PS+PP
6
PS
Schiuma EPS (EPS)
PS 6
Collezione di plastica
6
PS
Parti di protezione (EPS)
PS 6
Collezione di plastica
5
PP
Cintura di imballaggio
PP 5
Collezione di plastica

EN
10.This product contains a light source of energy efficiency class F for light source ERP,
test with(without) light cover.
Thank you for choosing our refrigerator. We appreciate your trust and suppo.
We will do our best to see you. We hope you enjoy your new purchase!
1. This appliance is not intended for use by persons (including children) with reduced physical,
senso or mental capabilities, or lacking experience and knowledge, unless they are given
supeision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supeised to ensure that they do not play with the appliance.
2. If the power cord is damaged, it must be replaced by the manufacturer, its seice agent or
similarly qualied persons in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, senso or mental capabilities or lacking experience and knowledge if they
are given supeision or instruction concerning safe use of the appliance and understand the
associated hazards. Children should not play with the appliance. Cleaning and user
maintenance should not be made by children without supeision.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.
7. WARNING: Do not use electrical appliances inside the food storage compaments, unless
they are the type recommended by the manufacturer.
8. Do not store explosive substances such as aerosol cans with a ammable propellant in this
appliance.
9. This appliance is intended to be used in household and similar applications such as
— Sta kitchen areas in shops, oces and other working environments;
— Farm houses and hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.

EN
Warning
Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
Warning: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Warning: Do not damage the refrigerating circuit.
Warning: Do not use electrical appliances inside the food storage compaments, unless
they are of the type recommended by the manufacturer.
Warning: Do not put food and liquids in glass containers in the freezing chamber to avoid
glass breakage.
Warning: If powered o, the refrigerator will be powered on 5min later to avoid compressor
damage.
Warning: If any live pa, abnormal noise, smell, smoke or other abnormality is found during
use, power o the appliance immediately and contact the aftersales seice timely.
Warning: Do not inse your ngers or hands into the bottom of the refrigerator, especially
into the bottom at the back; you can be hu by sharp objects.
Warning: Children must not play with or climb the refrigerator. Children must be supeised
by their parents to avoid danger.
Warning: Do not put your hand between the doors when opening or closing the refrigerator
door; otherwise you may get smashed ngers. Use the door handle to open or close the door.
Warning: Under the climate classes SN, N , STandT, the appliance should operate at ambient
temperatures ranging from 10℃ to 43℃. If the appliance operates outside the rated climate
class (ambient temperature range), it may not be able to maintain a satisfying interior temperature.
Opening the door for long periods can cause a signicant temperature increase in the refrigerator
compaments.
Regularly clean suaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 hours.
Store raw meat and sh in sealed or covered containers in the refrigerator to prevent them
touching or dripping onto other food.
Two-star frozen-food compaments are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes.
One-, two- and three-star compaments are not suitable for freezing fresh food.
If the refrigerator is left empty for an extended period of time, please leave it disconnected,
defrosted, clean, and d, with the doors open to prevent mould developing within the appliance.
Warning: When positioning the appliance, ensure the power cord is not trapped or damaged.

EN
Warning: Risk of fire / flammable materials.
Warning: Do not locate multiple poable socket-outlets or poable power supplies at the rear
of the appliance.
Caution
Caution: The power supply shall be consistent with the information on the nameplate, and the
standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One
socket must not be shared by more than one appliance; otherwise, re may be caused due to
overheat.
Caution: Never pull the power cord by hand. Hold and unplug the power connector from the
socket to disconnect the power supply. Never touch the power cord or connector with wet
hands to avoid electric shock.
Caution: The power cord must not be squeezed by the refrigerator or any heavy load, and the
power cord should not be bent extremely. The damage or peeling of power cord may result in
re or electric shock. If the power cord is broken or cut, please contact the after-sales seice
immediately.
Caution: No ammables, explosives, corrosive acid or alkaline substances are allowed in the
refrigerator.
Caution: The refrigerator must not be used in the rain or under the sunshine.
Caution: It is forbidden to place a container lled with liquid on the refrigerator because the
breakage or turnover of the container may aect the electrical insulation of refrigerator and
result in electric shock or re.
Caution: The refrigerator must not be disassembled or modied without permission. The repair
must be peormed by a specialist.
Caution: In case of leakage of any ammable gas such as coal gas, close the leaking valve rst
and then open the window for ventilation. Do not unplug the refrigerator connector
immediately to avoid re or explosion caused by electric spark.
Caution: Refrigerating appliances – in paicular a refrigerator-freezer Type I – might not
operate consistently (possibility of defrosting of contents or temperature becoming too high in
the frozen food compament) when sited for an extended period of time below the cold end
of the range of temperatures for which the refrigerating appliance is designed.

EN
Caution: Eeescent drinks should not be stored in food freezer compaments or cabinets or
in low-temperature compaments or cabinets, and food like water ices should not be
consumed too cold.
Caution: Do not exceed the storage time(s) recommended by the food manufacturers for any
kind of food.
Caution: During defrosting, precautions are necessa to prevent an undue temperature rise
of the frozen food, such as wrapping the frozen food with newspaper.
Caution: A temperature rise of the frozen food during manual defrosting, maintenance or
cleaning could shoen the storage life.
Caution: Care is required for the frozen food in storage if the refrigerator is out of seice for
an extended period of time (interruption of power supply or failure of the refrigerating system).
Caution: Measures must be taken when the refrigerator is switched o and out of seice
temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or
lid(s) propped ajar).

EN
5

EN
6
--Adjust the front part and adjusting leg of the refrigerator to level it. A unlevel refrigerator

EN
67 8 833
＞L1+100 ＞W1+200 ＞L1+500 ＞W1+500
This refrigerating appliance is not intended to be used as a built-in
appliance
7

EN
The appliance should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down
on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.

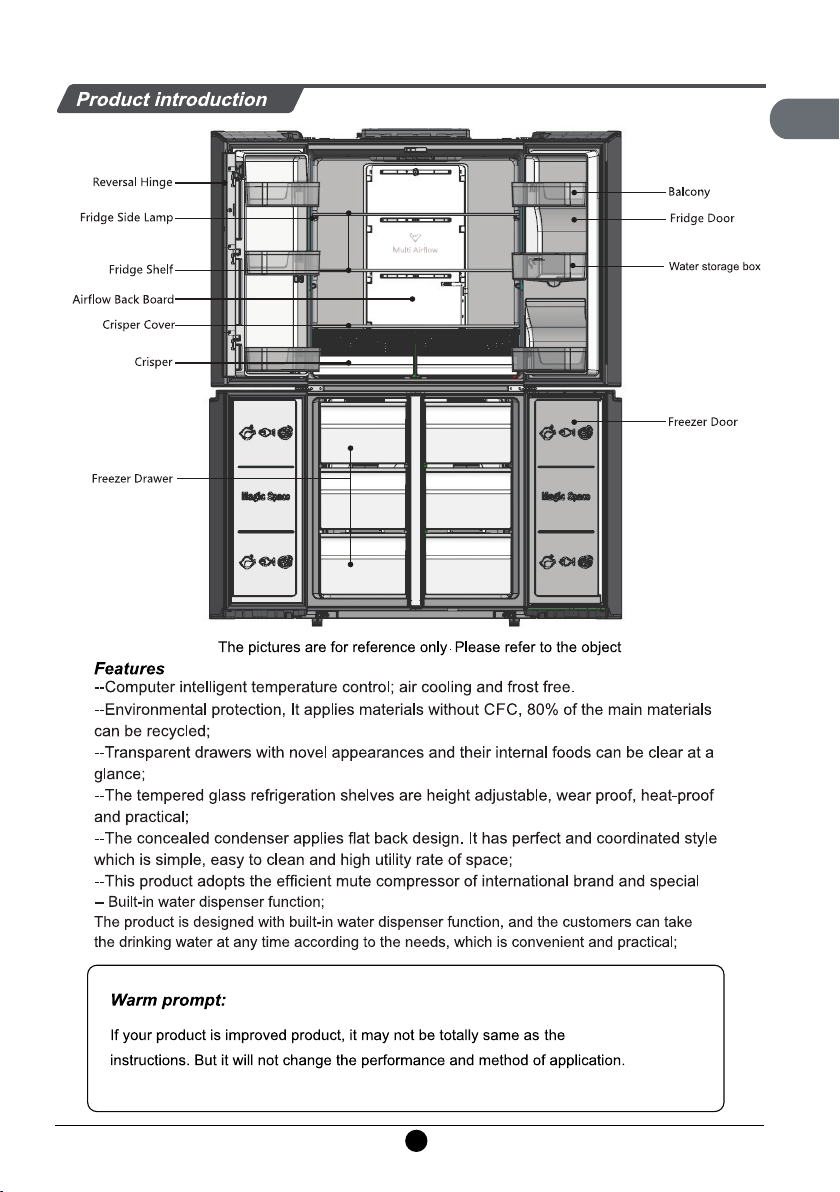

Please refer to the product introduction picture on page 5 for the placement of accessories.
8

EN
9

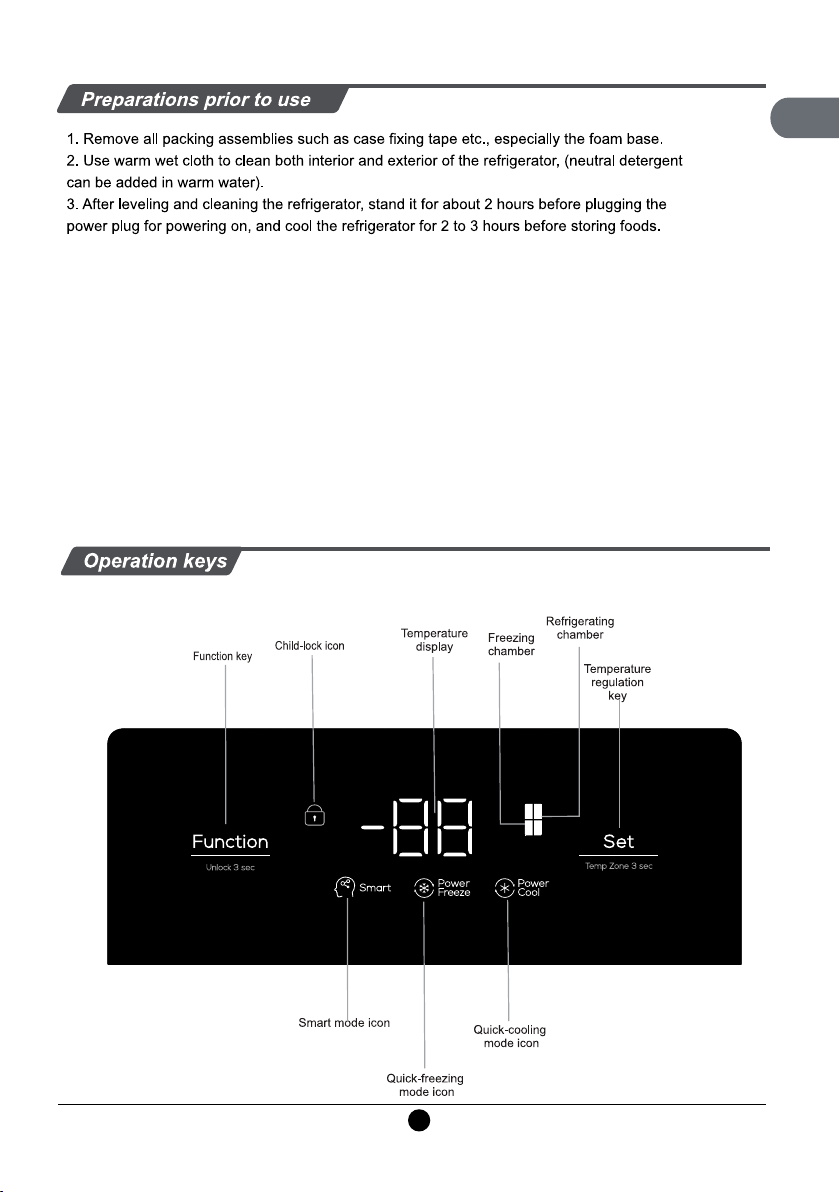

Power on for the first time

EN
10

EN
11

EN
12
Disassembly and assembly method of accessory
--Glass shelf in the refrigerating chamber: the height of the shelf is
adjustable, which facilitates the storage of articles with different
volumes. Pull the shelf outwardly and upwardly in a slight way to
take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can
be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for
long-term, such as meat and fish. It can be taken out by pulling
outwardly and lifting upwardly.
Handy tips: It is recommended to put into the large piece of meat
after being cut into small pieces, to avoid difficult cutting after being
frozen. The quick-freezing foods shall be distributed uniformly and
stored together after being frozen.
--Bottle pedestal at the refrigerating door: storing eggs, various
bottled drinks and other sundries. It can be taken out by being lifted
up slightly.
Note: Don't pull out the bottle pedestal at the refrigerating door
forcibly during disassembly, to avoid damaging the refrigerator.
Take out by pulling upwardly
and outwardly in a slight way
Take out by pulling outwardly
and upwardly in a slight way
Gently pull and get out along
the reverse direction of arrow
--Components of water storage box: Used for storing the water
yield needed by the water dispenser for the purpose of taking
the drinkingwater.
--Water-adding of water storage box: Firstly, open the box
cover of water storage box by hand, then, pour the water into
the water storage box from the container with water. After
adding the water, close the box cover of water storage box.
--Installation of components of water storage box: Before
installing the water storage box, firstly, cover the water
storage box firmly and reliably, then hold the both sides of
the water storage bucket by hand with balanced force, and
slowly press along the arrow direction until it cannot be pressed.
--Disassembly of components of water storage box: The disassembly method of the water
storage box is same with the installation method. Just implement it in the reverse direction.
★★ Warm prompt:
When adding the water in the water storage box, the water addition cannot exceed the tip line
of maximum water storage scale;
To ensure the water quality, it is suggested to clean the water storage bucket and outlet water
pipe regularly.
During the maintenance and cleaning of water storage box and pipes, it is suggested to
disconnect power supply to avoid the accident.
Pay attention to the operating strength when opening the door,rest the water in the storage tank
overflowed by opening the door too fast.

EN
13
-- Water dispenser: The users can take the drinking water through the
equipment at any time according to the own needs.
- Water taking: When the users want to drink water, they need to press
(extrude) the water-taking handle or use the rigid container to press
(extrude) the water-taking handle until the water outlet flows the water
and after meeting the needs. After taking water, stop pressing(extruding) ,
release the water-taking handle, and the water stops flowing.
Before taking water, please ensure the water storage box has enough
drinking water;
Please ensure the water quality in the water storage box is without
impurities and foreign matters, etc., to avoid blocking the water outlet.
The users are suggested to use 2.5L of drinking water at least in one week to ensure the
fresh water source in the water way system.
When taking water, it is suggested to close the door with water dispenser to avoid the shaking
of refrigerator door, sprinkling of water and other accidents in the process of taking water.
Due to the different areas and seasons, as well as the instability of indoor environment
temperature and humidity, it is the normal phenomenon if the water dispenser has water
droplets and condensation in other places except for the water outlet. Please wipe it with
towel and duster cloth, thiswill not affect the usage.
★★ Warm prompt:
Water-taking handle
It is suggested to clean the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe o
the oil contamination and other dirt. Then completely wipe o the
ff
detergent.
--Do not use alkaline detergent, soap powder, gasoline and
alcohol, talcum powder etc.; otherwise the coats or plastics may
be damaged;
--Regularly clean the refrigerator body and clear the ground dusts
to keep the refrigerator clean.
Inspections after maintenance:
Whether there are damages to the power line and plug1..
Whether there are dusts on the power plug; 3. Whether there is
abnormal heat on the plug; 4. Whether the socket is loose; 5.
Whether the plug is totally inserted.
Note:
If the power line and plug is damaged and there exist dusts,
electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before re-plugging
it;
Do not put your hands under the refrigerator to avoid getting hurt.
detergent
Neut ra l det ergent
Unplug the refrigerator
plug before cleaning
ff
Please use neutral

EN
14
The following items shall be inspected before occurring failures which require maintenance:
Failures:Refrigerator does not work,The refrigeration effect is poor
Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to
direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation
space around refrigerator.
Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight
and heat source. 3. Leave sufficient space between refrigerator and wall.
Failures:Foods in refrigerating chamber are frozen
Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too
much water are too close to the rear wall.
Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the
door side of glass shelf
Failures:There is abnormal sound in refrigerator
Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is
too close to the wall. 3. Check whether the refrigerator touches other objects.
Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space
around refrigerator. 3. Remove the obstacles.
Failures:There is abnormal odor in refrigerator
Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is
clean. 3. Check whether the foods are stored for too long .
Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3.Do not store foods
for too long time.
Non-failures
Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating
chamber and freezing chamber.
Cause:Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator
for heat dissipation and to prevent from condensation.
Phenomenon:The door is too tight and not easy to open
Cause:Reopening of the door immediately after closing it is hard because hot air enters the
refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.
Phenomenon:There is water ripple in refrigerator
Cause:When starting or stopping the compressor, the refrigerant will make such sound;
Water produced after defrosting will also make such sound.
Phenomenon:There is “Click” sound or tick sound in refrigerator
Cause:Shrinkage and swelling of case will make such sound;When the case is cold or the door is
opened, this sound will occur;
Phenomenon:There is hum sound in refrigerator
Cause:Running of compressor will make such sound (if the refrigerator is not leveled, this sound
will be louder)
Phenomenon:There is condensation or frosting freezing chamber door surface or food
surface
Cause:Temperature or humidity around the refrigerator is high;The door is opened for too long
time;The foods with too much water are not sealed or tightly wrapped
Phenomenon:There is condensation on the built-in light surface
Cause:Light will produce heat after being lit, and the door is opened for too long . So there is
temperature difference, and thus the light case will have condensation.
Phenomenon:There is condensation and water mist on body
Cause:Humidity around refrigerator is high, and the moisture in the air will gather in the case to
form condensation

EN
RP466CXF0
SN/N/ST/T
I
297L
3W
1.25A
R600a,68g
220-240V〜/50Hz
8kg/24h
95kg
833x678x1860mm
С
466L
169L
368 kWh/a
SN/N/ST/T
I
297L
3W
1.25A
R600a,68g
220-240V〜/50Hz
8kg/24h
95kg
833x678x1860mm
С
466L
169L
368 kWh/a
0.487 kWh/24h
Energy consumption E16
Energy consumption E32
Auxiliary energy consumption
0.487 kWh/24h
1.400 kWh/24h 1.400 kWh/24h
23.486 kWh/a23.486 kWh/a
RP466CXF0CY
RP466CXF0 RP466CXF0CY
15
SN/N/ST/T
I
297L
3W
1.25A
R600a,68g
220-240V〜/50Hz
8kg/24h
95kg
833x678x1860mm
С
466L
169L
368 kWh/a
0.487 kWh/24h
1.400 kWh/24h
23.486 kWh/a
RP466CXF0UK
RP466CXF0UK

Safe recovery instructions
16
EN
Replaceable (LED only) light source by a professional
Description of climate types
Symbol Ambient temperature ranges℃
ST
N
SN+ 10 to + 32
+ 16 to + 32
+ 16 to + 38
+ 16 to + 43T
Class
Extended temperate
Temperate
Subtropical
Tropical
Table 1 Climate classes
Extended temperate:‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C’;
temperate:‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 32 °C’;
Subtropical:‘thisrefrigeratingapplianceisintendedtobeusedatambienttemperatures
rangingfrom16°Cto38°C’;
Tropical:‘thisrefrigeratingapplianceisintendedtobeusedatambienttemperatures
rangingfrom16°Cto43°C’;
Dear customer
if you need customer service, please check warranty card for further information.
Disposal
Old appliances still have some surplus value. An environmentally friendly approach will ensure
that valuable raw materials are recycled.
The refrigerants used in your equipment and insulation materials require special handling
procedures. Make sure there is no pipe damage on the back of the equipment before handling.
Up-to-date information on the options for disposing of old equipment and packaging from old
equipment can be obtained from the local council.
Correct Disposal of this product.
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To retum your
used device, please use the return and ollection systems or contact the retailer
where the product was purchased. They can take this product for environmental
safe recycing.

FR
RP466CXF0
RP466CXF0CY
RP466CXF0UK

FR
