TCL fire tv 50FC63 User manual
EN 1
English
Important information and manual
Safety
Ensure that your domestic mains supply voltage matches
the voltage indicated on the identication sticker located
at the back of your set. Where the mains plug, AC inlet or
an appliance coupler is used as disconnect device, it shall
remain readily operable.
On certain models, the light indicator is located at the side
of the TV set. The absence of a light indication at the front
does not mean that the TV set is fully disconnected from the
mains. To disconnect the TV set completely, the mains plug
must be pulled out.
The TV set’s components are sensitive to heat. The
maximum ambient temperature should not exceed 35º
Celsius. Do not cover the vents at the back or sides of the
TV set. Leave sufcient space around it to allow adequate
ventilation. Install the appliance away from any source of
heat (replace, etc.) or appliances creating strong magnetic
or electric elds.
Moisture in rooms where the set is installed should not
exceed 75% humidity. Moving the set from a cold place to
a warm one can cause condensation on the screen (and on
some components inside the TV set). Let the condensation
evaporate before switching the TV set on again.
The or POWER/ button on the TV set or the button
on the remote control can be used to switch it on and put it
into standby mode. If you are not going to be watching the
TV for a lengthy period of time, switch it off completely by
removing the plug from the mains power socket.
During thunderstorms, we recommend that you disconnect
the TV set from the mains and aerial so that it is not affected
by electrical or electromagnetic surges that could damage
it. For this reason, keep the mains and aerial sockets
accessible so they can be disconnected, if necessary.
Unplug the TV set immediately if you notice it giving off a
smell of burning or smoke. You must never, under any
circumstances, open the TV set yourself, as you run the risk
of an electric shock in doing so.
WARNINGS
This appliance is intended for domestic household use only
and should not be used for any other application, such as for
non-domestic use or in a commercial environment.
If the external exible cable or cord of this product is
damaged, it shall be replaced by the manufacturer or his
service agent or a similar qualied person in order to avoid a
hazard.

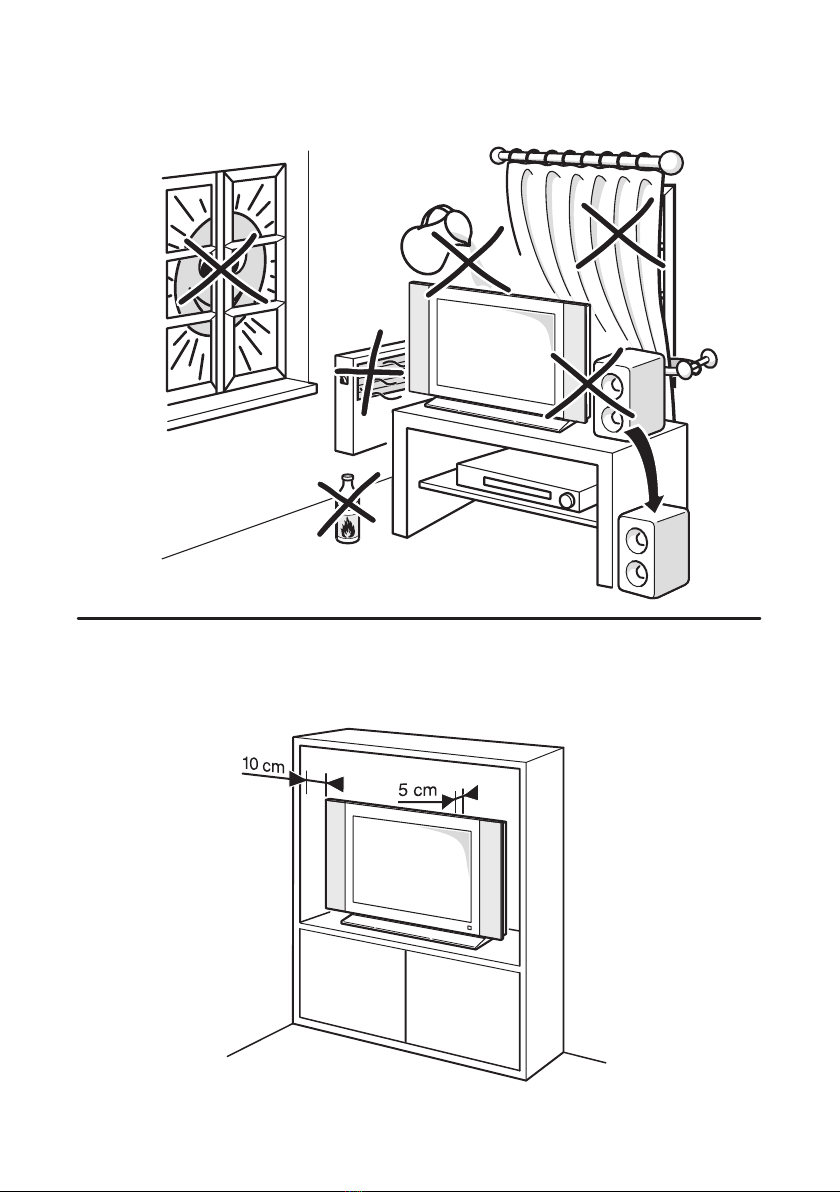

Leave more than 10cm clearance around the television to
allow adequate ventilation. The ventilation should not be
impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
The apparatus shall not be exposed to dripping or splashing
and no objects lled with liquids, such as vases shall be
placed on the apparatus.
Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, re or the like.
To reduce the risk of re or electric shock, do not expose this
apparatus to rain or moisture.
A television set may fall, causing serious personal injury or
death. Many injuries, particularly to children, can be avoided
by taking simple precautions such as:
• ALWAYS use cabinets or stands or mounting methods
recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television
set.
• ALWAYS ensure the television set is not overhanging the
edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing
on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your
television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for
example, cupboards or bookcases) without anchoring both
the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials
that may be located between the television set and
supporting furniture.
• NEVER place items that might tempt children to climb, such
as toys and remote controls, on the top of the television or
furniture on which the television is placed.
If the existing television set is being retained and relocated,
the same considerations as above should be applied.
Equipment with this symbol is a Class II or double
insulated electrical appliance. It has been designed
in such a way that it does not require a safety
connection to electrical earth.
Equipment without this symbol is a Class I
electrical appliance. It shall be connected to a
mains socket outlet with a protective earthing
connection.
To prevent the spread of re, keep candles or other
open ames away from this product at all times.
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact
with any internal part of this product.
N
This symbol indicates that the fuse may be in the
neutral, and that the mains shall be disconnected
to de-energize the phase conductors.
To prevent injury, this apparatus must be securely attached to
the oor/wall in accordance with the installation instructions.
To reduce the risk of RF exposure, the use distance of this
apparatus should be at least 100cm.
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded
by a skilled person so as to provide some protection against
voltage surges and built-up static charges.
EN 2
English
TV screen
The TV screen used in this product is made of glass.
Therefore, it can break when the product is dropped or
impacted upon by other objects.
The TV screen is a very high technology product, giving you
nely detailed pictures. Occasionally, a few nonactive pixels
may appear on the screen as a xed point of blue, green or
red. This does not affect the performance of your product.
Care
Use a glass-cleaning product to clean the screen and a soft
cloth and mild detergent to clean the rest of the set.
Important: Using strong detergents, alcohol-based and
abrasive products may damage the screen.
Dust the vents at the back and sides regularly. Using
solvents, abrasive or alcohol-based products could damage
the TV set. If an object or liquid enters the appliance, unplug
it immediately and have it checked by an authorized engineer.
Never open the appliance yourself since this may put you at
risk or damage the appliance.
ESD regulation
This apparatus meets ESD performance criteria. In case the
apparatus does not recover in Ethernet connection mode
or USB playing mode due to electrostatic discharge, user
intervention is required.
Bluetooth function notice
Bluetooth® technology (if available in your TV) uses 2.4GHz
frequency thus close proximity to Wi-Fi access points, routers
or microwave ovens might interfere with Bluetooth audio
streaming. If you face interruptions in audio reception, you
should restart your Bluetooth device to nd frequency with
less interferences and if you continue to face issues you
should move closer to TV or increase space between TV and
source of interferences.
Bluetooth declaration ID: D058931
Hanging the TV set on the wall
Warning: This operation requires at least two people
depending on your TV dimension.
To ensure a safe installation, observe the following safety
notes:
• Check that the wall can support the weight of the TV set
and wall mount assembly.
• Follow the mounting instructions provided with the wall
mount. For certain models, make sure to screw the
hexagonal VESA wall mounting screw bosses (and screws)
provided with the set into the nuts for the wall mount at the
back of your set before your wall mounting.
• The TV set must be installed on a vertical wall.
• Make sure to use only screws suitable for the material of
the wall.
• Make sure that the TV set cables are placed so that there
is no danger of tripping over them.
Important information and manual
All other safety instructions about our TV sets are also
applicable here.
Multi product user manual
The features described in this manual are common to most
models. Some features may not be available on your TV and/
or your TV may include features that are not described in this
user manual. The illustrations in this manual may differ from
the actual product. Please refer to the actual product.
Remote control buttons
16
12
18
9
4
14
11
8
3
2
1
19
17
15
13
10
7
6
5
20
Live
EN 3
English
1. Standby: Standby / On.
2. Microphone opening: Speak into the microphone when
using Alexa, including voice search.
3. Voice button: Activates the microphone on the remote.
4. Select: Conrms selections, enters sub-menu.
5. Direction: Navigate up/down or left/right through content.
(Navigates menus, setting options, moves the focus or cursor
etc. Follow the on-screen instructions)
6. Home: Opens the Home screen. Press and hold to display
quick settings menu.
7. Back/Return: Returns to previous menu screen, goes one
step back, closes open windows, returns to main screen or
Home tab.
8. Options: Displays setting options (where available).
9. Pause/play: Pauses/Plays the selected media.
10. Rewind: Moves frames backwards in media such as
movies, scrolls back a day in the channel guide.
11. Fast forward: Moves frames forward in media such as
movies, scrolls forward a day in the channel guide.
12. Guide: Displays the channel guide.
13. Volume +/-: Increases/decreases the volume level.
14. Programme +/-: Increases/Decreases channel number in
Live TV mode.
15. Mute: Completely turns off the volume of the TV.
16. Numeric buttions: Switches the channel in Live TV mode,
enters a number or a letter in the text box on the screen.
17. Subtitle: Displays audio and subtitle options, where you
can change the language, size and style preference. (where
available).
18. Live: Press to watch Live TV.
19. Featured channel shortcut: lets you directly access
featured channels.
Note: Apps are subject to the actual remote control.
20. Coloured buttons: Follow the on-screen instructions for
coloured button functions.
* To pair remote with the TV
When TV is turned on for the rst time, a pairing process for
your remote will be performed during the initial setup.
Your remote control should automatically pair with your TV at
this point, but if it didn't, follow the on screen
instructions to pair it. If you experience difculties in pairing
your remote with your TV you can turn off other
wireless devices and try again.
Radio Information
• Bluetooth® transmitter frequency range: 2402–2480MHz
• Bluetooth® transmitter power: <10dBm
• 2.4G Wi-Fi transmitter frequency range: 2412–2472MHz
• 2.4G Wi-Fi transmitter power: <20dBm
• 5G Wi-Fi transmitter frequency range:
- Band 1: 5150–5250MHz (<20dBm)
- Band 2: 5250–5350MHz (<20dBm)
- Band 3: 5470–5725MHz (<20dBm)
- Band 4: 5725–5850MHz (<14dBm)
• DVB-C tuner frequency range: 50–862MHz
• DVB-T/T2 tuner frequency range: 470–862MHz
* In all EU member states, operation of 5150–5350MHz is
restricted to indoor use only.
BE BG CZ DK DE EE IE
EL ES FR HR IT CY LV
LT LU HU MT NL AT PL
PT RO SI SK FI SE UK(NI)
* In UK, operation of 5150–5350MHz is restricted to
indoor use only.
UK
OSS Notice
This product uses the GPL (Version 2 and 3) and LGPL
(version 2.1) and MPL (version 1.1).
To send inquiries and requests for questions regarding open
source, contact nearest TCL ofce.
This product uses some software programs which are
distributed under the Independent JPEG Group.
This product uses some software programs which are
distributed under the libpng Project.
This product uses some software programs which are
distributed under the Freetype Project.
This product uses some software programs which are
distributed under the zlib Project.
This product uses some software programs (libxml2, curl,
expat, c-areas) which are distributed under the MIT.
This product uses CyberLink for C which is distributed under
the Open Source Project.
This product uses opensl, xerces which is distributed under
the Apach License Project.
GPL software: Linux Kernel, glib, libiconv, gcc libgcc, gcc
libstdc++, u-Boot loader, ffmepg, util-linux-ng, e2fsprogs,
wget, iptables
LGPL software: DFB (DirectFB), gstreamer, gst-plugins-
base, gst-plugins-good, gst-plugins-bad, gst-plugins-ugly, gst-
ffmpeg, glibc, wpa_supplicant
BSD software: webp, mng, uriparser
GNU software: dosfstools
Important information and manual
EN 4
English
[Legal Statement] of TCL - manufacturer of this TV set
Due to the various capabilities of products featuring the
SmartTV - Services, as well as limitations in the available
content, certain features, applications, and services may not
be available on all devices or in all territories. Some features
on SmartTV may also require additional peripheral devices
or membership fees that are sold separately. Please visit our
website for more information on specic device information
and content availability. The services and availability of
content through SmartTV are subject to change from time to
time without prior notice.
All content and services accessible through this device
belong to third parties and are protected by copyright, patent,
trademark and/or other intellectual property laws. Such
content and services are provided solely for your personal
noncommercial use. You may not use any content or services
in a manner that has not been authorized by the content
owner or service provider. Without limiting the foregoing,
unless expressly authorized by the applicable content owner
or service provider, you may not modify, copy, republish,
upload, post, transmit, translate, sell, create derivative works,
exploit, or distribute in any manner or medium any content or
services displayed through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE
THAT USE OF THE DEVICE IS AT YOUR SOLE RISK
AND THAT THE ENTIRE RISK AS TO SATISFACTORY
QUALITY, PERFORMANCE AND ACCURACY IS WITH
YOU. THE DEVICE AND ALL THIRD PARTY CONTENT
AND SERVICES ARE PROVIDED “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED. TCL EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS WITH RESPECT TO
THE DEVICE AND ANY CONTENT AND SERVICES,
EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT
LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, OF ACCURACY, OF QUIET ENJOYMENT, AND
NON-INFRINGEMENT OF THIRD PARTY RIGHTS. TCL
DOES NOT GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY
CONTENT OR SERVICE MADE AVAILABLE THROUGH
THIS DEVICE AND DOES NOT WARRANT THAT THE
DEVICE, CONTENT OR SERVICES WILL MEET YOUR
REQUIREMENTS, OR THAT OPERATION OF THE DEVICE
OR SERVICES WILL BE UNINTERRUPTED OR ERROR-
FREE. UNDER NO CIRCUMSTANCES, INCLUDING
NEGLIGENCE, SHALL TCL BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
ATTORNEY FEES, EXPENSES, OR ANY OTHER
DAMAGES ARISING OUT OF, OR IN CONNECTION WITH,
ANY INFORMATION CONTAINED IN, OR AS A RESULT
OF THE USE OF THE DEVICE, OR ANY CONTENT OR
SERVICE ACCESSED BY YOU OR ANY THIRD PARTY,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Third party services may be changed, suspended, removed,
terminated or interrupted, or access may be disabled at any
time, without notice, and TCL makes no representation or
warranty that any content or service will remain available for
any period of time. Content and services are transmitted by
third parties by means of networks and transmission facilities
over which TCL has no control. Without limiting the generality
of this disclaimer, TCL expressly disclaims any responsibility
or liability for any change, interruption, disabling, removal
of or suspension of any content or service made available
through this device. TCL may impose limits on the use of
or access to certain services or content, in any case and
without notice or liability. TCL is neither responsible nor liable
for customer service related to the content and services.
Any question or request for service relating to the content or
services should be made directly to the respective content
and service providers.
Device update
Typically, some devices are updated quarterly, but not always
so specic. Some devices, especially those that went on sale
more than three years ago, will only be updated if a critical
vulnerability is found and xed.
Important information and manual
EN 5
English
Dear Customer,
Hereby, TCL declares that this device is in compliance with Directive 2014/53/EU. The full text of the EU declaration
of conformity is available at the following internet address: www.tcl.com
TCL Operations Polska Sp. z o.o.
ul. A. Mickiewicza 31/41
96-300 Żyrardów, Poland
Email address: [email protected]
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product
Information for Users on Disposal of Old
Equipment and Batteries
[European Union]
These symbols indicate that the electrical and
electronic equipment and the battery with this
symbol should not be disposed of as general
household waste at their end-of-life. Instead,
the products should be handed over to the
applicable collection points for the recycling
of electrical and electronic equipment as well
as batteries for proper treatment, recovery
and recycling in accordance with your national
legislation and the Directive 2012/19/EU,
2006/66/EC and 2008/12/EC.
By disposing of these products correctly, you
will help to conserve natural resources and will
help to prevent potential negative effects on
the environment and human health which could
otherwise be caused by inappropriate waste
handling of these products.
For more information about collection points
and recycling of these products, please contact
waste disposal service or the shop where you
purchased the product.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
[Business users]
If you wish to dispose of this product, please
contact your supplier and check the terms and
conditions of the purchase contract.
[Other Countries outside the European
Union]
These symbols are only valid in the European
Union. If you wish to dispose of these items,
please do so in accordance with applicable
national legislation or other rules in your country
for the treatment of old electrical equipment and
batteries.
Notice:
The sign Pb
below the
symbol for
batteries
indicates that
this battery
contains lead.
Products
Battery
Important information and manual
Amazon, Fire and all related marks are trademarks of
You need to be signed in to an Amazon account in order to
use online services.
72-50FC63-T31Z2
Other TCL Smart TV manuals
