TCL
SERVICE MANUAL
L2D1MT23-A3
1. Caution
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
2
2. specification
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
6
3. Alignment Procedure
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
7
4
ˊ
Scheme Diagram
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
20
5. Troubleshooting
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
24
6. PCB Layout
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
30
7. Explode Diagram
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
32
8
ˊ
BOM List
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
33
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product


CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INSIDE . RE FER SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION


1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY


11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

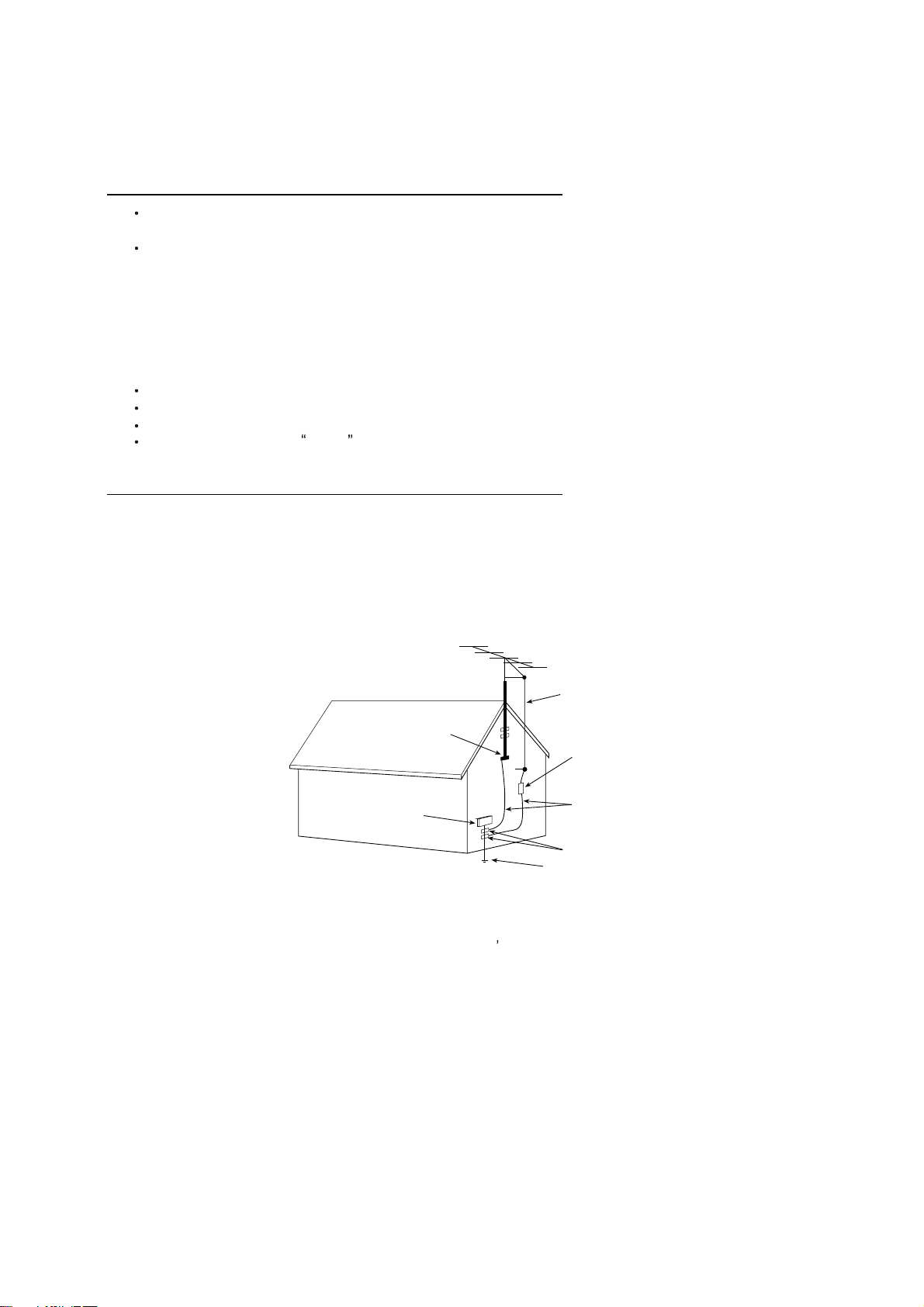

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET


18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operation by followingthe detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required,be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION


TCL MULTIMEDIA
LCD TV SPECIFICATION RELEASE
Version: V1.0 Issued Date: 2011.2.11
Panel Size (inch) 32"
Category LCD TV
Aspect Ratio 16:9
Color Temperature Warm / Standard / Cold SIGNAL FORMAT CAPABILITY
Backlight Adjustable Energy saving/Normal/Sunshine
& ALC(Adaptive Luma Control) Component Video Format Y,Pb/Cb,Pr/Cr:up to 1080P (Option)
Scaler Mode 4:3,16:9 (Full),Panoramic DVI Video Format X
Picture Effect 4 picture effects preset (Normal/Brightness/soft/Custom) HDMI Video Format SD,HD,VGA
Film Mode (3:2 pull down) yes PC Compatibility VGA,SVGA,XGA etc.
Picture Enhancement TERMINALS
Comb Filter 2D
Core Technology High-quality scaling engine& 2D/3D video de-interlacer
CCS X S-Video Input 1
DCDi
TM
X Audio Input for S-Video Share with "AV1 "
Blue Stretc
h
yes YPbPr Inpu
t
1
Black Stretch yes Audio Input for YPbPr Share with Audio for"AV2 "
Motion Compensation yes YCbCr Input Share with Audio for "YPbPr"
DLTI yes Audio Input for YCbCr Share with Audio for "YPbPr"
DCTI yes VGA Input(RGB) 1 (D-Sub,15 Pins)
Dynamic Skin Correction yes Audio Input for RGB 1
DNR yes DVI X
Panel Specification Audio Input for DVI X
Panel supplier HDMI 1.3 1
Viewing Technology -- Audio/CVBS Output (Composite) 1
Model: L32D12/MT23-AP
Audio/CVBS Input (Composite)
1 AUDIO R/L+1 Video: AV1IN
1 AUDIO R/L+1 Video:AV2 IN
p( p )
Display Resolution 1366*768 SPDIF --
Brightness (cd/m2) 400 Headphone Output 1 (3.5mm )
Contrast Ratio 4000:1 RF Input(Antenna) 1 (IEC Type)
Response Time 8ms (G to G) USB 2.0 1(MP3, JPEG.BMP)
Viewing Angle (H/V) 178°/178° Basic Info.
Life Time 50,000hrs TV System PAL SECAM-BG/DK/I NTSC/M(option)
Color 16.7M (8 bit) AV System PAL,SECAM,NTSC,NTSC4.43
SOUND Channels 255
Speakers Integrated speakers (Two mediant) Chassis MT23-AP/CN
Audio Power Output 5W*2 Certification 3C/CB
Sound Processing Stereo/MTK 3D surround Power Supply AC 110V-240V 50/60Hz
DVSS (Dolby Virtual Surrou
n
X Power Consumption-TV on 90W
DDAS (Digital Dynimic Audio Sy
s
X Power Consumption-Standby ˘W
AVC (Auto Volume Control) yes Default Color of Front Cabinet Black
BBE X Keyboard Position on the left side
SRS X Base Stand Detachable Yes
Unpackaged Dimension for Main Body (L*H*D) (mm)
With Base Stand (mm) 807mm*580mm*250mm
NICAM Yes Without Base Stand (mm) 807mm*530mm*81.5mm
Packaged Dimension (L*H*D)
Main Body (mm) 883mm*170mm*617mm
Function Speaker Box X
V-Chip X Base Stand Packaged with ALL
CCD (Closed Caption) X Net Weight (Kg) 8.9
Teletext X Gross Weight (Kg) 11
PIP/POP X Container Loading
Macro Vision X 20 feet 321
Calendar X 40 feet 672
Clock/Timers Yes 40 feet high 761
Lock Yes(Child Lock to lock keys) ACCESSORIES
OSD Language English/Simplified Chinese/Francese/Arabic Operation Manual English(Default)
OSD Features 256 COLOURS Remote Control Mod
e
RC288 (with two 7# batteries
)
Card Reader
X
Base Stand Integrated Packaging
DVD Combo X Speaker Box Integrated
USB Connection yes Wall Mount Optional
Game
X
Other
s
A
C Power cord
Screen Saver Yes
Demo Function X
Picture Freeze X
Sound Control
Sound Features
Dftdb
Volume, Balance,5 Band EQ, 5 mode presets
(Custom;Stereo;Music;Movie;News)
AV Stereo
Thai Bilingual only when BG system
Melody Yes
Software Upgrade Yes(through USB)
Design and specifications are subject to change without notice! Page 1 of 1
Approved by:
Drafted by:


TCL-CRT џϮ䚼䆒䅵Ёᖗ

Alignment Procedure
02'(/&KDVVLV˖
7&/'6(5,$/07
52:$56(5,$/07
7&/'6(5,$/07%
52:$56(5,$/07%
7&//(''6(5,$/07$
52:$/('& ㋏߫07$
Version˖V2.0
PREPARED BY : chunyu han DATE: 2010-3-20
APPROVED BY : DATE:


TCL-CRT џϮ䚼䆒䅵Ёᖗ
1
ǃ&RQWHQWV˖
07FKDVVLVLCD displayLVWKHLntegration of VIDEO and PC;It has high
quality picture, little cubage, little weight, energy saving and ;little raysDŽ
2
ǃ7KHZD\WRHQWHU)DFWRU\0RGHDQGH[LW)DFWRU\0RGH
ƹ
The way to enter Factory Mode
˖
Method one˖,QDQ\VRXUFHVˈHQWHUWRWKHPHQXˈmove the cursor to
“Contrast” item then press the “9”, “7”, “3”, “5” keys continuously on RC7KHQ
WKHIDFWRU\PHQXZLOOVKRZRQWKHSDQHOˈDVIROORZ˖
)$&725<0(18
9(56,21 07/)9&1
07/)9$3
07/)9/$
:% 
$'& 
92/&859( 
3,&&859( 
352'8&7,21 
&21),* 
6+236(7 
+27(/02'(
1905(6(7 
6+23,1,7 
Method two ˖ ,Q WKH Ā352'8&7,21ā RI WKH IDFWRU\ PHQX ˈ LI VHW
Ā)DF0RGHāDQGĀ)DF+RWNH\āDVĀRQā7KHUHLVDĀ3āRQWKHOHIWFRUQHU
RISDQHO,QWKLVVWDWXVˈ\RXFDQHQWHUWKHIDFWRU\PHQXE\SUHVVWKH
Ā5(7851āNH\RI5&
1RWH˖,QWKHIDFWRU\PHQX\RXFDQUHWXUQWRWKHSUHYLRXVPHQXE\WKH
Ā0(18āNH\RI5&
ƹ
7KHZD\WR([LW30RGH˖
3UHVVWKHĀ(
([LW
āNH\RI5&H[LWWKHIDFWRU\PHQX˗
3UHVVWKHĀ0
0HQX
āNH\RI5&JREDFNWRWKHSUHYLRXVPHQX˗
,IWKHKRWNH\RIIDFWRU\PHQXLVĀ21āˈWKHVWDWXVFDQQRWEHFKDQJHG


TCL-CRT џϮ䚼䆒䅵Ёᖗ
E\WXUQRIIWKH79<RXQHHGFKDQJHWKHKRWNH\RIWKHIDFWRU\WRĀ2))ā

6+23,1,7VKRXOGEHGRQHDWWKHODVWDOLJQPHQW,IWKH190LVVHW
2.\RXGRQRWQHHGGRWKLV


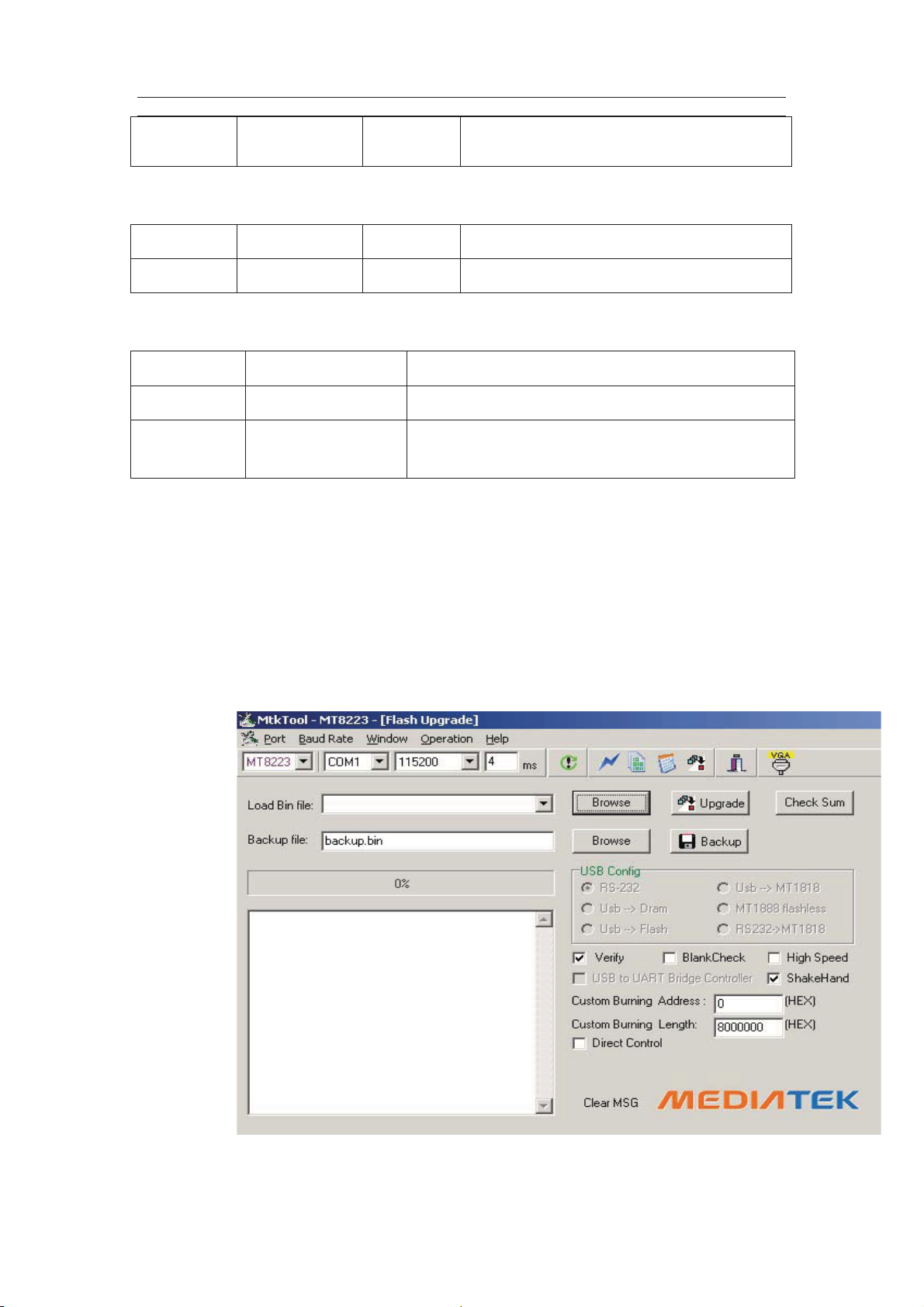

ǃ,QGLFDWHVRIWZDUHYHUVLRQ
3.1ǃSoftware part number should be made reference to the latest BOM.
3.2ǃYou see software version on the screen when enter the factory Mode.
CPU: V8-0MT2311-LF1V*** ( software version)
DAT:XXXXXX ( software edit date)
ǃ
The adjustment for the tv.

˄˅
Device.

ˈ&RORU793DWWHUQ*HQHUDWRU30˗
ˈ&KURPD˗
ˈ&RORU$QDO\]HU&$
˄˅
ADC Calibration


07FKDVVLVGRQRWQHHGDGMXVW˗
˄˅
White Balance Adjustment
7KH VRXUFHV $9<3E3U+'0,DQG3& QHHG DGMXVW WKH :% WKH VWDQGDUG RI
SLFWXUHQHHGDGMXVWWKHRWKHUGRQRWQHHG˗
VWDQGDUG˖; < ZDUP˖; < FROG˖; < 
GHYLFHVDQGVLJQDO˖

3DWWHUQZKLWHRI&KURPD3DWWHUQGDUNRI &KURPD ˈ
7LPLQJ3$/RI&KURPD
7KHVWHSVRIDGMXVWPHQW
(QWHUWKH:%DGMXVWPHQX˗
,QSXWWKHGDUNVLJQDORI&KURPD˗
$GMXVW5RIIVHW%RIIVHWWRVHWWKHUHDGLQJRIWKHFRORUDQDO\]HU
WR; < ˗
,QSXWWKHZKLWHVLJQDORI&KURPD˗
$GMXVW5JDLQ%JDLQWRVHWWKHUHDGLQJRIWKHFRORUDQDO\]HUWR
; < ˗
5HSHDW aPDNH VXUH WKH UHDGLQJ RI WKH FRORU DQDO\]HU WR


TCL-CRT џϮ䚼䆒䅵Ёᖗ
; < ˗
&KDQJ WKH VRXUFH ˈ UHSHDW  ˈ PDNH VXUH WKH :%
; < DŽ
NOTE
˖
)RUSDQHOFRQVLVWHQF\LVJRRGDQG:KLWH%DODQFHGDWHLVQRWQHHG
WRDGMXVWSOHDVHXVHGHIDXOWYDOXH

˄˅$OOVRXUFHVFKHFN
&RQQHFW DOO H[WHUQDO JHQHUDWRU GHYLFHV WR UHOHYDQW LQSXWVRXWSXWV
DFFRUGLQJWRWKHLUUHVSHFWLYHWHVWSDWWHUQVIRUPDWDQGFKHFNSLFWXUH
FRQWHQWDQGVRXQGTXDOLW\DFFRUGLQJO\
˄˅''&(','+'&3WHVW

ˈ%RWK9*$DQG+'0,KDYHWKHLURZQELQILOHVLQWKHQYPGRQRWQHHG
FKHFNLQWKHSURFHVV˗
)RU+'&3FRPSOLDQF\LWÿVQHHGHGWRFKHFNZKHWKHUWKH+'&3NH\KDV
EHHQZHOOVHW
˄˅)DFWRU\VKRSLQLW
$IWHUILQLVKLQJFKHFNˈLIWKHKRWNH\LVĀ21ā\RXQHHGLQLW$IWHU6+23
LQLWˈWKHVWDWXVZLOOEHWKHĀ6+236(7ā˗

ǃ
Factory Menu” Definition
7KHYDOXHRIWKHFKDVVLVLV2.'XULQJWKHIORZWKHWYGRQRWQHHGDGMXVW

˅9(56,21
62)79(56,21
'$7(
9(56,21
7,0(
˅:%
,WHP 6XELWHP 9DOXH 1RWH
6RXUFH 79$9<3E3UĂ)RU EDODQFH VRXUFH VHOHFW IRU
$9<3E3U+'0,DQG3&
5RIIVHW  5*UD\EDODQFH
*RIIVHW GHIDXOW **UD\EDODQFH
%RIIVHW  %*UD\EDODQFH
5JDLQ  5:KLWHEDODQFH
:%
*JDLQ GHIDXOW *:KLWHEDODQFH

