TDK-Lambda 2U GENESYS 5KW User manual

TECHNICAL MANUAL FOR
2U GENESYS
TM
5
kW
Programmable DC Power Supplies
Document: 83
-
515
-
00
0
Rev B
TDK
-
L
ambda
A
mericas Inc.
405 Essex Road, Neptune, NJ 07753
Tel:
(732) 922
-
9300
Fax:
(732) 922
-
9334
Web: www.
US.TDK
-
Lambda.com/HP

GENESYS™Manual Supplement
FOR UNITS EQUIPPED WITH “IEMD” OPTION,
ALSO REFER TO MANUAL 83
-
030
-
200 IEMD.
FOR UNITS EQUIPPED WITH “LAN” OPTION,
REFER TO MANUAL 83
-
034
-
100.

TABLE OF
CONTENTS
WARRANTY…………………………………………………………………………………………….
Pg. 1
SAFETY INSTRUCTIONS……………………………………………………………………………..
Pg. 2
GERMAN SAFETY INSTRUCTIONS…………………………………………………………………
Pg. 4
CHAPTER 1 GENERAL INFORMATION
…………………………………………………………...
Pg. 6
1.1 USER MAN
UAL CONTENT……………………………………………………………………….
Pg. 6
1.2 INTRODUCTION……………………………………………………………………………………
Pg. 6
1.2.1 General description…………………………………………………………………………..
Pg. 6
1.2.2 Models covered ……………………………………………………………………………...
Pg. 6
1.2.3 Featu
res and options ………………………………………………………………………..
Pg. 6
1.2.4 Multiple output power system ………………………………………………………………
Pg. 7
1.2.5 Control via the serial communication port…………………………………………………
Pg. 7
1.2.6 Analog voltage programming and monitor
ing…………………………………………….
Pg. 7
1.2.7 Parallel operation…………………………………………………………………………….
Pg. 7
1.2.8 Output connections………………………………………………………………………….
Pg. 7
1.2.9 Cooling and mechanical construction……………………………………………………..
Pg. 8
1.3 ACCESSORIES
…………………………………………………………………………………….
Pg. 8
1.3.1 General………………………………………………………………………………………..
Pg. 8
1.3.2 Serial link cable………………………………………………………………………………
Pg. 8
1.3.3 Misc. hardware……………………………………………………………………………….
Pg. 8
1.3.4 AC cables
…………………………………………………………………………………….
Pg. 8
CHAPTER 2 SPECIFICATIONS
……………………………………………………………………...
Pg. 9
2.1 OUTPUT RATING………………………………………………………………………………….
Pg. 9
2.2 INPUT CHARACTERISTICS……………………………………………………………………...
Pg. 9
2.3 CONSTANT VOLTAGE MODE…………
………………………………………………………...
Pg. 9
2.4 CONSTANT CURRENT MODE…………………………………………………………………..
Pg. 9
2.5 ANALOG PROG
R
AM
M
ING AND MONITORING……………………………………………….
Pg. 9

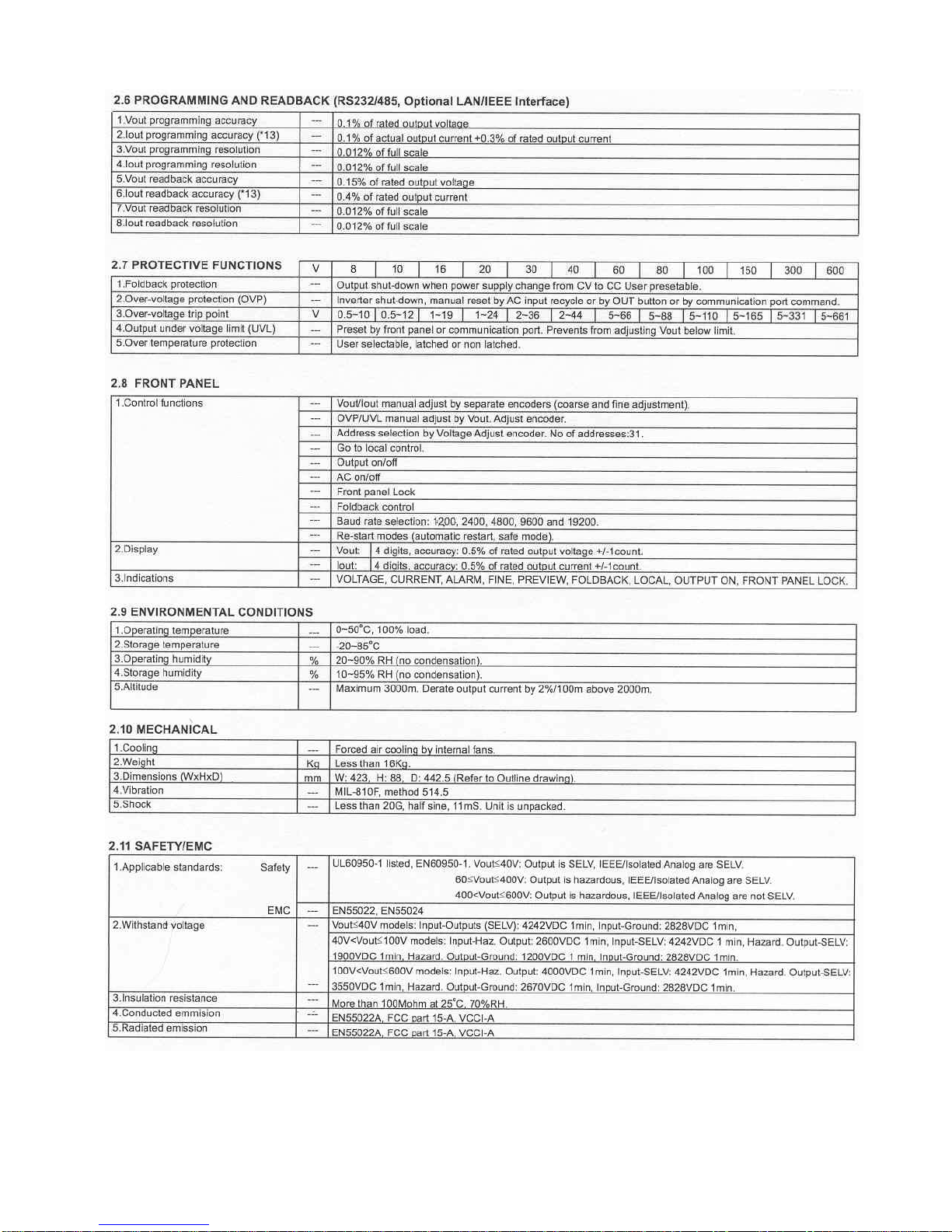

2.6 PROGRAMMING AND READBACK……………………………………………………………..
Pg. 10
2.7 PROTECTIVE FUNCTIONS……………………………………
…………………………………
Pg. 10
2.8 FRONT PANEL…………………………………………………………………………………….
Pg. 10
2.9 ENVIRONMENTAL CONDITIONS……………………………………………………………….
Pg. 10
2.10 MECHANICAL…………………………………………………………………………………….
Pg. 10
2.11 SAFETY/EMC……………………………………………………………………………………..
Pg. 10
2.12 SUPPLEMENTAL CHARACTERISTICS……………………………………………………….
Pg. 11
2.13 OUTLINE DRAWINGS…………………………………………………………………………...
Pg. 12
CHAPTER 3 INSTALLATION
………………………………………………………………………..
Pg. 13
3.1 GENERAL…………………………………………………………………………………………...
Pg. 13
3.2 PREPA
RATION FOR USE………………………………………………………………………...
Pg. 13
3.3 INITIAL INSPECTION……………………………………………………………………………...
Pg. 13
3.4 RACK MOUNTING…………………………………………………………………………………
Pg. 13
3.4.1 To install the power supply in a rack……………………………………………………..
Pg. 14
3.4.2 Rack mount slides………………………………………………………………………….
Pg. 14
3.5 LOCATION MOUNTING AND COOLING……………………………………………………….
Pg. 14
3.6 AC SOURCE REQUIREMENTS………………………………………………………………….
Pg. 14
3.7 AC INPUT POWER CONNECTION……………………………………………………………...
Pg. 15
3.7.1 AC input connector………………….………………………………………………………
Pg. 15
3.7.2 AC input cord………………………………………………………………………………..
Pg. 15
3.7.3 AC input wire connection………………….………………………………………………..
Pg. 15
3.8 TURN
-
ON CHECKOUT PROCEDURE……………………………………………
…………….
Pg. 17
3.8.1 General……………………………………………………………………………………….
Pg. 17
3.8.2 Prior to operation…………………………………………………………………………….
Pg. 17
3.8.3 Constant voltage check……………………………………………………………………..
Pg. 17
3.8.4 Constant current check…
…………………………………………………………………..
Pg. 17
3.8.5 OVP check…………………………………………………………………………………...
Pg. 18
3.8.6 UVL check……………………………………………………………………………………
Pg. 18
3.8.7 Foldback check……………………………………………………………………………...
Pg. 18

TABLE OF CONTENTS
3.8.8 Address se
t
ting……………….……………………………………………………………..
Pg. 18
3.8.9 Baud rate se
t
ting…………………………………………………………………………….
Pg. 18
3.9 CONNECTING THE LOAD………………………………………………………………………..
Pg. 19
3.9.1 Load Wi
r
ing…………………………………………………………………………………..
Pg
. 19
3.9.2 Current Carrying Capa
c
ity………………………………………………………………….
Pg. 19
3.9.3 Wire termination…………………………………………………………………………….
Pg. 20
3.9.4 Noise and Impedance E
f
fects……………………………………………………………...
Pg. 20
3.9.5 Inductive loads………………
……………………………………………………………….
Pg. 20
3.9.6 Making the load conne
c
tions……………………………………………………………….
Pg. 21
3.9.7 Connecting single loads, local sensing (d
e
fault)…………………………………………
Pg. 24
3.9.8 Connecting single loads, remote sen
s
ing…………………………
……………………...
Pg. 24
3.9.9 Connecting multiple loads, radial distribution method…………...……………………...
Pg. 24
3.9.10 Multiple loads connection with distribution term
i
nals…………………………………..
Pg. 25
3.9.11 Grounding ou
t
puts………………………………………………………
…………………
Pg. 25
3.10 LOCAL AND REMOTE SENSING………………………………………………………………
Pg. 26
3.10.1 Sensing wi
r
ing……………………………………………………………………………...
Pg. 26
3.10.2 Local sen
s
ing……………………………………………………………………………….
Pg. 26
3.10.3 Remote sen
s
ing……………………………………
………………………………………
Pg. 27
3.10.4 J2 sense connector technical inform
a
tion………………………………………………
Pg. 27
3.11 REPACKAGING FOR SHIPMENT………………………………………………………………
Pg. 27
CHAPTER 4 FRONT AND REAR PANEL CONTROLS AND CONNECTORS
………………...
Pg. 28
4.1 INTRODUCT
ION……………………………………………………………………………………
Pg. 28
4.2 FRONT PANEL
CONTROLS AND INDICATORS…………………………………………….
Pg. 28
4.3 REAR PANEL
CONNECTIONS AND CONTROLS…………………………………………..
Pg. 30
4.4 REAR PANEL SW1 SETUP SWITCH……………………………………………………………
Pg. 31
4.4.1 SW1
positions fun
c
tions……………………………………………………………………
Pg. 32
4.4.2 Resetting the switch…………………………………………………………………………
Pg. 32
4.5 REAR PANEL J1 PROGRAMMING AND MONITORING CONNECTOR……………………
Pg. 33
4.5.1 Making J1 conne
c
tions…………………………………………………………………….
.
Pg. 33
CHAPTER 5 LOCAL OPERATION
………………………………………………………………….
Pg. 35
5.1 INTRODUCTION…………………………………………………………………………………..
Pg. 35
5.2 STANDARD OPERATION…………………………………………………………………………
Pg. 35
5.2.1 Constant Voltage Mode…………………………………………………………………….
Pg.
35
5.2.2 Constant Current Oper
a
tion………………………………………………………………..
Pg. 35
5.2.3 Automatic Cros
s
over………………………………………………………………………..
Pg. 36
5.3 OVER VOLTAGE PROTECTION (OVP)………………………………………………………...
Pg. 36
5.3.1 Setting the OVP level…………………
…………………………………………………….
Pg. 36
5.3.2 Activated OVP protection indic
a
tions……………………………………………………..
Pg. 36
5.3.3 Resetting the OVP ci
r
cuit…………….. …………………………………………………...
Pg. 36
5.4 UNDER VOLTAGE LIMIT……………………………………………………………………….. .
Pg. 37
5.4.1 Setting the UVL level………………………………………………………………………..
Pg. 37
5.5 FOLDBACK PROTECTION……………………………………………………………………….
Pg. 37
5.5.1 Setting the Foldback prote
c
tion…………………………………………………………….
Pg. 37
5.5.2 Resetting activated Foldback prote
c
tion………
…………………………………………..
Pg. 37
5.6 OUTPUT ON/OFF CONTROL…………………………………………………………………….
Pg. 37
5.7 OUTPUT SHUT
-
OFF (SO) CONTROL VIA REAR PANEL J1 CONNECTOR………………
Pg. 37
5.8 ENABLE/DISABLE CONTROL VIA………………………………………………………………
Pg. 38
5.9 CV/CC SIGNAL……………………………………
………………………………………………..
Pg. 38
5.10 PS OK SIGNAL……………………………………………………………………………………
Pg. 38
5.11 SAFE START AND AUTO
-
RESTART MODES………………………………………………..
Pg. 39
5.11.1 Automatic start mode………………………………………………………………………
Pg. 39
5.11.2 Safe start mode……………
………………………………………………………………..
Pg. 39
5.12 OVER TEMPERATURE PROTECTION (OTP)………………………………………………..
Pg. 39
5.13 LAST SETTING MEMORY………………………………………………………………………
Pg. 39
5.14 SERIES OPERATION…………………………………………………………………………….
Pg. 39
5.14.1 Series connection for
increased output vol
t
age…………………………………………
Pg. 40
5.14.2 Series connection for positive and negative output vol
t
age……………………………
Pg. 41
5.15 PARALLEL OPERATION……………………………………………………………………….
Pg. 42

TABLE OF CONTENTS
5.15.1 Basic parallel operati
on……………………………………………………………………..
Pg. 42
5.15.2 Advanced parallel operation………………………………………………………………..
Pg. 42
5.16 DAISY
-
CHAIN SHUT
-
OFF CONNECTION…………………………………………………….
Pg. 45
5.17 FRONT PANEL LOCKING……………………………………………………………………….
Pg. 45
5.17.1 Unlo
cked front panel……………………………………………………………………….
Pg. 45
5.17.2 Locked front panel………………………………………………………………………….
Pg. 45
CHAPTER 6 REMOTE ANALOG PROGRAMMING………………………………………………
Pg. 46
6.1 INTRODUCTION……………………………………………………………………………………
Pg. 46
6.2 LOCAL/RE
MOTE ANALOG CONTROL…………………………………………………………
Pg. 46
6.3 LOCAL/REMOTE ANALOG INDICATION……………………………………………………….
Pg. 46
6.4 REMOTE VOLTAGE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT………..
Pg. 47
6.5 RESISTIVE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT…………………..
Pg
. 48
6.6 REMOTE MONITORING OF OUTPUT VOLTAGE AND CURRENT………………………...
Pg. 49
CHAPTER 7 RS232 & RS485 REMOTE CONTROL
……………………………………………...
Pg. 50
7.1 INTRODUCTION……………………………………………………………………………………
Pg. 50
7.2 CONFIGURATION………………………………………………………………………………….
Pg. 50
7.2.1 Default se
t
ting………………………………………………………………………………...
Pg. 50
7.2.2 Address se
t
ting……………………………………………………………………………….
Pg. 50
7.2.3 RS232 or RS485 sele
c
tion………………………………………………………………….
Pg. 50
7.2.4 Baud rate se
t
ting………………………………
……………………………………………..
Pg. 50
7.2.5 Setting the unit into Remote or Local mode……………………………………………….
Pg. 50
7.2.6 RS232/458 port at Local mode……………………………………………………………..
Pg. 51
7.2.7 Front panel in Remote mode……………………………………………………………….
Pg. 51
7.3 REAR PANEL RS232/485 CONNECTOR……………………………………………………….
Pg. 51
7.4 MD MODE OPTION (Factory Installed)………………………………………………………….
Pg. 52
7.4.1 MD Mode Description……………………………………………………………………….
Pg. 52
7.4.2 MD Mode enable
-
Serial communication mod
e…………………………………………
Pg. 52
7.4.3 MD Mode SRQ………………………………………………………………………………
Pg. 52
7.4.4 Communication Collisions………………………………………………………………….
Pg. 52
7.4.5 MD Mode SRQ Retransmission……………………………………………………………
Pg. 52
7.5 CONNECTING POWER SUPPLI
ES TO RS232 OR RS485 BUS…………………………….
Pg. 53
7.5.1 Single power su
p
ply………………………………………………………………………….
Pg. 53
7.5.2 Multi power supply connection to RS232 or RS485 BUS………………………………..
Pg. 54
7.6 COMMUNICATION INTERFACE PROTOCOL…………………………………………………
Pg. 54
7.6.1 Data fo
r
mat…………………………………………………………………………………...
Pg. 54
7.6.2 Addres
s
ing……………………………………………………………………………………
Pg. 54
7.6.3 End of message……………………………………………………………………………..
Pg. 54
7.6.4 Command r
e
peat………………………………………………………………………
…….
Pg. 54
7.6.5 Chec
k
sum…………………………………………………………………………………….
Pg. 54
7.6.6 Acknow
l
edge………………………………………………………………………………….
Pg. 54
7.6.7 Error me
s
sage………………………………………………………………………………..
Pg. 55
7.6.8 Bac
k
space…………………………………………………………………………………
….
Pg. 55
7.7 ERROR MESSAGES………………………………………………………………………………
Pg. 55
7.8 COMMAND SET DESCRIPTION…………………………………………………………………
Pg. 55
7.8.1 General guides……………………………………………………………………………….
Pg. 55
7.8.2 Command set categ
o
ries……………………………………………………………………
Pg. 55
7.8.3 Initialization control co
m
mands……………………………………………………………..
Pg. 56
7.8.4 ID control co
m
mands………………………………………………………………………..
Pg. 56
7.8.5 Output control co
m
mands…………………………………………………………………..
Pg. 56
7.9 GLOBAL OUTPUT COMMANDS……………
……………………………………………………
Pg. 58
7.9.1 General……………………………………………………………………………………….
Pg. 58
7.10 SINGLE BYTE COMMANDS……………………………………………………………………
Pg. 59
7.10.1 General……………………………………………………………………………………..
Pg. 59
7.10.2 Global commands without respo
nse…………………………………………………….
Pg. 59
7.10.3 Global commands with response………………………………………………………..
Pg. 60
7.10.4 Addressed commands with response…………………………………………………..
Pg. 60
7.10.5 Addressed commands without response……………………………………………….
Pg 61

TABLE OF CONTENTS
7.10.6 Status Control Co
m
mands………………………………………………………………...
Pg. 63
7.11 STATUS, ERROR AND SRQ REGISTERS……………………………………………………
Pg. 63
7.11.1 General Description……………………………………………………………………….
Pg. 63
7.11.2 Condition
al regi
s
ters……………………………………………………………………….
Pg. 64
7.11.3 Service Request Enabled and Event Regi
s
ters………………………………………..
Pg. 65
7.12 SERIAL COMMUNICATION TEST SET
-
UP………………………………………………….
Pg. 68
CHAPTER 8 ISOLATED ANALOG PROGAMMING
OPTION
………………………………
….
Pg. 69
8.1 INTRODUCTION……………………………………………………………………………………
Pg. 69
8.2 SPECIFICATIONS………………………………………………………………………………….
Pg. 69
8.2.1 0
-
5V/0
-
10V o
p
tion…………………………………………………………………………...
Pg. 69
8.2.2 4
-
20mA o
p
tion……………………………………………………………………………..
P
g. 69
8.3 ISOLATED PROGRAMMING & MONITORING CONNECTOR………………………………
Pg. 70
8.4 SETUP AND OPERATING INSTRUCTIONS……………………………………………………
Pg. 71
8.4.1 Setting up the power supply for 0
-
5/0
-
10V Isolated Programming and Monito
r
ing……
Pg. 71
8.4.2 Settin
g up the power supply for 4
-
20mA Isolated Programming and Monito
r
ing……..
Pg. 71
9.1 INTRODUCTION……………………………………………………………………………………
Pg. 72
9.2 UNITS UNDER WARRANTY……………………………………………………………………...
Pg. 72
9.3 PERIODIC MAINTENANCE……………………………………………………………………….
Pg. 72
9.4 ADJUSTMENT AND CALIBRATION……………………………………………………………..
Pg. 72
9.5 PARTS REPLACEMENT AND REPAIRS………………………………………………………..
Pg. 72
9.6 TROUBLESHOOTING……………………………………………………………………………..
Pg. 72
9.7 FUSE RATING……………………………………………………………………………………...
Pg. 73

83
-
000
-
016 Rev.
F
WARRANTY
This
TDK
-
Lambda
Americas Inc.
product is warranted against defects in materials and workmanship for
a period of five years from date of shipment. During the warranty period,
TDK
-
Lambda
Americas Inc.
will, at it’s option, either repair or replace
products which prove to be defective.
LIMITATION OF WARRANTY
The warranty shall not apply to defects resulting from improper or inadequate usage or maintenance by
the buyer, buyer supplied products or
interfacing. The warranty shall not apply to defects resulting from
unauthorized modifications, or from operation exceeding the environmental specifications of the
product, or if the QA seal has been removed or altered by anyone other than
TDK
-
Lambda
Ameri
cas
Inc.
authorized personnel.
TDK
-
Lambda
Americas Inc.
does not warrant the buyer’s circuitry or
malfunctions of
TDK
-
Lambda
Americas Inc.
products resulting from the buyer’s circuitry. Furthermore,
TDK
-
Lambda
Americas Inc.
does not warrant any damage occu
rring as a result of the buyer’s circuitry
or the buyer’s
-
supplied products. THIS LIMITED WARRANTY IS IN LIEU OF, AND
TDK
-
LAMBDA
AMERICAS INC
DISCLAIMS AND EXCLUDES, ALL OTHER WARRANTIES, STATUTORY, EXPRESS
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, OR OF CONFORMITY TO MODELS OR SAMPLES.
WARRANTY SERVICE
This product must be returned to an authorized
TDK
-
Lambda
Americas Inc.
service facility for repairs or
other warranty service. For p
roducts returned to
TDK
-
Lambda
Americas Inc.
for warranty service, the
buyer shall prepay shipping charges to
TDK
-
Lambda
Americas Inc
. If the unit is covered under the
foregoing warranty then
TDK
-
Lambda
Americas Inc.
shall pay the shipping charges to retu
rn the
product to the buyer. Refer to Section 3.11 for repackaging for shipment.
DISCLAIMER
The information contained in this document is subject to change without notice.
TDK
-
Lambda
Americas
Inc.
shall not be liable for errors contained in this document
or for incidental or consequential damages
in connection with the furnishing, performance or use of this material. No part of this document may be
photocopied, reproduced or translated into another language without the prior written consent of
TDK
-
Lambda
A
mericas Inc
.
TRADEMARK INFORMATION
Genesys™
power supply is a trademark of
TDK
-
Lambda
Americas Inc.
Microsoft™
and Windows
™
are trademarks of Microsoft Corporation.
THE FCC WANTS YOU TO KNOW
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment i
n a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
FCC WARNING
Modifications not expressly approved by manufacturer could void the user authority to ope
rate the
equipment under FCC Rules.
1

83
-
515
-
000
Rev.
B
2
SAFETY INSTRUCTIONS
CAUTION
The following safety precautions must be observed during all phases of operation, service and r
e
pair of
this equipment. Failure to comply with the safety p
recautions or warnings in this document violates
safety standards of design, manufacture and intended use of this equipment and may i
m
pair the built
-
in prote
c
tions within.
TDK
-
Lambda
Americas Inc. shall not be liable for user’s failure to comply with these
requirements.
INSTALLATION CATEGORY
The Genesys
TM
power supply series has been evaluated to INSTALLATION CATEGORY II. Install
a
tion
category (over voltage category) II: local level, appliances, portable equipment etc. With smaller tra
n-
sient over voltage th
an Installation Category (over voltage category) III.
GROUNDING
This product is a Safety Class 1 instrument. To minimize shock hazard, the instrument chassis must be
connected to an electrical ground
(Safety ground)
. The instrument must be connected to the
AC power
supply mains through a three conductor power cable, with the ground wire firmly connected to an ele
c-
trical ground (safety ground) at the power outlet.
For instruments designed to be hard
-
wired to the supply mains, the protective earth terminal mu
st be
connected to the safety electrical ground before another connection is made. Any interruption of the
protective ground conductor, or disconnection of the protective earth terminal will cause a potential
shock hazard that might cause personal injury.
FUSES
Fuses must be changed by authorized
TDK
-
Lambda
Americas Inc. service personnel only. For conti
n-
ued prote
c
tion against risk of fire, replace only with the same type and rating of fuse. Refer to Chapter
9 for fuse ra
t
ings.
INPUT RATINGS
Do not us
e AC supply, which exceeds the input voltage and frequency rating of this instrument. The
input voltage and frequency rating of the Genesys
TM
power supply series is: 190
-
240V, 50/60Hz for
three phase 200V models and 380
-
415, 50/60 Hz for three phase 400V m
odels. For safety reasons,
the mains supply voltage fluctu
a
tions should not exceed +/
-
10% of nominal voltage.
LIVE CIRCUITS
Operating personnel must not remove the instrument cover. No internal adjustment or component r
e-
placement is allowed by
TDK
-
Lambda
A
mericas Inc. qualified personnel. Never replace components
with power cable connected. To avoid injuries, always disconnect power, discharge circuits and remove
e
x
ternal voltage source before touching components.
PARTS SUBSTITUTIONS & MODIFICATIONS
Parts s
ubstitutions and modifications are allowed by authorized
TDK
-
Lambda
Americas Inc. service
perso
n
nel only. For repairs or modifications, the instrument must be returned to an authorized
TDK
-
Lambda
Americas Inc. service faci
l
ity.
WA
RNING
OUTPUT TERMINALS GROUNDING
There is a potential shock hazard at the RS232/RS485 and the IEEE ports when using power su
p
plies
with rated or combined voltage greater than 400V and the Positive Output of the Power Supply is
grounded. Do Not connect the
Positive Output to ground when using the RS232/RS485 or IEEE.

83
-
515
-
000
Rev.
B
3
SAFETY INSTRUCTIONS
ENVIRONM
ENTAL CONDITIONS
The Genesys
TM
power supply series safety approval applies to the following operating cond
i
tions:
*Indoor use
*Ambient temperature: 0°C to 50°C
*Maximum relative humidity: 90% (no condensation)
*Altitude: up to 3000m
*Pollution degree 2
Do not use this product in environments with strong Electromagnetic field, corrosive
gas and conductive materials.
CAUTION Risk of Electrical Shock
On (Supply)
Instruction manual symbol. The instr
u
ment
will be mark
ed with this symbol when it is
necessary for the user to refer to the i
n-
struction manual.
-
-
-
Direct Current (DC)
Indicates hazardous voltage.
Alternating
Current (AC)
Indicates ground terminal.
Three
-
Phase Alternatin
g Cu
r
rent
Protective Ground Conductor Terminal
Standby (Supply)
Off (Supply)
The WARNING sign denotes a hazard. An attention to a procedure is called.
Not fo
l
lowing procedure correctly could re
sult in personal injury.
A WARNING sign should not be skipped and all indicated conditions must be
fully understood and met.
The CAUTION sign denotes a hazard. An attention to a procedure is called. Not follo
w-
ing
the
pr
ocedure correctly could result in damage to the equipment. Do not proceed
b
e
yond a CAUTION sign until all indicated conditions are fully understood and met.
FCC COMPLIANCE NOTICE:
Note: This equipment has been tested and found to comply with the limits f
or a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pr
o-
vide reasonable protection against harmful interference when the equipment is ope
r-
ated in a commercial environment. This equipment generates electro
-
magnetic
fields,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful i
nterference
in which case the user will be required to correct the interference at his own expense.
3
~

83
-
515
-
000
Rev.
B
4
SICHERHEITS
-
INSTALLATIONS ANWEISUNGEN
Vorsicht
Vor Anschluss an das Netz ist die Aufstellanleitung wie nachstehend beschrieben zu beachten. Die
nachstehen
den Sicherheitsanweisugen mussen während aller Phasen des Betriebes, des Services
und der Reparatur dieser Ausrustung beachtet werden. Alle notwendigen Bedingungen die
sicherstellen, dass die Einrichtung zu keiner Gefahr im Sinne dieser Norm führen kann, s
ind in diesem
Handbuch beschrieben.
TDK
-
Lambda Americas Inc.
ist nich verantwortlich fur Fehler, die bei der Inbetriebnahme des Gerates
auf Grundlage dieser Sicherheitsanweisungen durch den Betreiber entstehen können.
Betriebsbedingungen
Die Genesys
TM
Str
omversorgungs
-
Reihe ist zur installation gemass Uberspannungs
-
Kategorie 2
entwickelt worden.
Installatios Kategorie (Uberspannungs
-
Kategories) 2 bedeutet: Kleinindustrie, Geräte, bewegliche
Ausrustung etc.. mit Uberspannungen kleiner als Installation Kateg
orie 3.
Erdungskonzep
t
Dieses Produkt ist ein Gerat mit Schutzklasse1. Damit gefahrliche Energieinhalte und Spannungen
vermieden werden, ist das Geratechassis an eine Schutzerde anzuschliessen. Das Gerat muss an die
AC
-
Wechselspannungsversorgung mit 3 Leit
ern (L, N, PE) angeschlossen werden. Der PE
-
Anschluss ist an einen festen Erder anzuschliessen. Bei Festverdrahtung des Gerates ist
sicherzustellen, dass der PE Anschluss als erstes durchgefuhrt wird.
Jede mogliche Unterbrechung des PE
-
Leiters oder
Trennung der PE Masses kann einen moglichen
elektrischen Schlag hervorrufen, der Personenschaden zur Folge hatte.
Vorsicht
Erdung des DC
-
Ausgangs
Es besteht Energiegefahr am RS232/RS485 und IEEE Anschluss, falls die Ausgangsspannung des
Gera
tes grosser ist als 400V und der positive Ausgangsanschluss des Netzteiles geerdet wird. Dies gilt
insbesondere auch bei Reihenschaltungen von unterschiedlichen Netzteilen. Wird die RS232/485 oder
IEEE Schnittstelle verwendet, ist darauf zu achten, dass de
r Plus
-
Ausgangsanschluss nicht geerdet
wird.
Absicherung
Sicherungen durfen nur durch autorisierte
TDK
-
Lambda Americas Inc.
Service Personen ausgetauscht
werden. Um Brandgefahr vorzubeugen, sind nur Sicherungen zu verwenden mit gleicher Bauart und
Auslosec
harakteristik. Siehe hierzu Wartungsanweisungen in Kapitel 6 bezuglich Sicherungen.
Anschluss an Versorgungsstromkreis
Der Betrieb des Gerates ist nur fur den dafur spezifizierten Wechselspannungsbereich und der
angegebenen Frequenz erlaubt.
Der Nominalein
gangsspannungsbereich der Genesys
TM
Serie liegt bei 100
-
240VAC mit 50/60Hz. Fur
einen sicheren Betrieb des Gerates ist eine Abweichung von max. +/
-
10% der Nominalspannung
erlaubt.
Spannungsfuhrende Teile
Die Gerateabdeckung darf nur im stromlosen Zustand g
eoffnet werden. Interne Modifikationen, sowie
Bauteileaustausch ist nur durch
TDK
-
Lambda Americas Inc.
qualifiziertes Personal erlaubt. Vor
Austausch von Bauteilen ist das Netzkabel bzw. Die Versorgungsspannung zu trennen.
Energieversorgungsanschlusse sind
immer zu trennen um Personenverletzungen durch gefahrliche
Energieinhalte und Spannungen auszuschliessen. Die Stromkreise sind zu entladen, extreme
Spannunsquellen sind zu entfernen bevor Bauteile bzw. Komponenten getauscht werden.

83
-
515
-
000
Rev.
B
5
Anderungen and Bauteileersatz
Ersatzteilaustausch
–
und Anderungen durfen nur von autorisiertem
TDK
-
Lambda Americas Inc.
SERVICE
-
PERSONEN durchgefuhrt werden. Fur Reparaturen oder Anderungen ist das
Gerat zur
TDK
-
Lambda Americas Inc.
Service
-
Niederlas
sung zu retournieren.
SICHERHEITS
-
HINWEISE
Umweltbedingungen
Die Genesys
TM
Stromversorgungs
-
Serie ist gemassden Sicherheitsabnahmen fur folgende
Betriebsbedingungen zugelassen.
*Stationare Einrichtungen in Gebauden.
*Umgebungstemperaturebereich: 0
-
50
°
C.
*M
aximale Relative Luftfeuchtigkeit: 90% (nicht kondensierend).
*Betriebshohe: bis zu 3000m.
*Verschmutzungsgrad 2.
Sicherheits
-
und Warnsymbole
VORSICHT Spannungsfuhrende Teile
-
Gefahr durch elektrischen Schlag bzw.
Energieinhalte
Handbuch
-
Symbol. Das Ge
rat bzw. Gerateteile werden mit diesem Symbol
gekennzeichnet, wenn es fur den Benutzer notwendig ist, sich auf die Anweisungen im
Handbuch zu beziehen.
Zeigt
"
spannungsfuhrende Teile“ mit gefahrlicher Spannung an.
Zeigt Masse
-
Anschluss an, keine Schu
tzerde. (z.B. Masseanschlussan einenVerbraucher).
Schutzleiter
-
Anschlussklemme.
Symbol fur Schalter oder Drucknopfe
-
Zeigt die
Symbol fur Schalter oder Drucknopfe
-
Zeigt die
-
-
-
Gleichspannung (DC)
Wechselspann
ung (AC)
3
-
phasen Wechselspannung
Symbol fur Bereitschaft (Standby)
Dieses Warnaufschrift weist auf eine Gefahr hin, die eine Uberprufunganweisung nach
sich ziecht. Nichteinhaltung kann zu Personenschaden fuhren. Dieser Warnhinweis darf
nicht ub
ersprungen werden und die beschriebene Vorgehensweise musstrikt verstanden
werden und dementsprechend umgesetzt werden.
Diese „Vorsichtswarnung“ weist auf eine Gefahr hin, die einer Vorkehrung bedarf.
Nichteinhaltung kann
zur Zerstorung der Anlage oder des Gerates fuhren. Bitte
berucksichtigen Sie alle Anweisungen, die dort beschreiben sind, bevor Sie mit Benutzung
der Anlage bzw. des Gerates fortfahren.
3
~

83
-
5
15
-
0
00
Rev.
B
6
CHAPTER 1 GENERAL INFORMATION
1.1 USER MANUAL CONTENT
This User’s
Manual contains the operating instructions, installation instructions and specifications of
the Genesys
TM
50
00W power supply series. The instructions refer to the standard power supplies,
including the built
-
in RS232/RS485 serial communication. For inform
ation related to operation with the
optional IEEE programming, refer to User Manual for Power Supply IEEE Programming Inte
r
face.
1.2 INTRODUCTION
1.2.1
General Description
Genesys
TM
power supplies are wide output range, high performance switching power supplies
. The
Genesys
TM
series is power factor corrected and operates from AC voltage range of 190
-
240VAC
three phase for 200V models and 380
-
41
5
VAC three phase for 400VAC models. Output Voltage and
Current are continuously displayed and LED indicators show the co
mplete operating status of the
power supply. The Front panel controls allow the user to set the output parameters, the protections
levels (Over
-
Voltage protection, Under
-
Voltage limit and Foldback) and preview the se
t
tings. The rear
panel includes the nece
ssary connectors to control and monitor the power supply operation by remote
analog signals or by the built
-
in serial communication (RS232/RS485).GPIB programming
, LXI cert
i-
fied LAN and
Isolated
-
Analog programming/monitoring
are optional.
1.2.2
Models covered by
this Manual
Models with rated output from 0
-
8VDC/0
-
600A to 0
-
600VDC/0
-
8.5A.
Model
Voltage range
(V)
Current
range (A)
GEN 8
–
6
00
0
-
8
0
-
6
00
GEN 10
-
50
0
0
-
10
0
-
50
0
GEN 1
6
-
31
0
0
-
1
6
0
-
31
0
GEN 20
-
2
5
0
0
-
20
0
-
2
5
0
GEN 30
-
1
7
0
0
-
30
0
-
1
7
0
GEN 40
-
12
5
0
-
40
0
-
12
5
GEN 60
-
8
5
0
-
60
0
-
8
5
GEN 80
-
65
0
-
80
0
-
65
GEN 100
-
50
0
-
100
0
-
50
GEN 150
-
34
0
-
150
0
-
34
GEN 300
-
17
0
-
300
0
-
1
7
GEN 600
-
8.5
0
-
600
0
-
8
.5
1.2.3
Features and options

Constant Voltage / Constan
t Current with automatic crossover.

Active power factor correction.

Embedded Microprocessor Controller.

Built
-
in RS232/485 Interface.

Voltage & Current high resolution adjustment by digital encoders.

High accuracy programming/readback
-
16 bit.

Software Cali
bration (no internal trimmers / potentiometers).

Last Setting Memory.

Independent Remote ON/OFF (opto
-
isolated) and remote Enable/Disable.

Parallel operation (Master/Slave) with Active current sharing.

Remote sensing to compensate for voltage drop of power
leads.

External Analog Programming and Monitoring standard (0
-
5V or 0
-
10V, user selectable).

83
-
5
15
-
0
00
Rev.
B
7

Cooling fan speed control for low noise and extended fan life.

Zero stacking
-
no ventilation holes at the top and bottom surface of the power supply.

Optional GPIB
interface (SCPI compatible).

Optional Isolated Analog programming/monitoring (0
-
5V or 0
-
10V, user selectable and 4
-
20mA).
1.2.4
Multiple output power system
The Genesys
TM
power supplies series can be configured into a programmable power system of up to
31 units
using the built
-
in RS232/RS485 communication port and the RS485 linking cable provided
with each power supply.
In a GPIB system, each power supply can be controlled using the optional GPIB controller (factory
installed).
1.2.5
Control via the serial communicati
on port
The following parameters can be programmed /
monitored
via the serial communication port:
1.
Output Voltage setting.
2.
Output Current setting.
3.
Output Voltage measurement.
4.
Output On/Off control.
5.
Output Current measurement.
6.
Foldback protection setting
7.
Ove
r
-
voltage protection setting and readback.
8.
Under
-
Voltage limit setting and readback.
9.
Power
-
supply start up mode (last setting or safe mode).
1.2.6
Analog voltage programming and monitoring
Analog inputs and outputs are provided at the rear panel for analog contr
ol of the power supply. The
Output Voltage and the Current can be programmed by analog voltage or by resistor, and can be
monitored by analog voltage. The power supply output can be remotely set to On or Off and analog
signals monitor the proper operation
of the power supply and the mode of operation (CV/CC).
1.2.7
Parallel operation
Genesys
TM
power supplies of the same Output Voltage and Current rating can be paralleled in a
master
-
slave configuration with automatic current sharing to i
n
crease power availabl
e.
1.2.8
Output connections
Output connections are made to rear panel bus
-
bars for models up to 100V and to a 4
-
terminal wire
clamp connector for models above 100V rated output voltage. Either the positive or negative terminal
may be grounded or the output may b
e floated. Models up to 60VDC Rated Output shall not float ou
t-
puts more than +/
-
60VDC above/below chassis ground. Models >60VDC Rated Output shall not float
outputs more than +/
-
600VDC above/below chassis ground. Contact factory for assistance with higher
float vol
t
age applications.
Local or remote sense may be used. In remote sense, the voltage drop on the load wires should be
minimized. Refer to the specifications for the maximum vol
t
age drop value.

83
-
5
15
-
0
00
Rev.
B
8
1.2.9
Cooling and mechanical construction
The Genesys
TM
series is cooled by internal fans. At the installation, care must be taken to allow free
ai
r
flow into the power supply via the front panel and out of the power supply via the rear panel. The
Gen
e
sys
TM
power supplies have a compact and lightweight packag
e, which allows easy installation
and space saving in the application equipment.
1.3 ACCESSORIES
1.3.1
General
Accessories are delivered with the power supply or separately upon ordering. The list below shows
the possible accessories and ordering n
umbers.
1.3.2
Serial Link Cable
Serial link cable, for linking power supplies by RS485 communication is provided with the power su
p-
ply.
Cable description: 0.5m length, shielded, RJ
-
45 type plugs, 8 contacts (P/N:GEN/RJ
-
45).
1.3.3
Misc. hardware

DB25 plug (AMP, 749809
-
9).

Strain relief for AC cord.

Output terminal shield

Output bus bar connection hardware.
1.3.4
AC cables
AC cables are not provided with the power supply.
Refer to Table 1
-
1
for recommended AC input cables (customer supplied). Add a non
-
locking plug
a
p
proved b
y the national safety standards of the county of usage.
AC Input Range
AC Input Cable
190
-
240V
~
, Three Phase
4 x 1
2
AWG (3 wire plus safety ground), stranded
copper, 300V, 60
°
C minimum, rated for
2
5A. 3m max.
length, outer diameter: 9
~
11mm.
380
-
415V
~
, Th
ree Phase
4 x 1
4
AWG (3 wire plus safety ground), stranded
copper, 600V, 60
°
C minimum, rated for 1
5
A. 3m max.
length, outer diameter: 9
~
11mm.
Table 1
-
1
: Recommended AC input cable
CAUTION
Observe all torque guidelines within this manual. Over
-
torquing may da
m
age
Unit or accessories. Such damage is not covered under manufacturers warranty.

83
-
5
15
-
0
00
Rev.
B
9
CHAPTER 2 SPECIFICATIONS

83
-
5
15
-
0
00
Rev.
B
10

83
-
5
15
-
0
00
Rev.
B
11
NOTES:
*1: Minimum voltage is guarantee
d to maximum 0.2% of the rated output voltage.
*2: Minimum cu
r
rent is guaranteed to maximum 0.4% of the rated output current.
*3: For cases where conformance to various safety standards (UL, IEC etc.) is required, to be
d
e
scribed as 190
-
240Vac (
50/60Hz)
for
3
-
Phase 200V models
and 380
~
415Vac (50/60Hz) for 3
-
Phase 400V mo
d
els.
*4: 3
-
Phase 200V models: at 200Vac input voltage
3
-
Phase 400V: at 380Vac input voltage. With rated output power.
*5: Not including EMI fil
t
er inrush cu
r
rent, less than
0.2mSec.
*6: 3
-
Phase 200V mo
d
els: 170
~
265Vac, constant load.
3
-
Phase 400V models: 342
-
460Vac, constant load.
*7: From No
-
load to Full
-
load, constant input voltage. Measured at the
sensing point in Remote
Sense.
*8: For 8V
~
300V models: measured with J
EITA RC
-
9131A (1:1) probe.
For 600V model: measured with 10:1 probe.
*9: From 10% to 90%
or 90%
to 10% of rated output voltage, with rated, resistive load.
*10: From 90% to 10% of rated output voltage.
*11: For load voltage change, equal to the unit v
oltage rating, constant input voltage.
*12: For 8V
~
1
6
V models the ripple is measured at 2V rated output voltage and rated output current.
For other models, the ripple is measured at 10
~
100% of rated output voltage and rated output
current.
*13: The constan
t C
urrent programming readback and monitoring accuracy does not include the
war
m
-
up a
nd load regulation thermal drift
.
2.12 SUPPLEMENTAL CHARACTERISTICS
The supplemental characteristics give typical but non
-
warranted performance characteristics. Th
e
supplemental characteristics are useful in a
s
sessing applications for the power supply. Several kinds
of supplemental characteristics are listed below.
1.
Evaluation Data: Typical performance of the power supply.
2.
Reliability Data: Reliability Performance of
the power supply.
3.
EN61000 Data: Performance of the power supply under EN61000 test conditions.
4.
EMI Data: Typical EMI (conducted and radiated) performance of the power su
p
ply.
The supplemental characteristics data is held in each
TDK
-
Lambda Americas Inc.
s
ales and service
facility. For further d
e
tails please contact the
TDK
-
Lambda Americas Inc.
office nearest you.

83
-
5
15
-
0
00
Rev.
B
12
2.13
GENESYS
TM
50
00W POWER SUPPLIES OUTLINE DRAWINGS
